Circuit board test fixture / stand

Gallery
1

Milled this PCBA test fixture from 3"x2.5"x1" polyethylene using the Nomad3

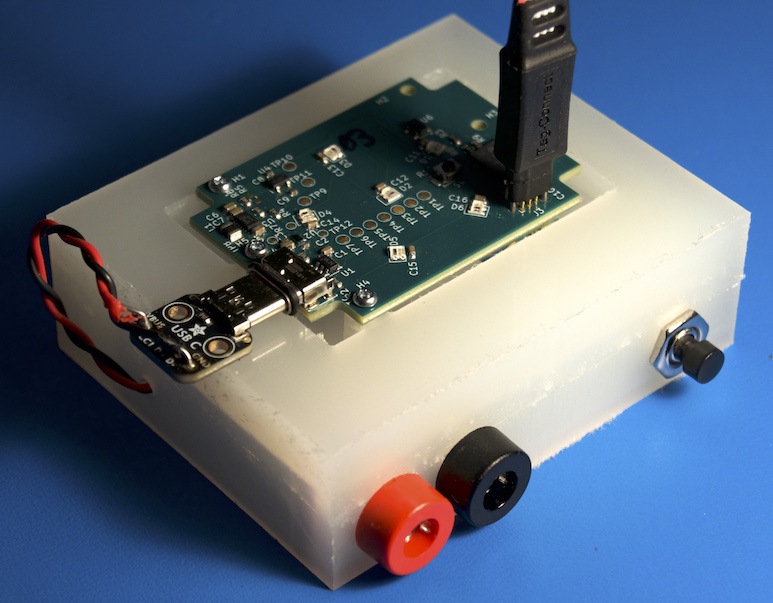

test-fixture-assembled
test-fixture-assembled773×603 110 KB

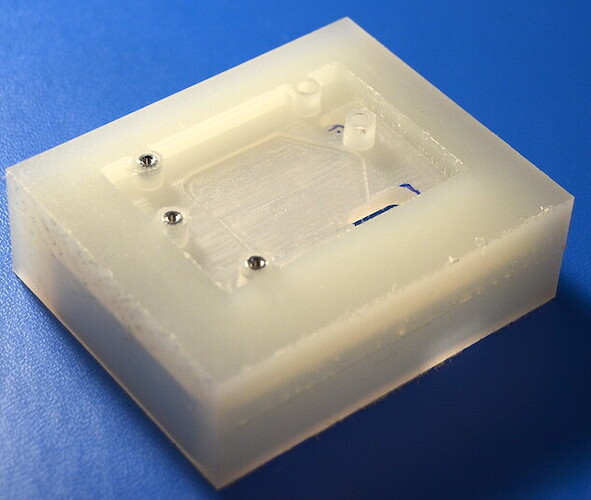

fixture-top
fixture-top632×534 57.1 KB

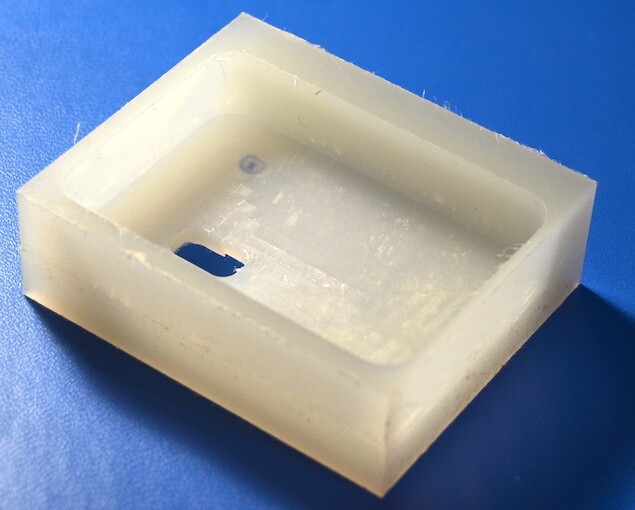

fixture-hollow-under
fixture-hollow-under635×510 59.4 KB

related to [WIP] Electronics Enclosure on Nomad3
