I am having difficulty trying to connect vectors on a eagle file I am working on. Can someone give me some direction on how to get them connected?
Thanks,
Kerry

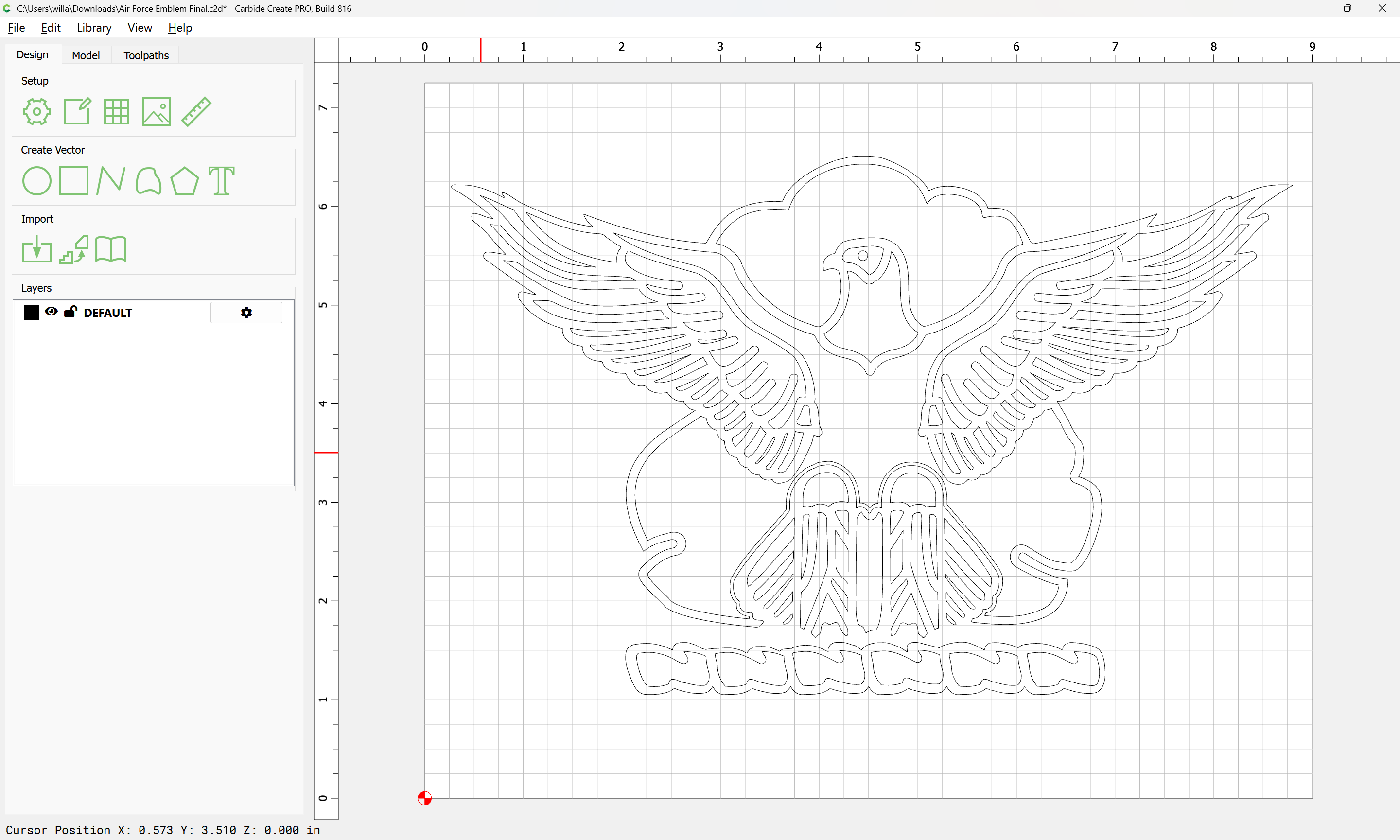

Air Force Emblem Final.c2d (3.4 MB)
You need a set of vectors which describe a closed region.
Working from the outside in, we get:
which needs to be opened up so that it can join with the balance of the other geometry:

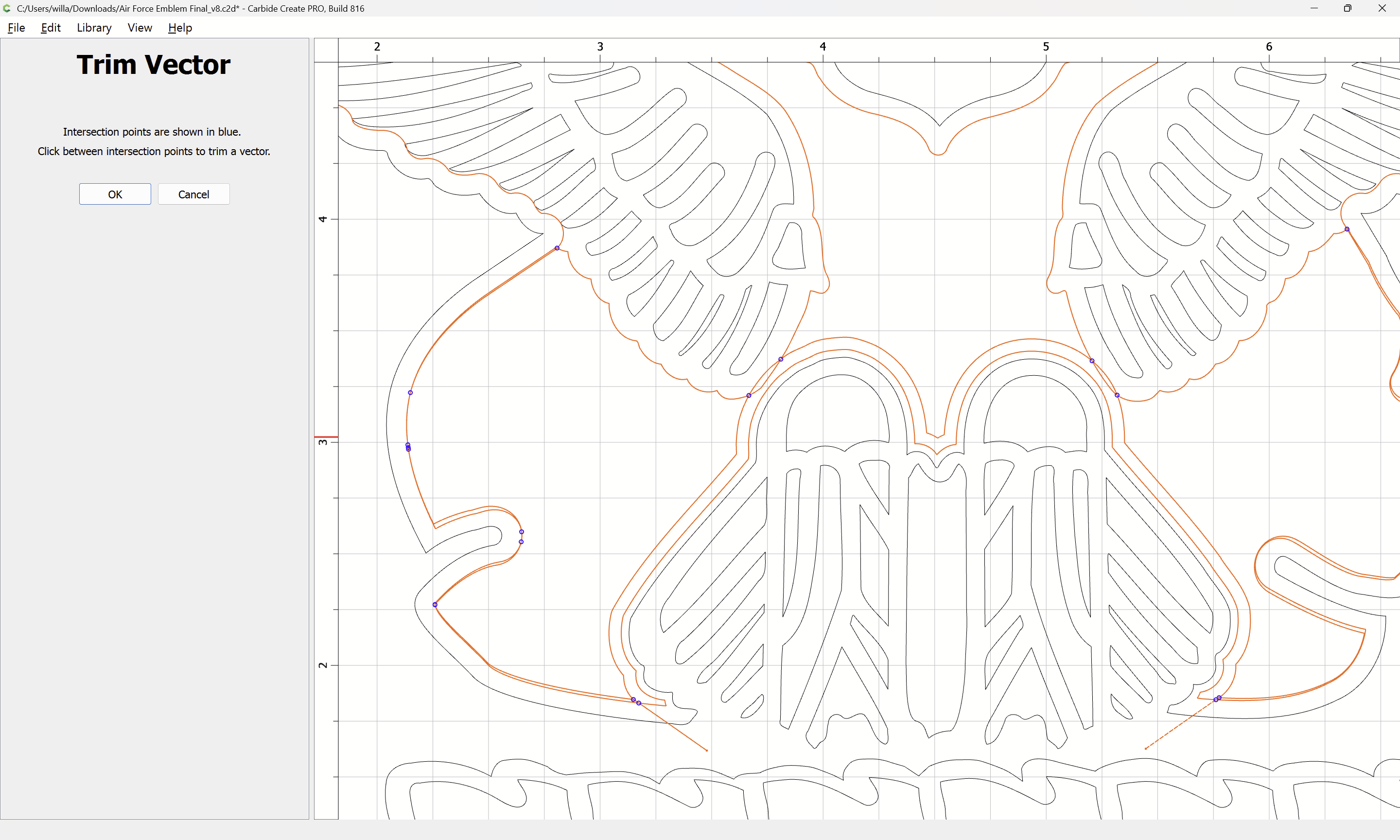

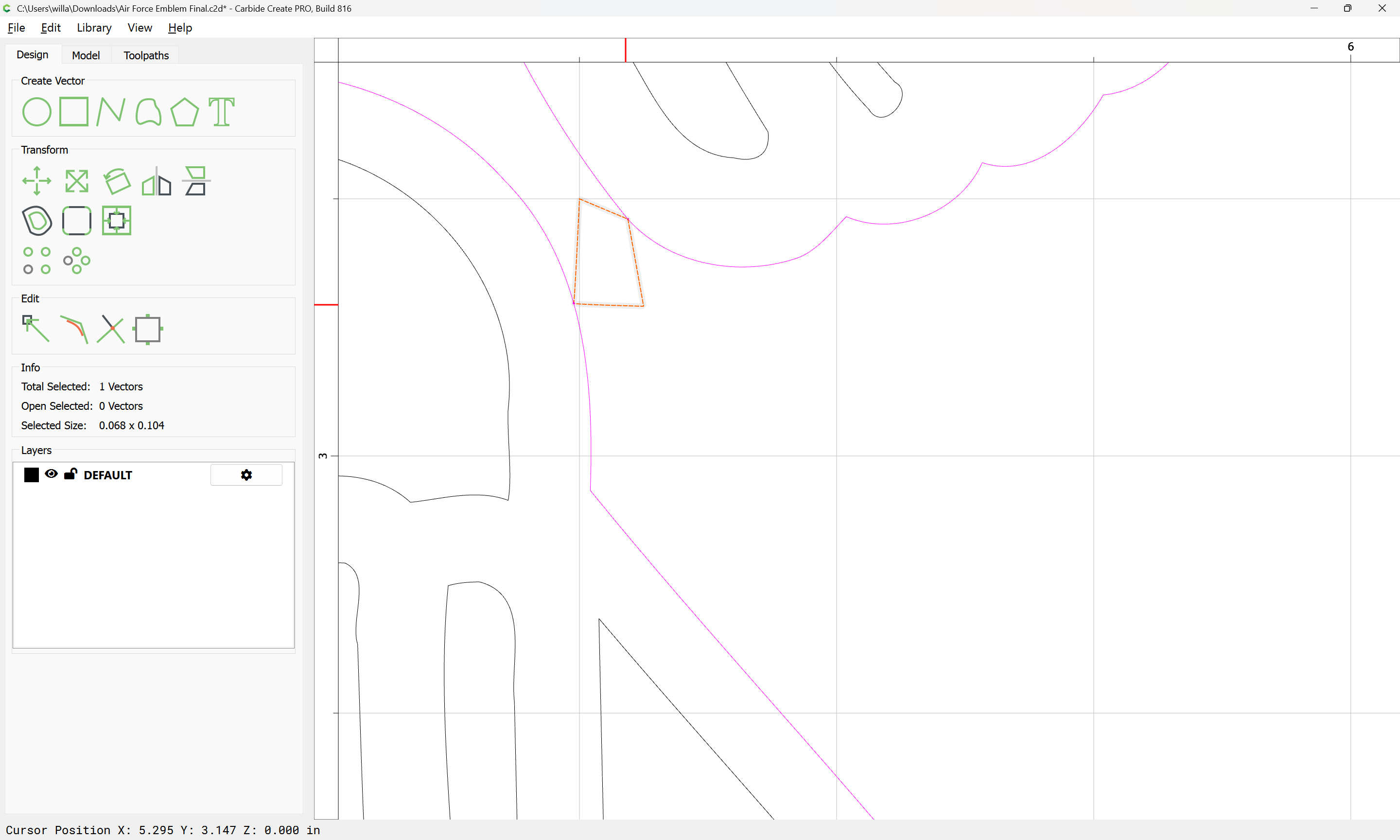

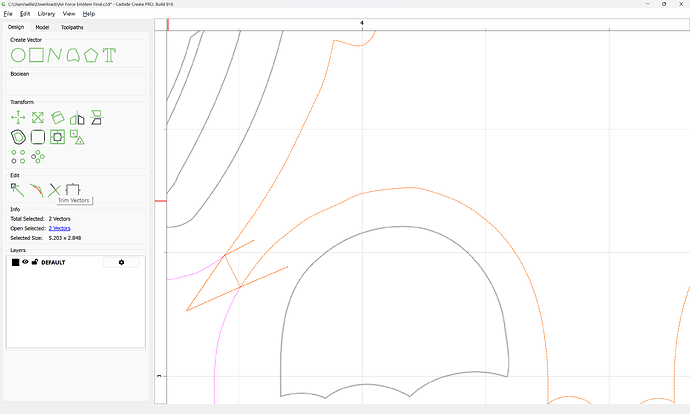

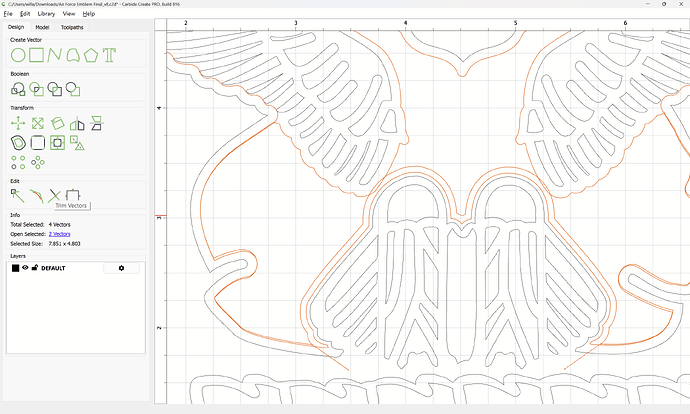

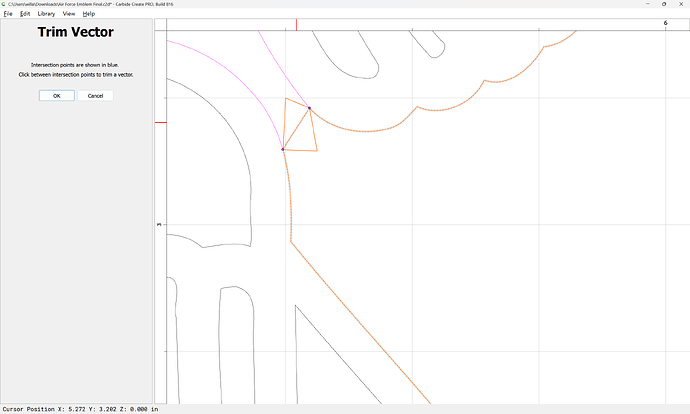

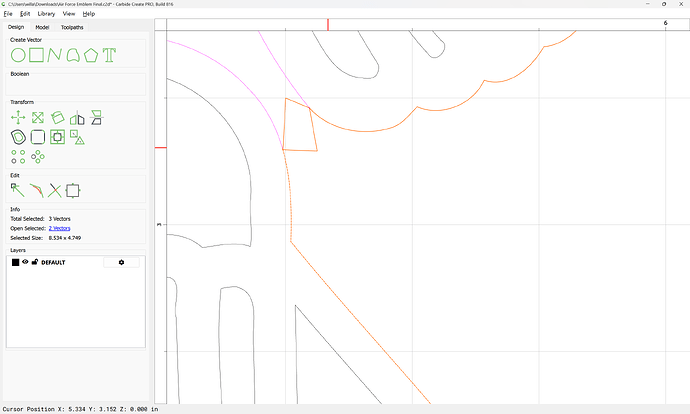

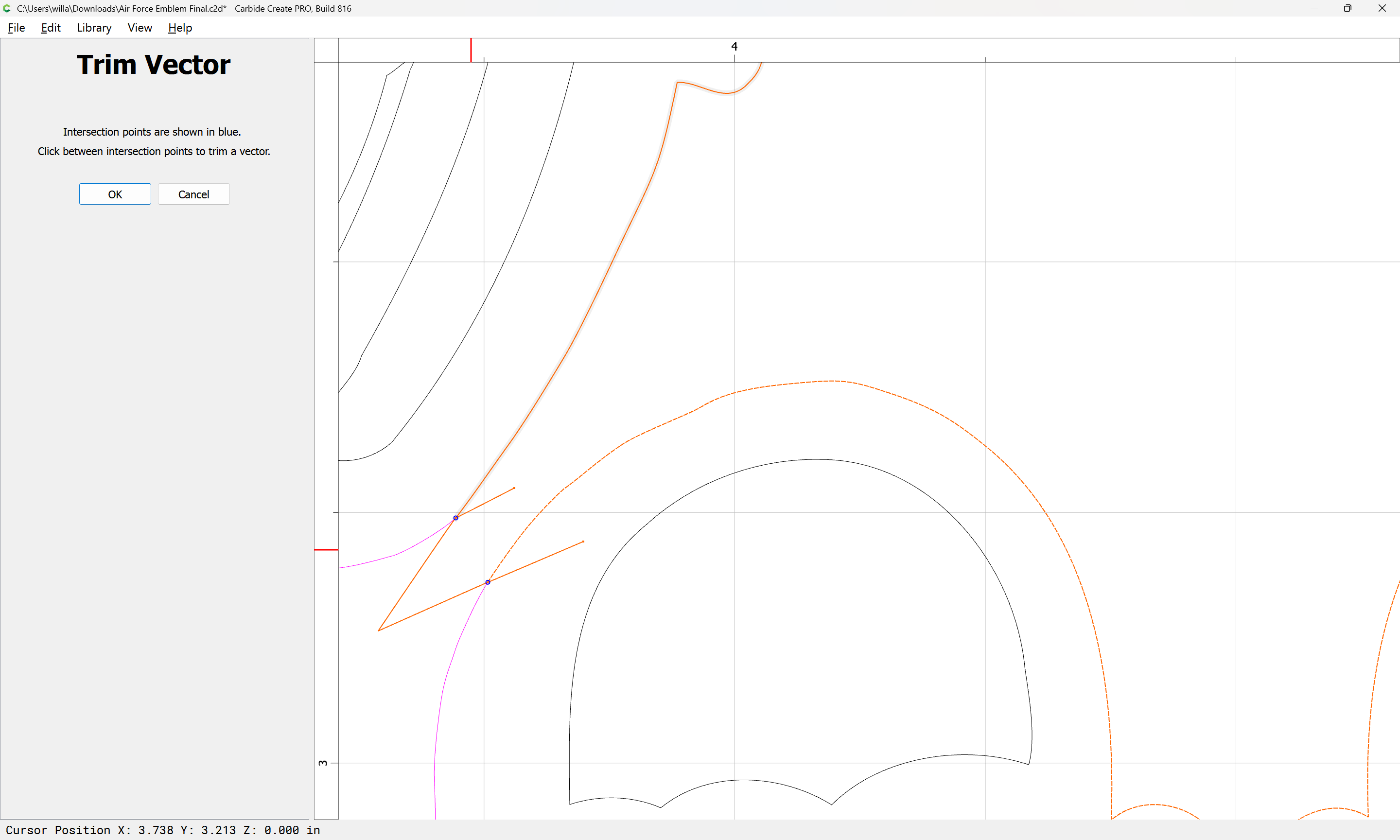

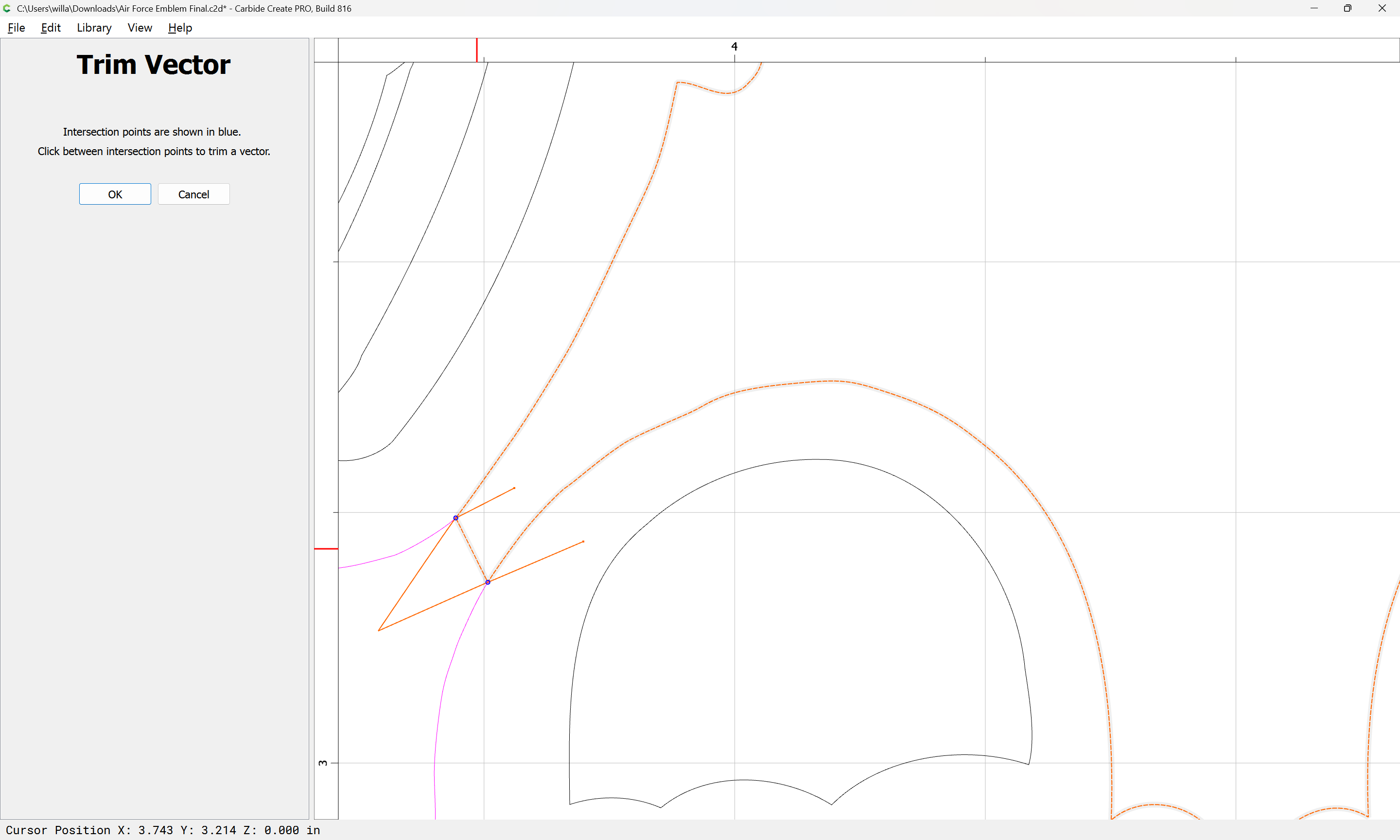

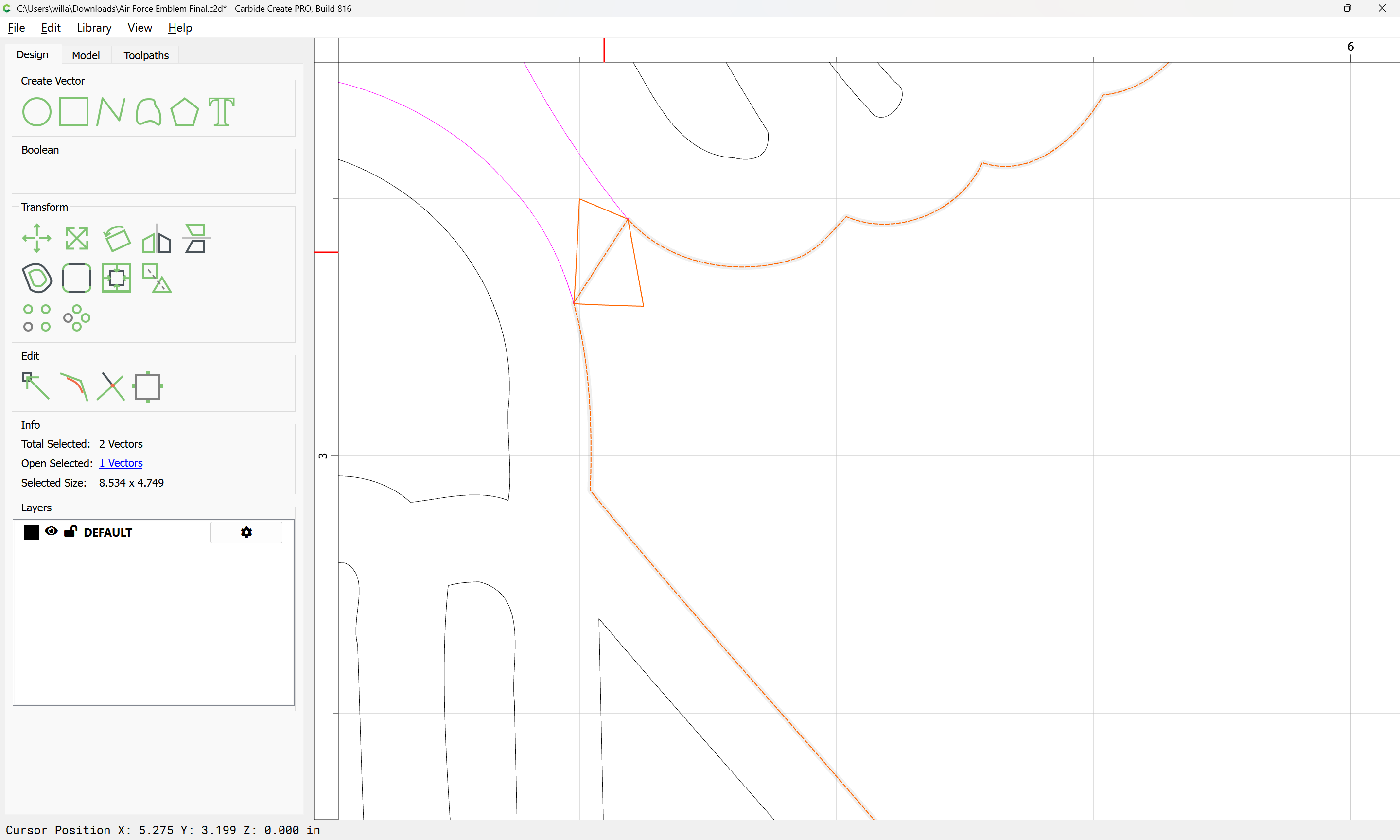

Draw in some geometry and use Trim Vectors:

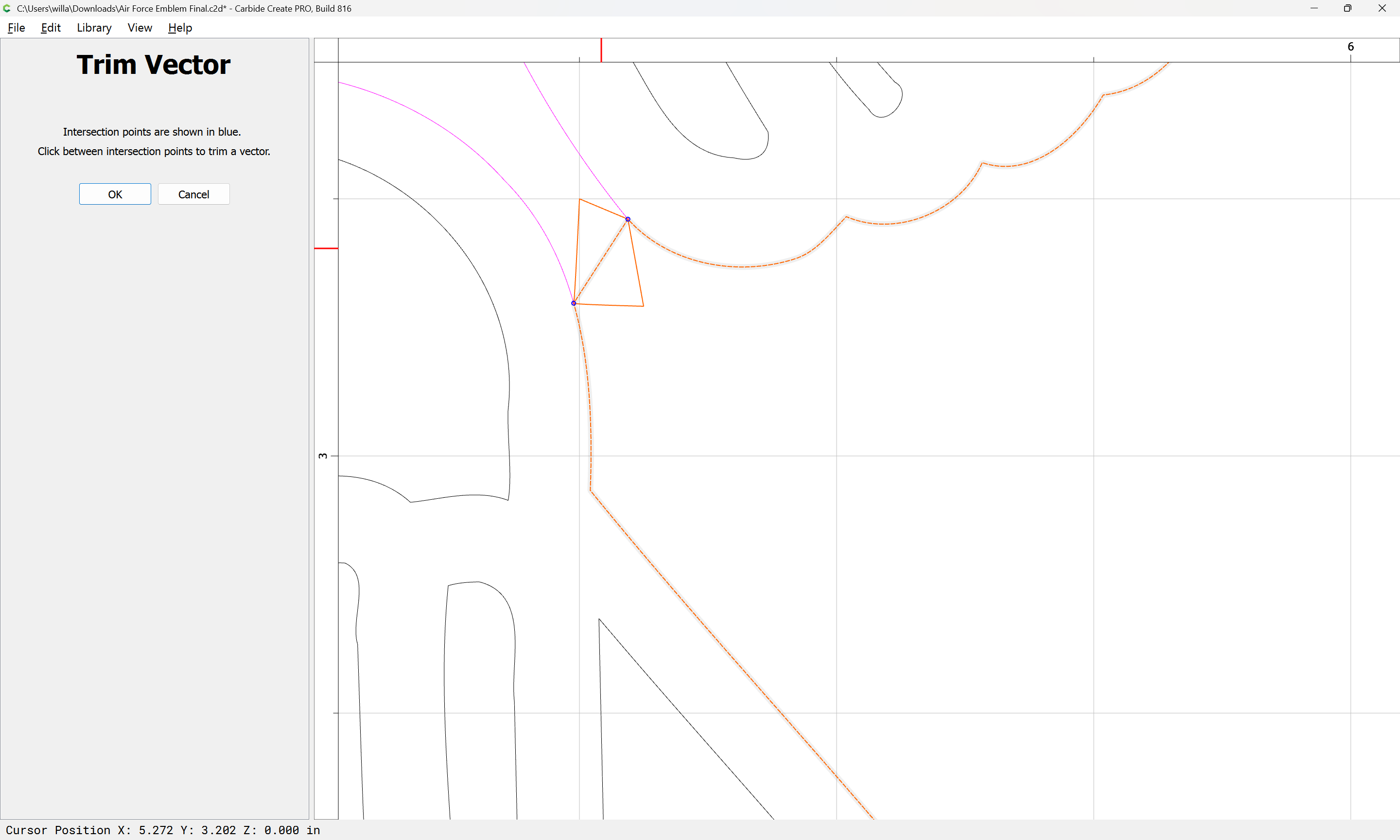

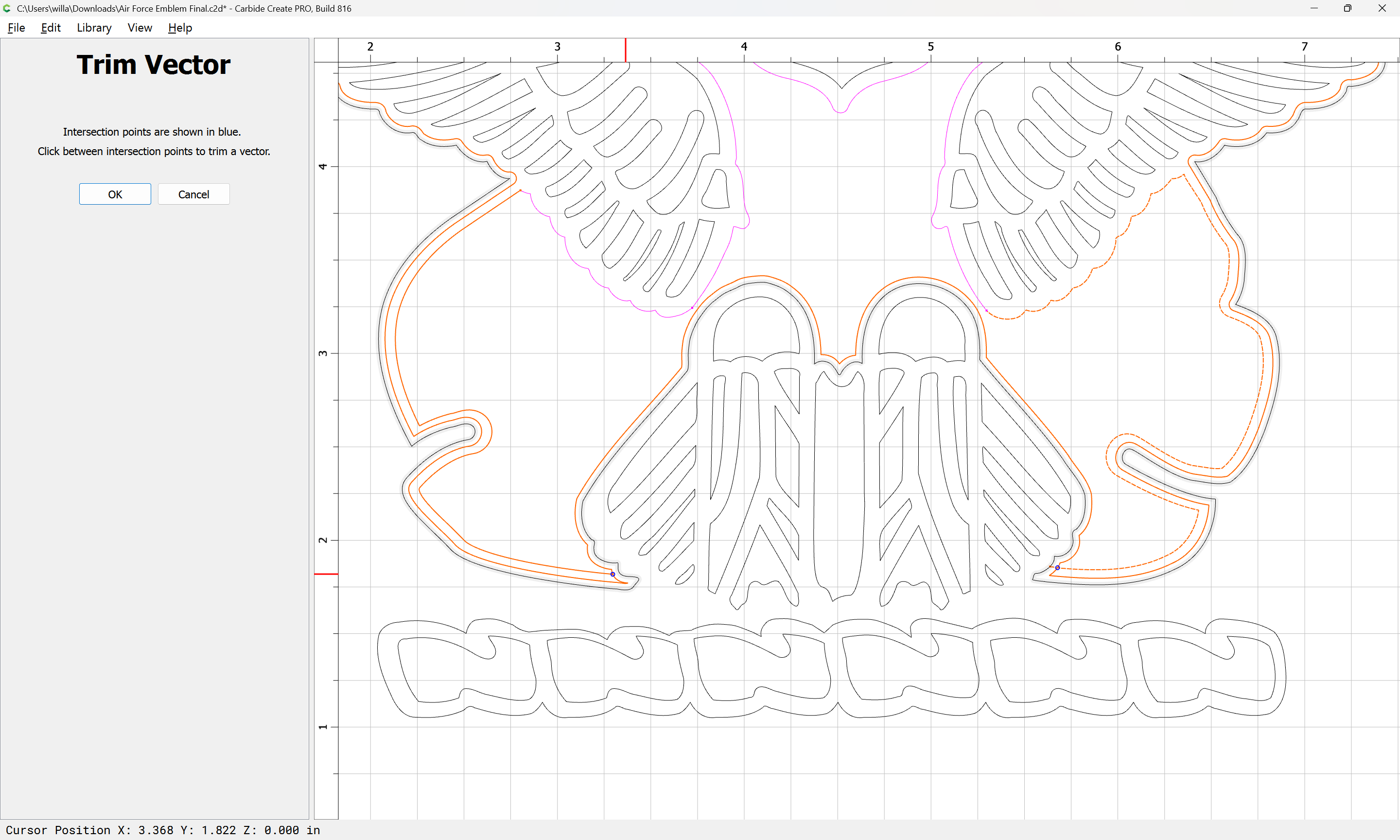

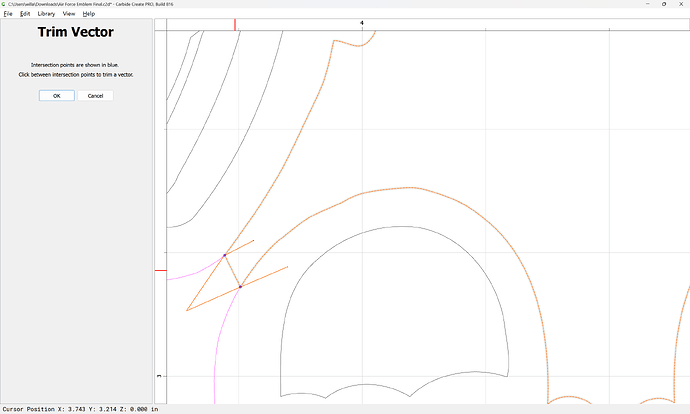

to remove the section which precludes joining with the balance of the geometry:

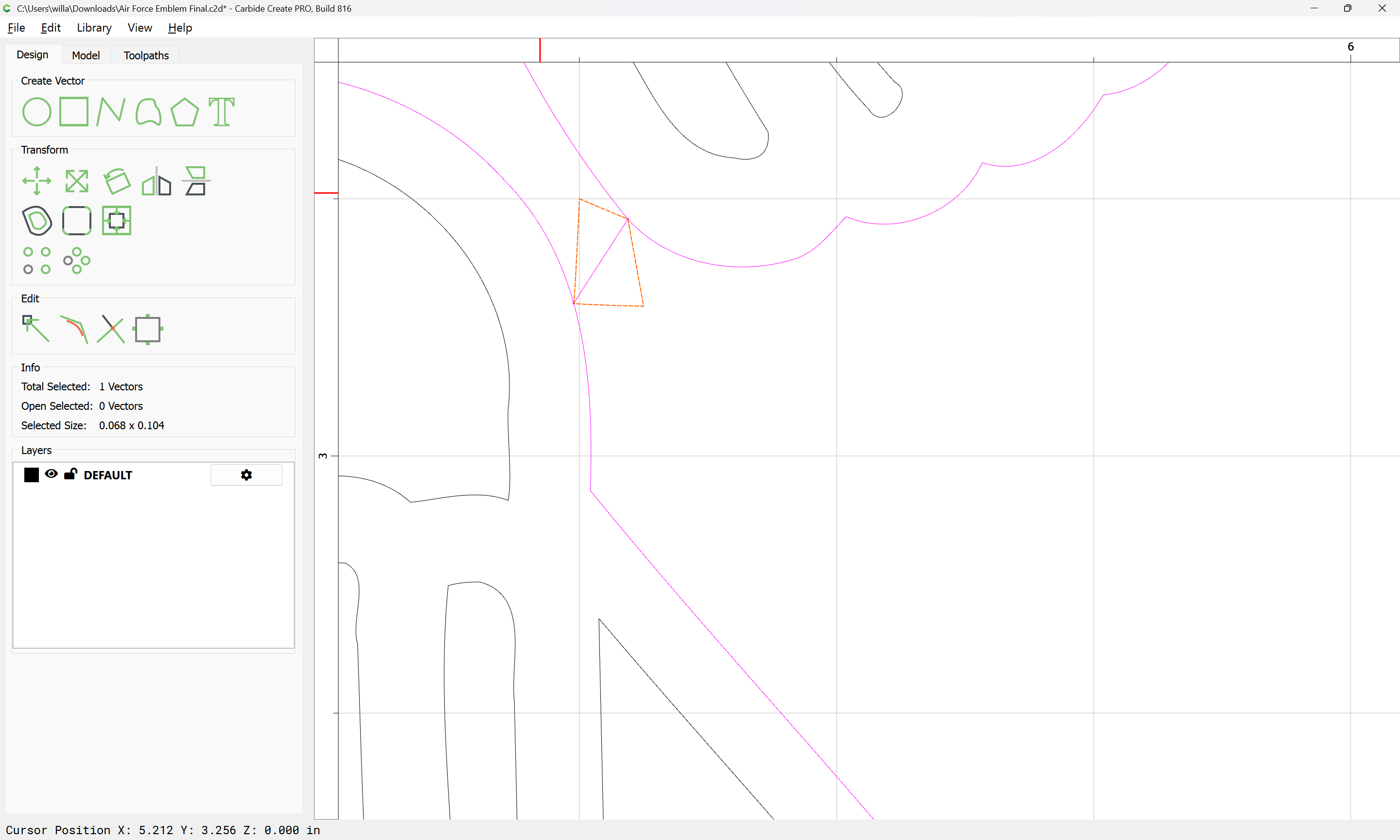

then delete the added geometry:
Repeat for the inner shape:
OK
delete

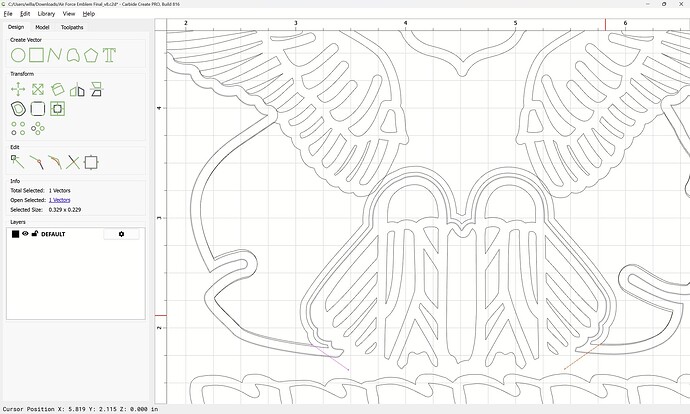

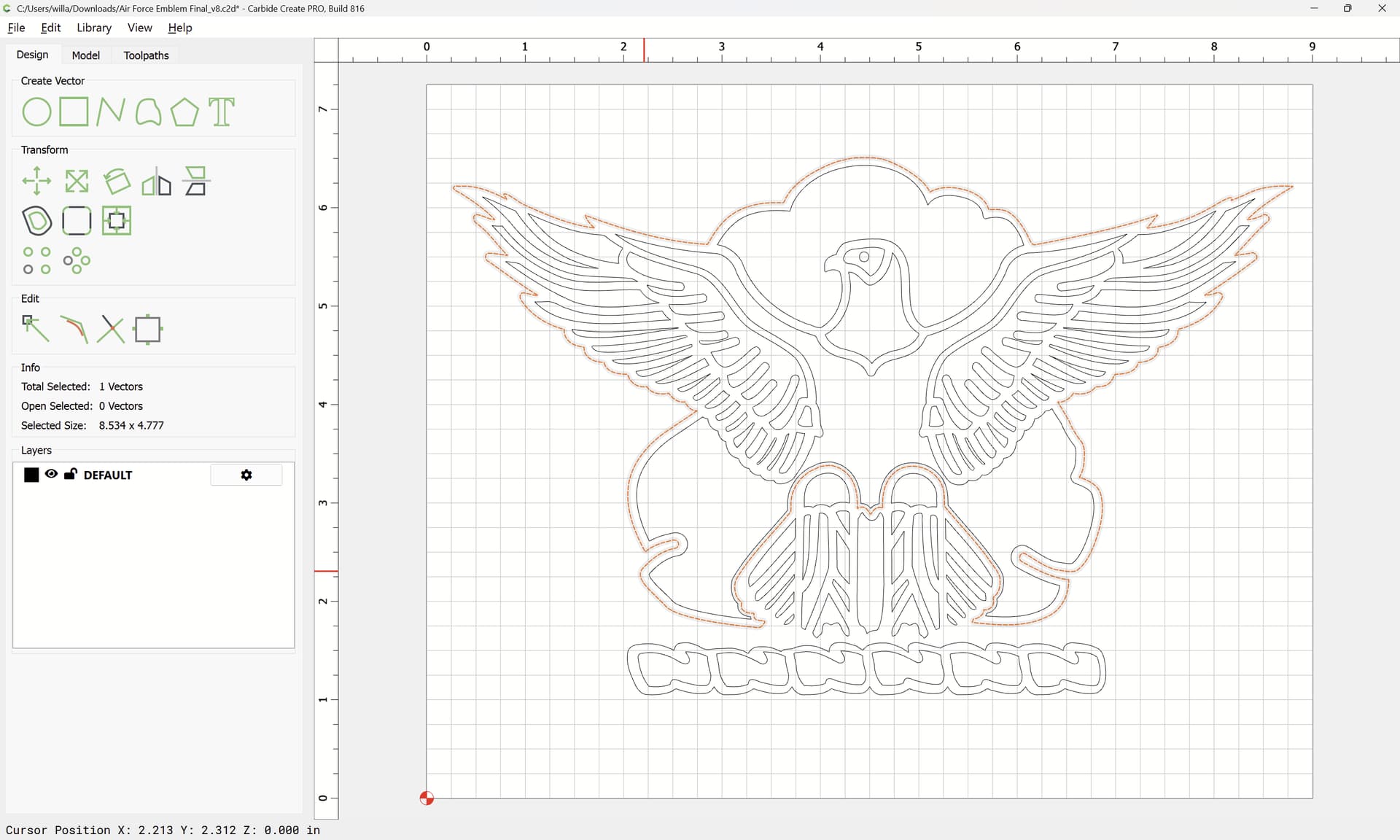

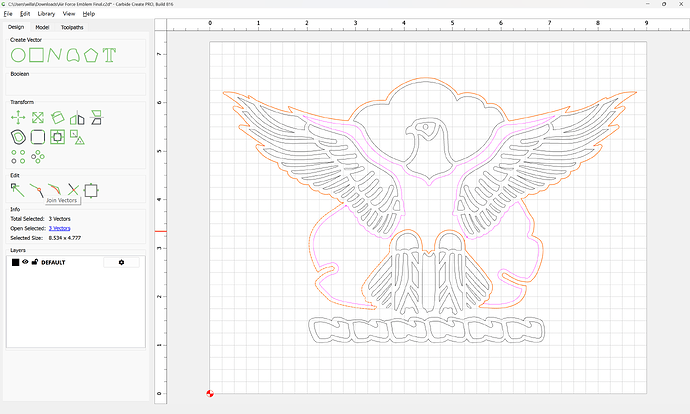

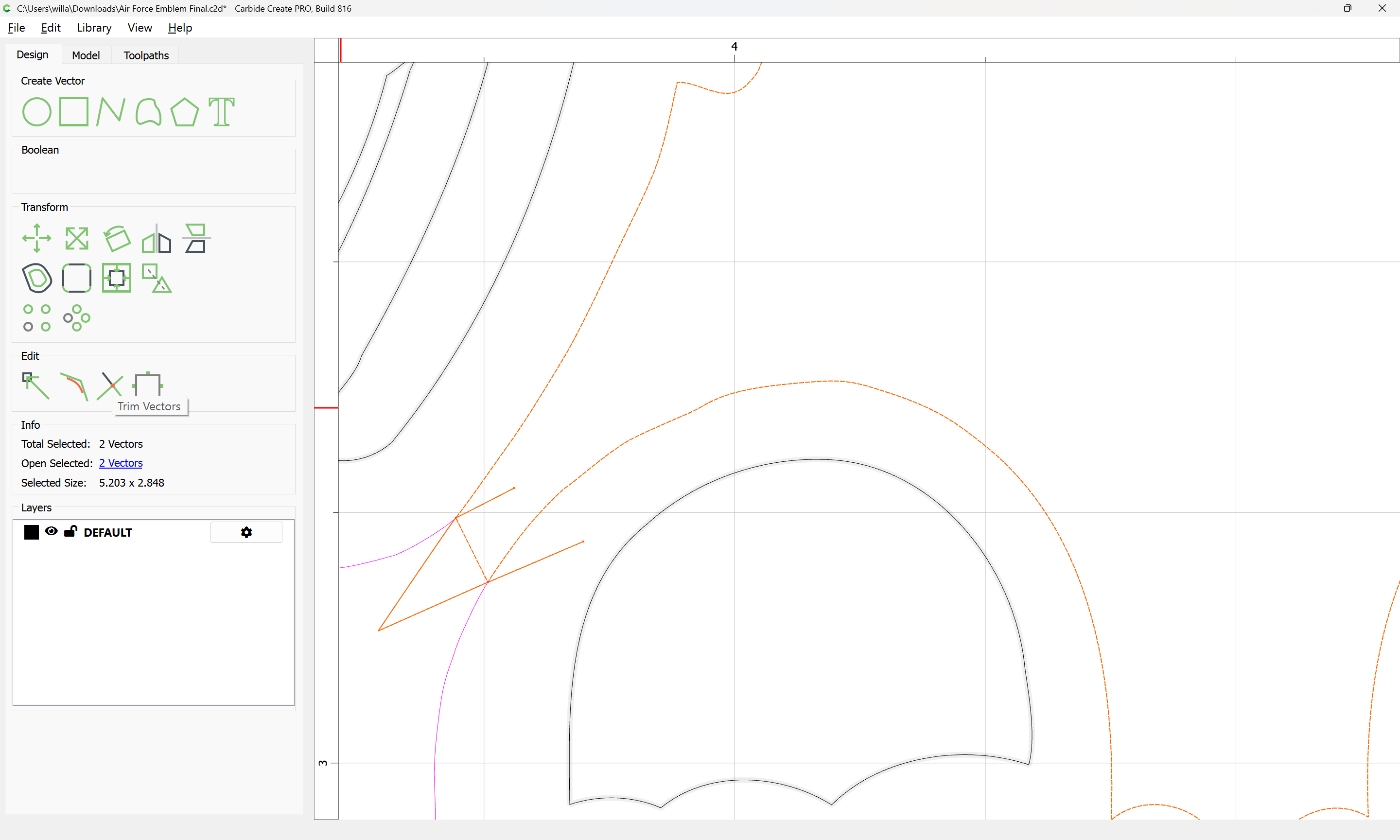

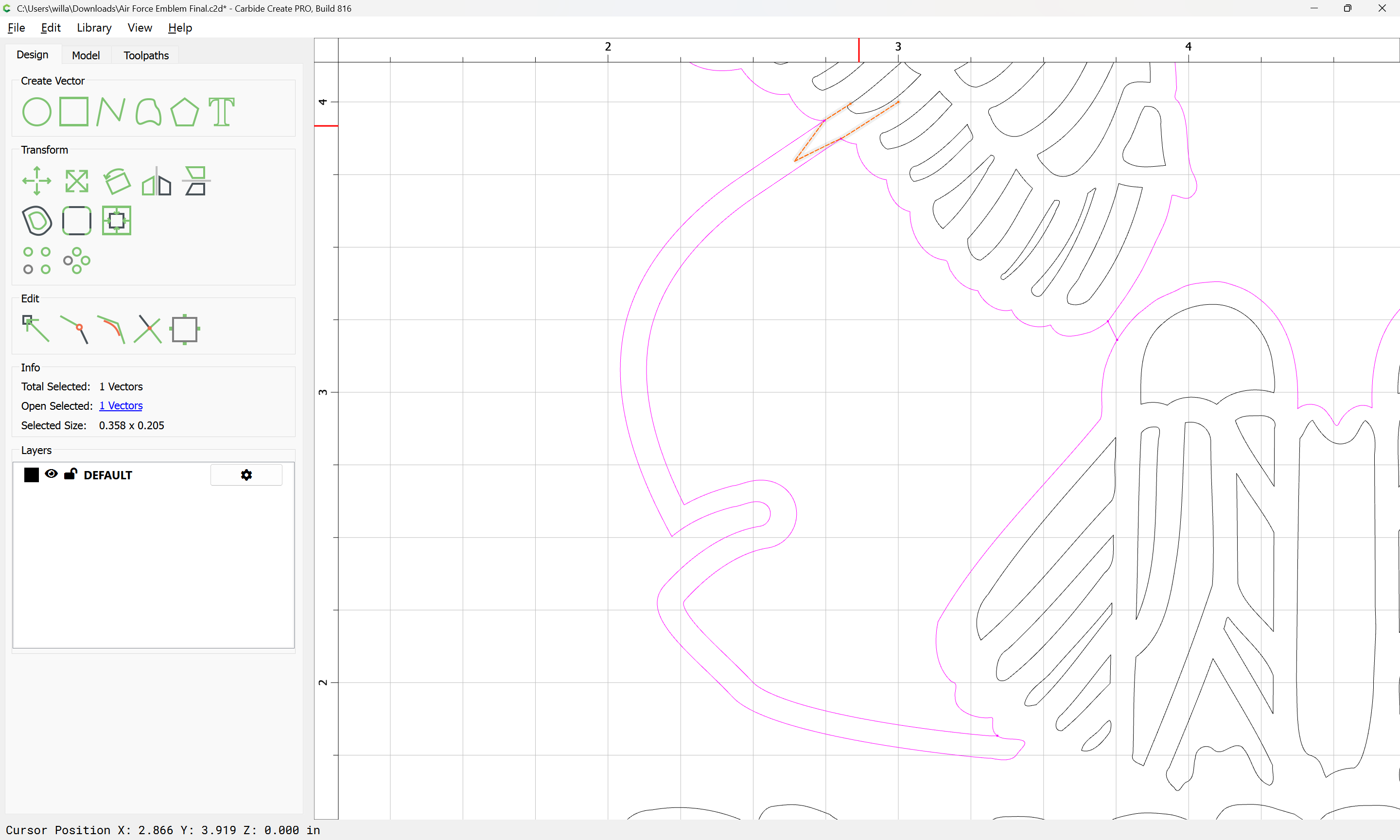

Once you have a continuous set of open vectors they may be selected:
and joined:
The balance of the geometry:
requires some additional offset geometry:

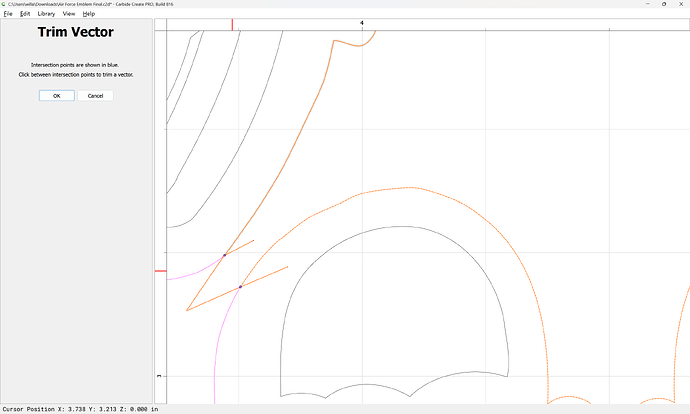

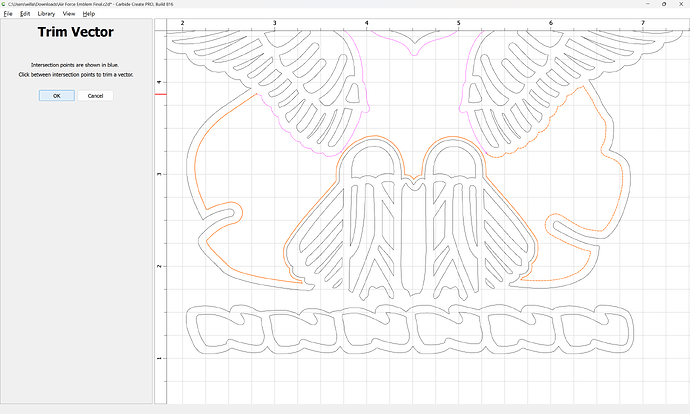

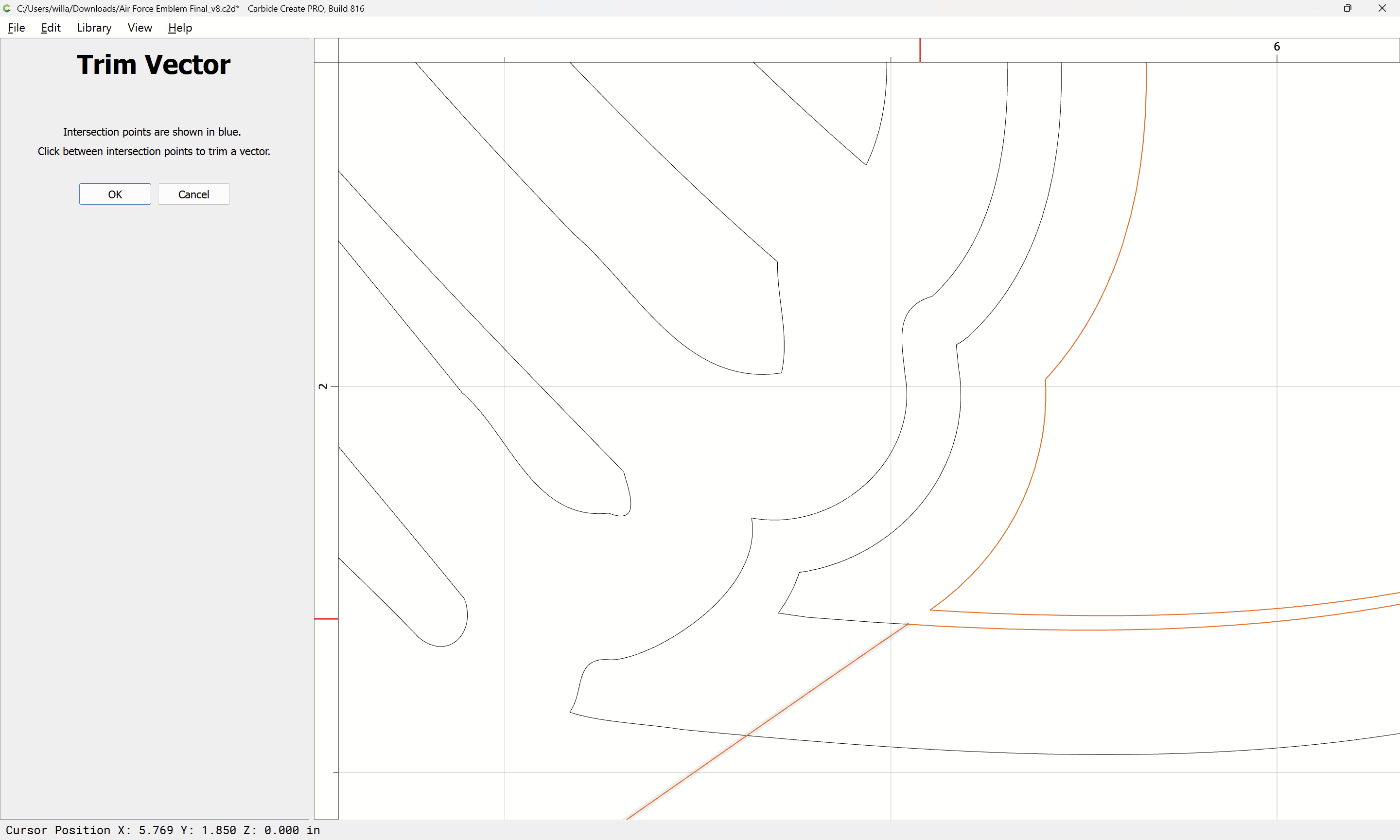

which may then be trimmed down to only what is needed:

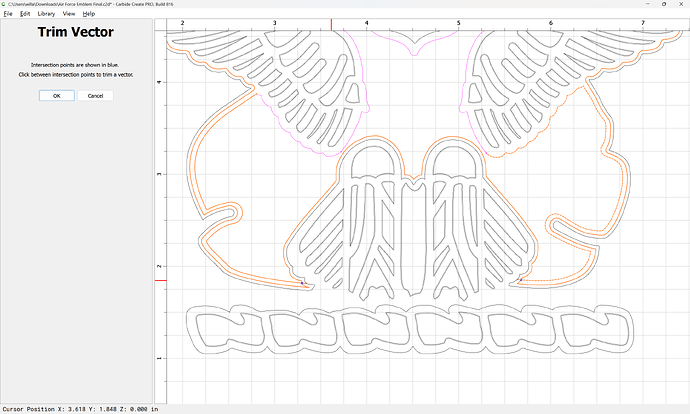

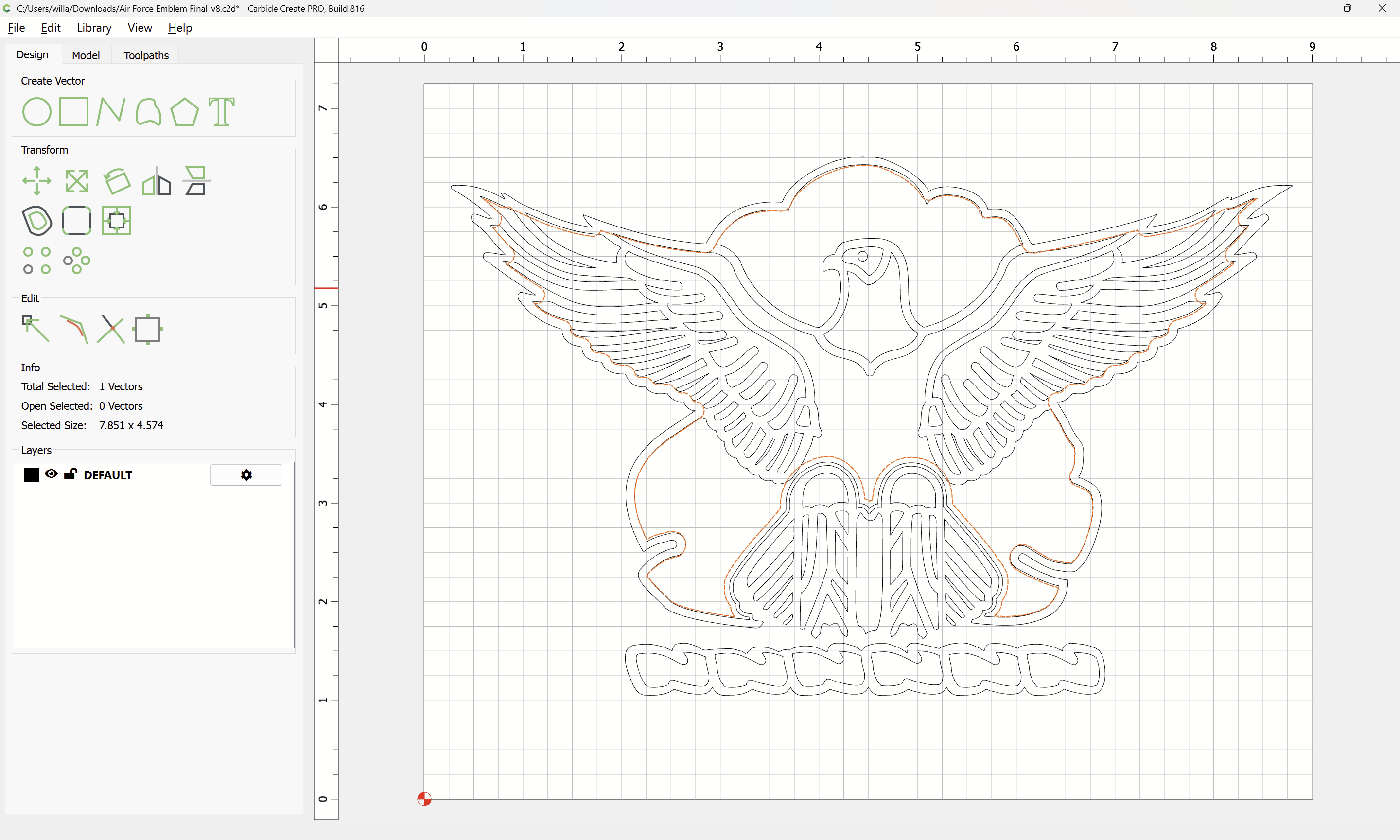

until one arrives at:
OK
OK

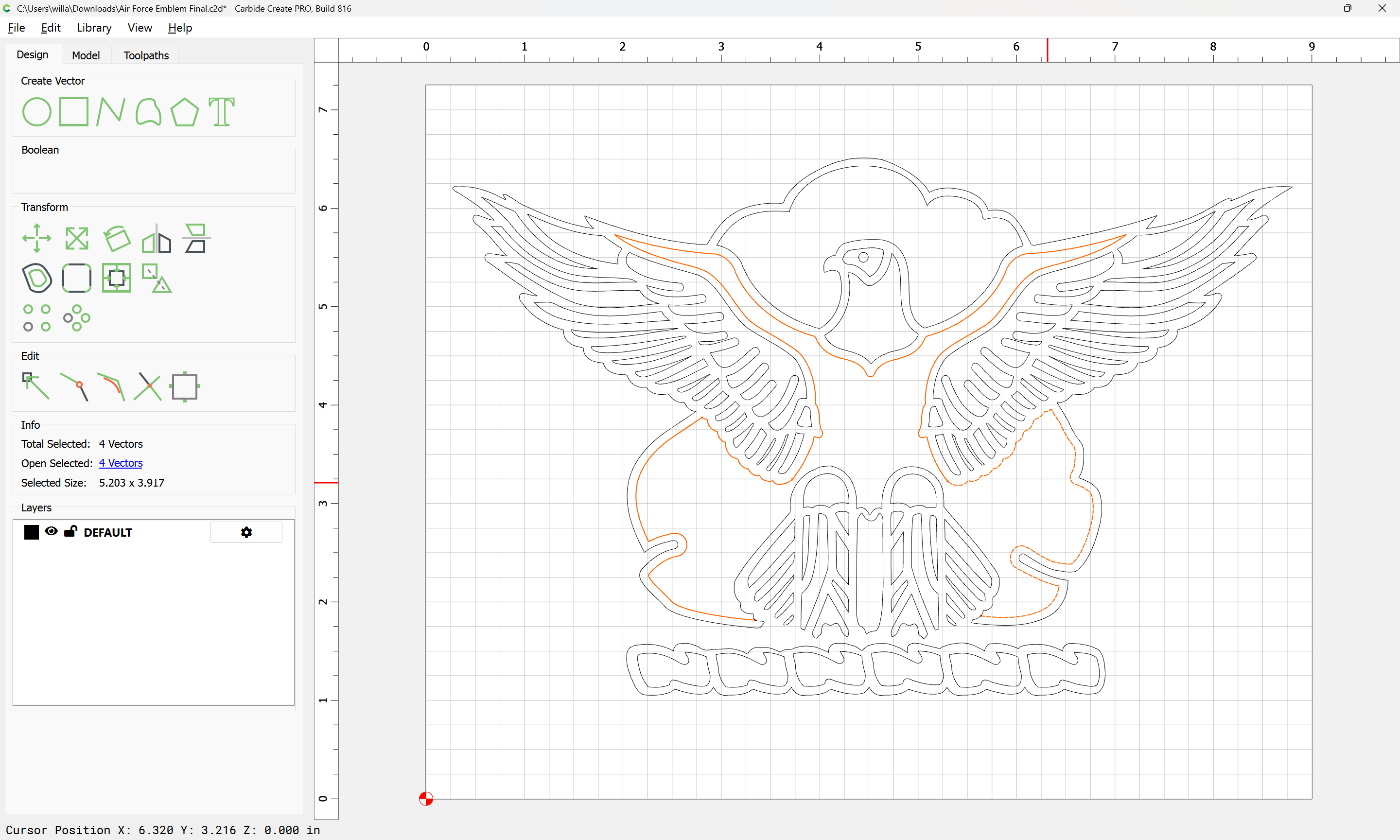

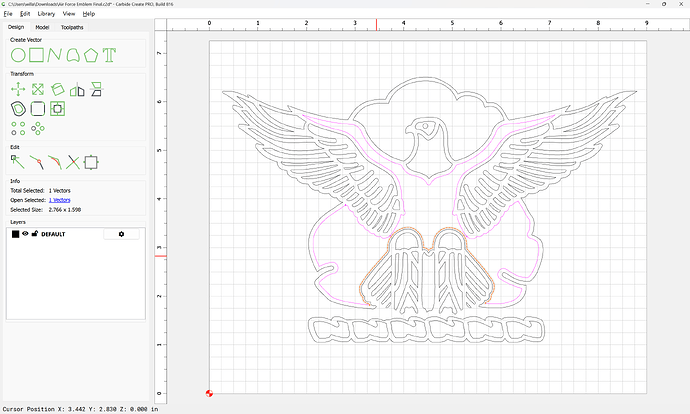

Select the balance of the geometry:

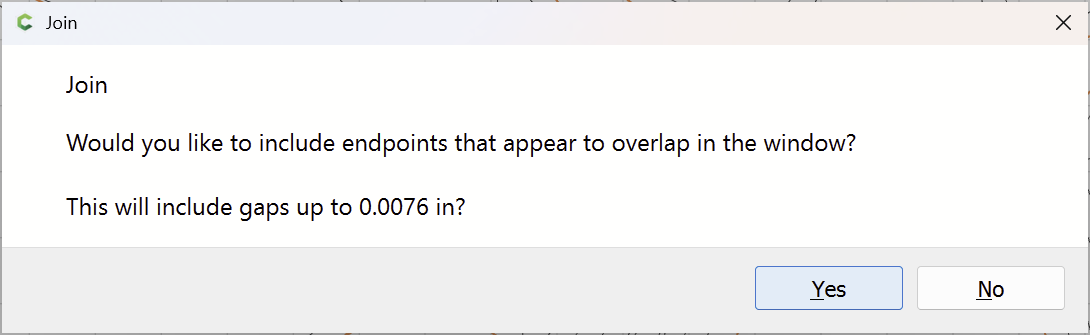

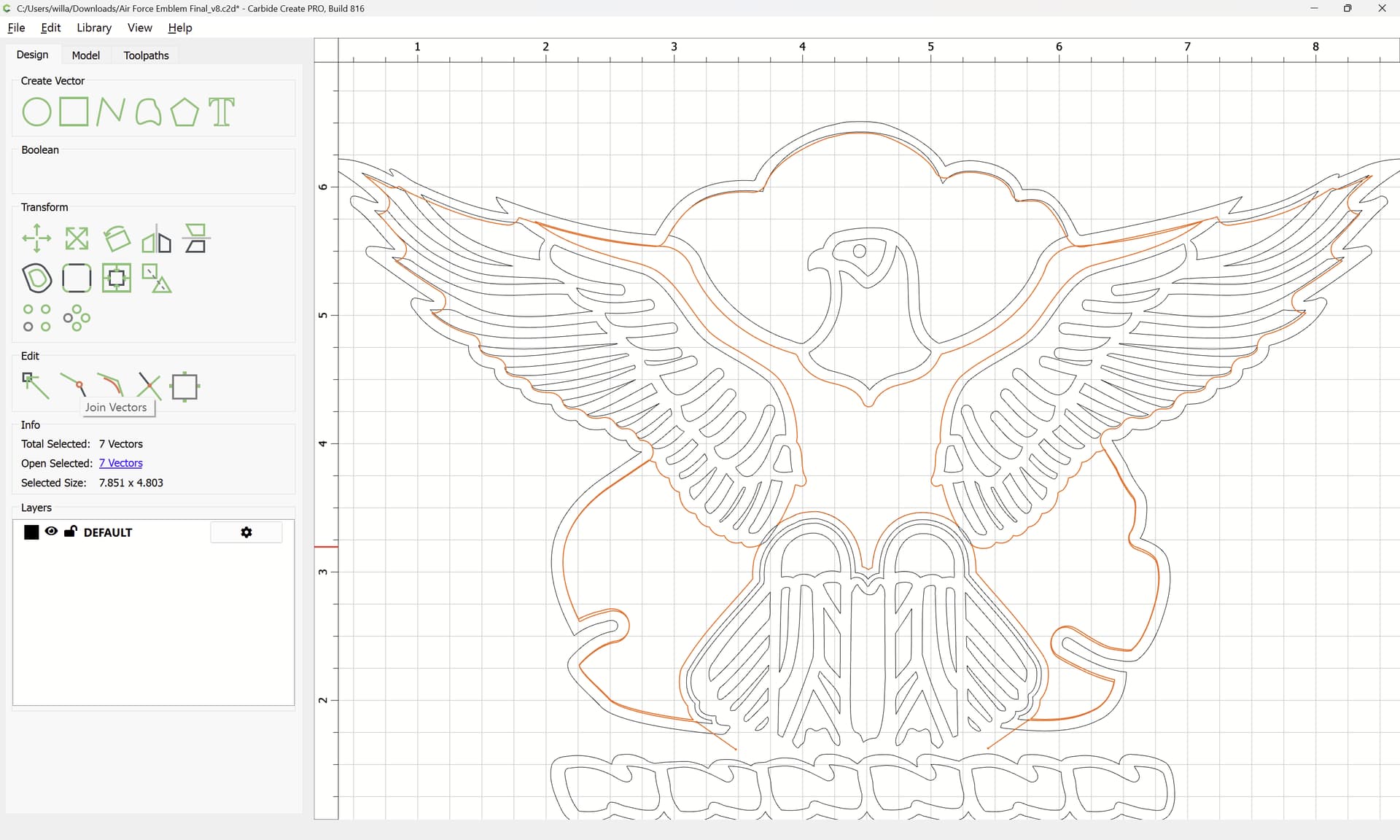

and use Join Vectors to close:
Yes
Attached as a v8 file.
Air Force Emblem Final_v8.c2d (3.4 MB)
Hi William,

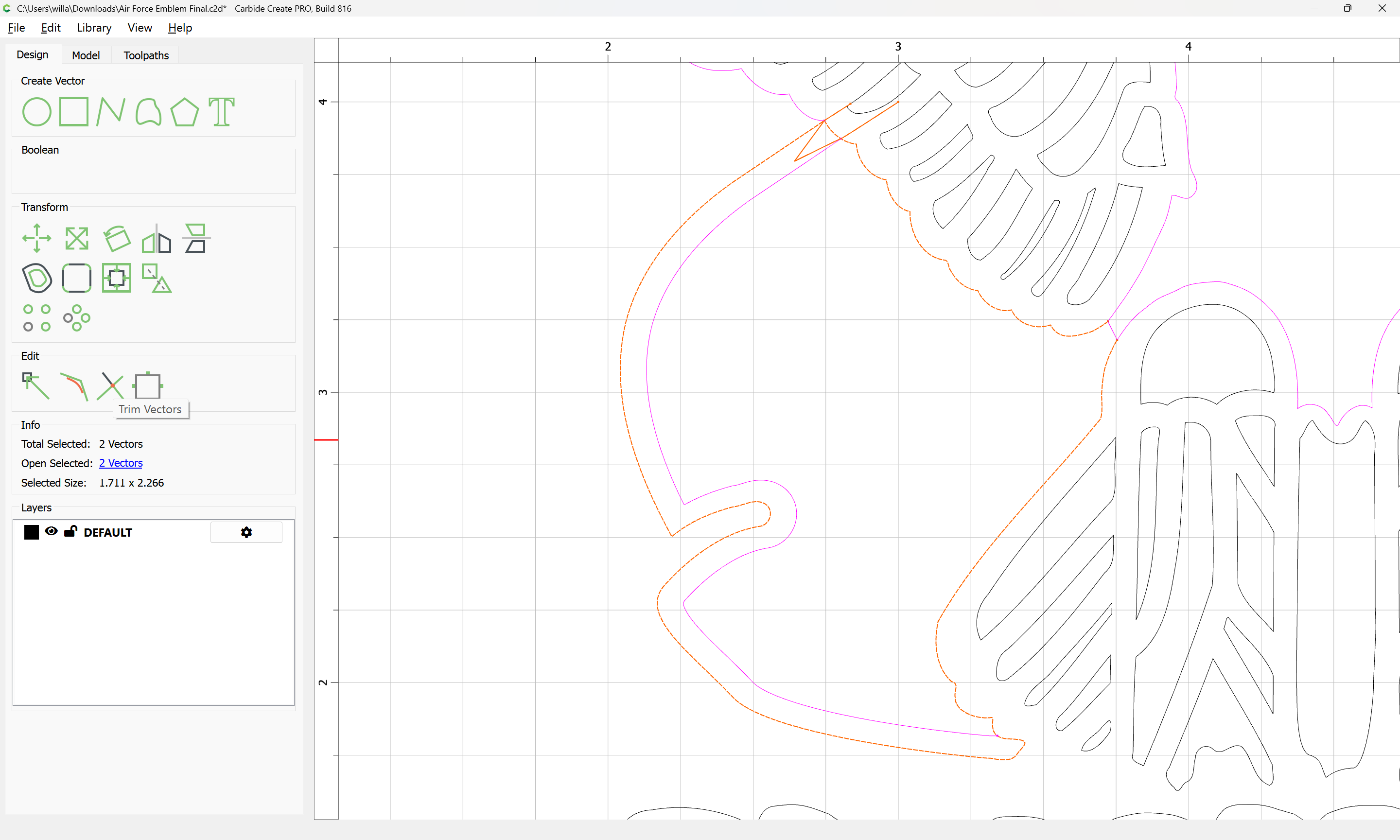

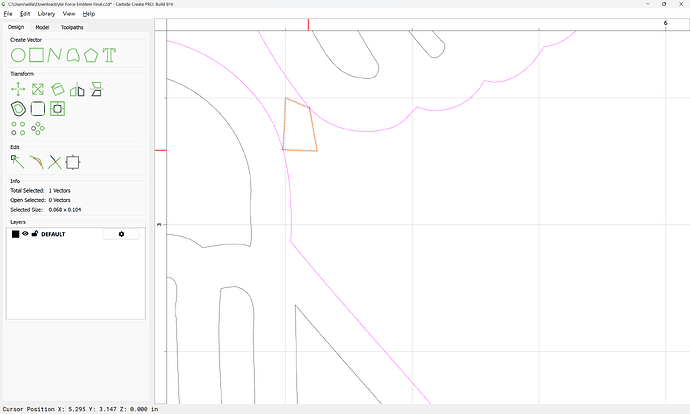

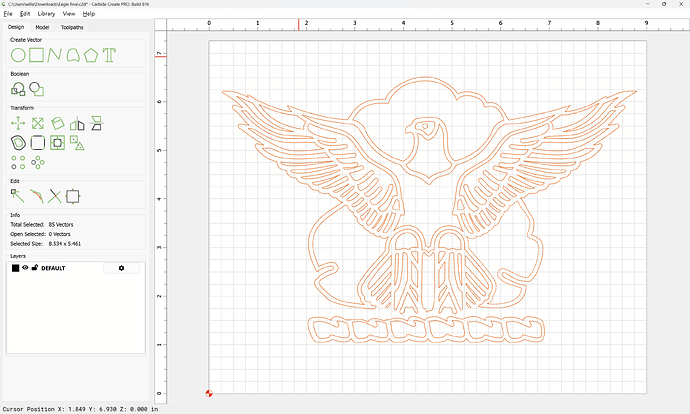

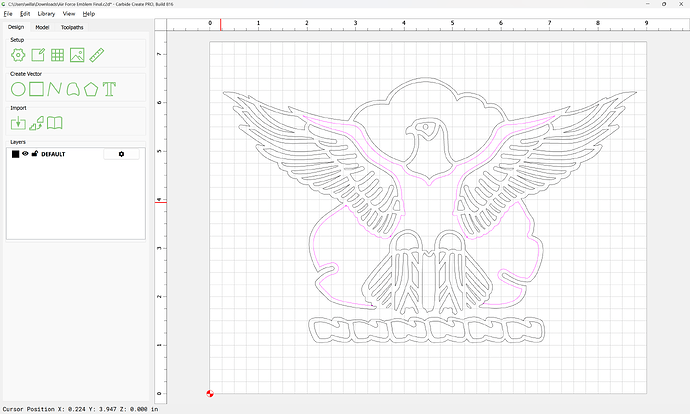

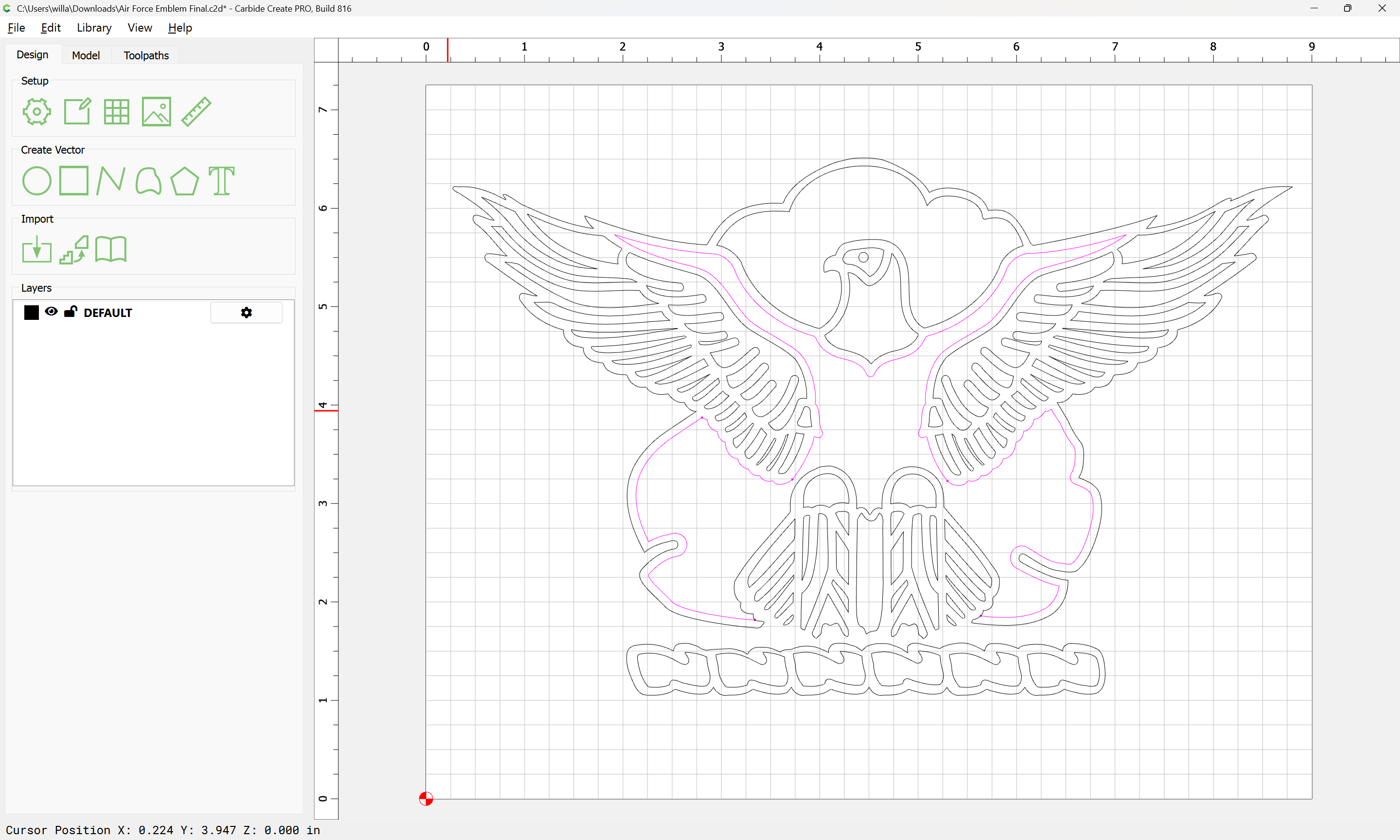

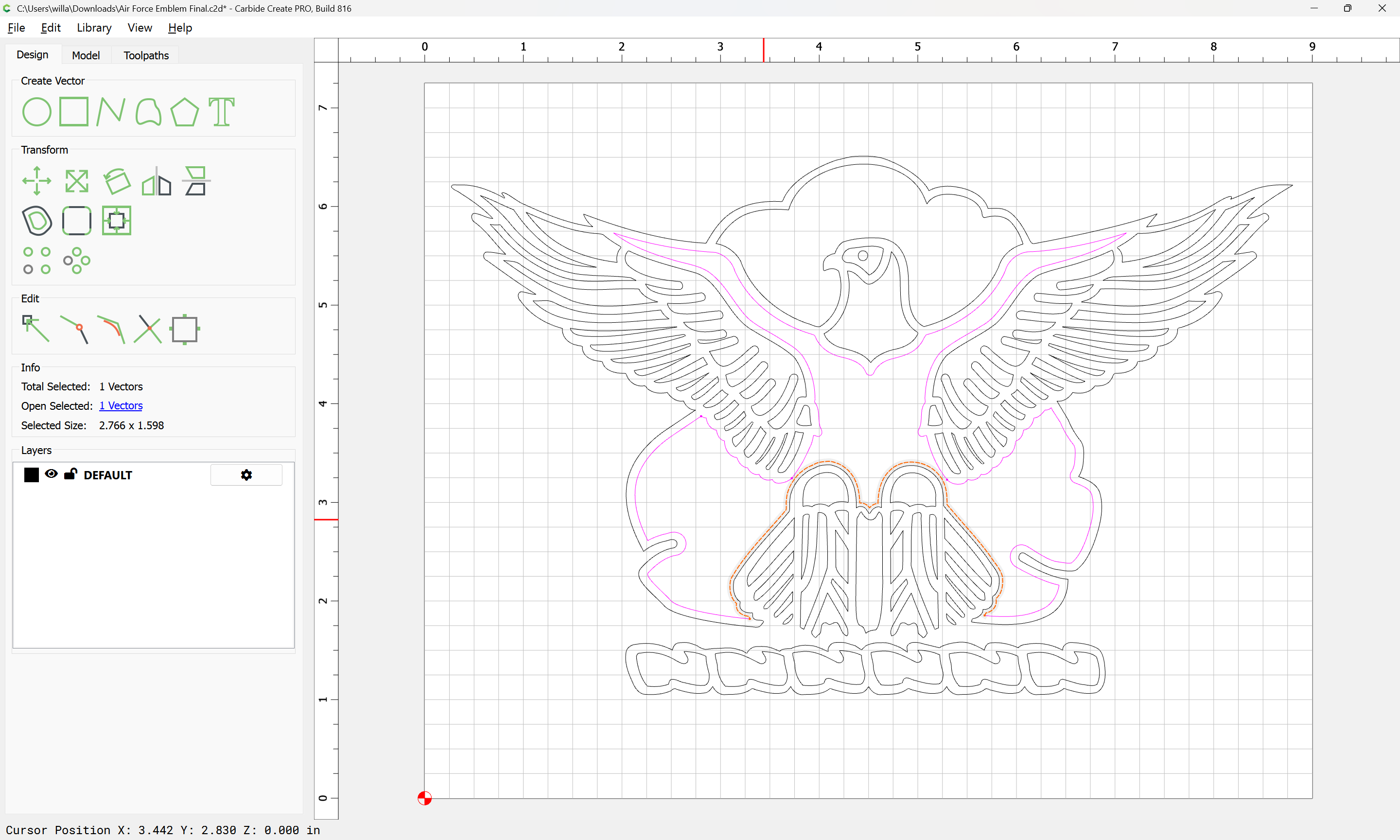

So it looks like I am making progress but still need additional help. I have attached a screenshot of the eagle along with the .c2d file. I am trying to enclose the bottom two areas (W) to be the same as the top area (W) but cannot get the vectors to close. I would also like the outline of the wings to close so I can create a toolpath for them. Can you help with that?
Thanks,
Kerry
Eagle instructions.pdf (174.2 KB)
Eagle final.c2d (300 KB)
This can pretty much be done w/ the previous file which was made:

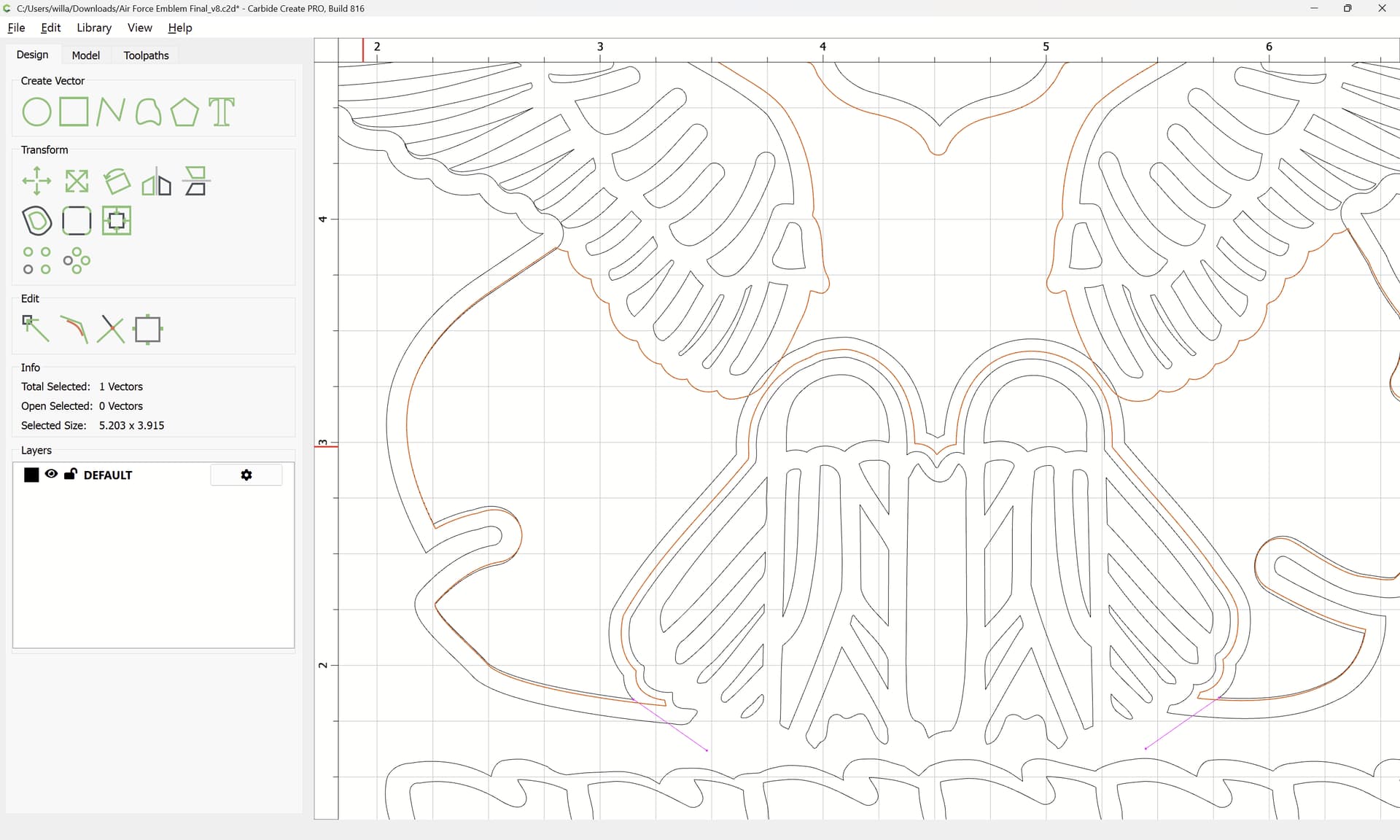

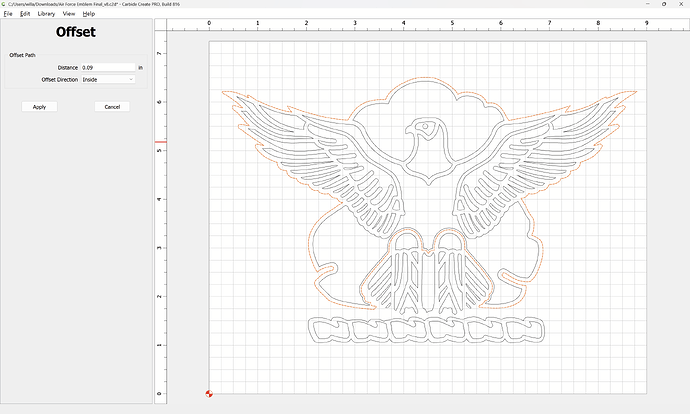

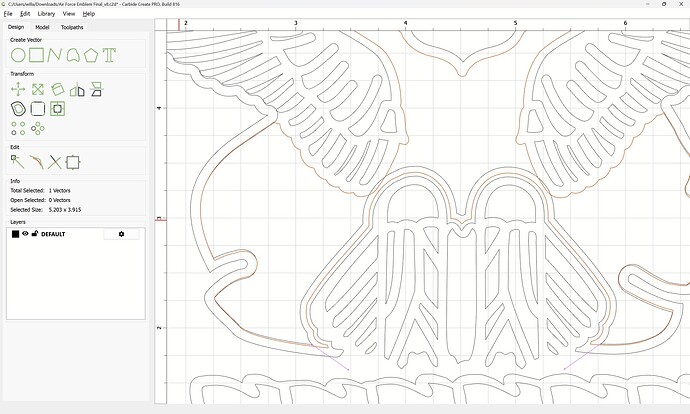

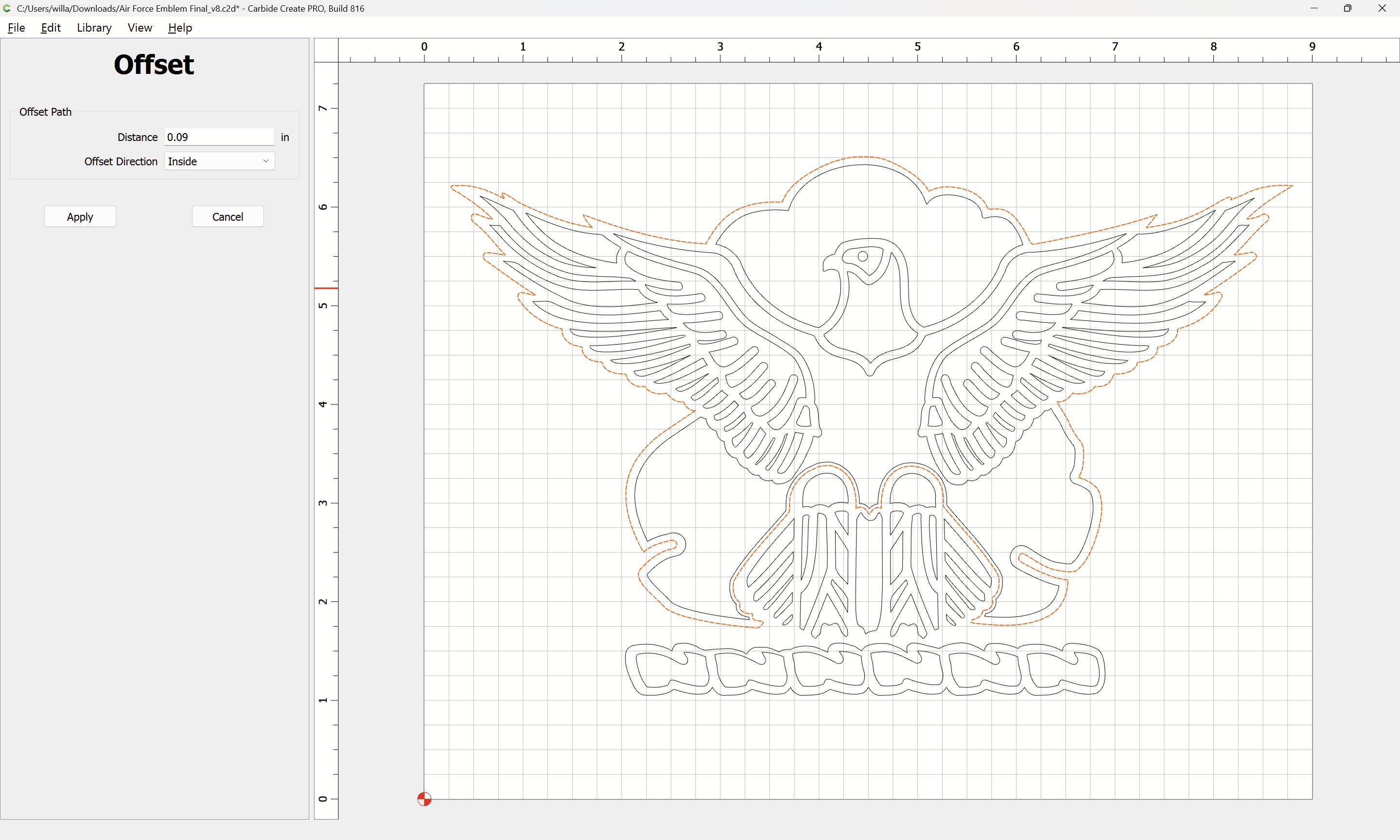

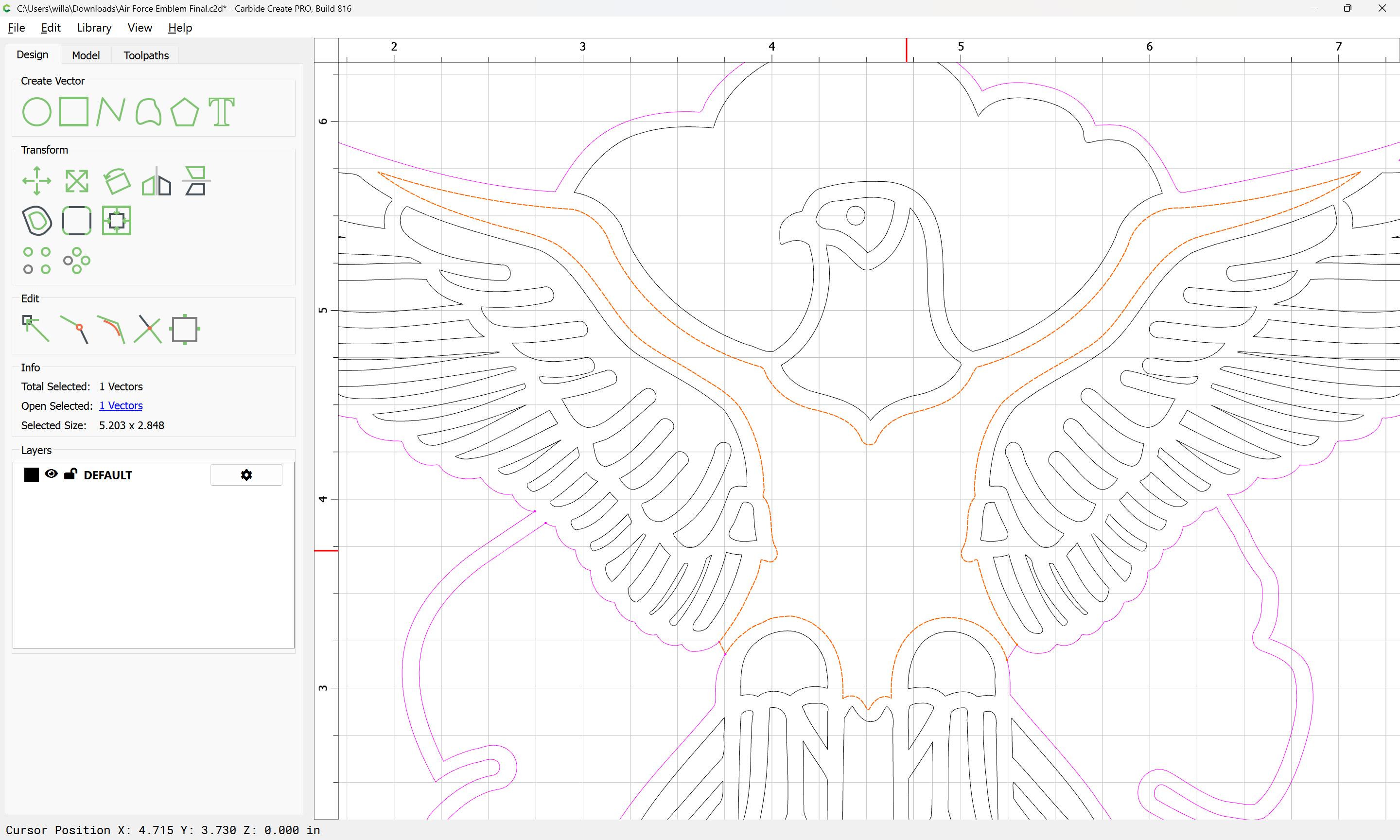

just offset to the inside by a suitable distance:
Apply

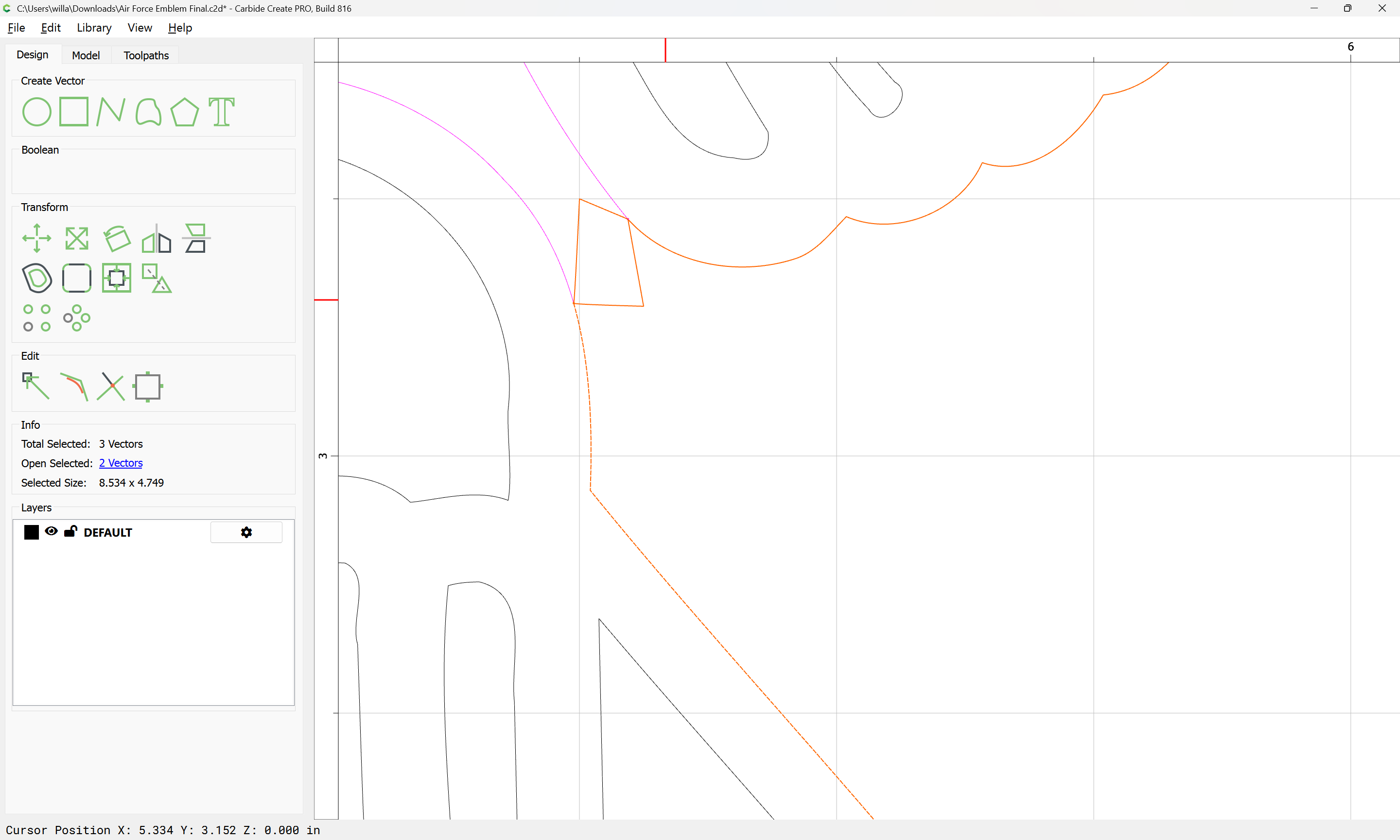

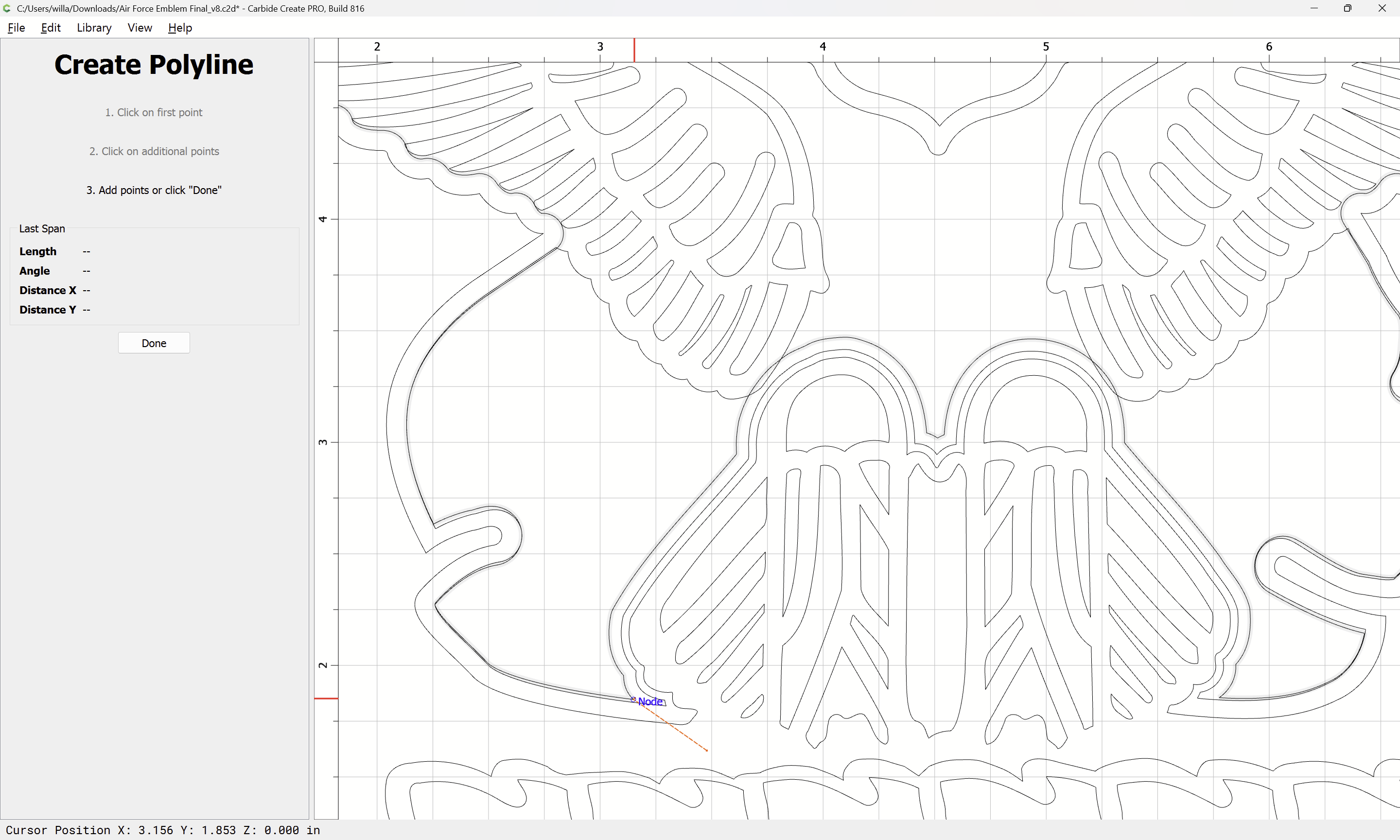

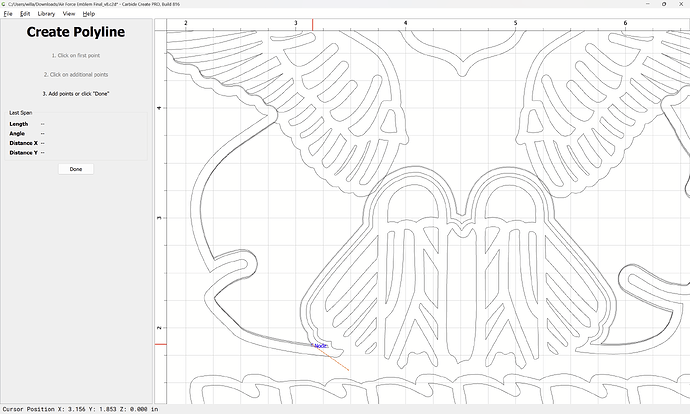

Then draw in crossing geometry where necessary:
Duplicate the relevant geometries:

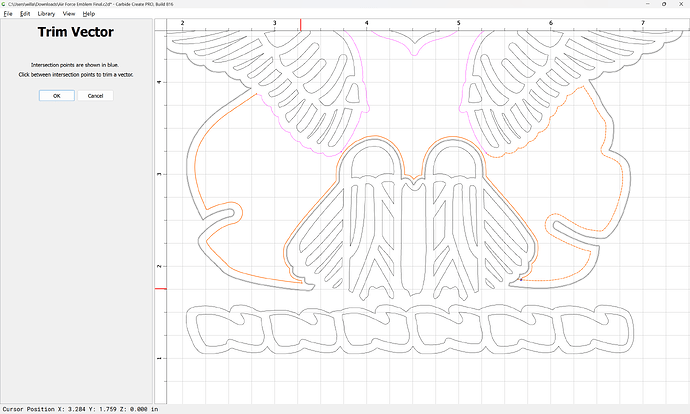

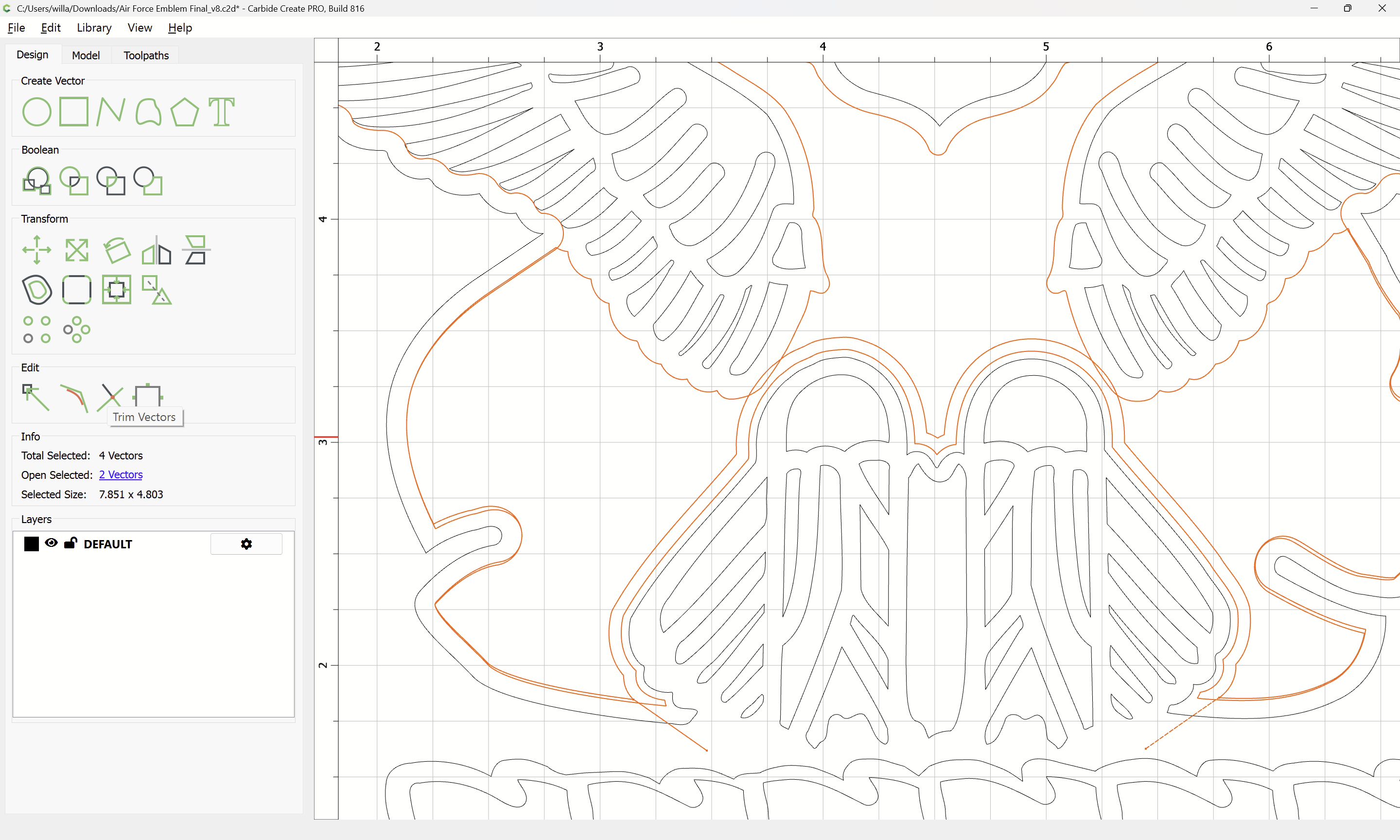

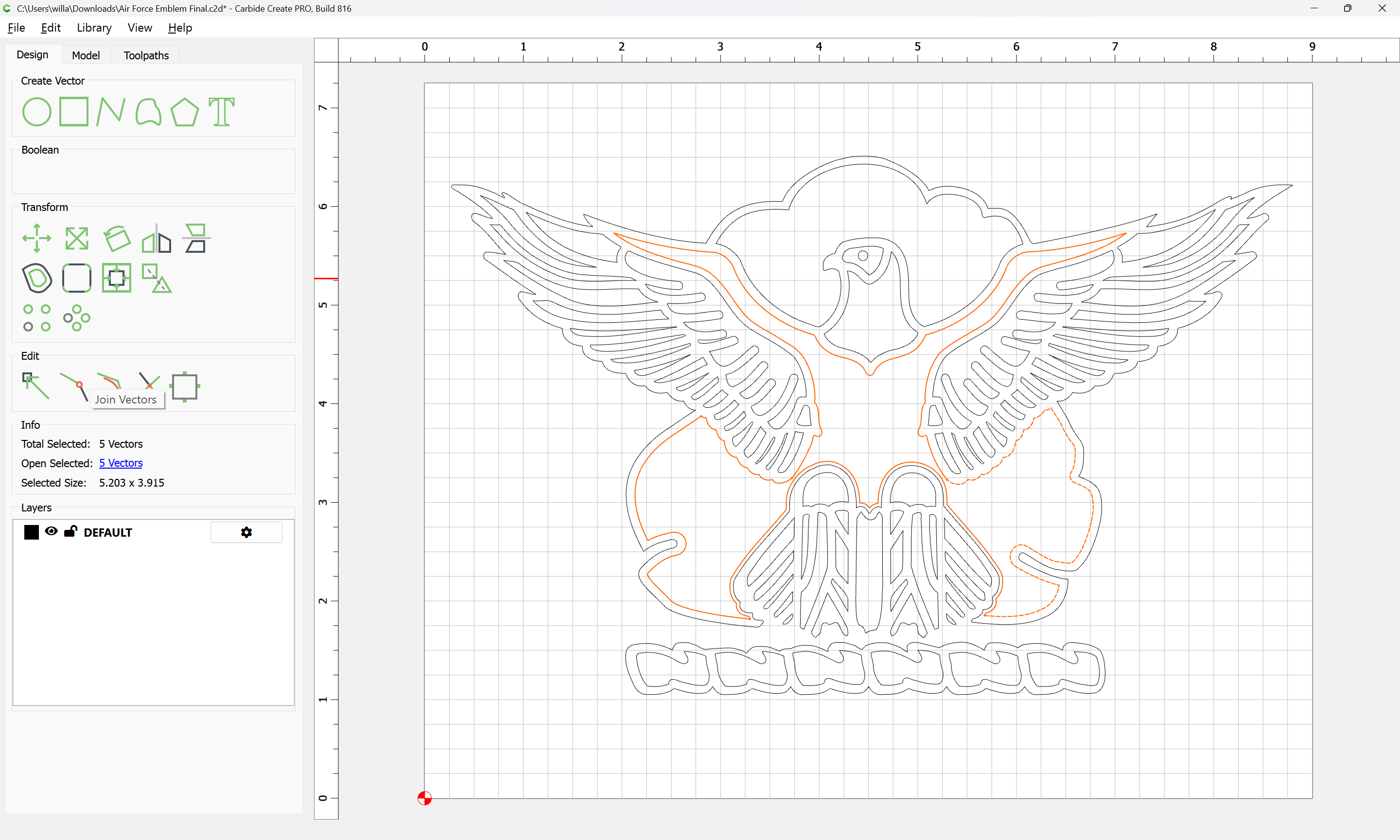

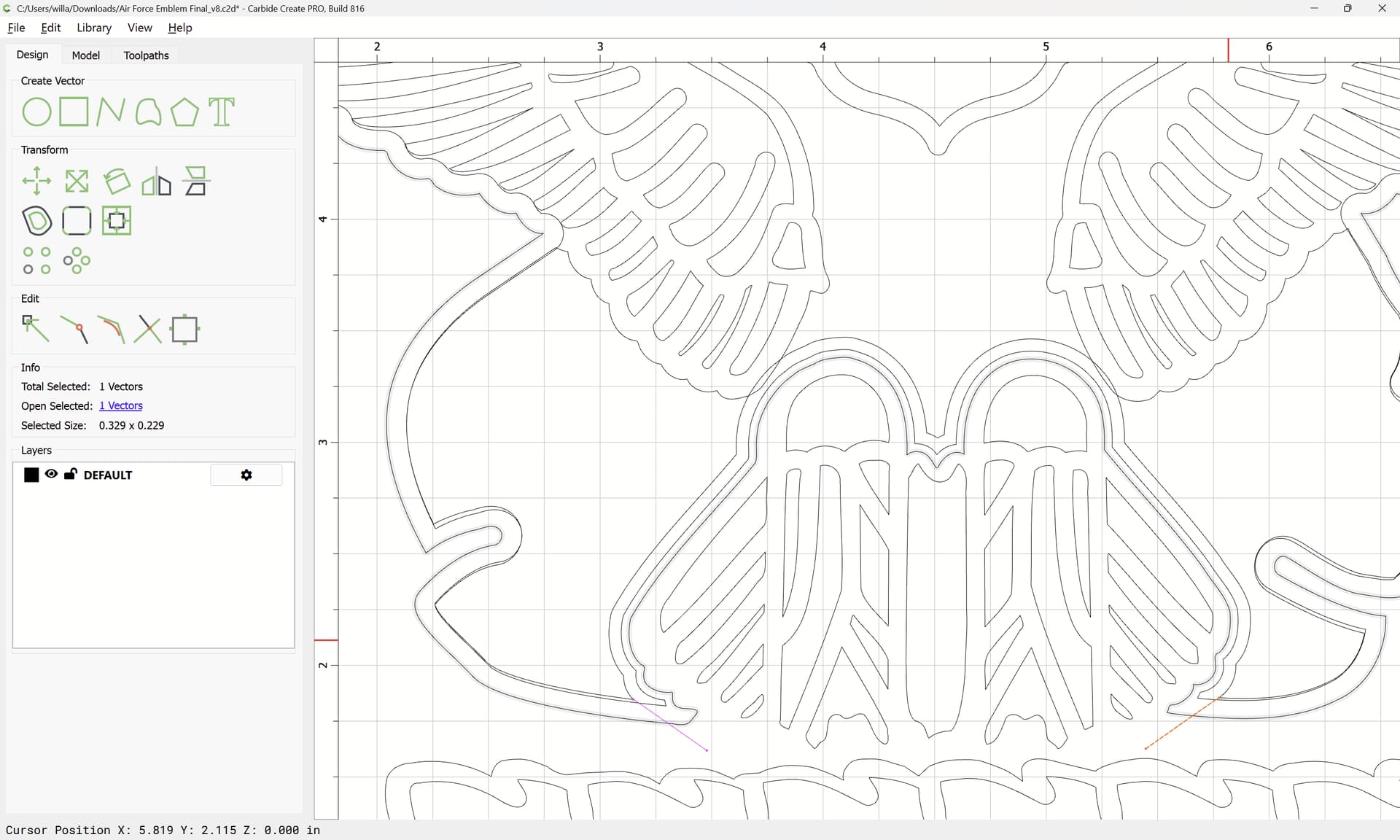

Then select what one wishes to work with:

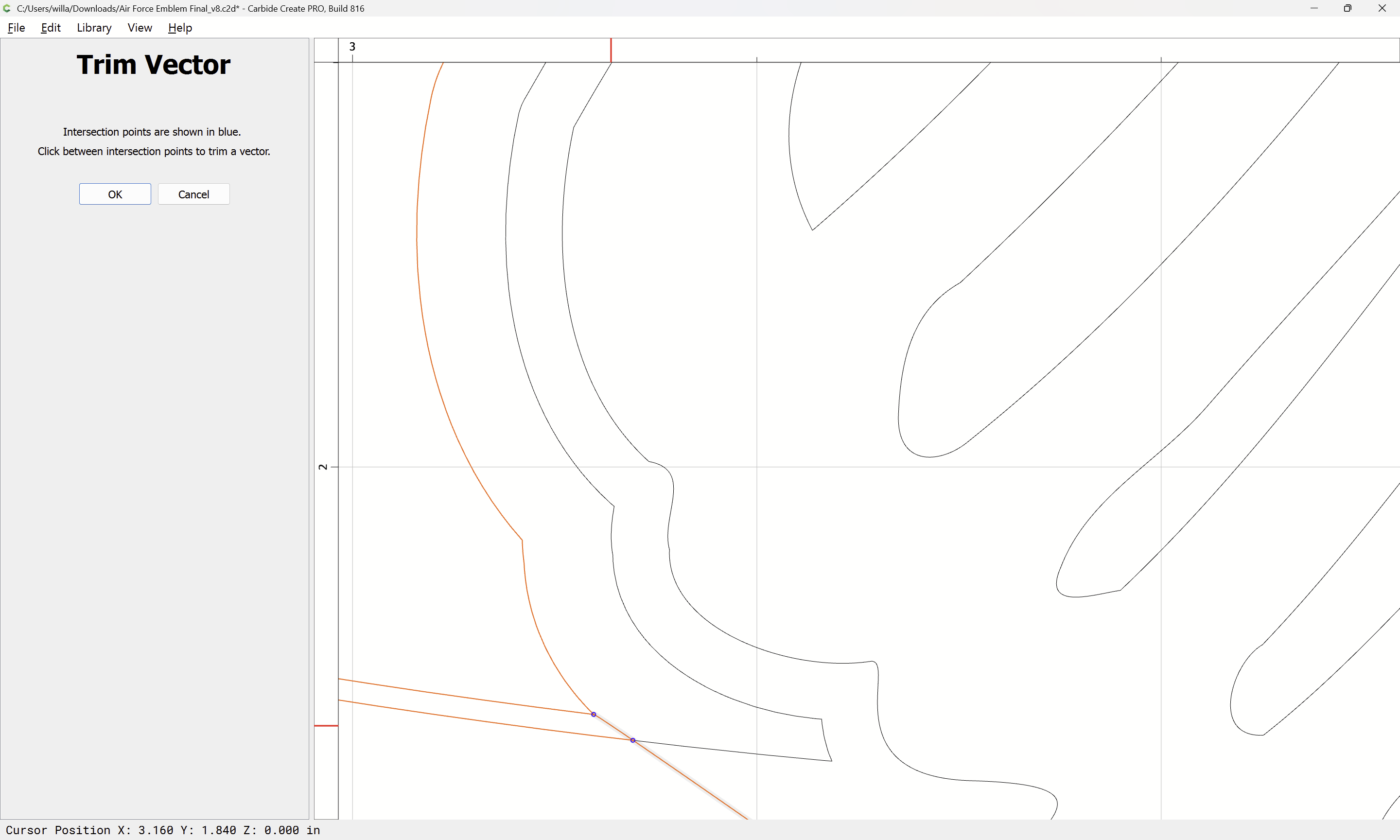

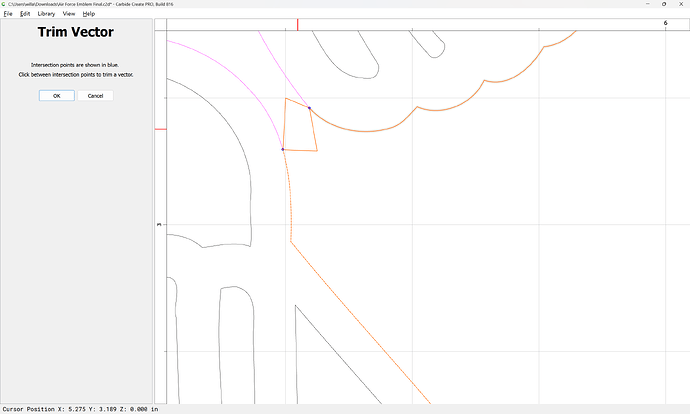

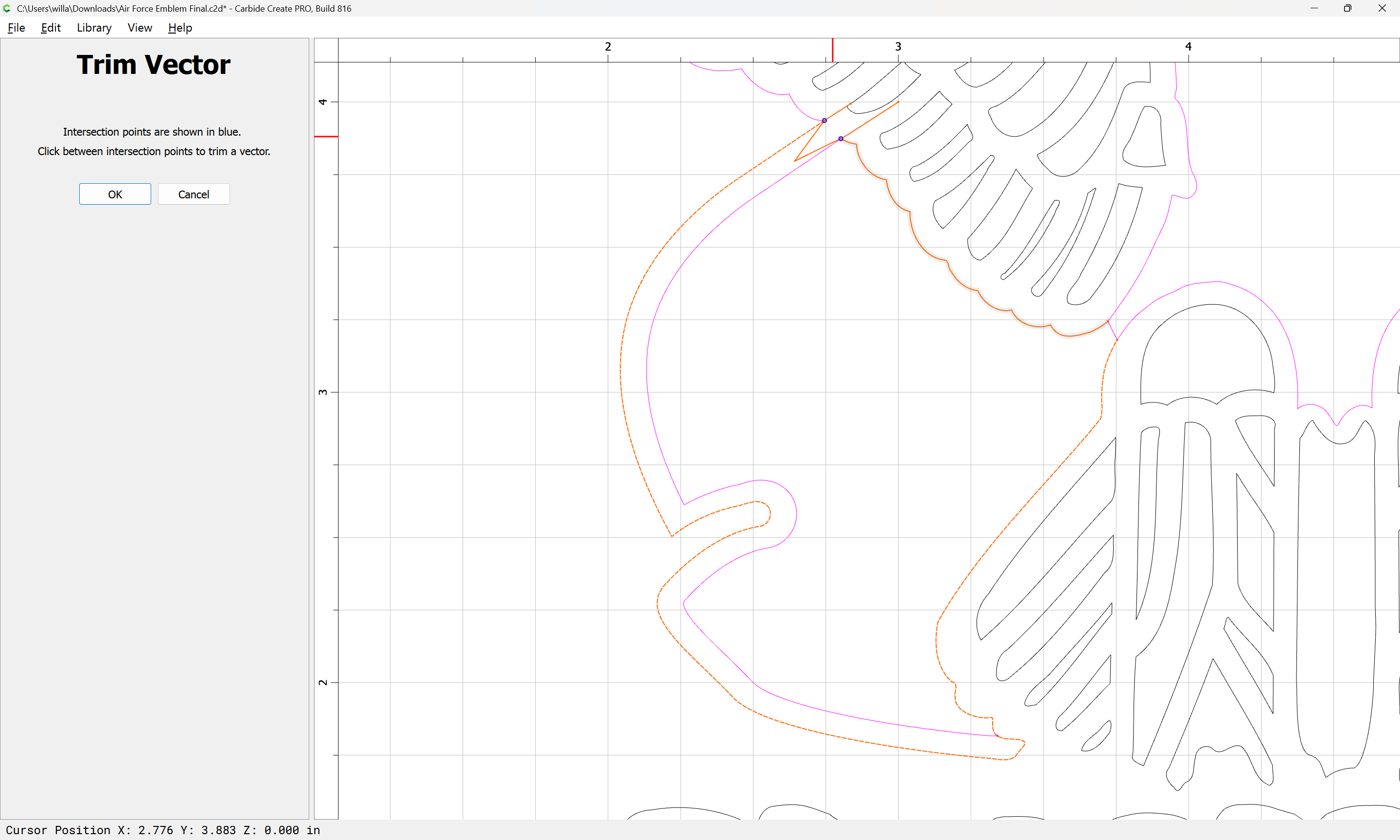

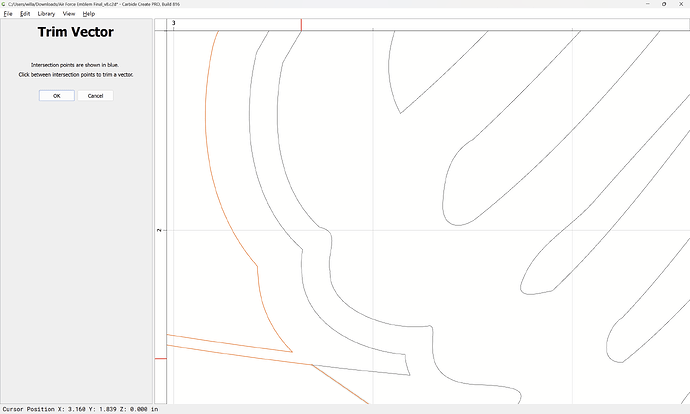

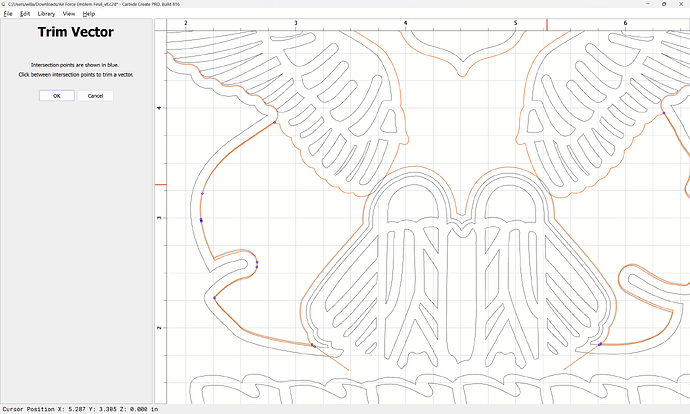

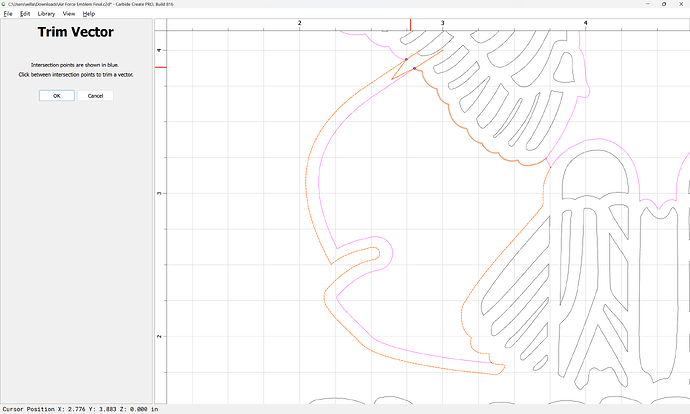

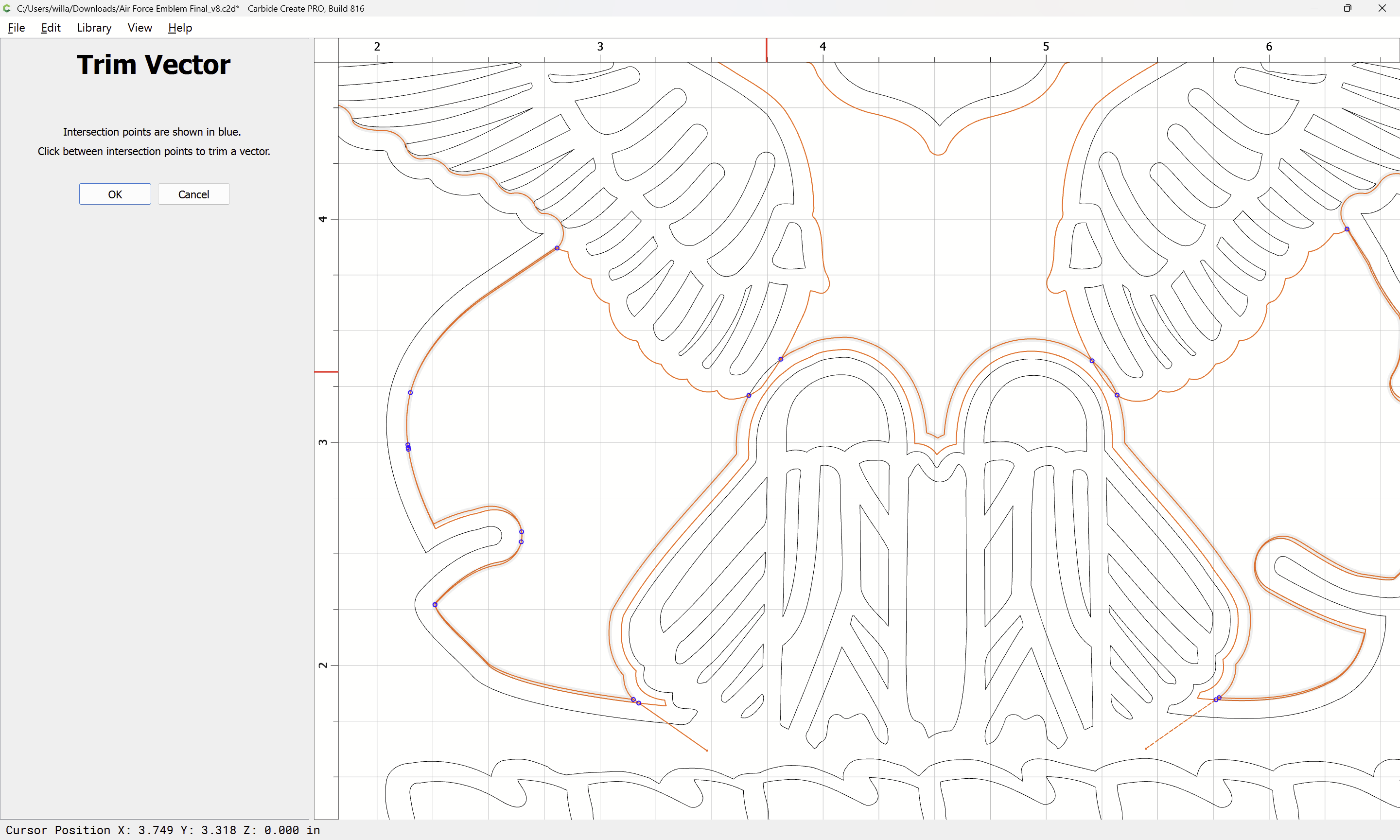

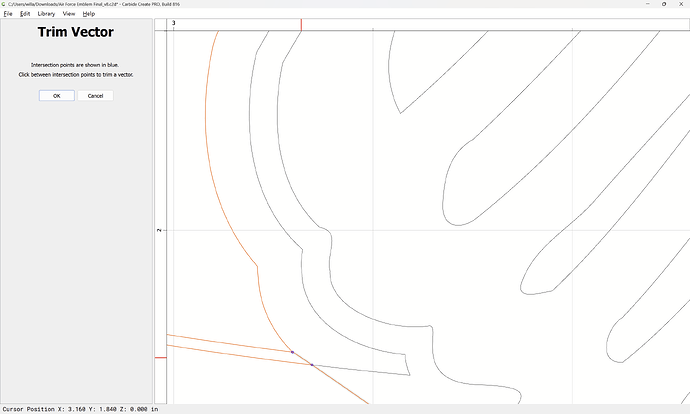

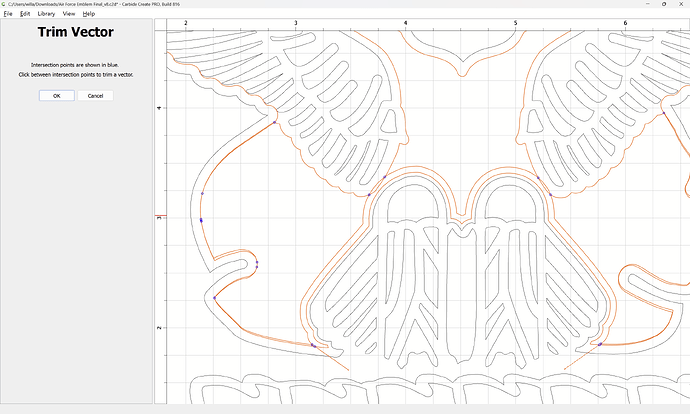

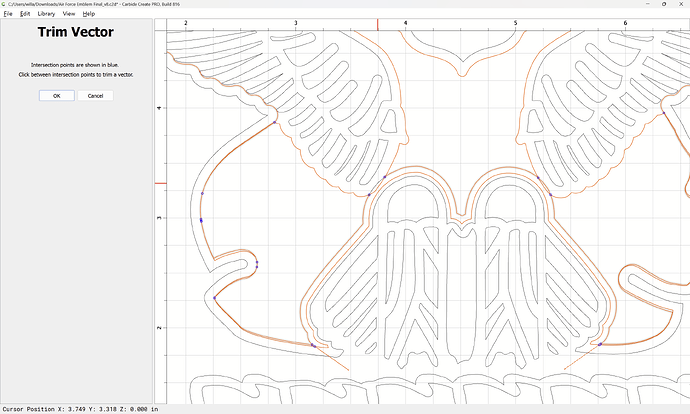

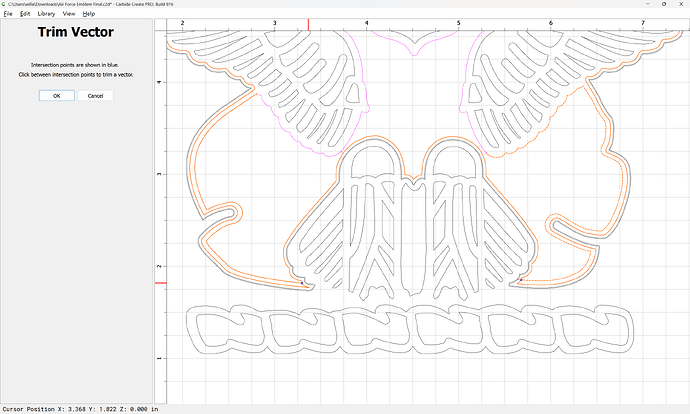

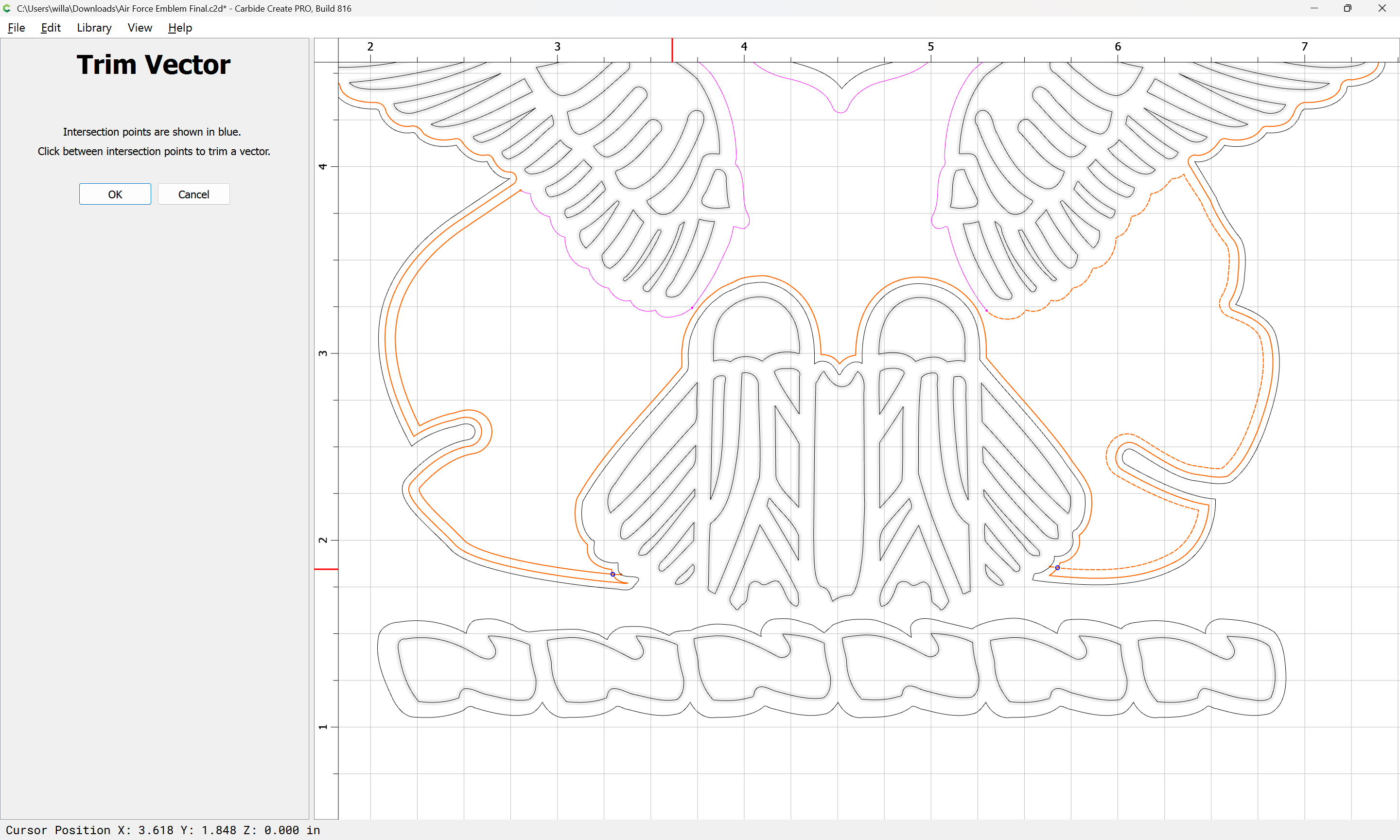

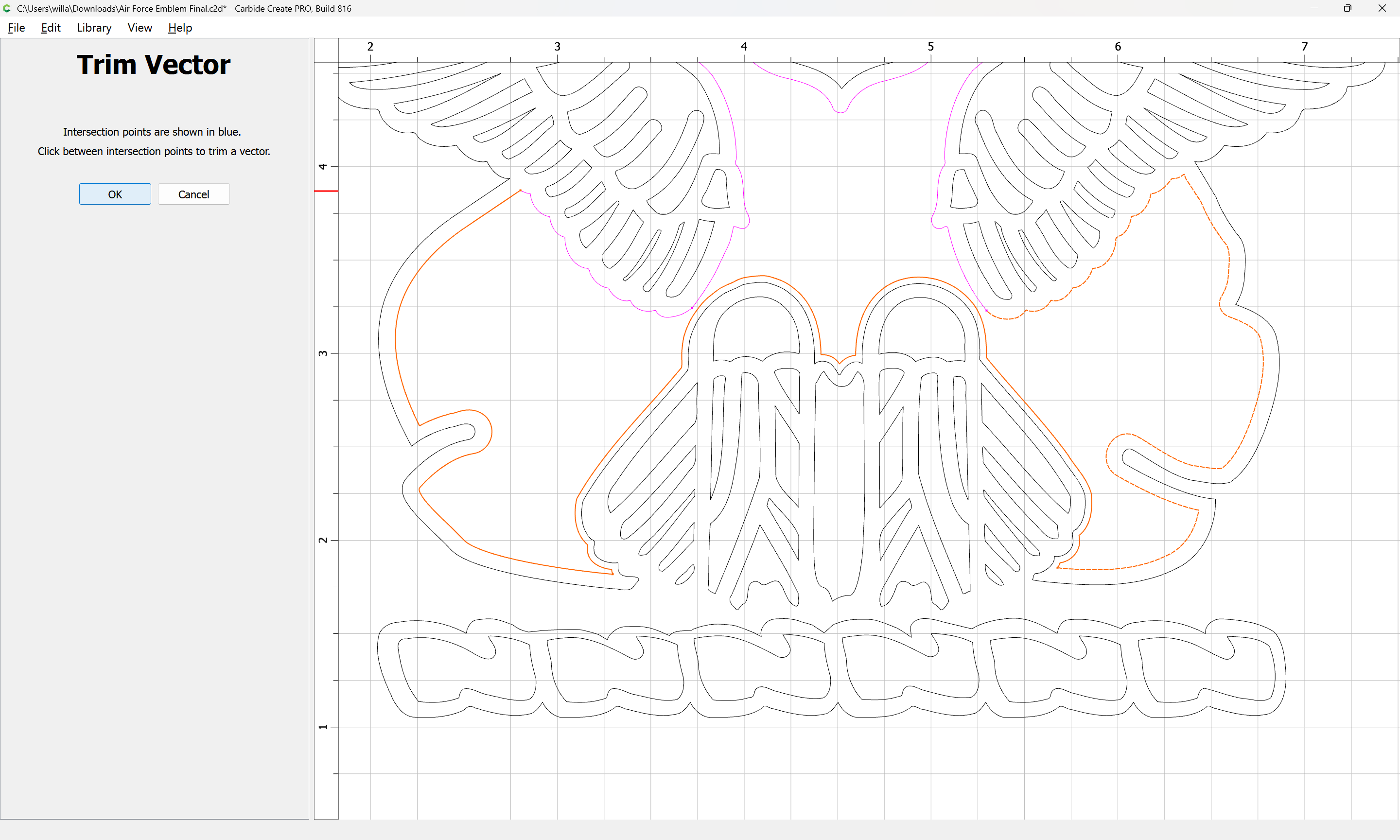

and use Trim Vectors to reduce down to what is wanted:
OK

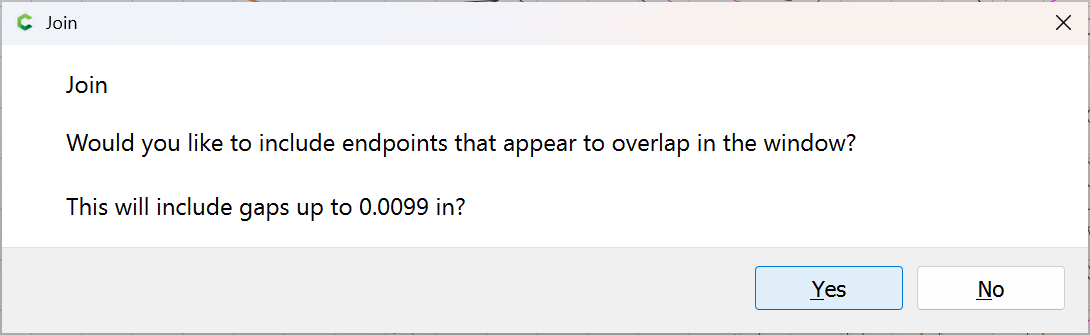

Use Join Vectors to close the new region:
Yes

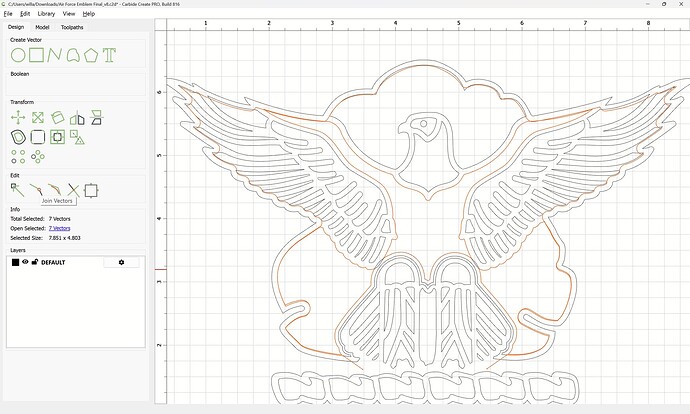

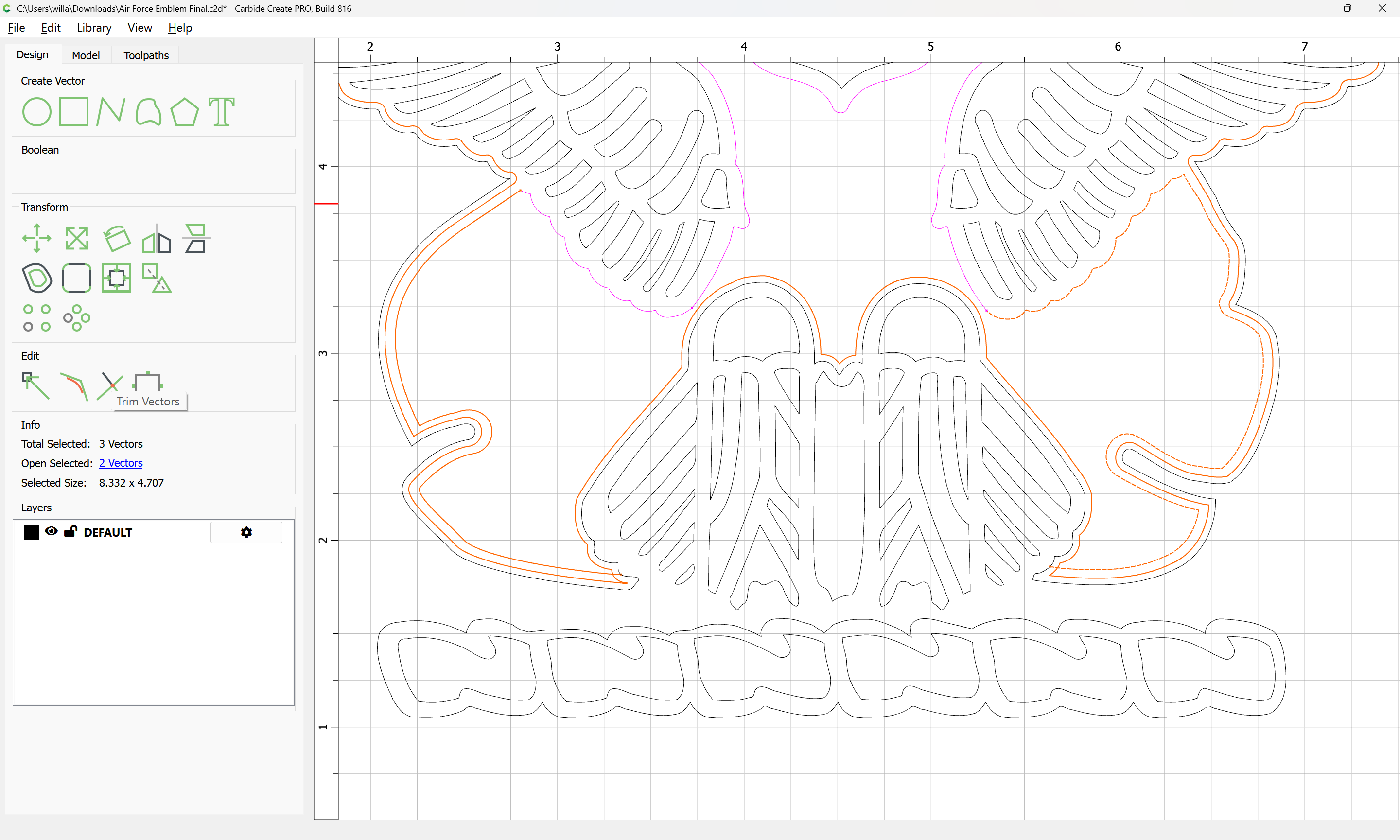

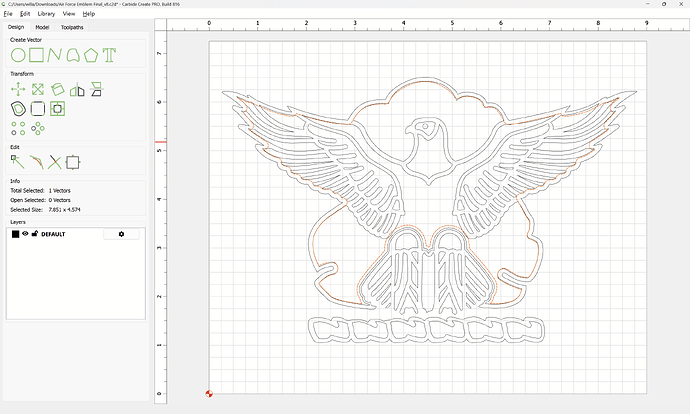

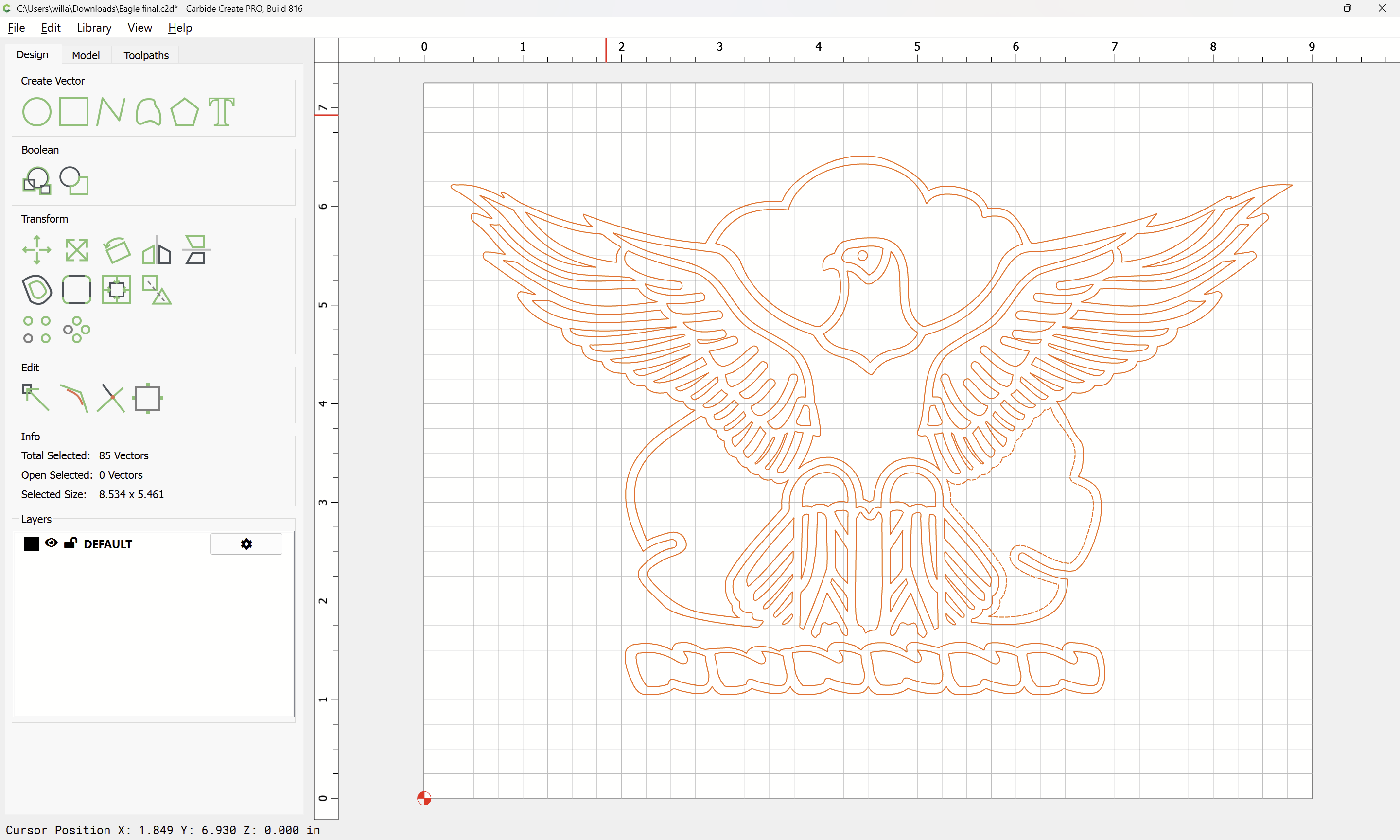

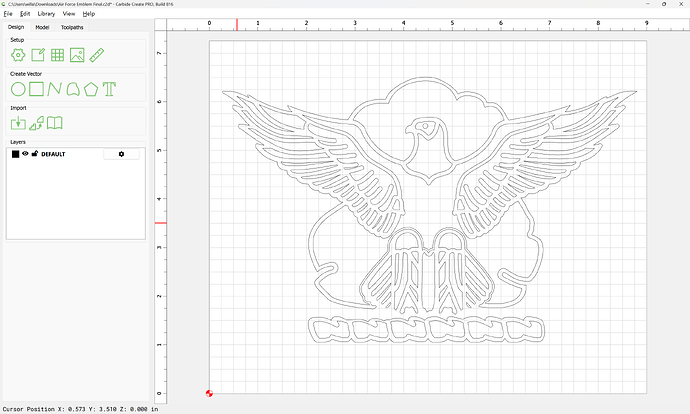

Eventually, repeating the process as necessary for each separate region which one wishes until one arrives at something like to:
attached as a v8 file (again)
Eagle final_v8.c2d (256 KB)
