Creating smaller curves

[Chrisnh (Christopher Shannon)]

Im trying to copy a design I found online of a soccer ball plaque for my son’s coach. I am trying to figure out how to trace the pattern shapes. Is there an easier way to where I can convert the jpeg to another type of file to make tracing easier? I have attached the file with the top cut out traced except the curves. Thanks for any input
CJs soccer coach plaque.c2d (1.7 MB)

[WillAdams (William Adams (Carbide 3D))]

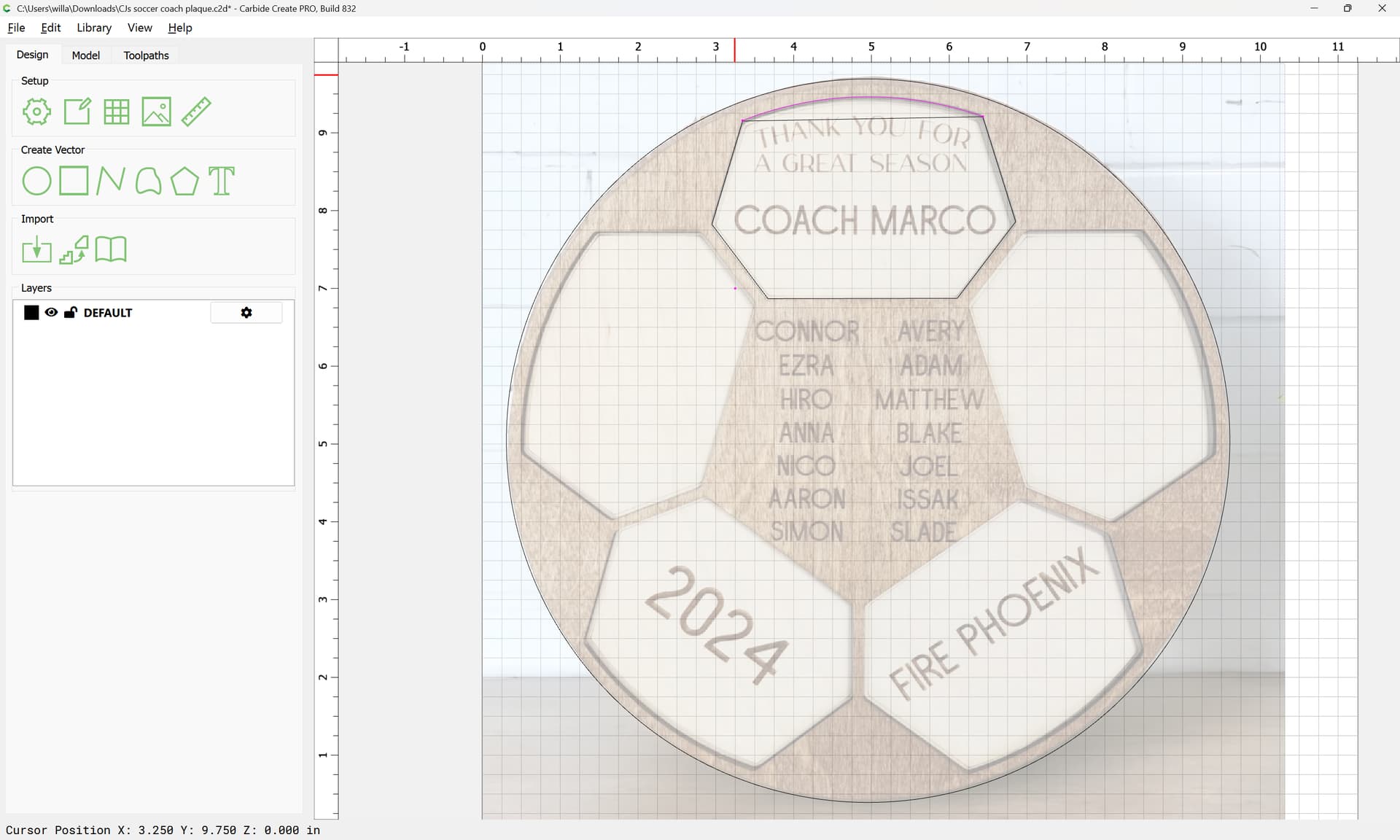

Given the file:

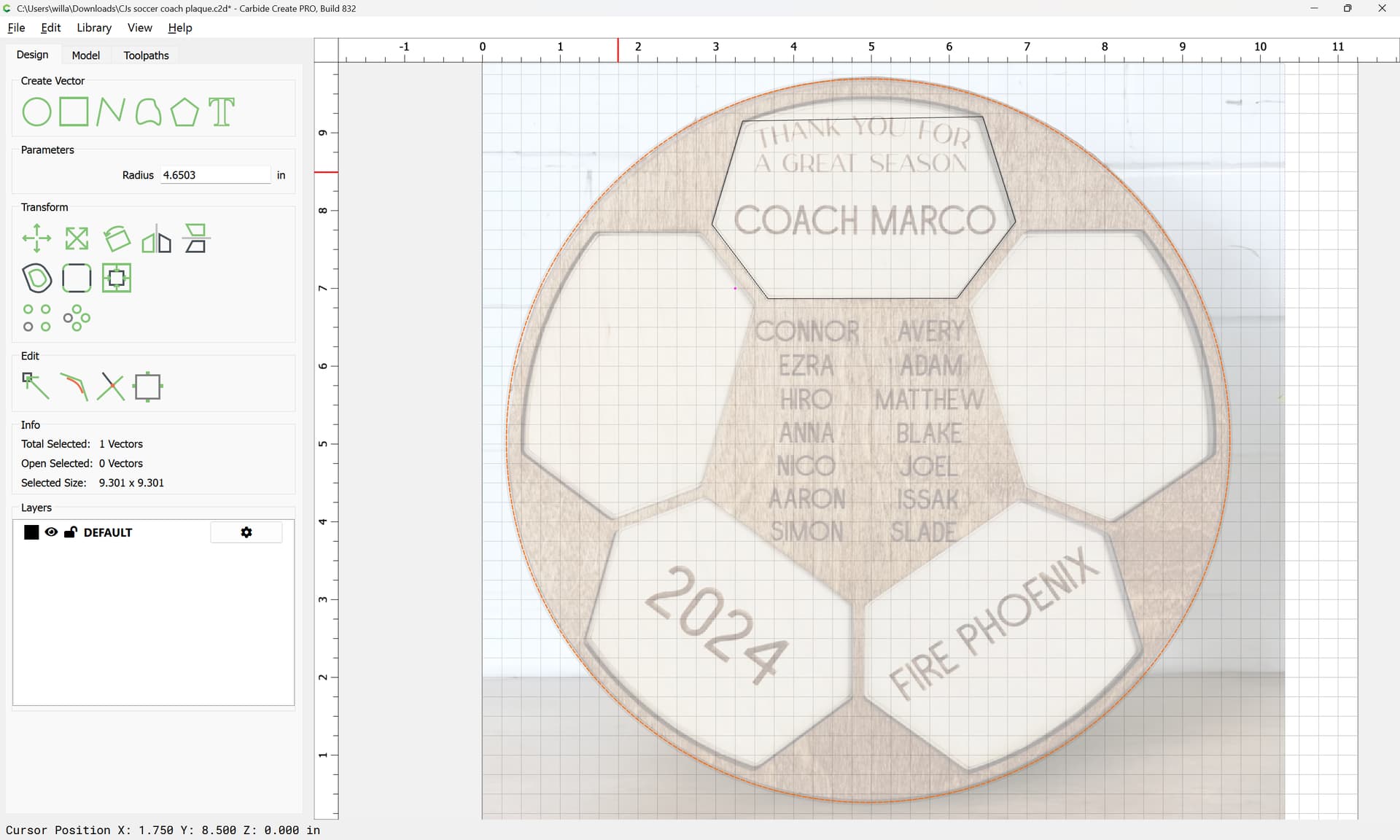

Measure the desired inset:

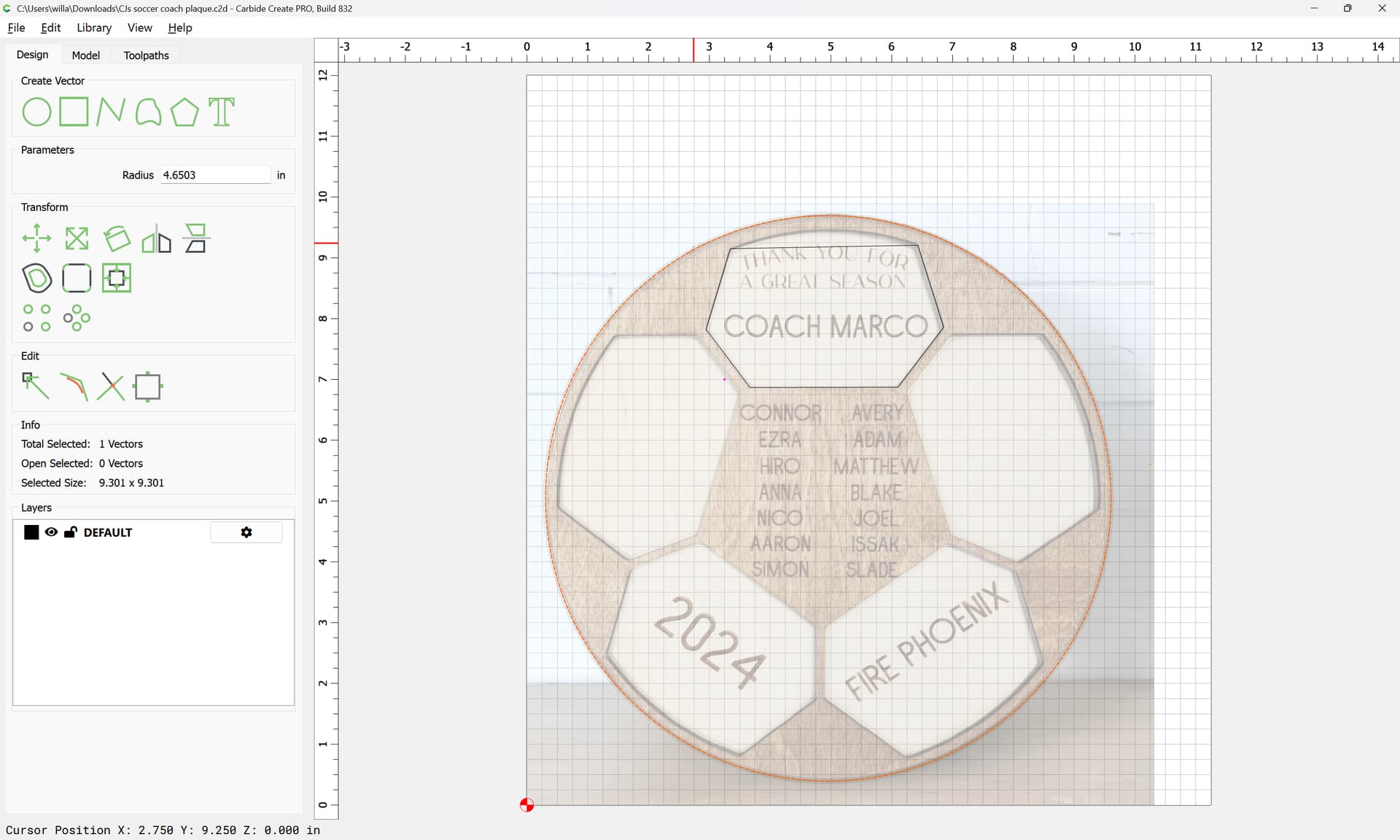

Select the outer circle:

copy-paste it to make a duplicate in the same position:

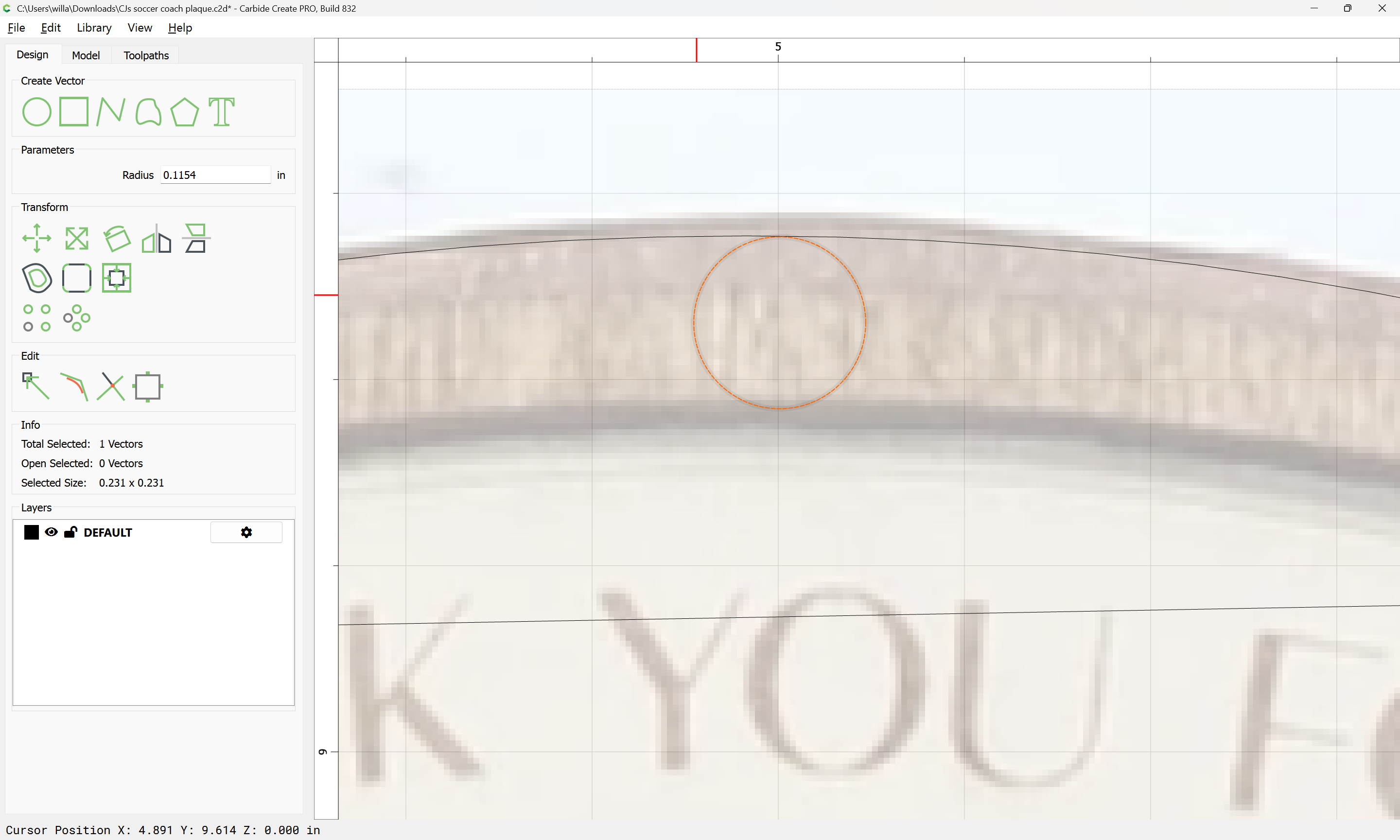

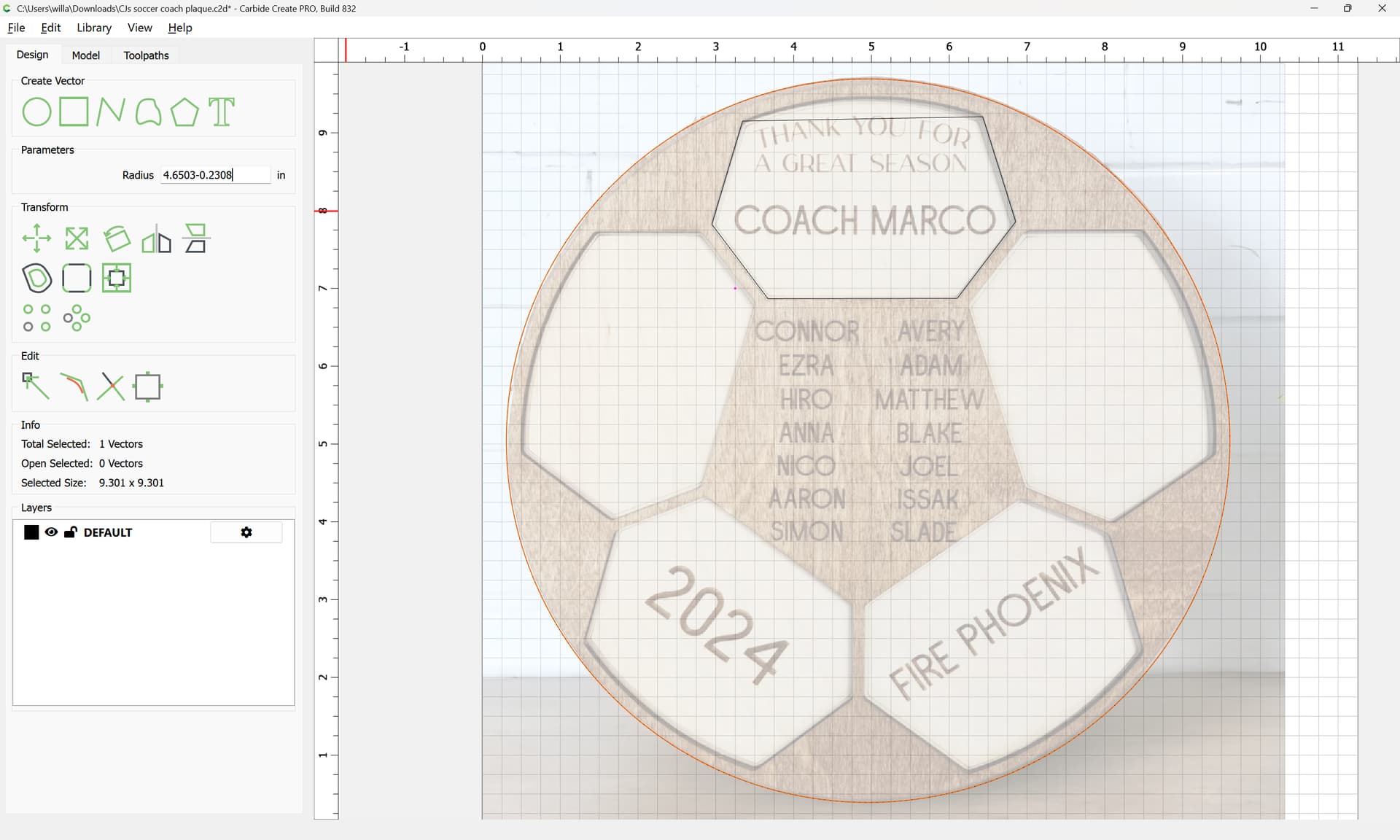

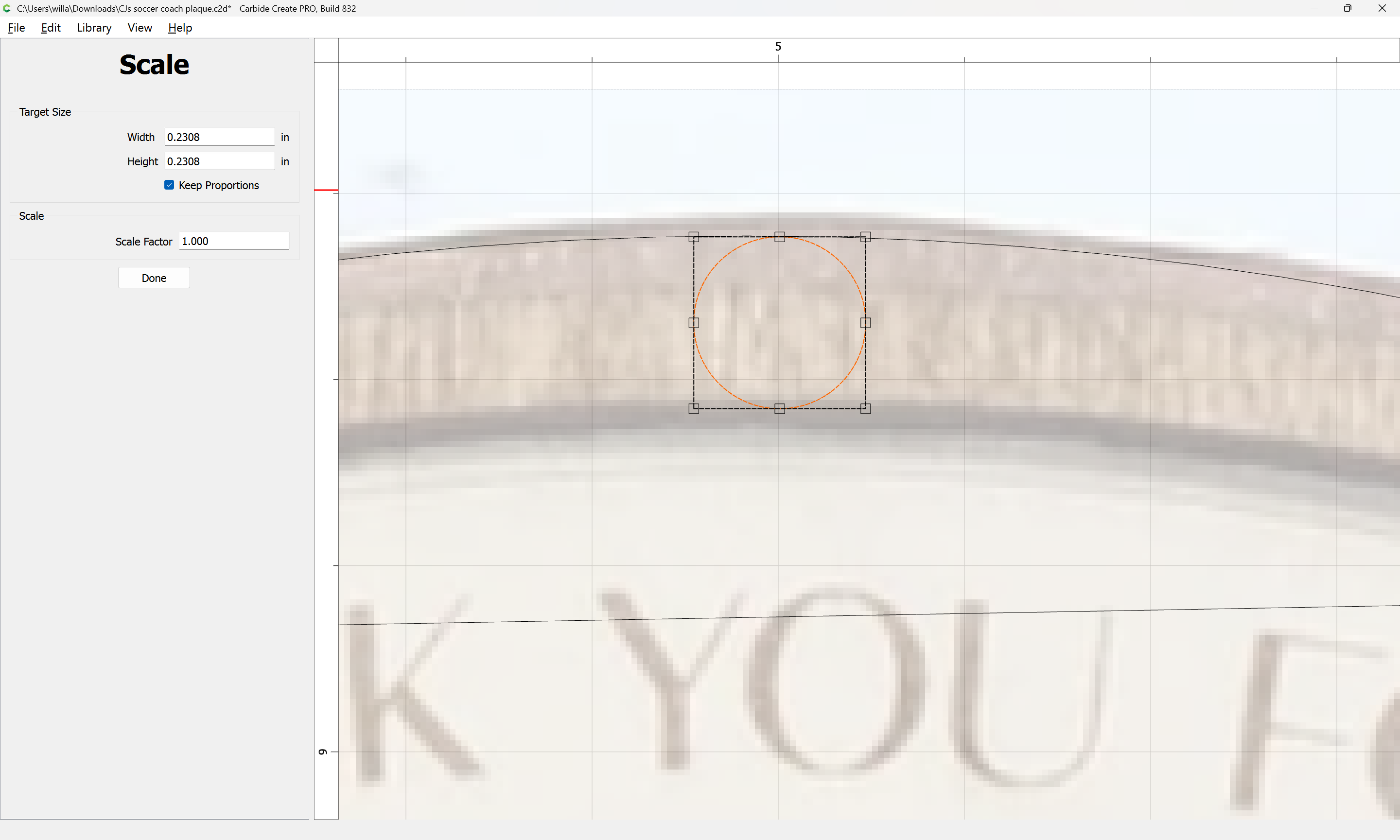

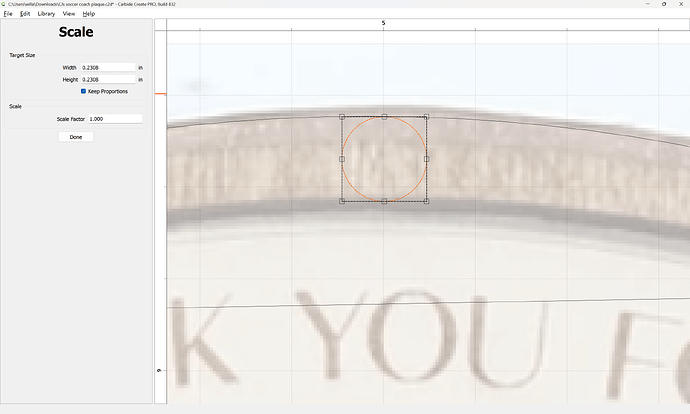

Then reduce that copy by that dimension:

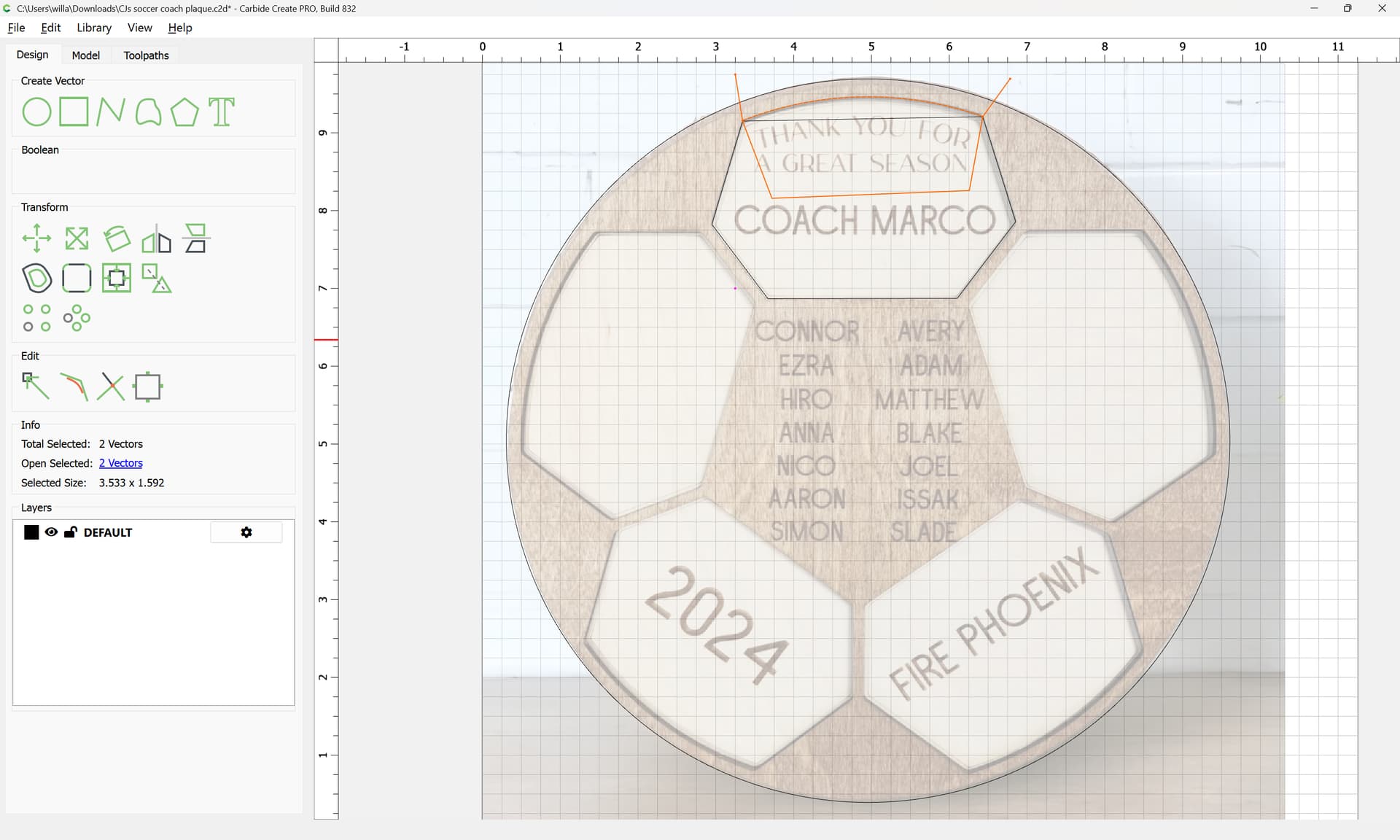

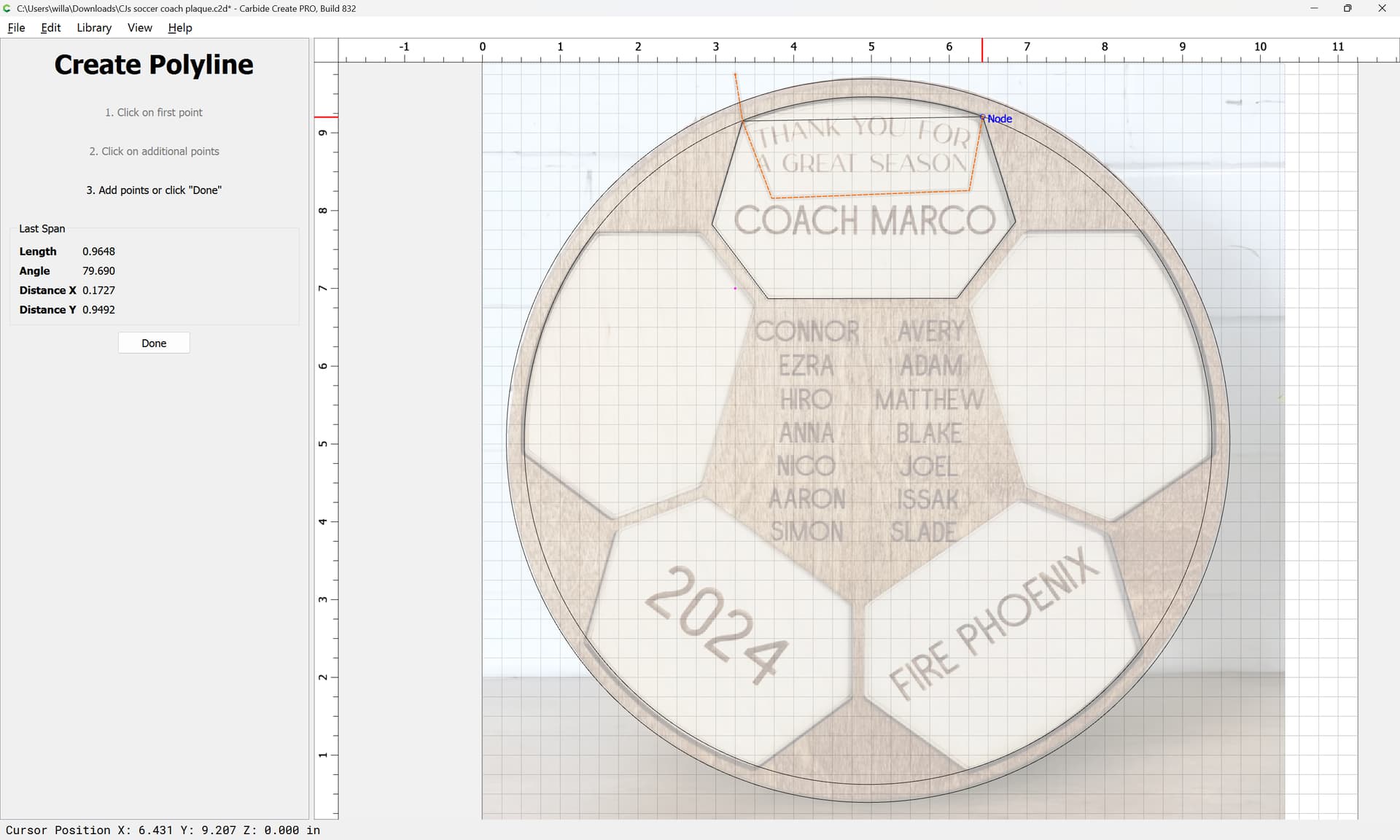

Draw geometry to define where you want the cuts made:

Done

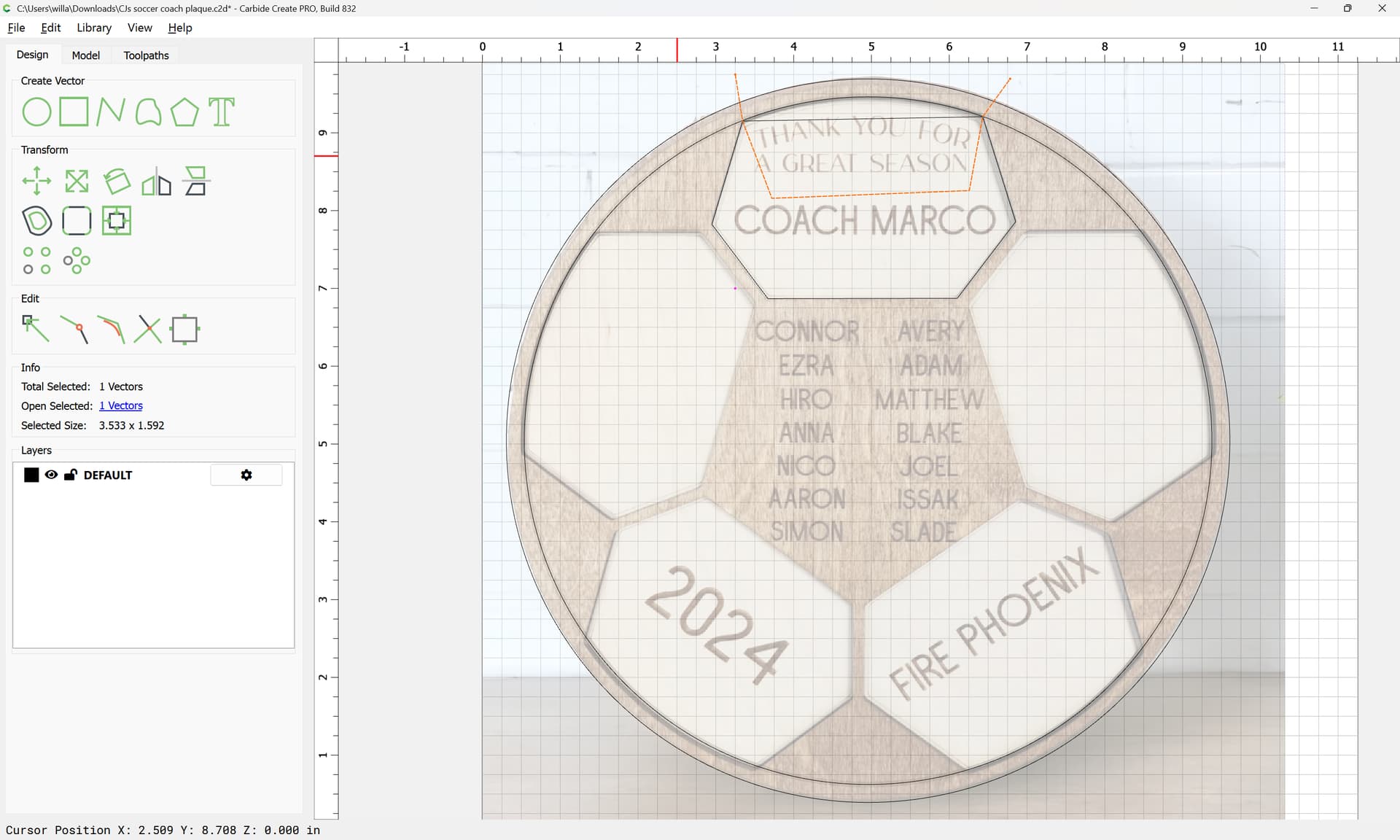

Shift-click on the circle to add it to the selection:

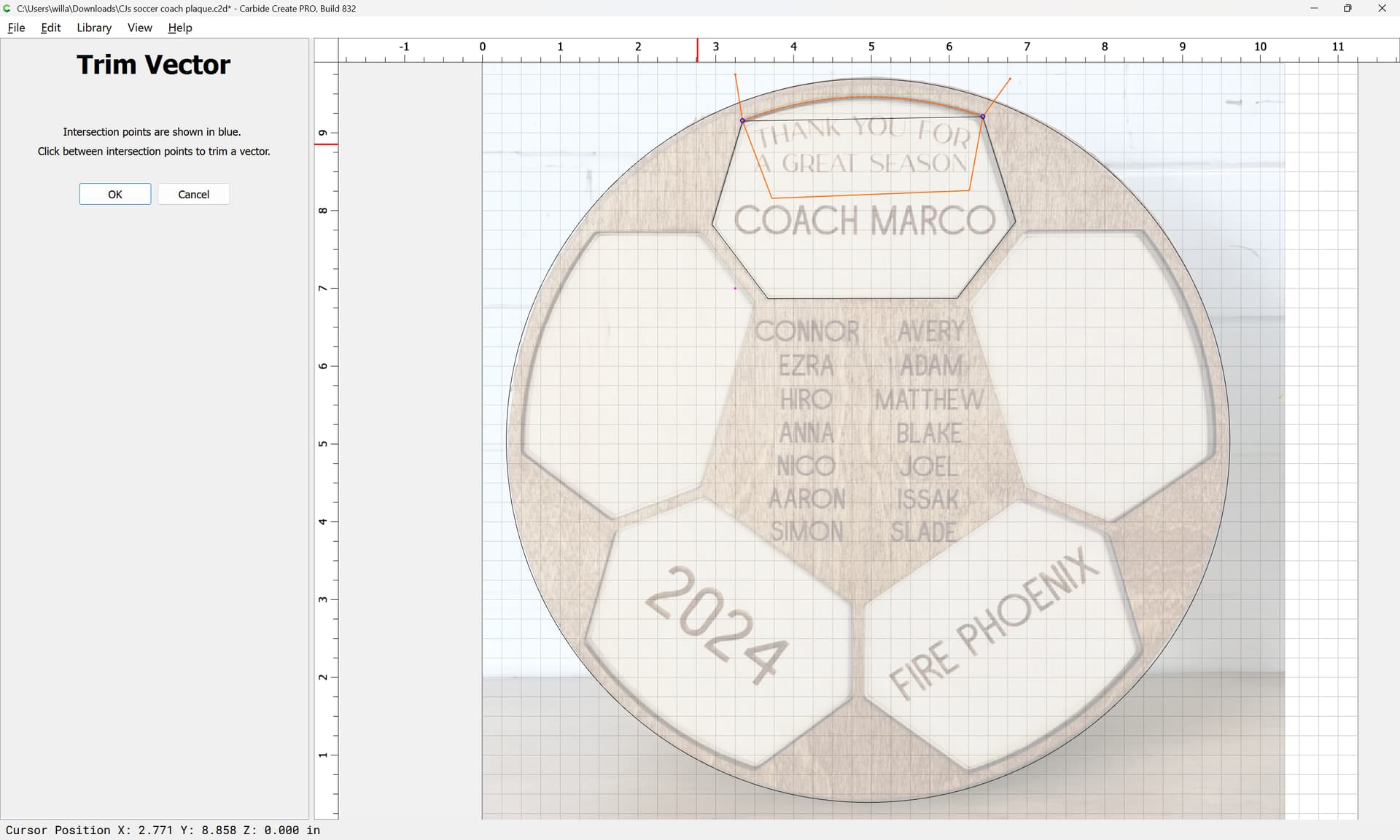

and use Trim Vectors:

to remove what is not wanted:

Ok

shift-click on what is wanted to remove it from the selection:

and delete the marking geometry:

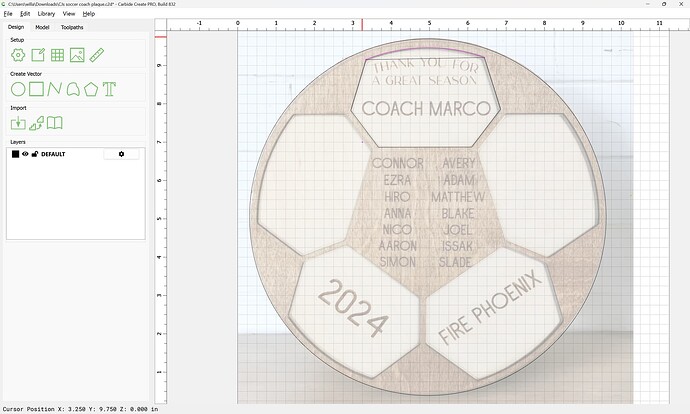

Select the geometry which one wishes to add to:

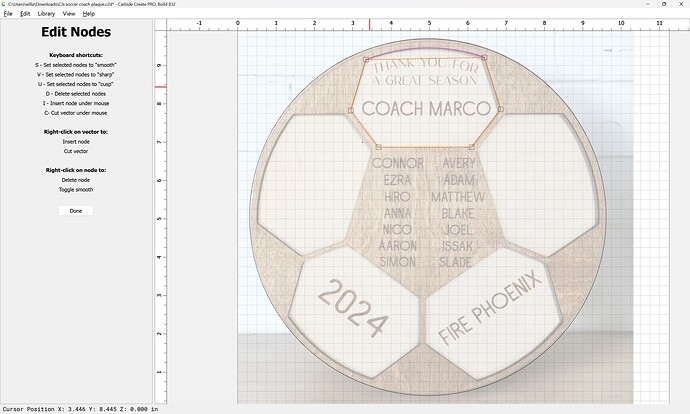

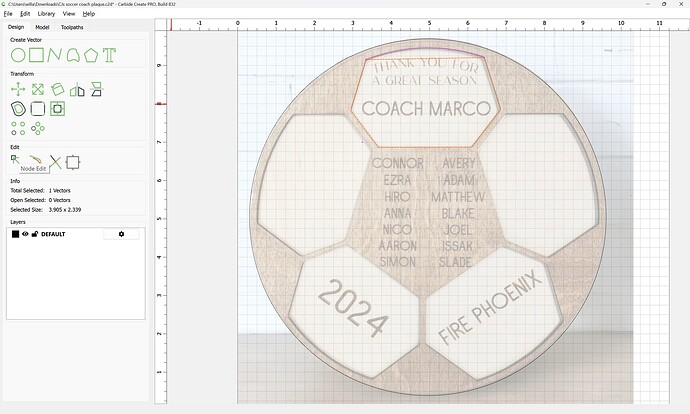

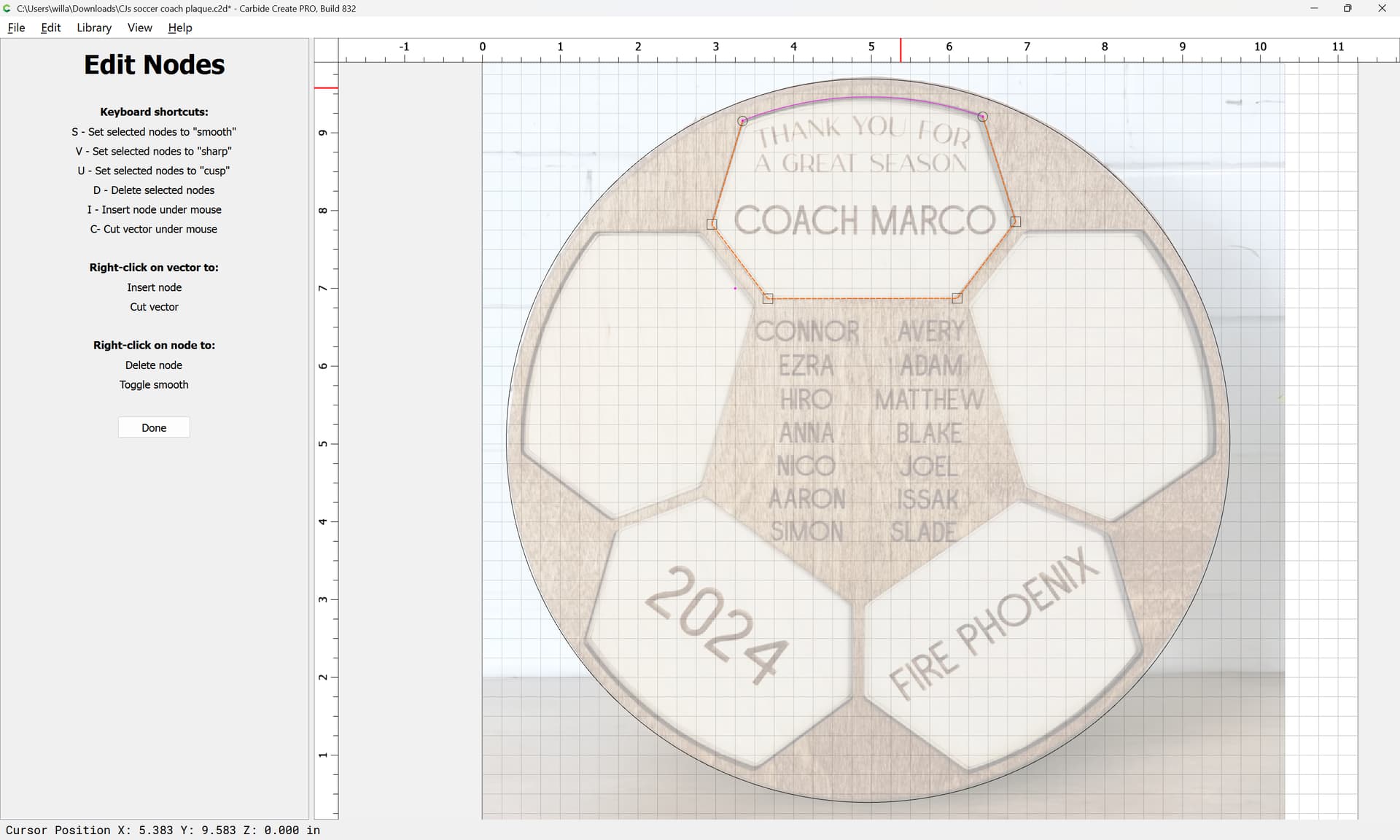

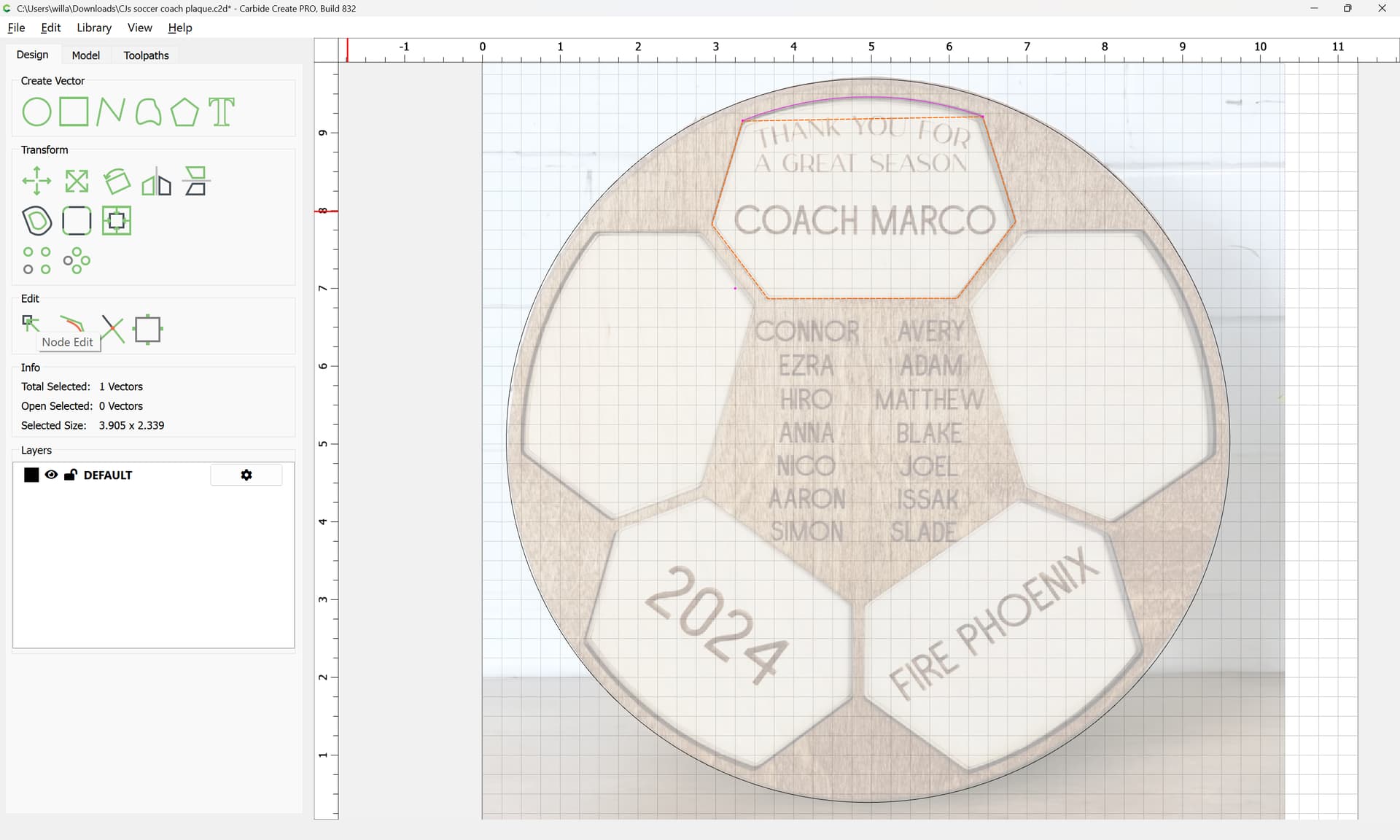

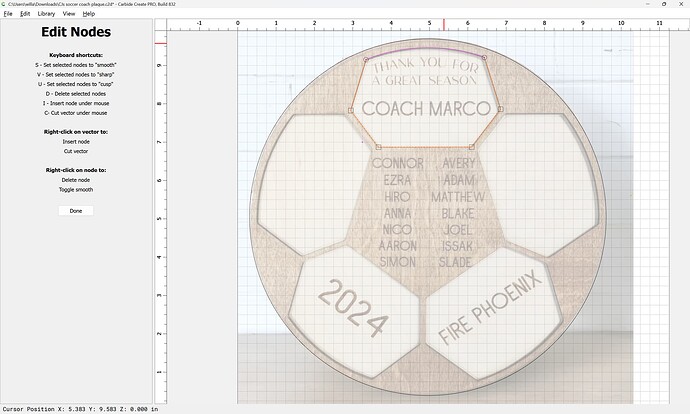

and use Node Editing:

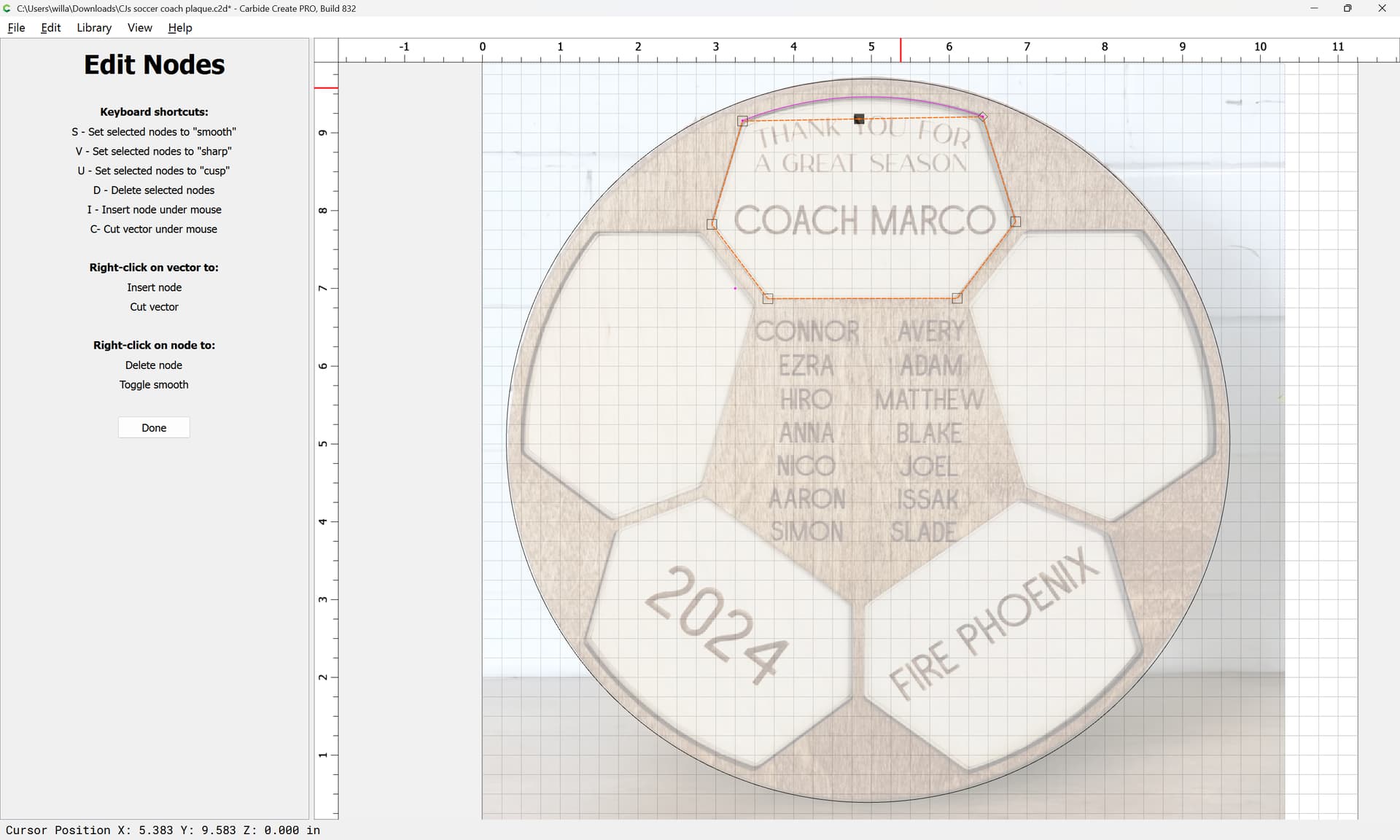

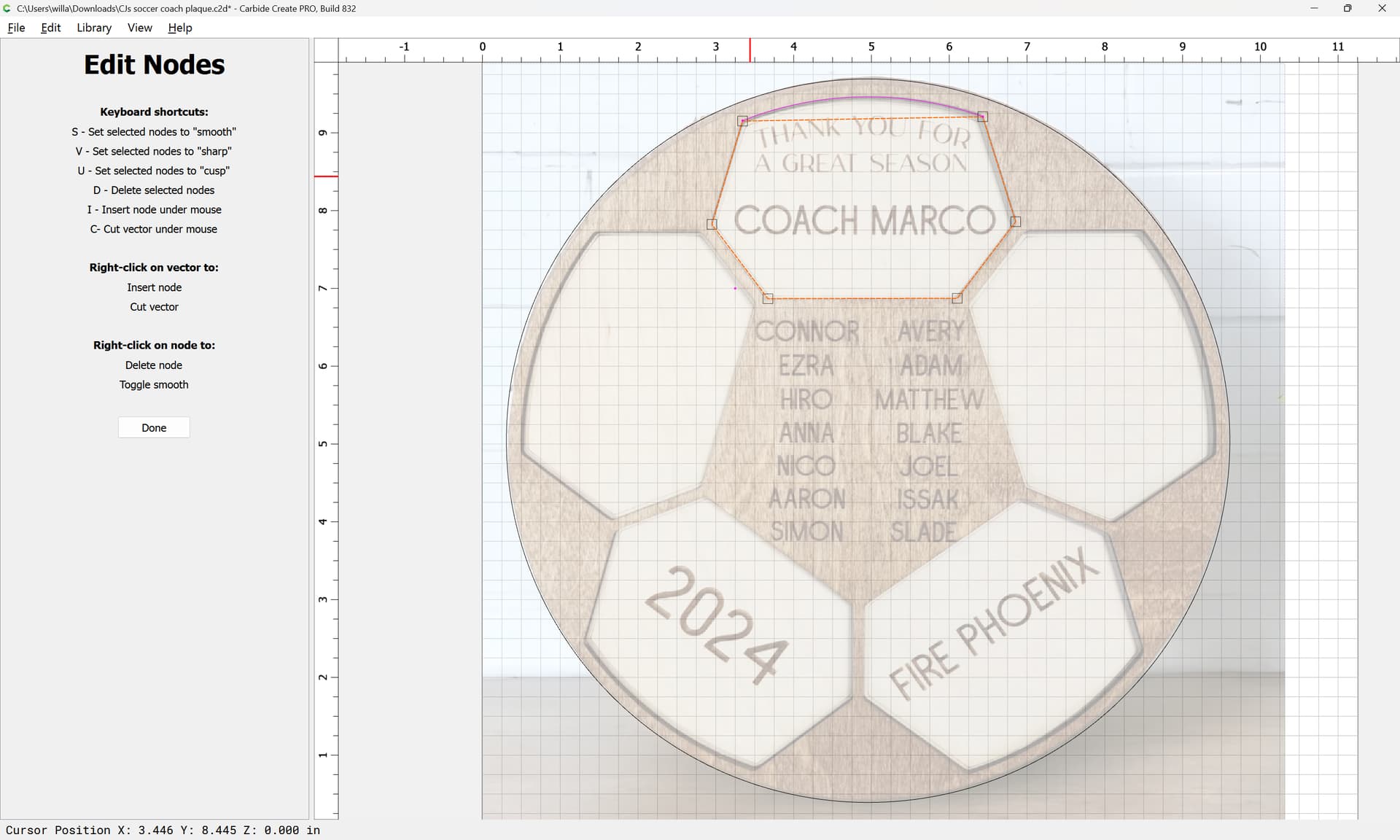

to right-click:

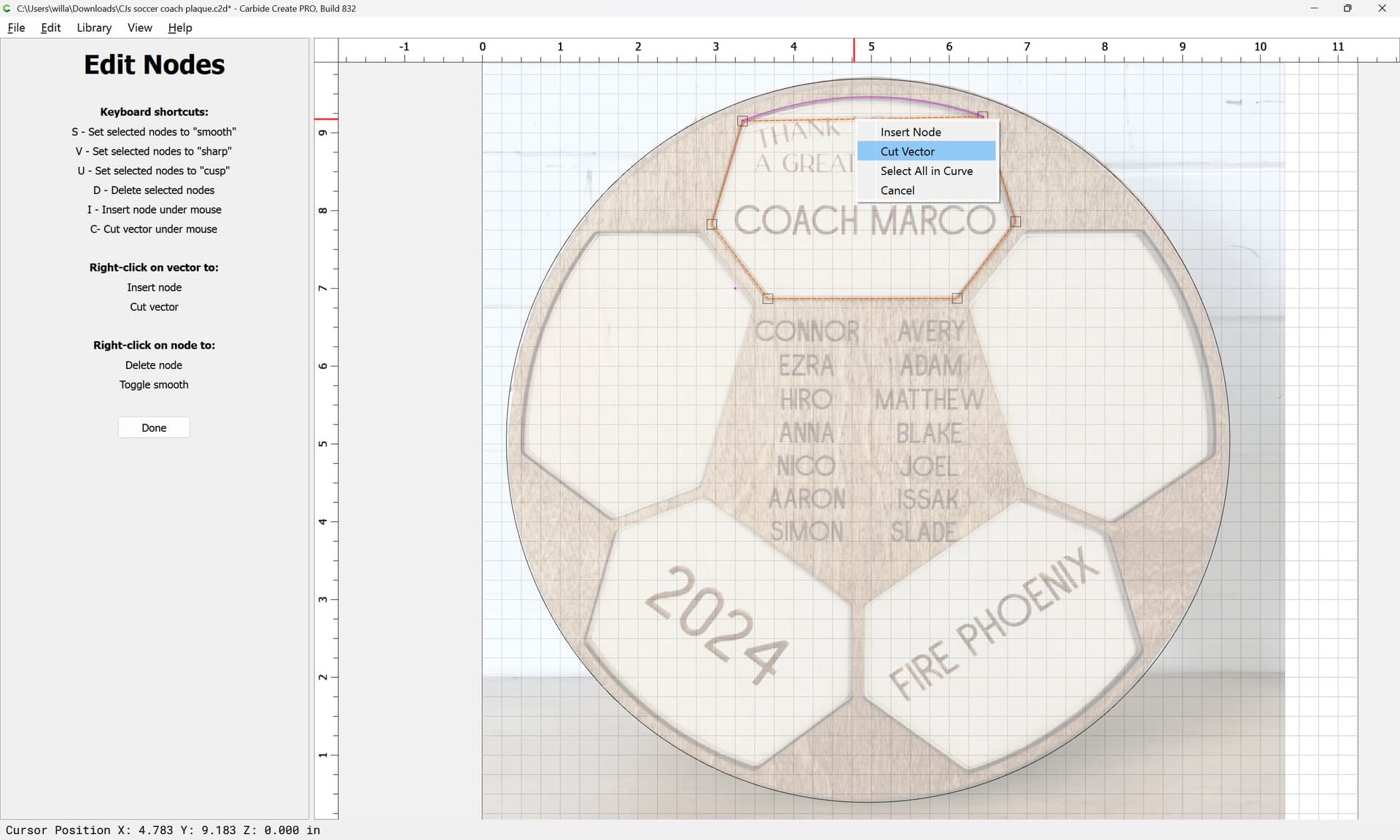

and Cut Vector:

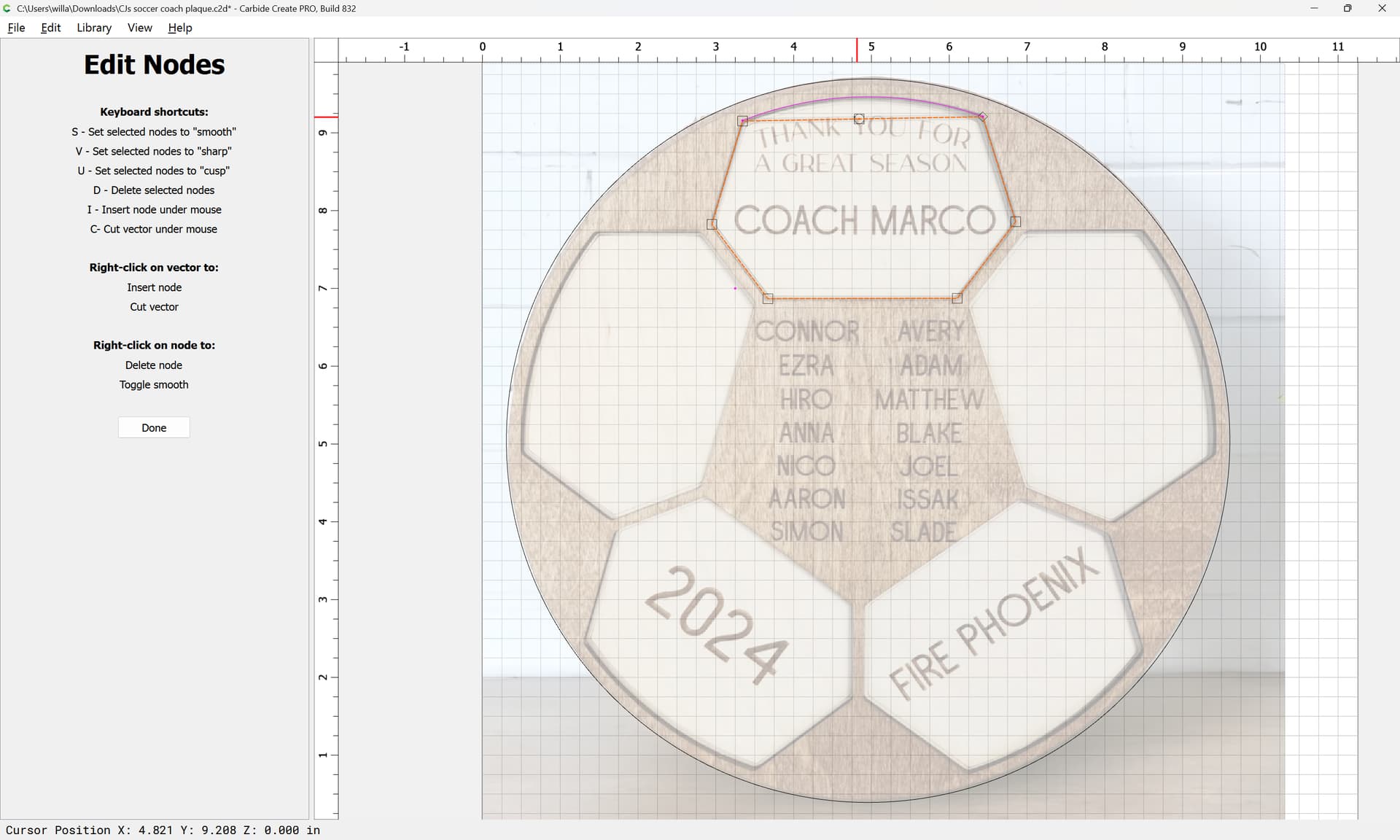

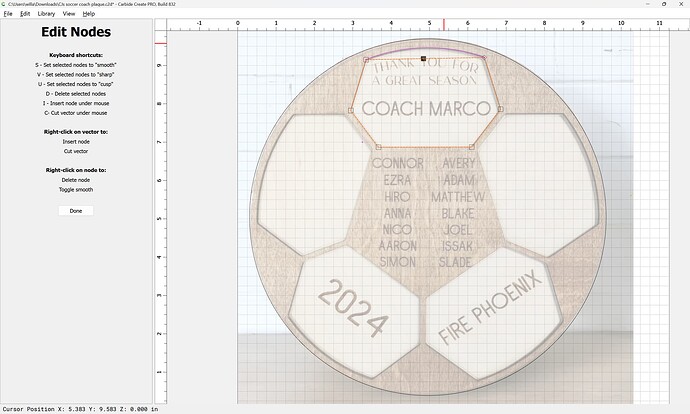

Select the begin/end nodes:

and press d to delete:

Done

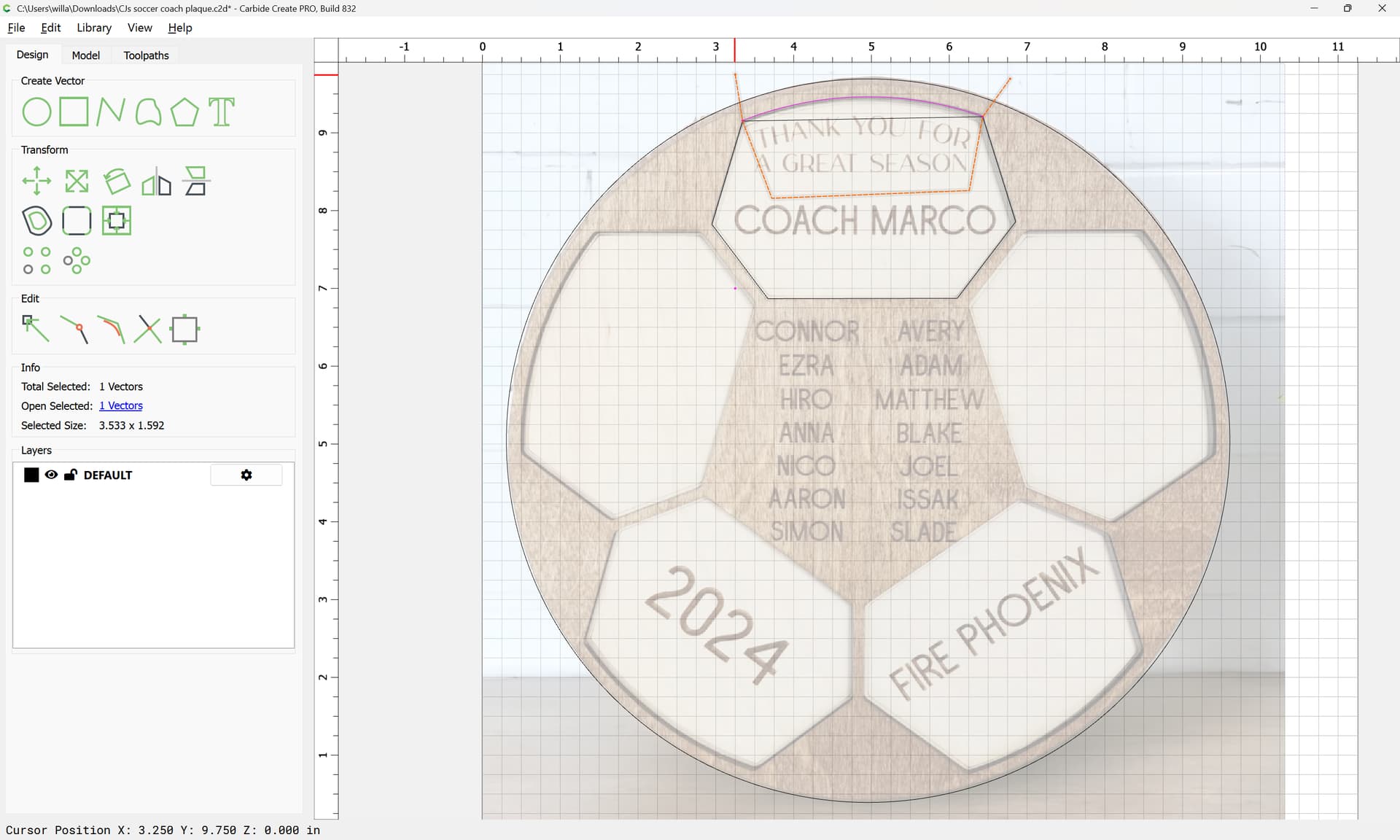

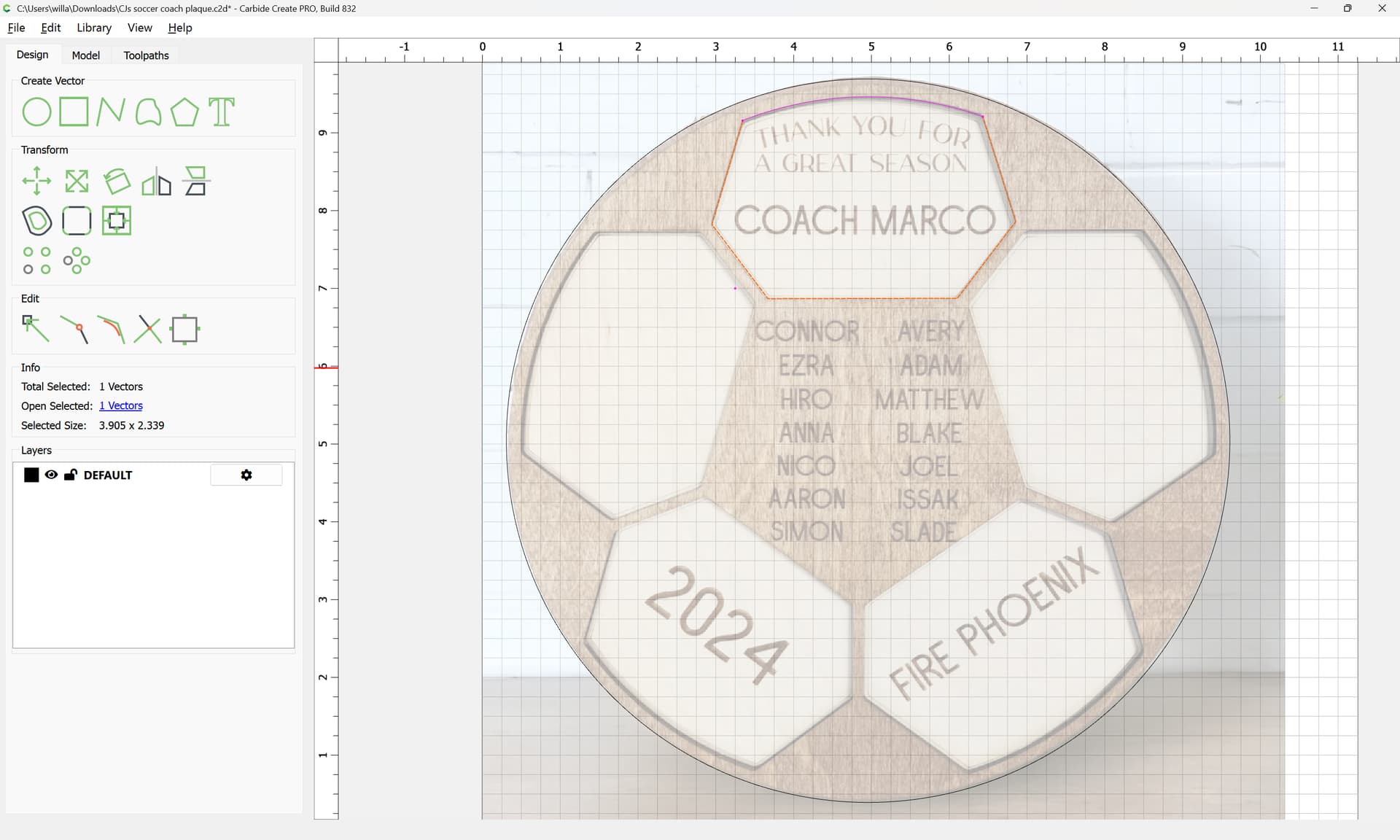

shift-click on the arc to add it to the selection:

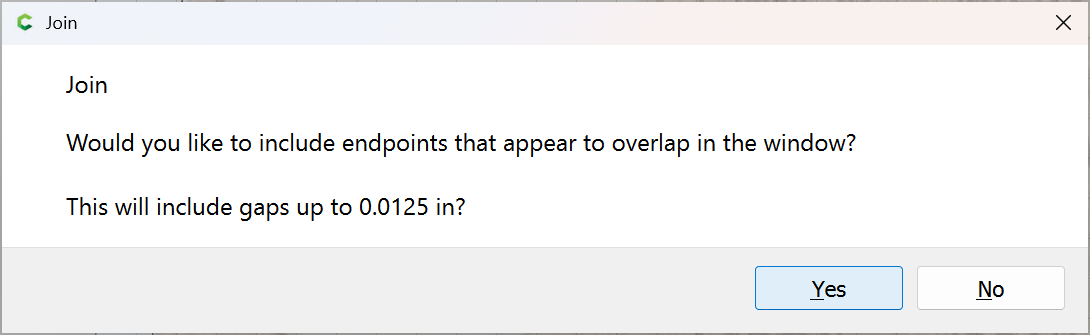

and Joint Vectors to close:

Yes

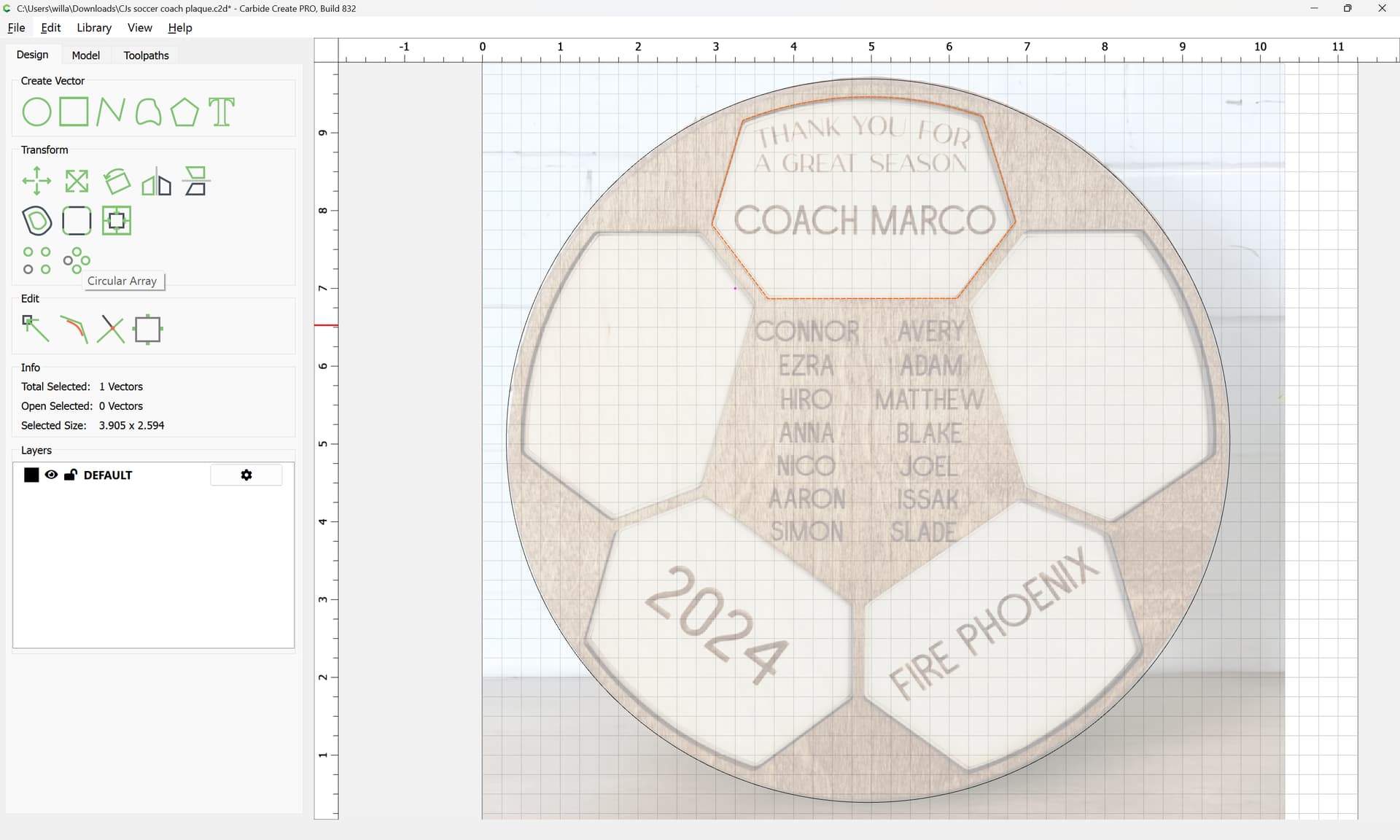

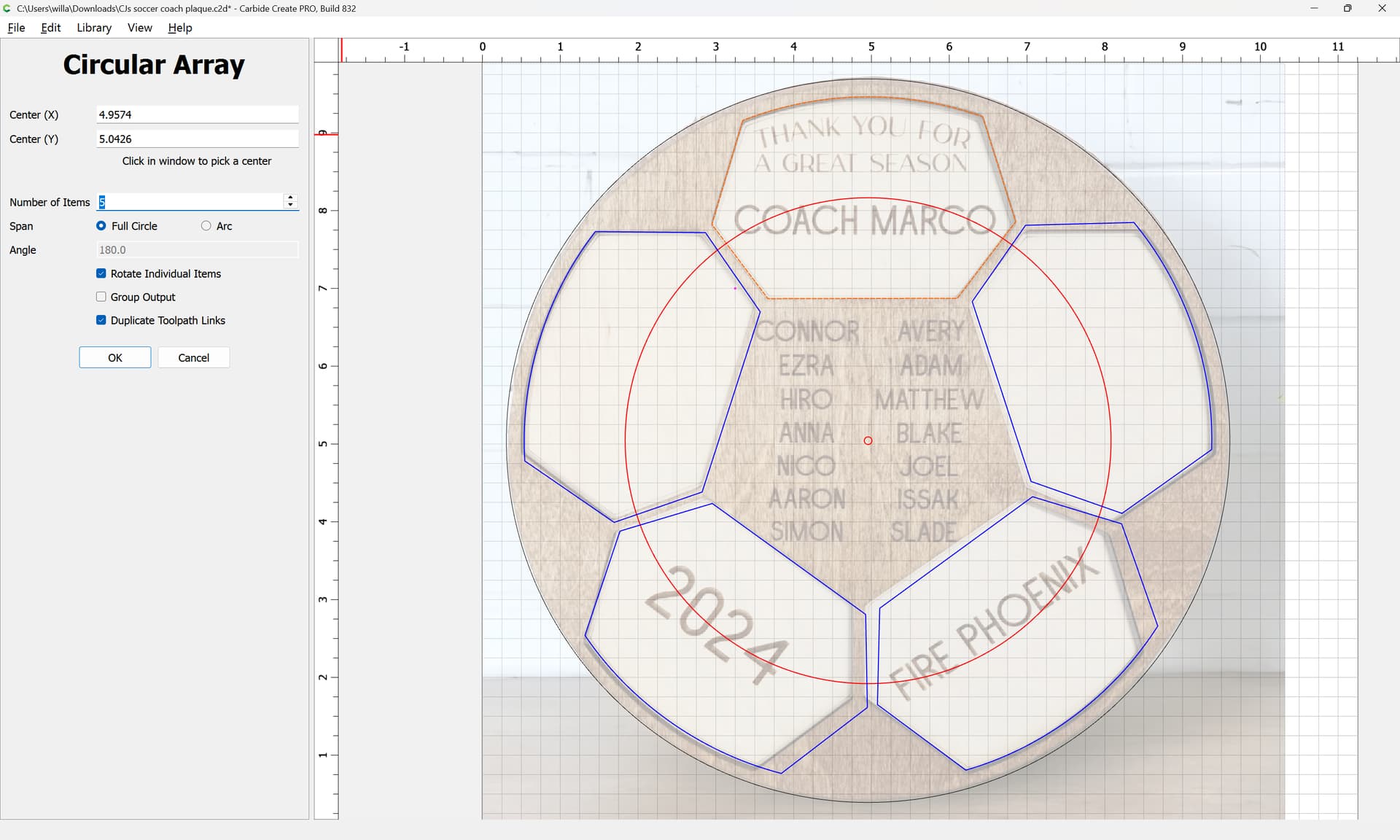

Then use Circular Array to duplicate, but first check the center of the circle:

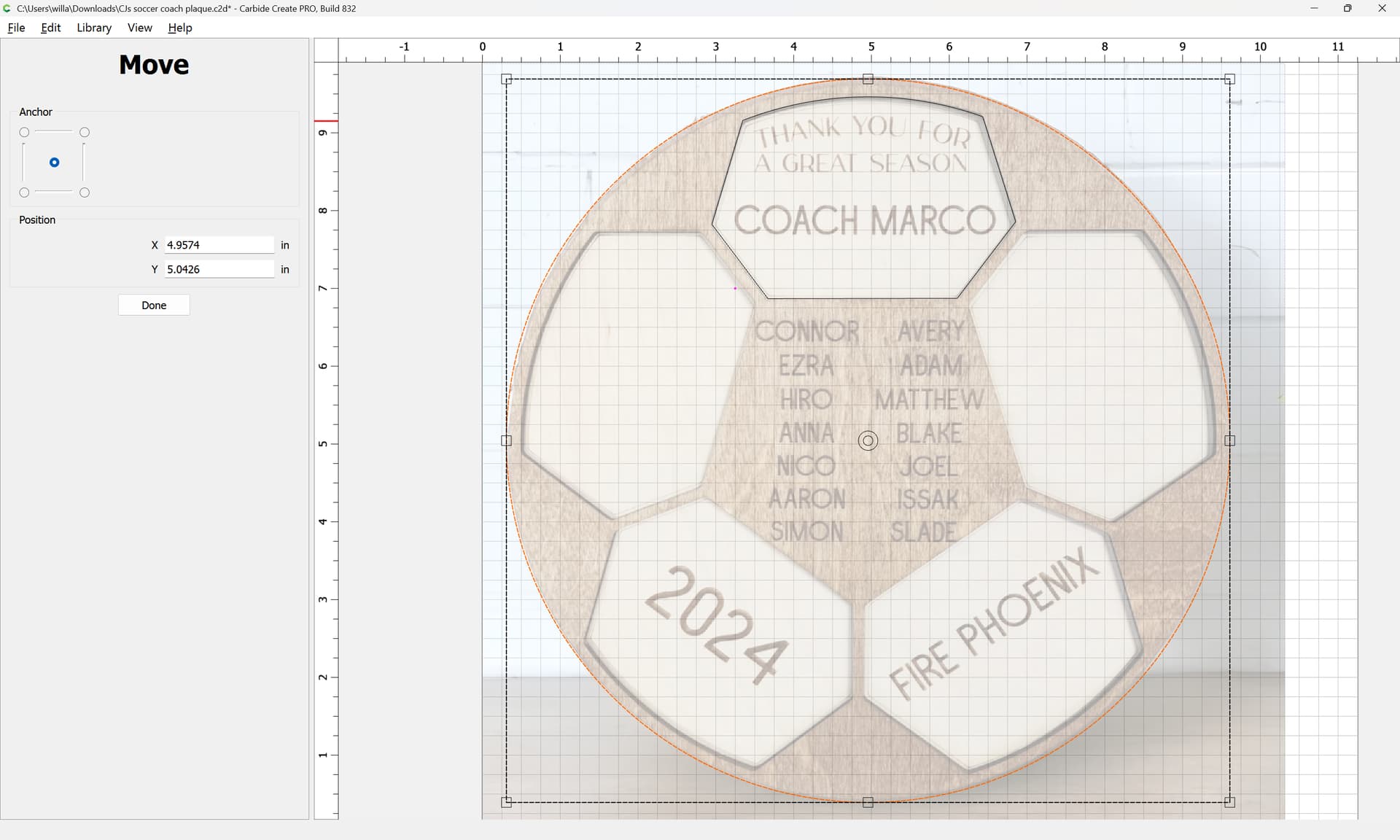

and transfer those coordinates into the tool:

OK

Attached as a v8 file.

CJs soccer coach plaque_v8.c2d (1.7 MB)

[Chrisnh (Christopher Shannon)]

Awesome, I was able to use that and get it all lined up. I did not know that I could copy those on a circular array.

Thanks again, Chris
