How can I do this triangle?

[dmerchant (Don)]

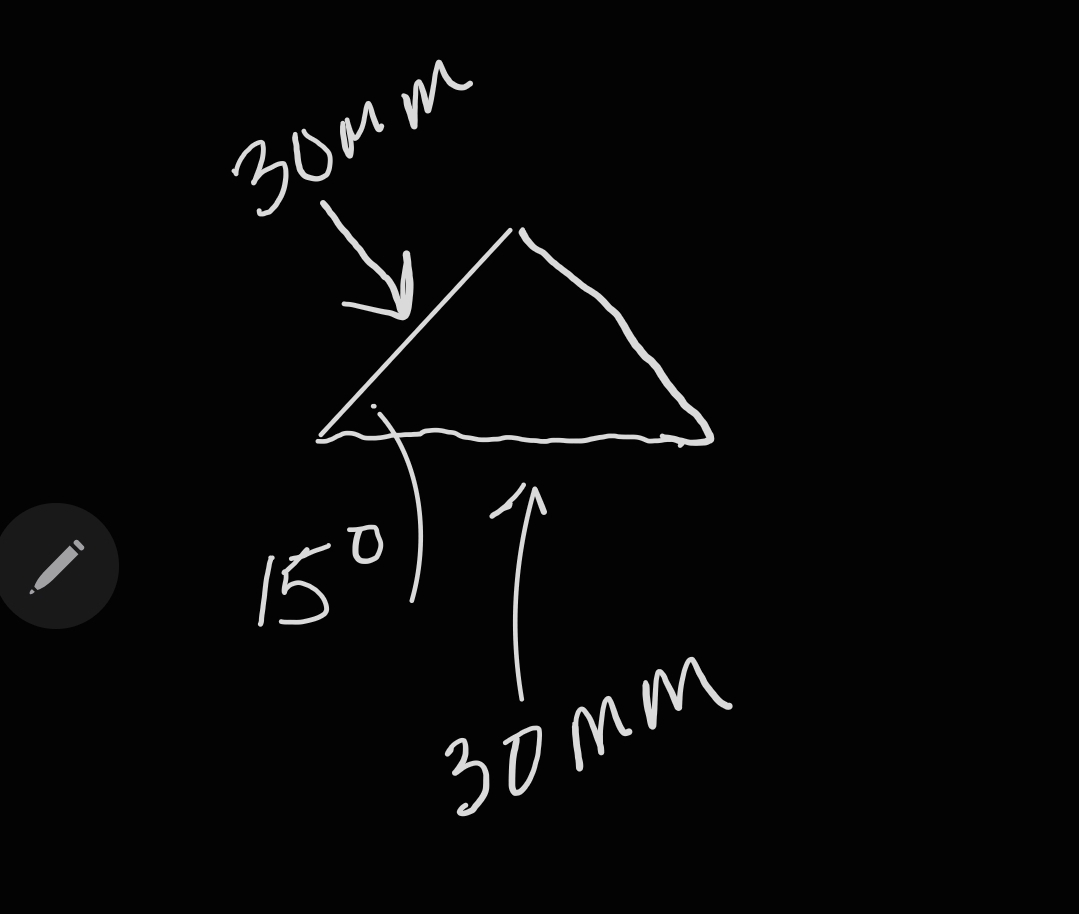

Using Carbide Create how do I draw a triangle that has 2 sides 30mm long, 1 side 7.83mm long with an angle of 15 degrees between the 2 30mm legs?

[jimtyre]

I drew 3 rectangles. 2-30mm x1 1-7.83mmx1
rotated one of the 30mm 15 degrees.
placed the in the triangle. Then traced with the line
function.

[jimtyre]

30 mm triangle.c2d (44 KB)

[WillAdams (William Adams (Carbide 3D))]

One way to do this would be in Carbide Create:

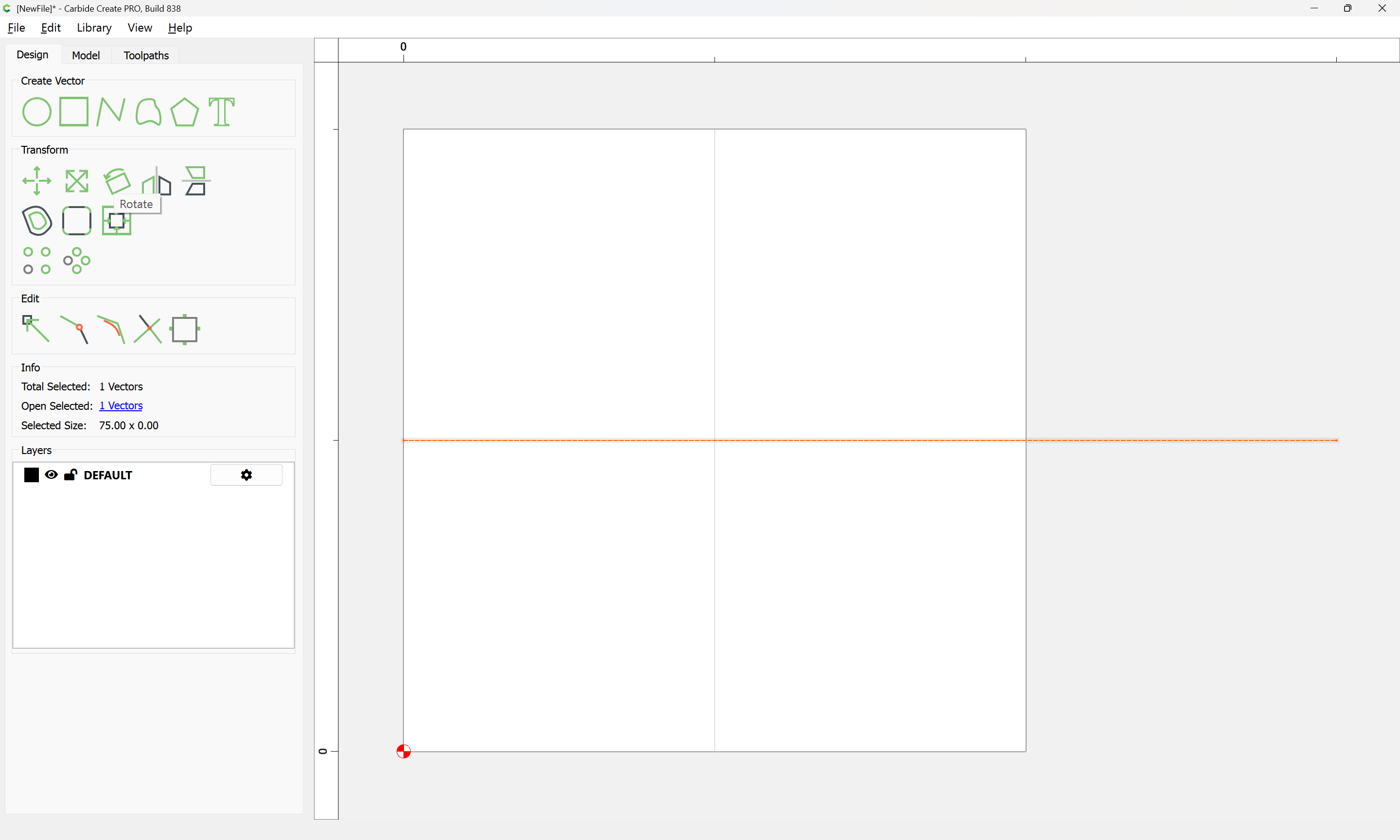

Draw a line:

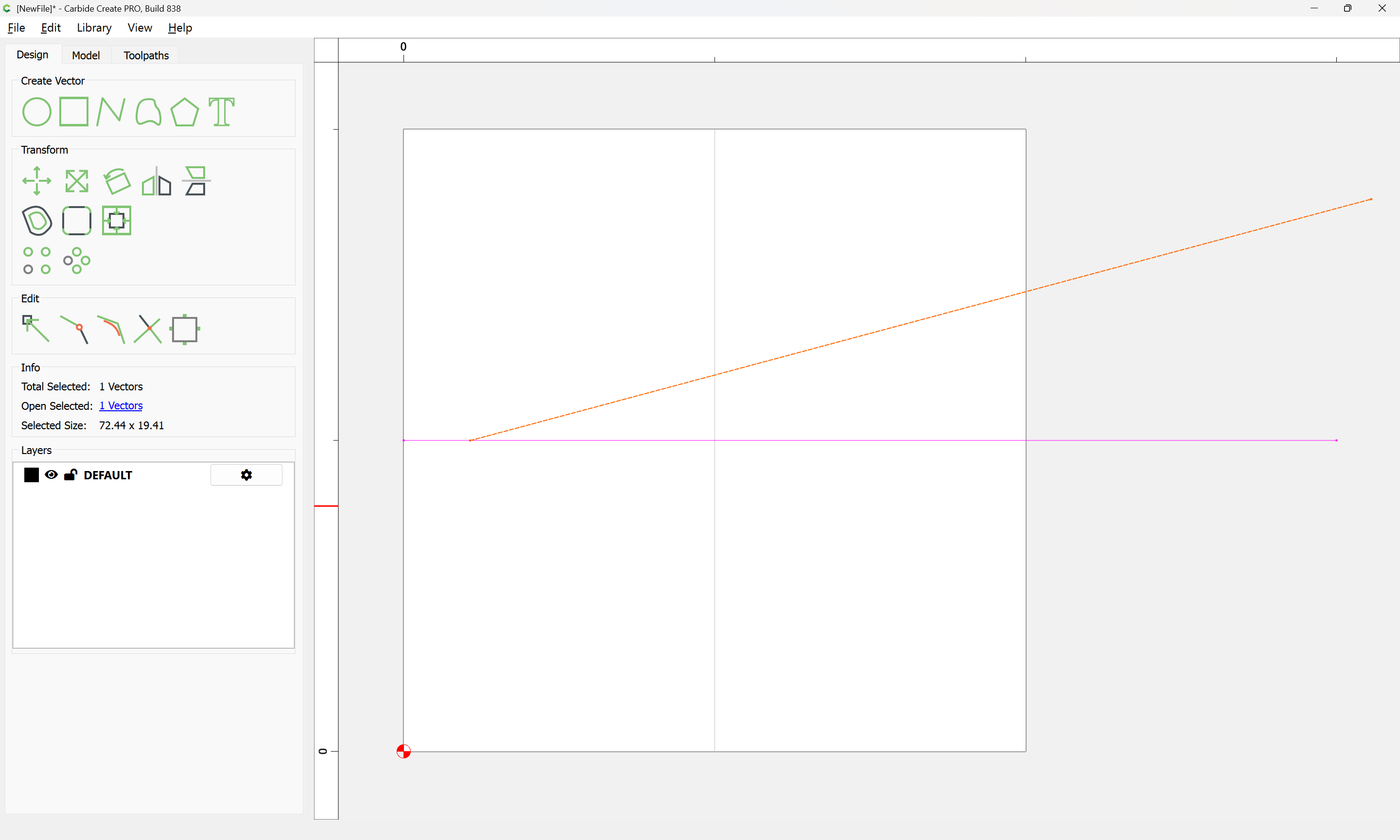

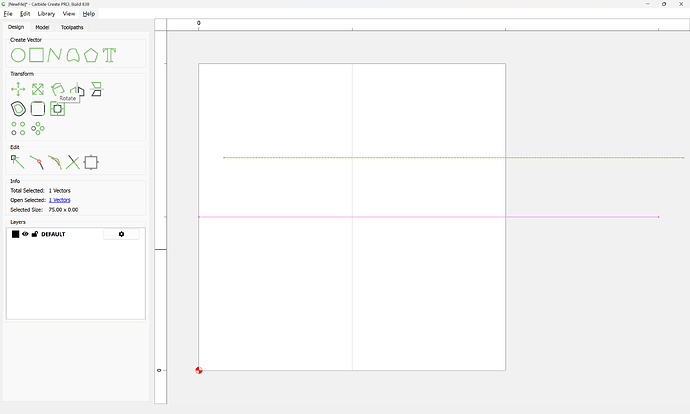

copy-paste the line:

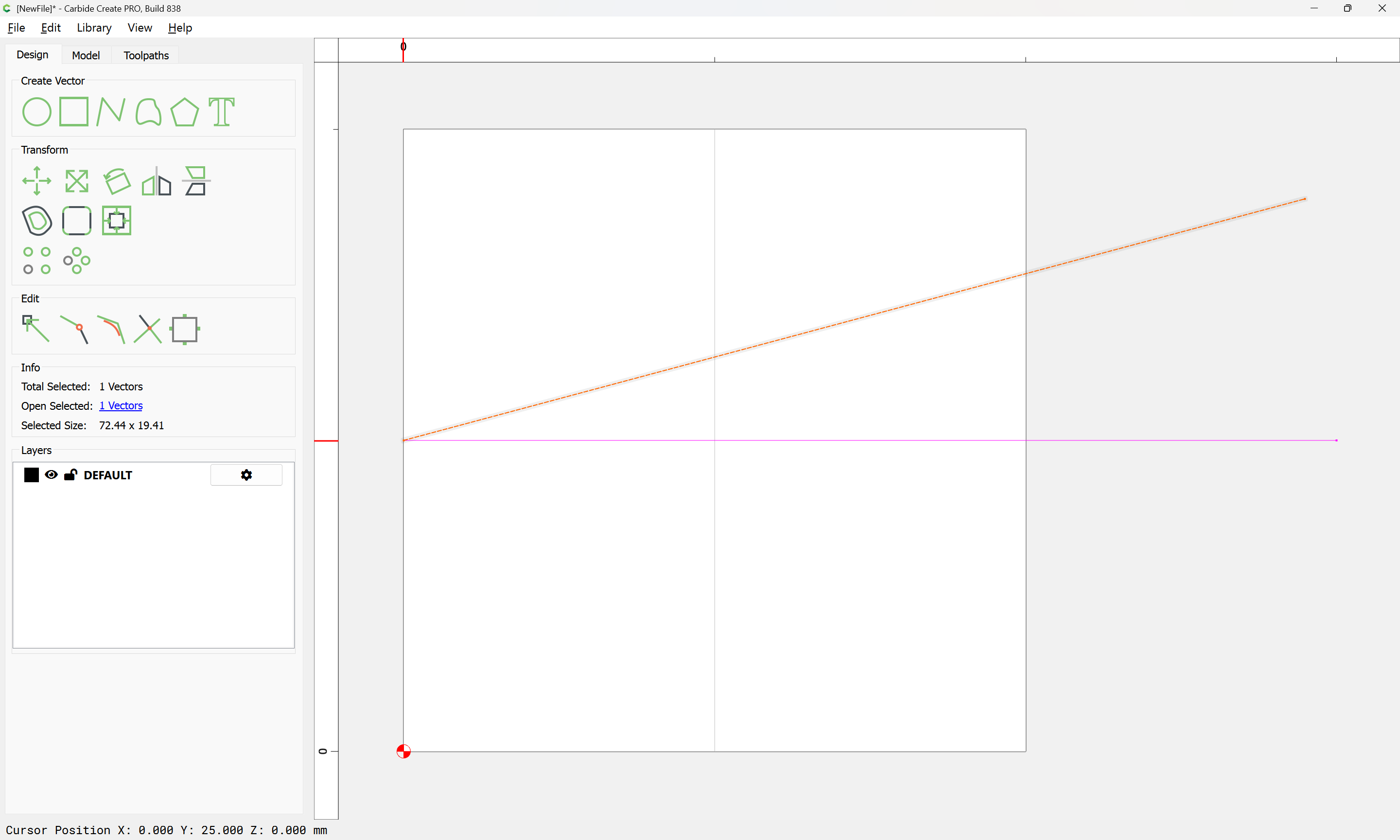

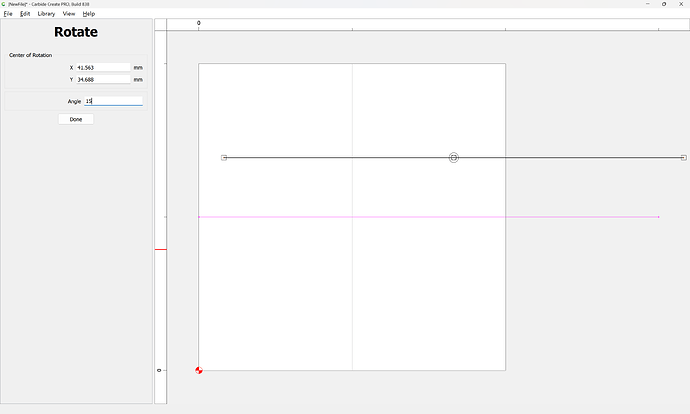

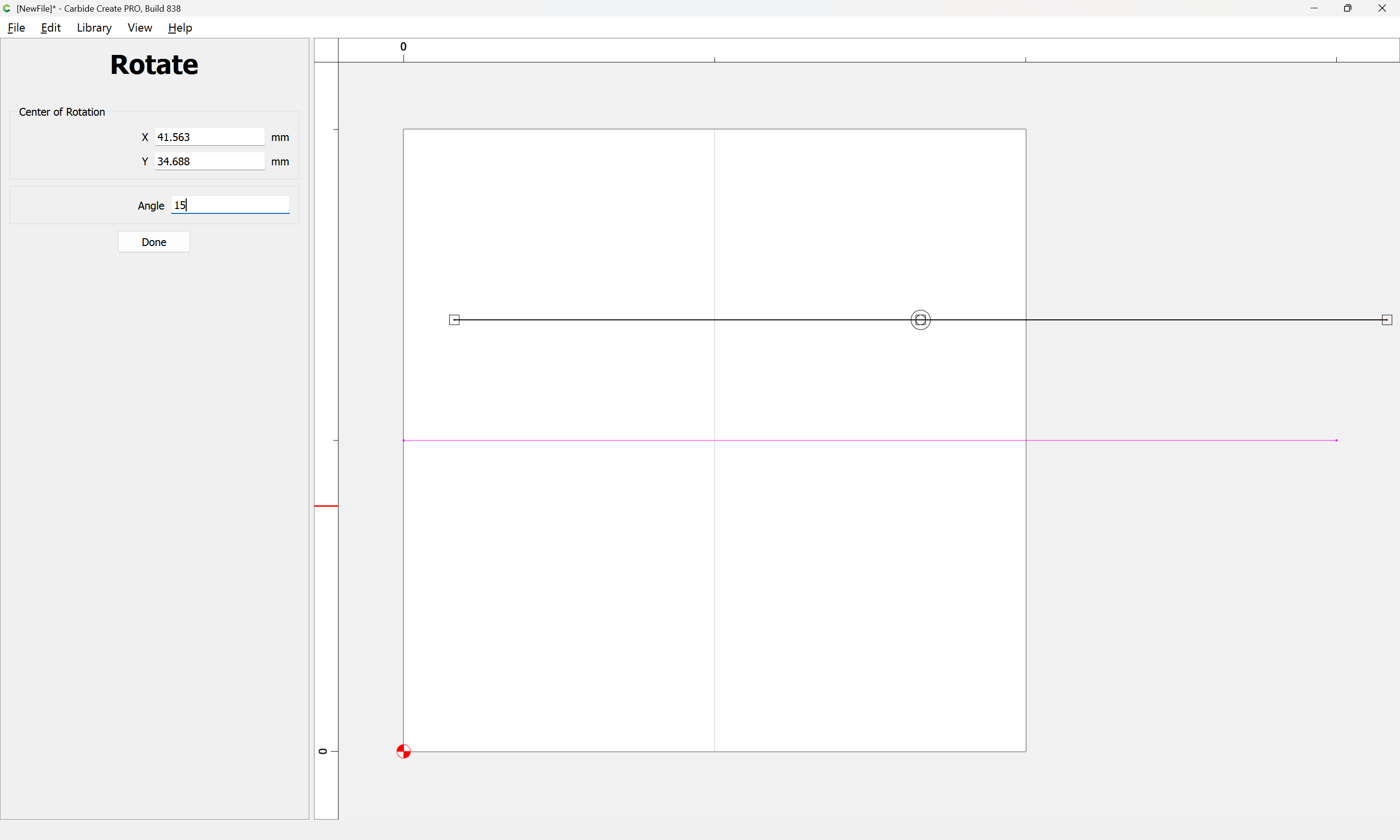

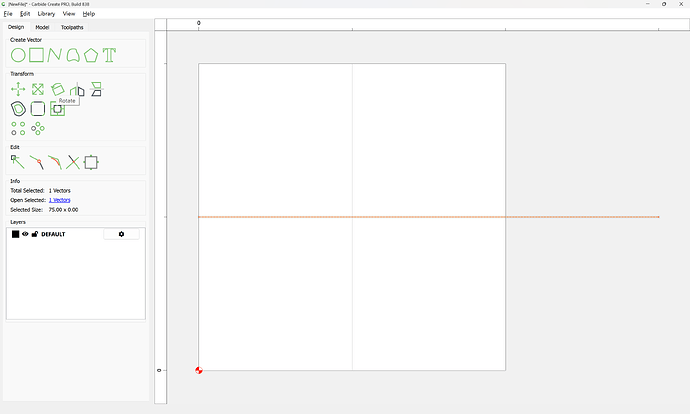

Rotate it 15 degrees:

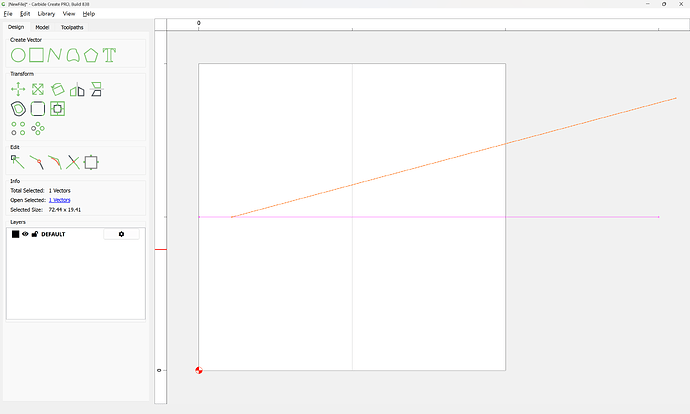

Done

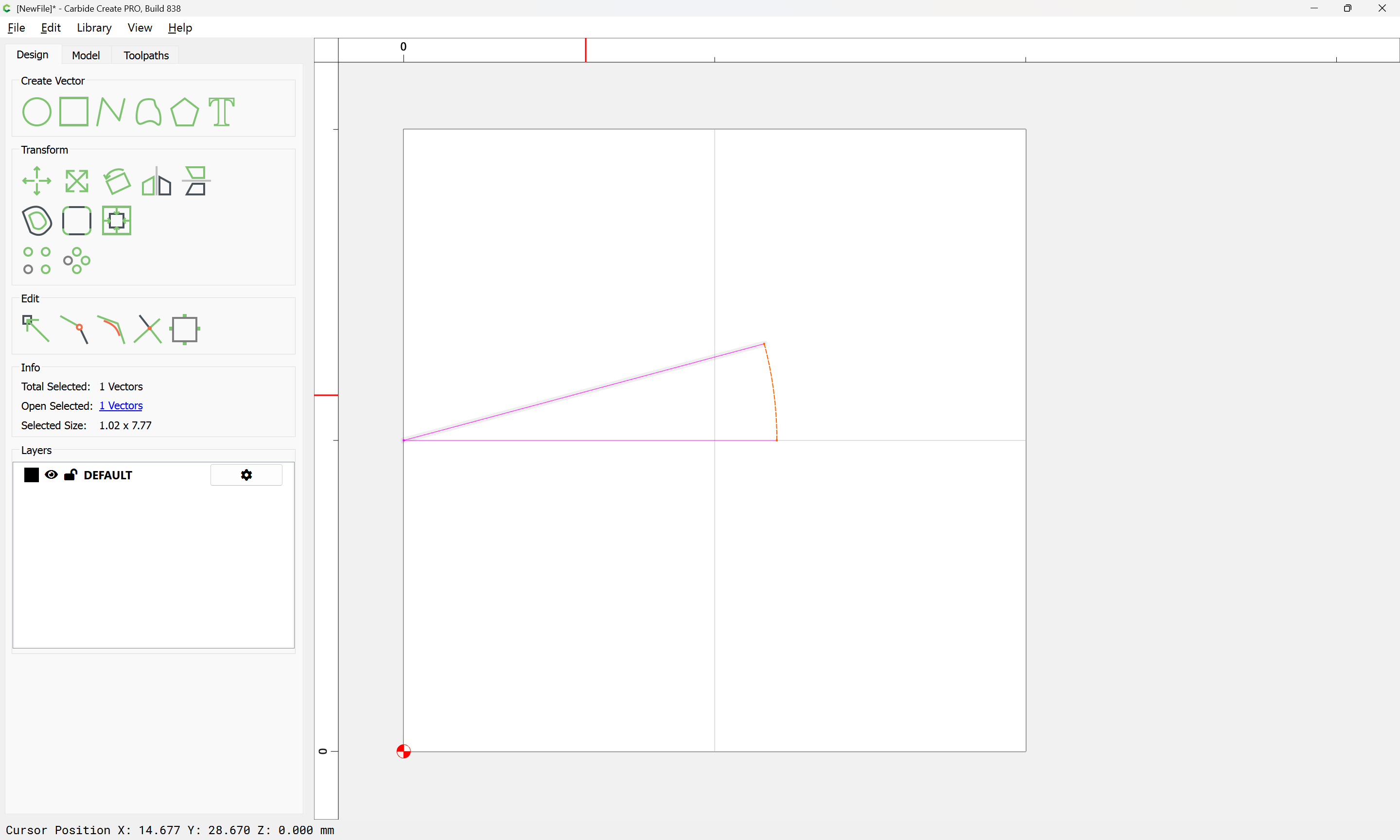

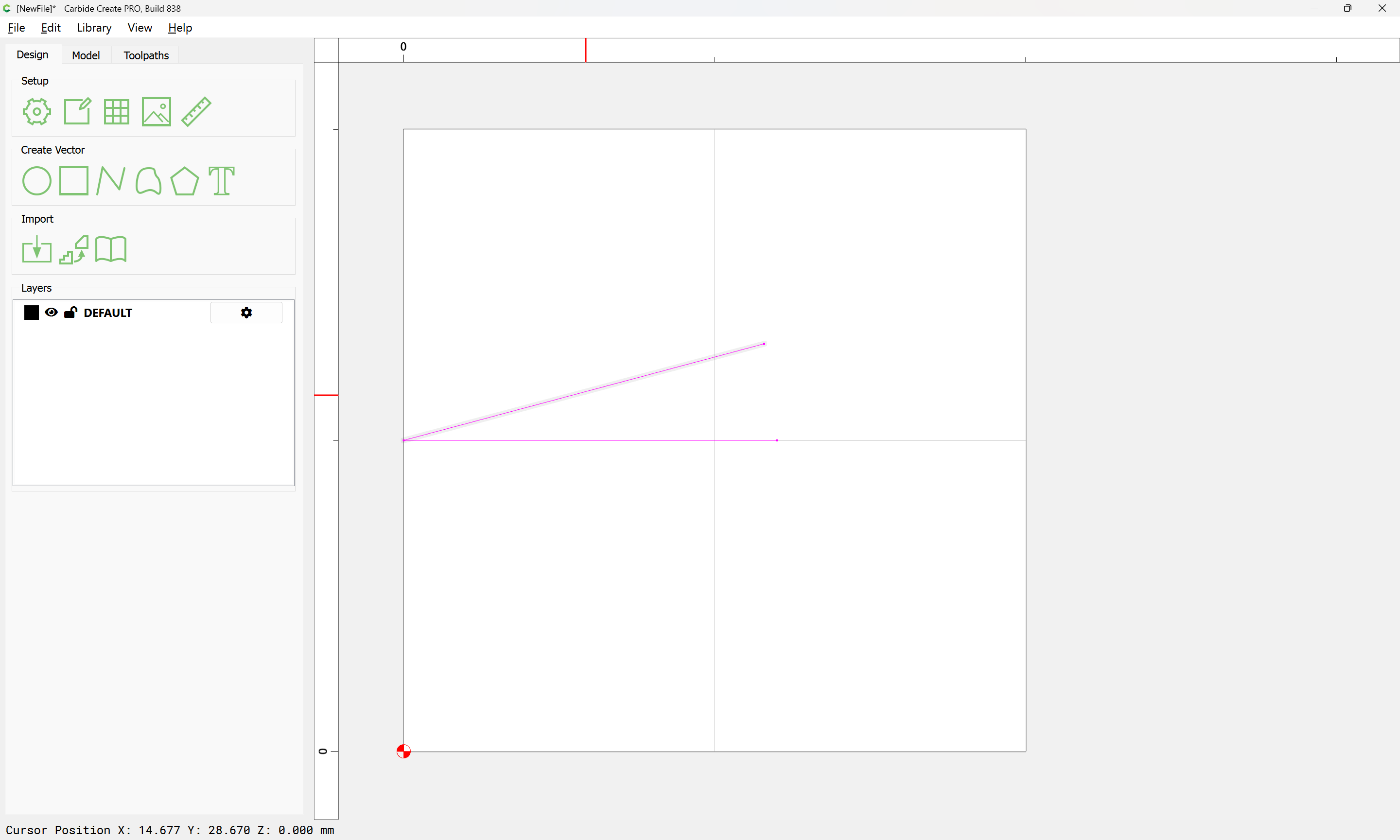

Drag it into alignment with the original:

Draw in a circle with the center at the vertex:

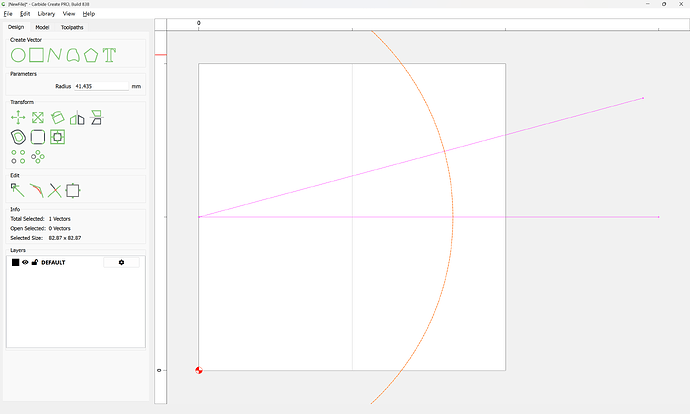

Then set the radius to the desired distance:

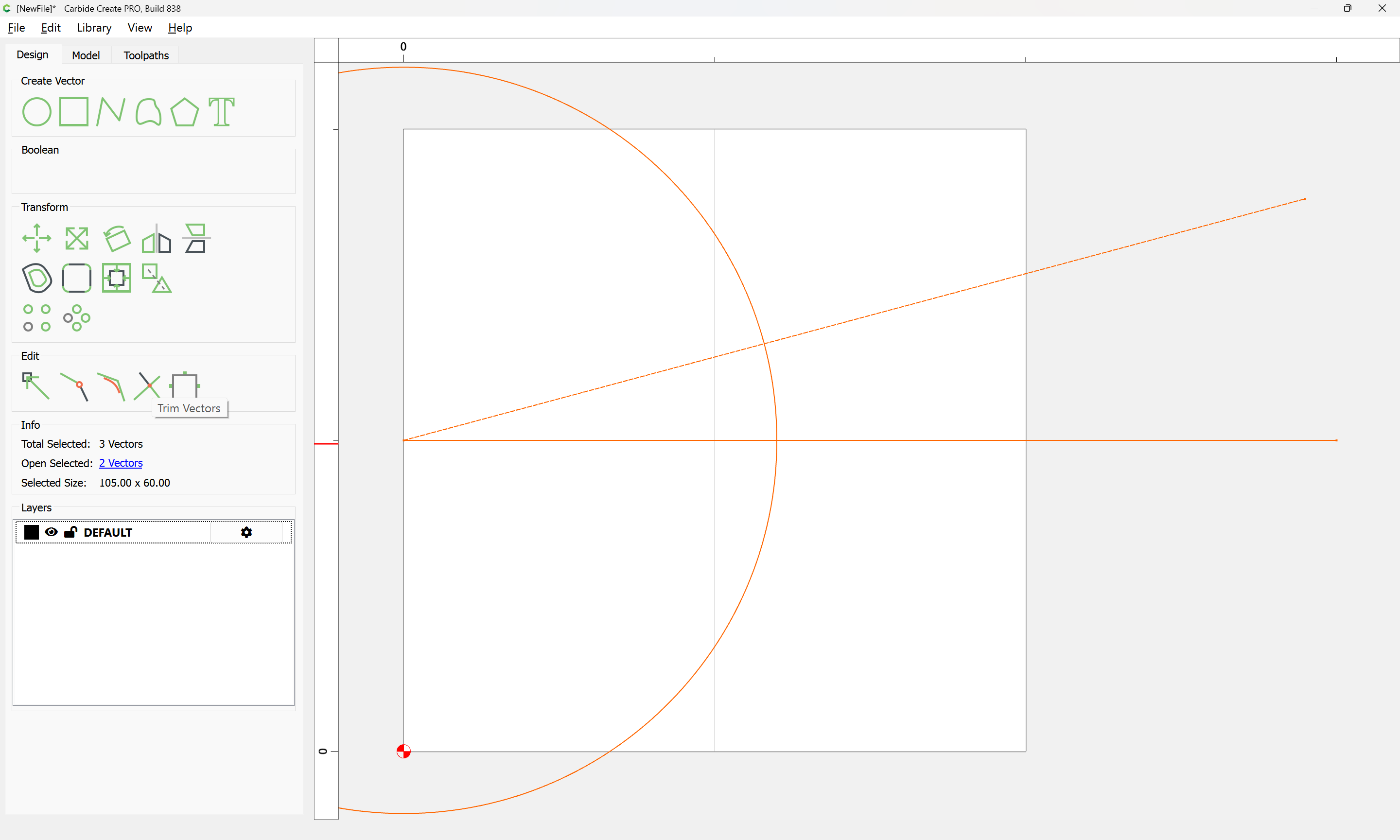

Select everything:

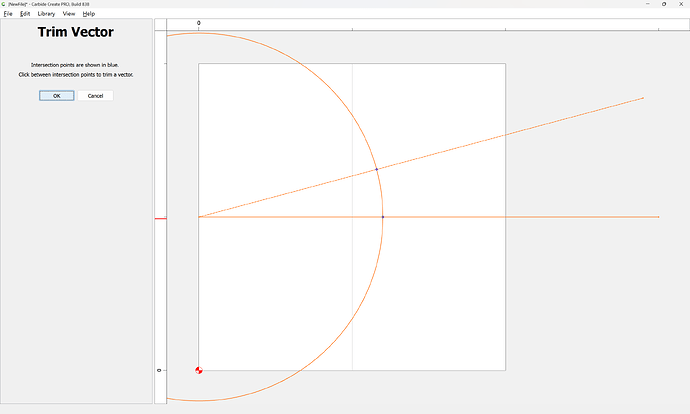

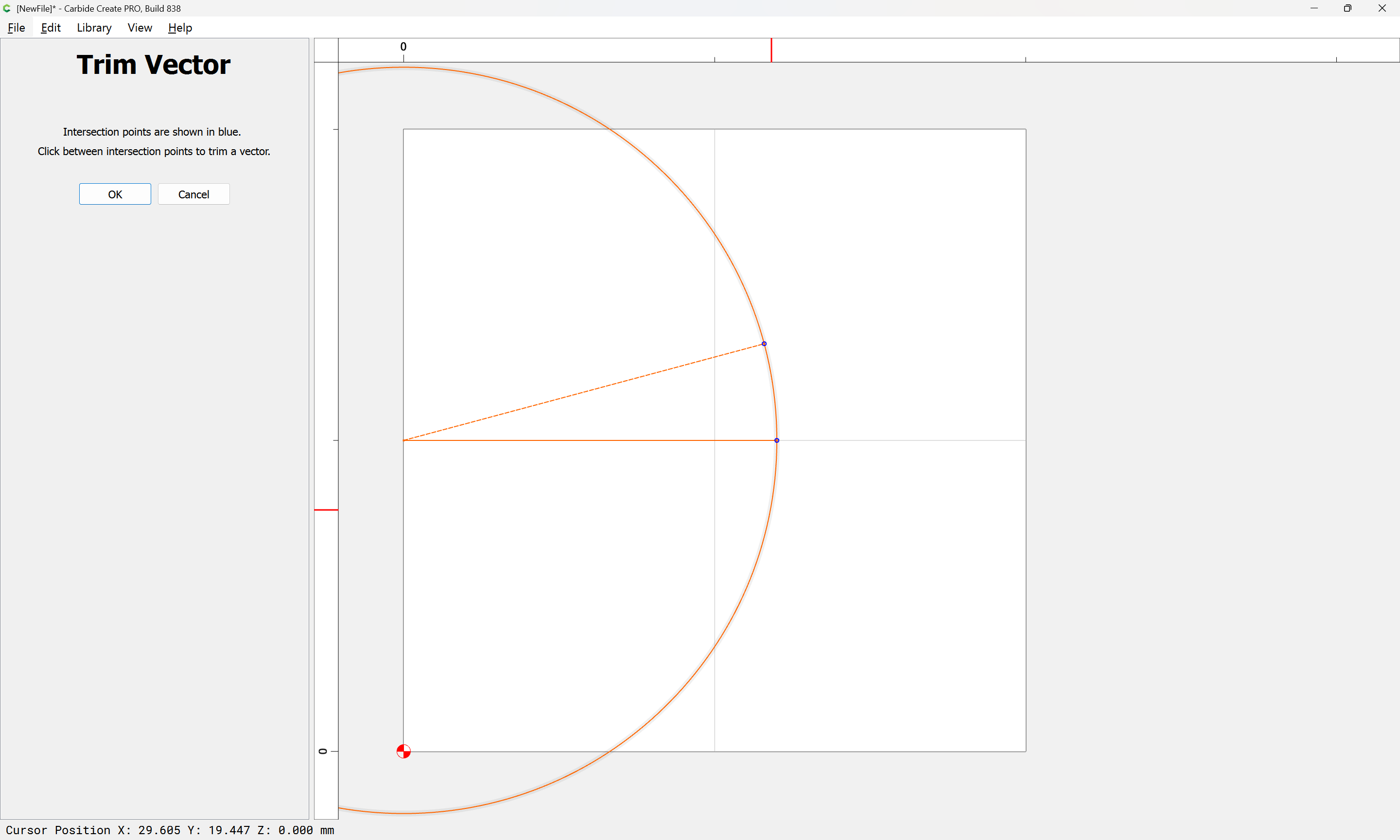

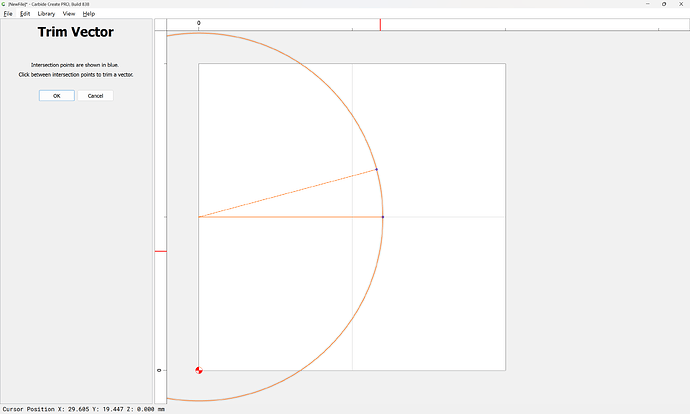

and use Trim Vectors:

then remove what is not wanted:

until one arrives at:

OK

Deselect the two lines:

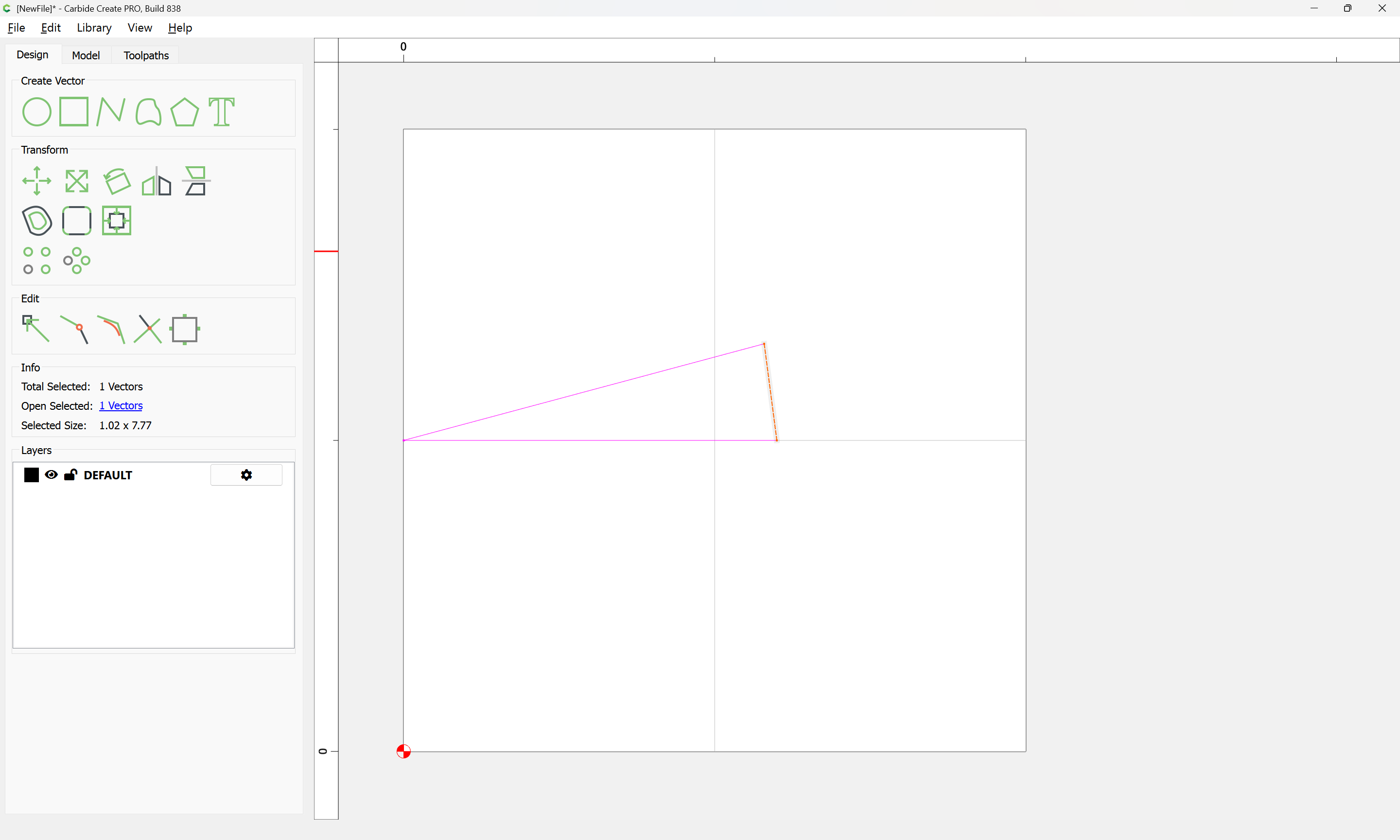

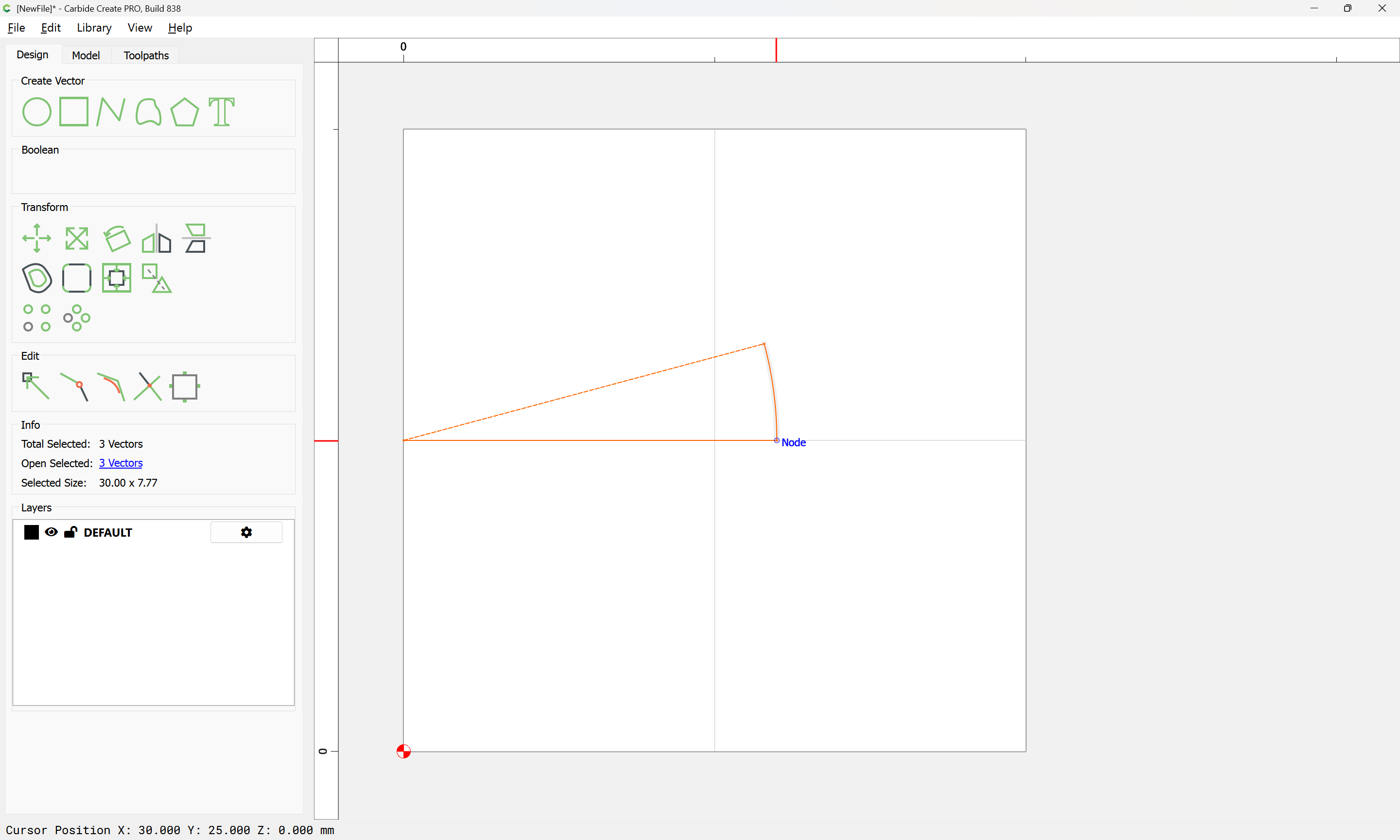

and delete the remaining arc:

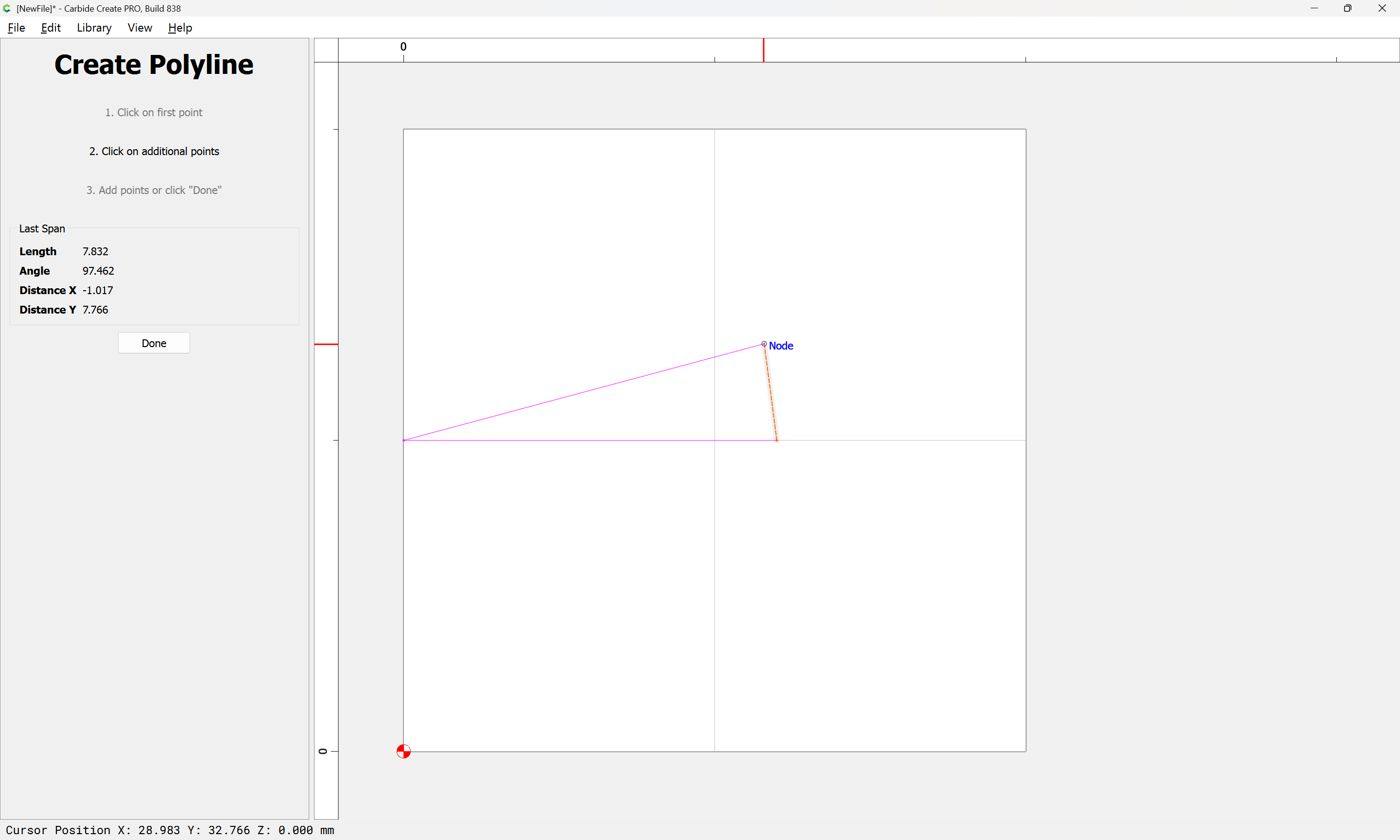

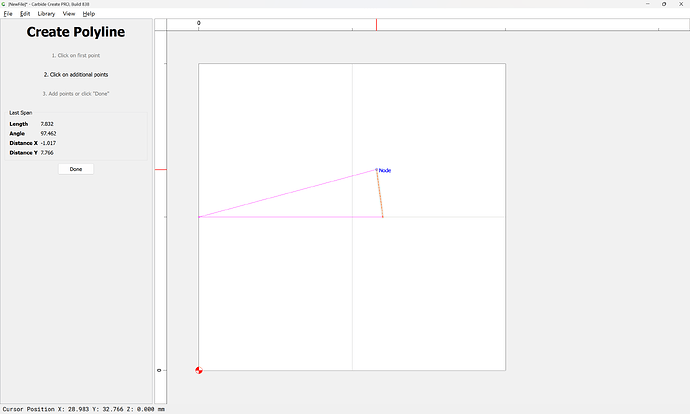

Then draw a line to compleat the triangle:

Done

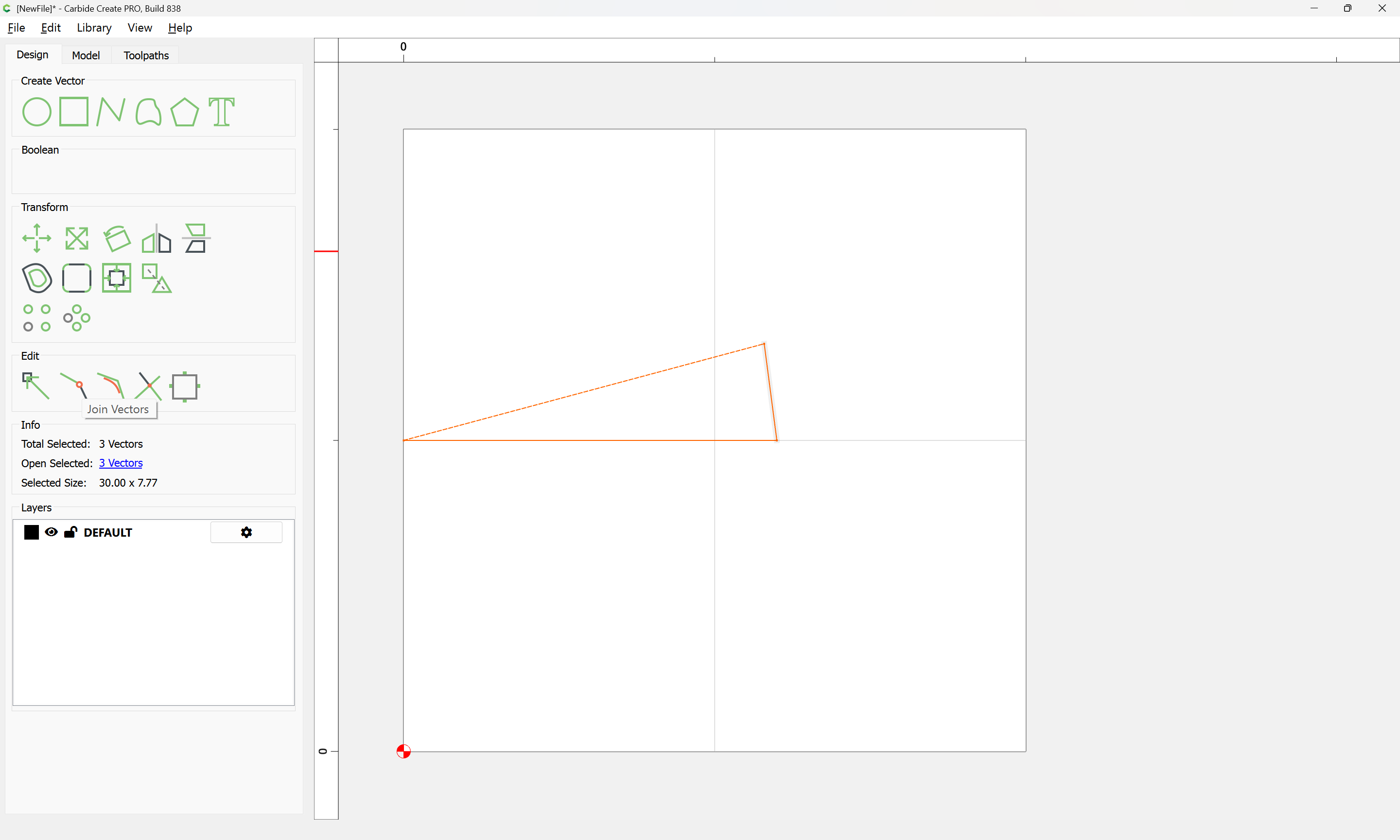

Select everything:

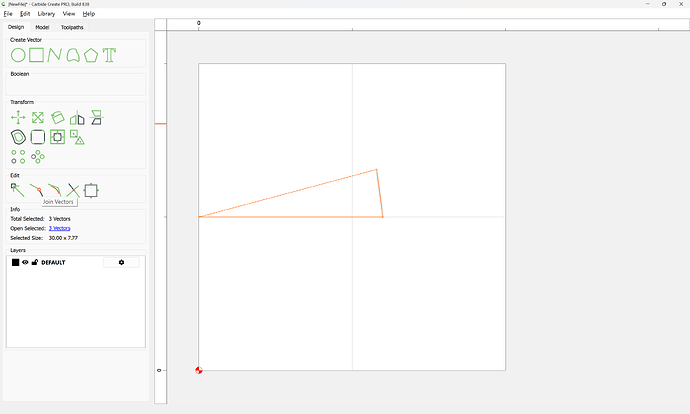

Join Vectors

Attached as a v8 file:

triangle_30degree_v8.c2d (44 KB)

[dmerchant (Don)]

Thank you both. Another lesson learned.
