Rounding a 3D model evenly

[WillAdams (William Adams (Carbide 3D))]

as requested on support…

I am working on a project where I need to round over the edge of a trapezoid. I am trying to put a 1" roundover along the outside edge of a piece of high-density packing foam for a seat pad. I have watched several tutorials and looked on the community site, but I can’t find a way to eliminate the bubbles at the corners; file attached. Is there a way to accomplish a smooth 1" roundover on a shape like this?

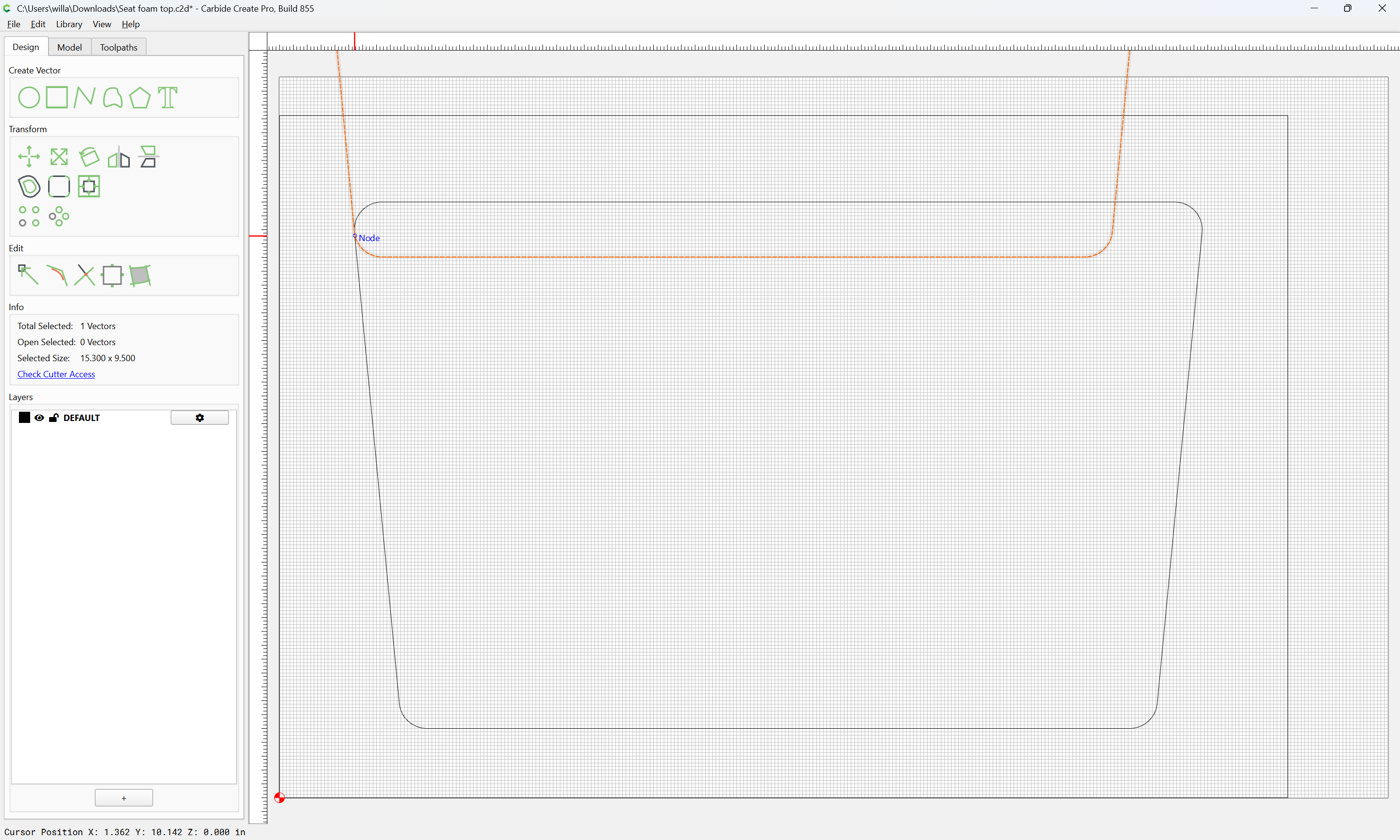

where the provided file is:

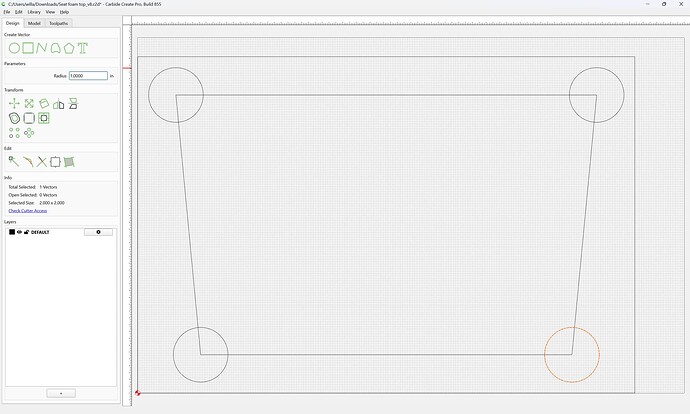

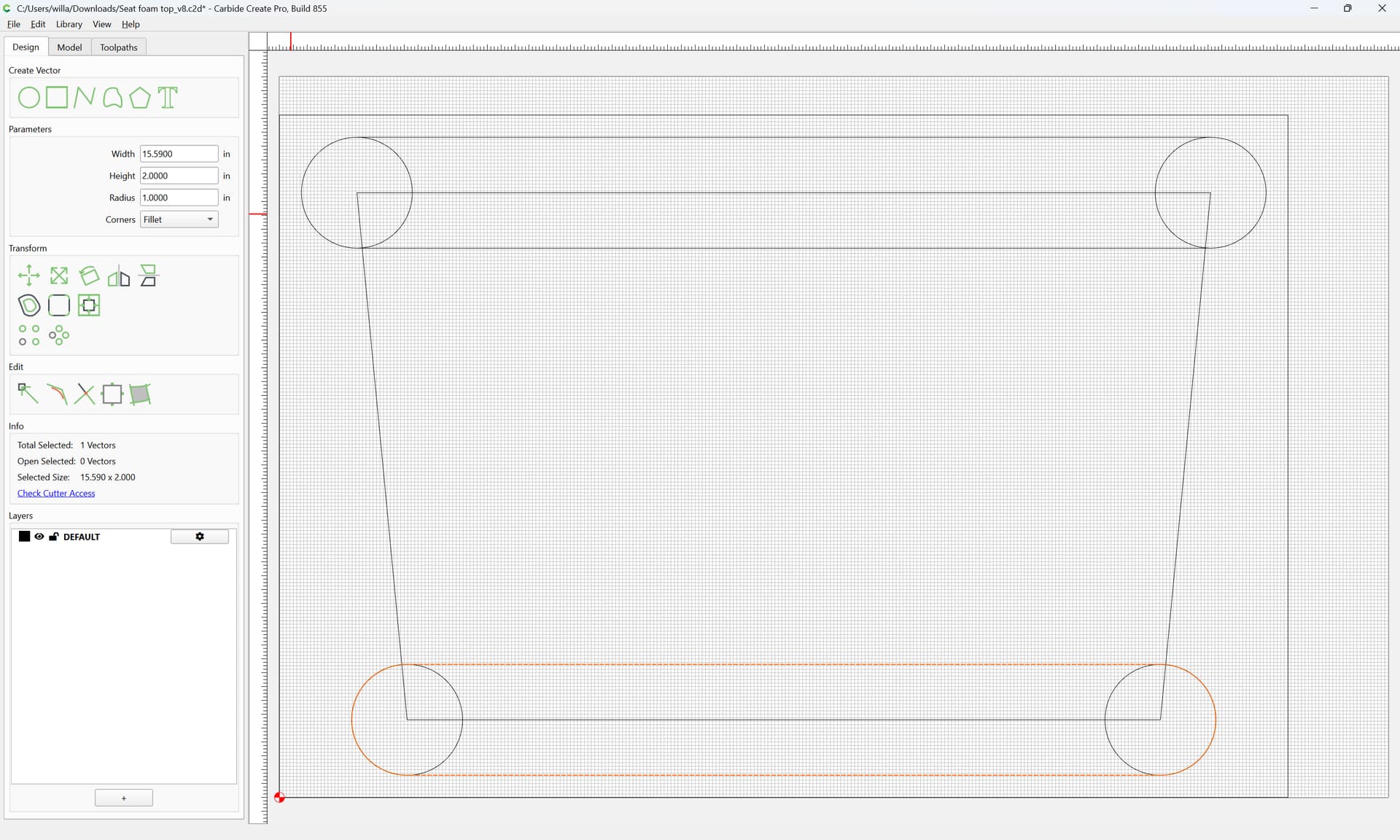

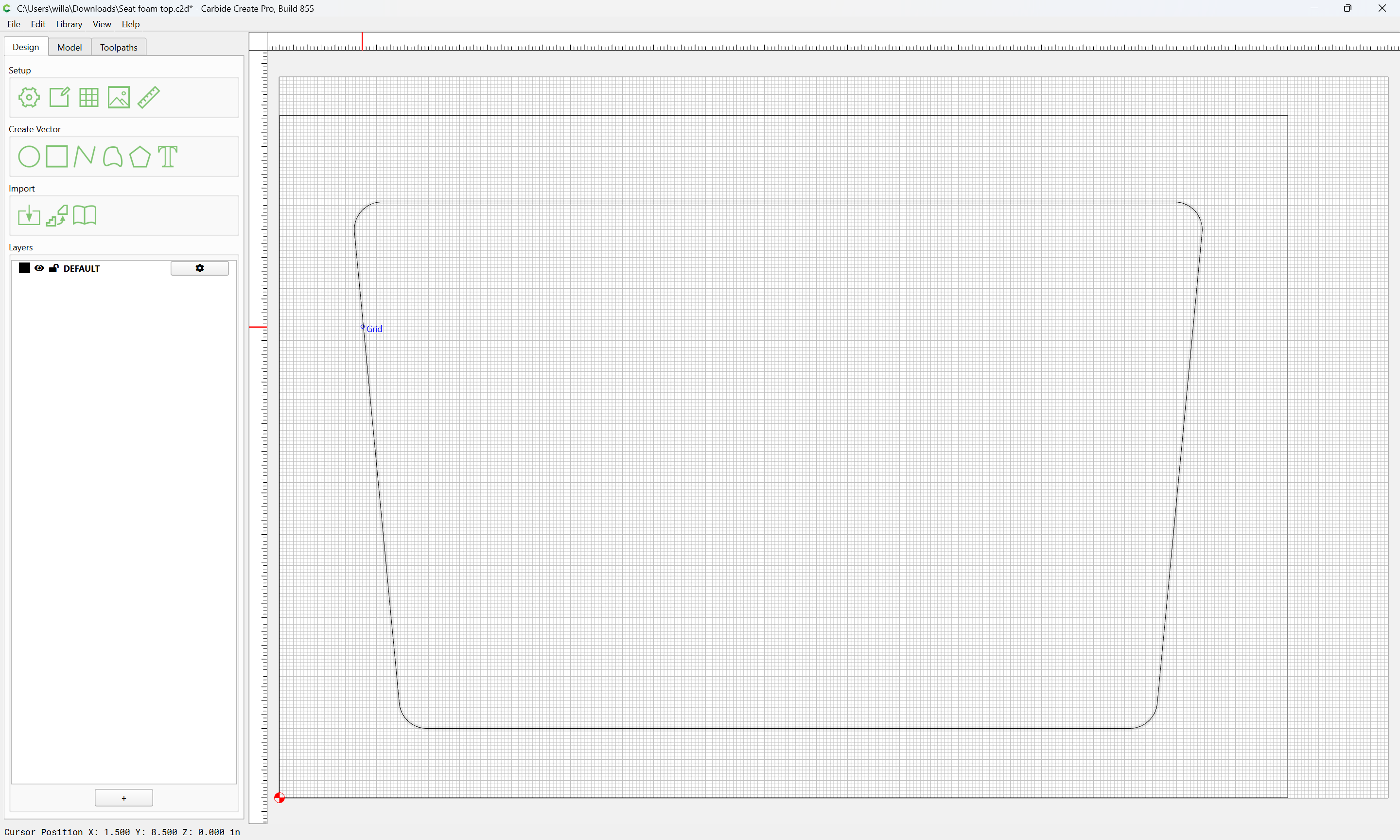

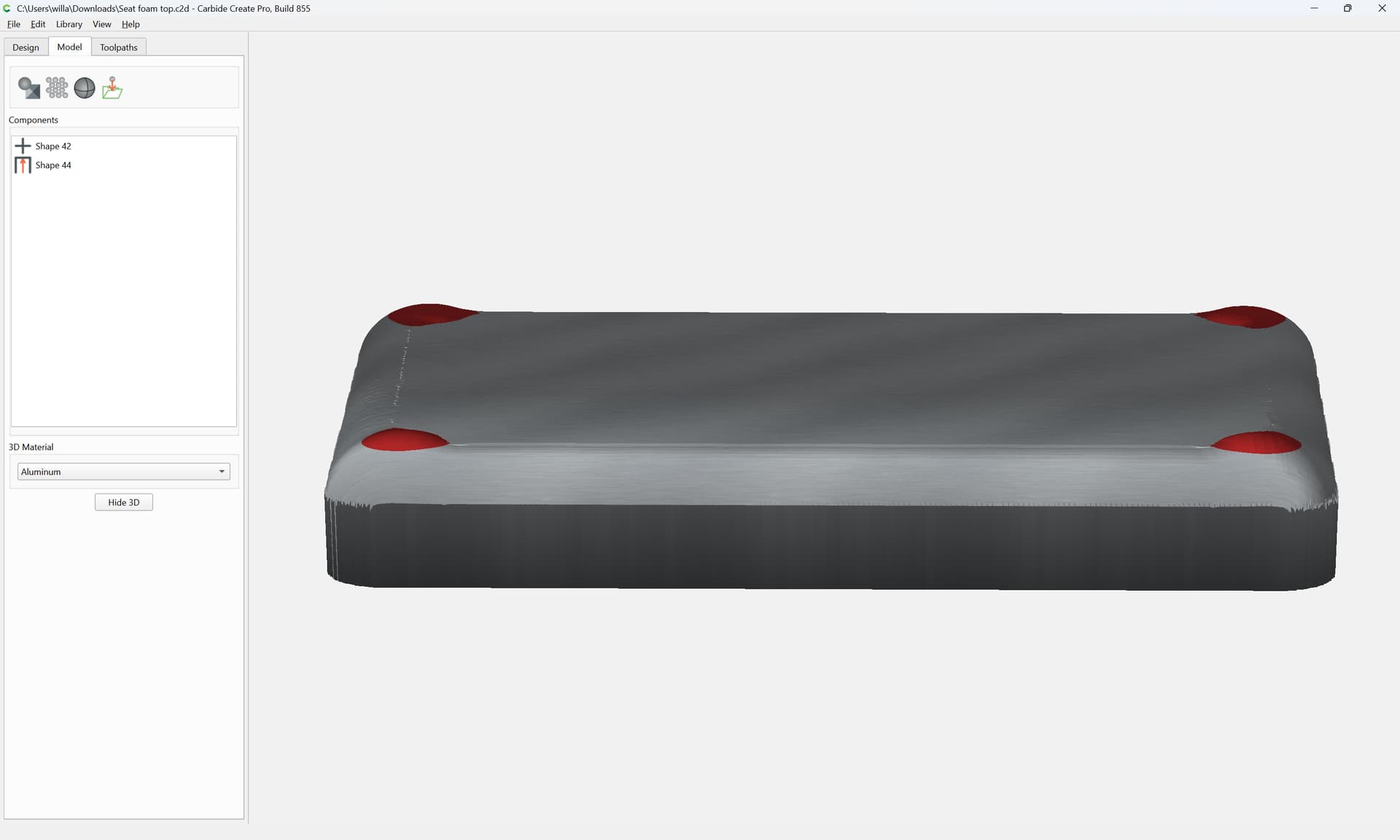

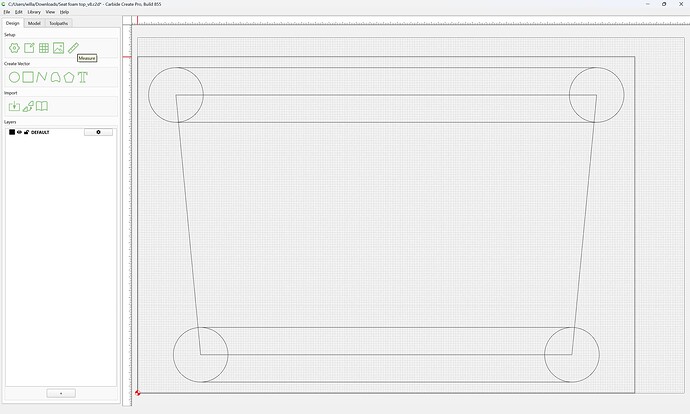

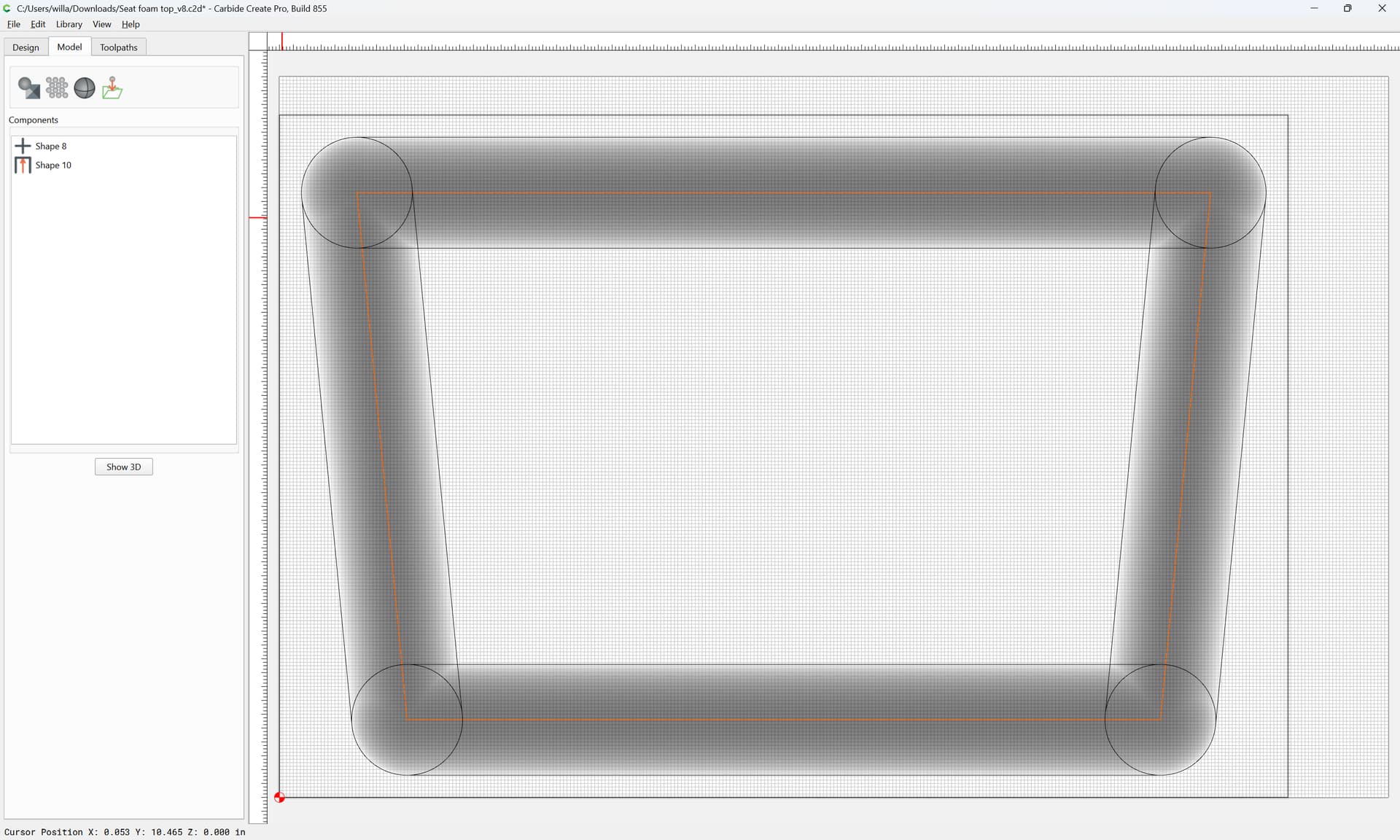

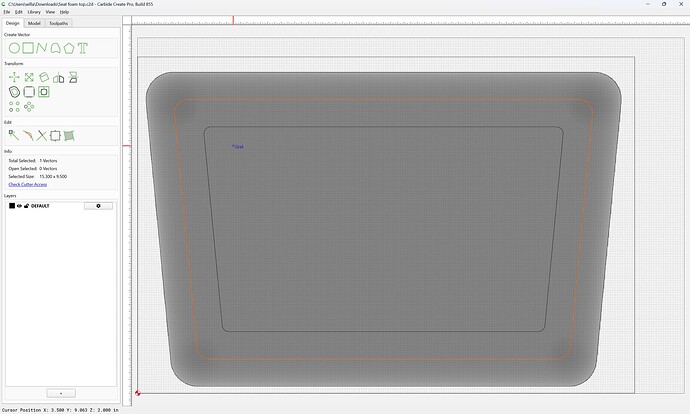

and the provided geometry is:

It will be necessary to draw rounded forms which describe the four edges, as well as a central element which describes the perimeter of the top edge.

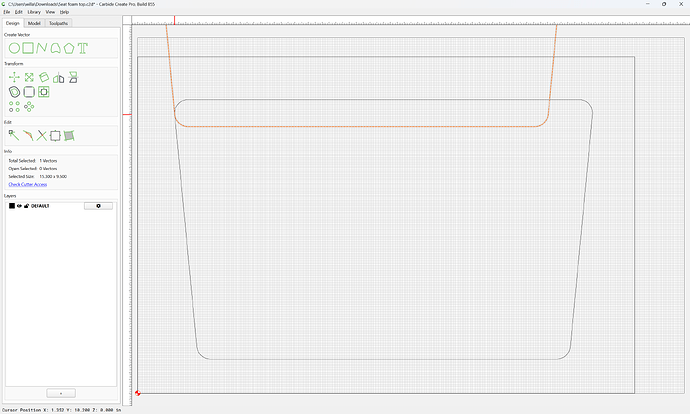

Probably the easiest part to work from will be the current central dividing geometry:

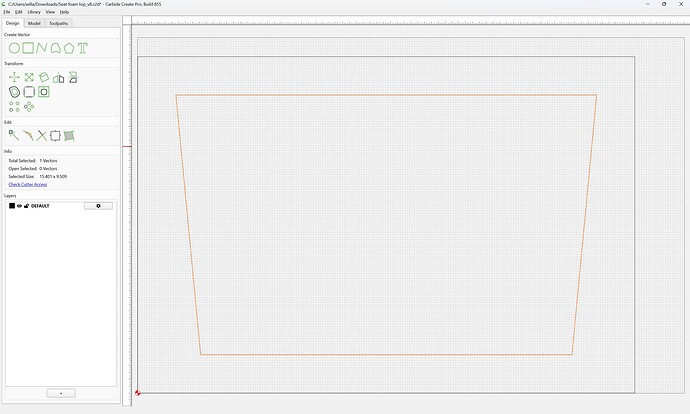

Delete everything else which is not needed:

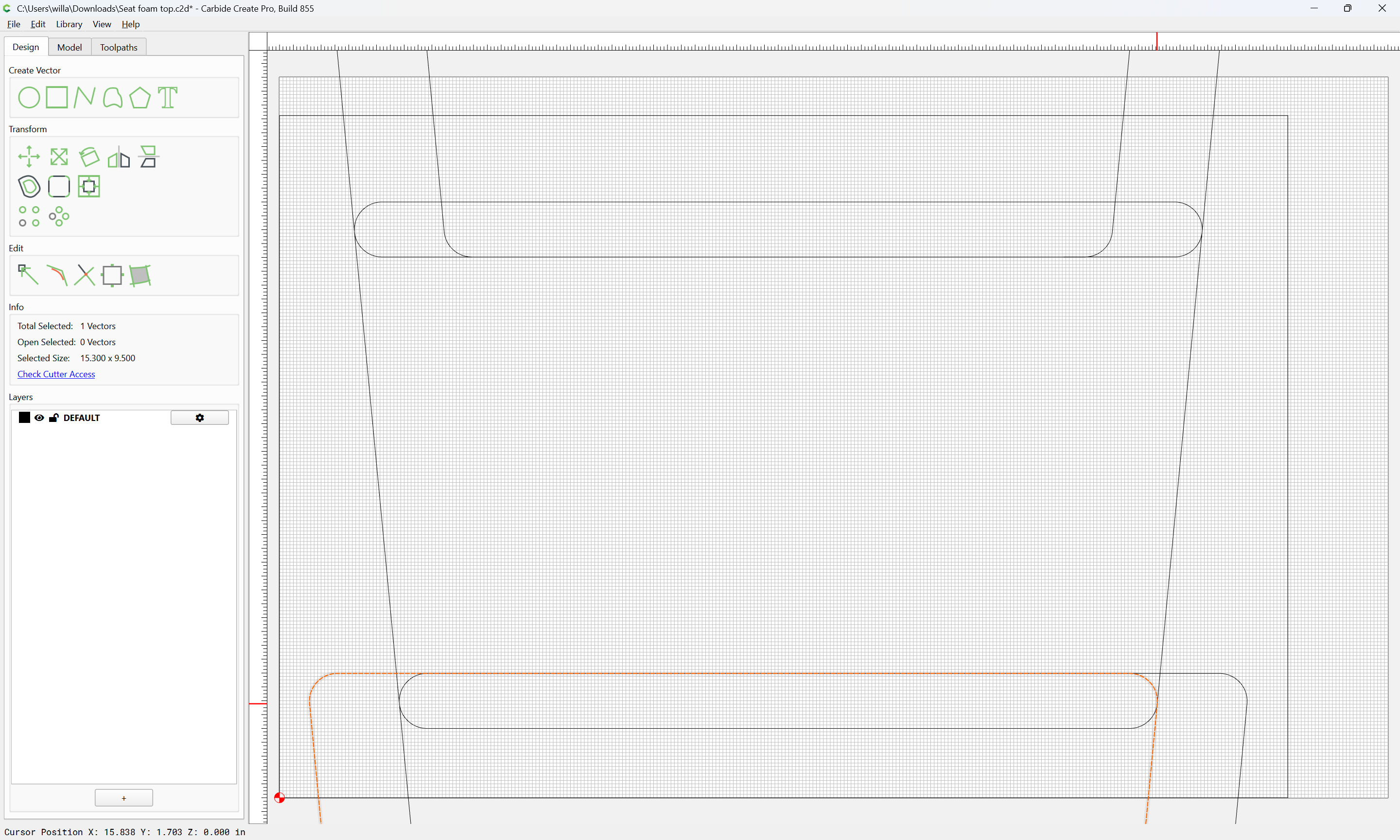

then duplicate this geometry and line up the copies so as to square up the four corners:

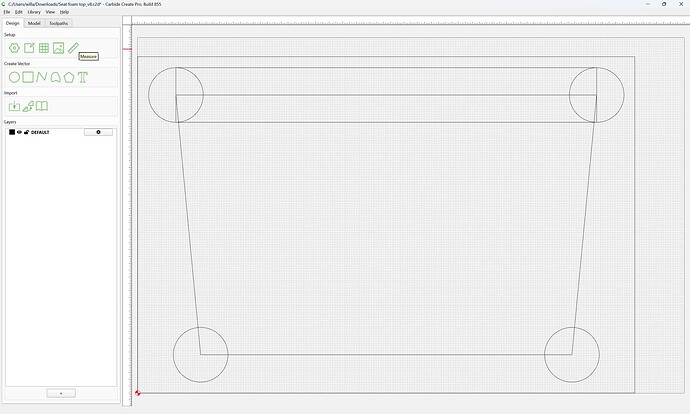

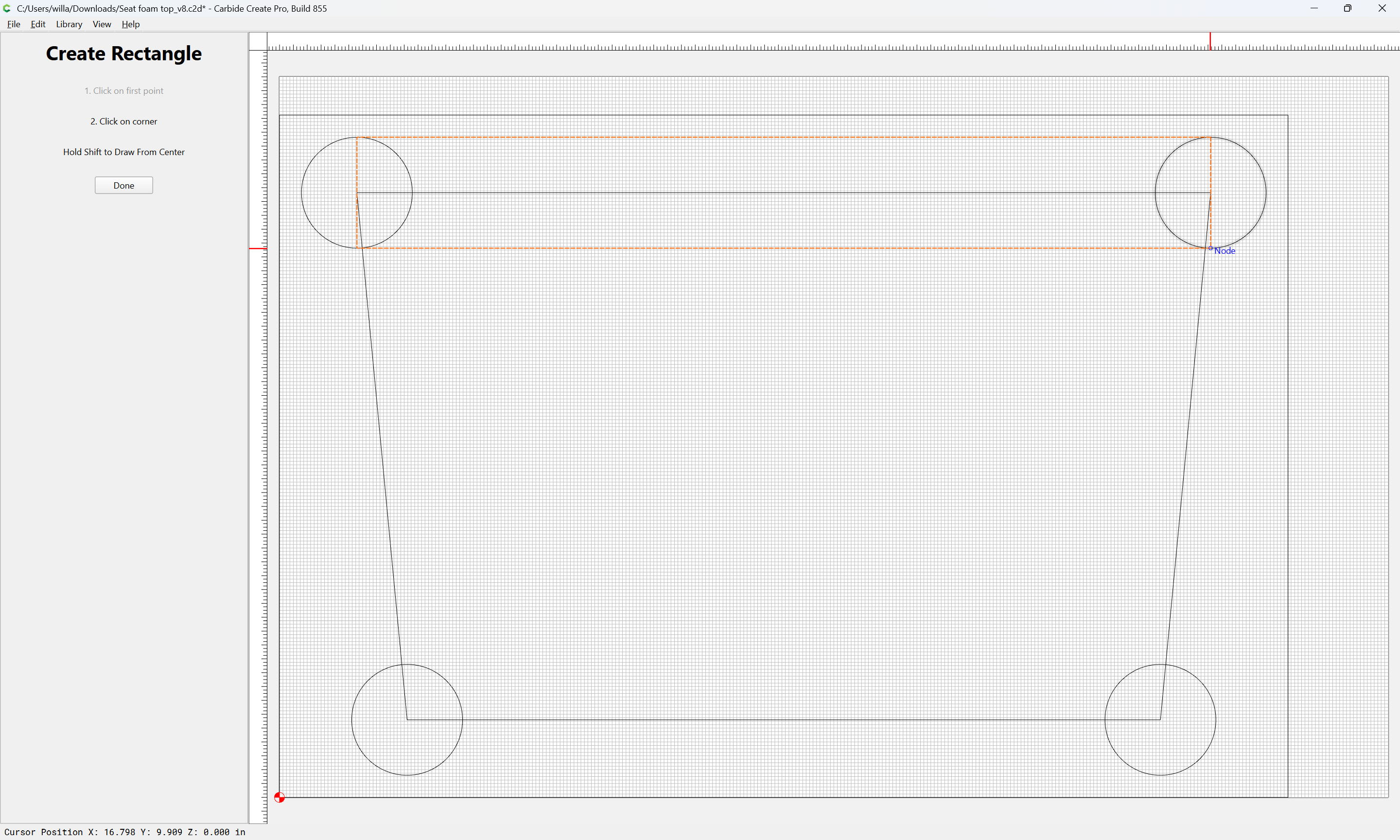

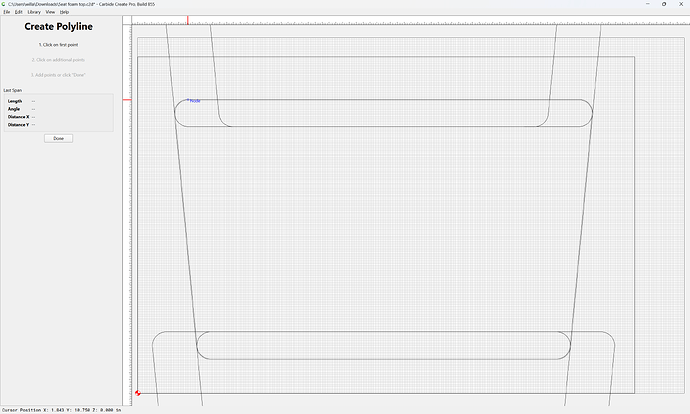

For the top/bottom straight lines, simply draw a line:

Done

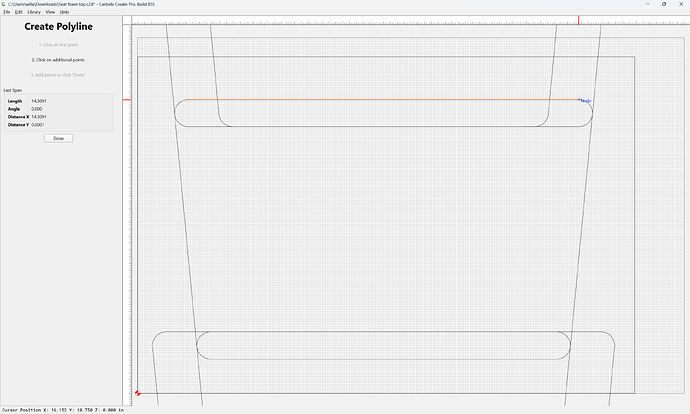

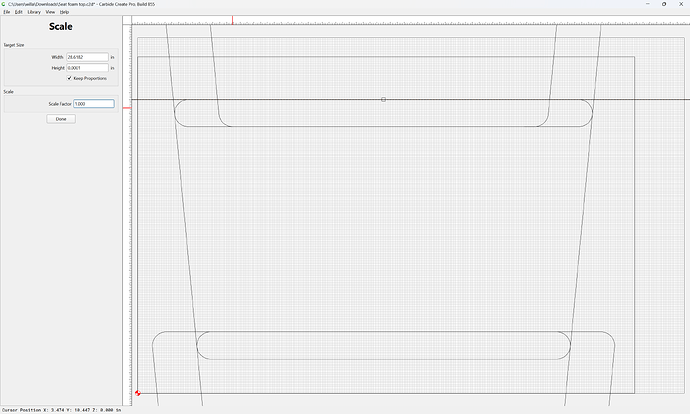

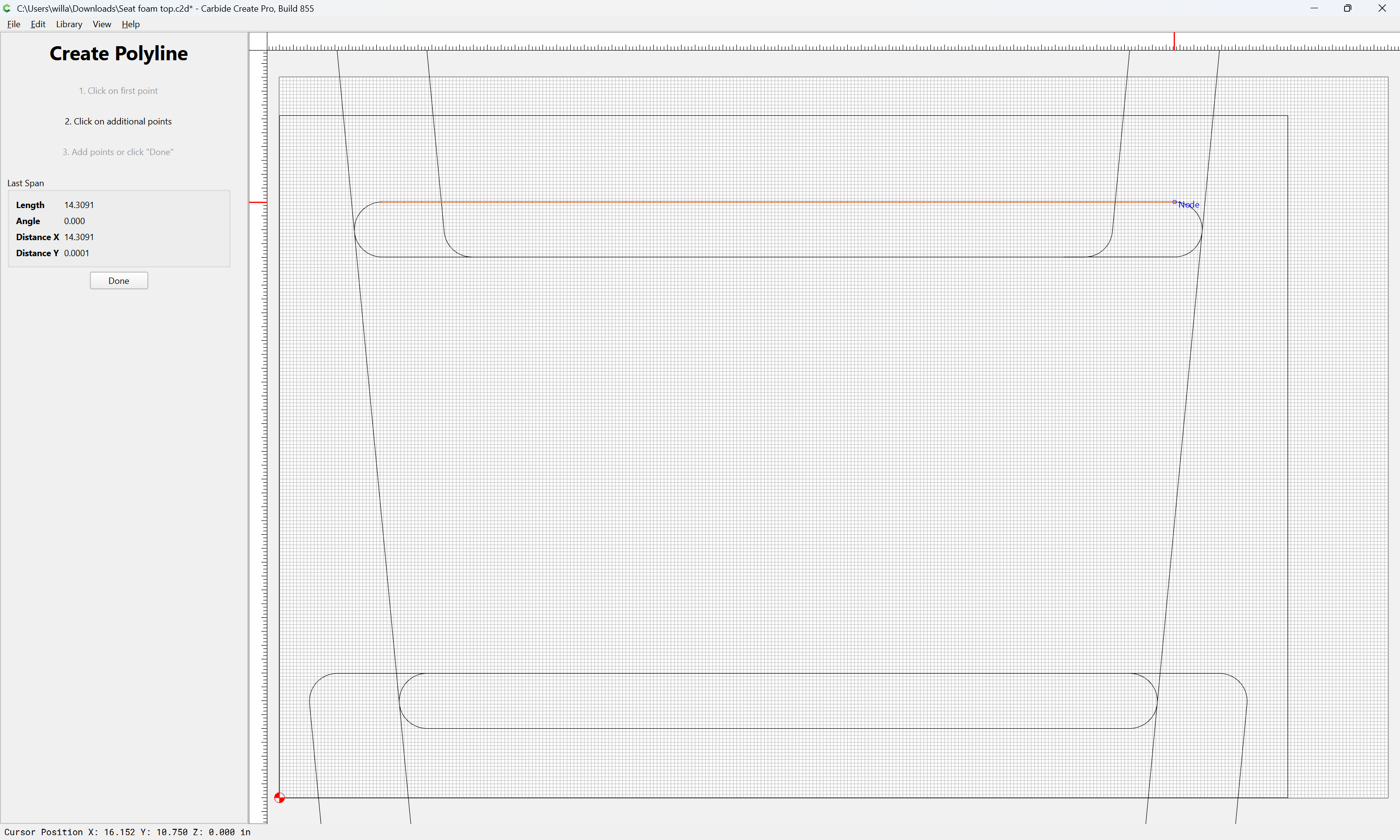

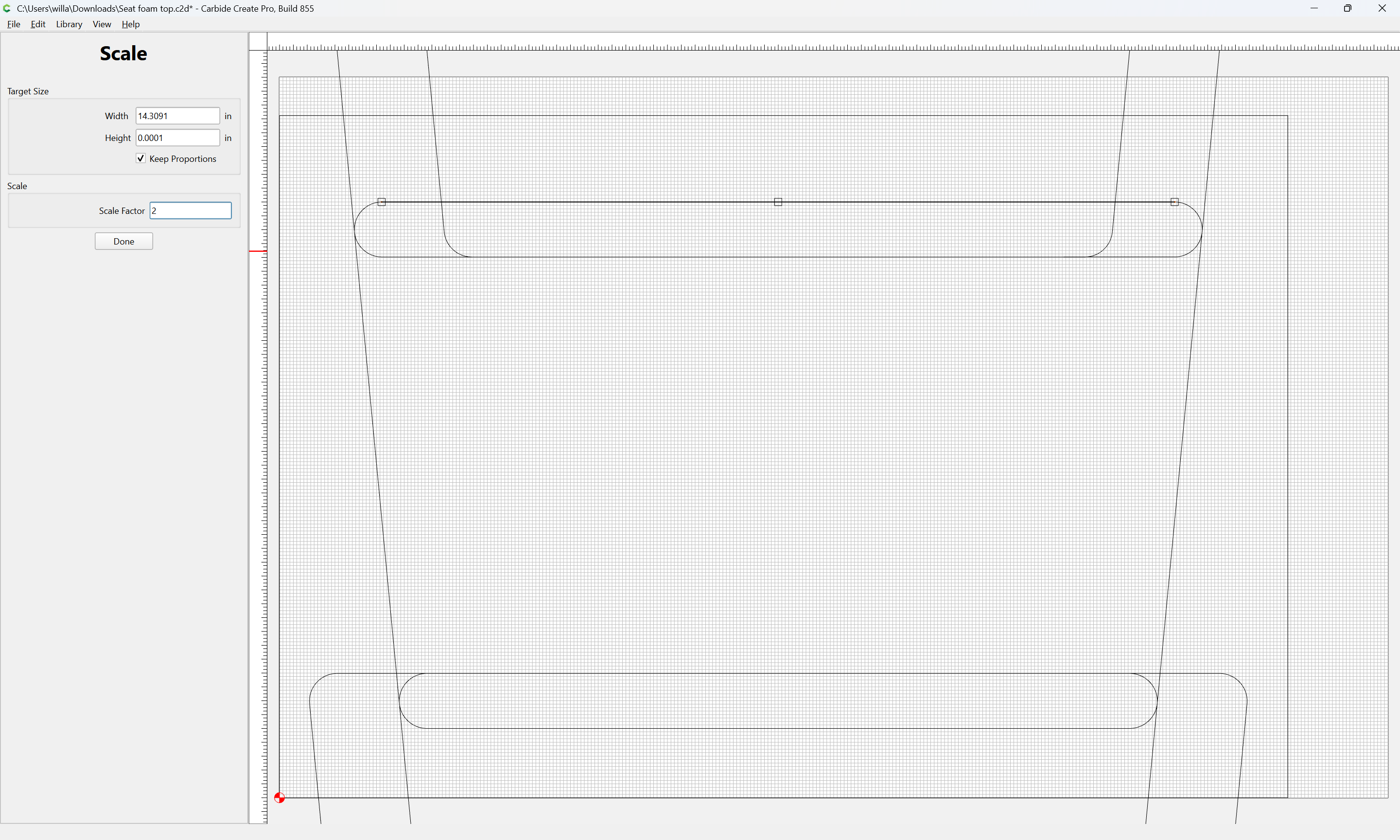

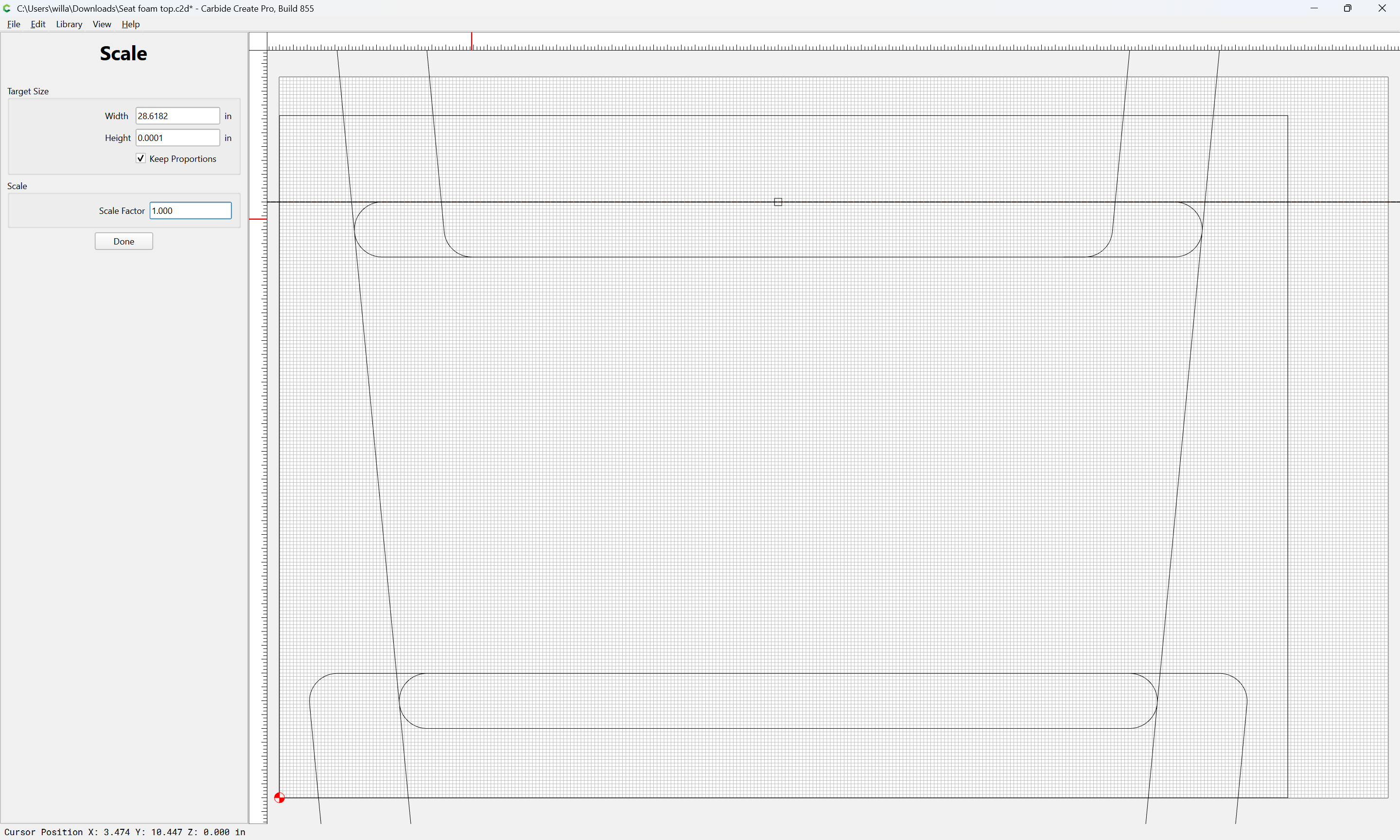

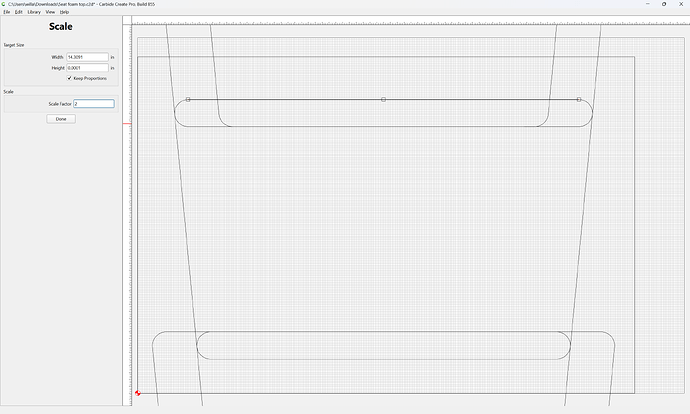

and increase its length by more than double:

Done

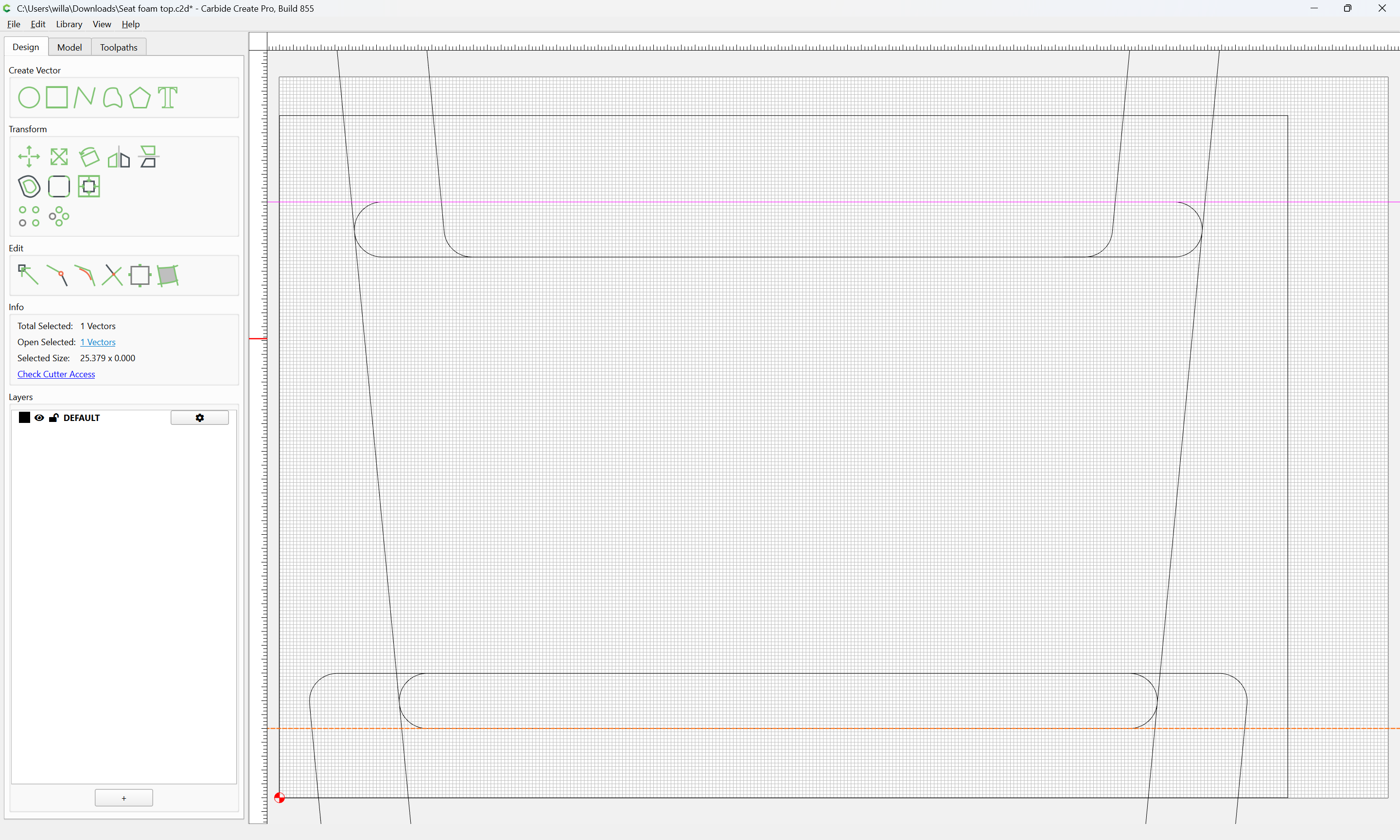

Select all the geometry which one wishes to work with:

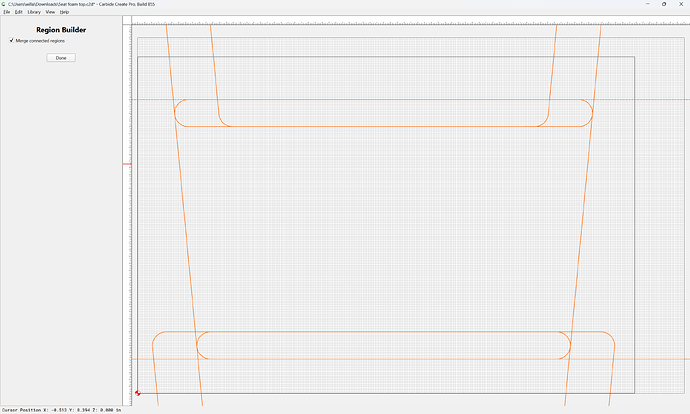

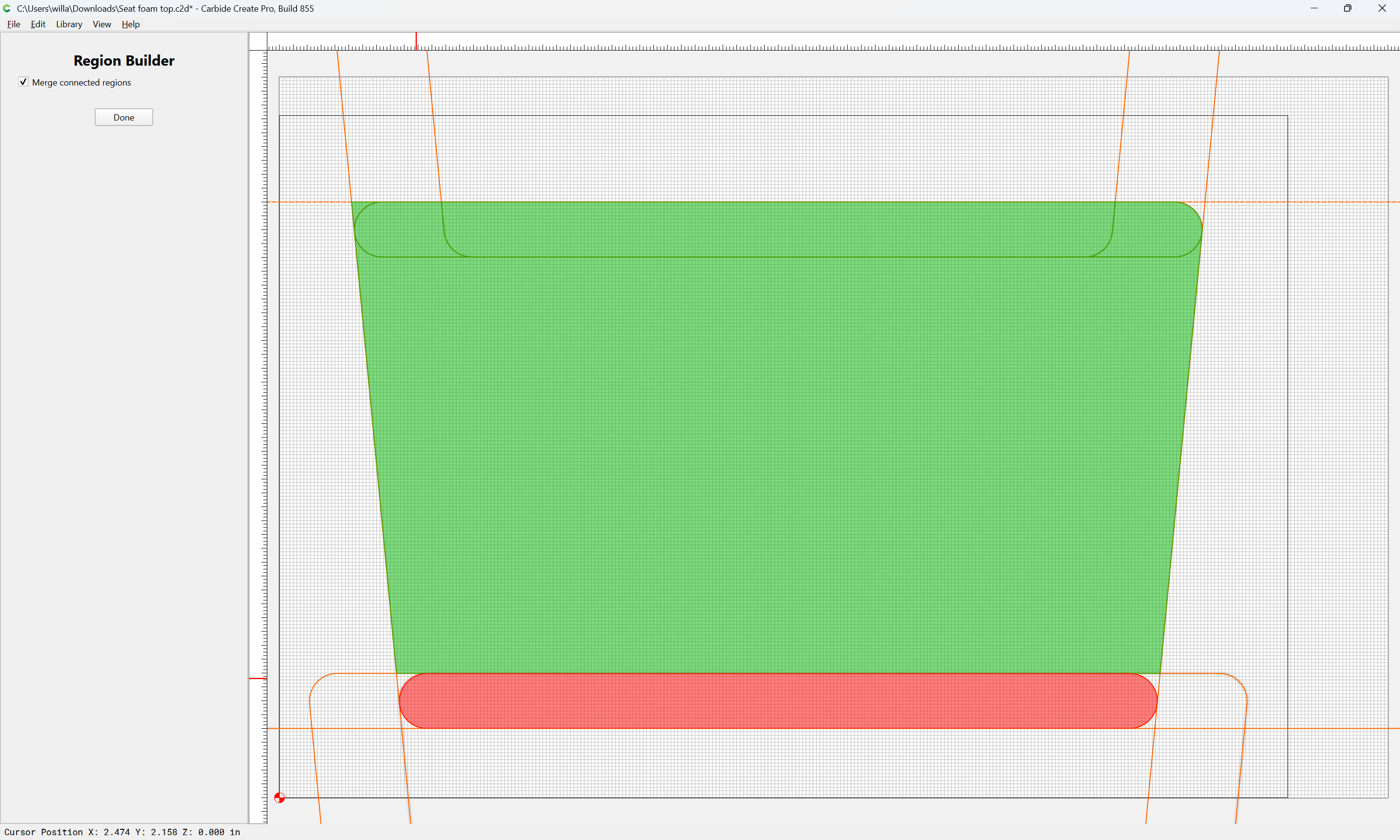

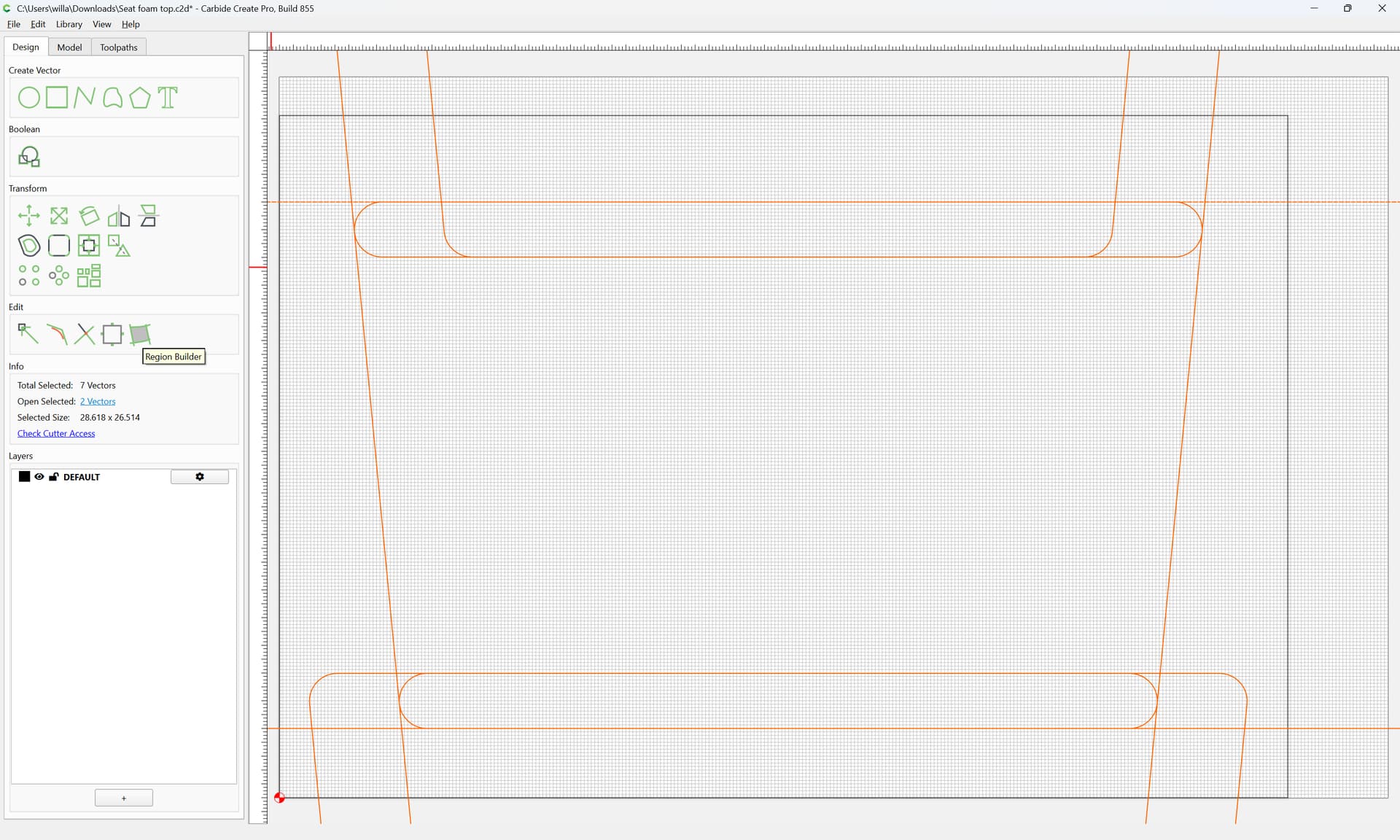

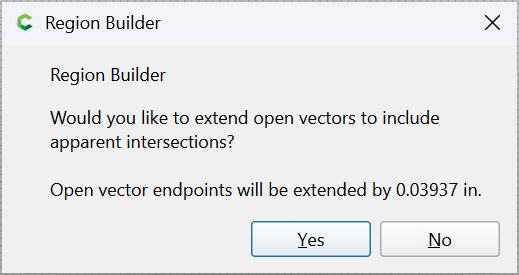

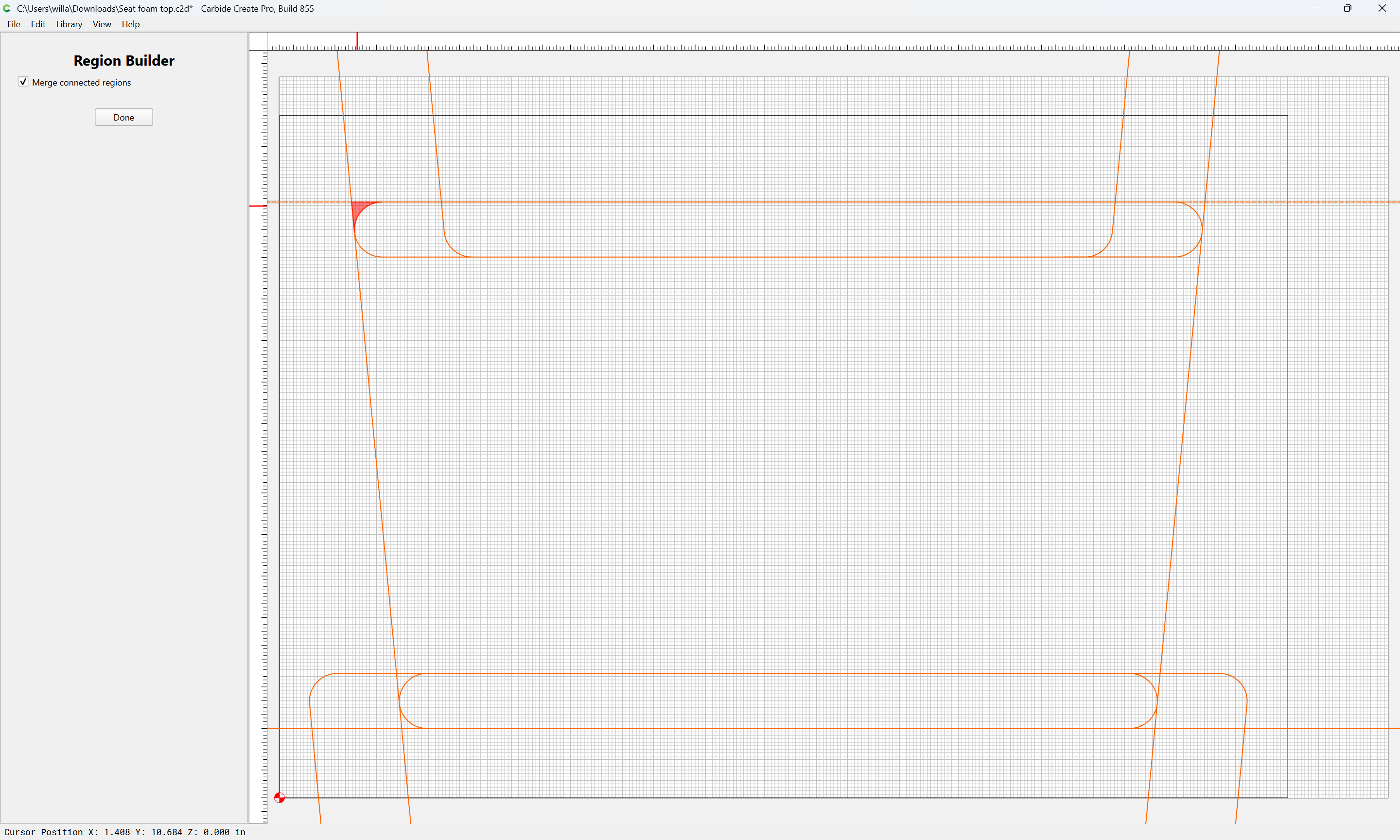

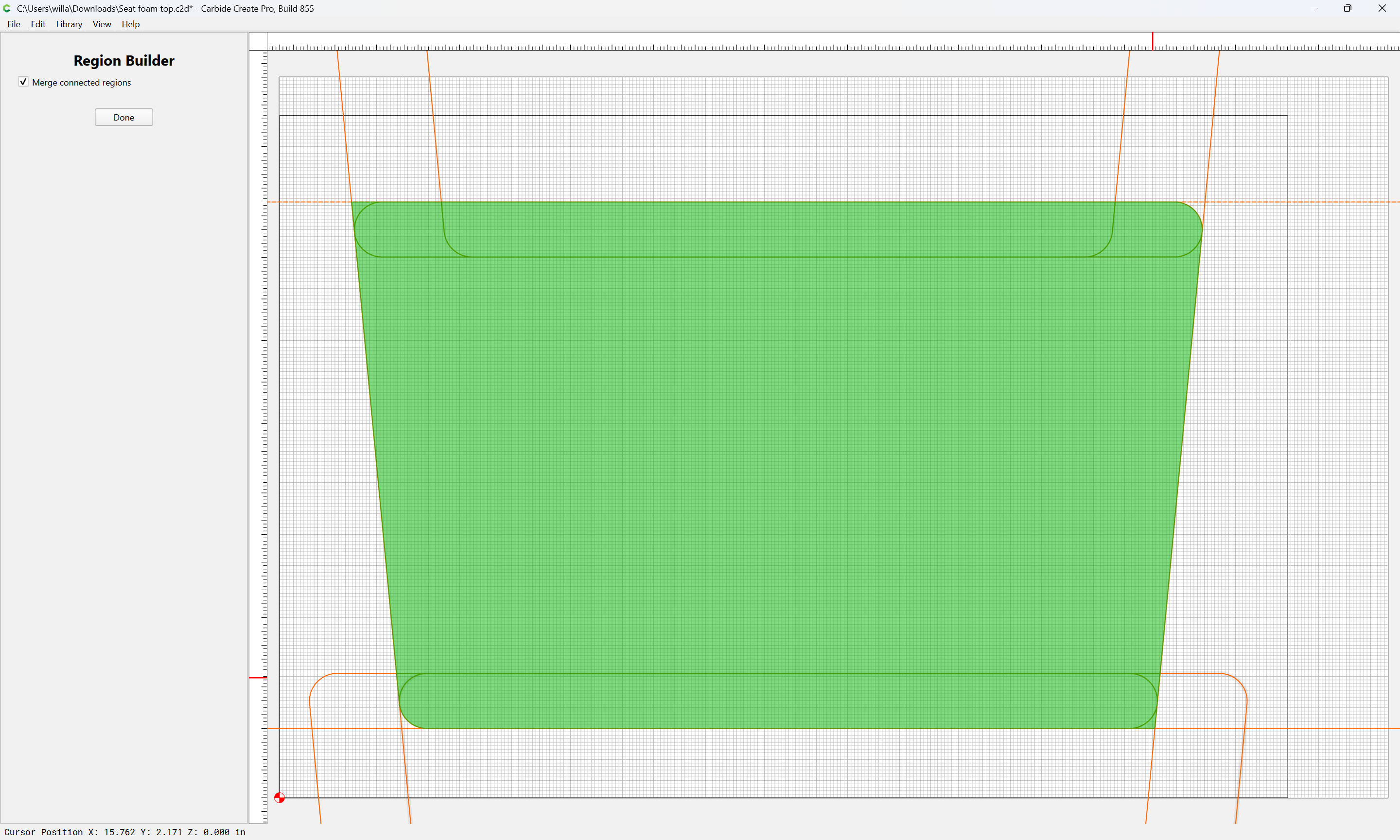

and use Region Builder:

Yes

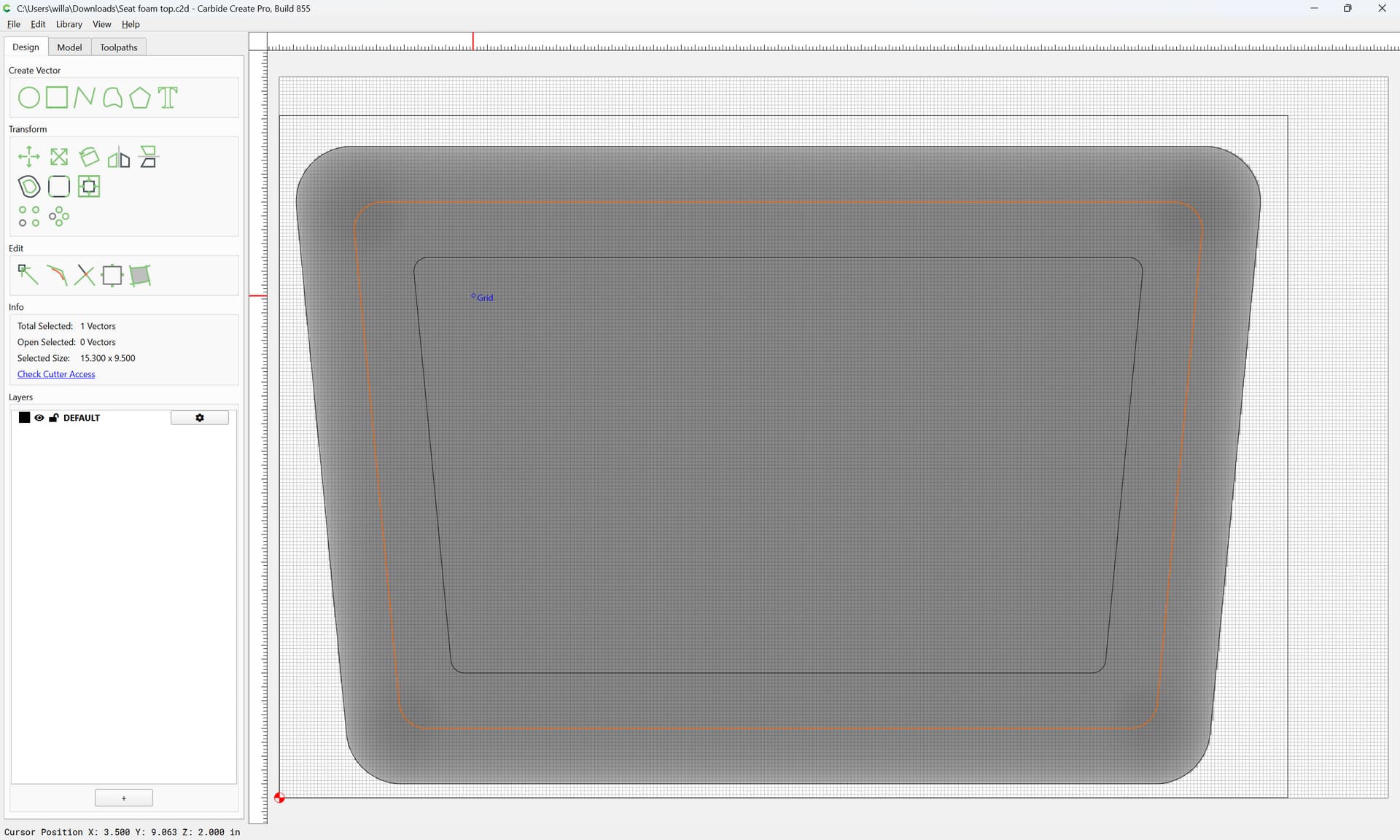

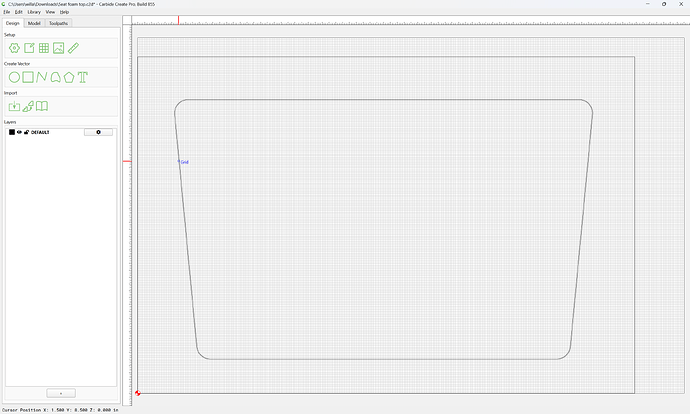

to define the desired geometry:

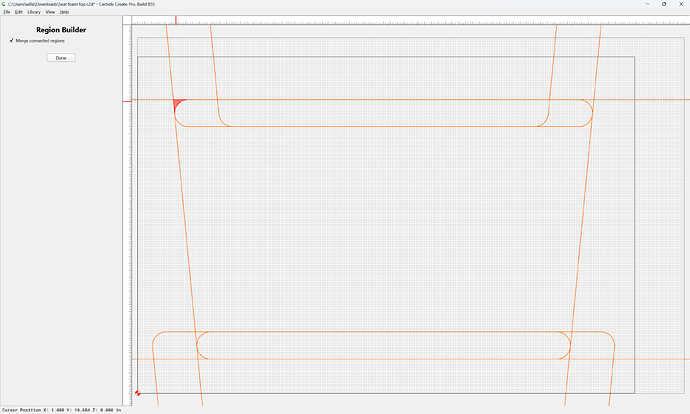

If a given corner won’t fill in, then it may be addressed after.

[WillAdams (William Adams (Carbide 3D))]

Simply duplicate the geometry in place:

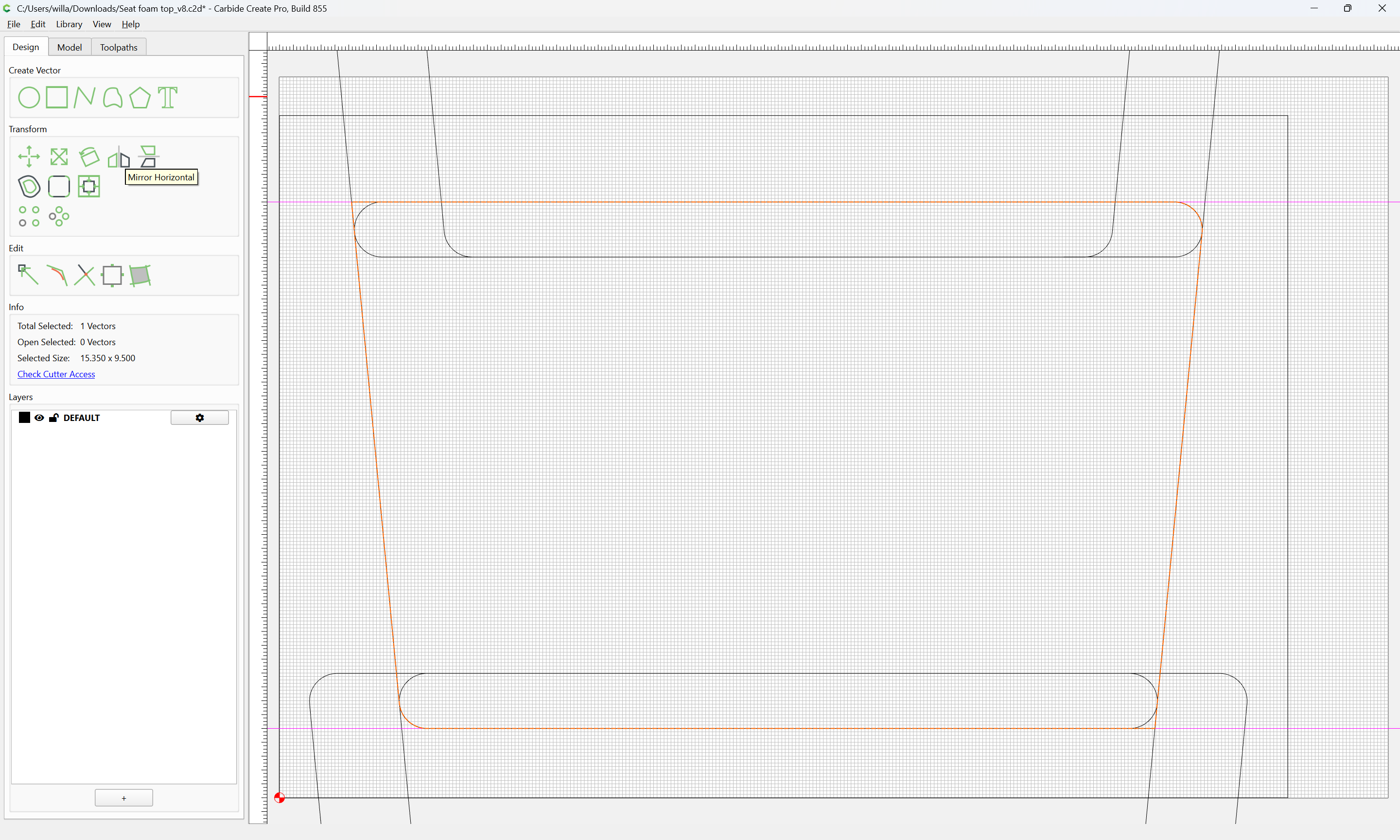

Then Mirror Horizontal:

Drag into registration with the other:

Select both:

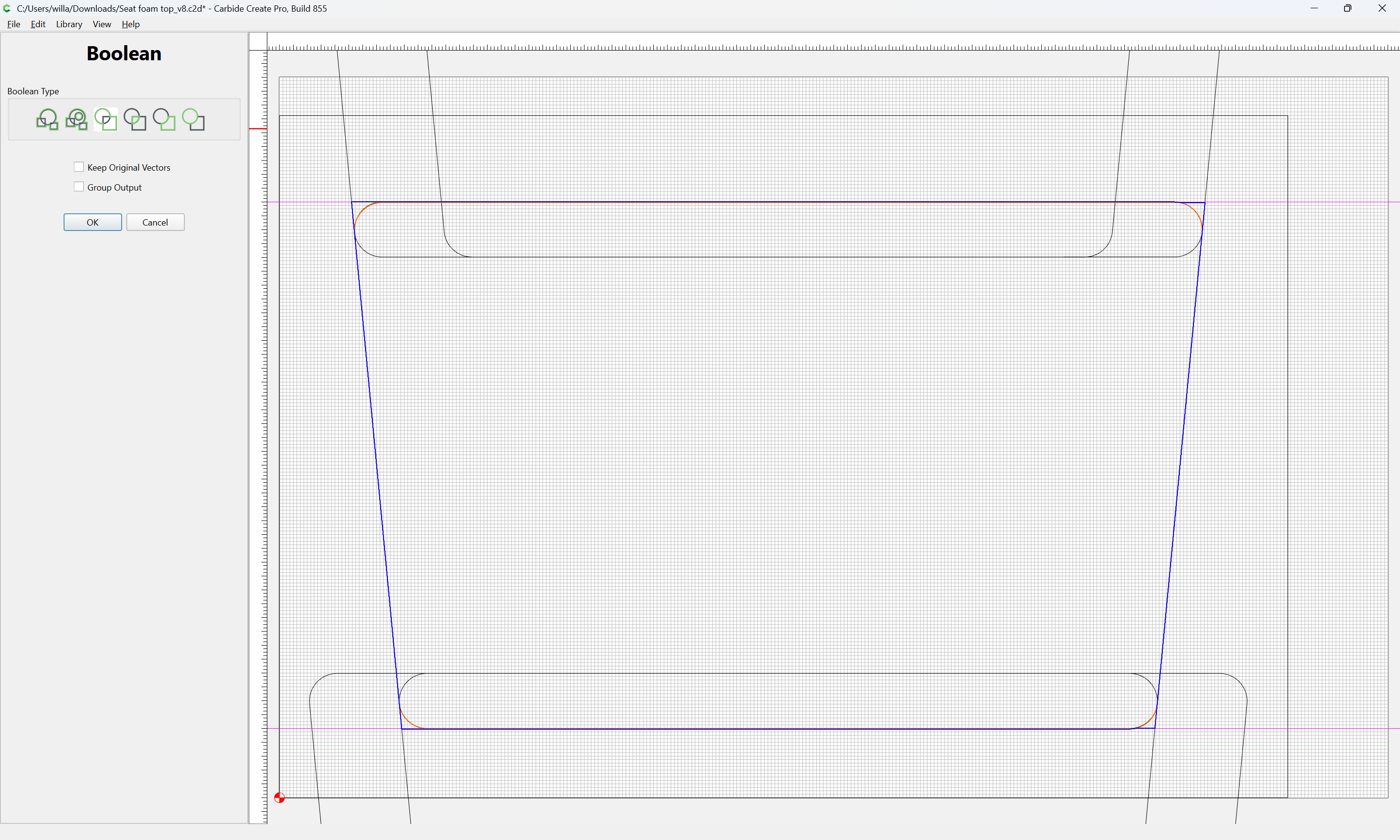

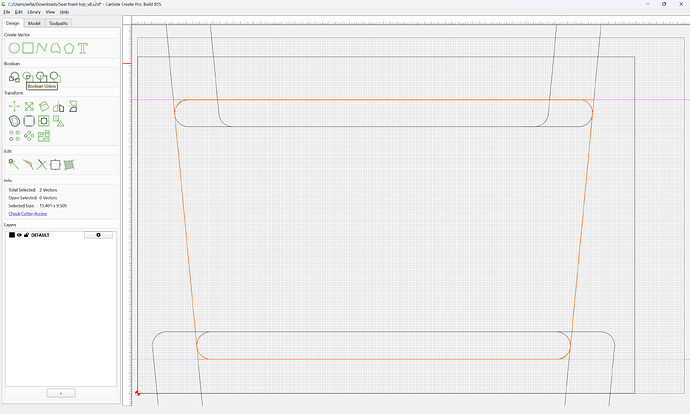

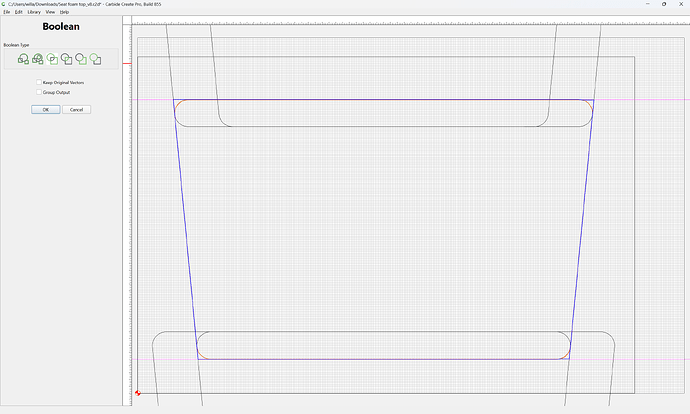

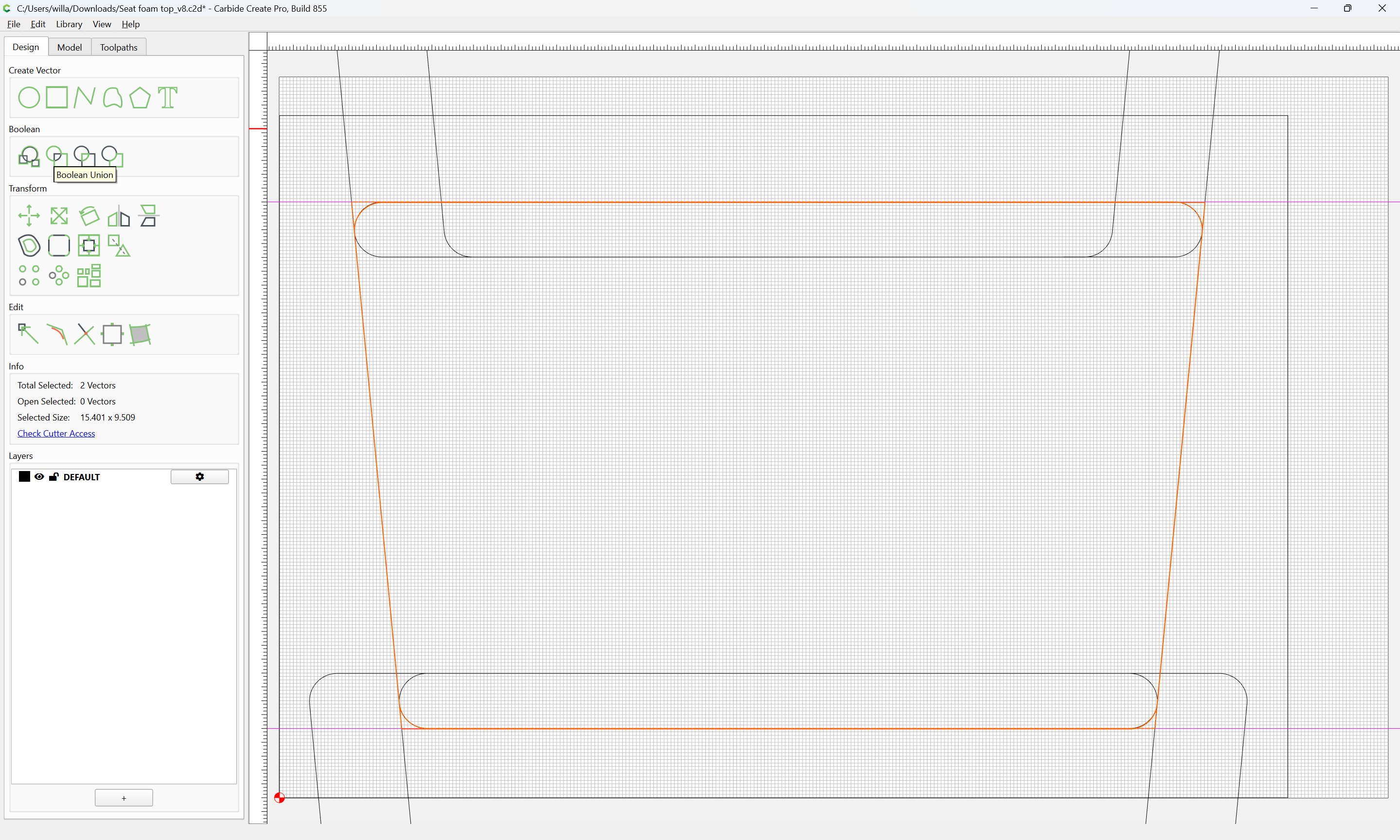

and Boolean Union:

OK

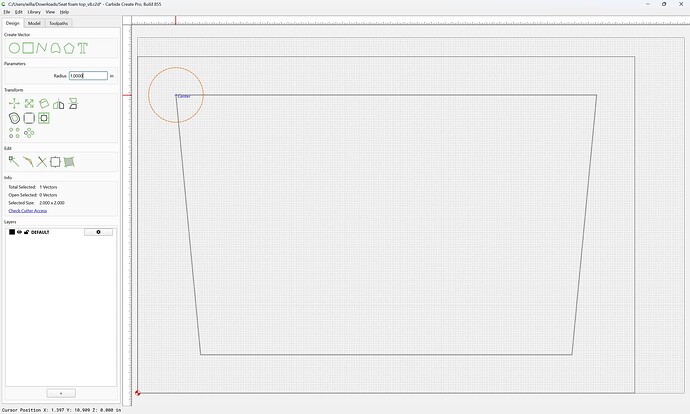

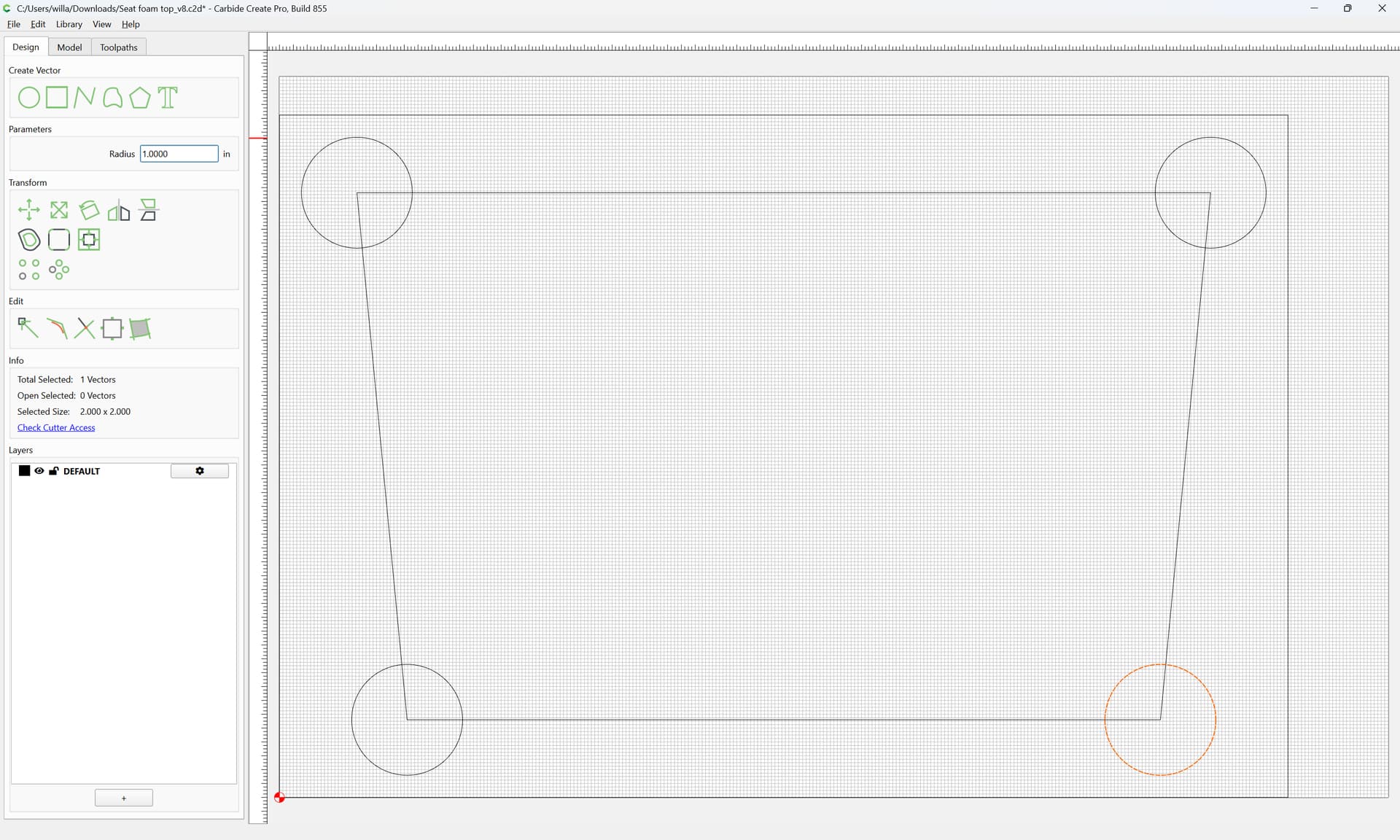

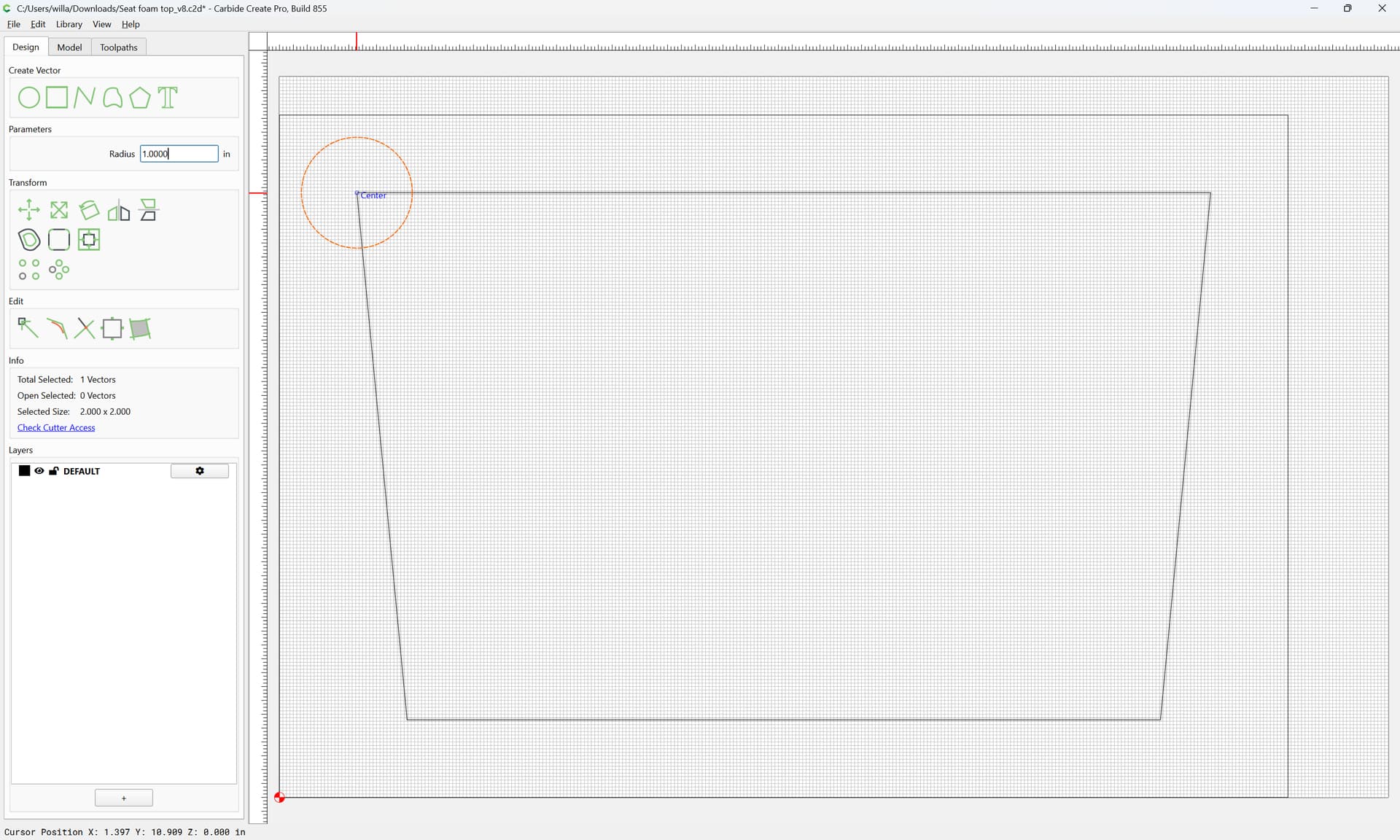

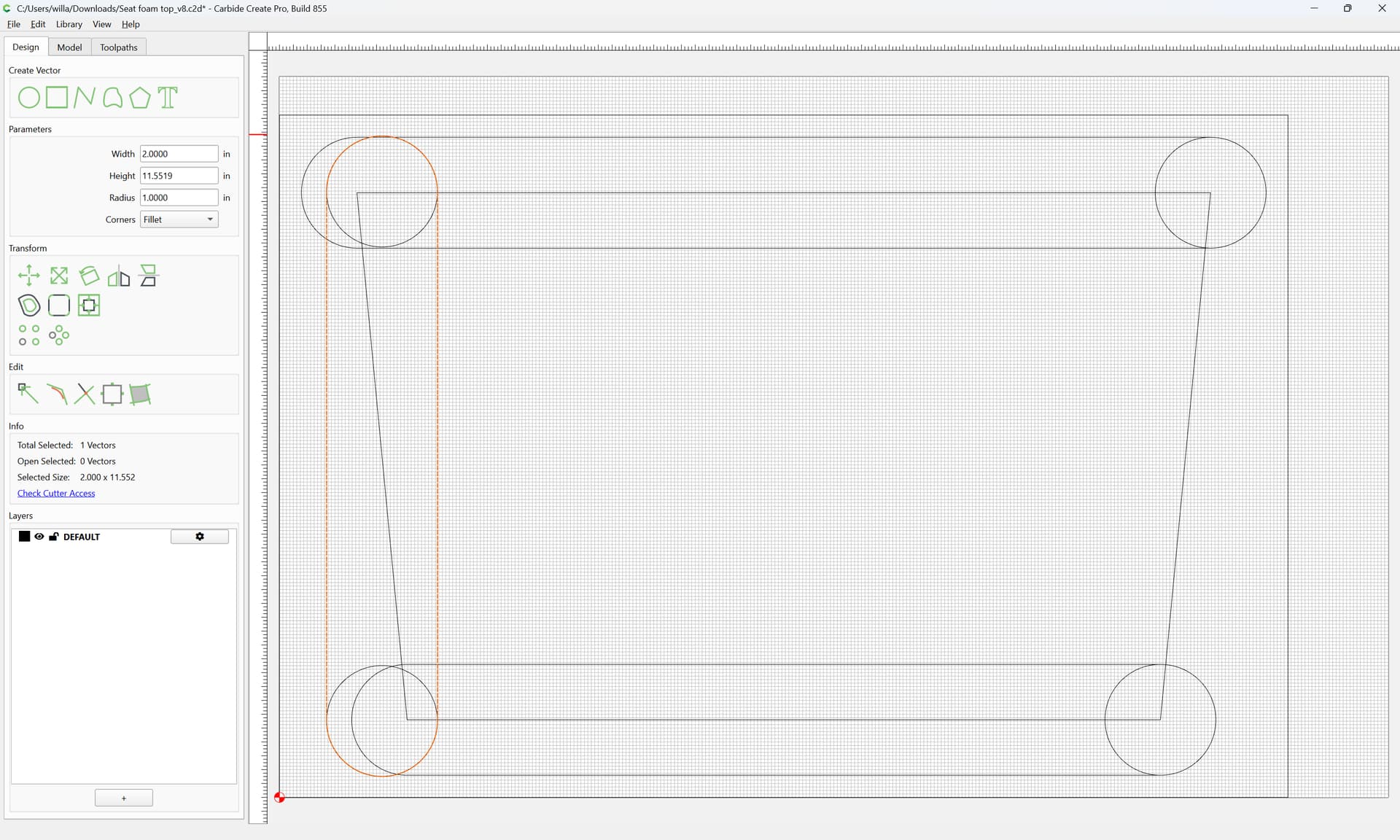

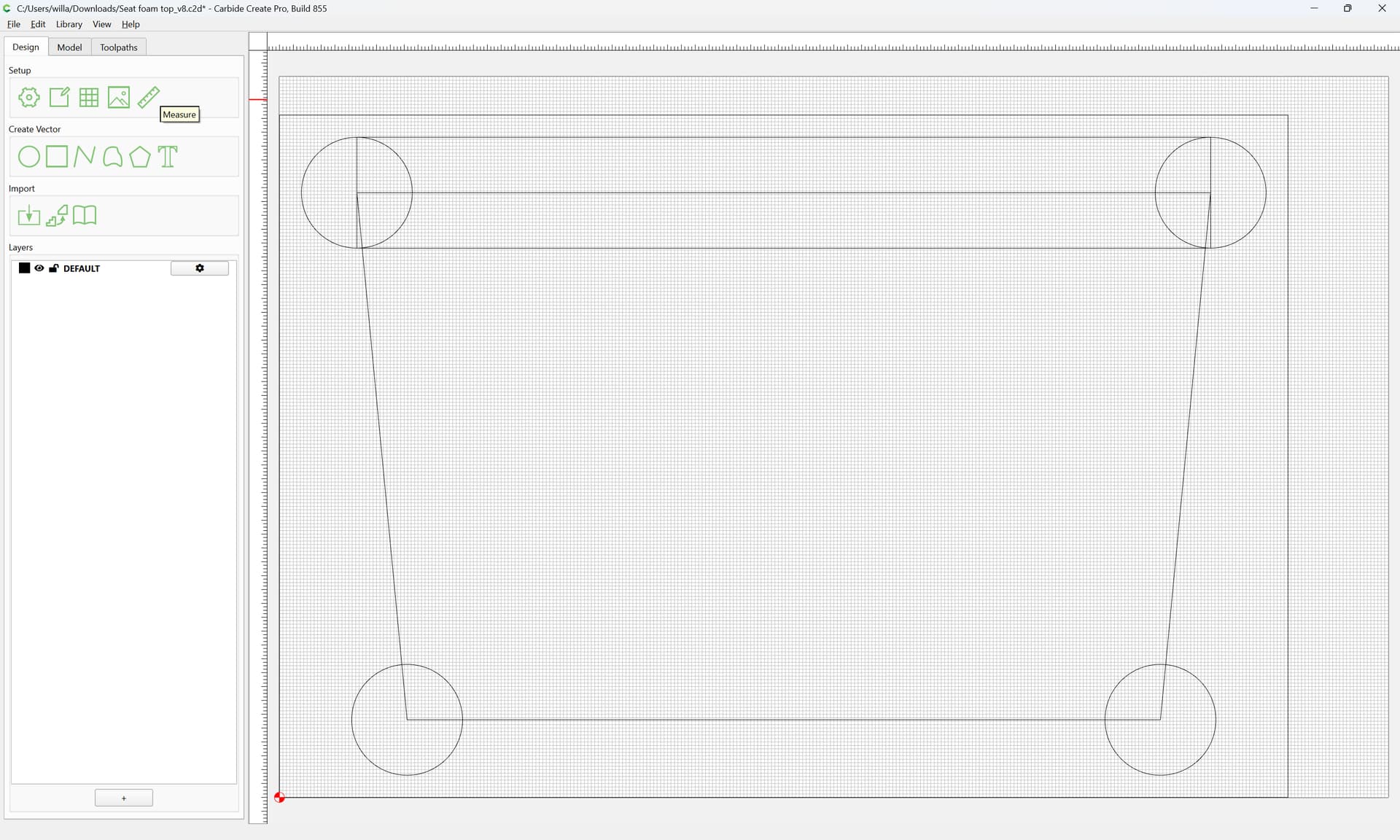

Draw a circle of the desired radius:

at each corner

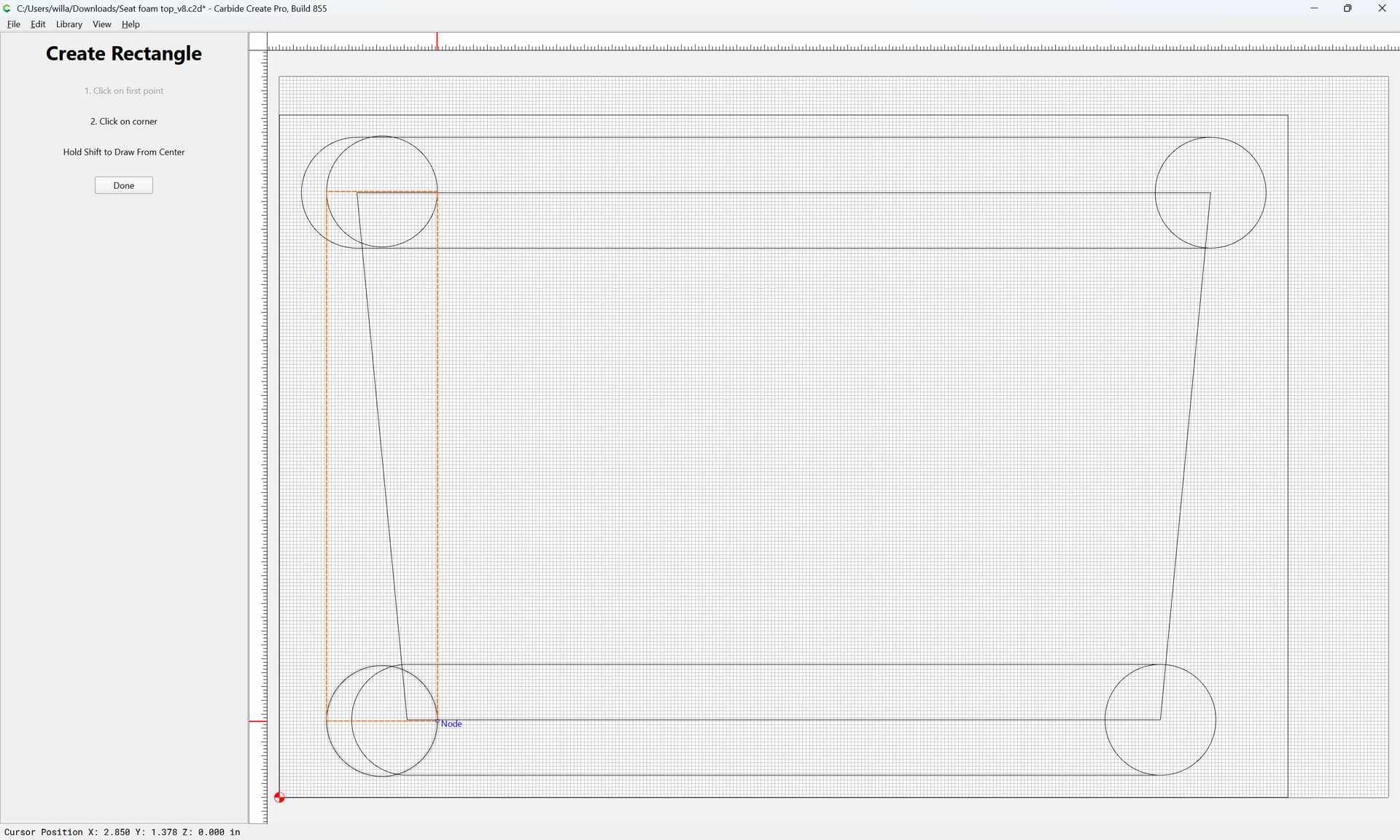

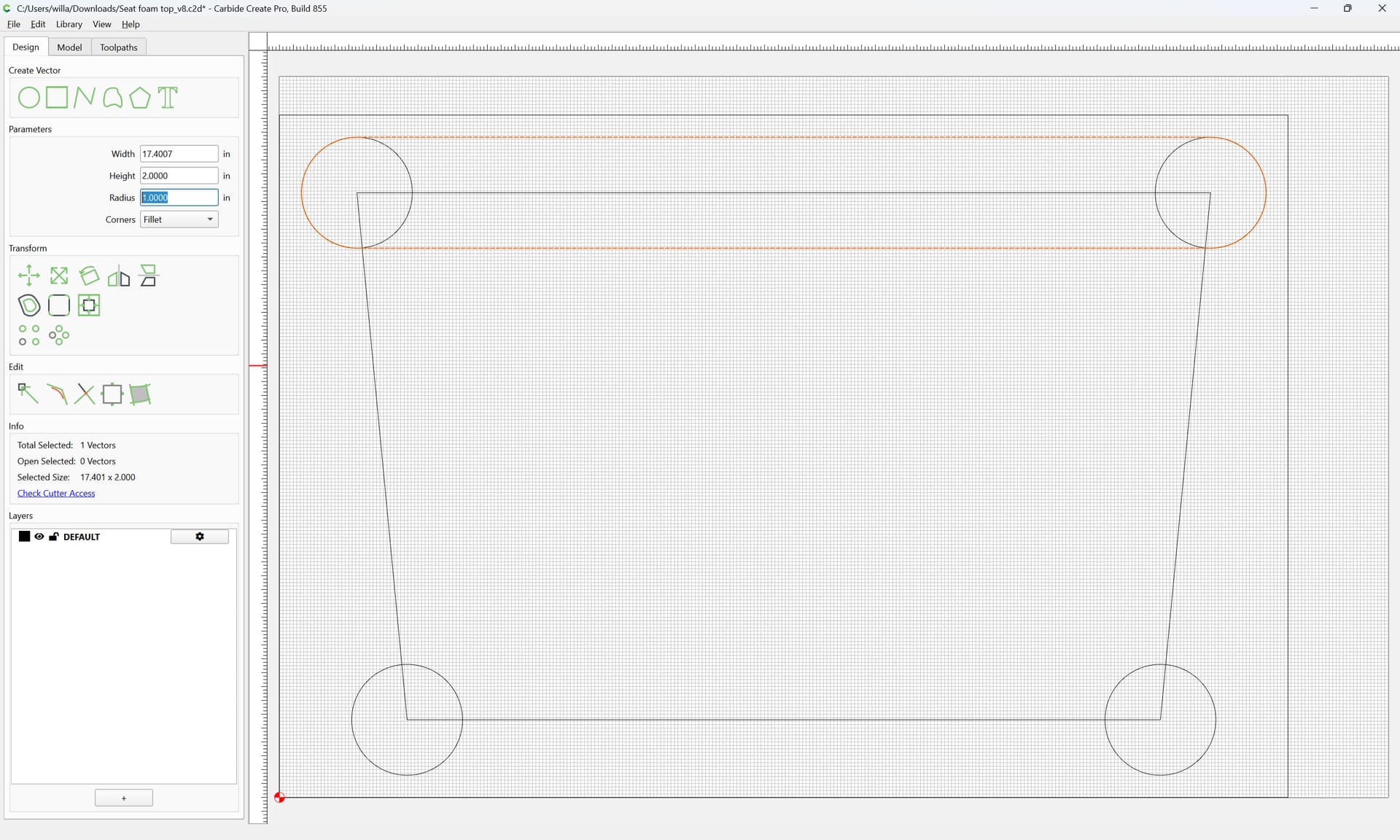

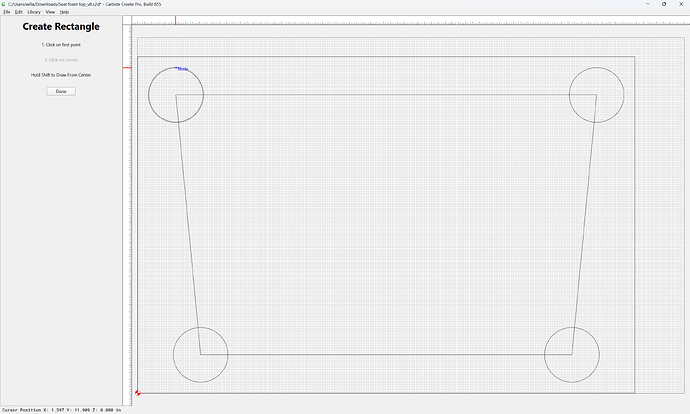

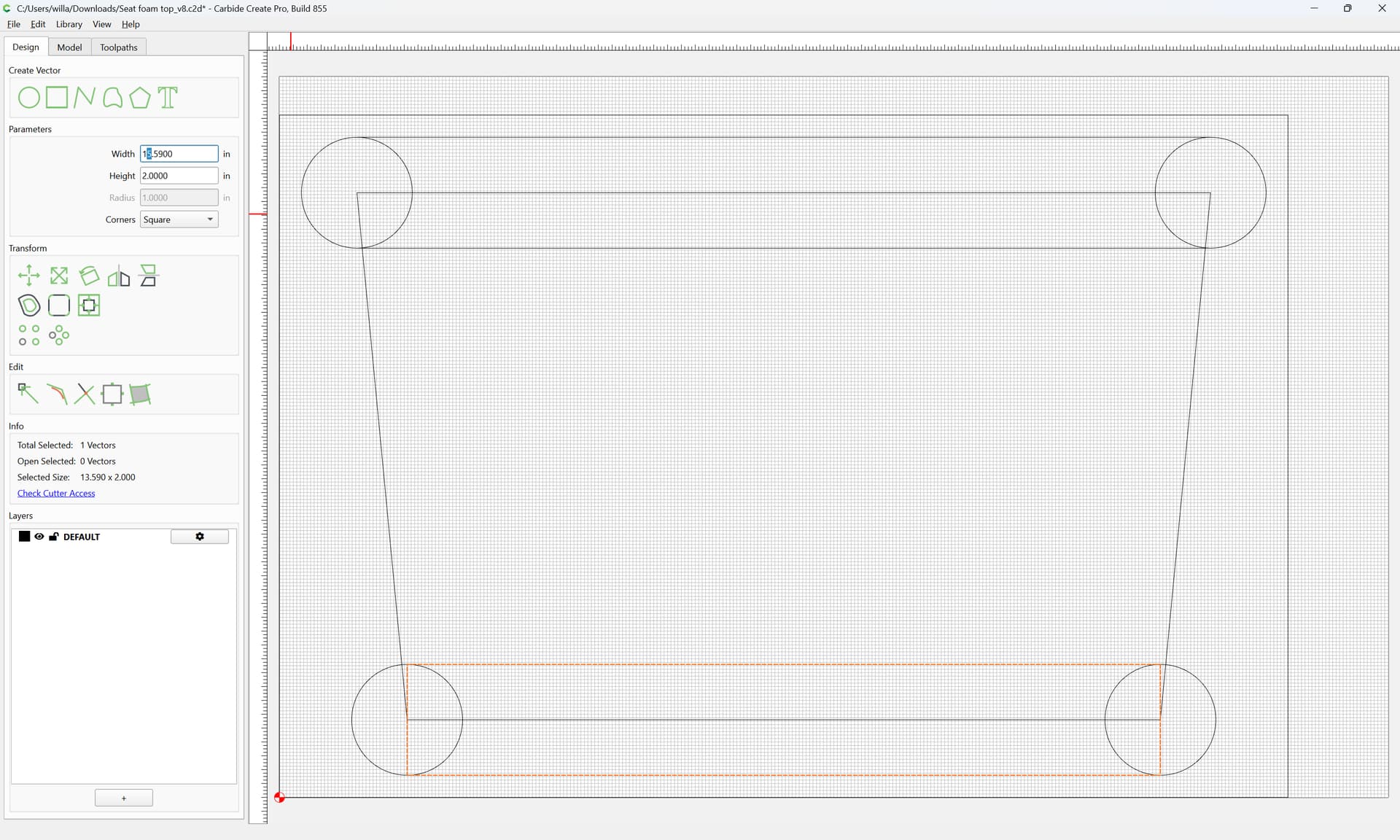

For the top and bottom it is possible to draw a rectangle:

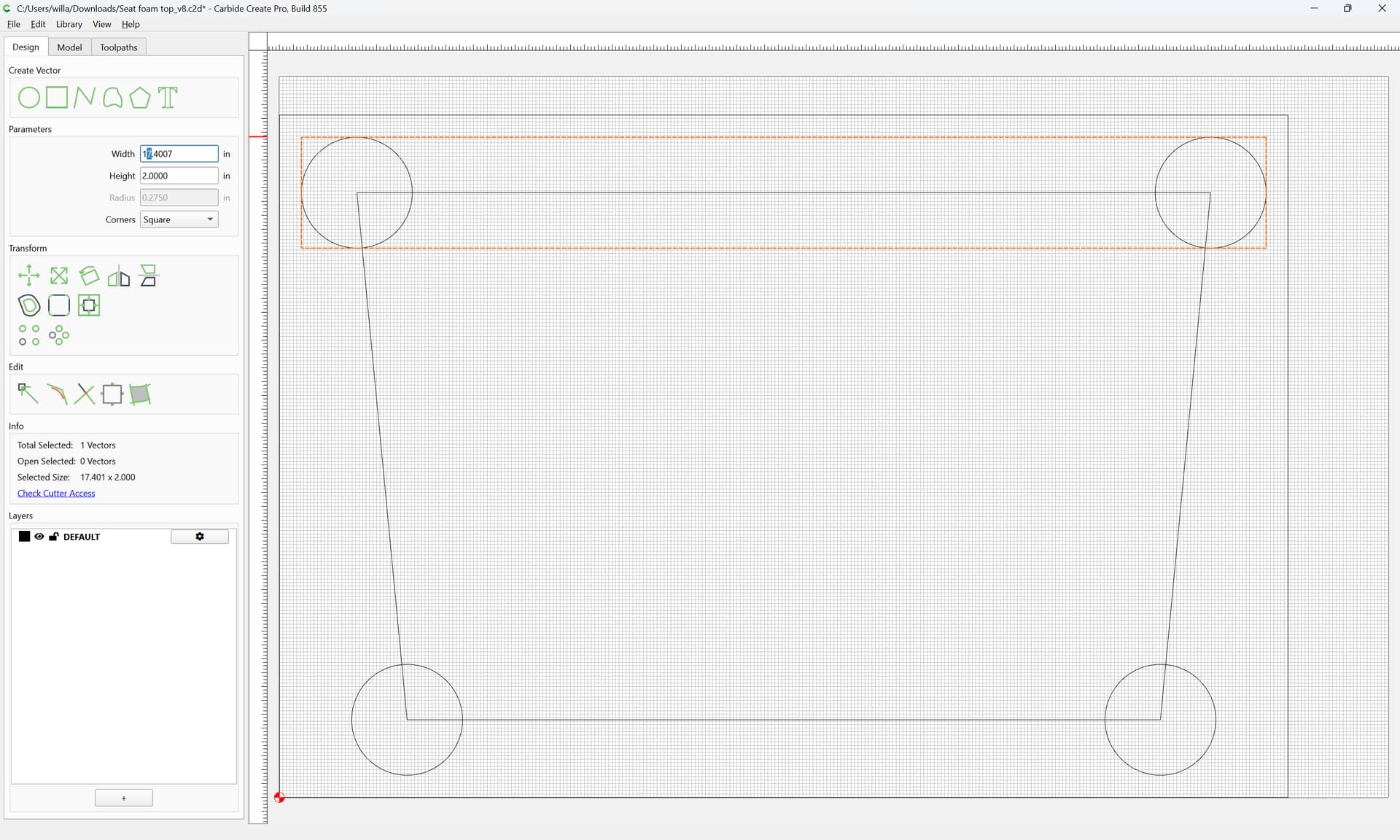

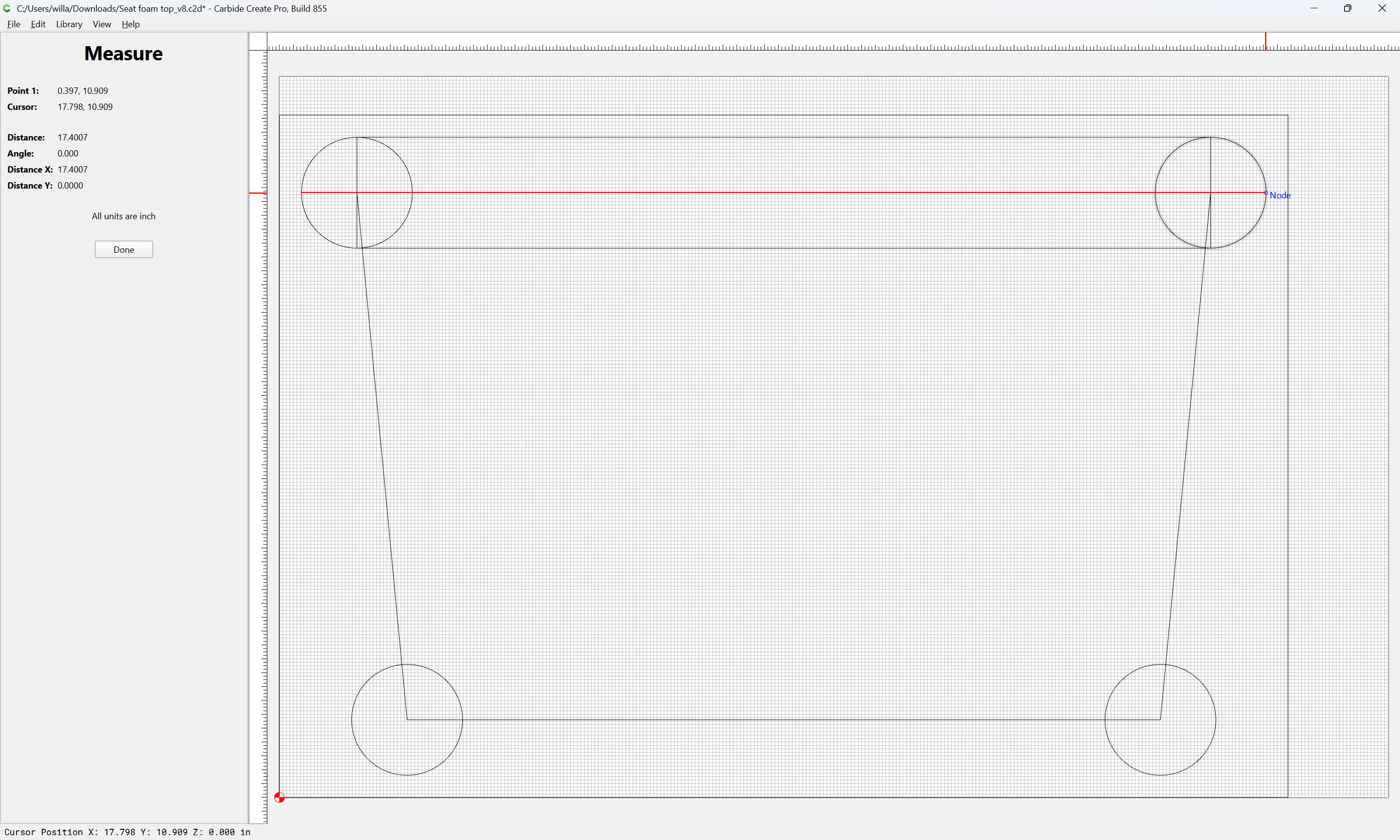

Get the width based on the dimensions of the two circles:

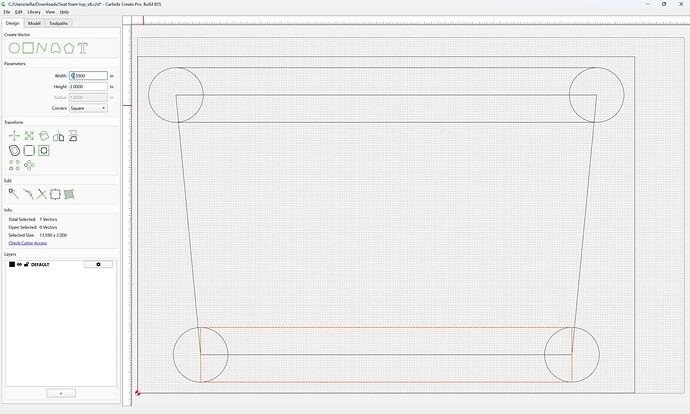

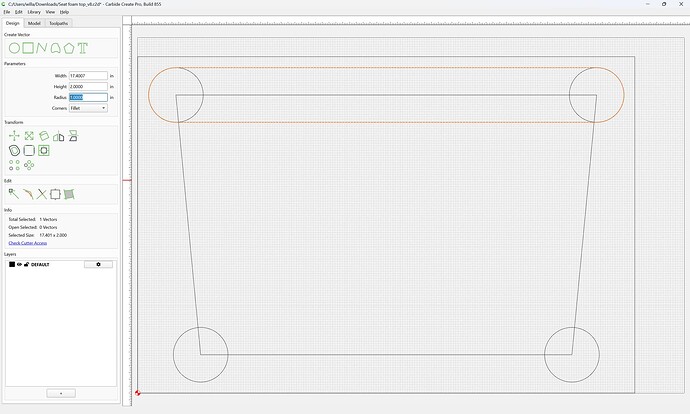

Then apply that horizontal dimension:

(or just remember than one could just add the radius)

Then apply the radius as the corner rounding:

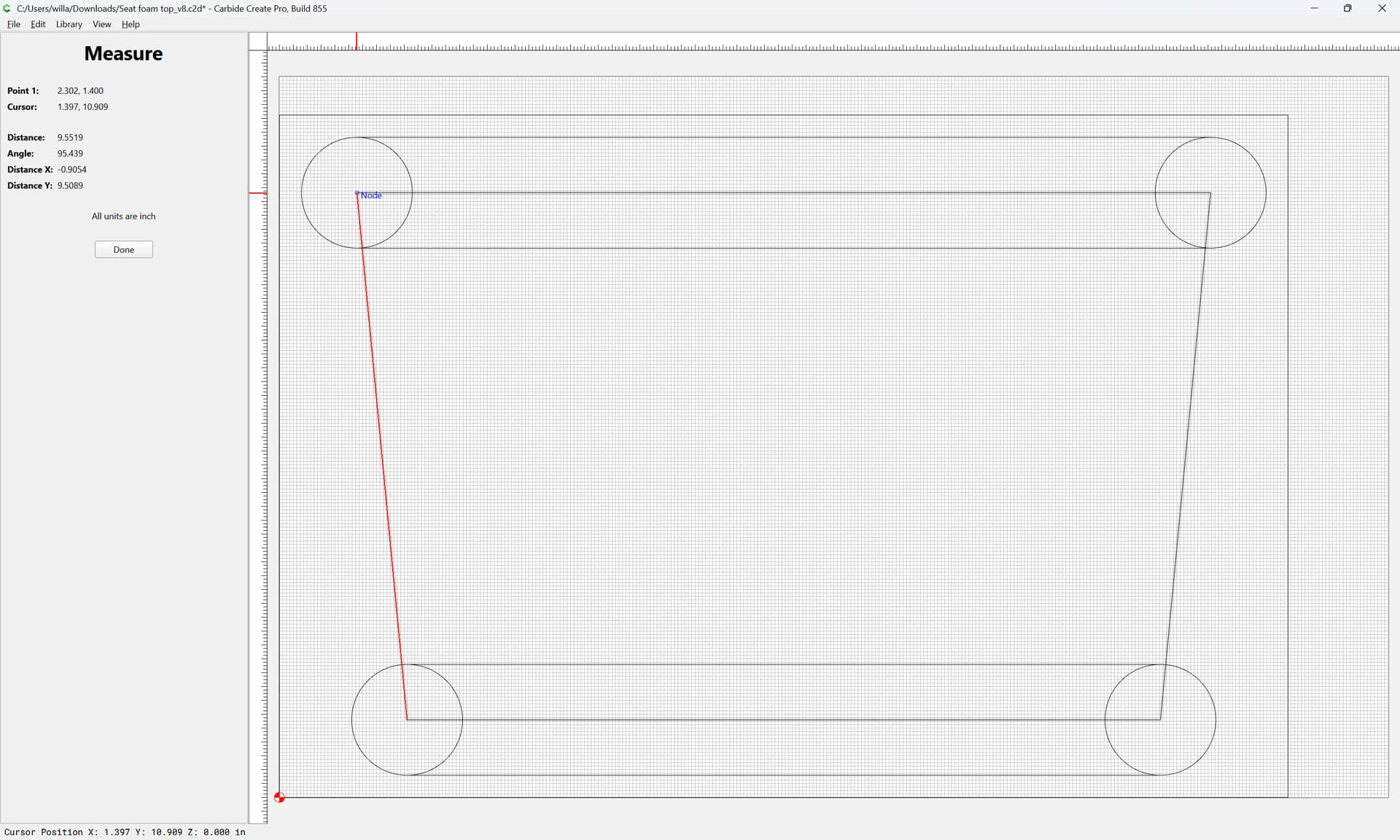

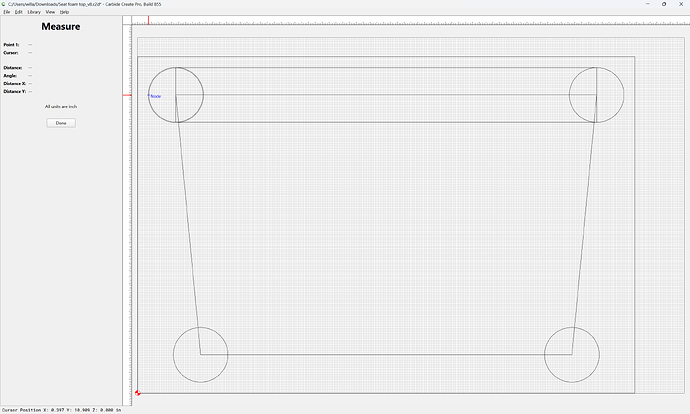

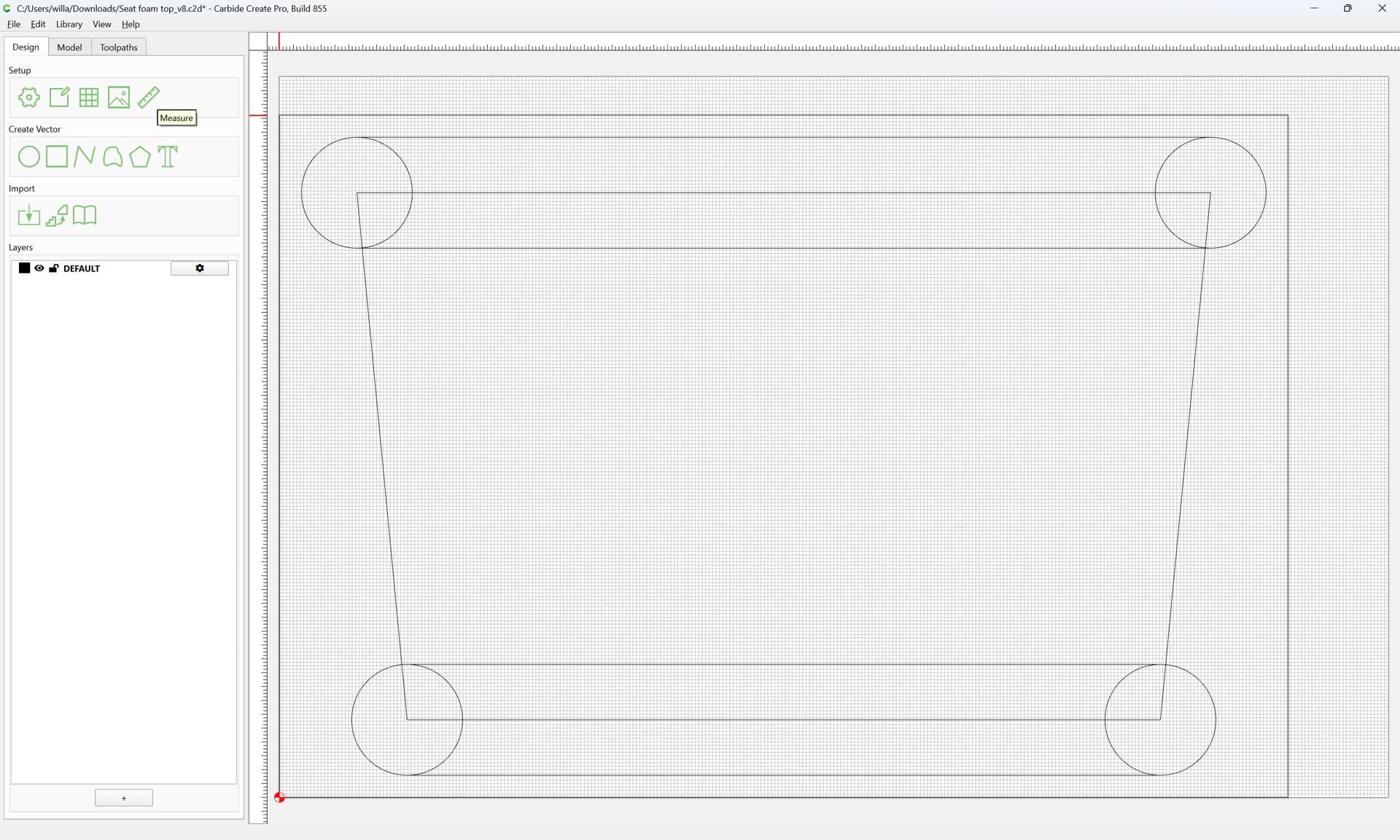

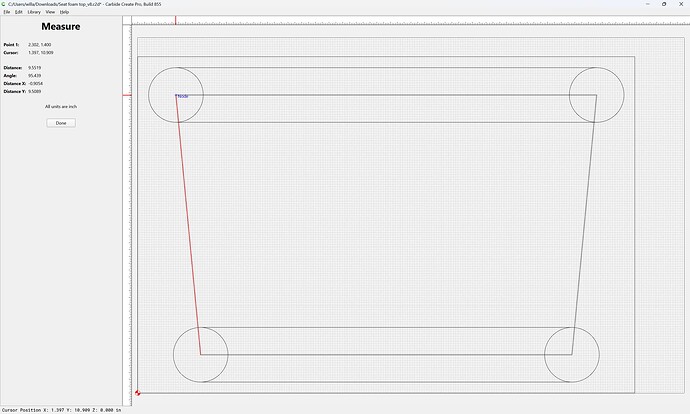

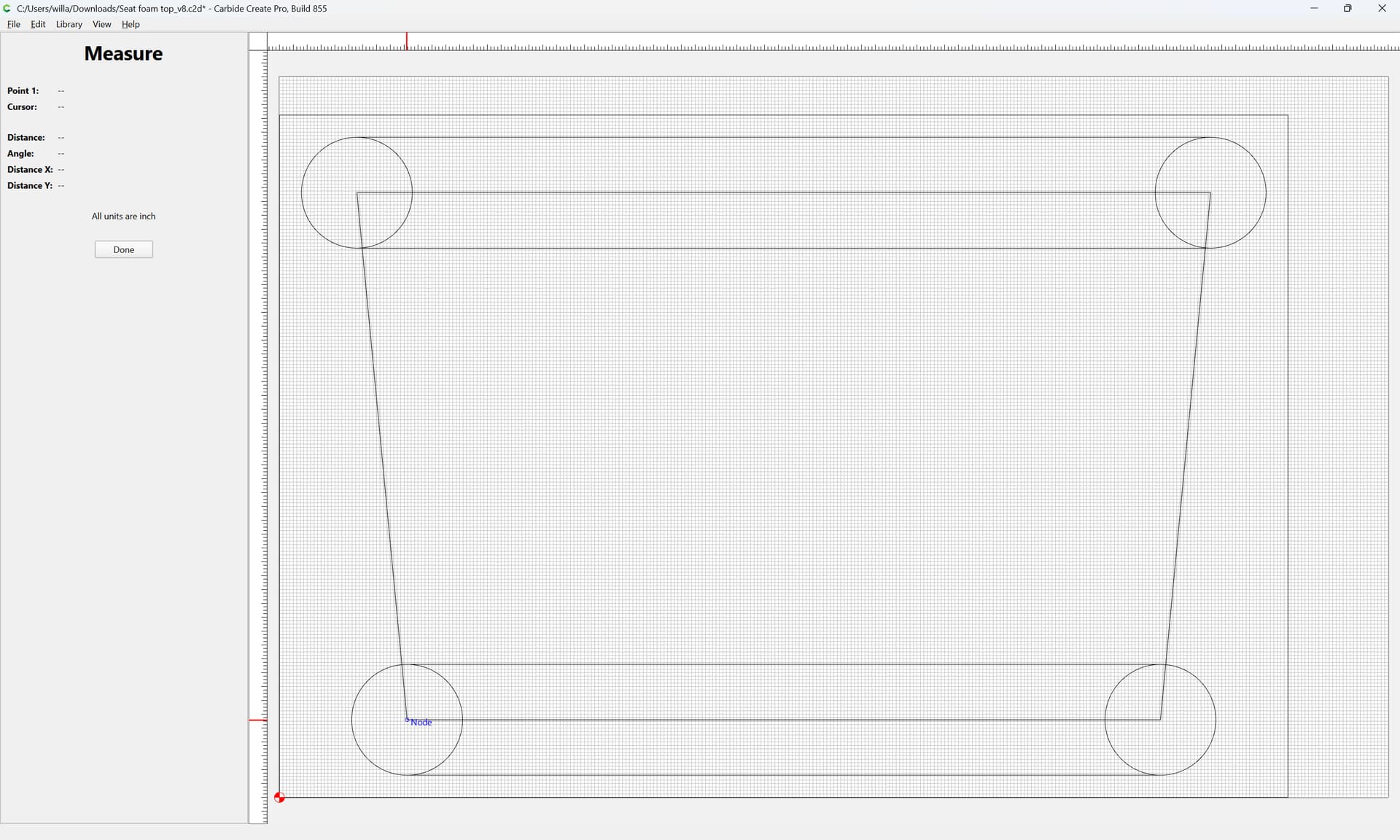

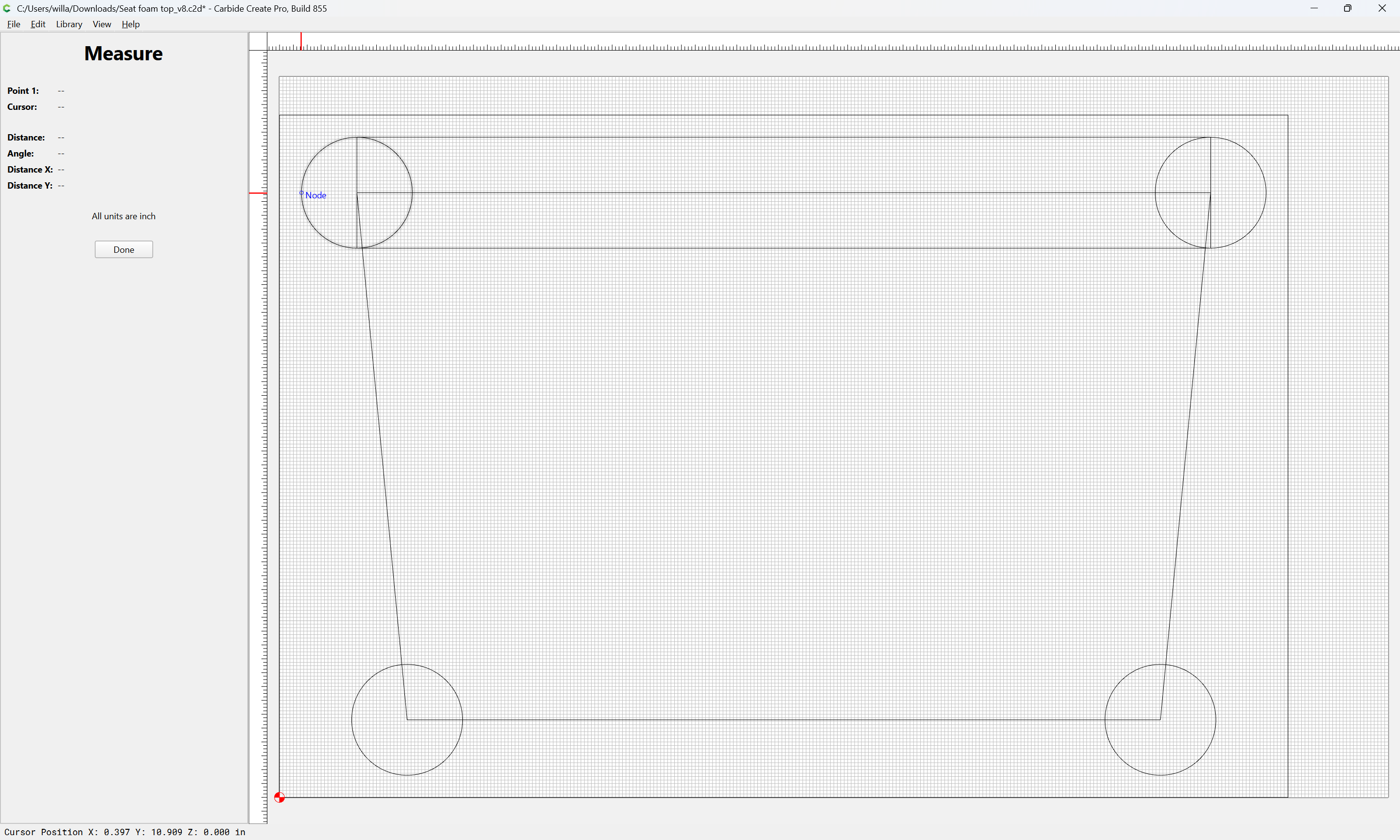

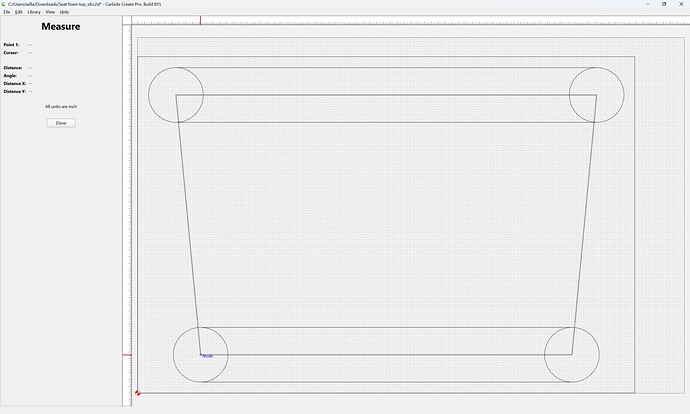

For the sides it will be necessary to measure the angles of the sides:

to get the angle of rotation which will need to be undone.

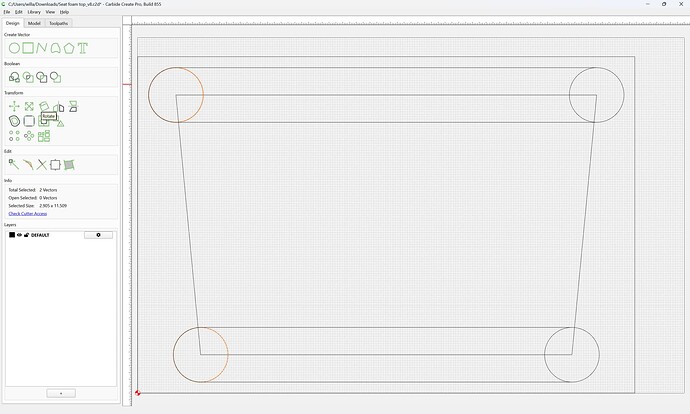

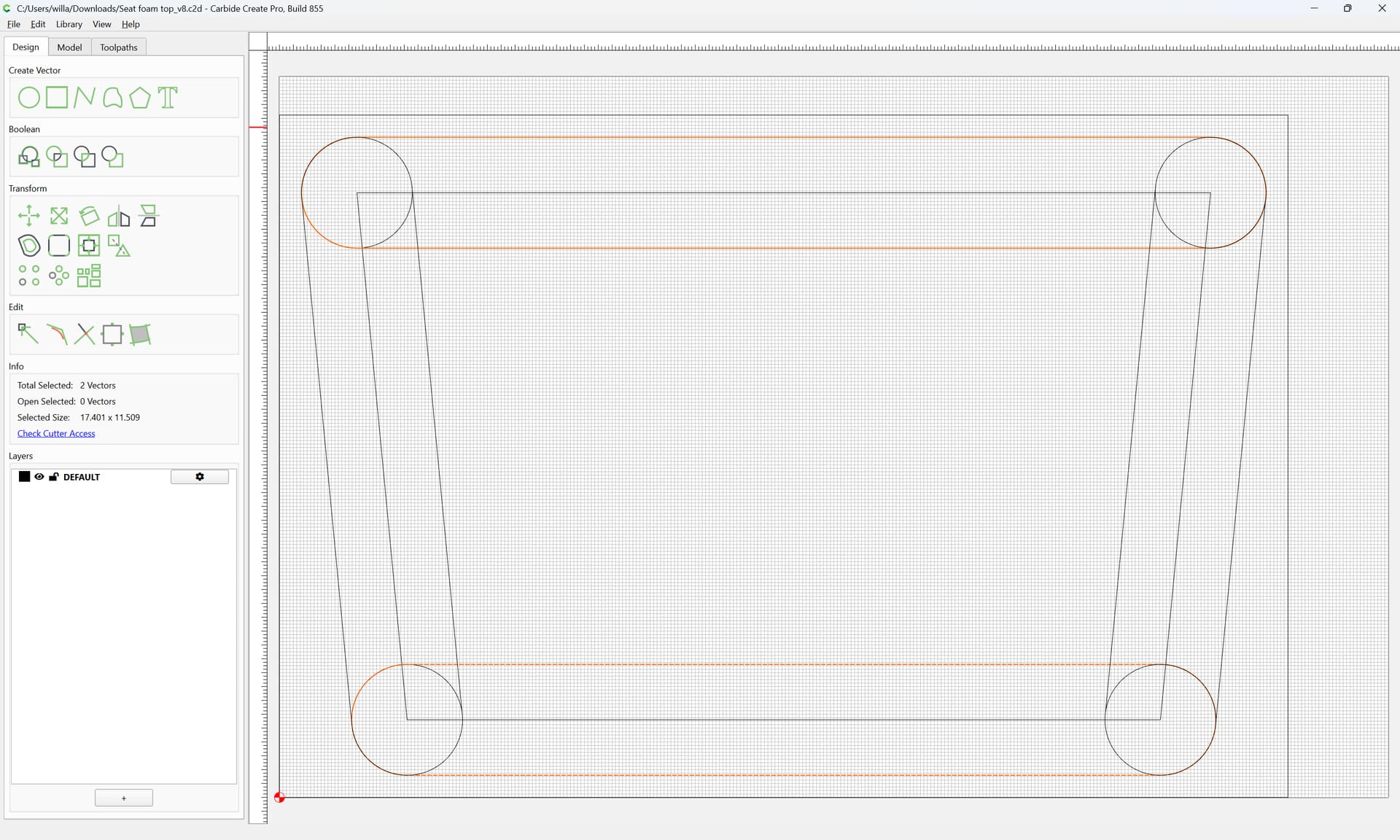

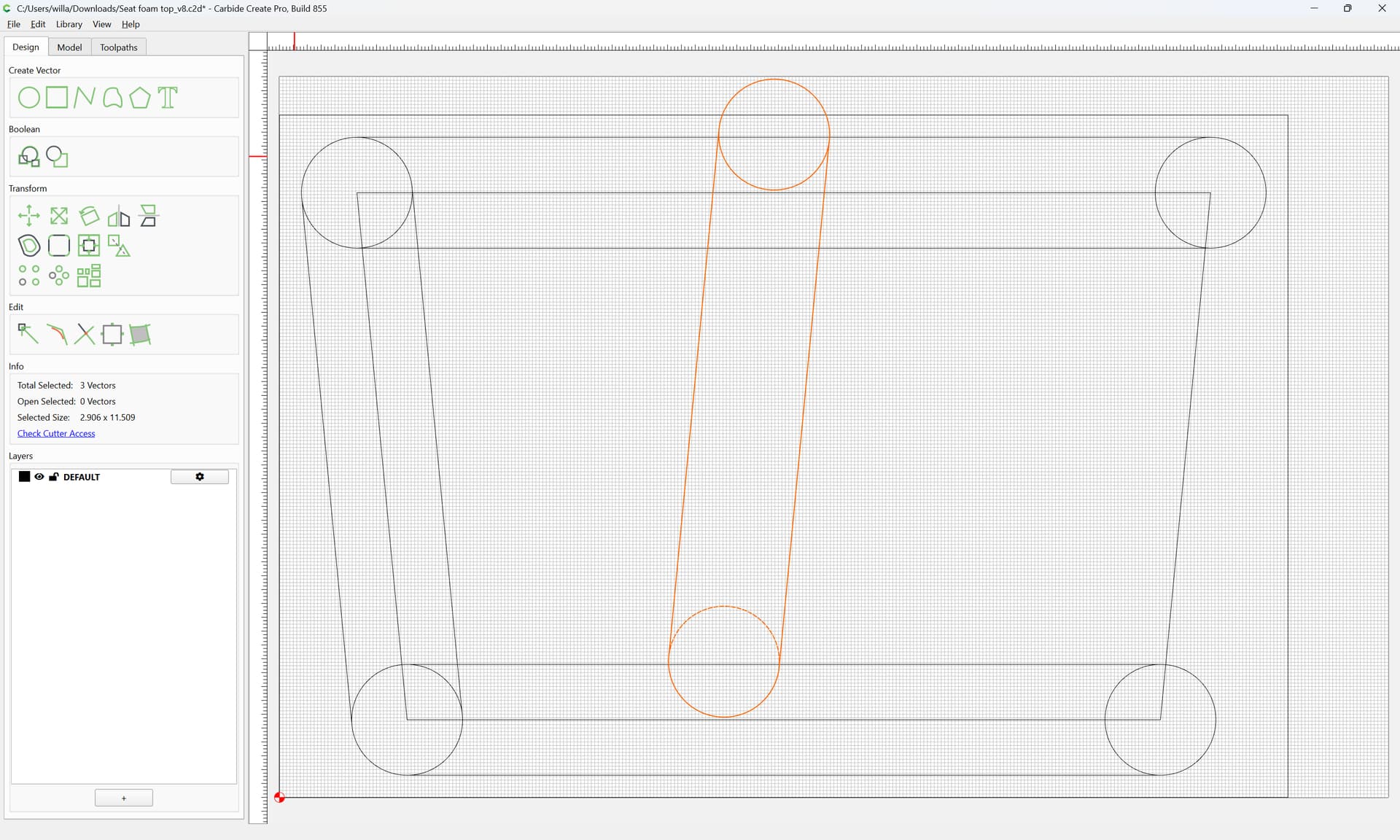

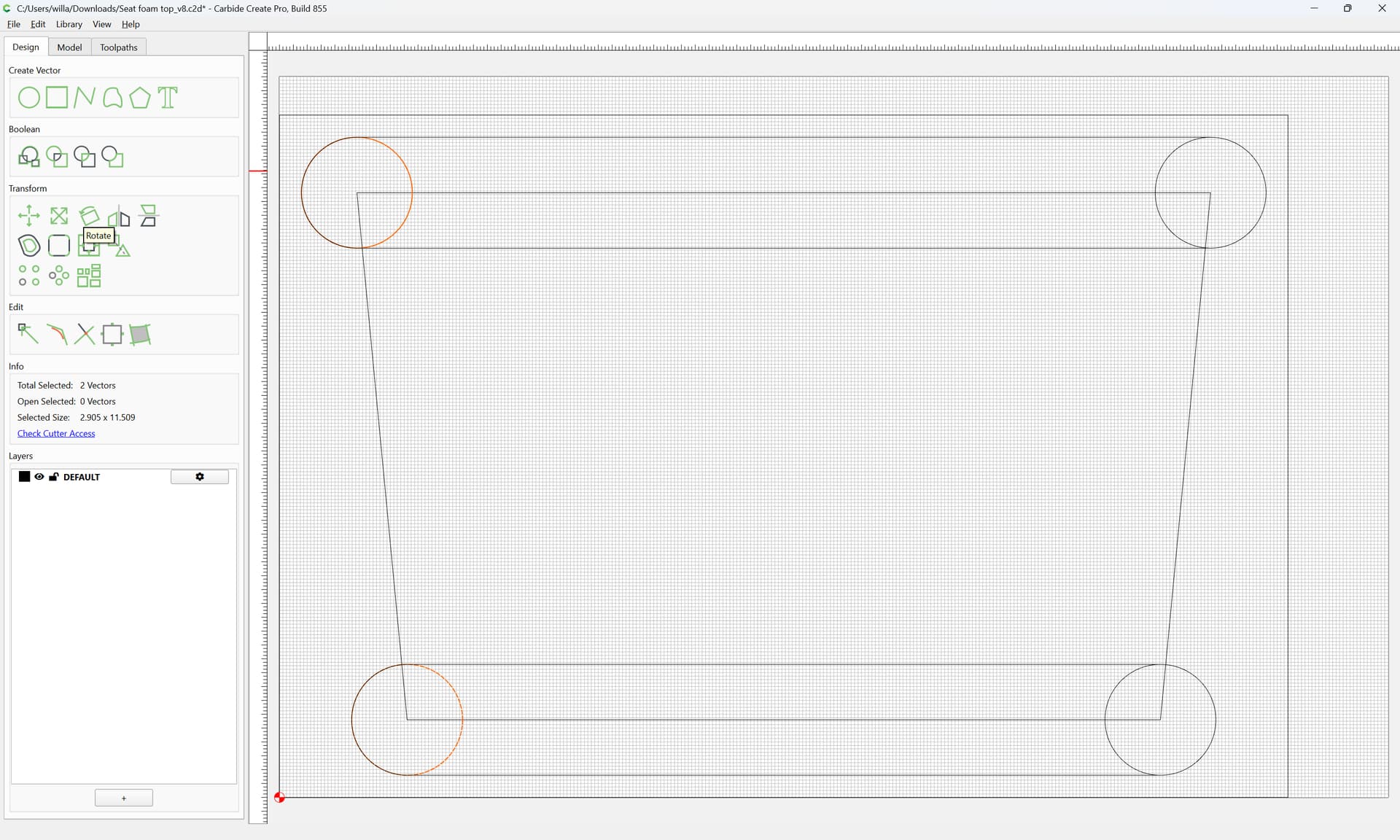

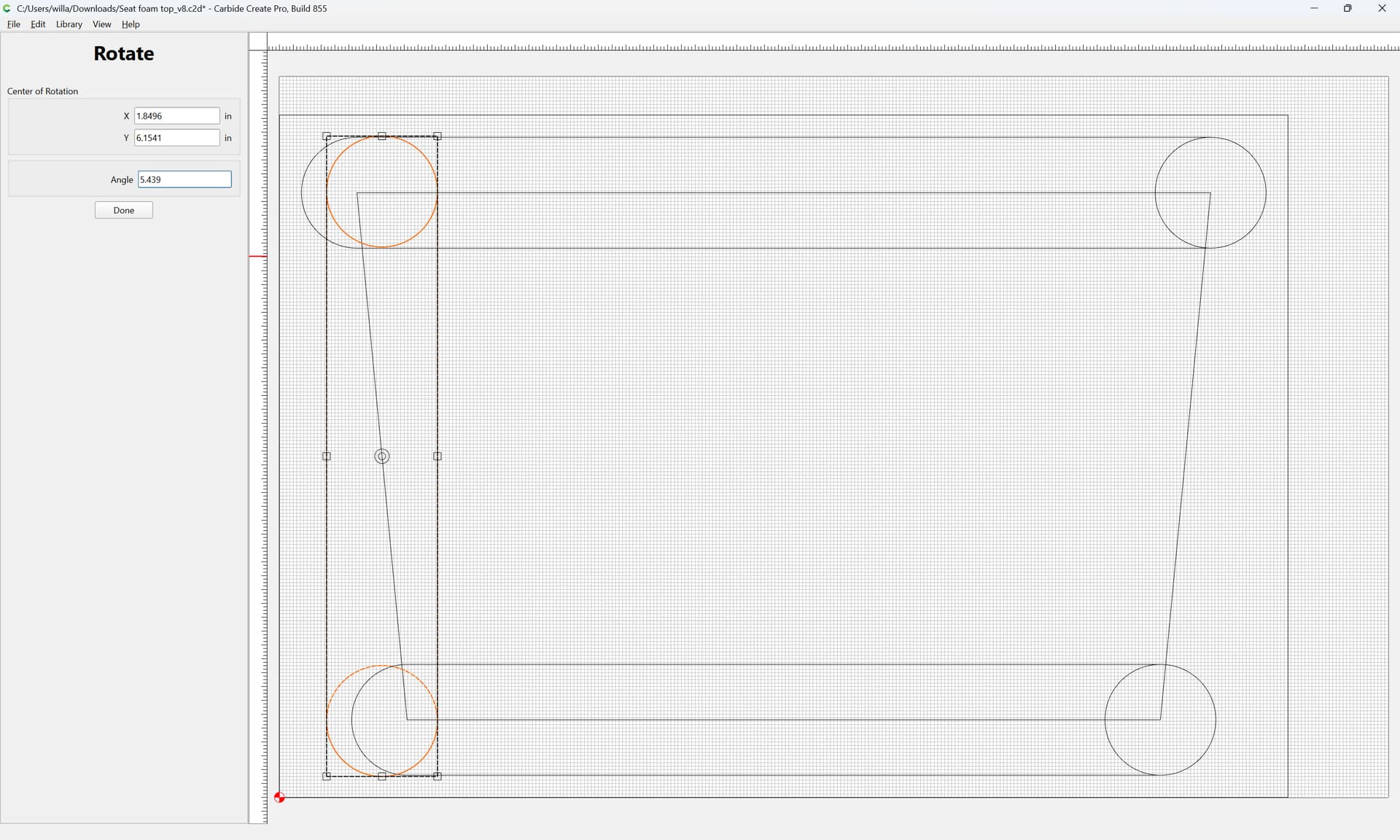

Select two circles:

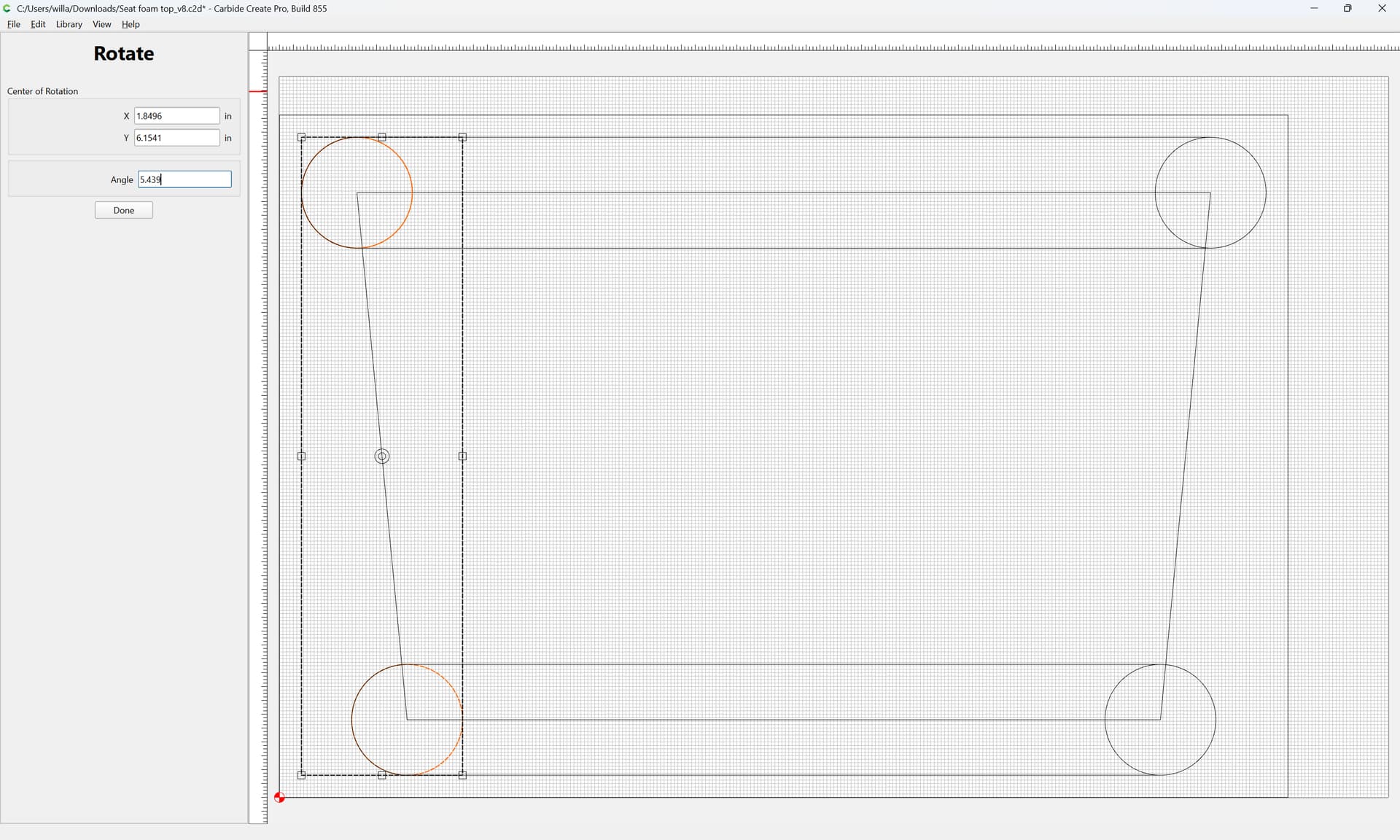

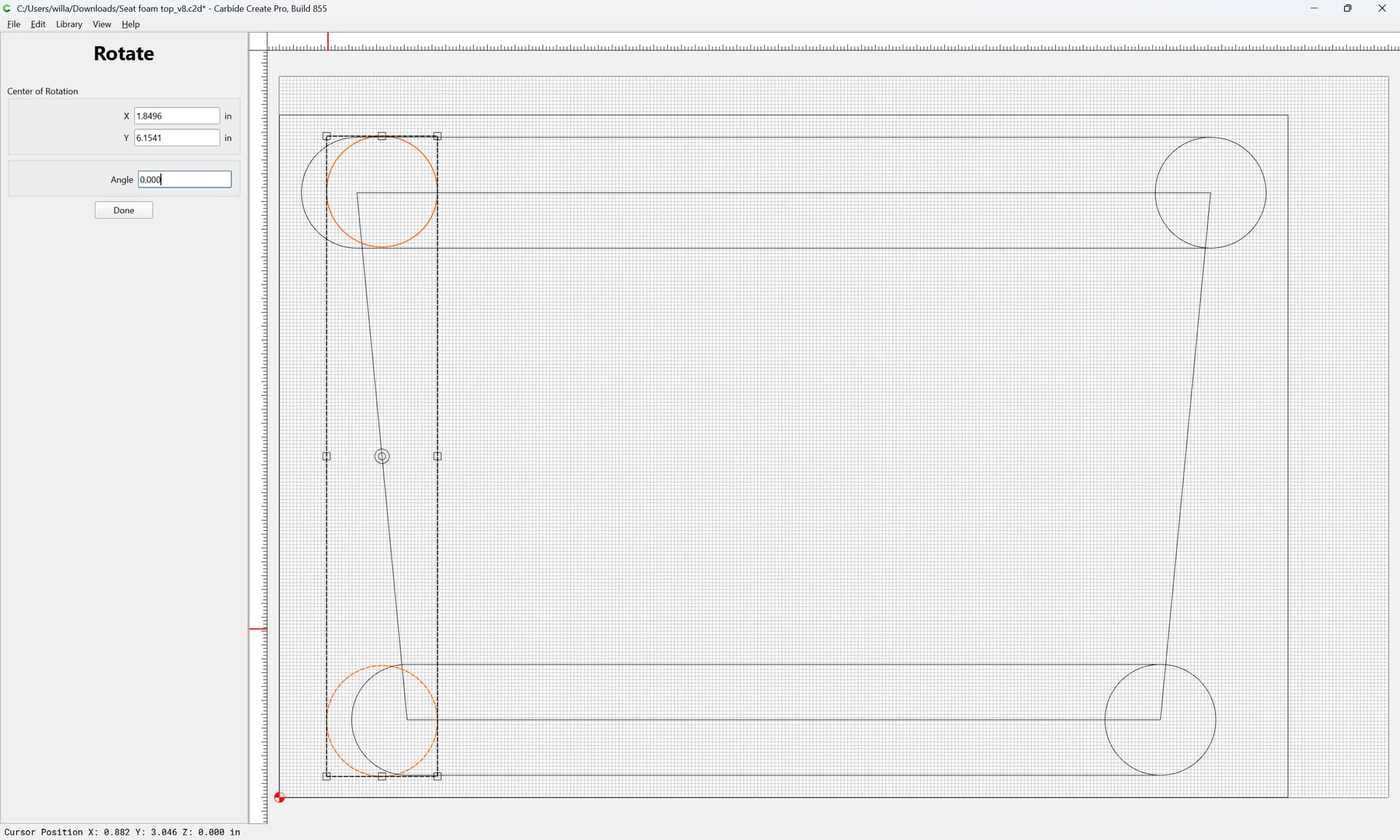

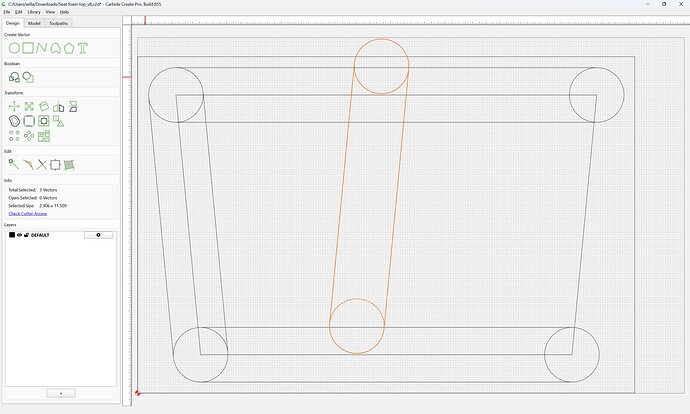

and rotate

Done

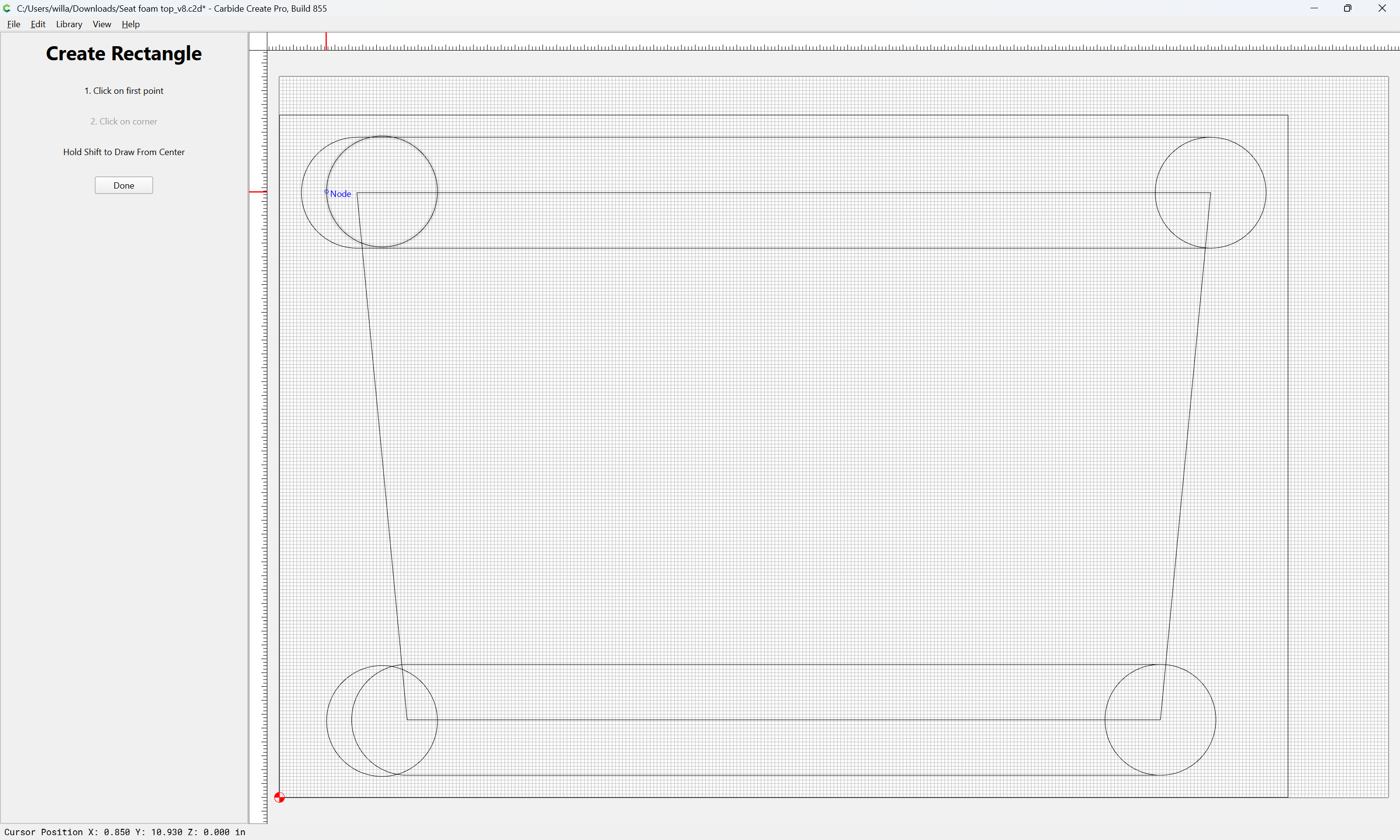

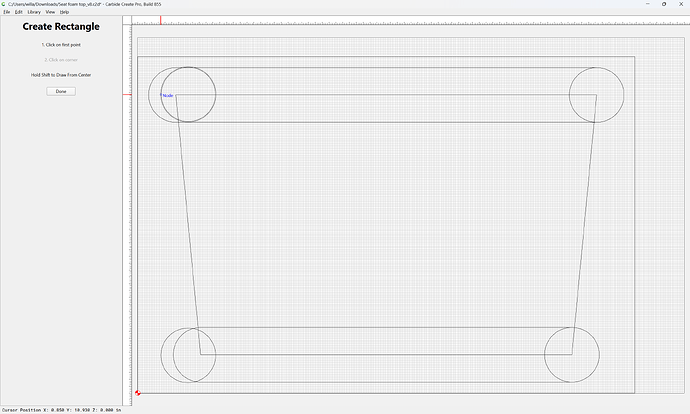

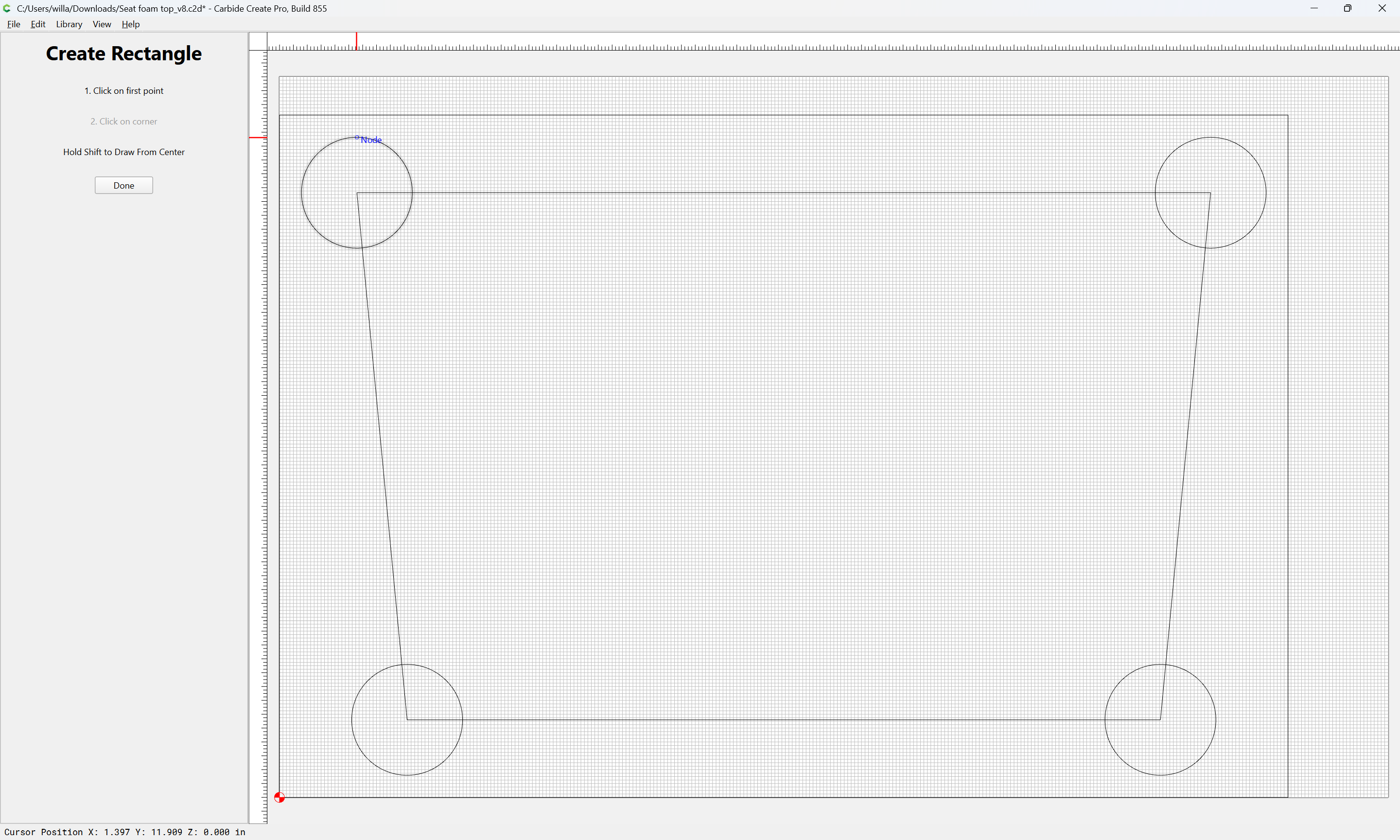

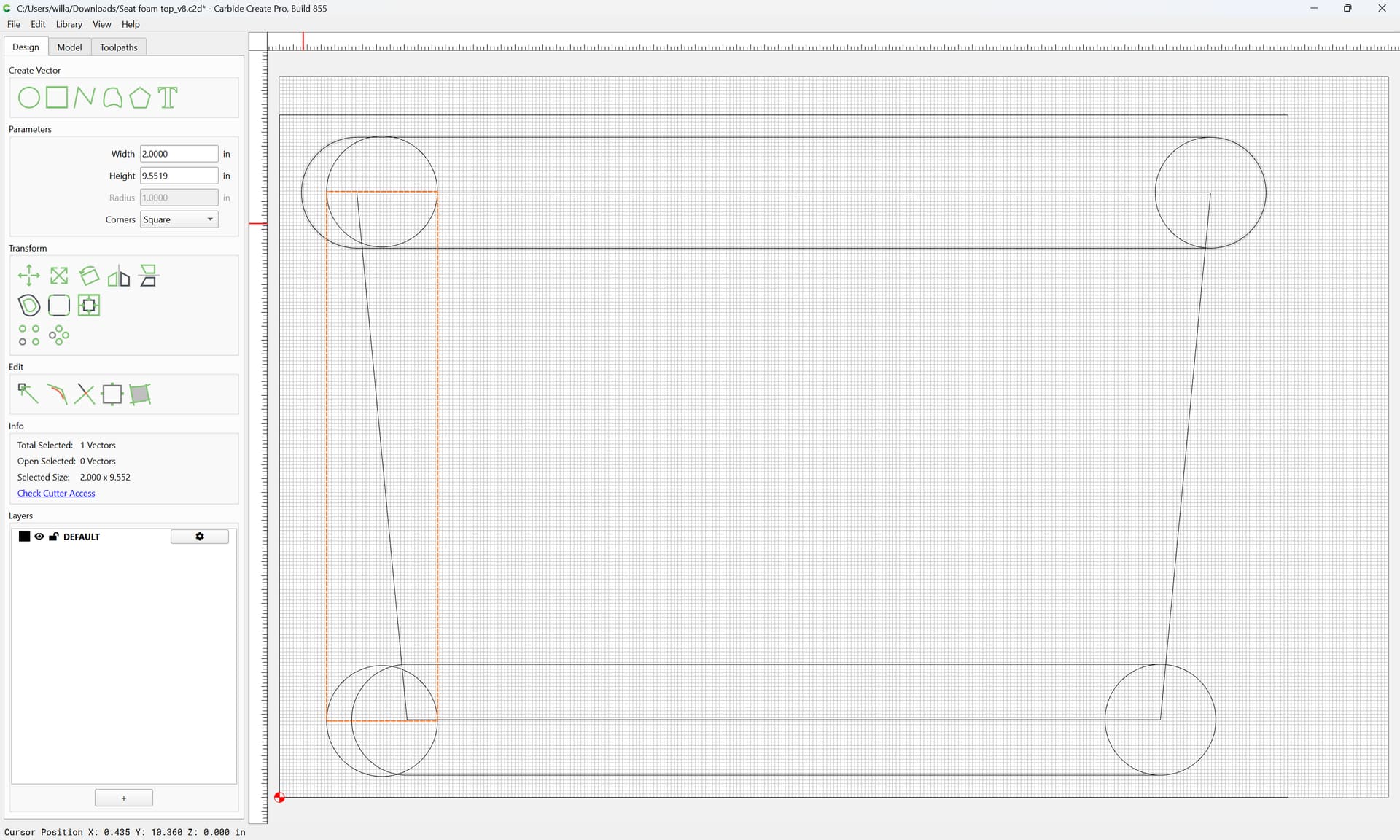

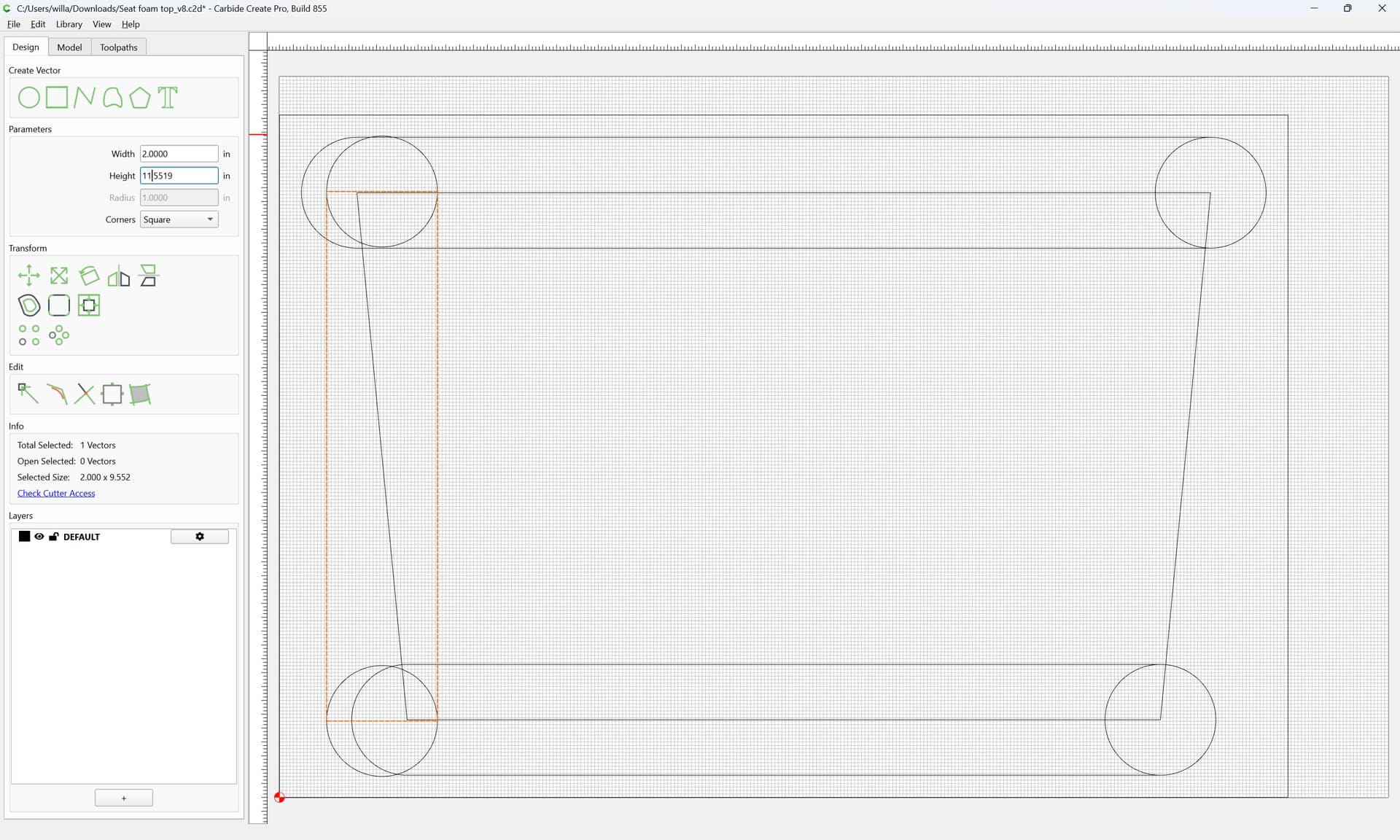

as before draw a rectangle:

(taking advantage of the fact that circles do not rotate when rotated)

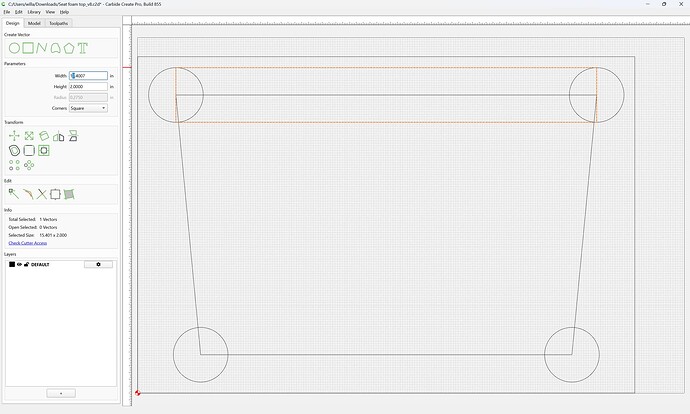

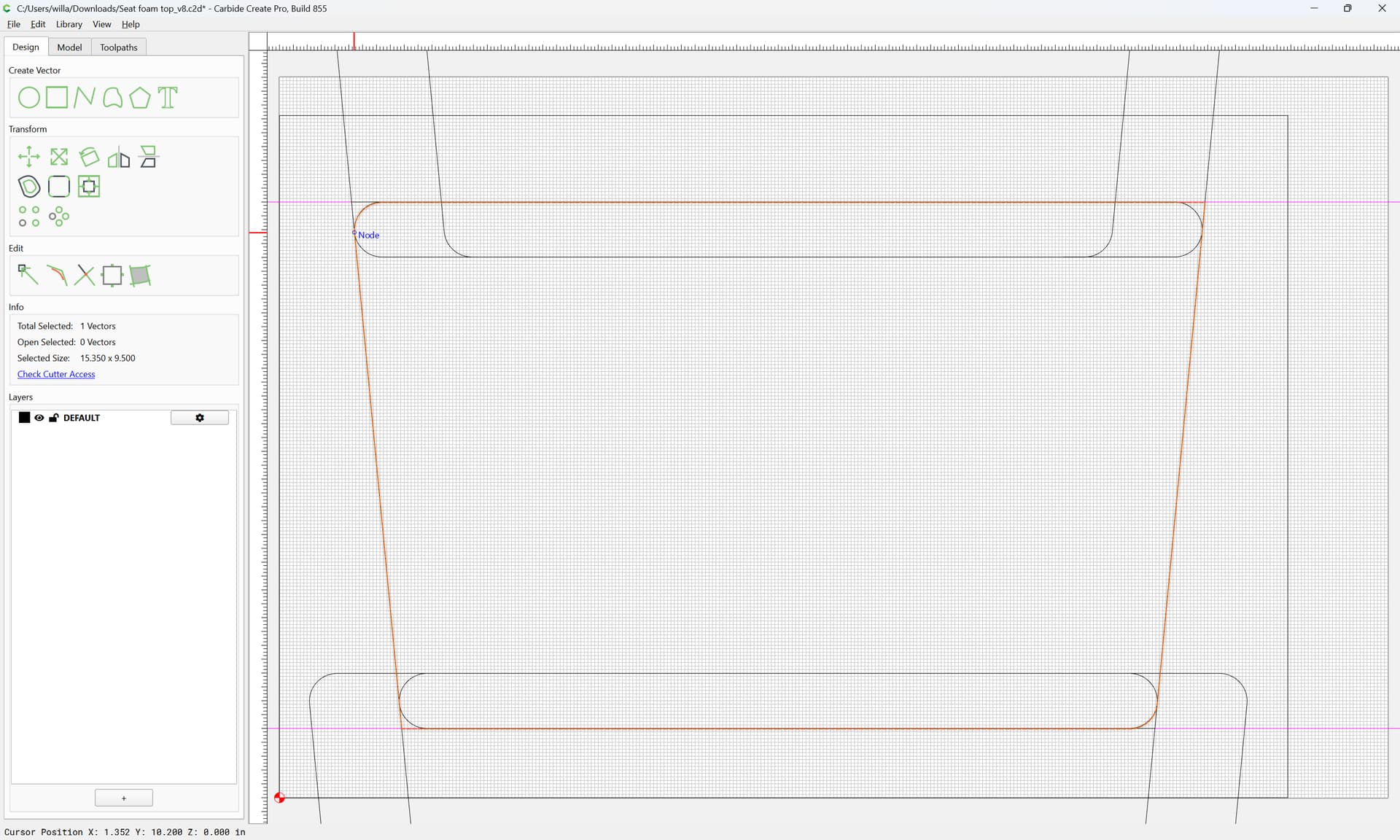

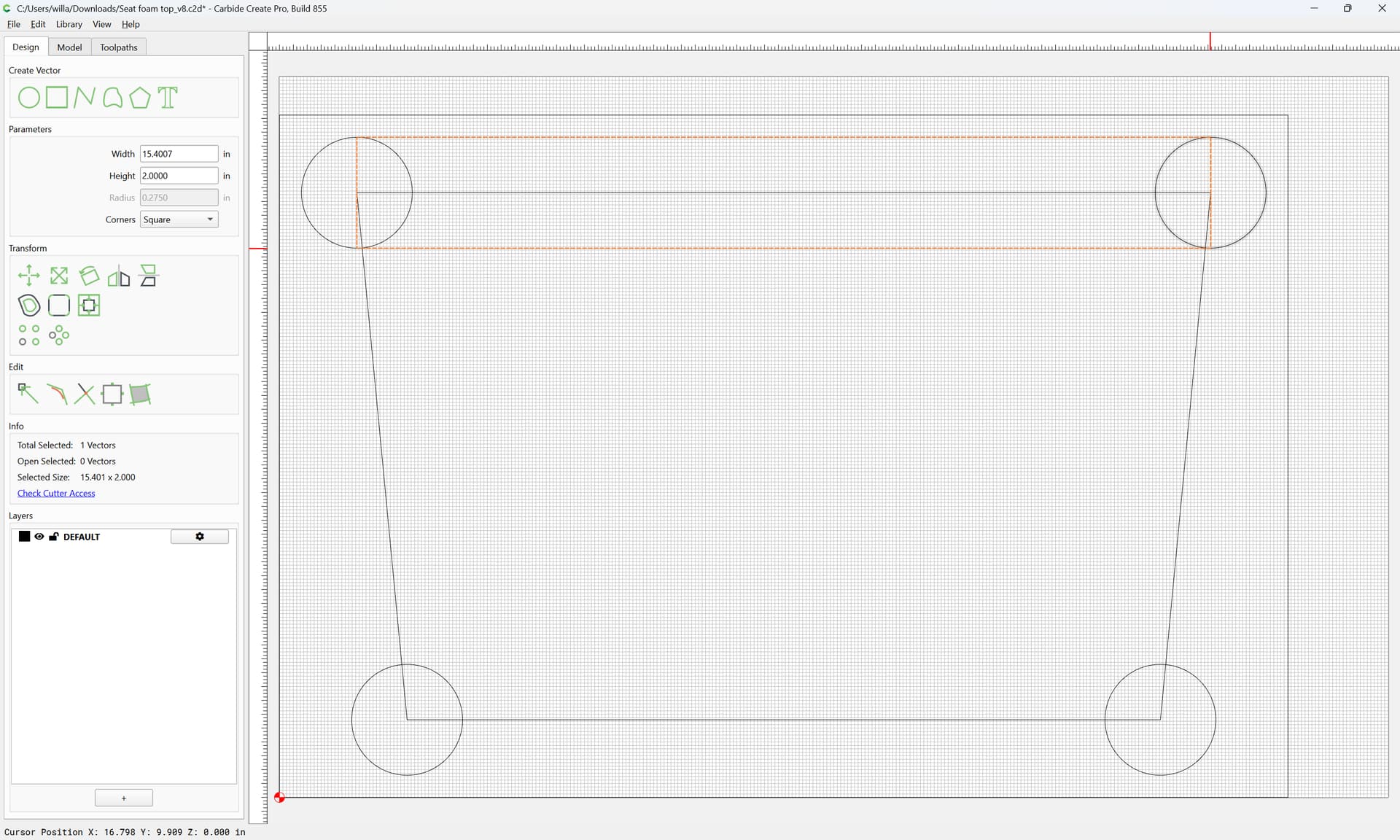

As before increase the appropriate dimension:

and round:

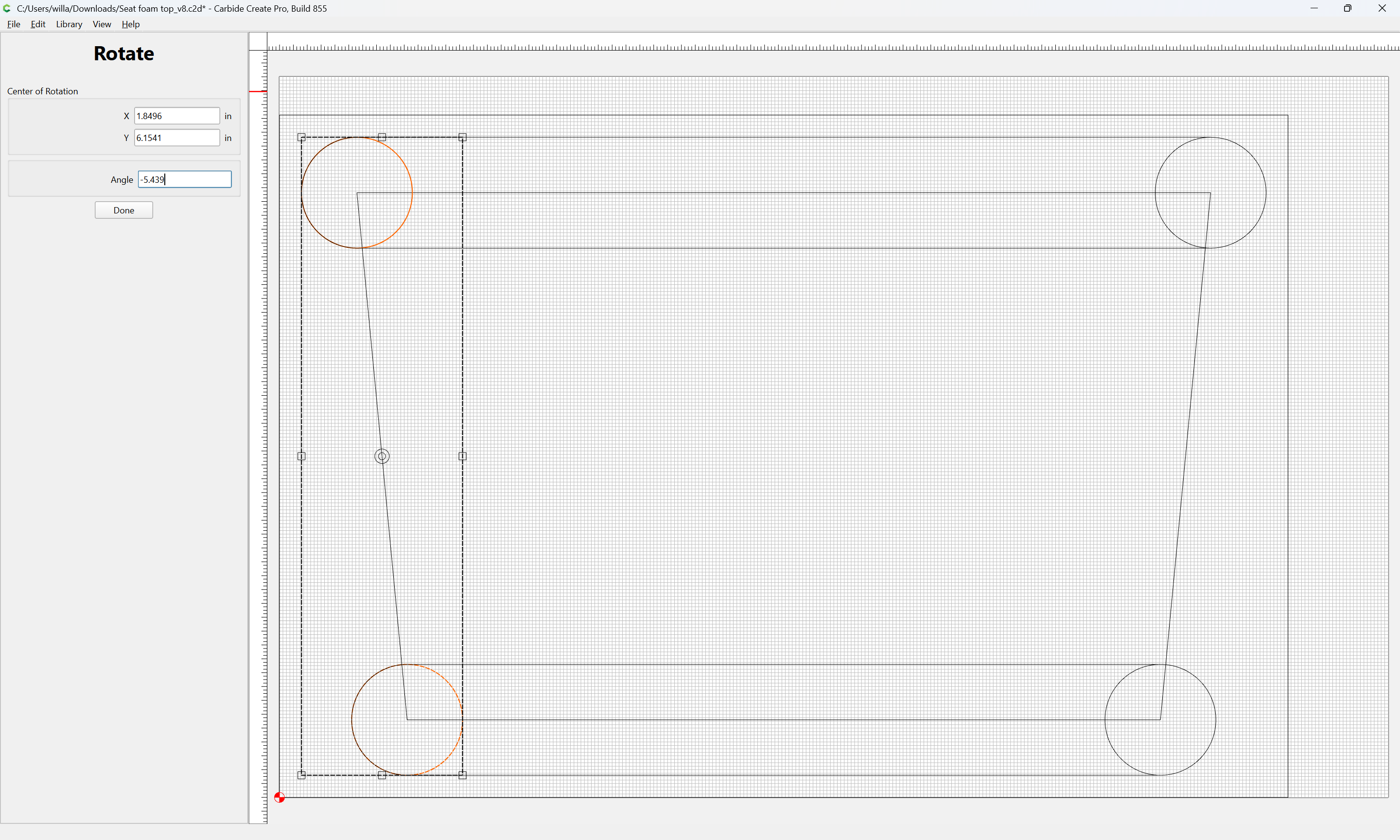

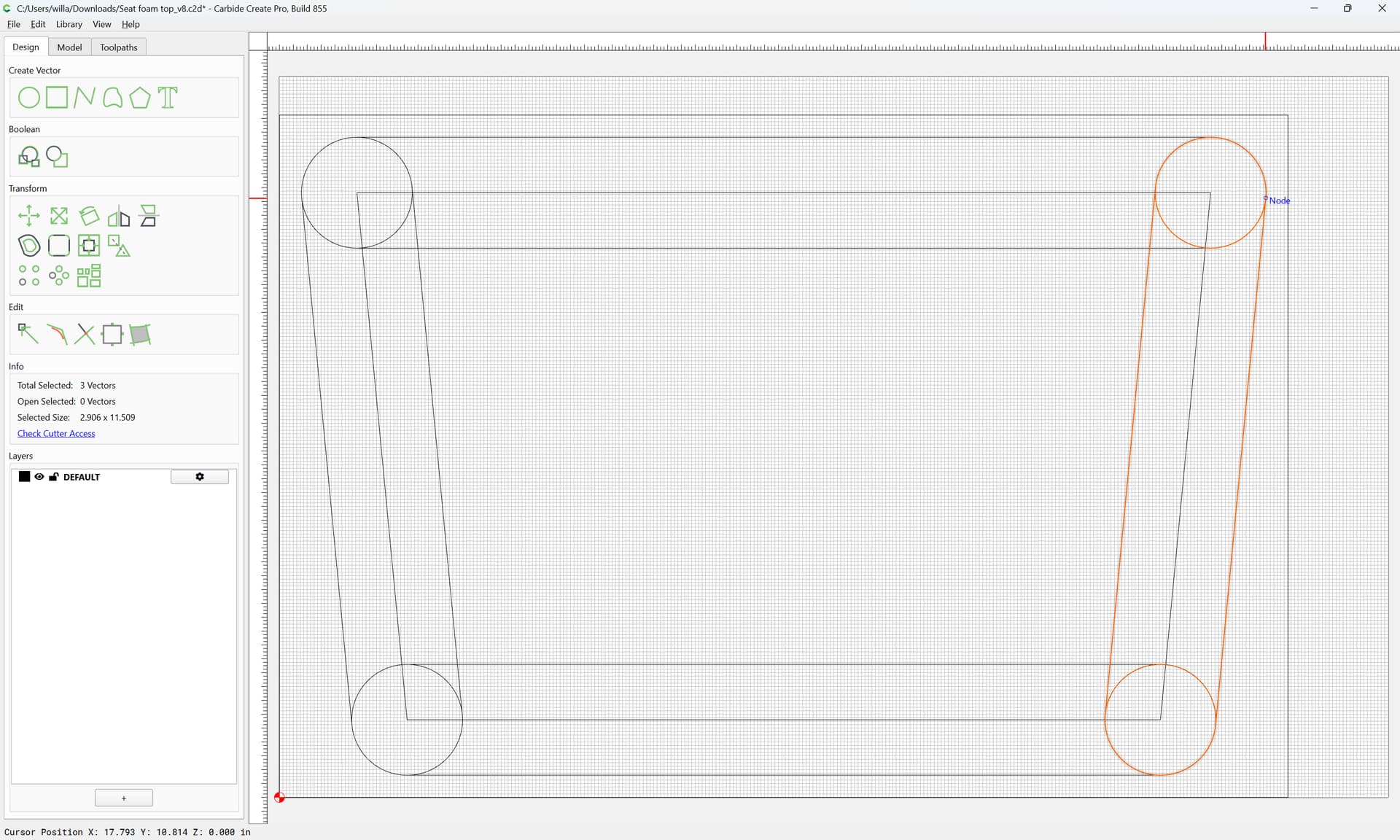

Then re-apply the rotation, including the circles so that they may be used for alignment if need be:

Done

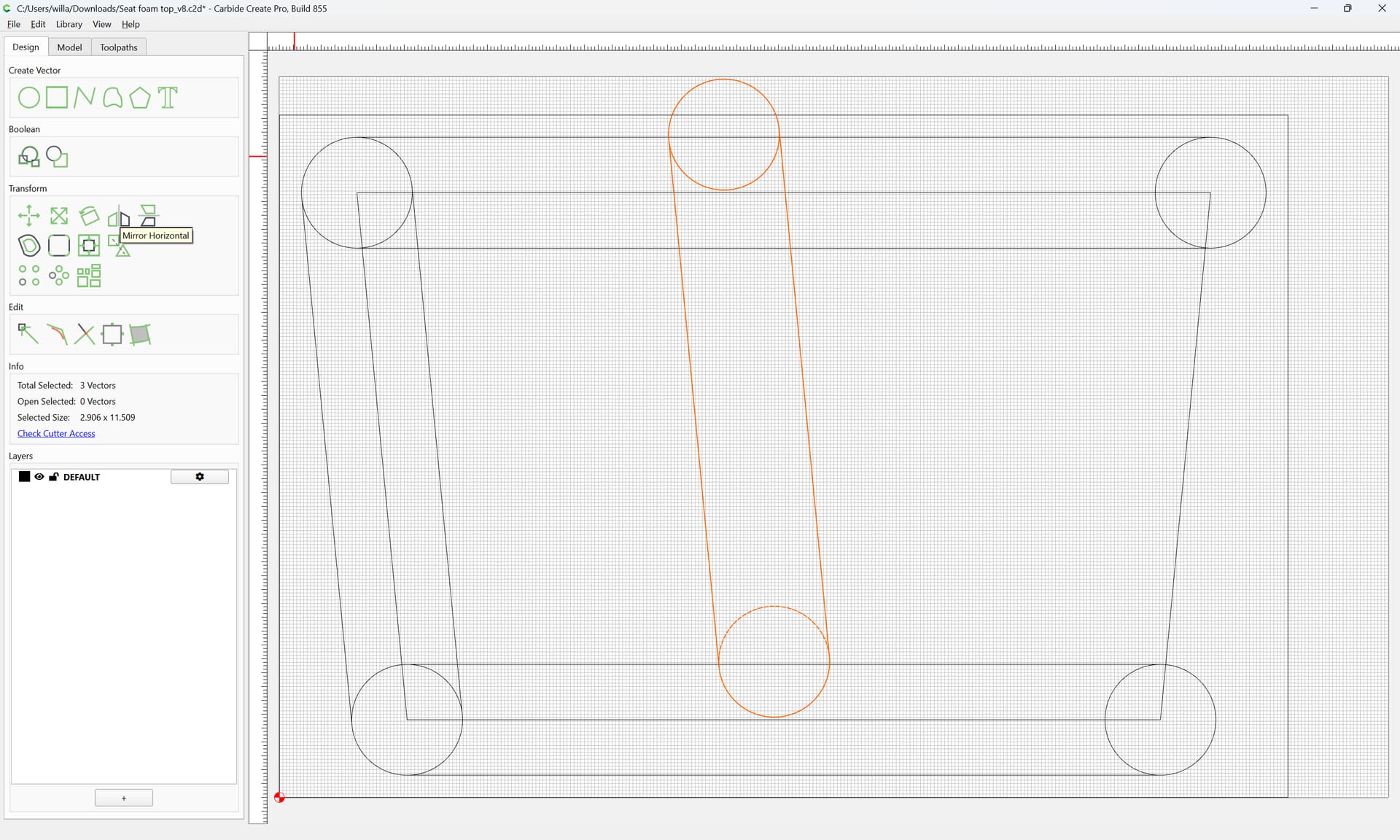

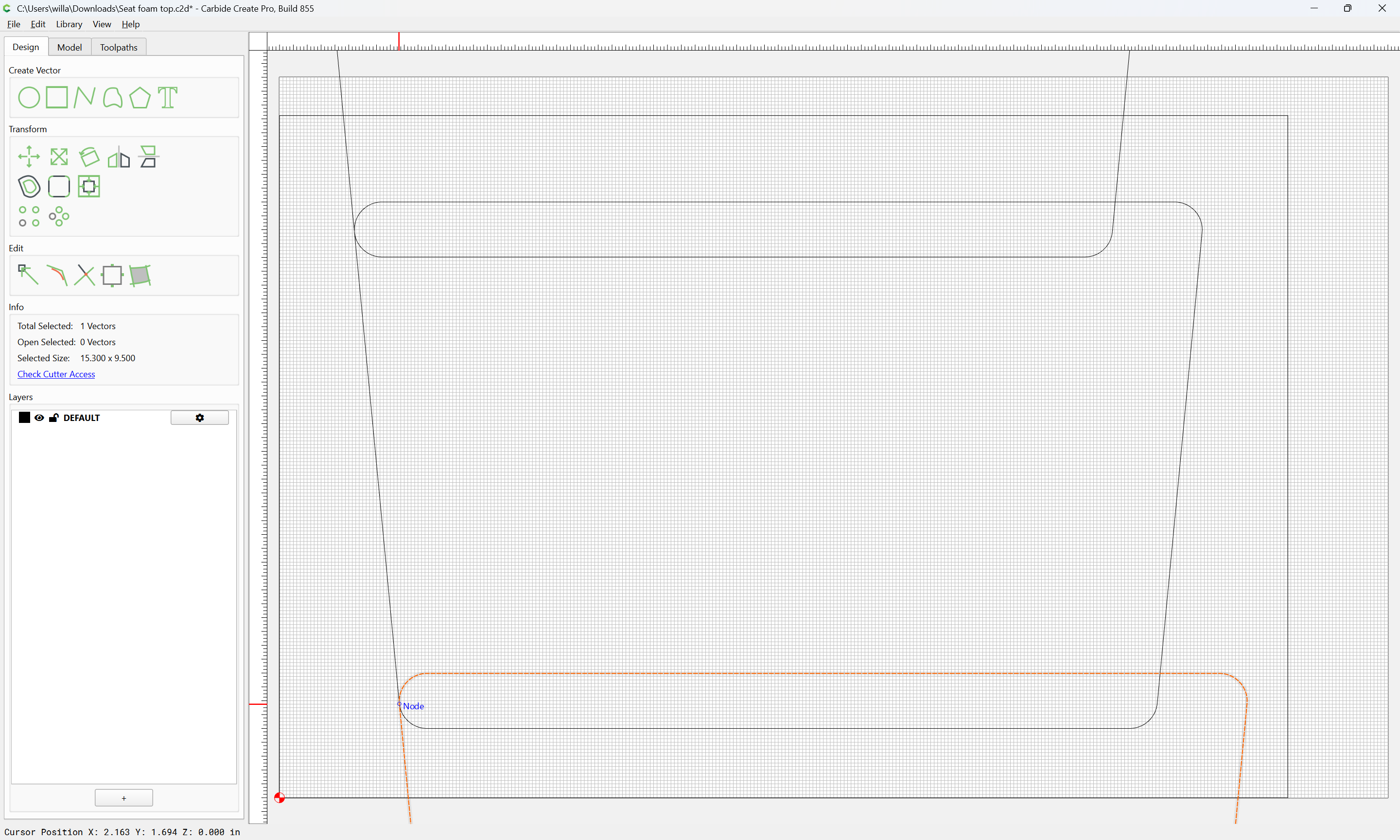

copy-paste

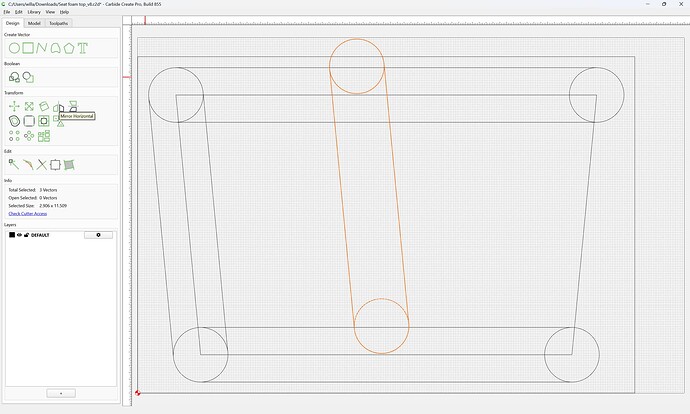

and Mirror Horizontal

and drag into alignment:

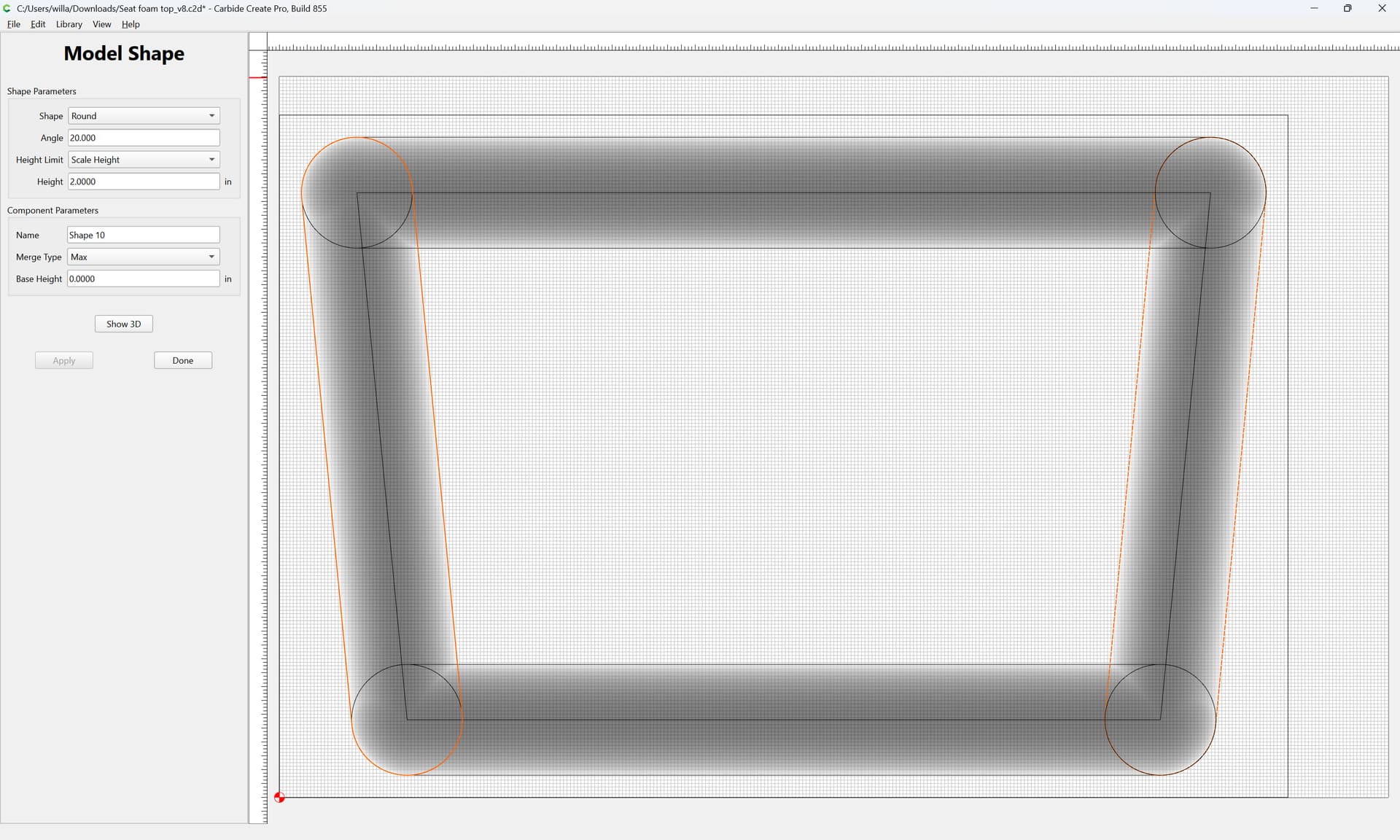

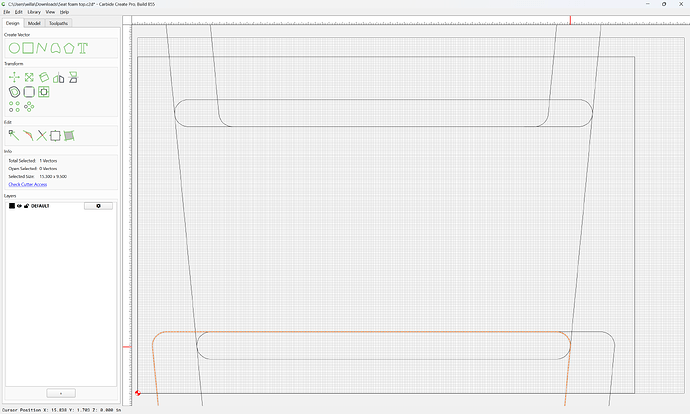

Select each opposing pair:

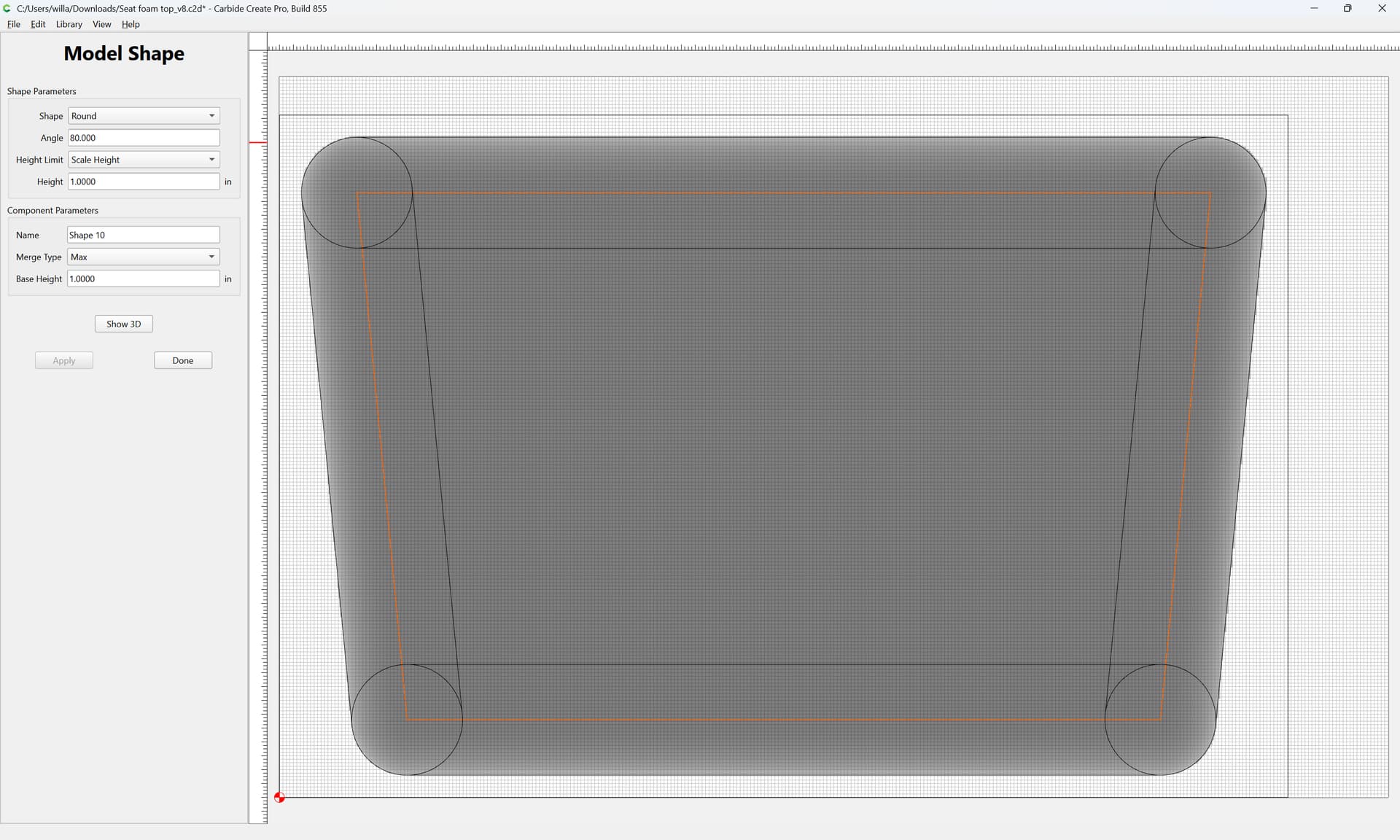

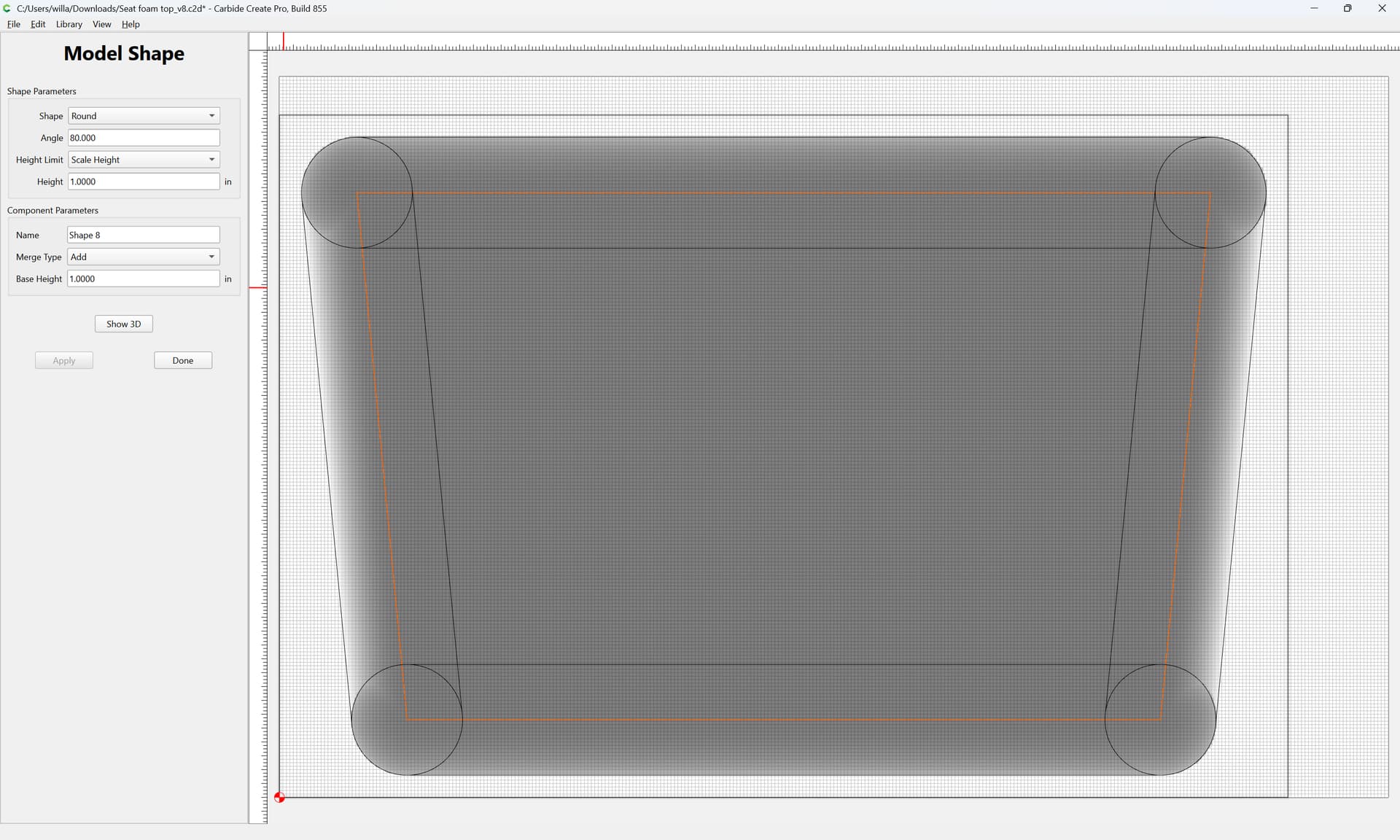

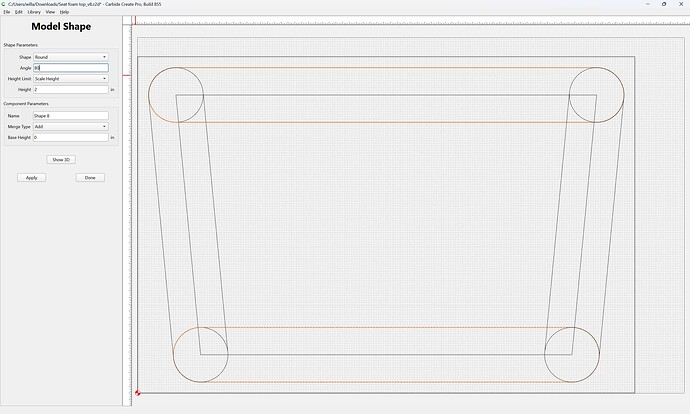

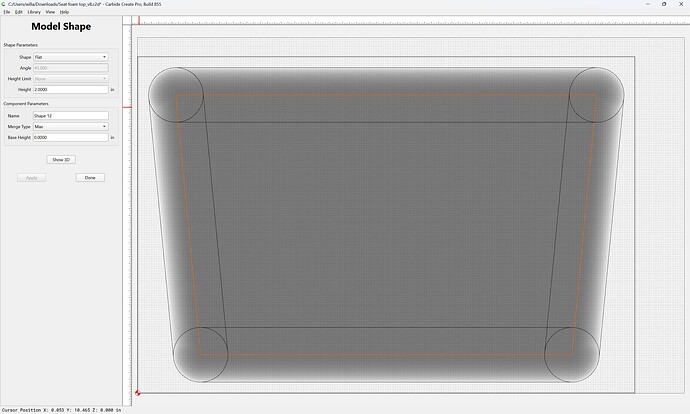

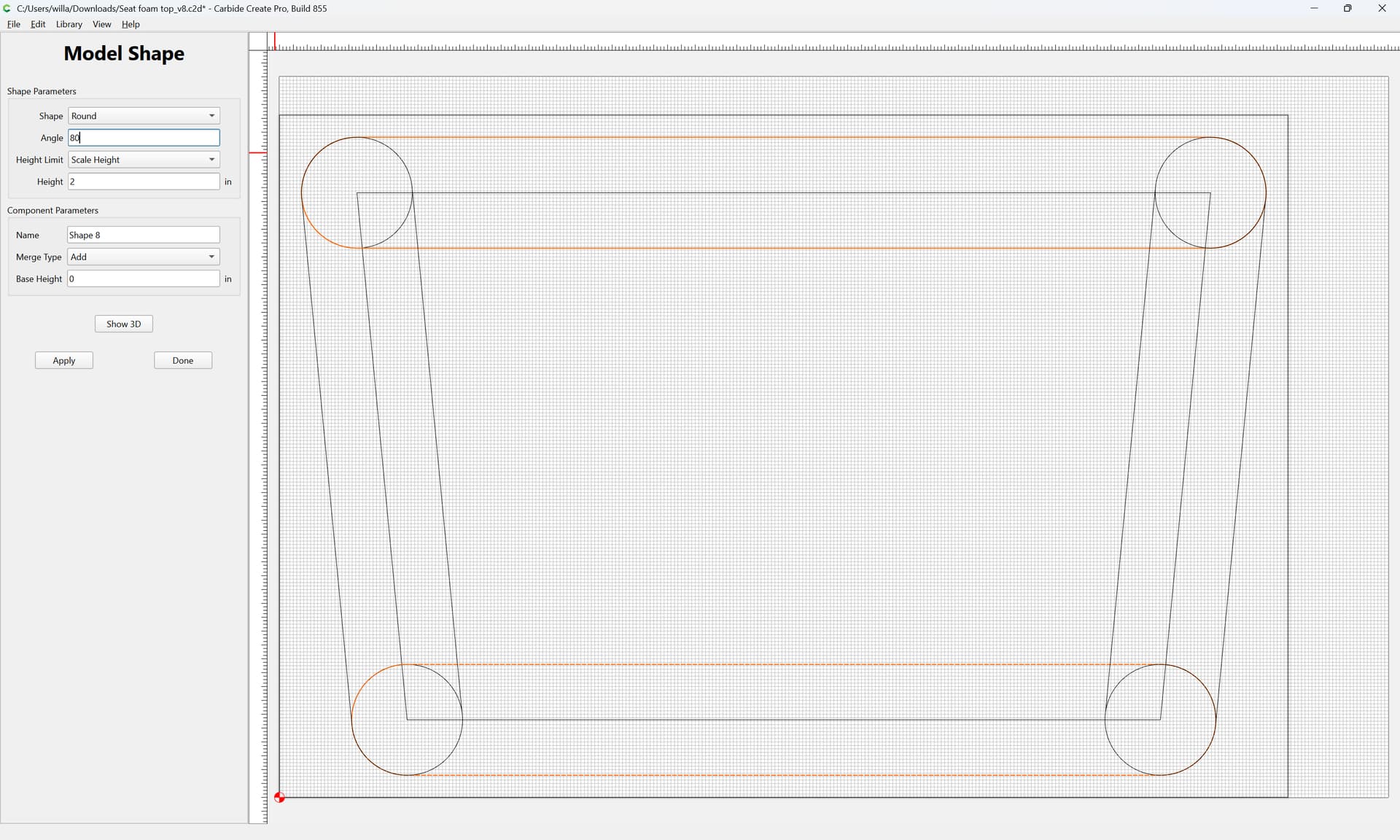

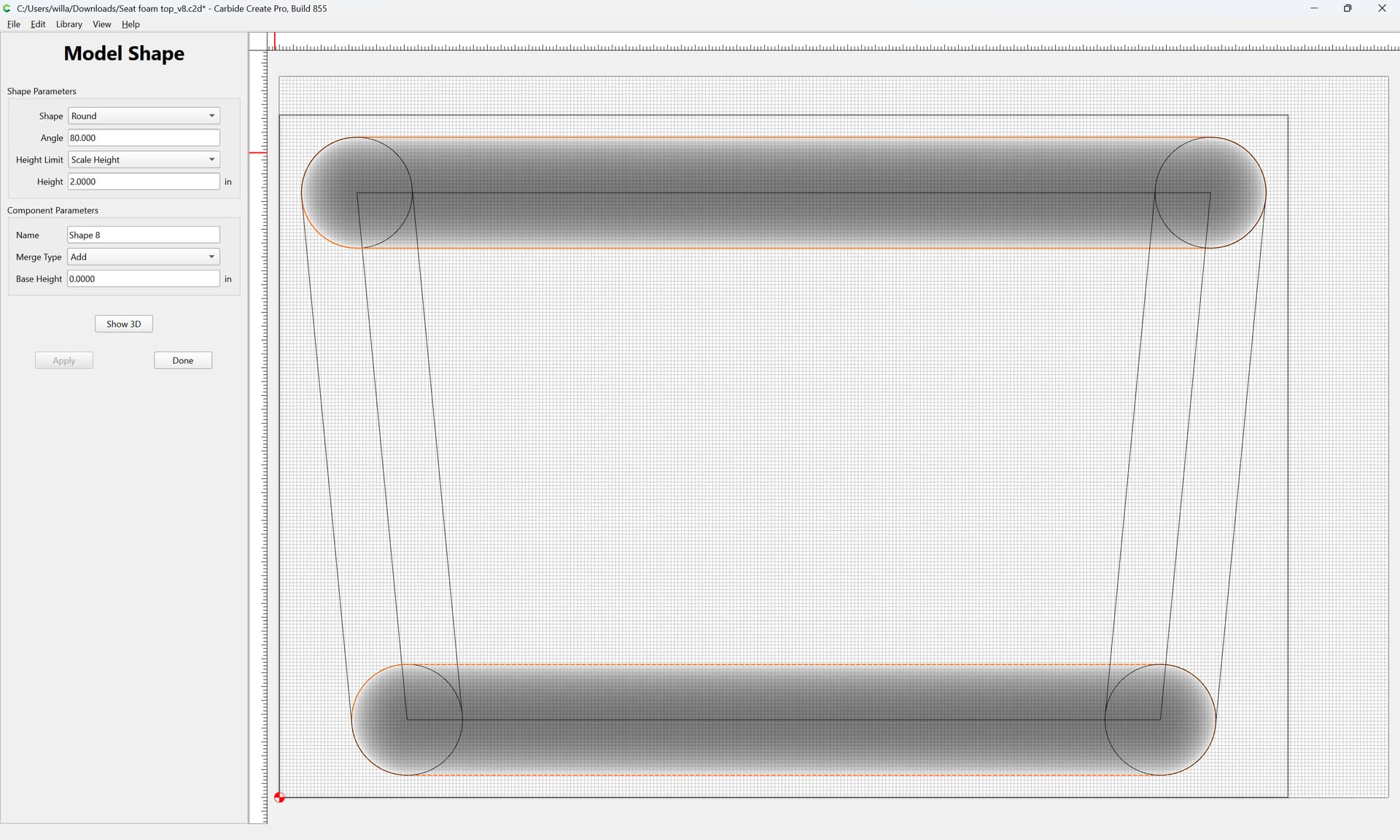

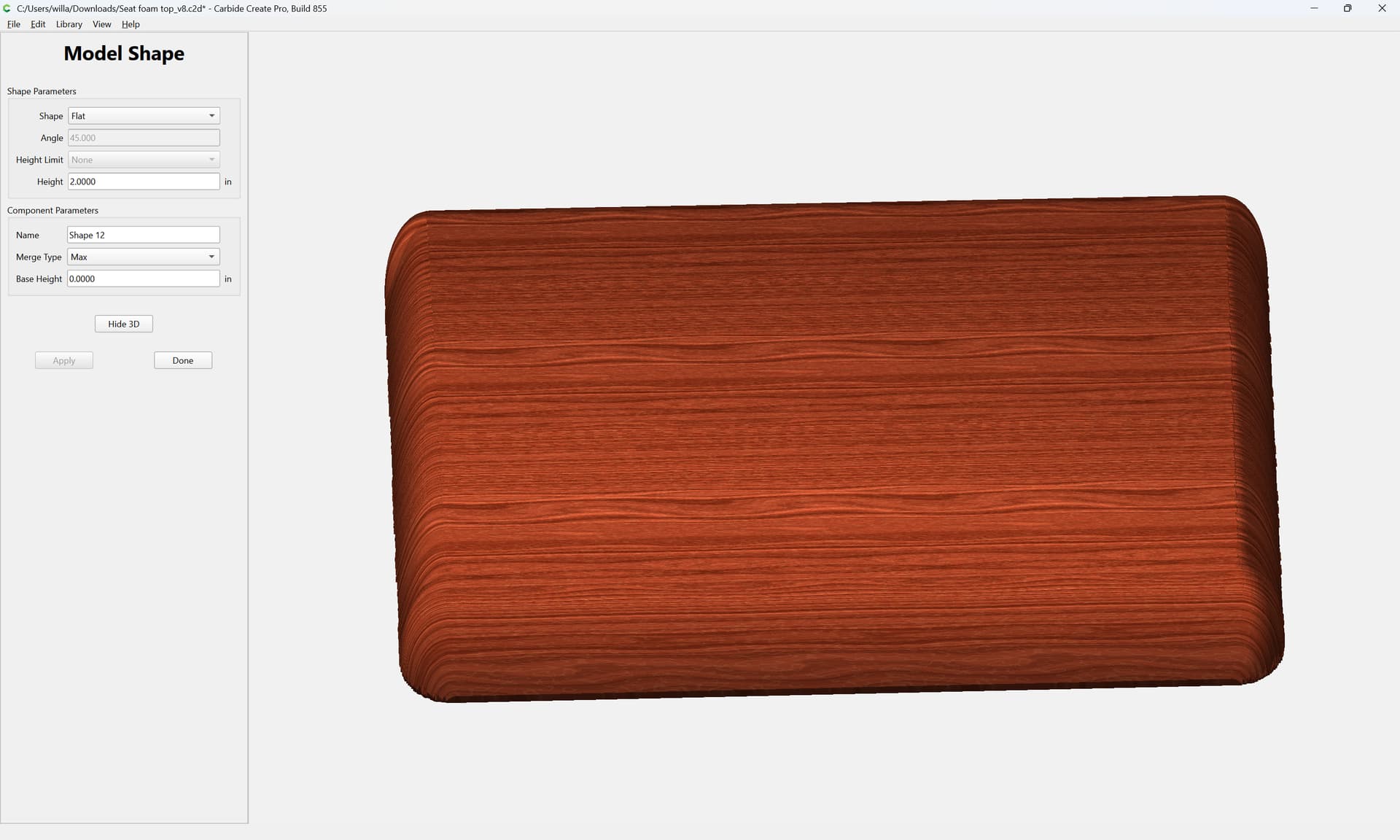

and model to the desired height:

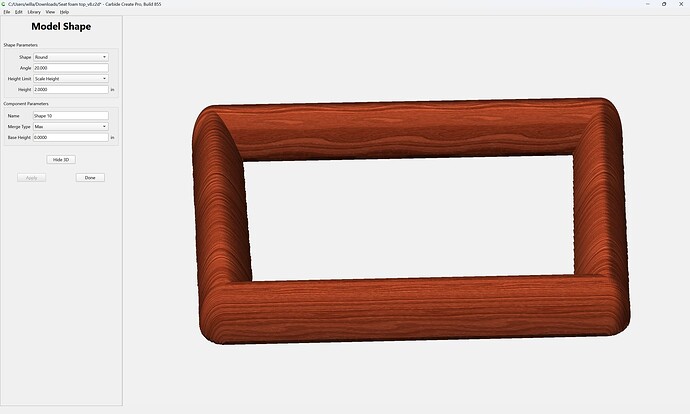

Note that when the second is modeled:

Max must be used for the modeling

Naturally, the rounding may be adjusted as desired to arrive at the desired result.

Then the central geometry may be selected:

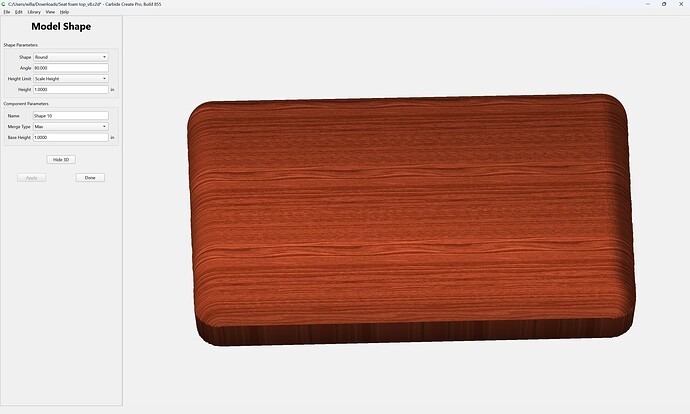

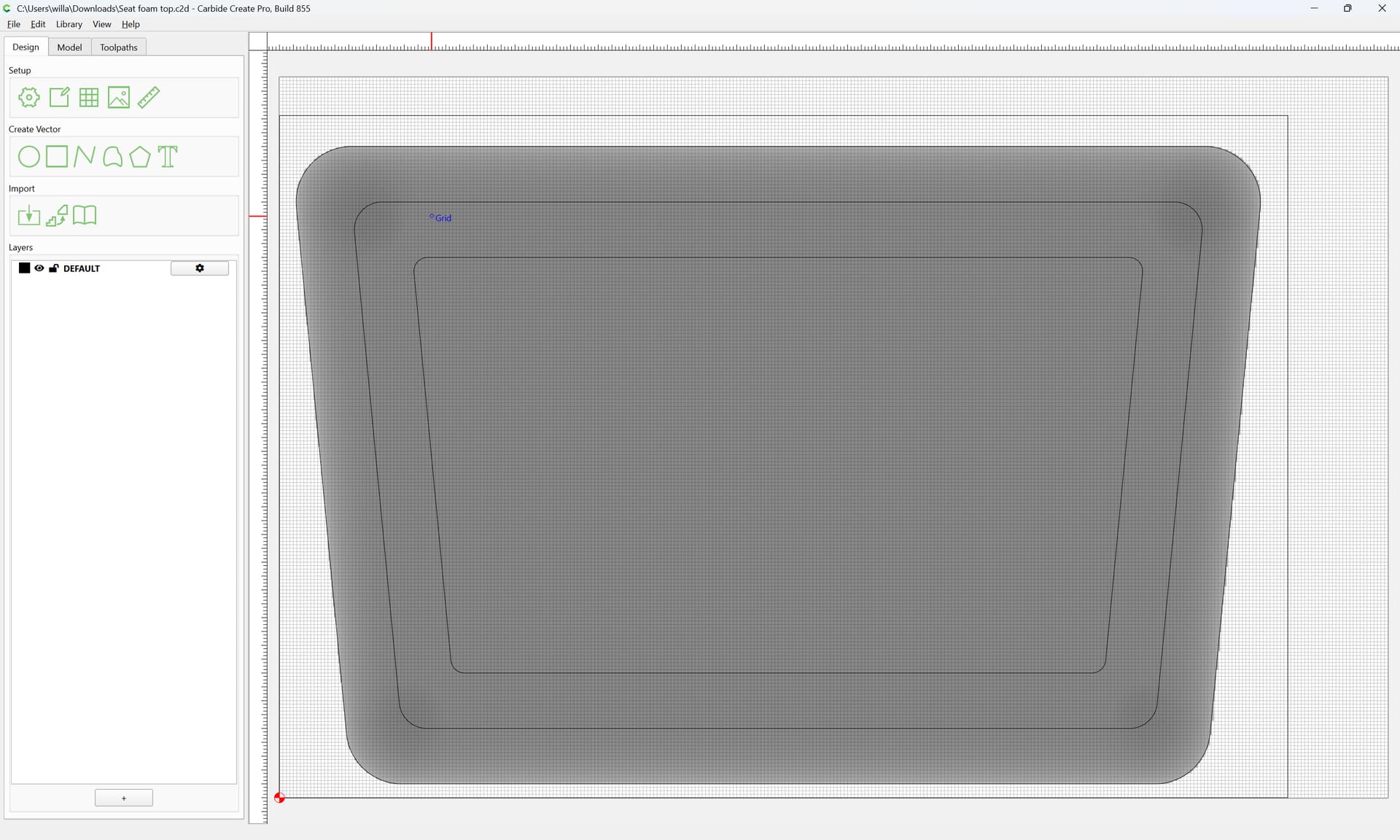

and modeled to the desired height:

Probably the rounded elements should be adjusted to:
