Actuator mounting bracket on nomad3

Gallery
1

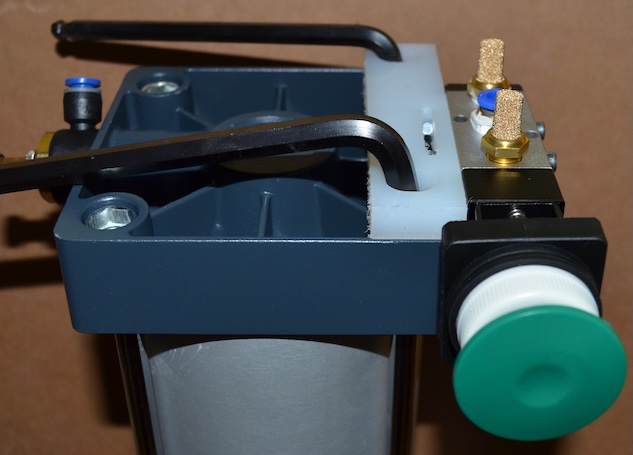

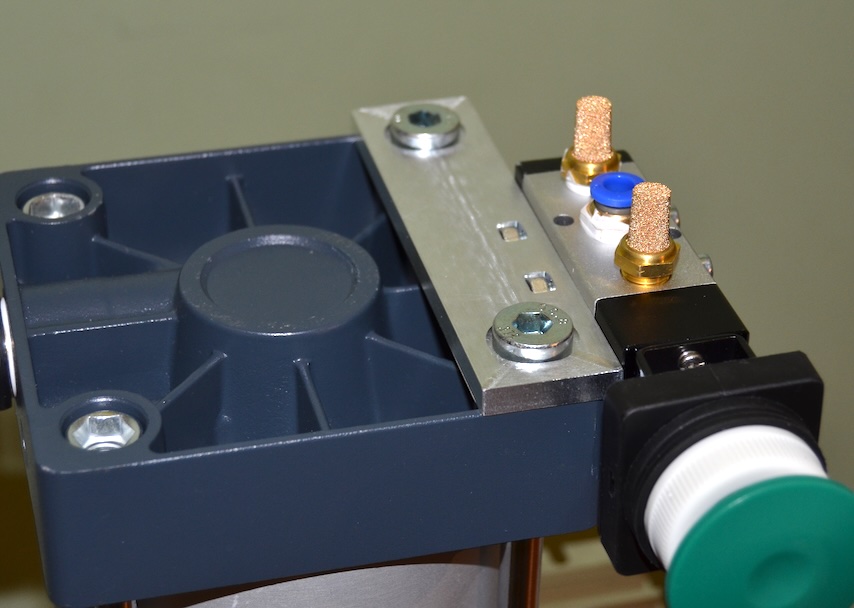

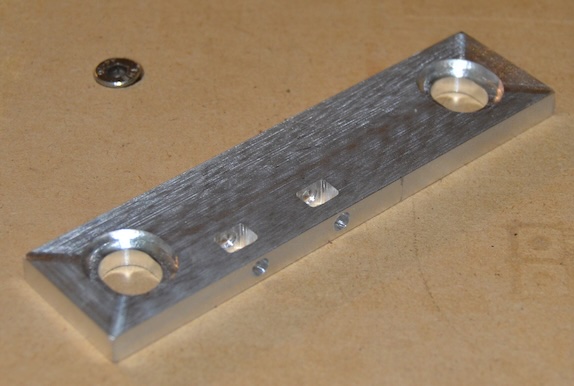

I made a bracket on the Nomad3 to mount a pushbutton valve to pneumatic actuator. This supports my build of a buster beagle 3d injector kit.

  • CAD/CAM with FreeCAD
  • Feeds/speeds from Carbide Create
  • Material: HDPE

If cut this again, the nuts will be held by smaller pockets.

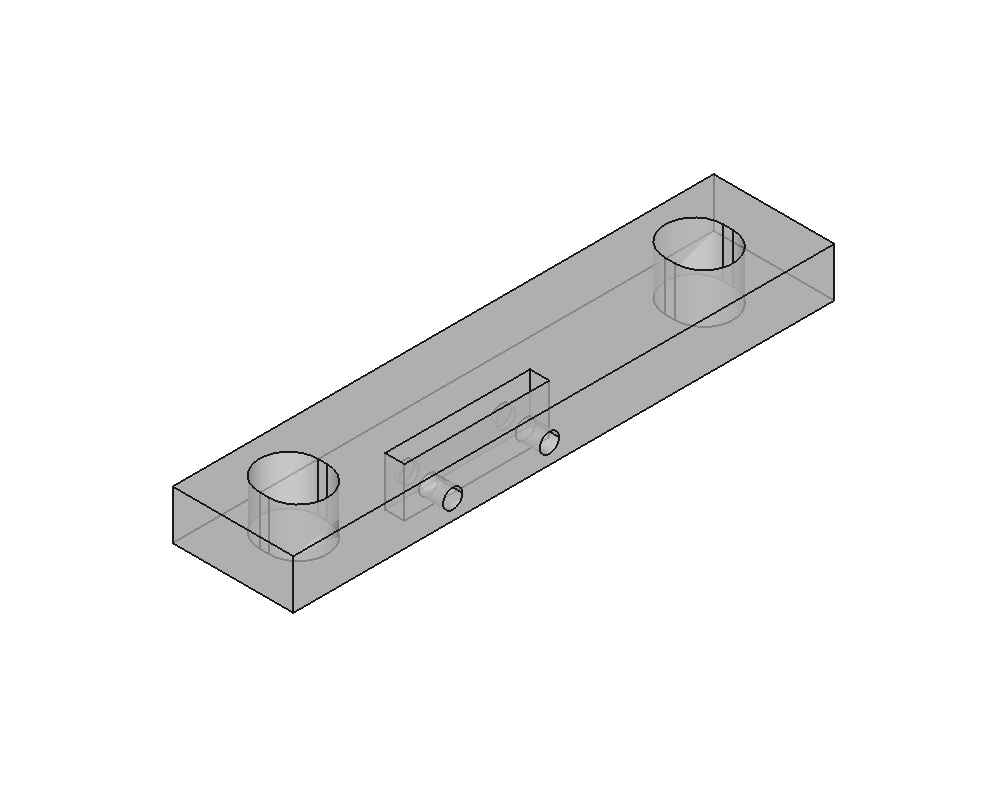

actuator-bracket
actuator-bracket1007×787 12.4 KB

Note: Hex drivers in photo will be replaced with M10 screws

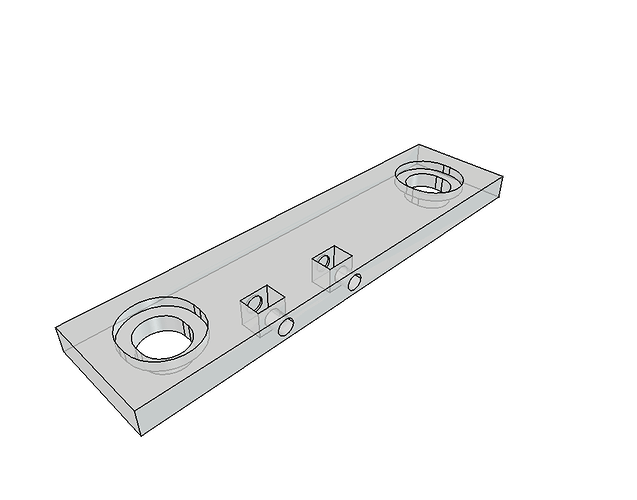

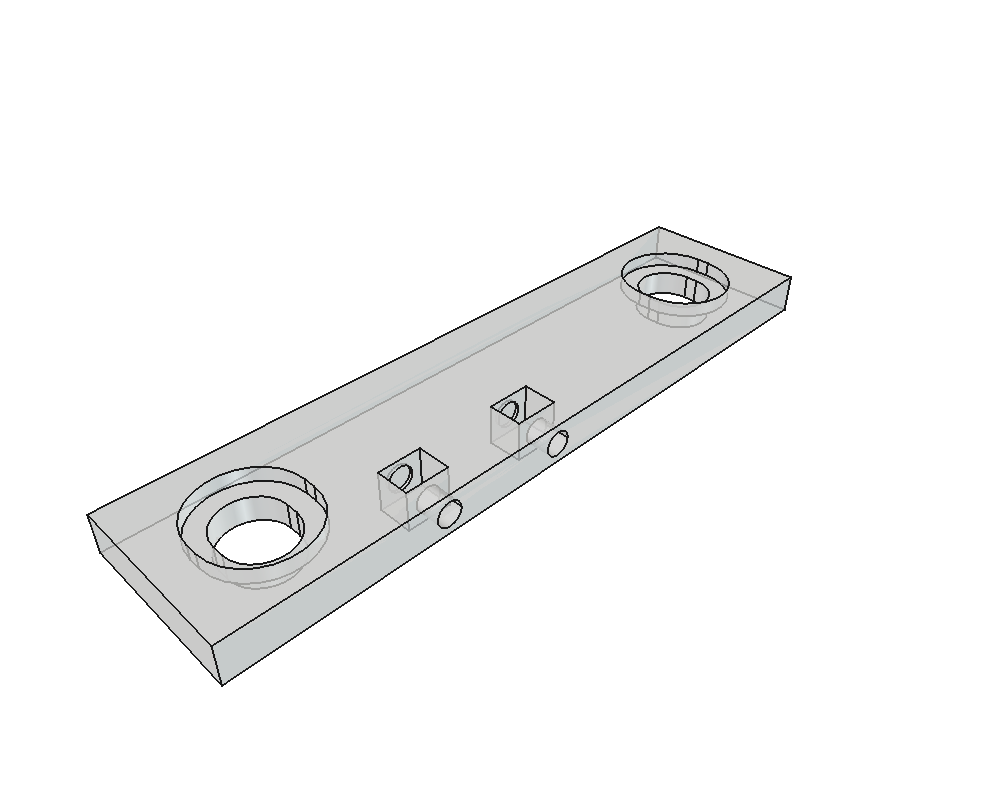

actuator-bracket
actuator-bracket633×455 61.3 KB

Helpful videos for FreeCAD CAM:
