Error with 3D Shape

Software Carbide Create
1

I am having a problem with one area of a 3D model I am trying to create. I am trying to get the lake at the bottom right (blue outline) to sit just below the terrain (about 2-3mm) so that I can put a thin layer of epoxy in there. I am using the EQUAL merge and starting it at a base height of 3.5 inches and then just adding about .1 inches to it (none of the other merge options seem to get me an even shallow bowl).

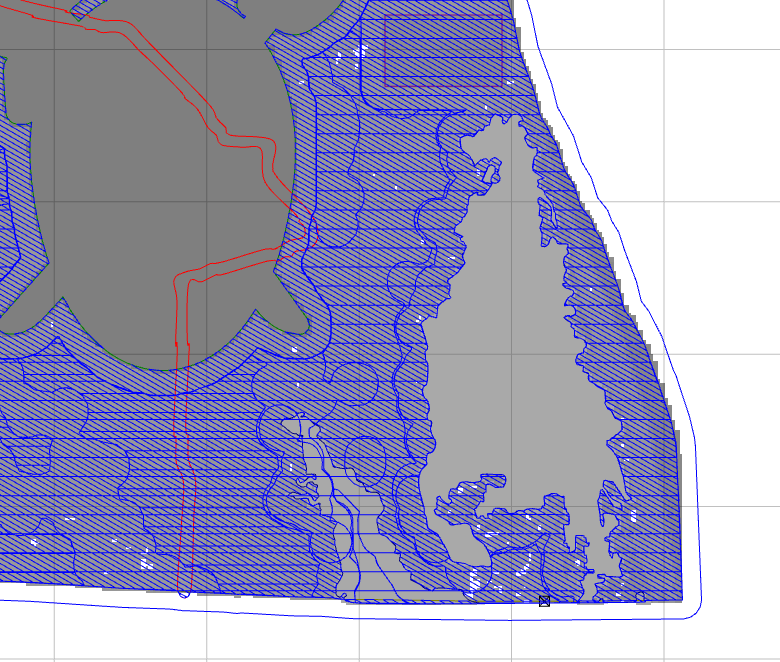

image13200×1742 366 KB

All the other water sections (blue outlines) work fine with this, but this lake just ends up building a mound in the 3D model instead.

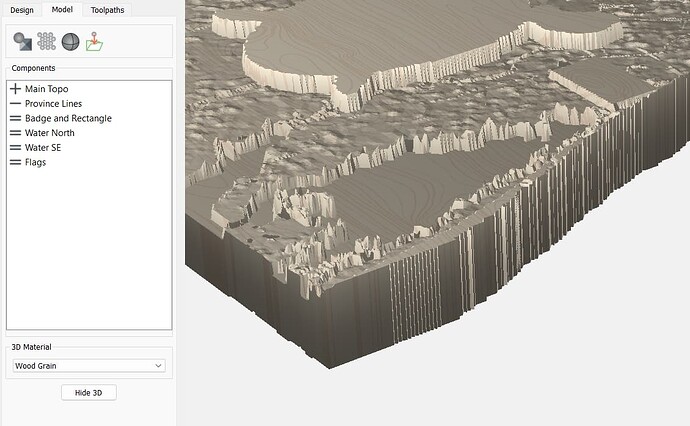

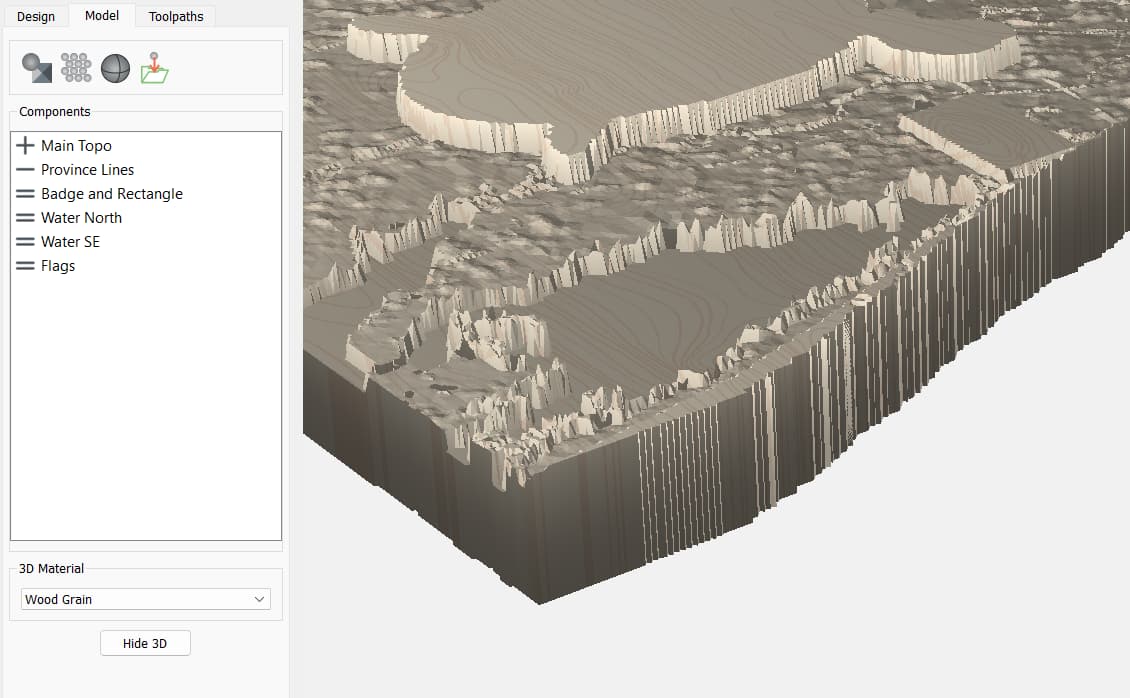

image21920×1039 222 KB

Any help in identifying the problem would be greatly appreciated.

2

What source file was uploaded to make this model?

Upload that as well?

4

[BUMP]
[EDIT] I misunderstood what you were saying earlier. This is the topo image I used for the 3D template

HR Map 3

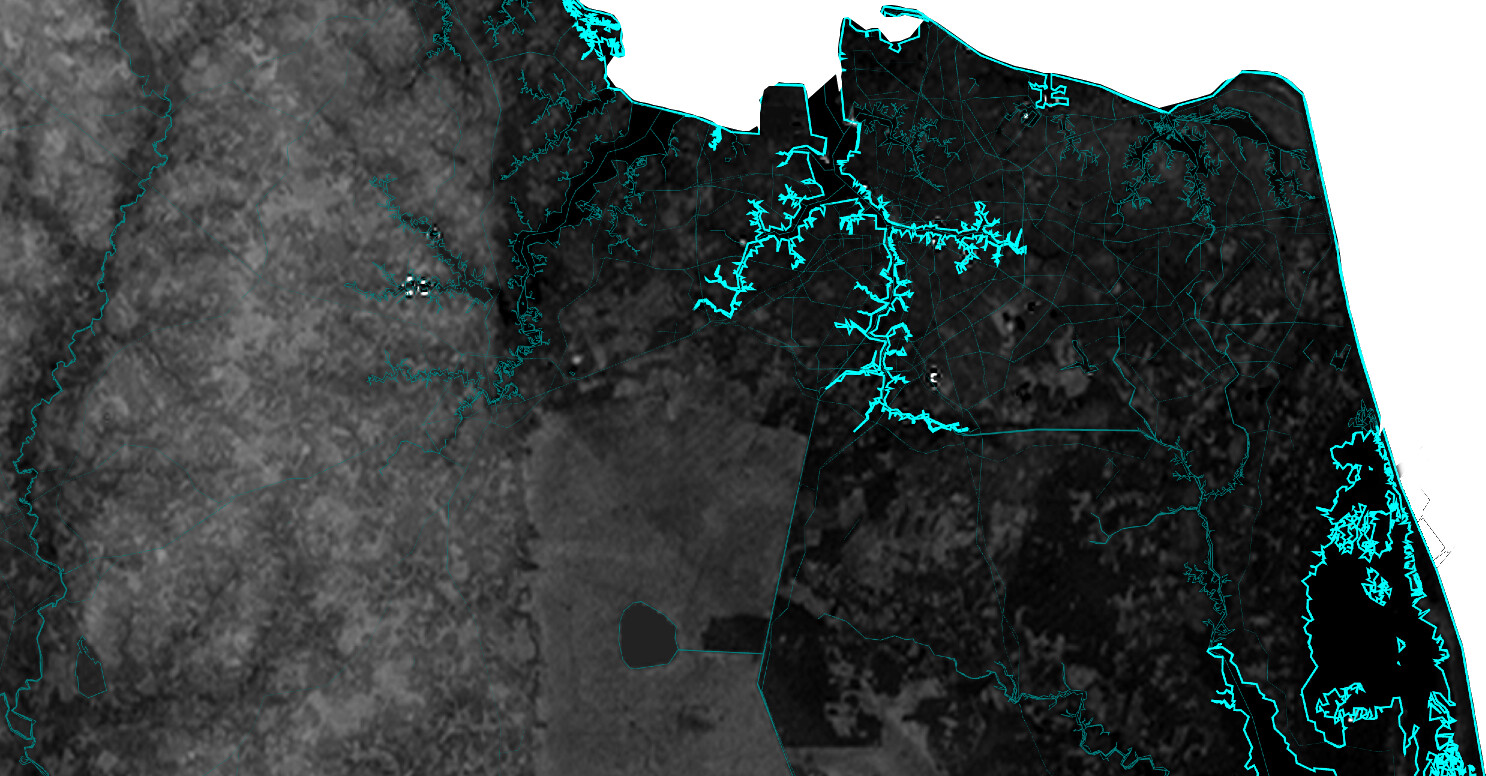

HR Map 31486×776 356 KB

5

The model looks correct in that area, based on your description

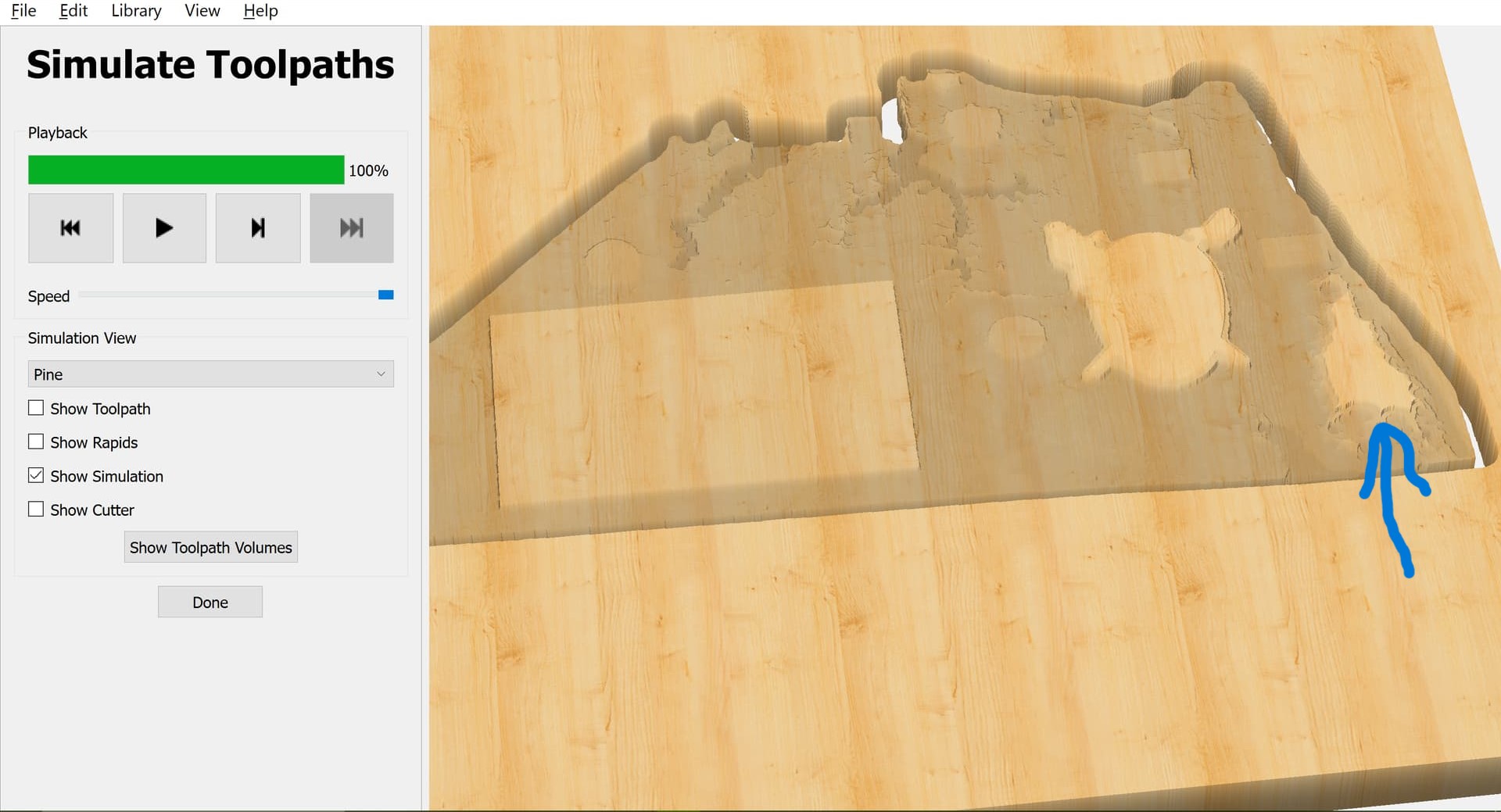

image1130×698 69.6 KB

You are showing the toolpath simulation, and the toolpath doesn’t cut in that area. Don’t include that boundary in the toolpath & it should do what you want.

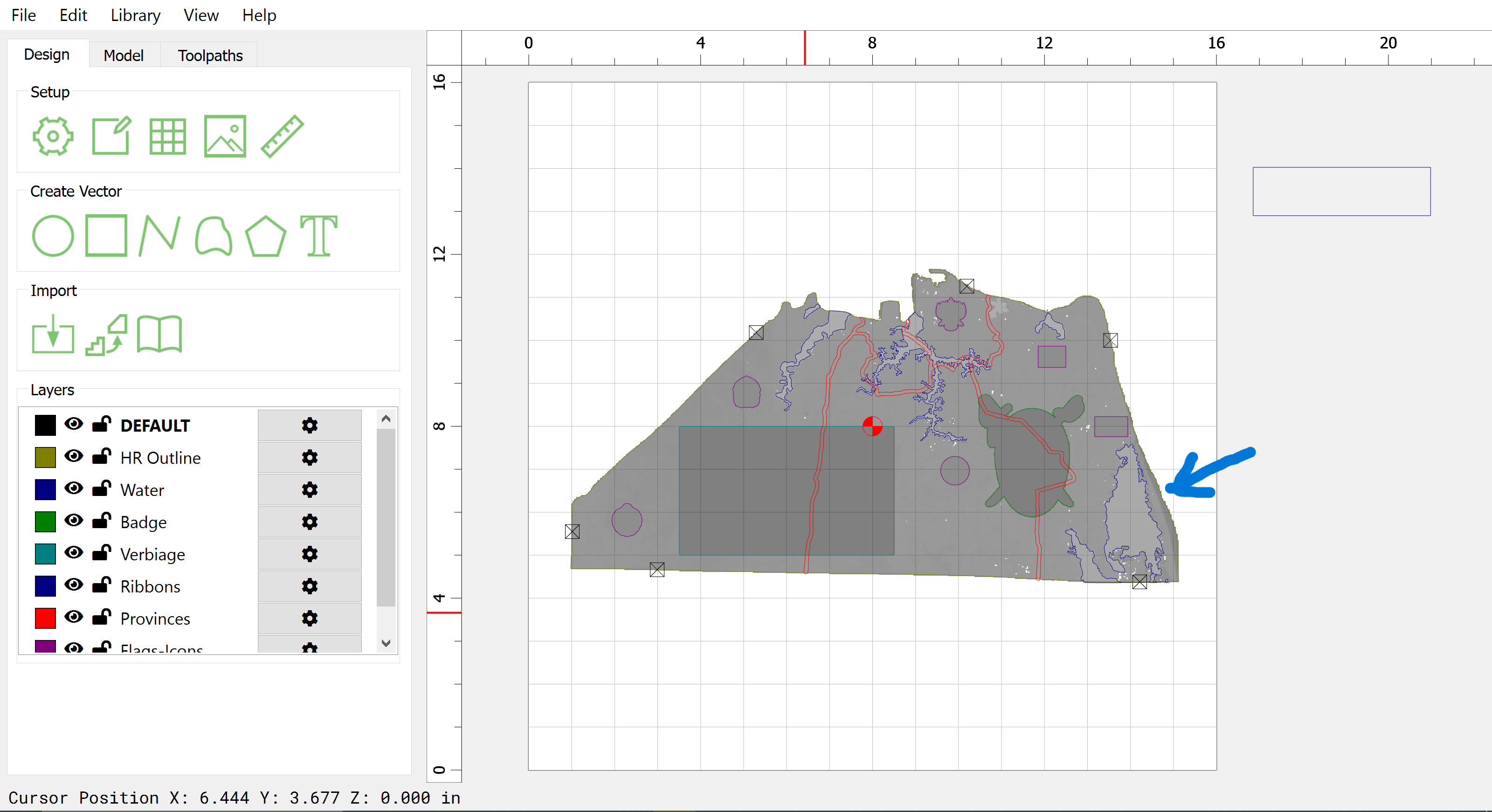

image780×662 101 KB

It looks like you may want just the outside boundary for the 3D paths, or the outside and the 8 raised areas if you want to leave those workpiece height

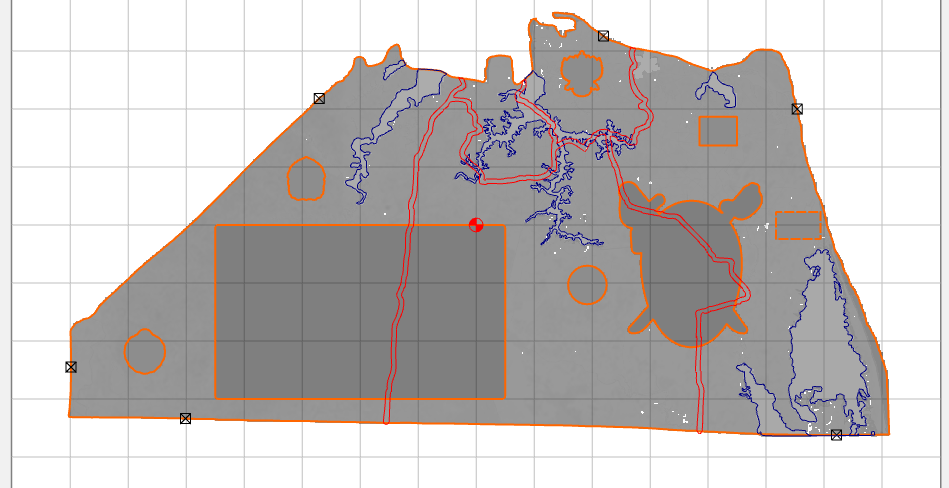

image949×488 81 KB

1 Like
6

Good grief, that was driving me mad! You are a life saver! Just deselecting that area, as you said.

Thank you!

Update1

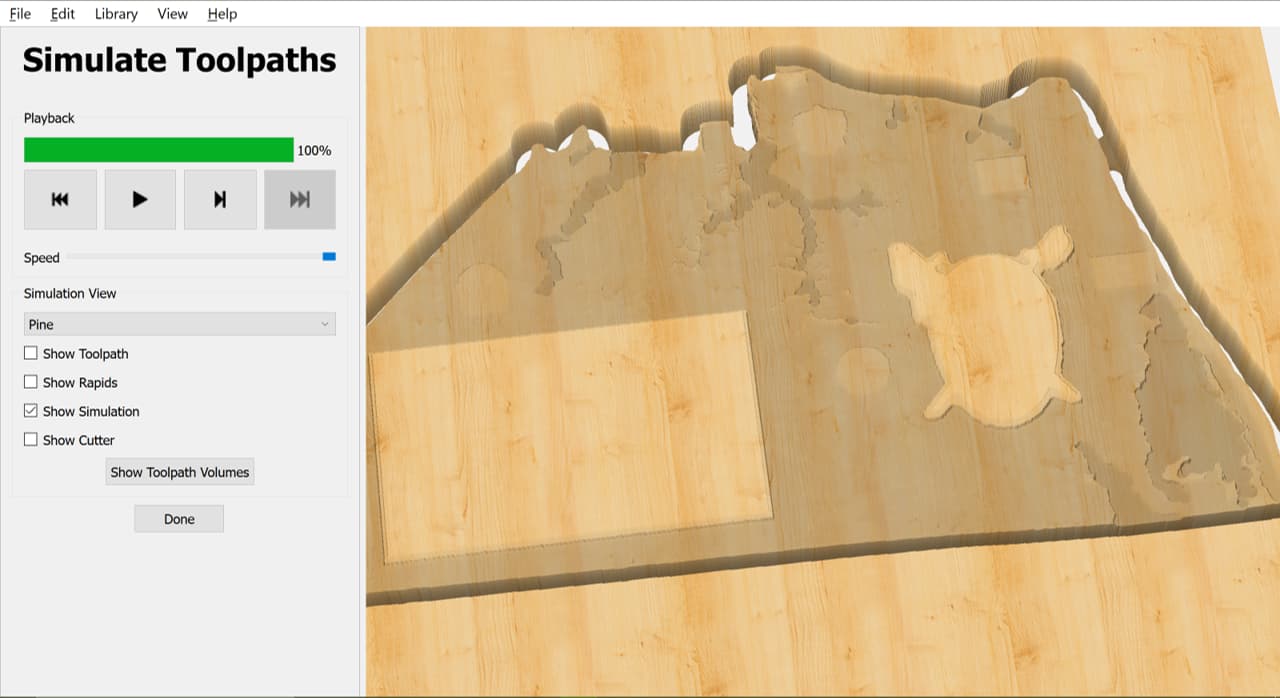

Update11280×698 60 KB

1 Like
7

No worries. 'forest for trees…" :smiley: I have to get a 2nd set of eyes at work all the time. Usually something simple I just missed. :wink:
