Rey
(Reiluis broco)
1
I’m trying to make a specific circle that looks like this
I’ve been trying to do it with a square but it doesn’t look quite like that and it comes out like this
Is there any way to do it with the circle or is it a whole new shape that I have to do? and how can I save the shapes with the size that I create?
WillAdams
(William Adams (Carbide 3D))
2

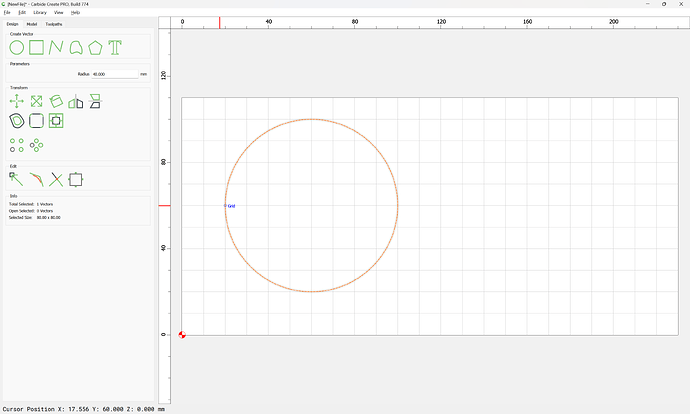

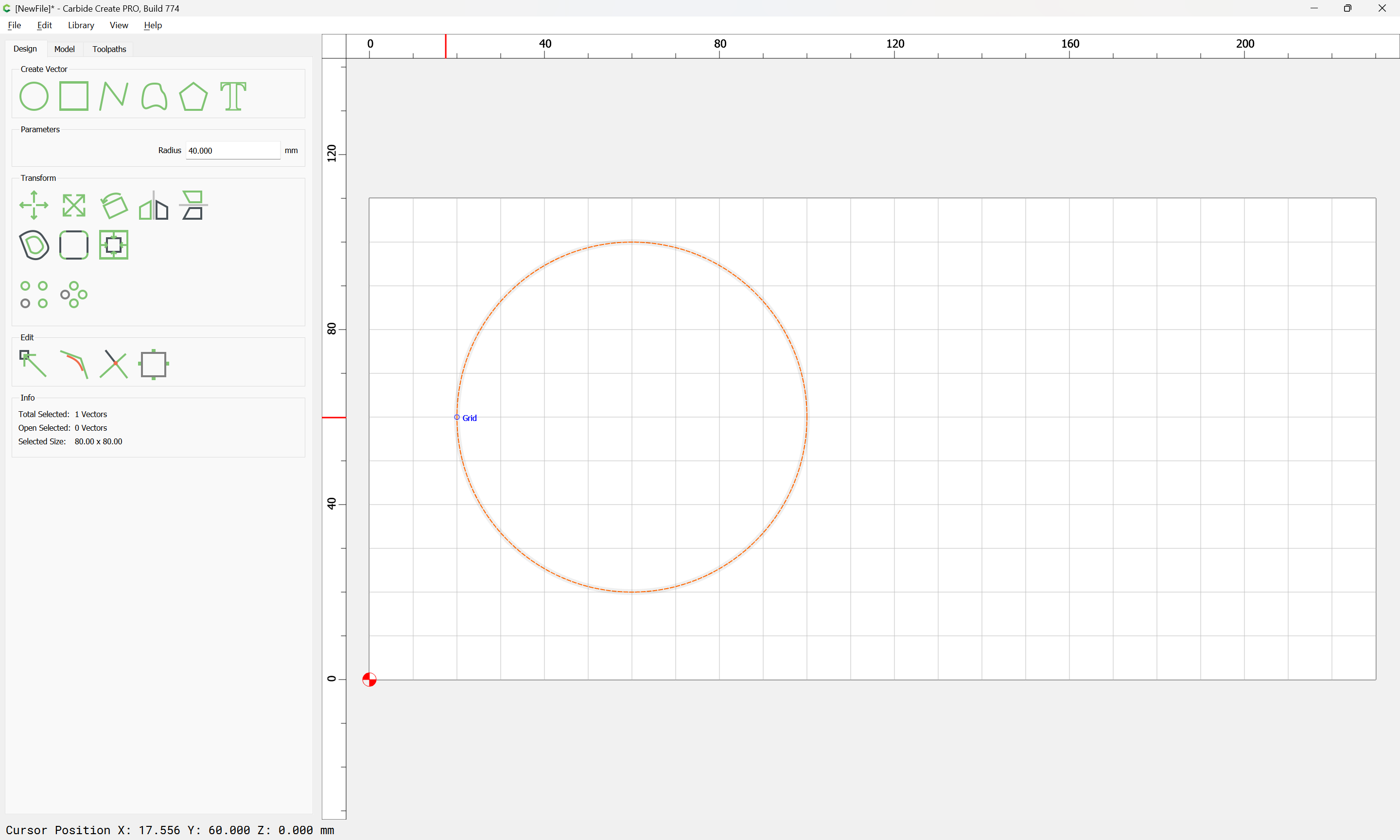

Draw the circle:

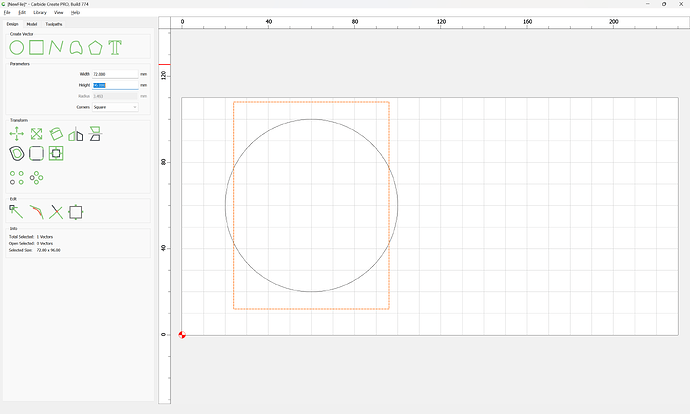

Draw a rectangle which defines the straight sides:

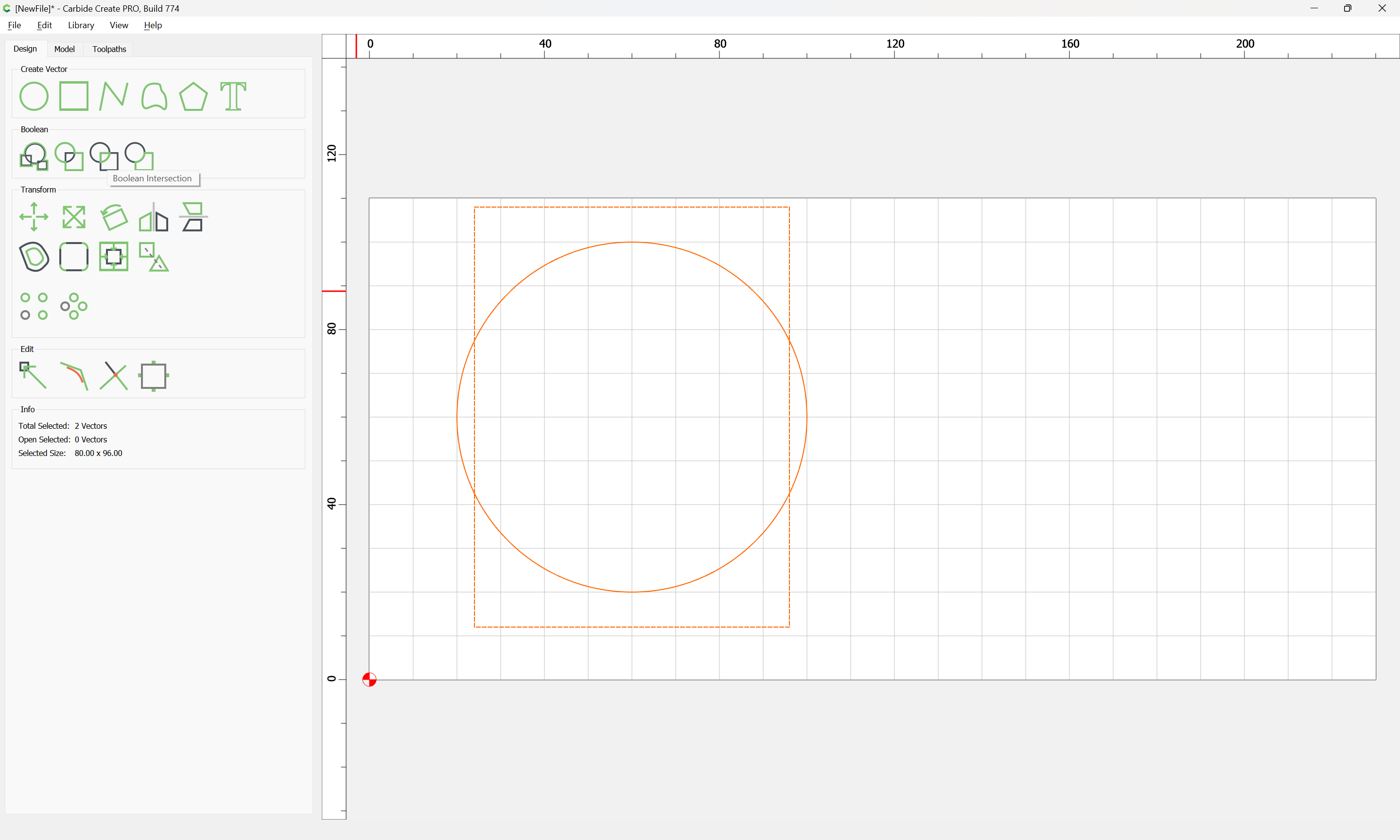

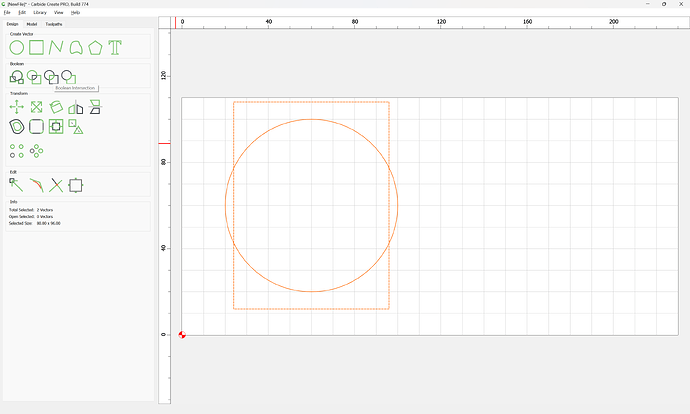

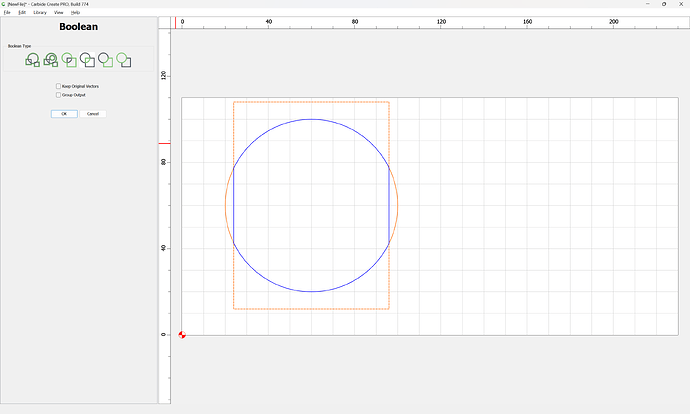

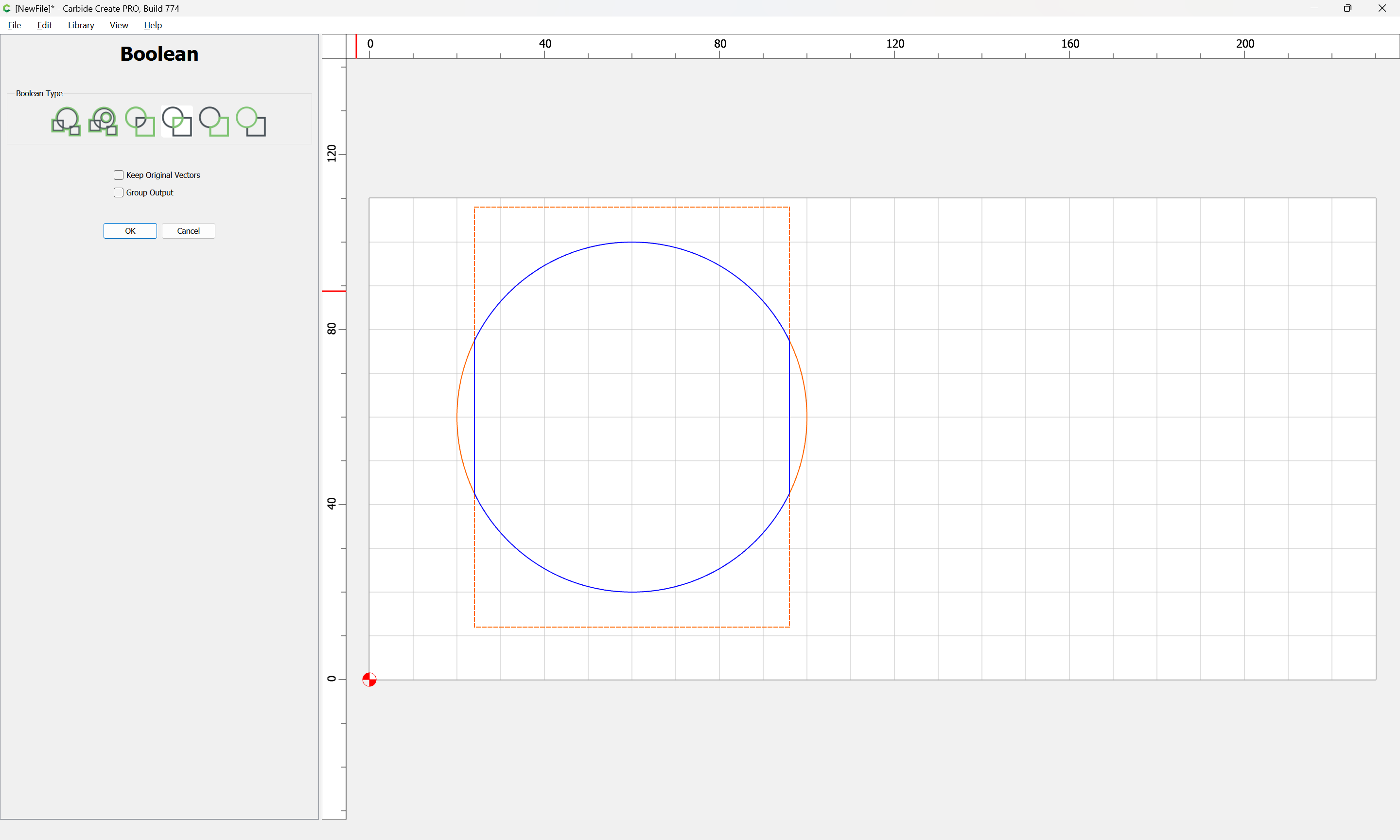

Select both and either use Boolean Intersection:

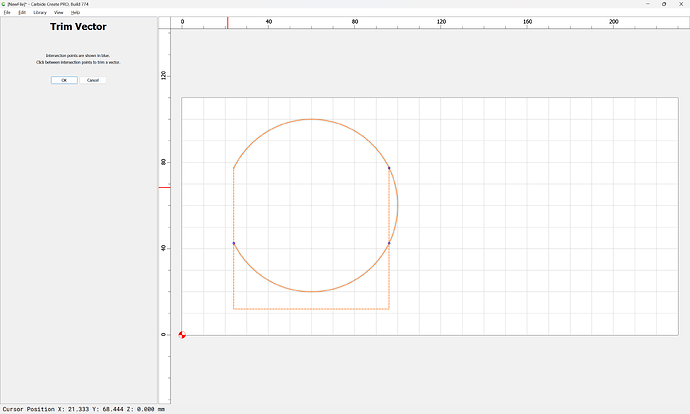

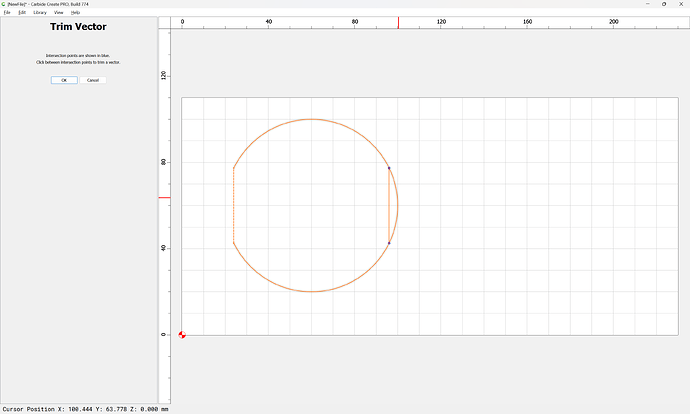

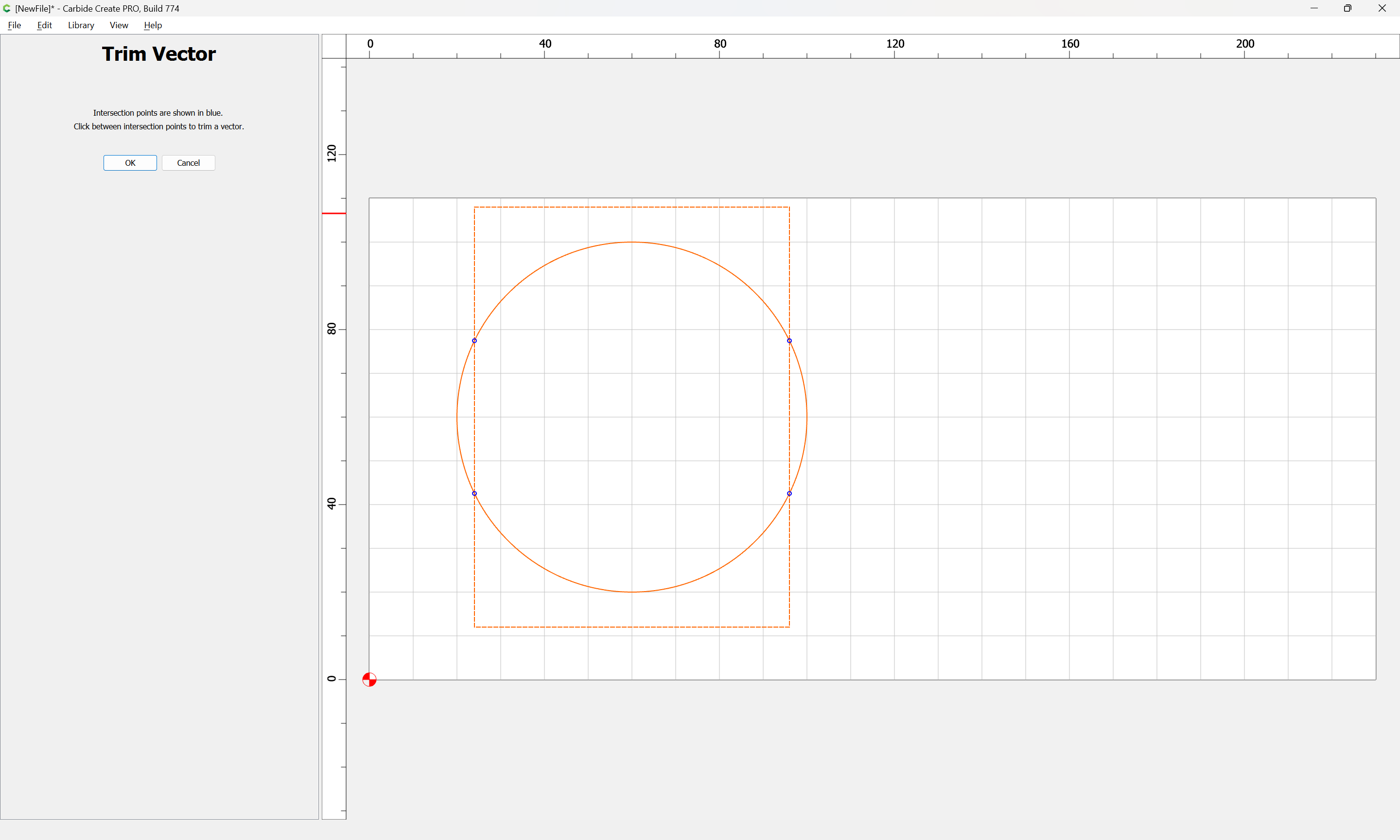

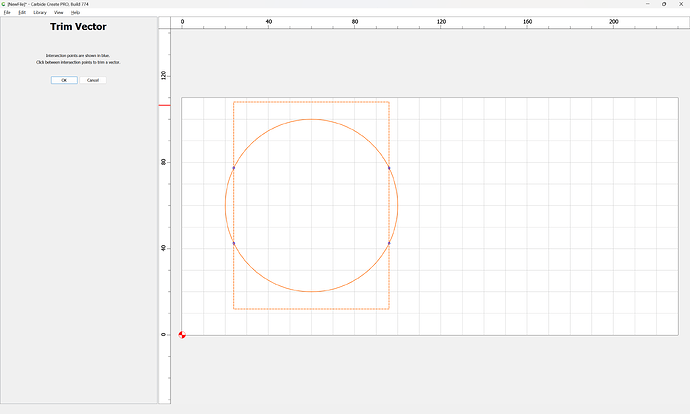

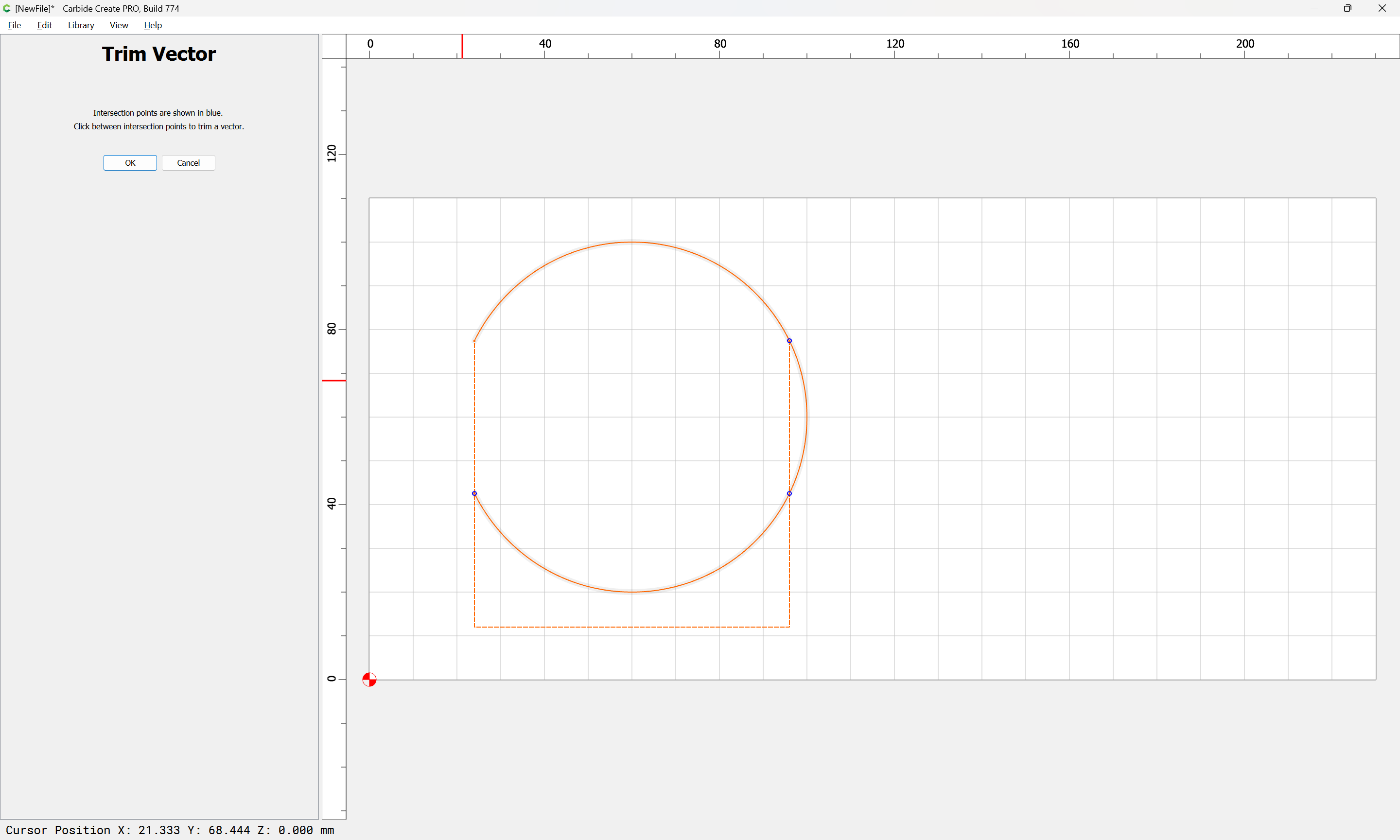

or, Trim Vectors:

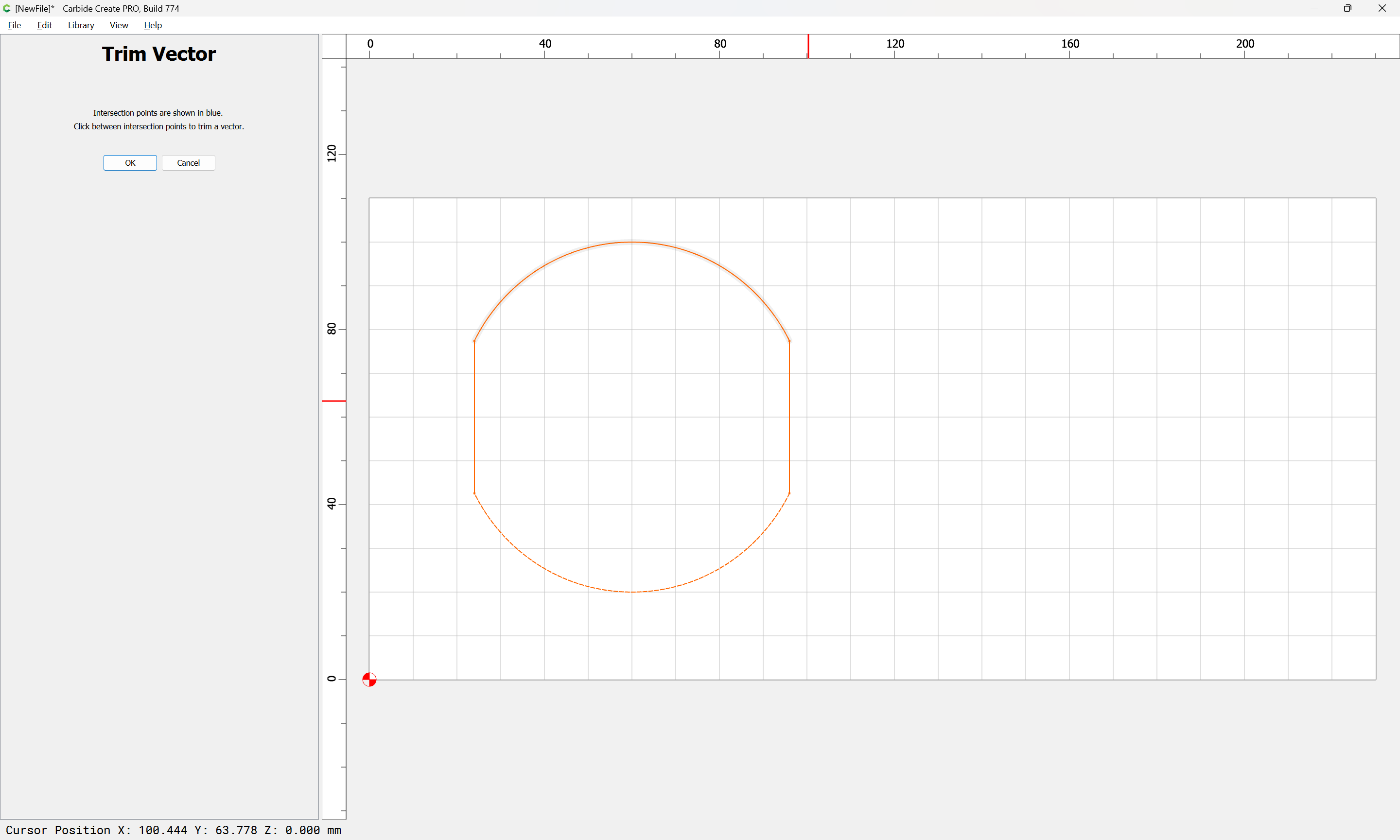

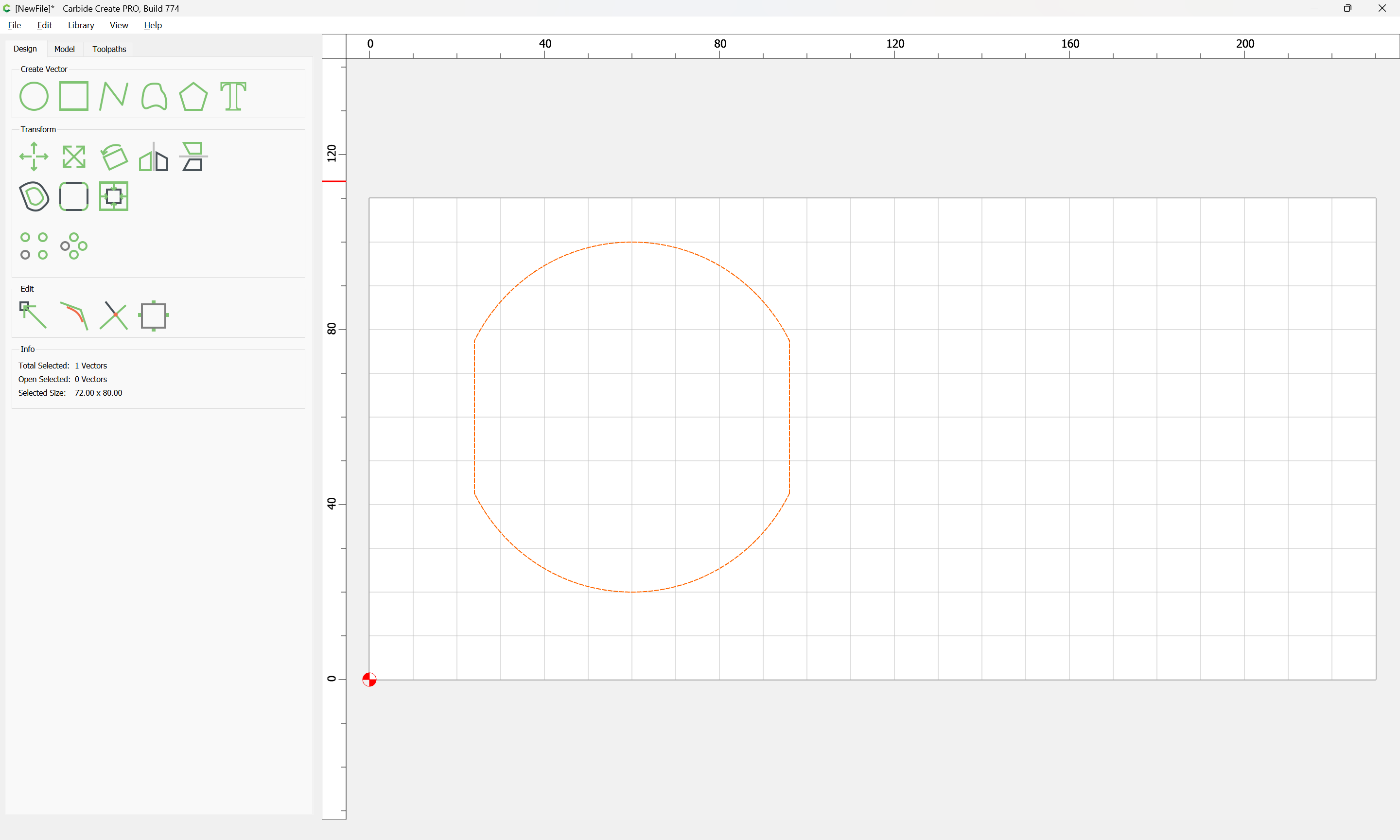

Until one arrives at:

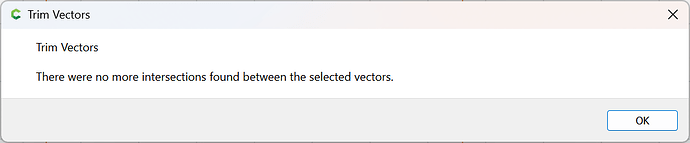

OK
OK

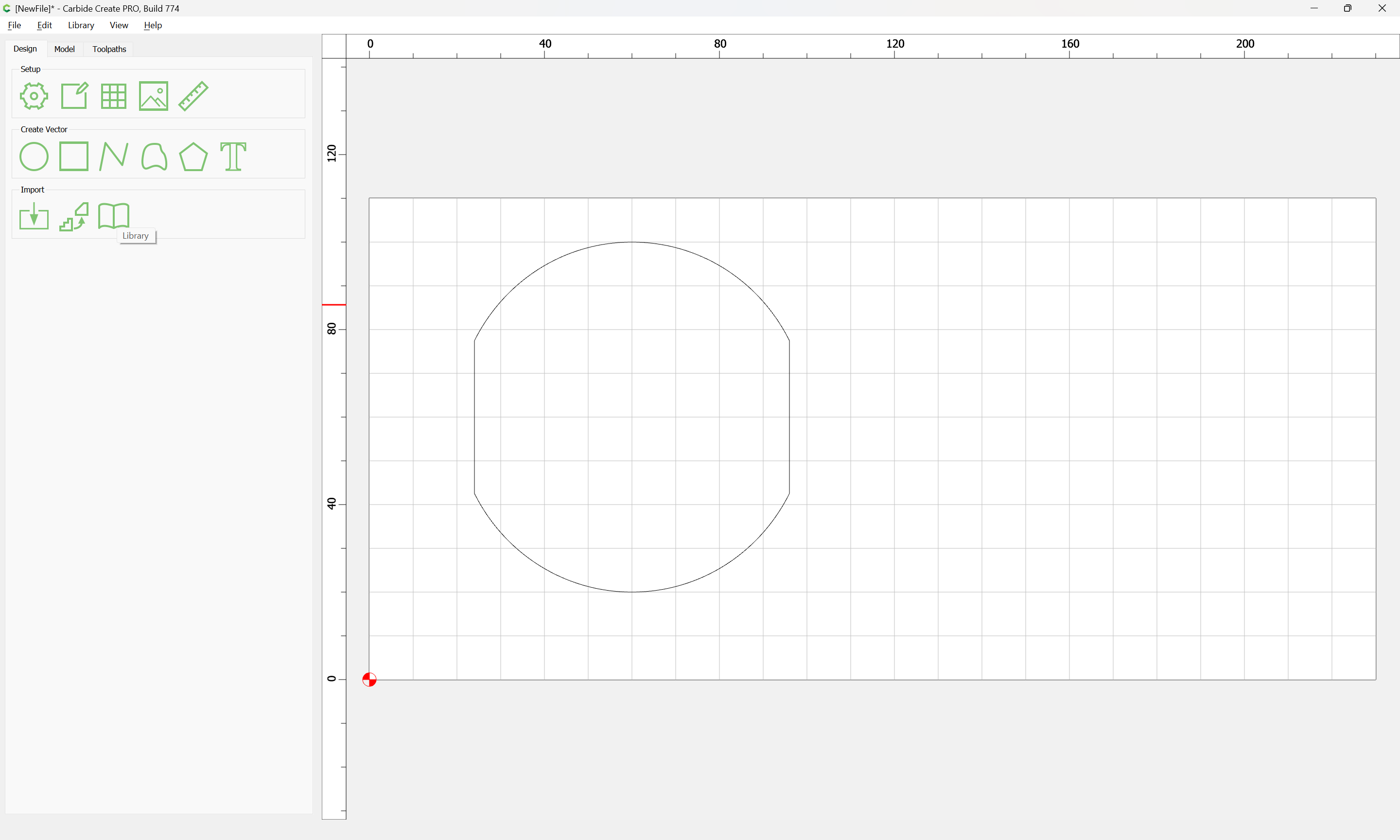

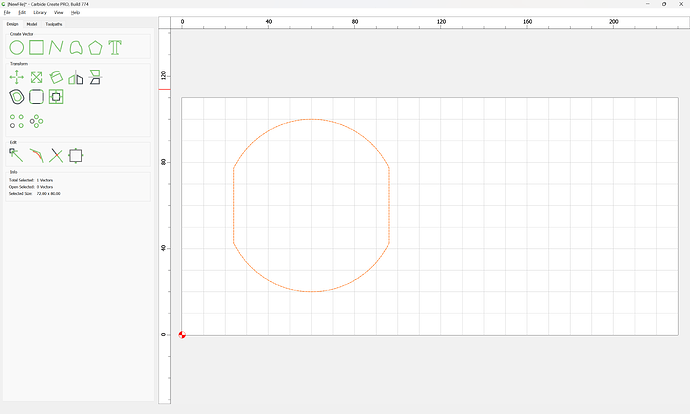

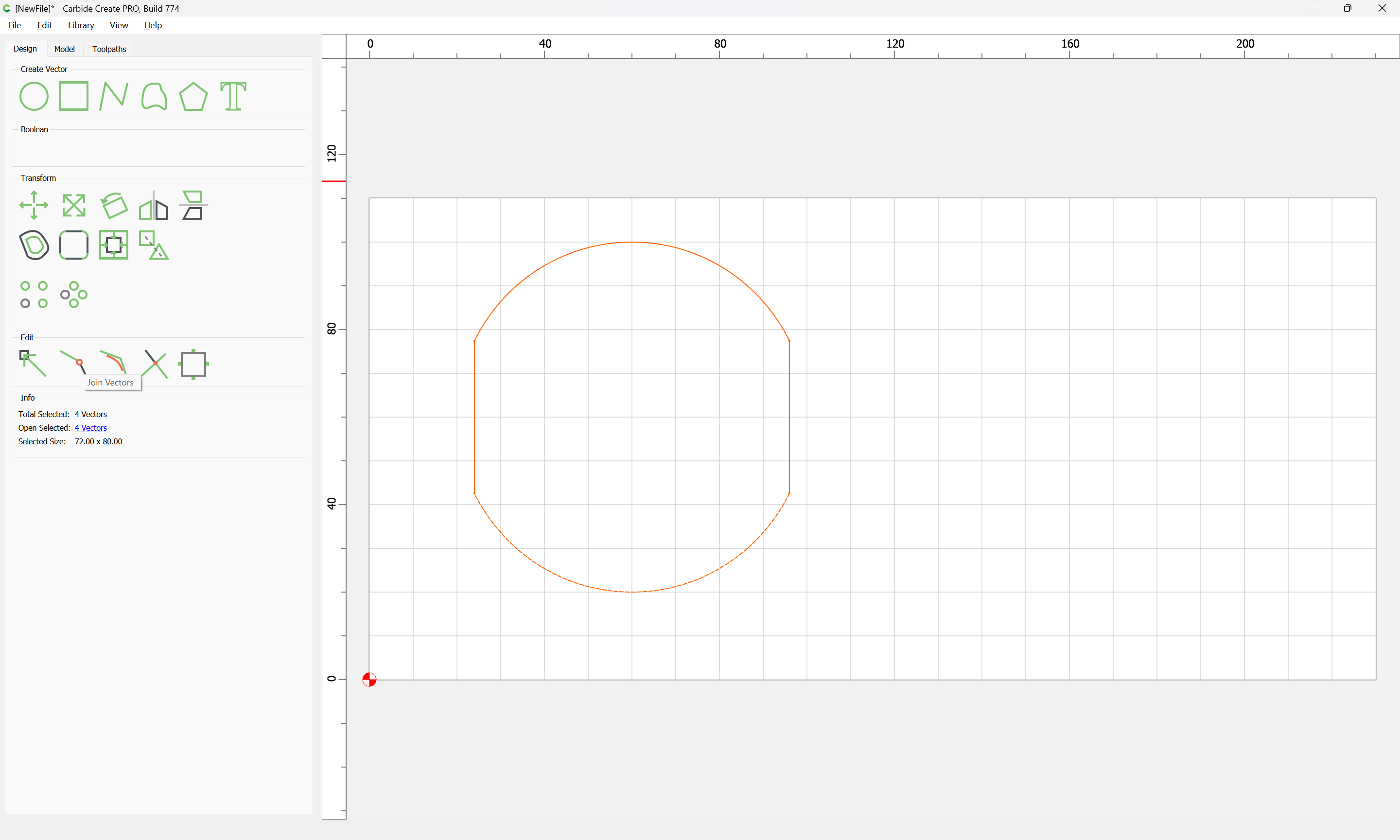

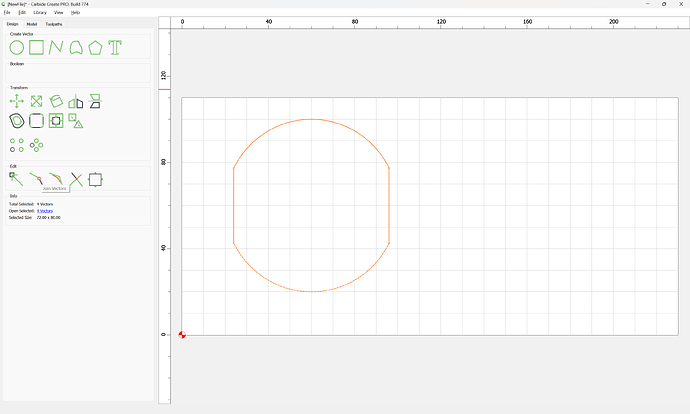

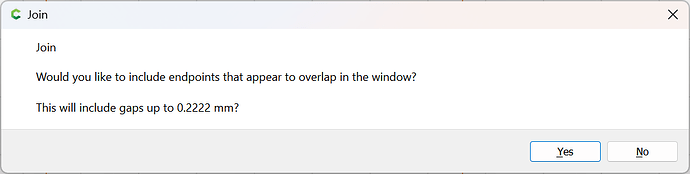

and use Join Vectors to close:

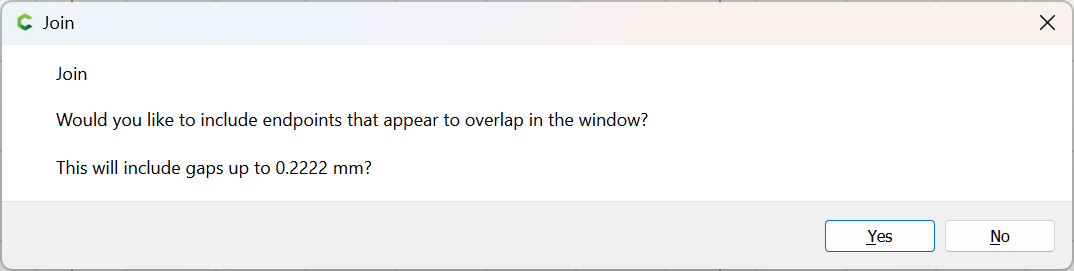

Yes

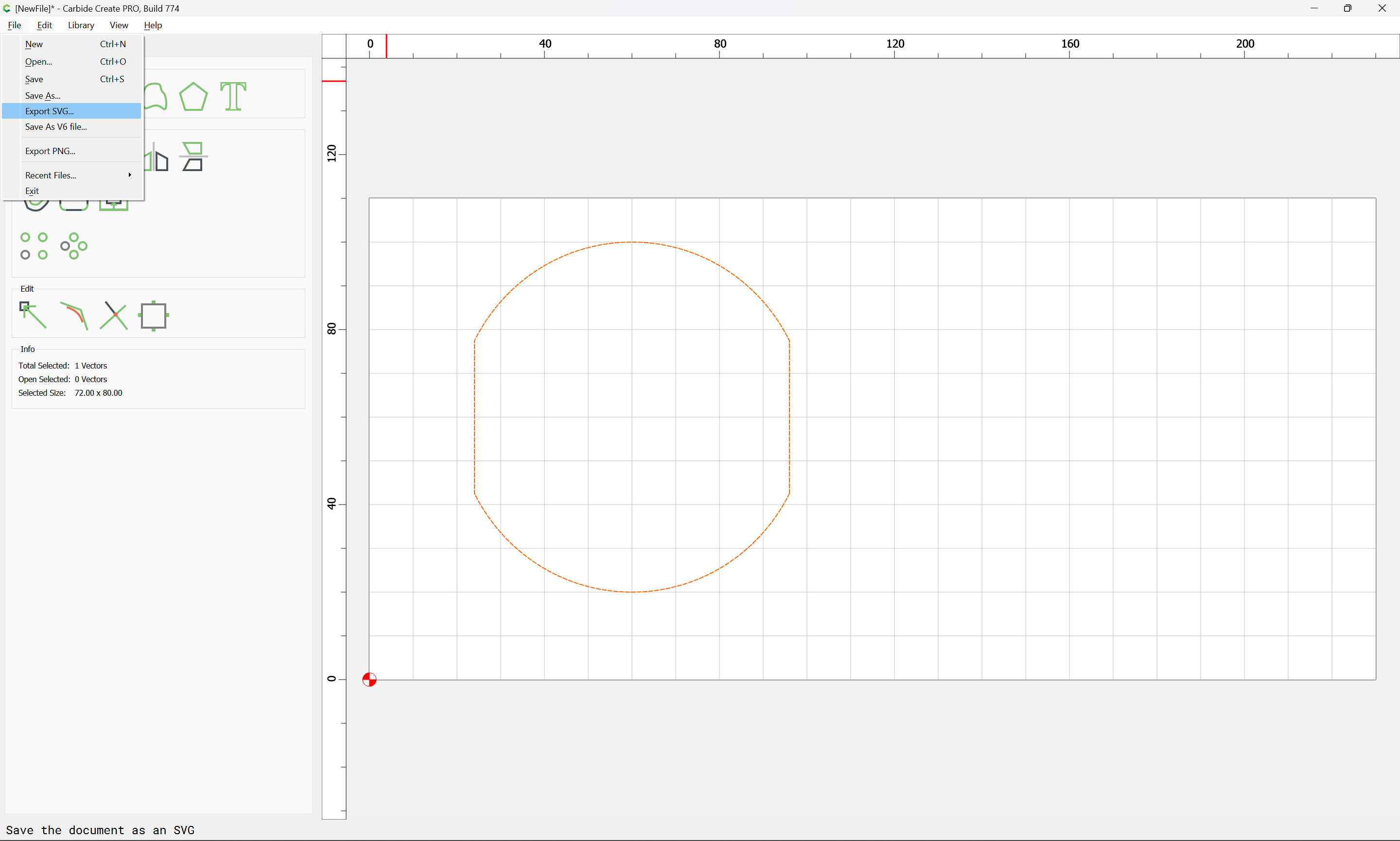

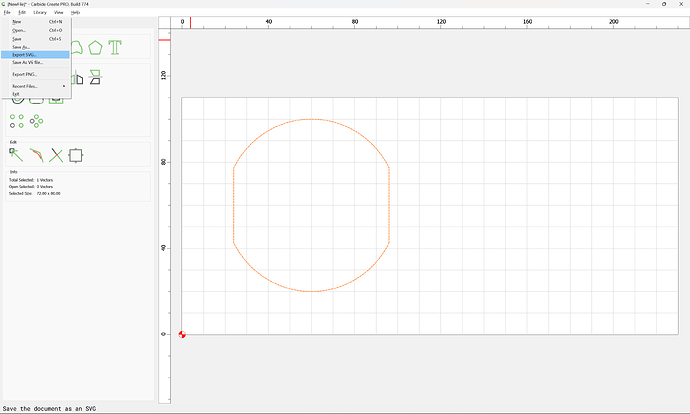

If you wish to re-use a geometry, export it as an SVG:
Save it with a suitable name, and then make a folder by About | Carbide Create | Open Data Directory and navigate into the Library directory:
C:\Users\~\AppData\Local\Carbide 3D\Carbide Create\library
(on Windows — use your user directory name in lieu of ~)

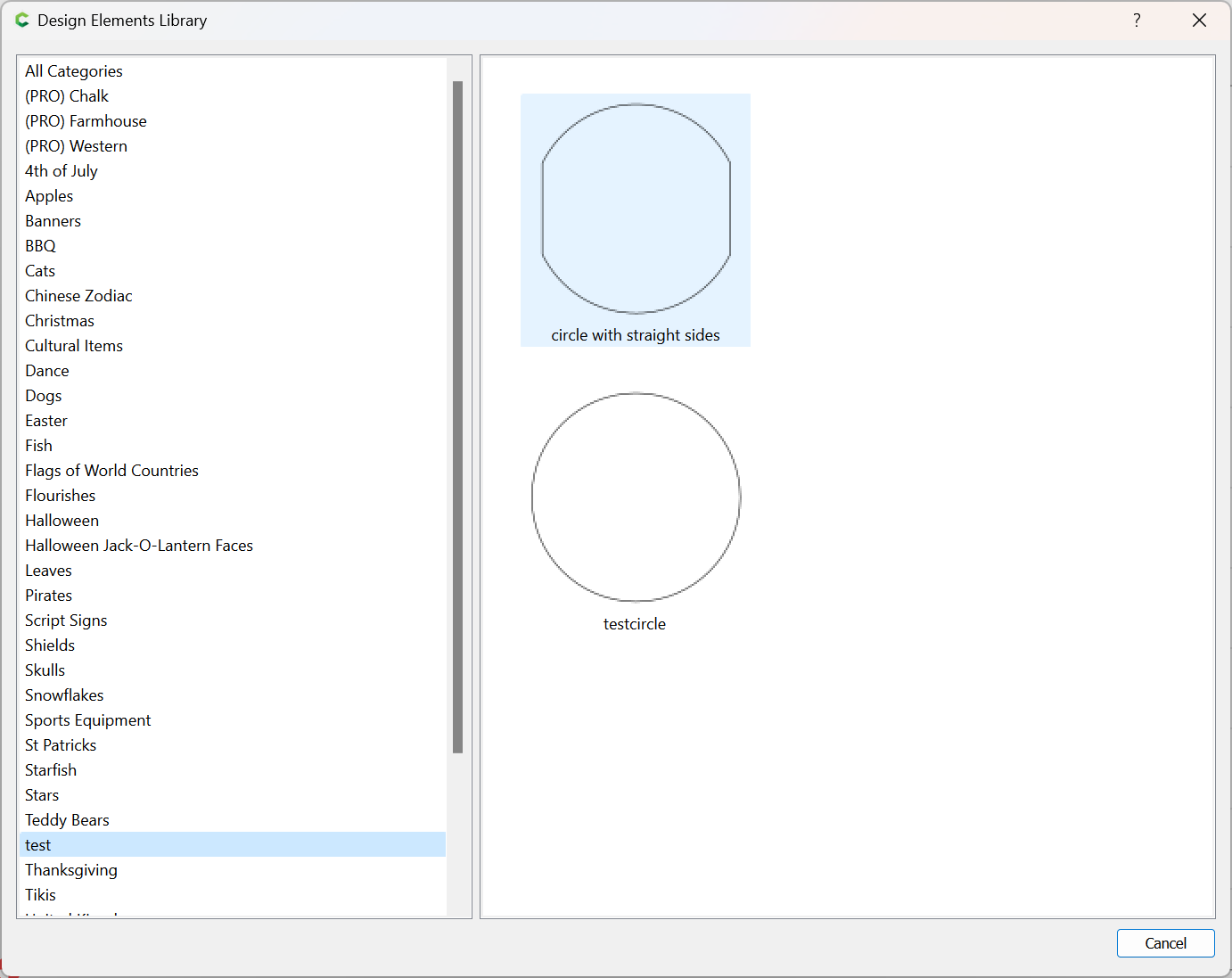

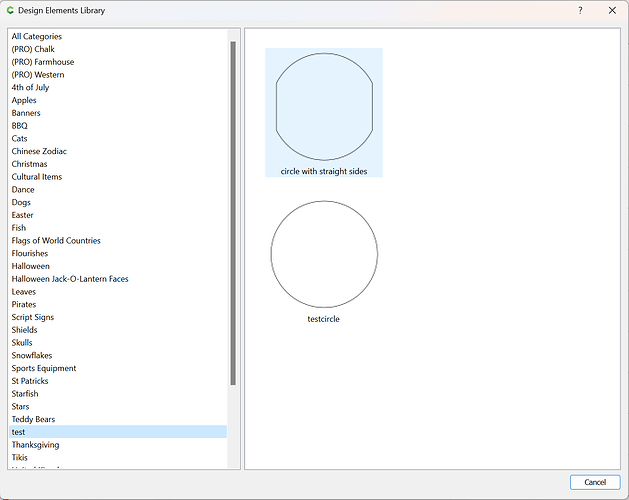

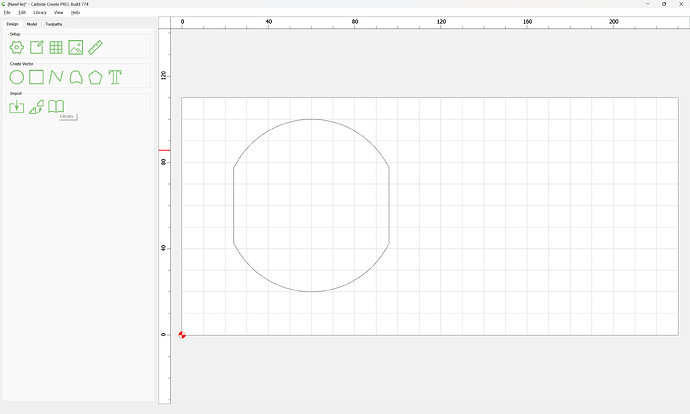

make a folder in there, and copy the file into it, then when you bring up the Library and select that folder:
5 Likes
Rey
(Reiluis broco)
3
Wow perfect explanation this helped me out a lot! And saves me so much time!
