How to re-draw a logo

[WillAdams (William Adams (Carbide 3D))]

as requested on support…

given the image:

which does not trace well with default settings, we re-set the text and re-draw it.

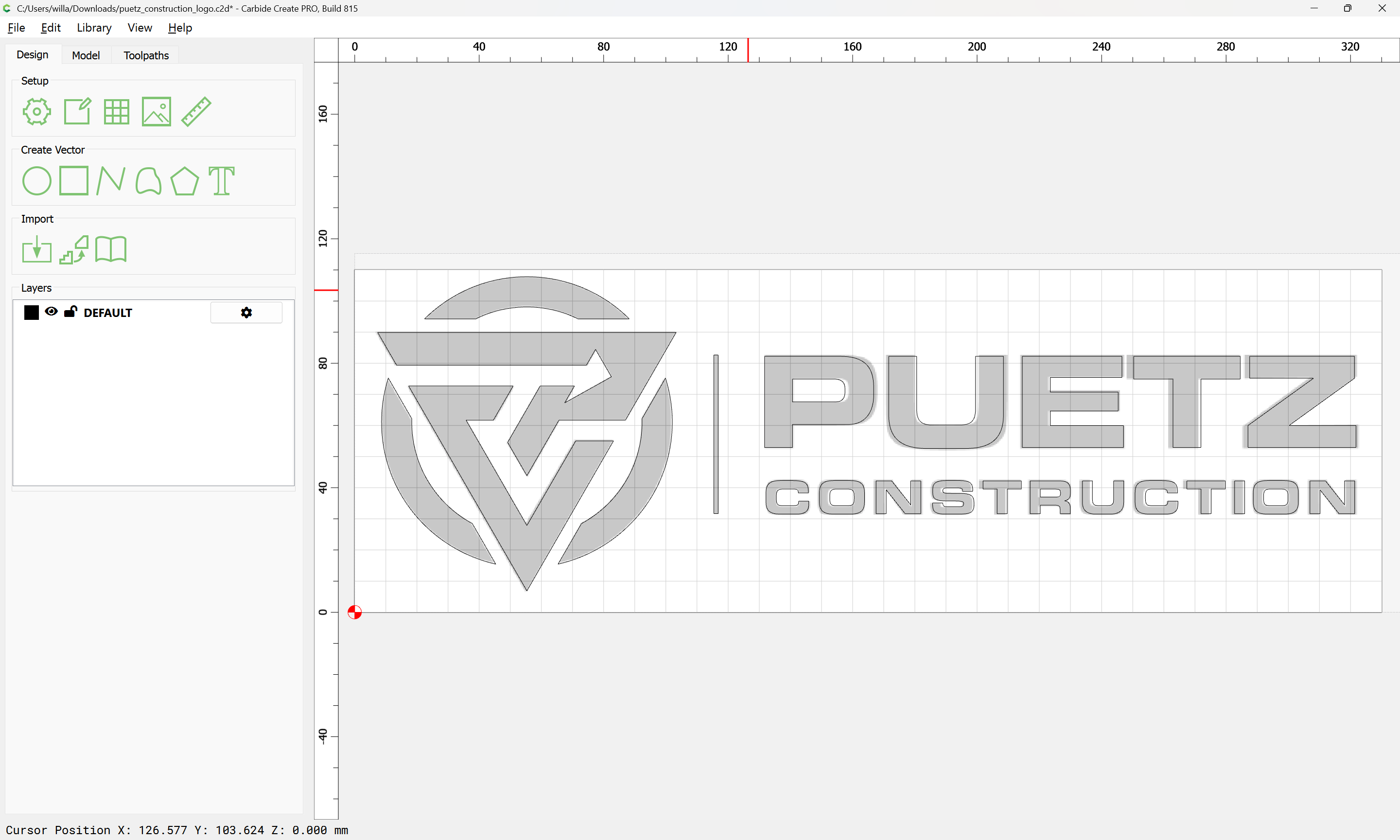

First, import the pixel image:

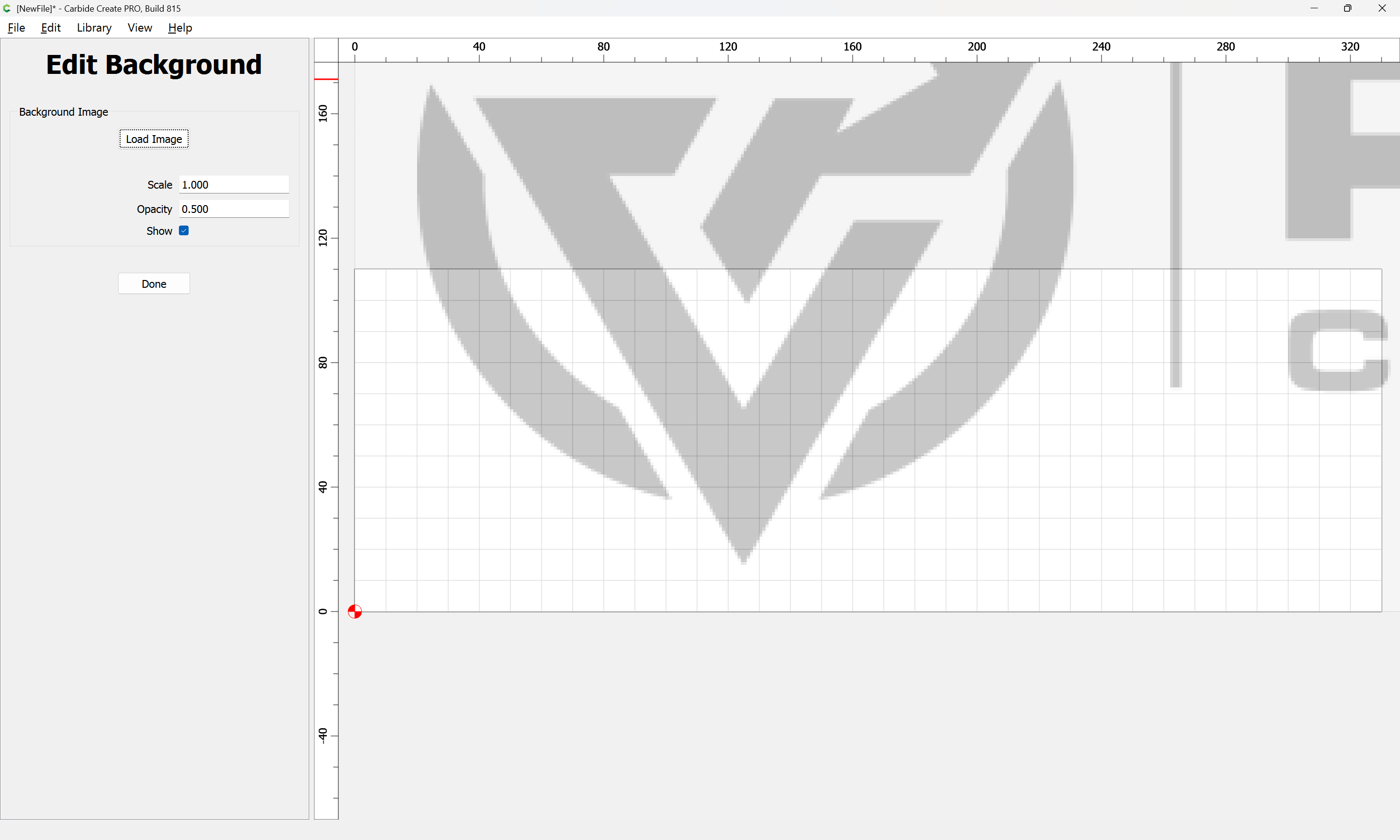

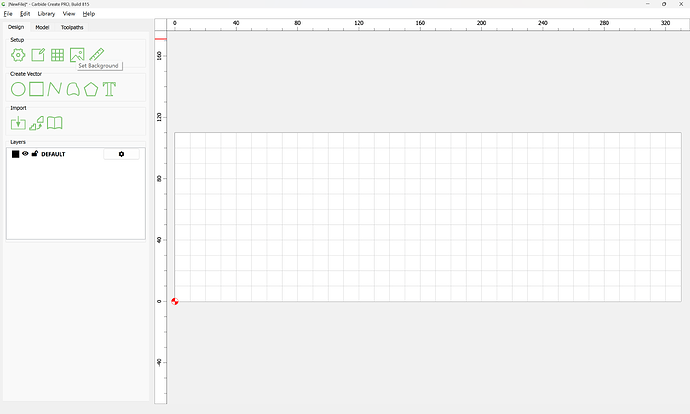

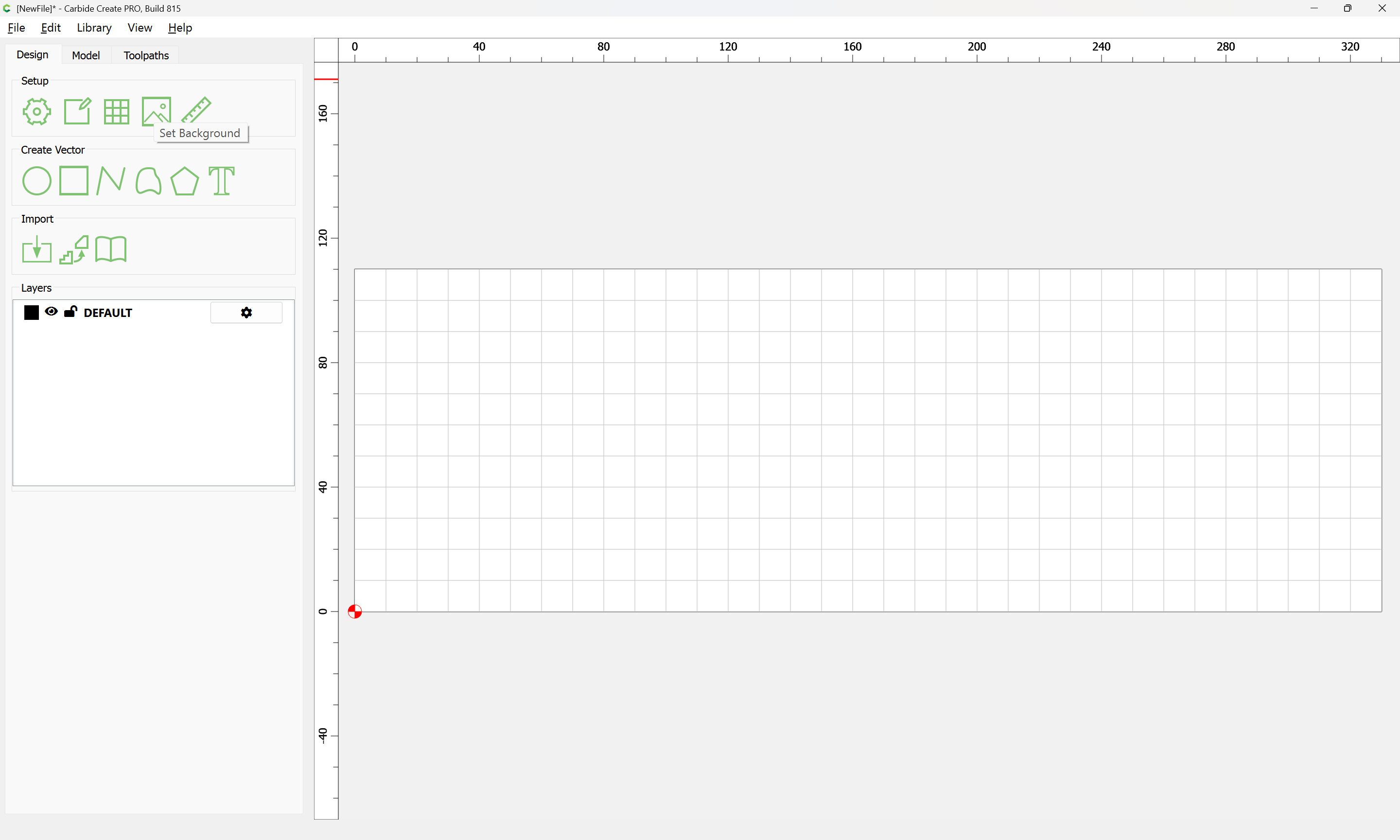

Set Background

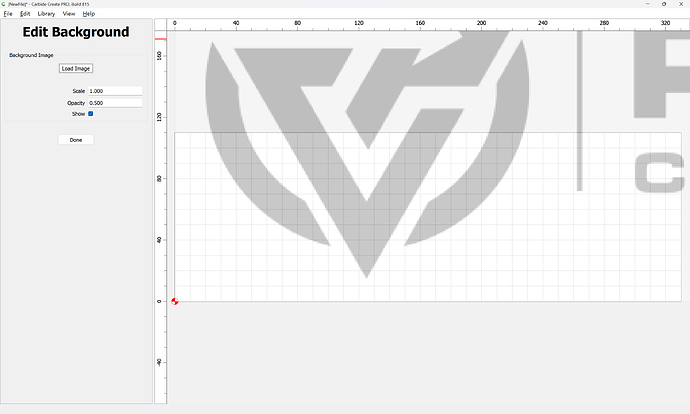

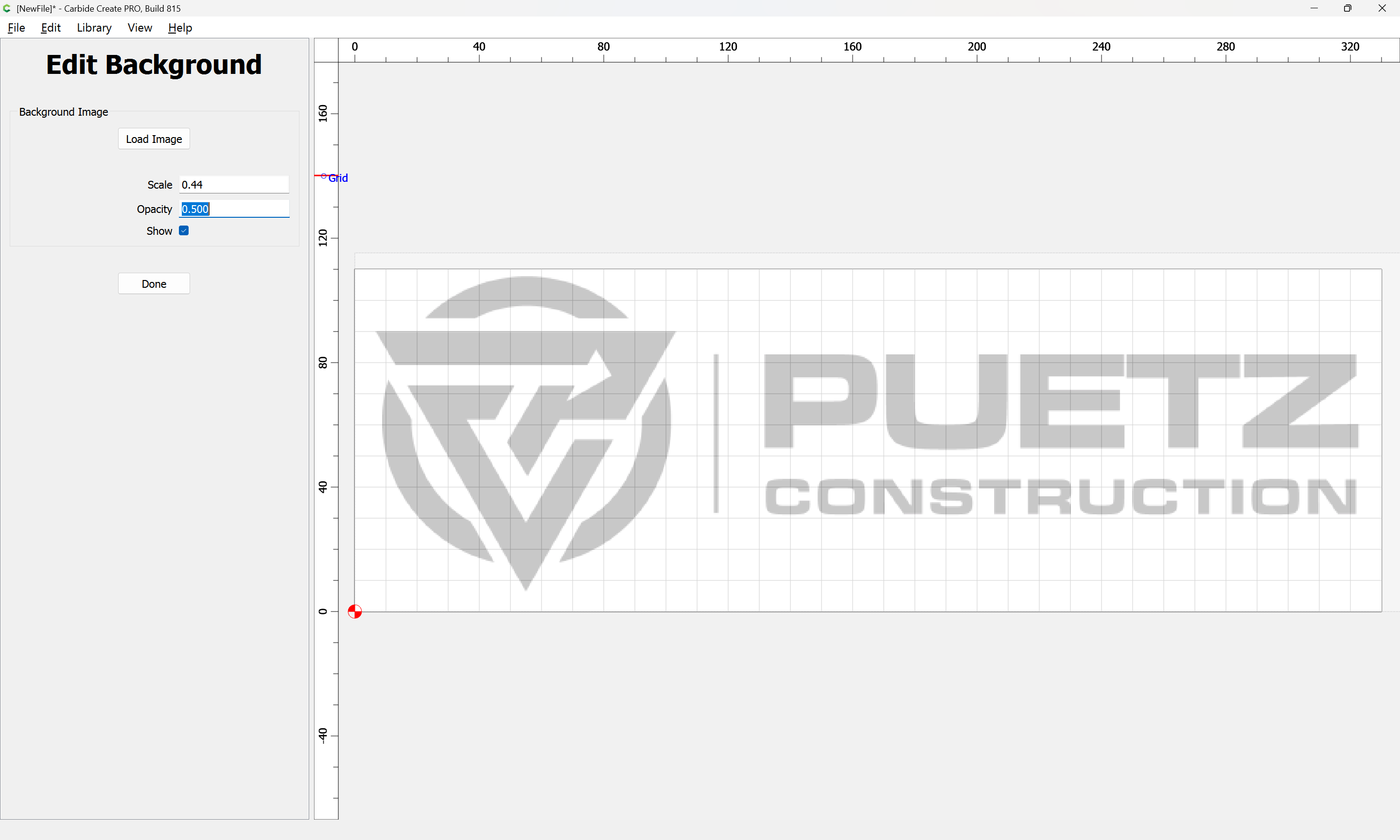

and adjust until a reasonable size/detail:

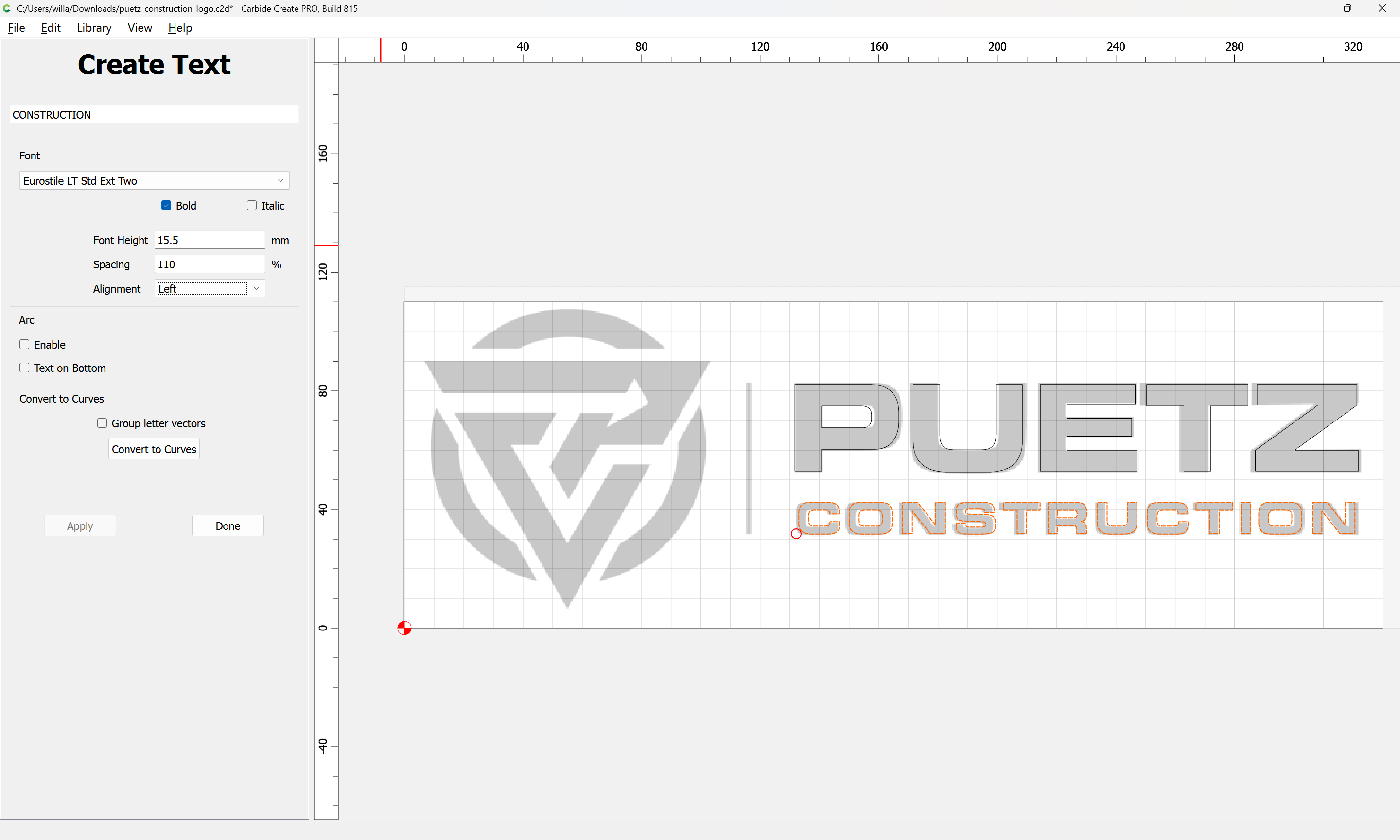

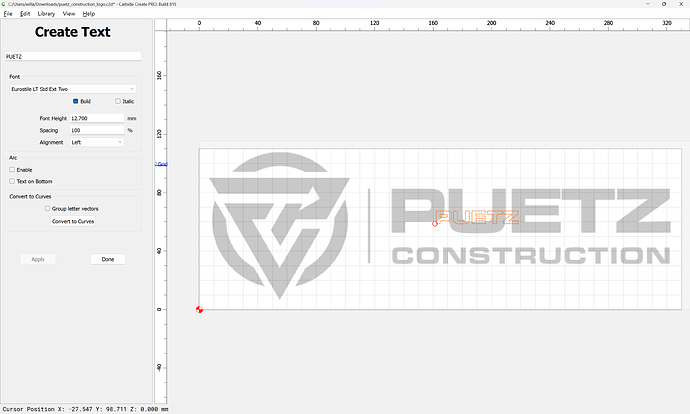

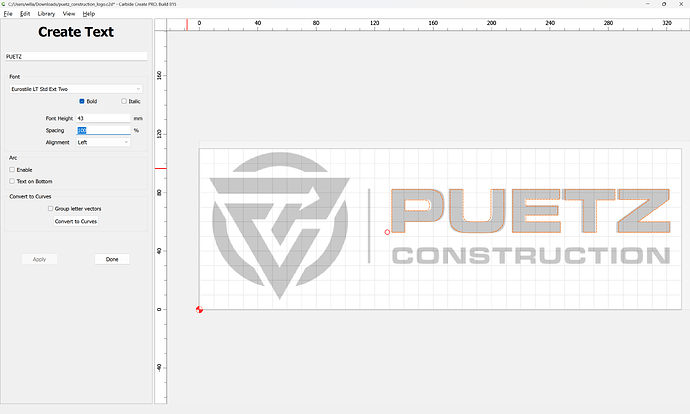

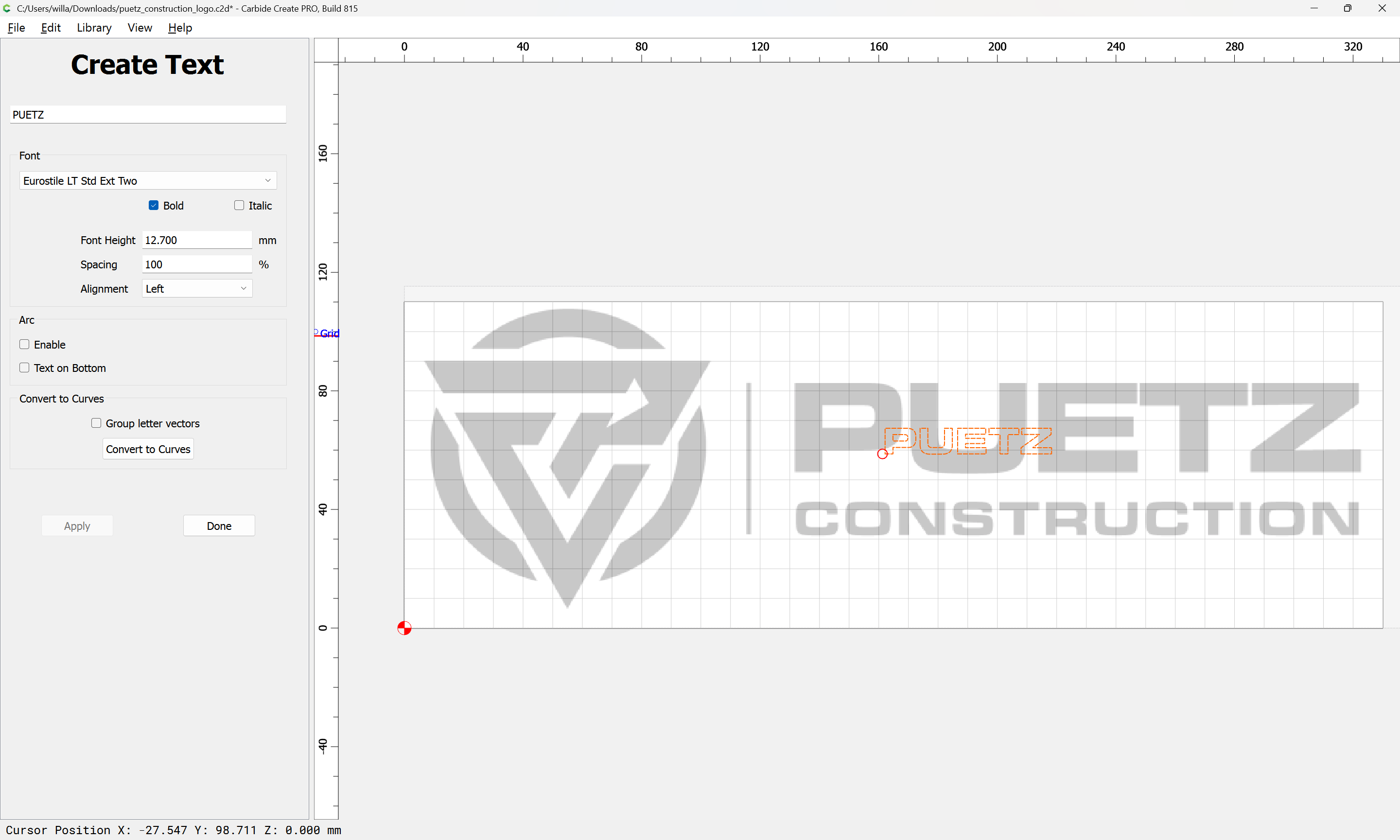

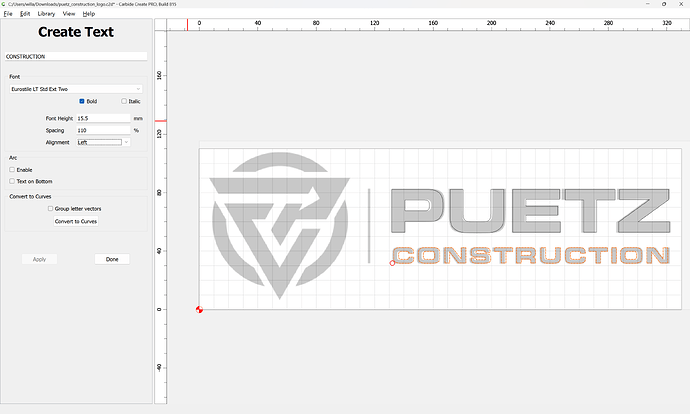

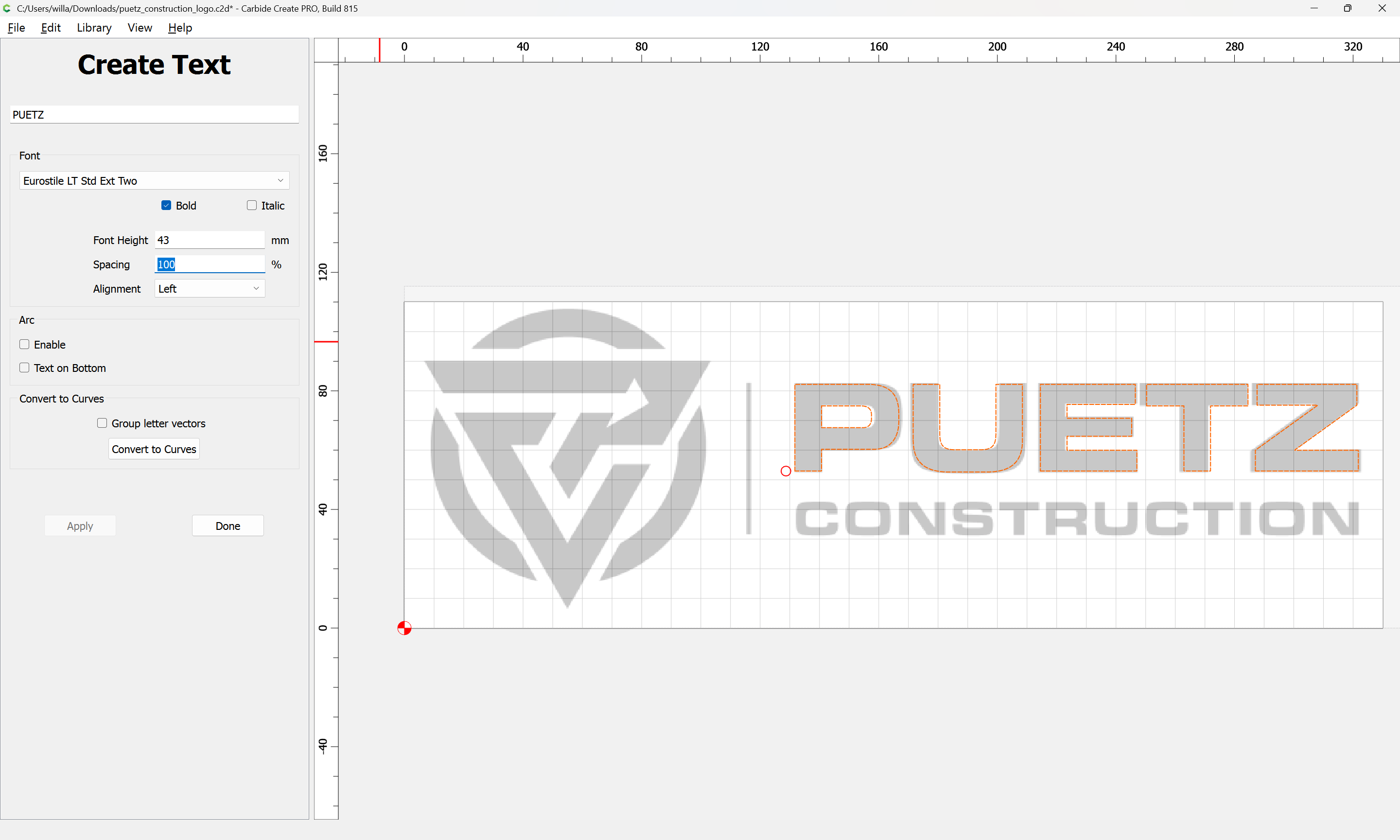

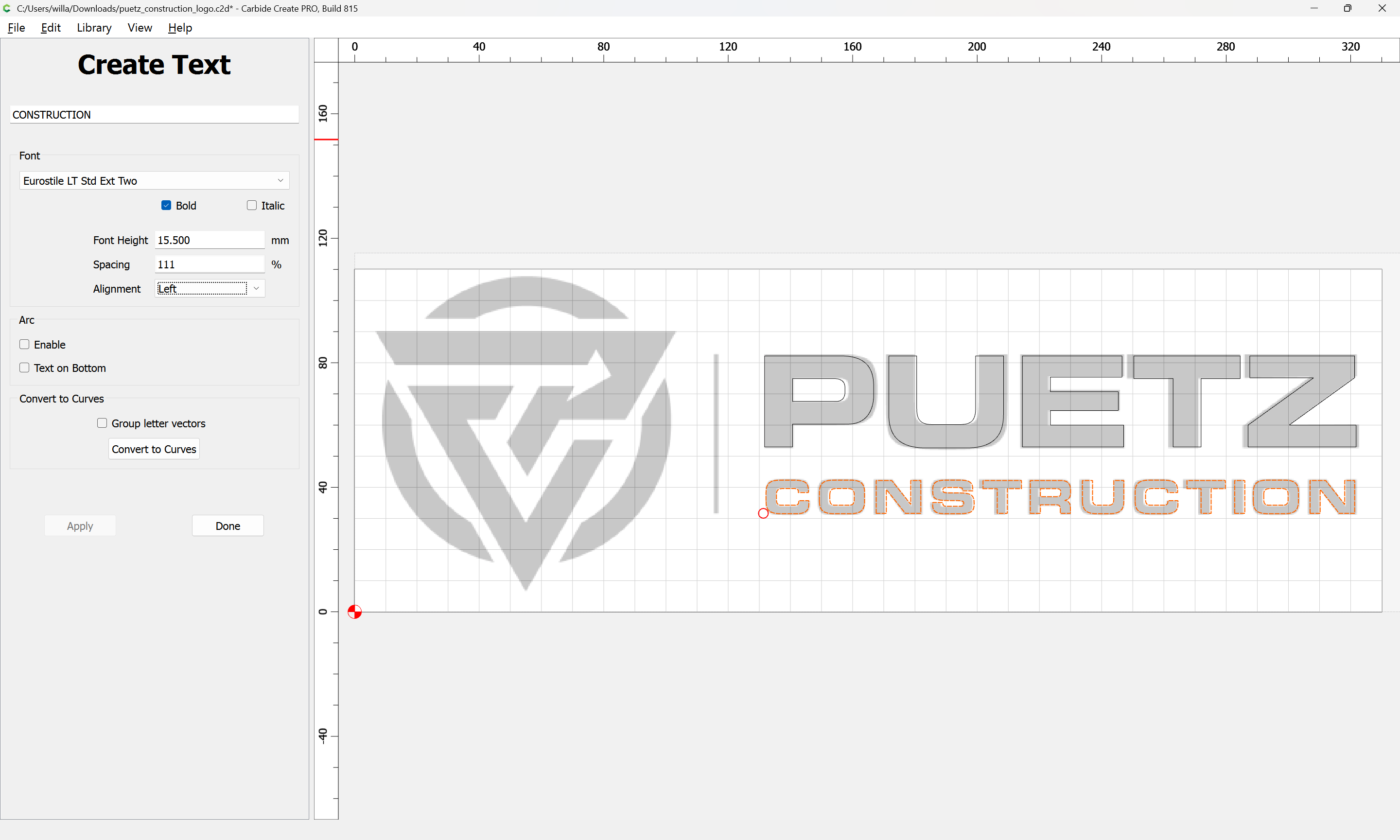

Re-set the text (Aldo Novarese’s Eurostile Bold Extended):

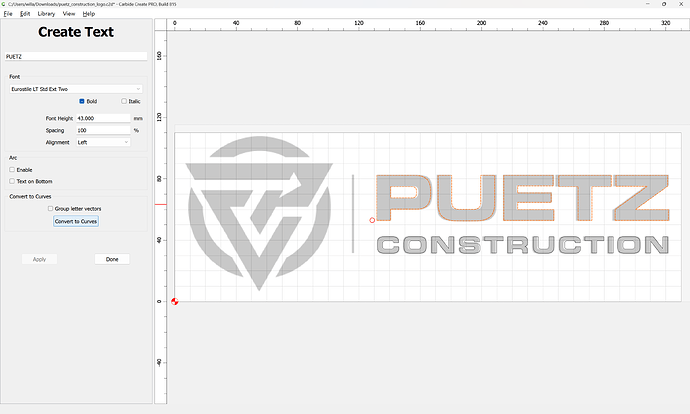

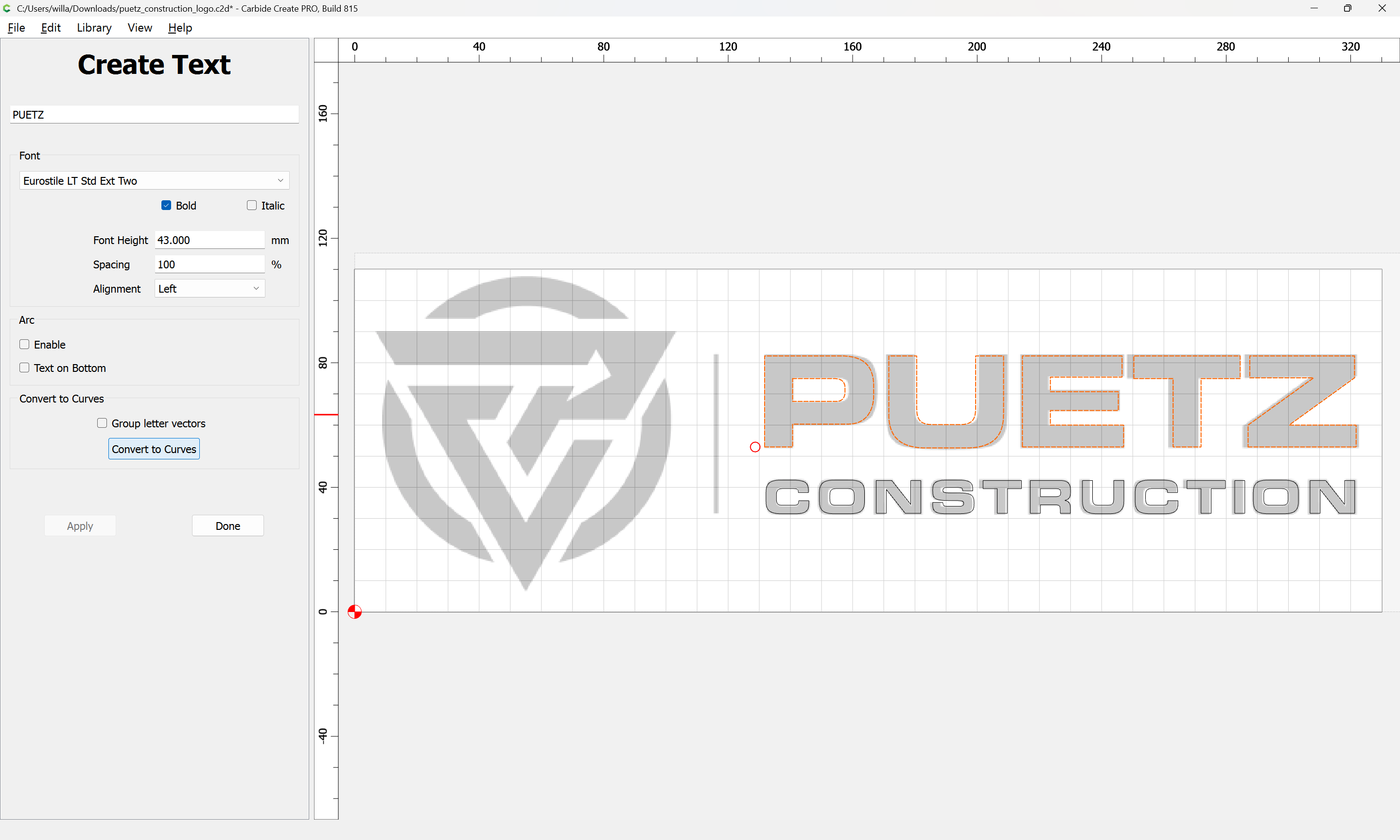

then convert to curves and redraw the balance…

[WillAdams (William Adams (Carbide 3D))]

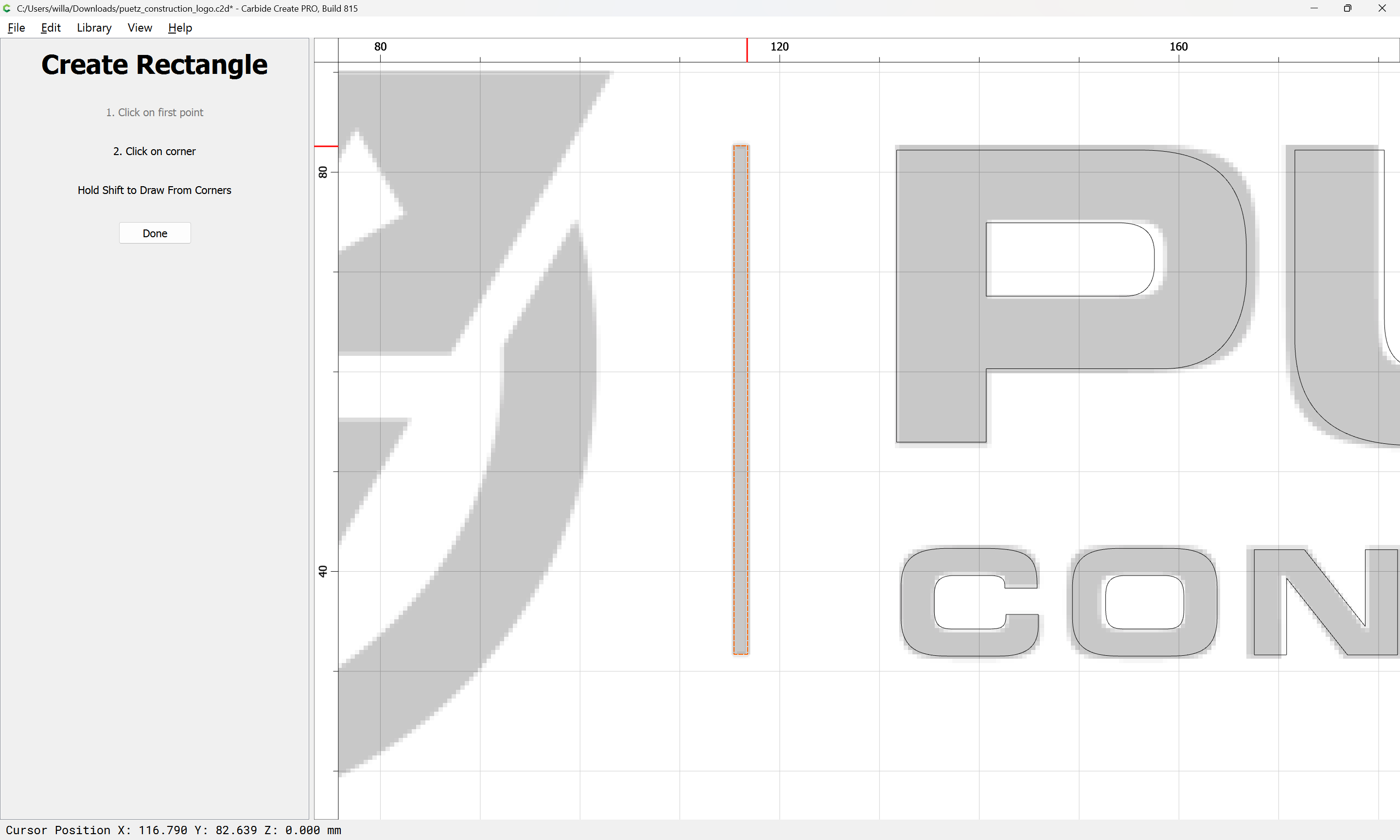

Rectangles are trivial:

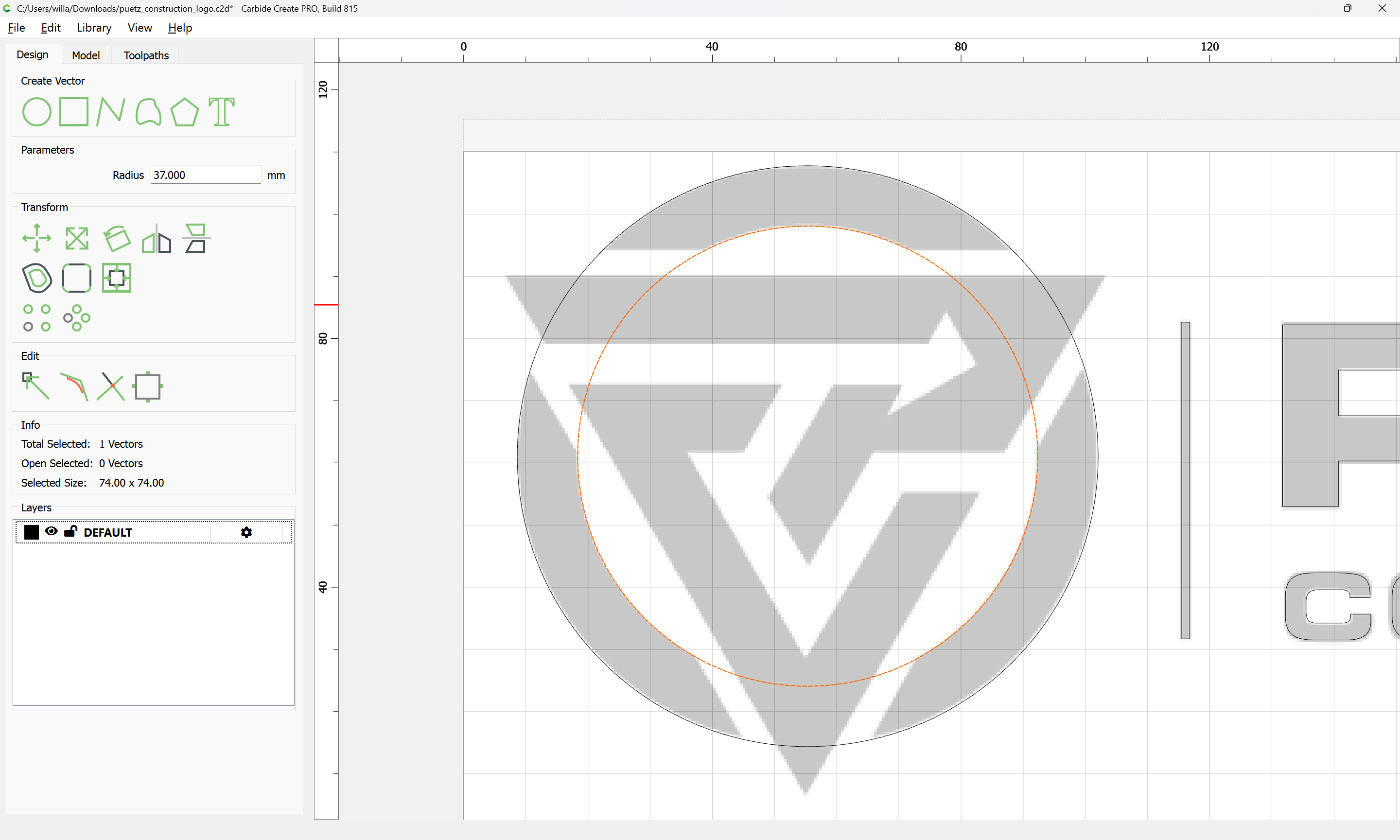

as are the circular elements:

adjust as needed to get things to line up:

then duplicate in place by copy-pasting:

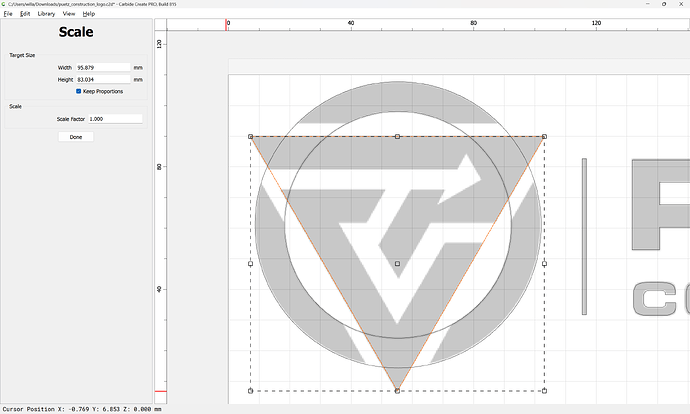

and adjust the size:

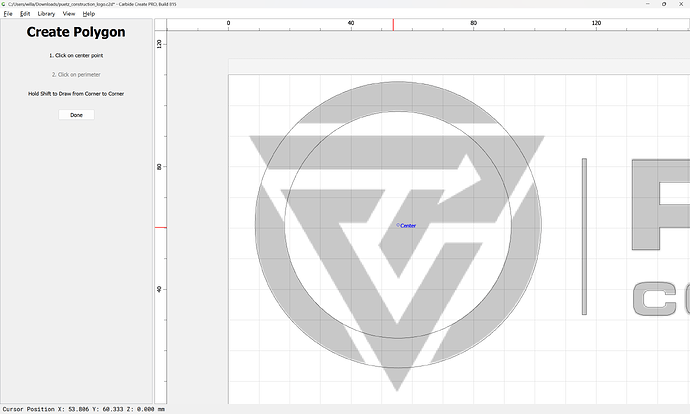

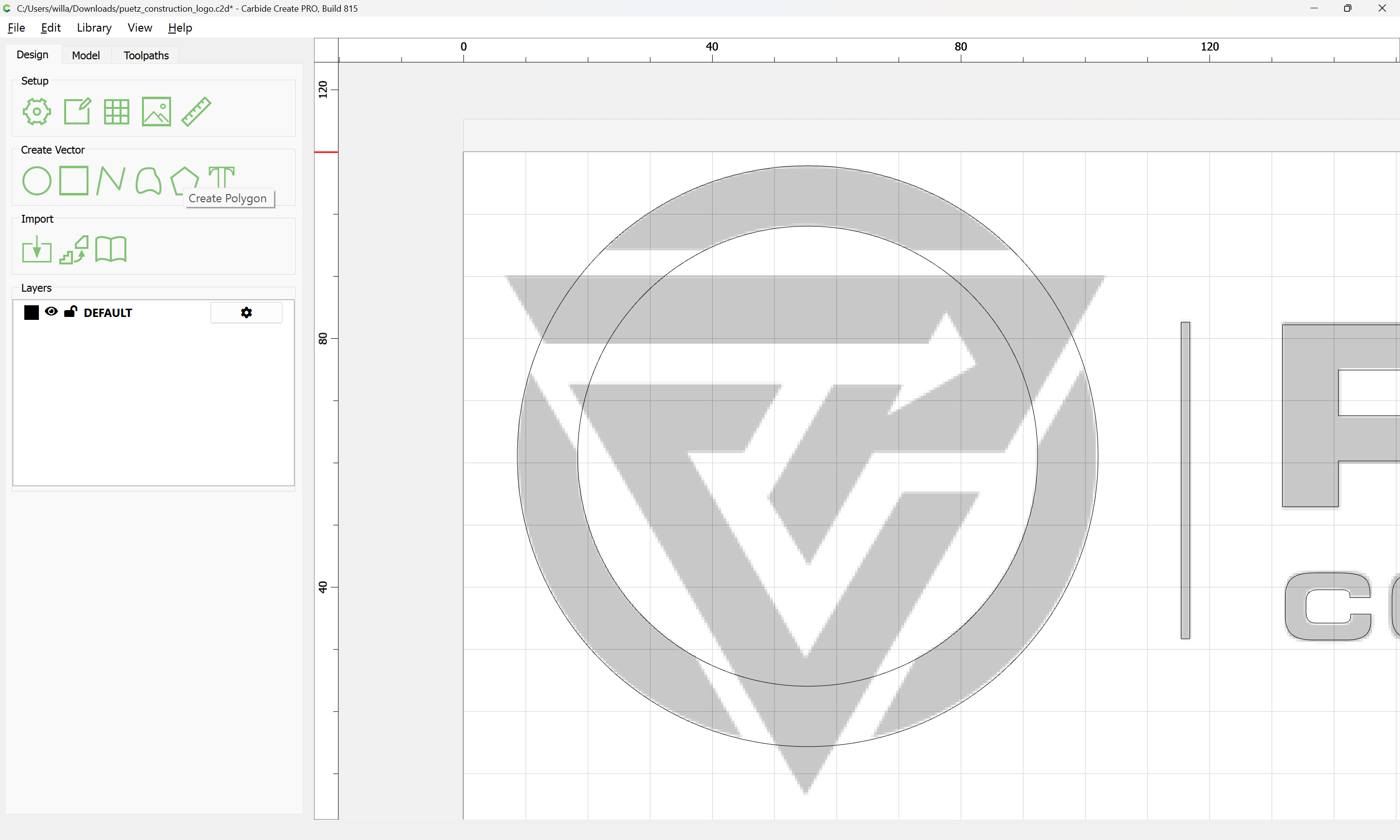

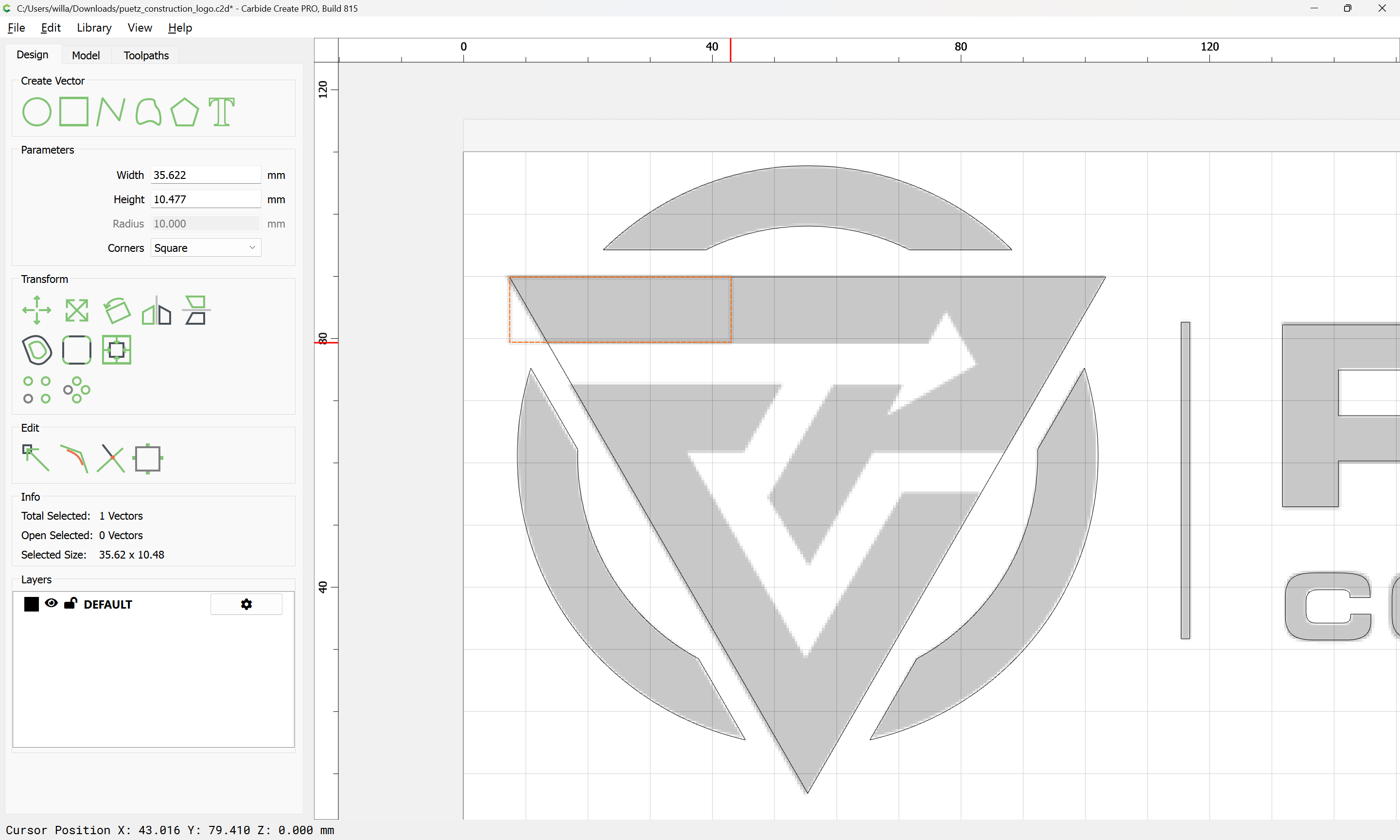

Then draw a polygon from the center:

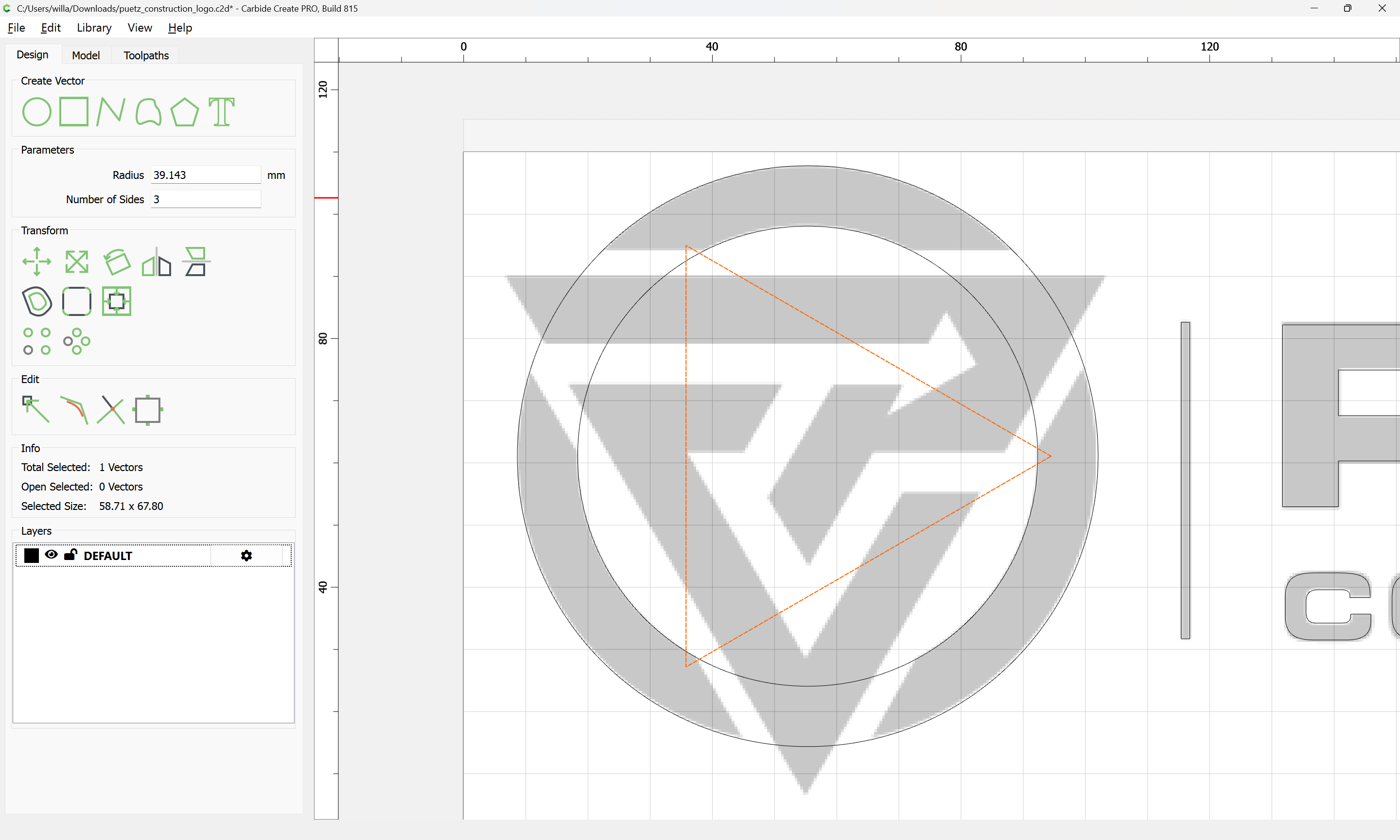

and adjust the number of sides:

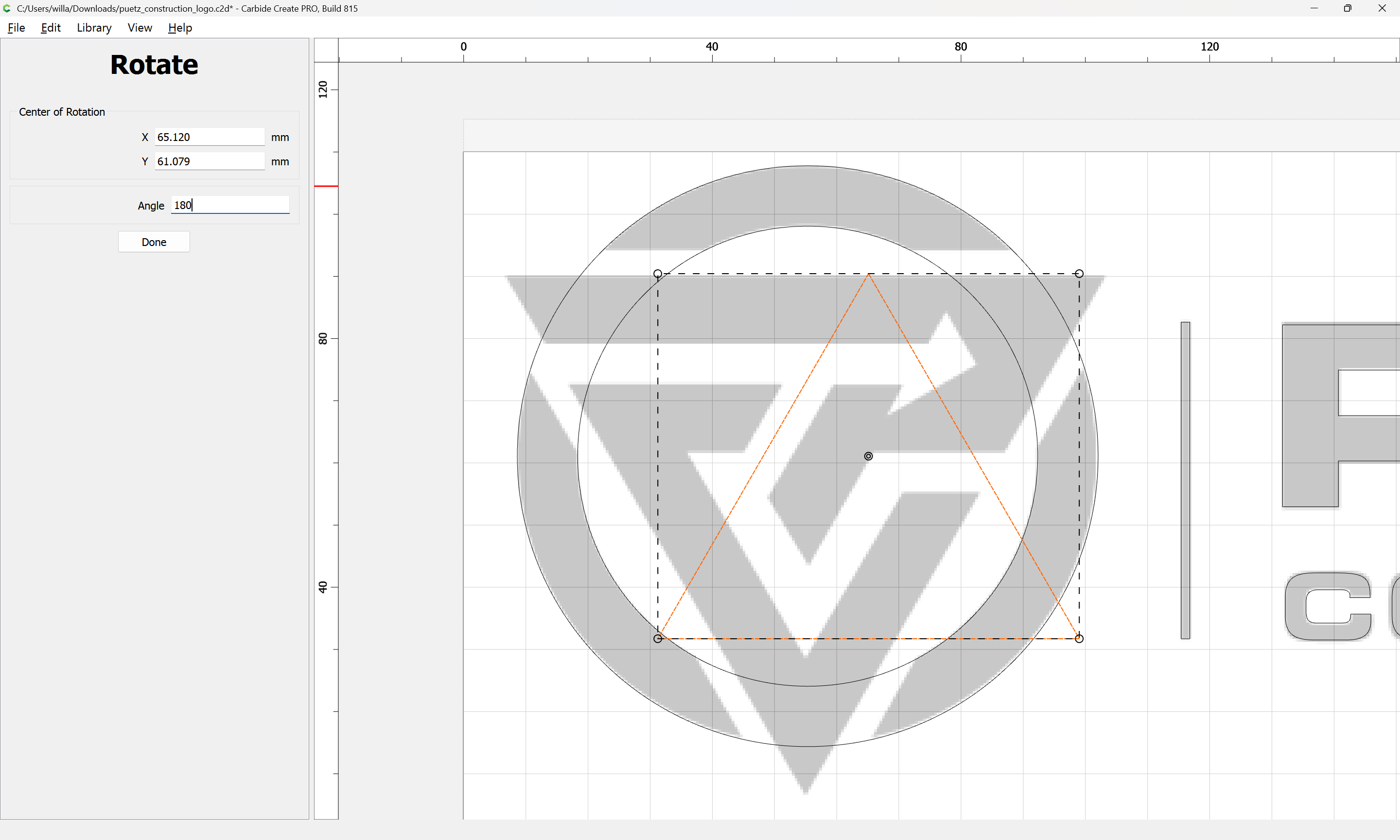

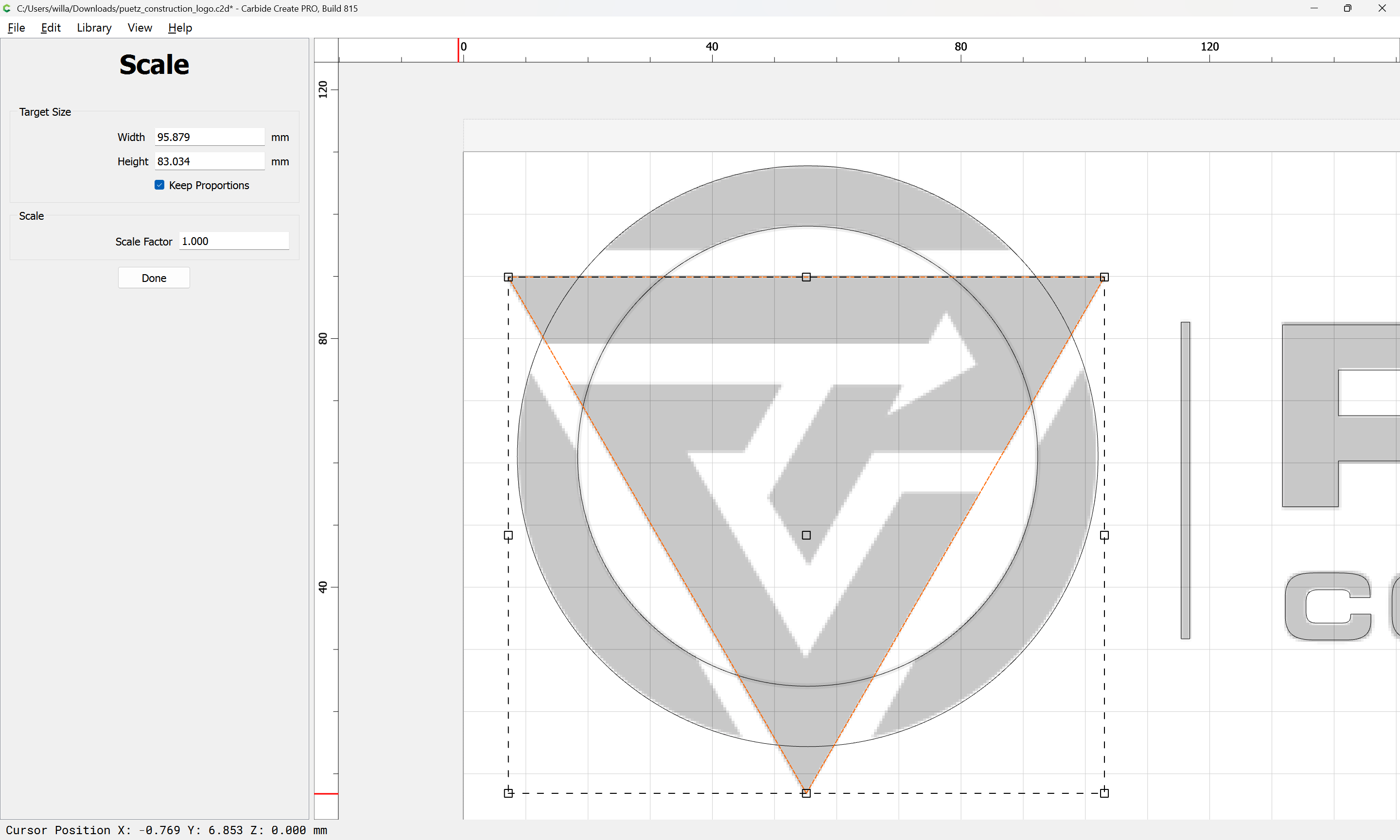

and then rotate and scale/position:

Done

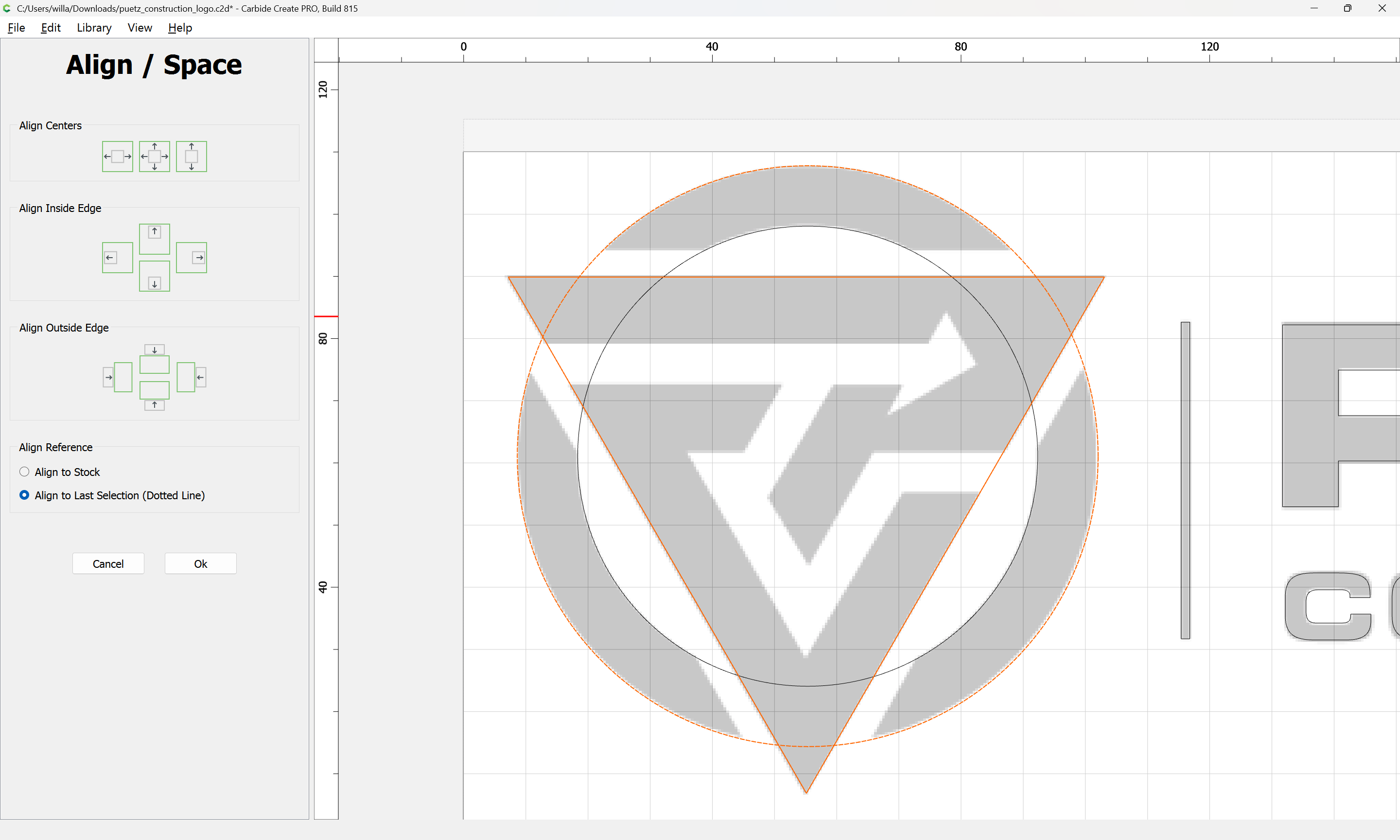

align to ensure things are symmetric:

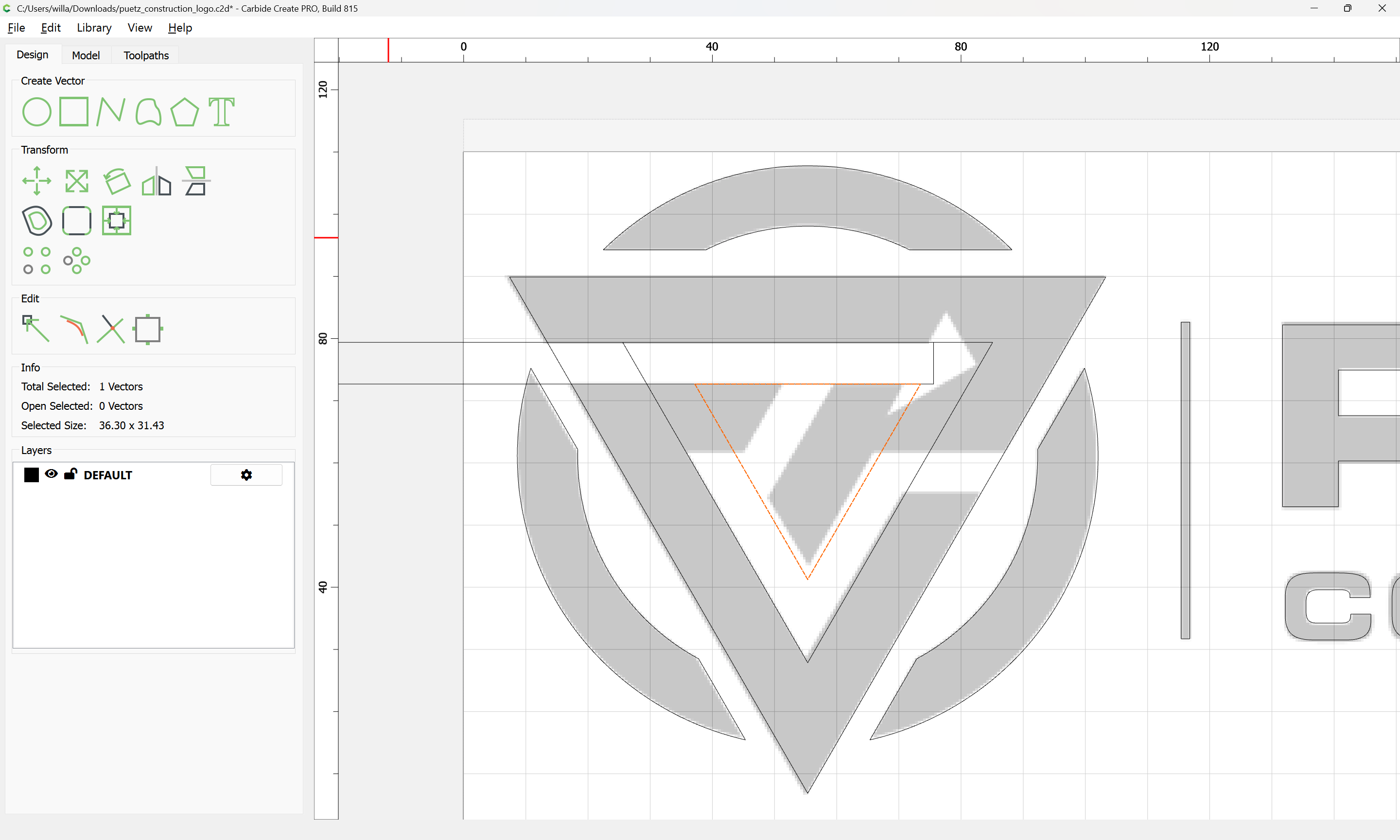

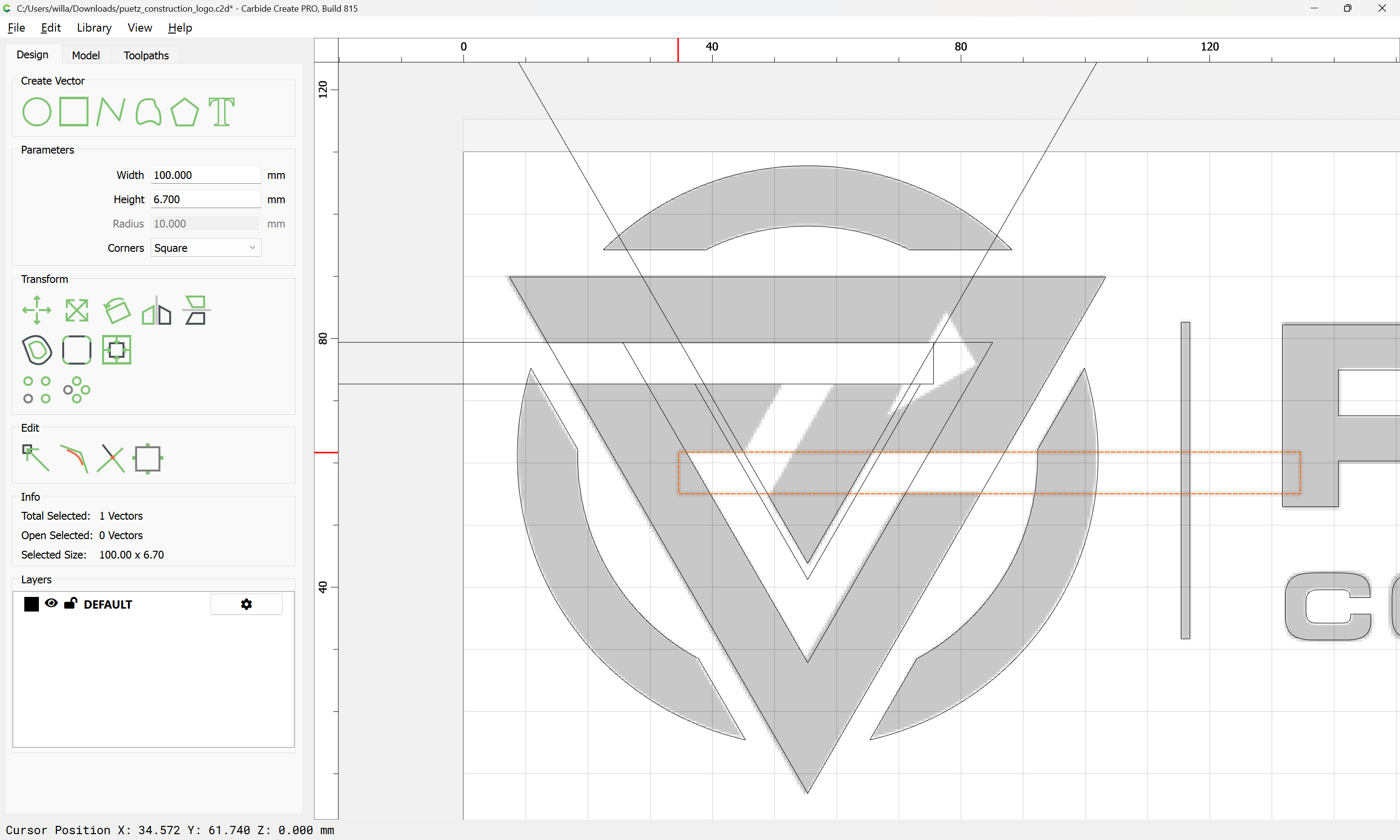

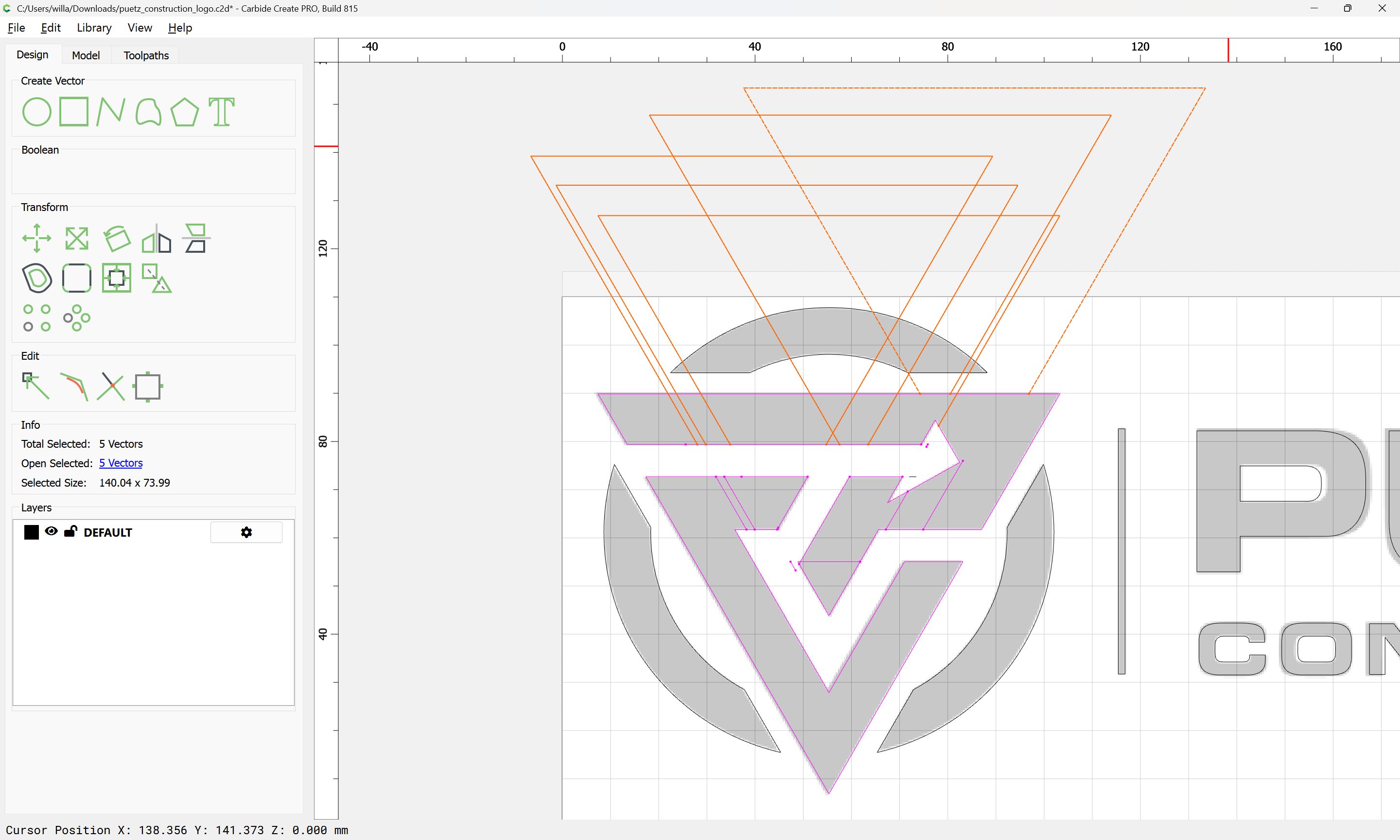

Draw in a temporary rectangle to get the needed offset for the triangle:

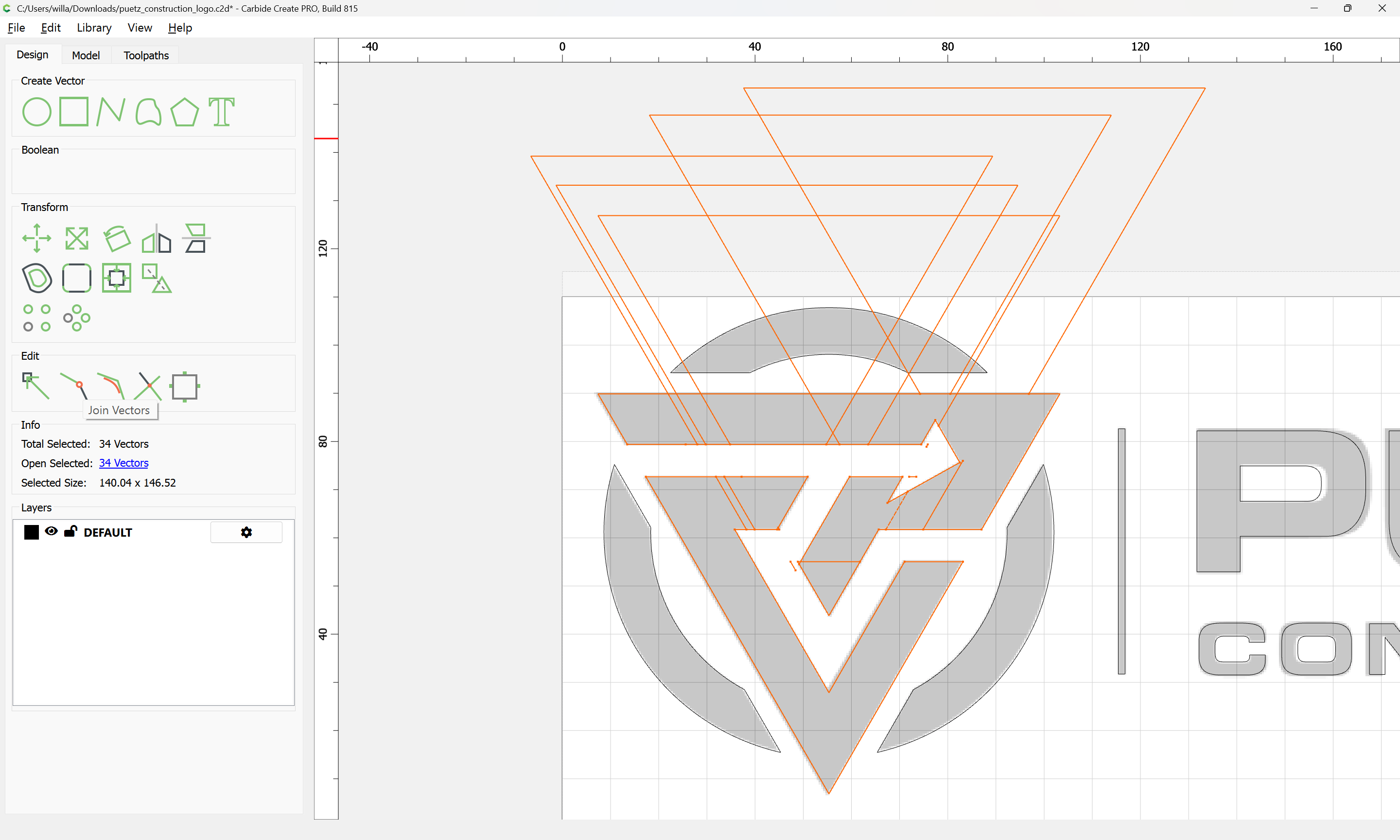

Select the crossing elements:

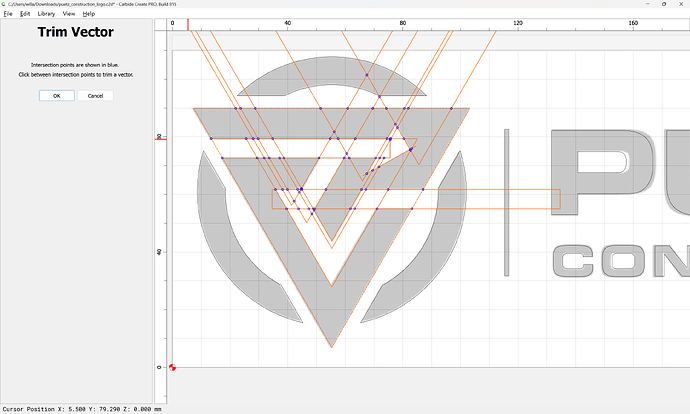

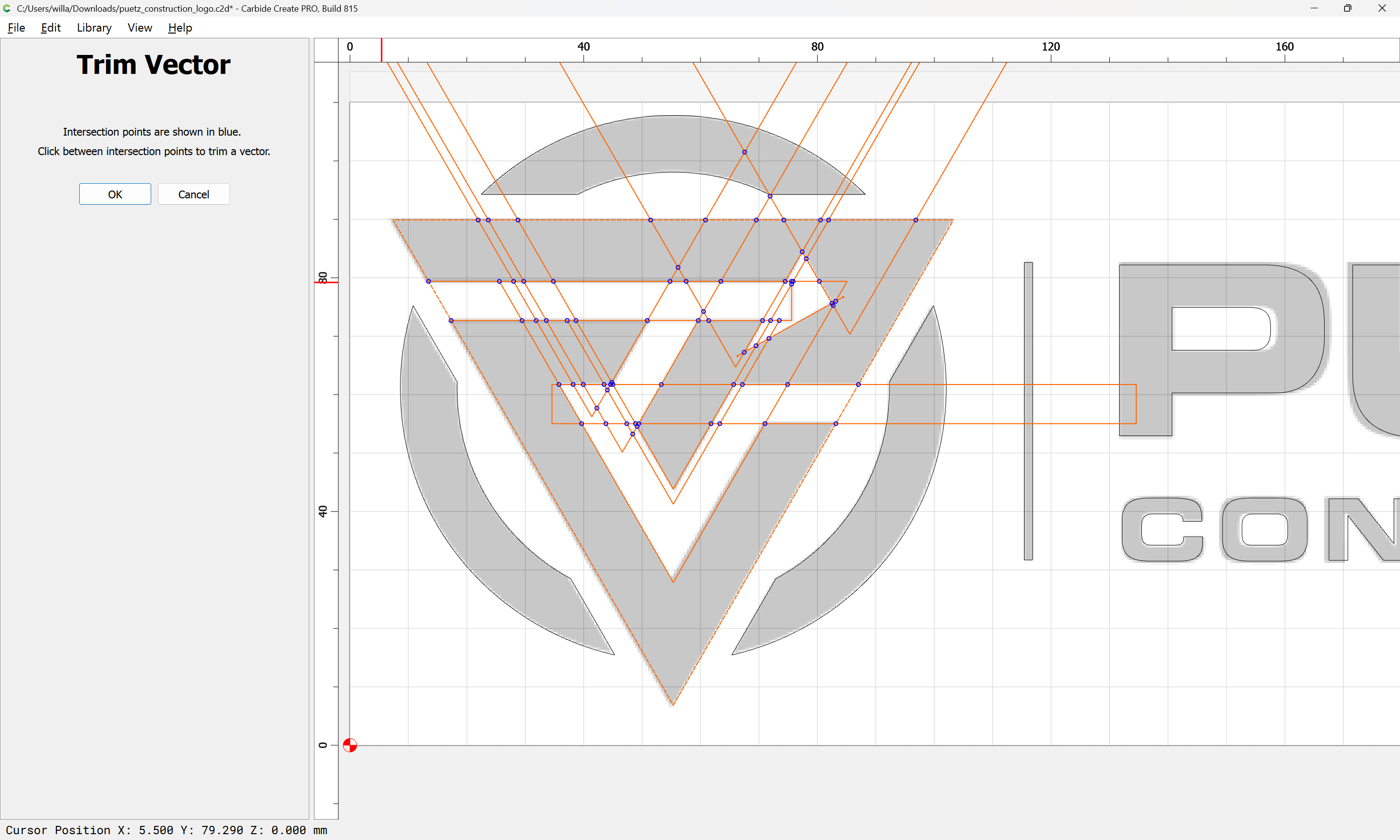

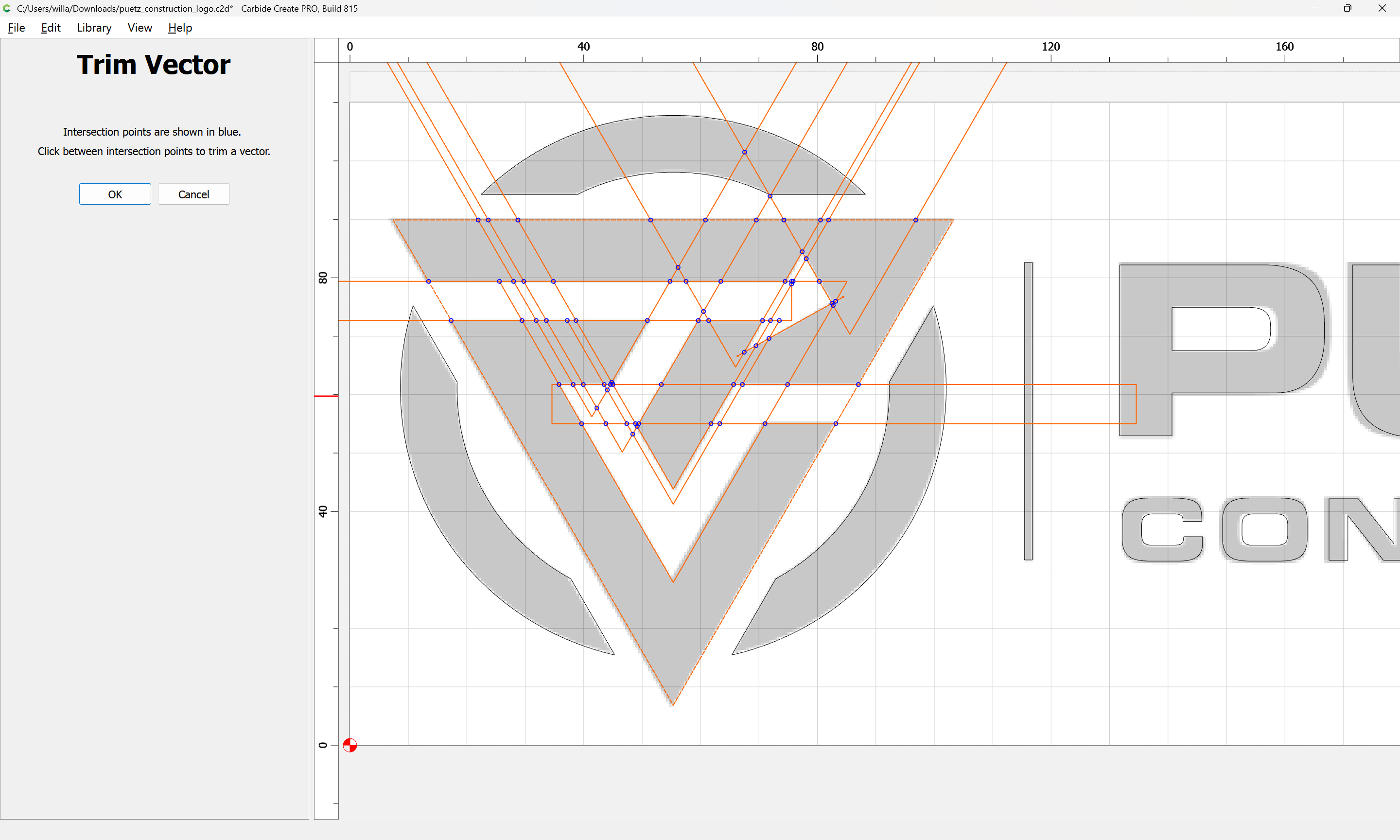

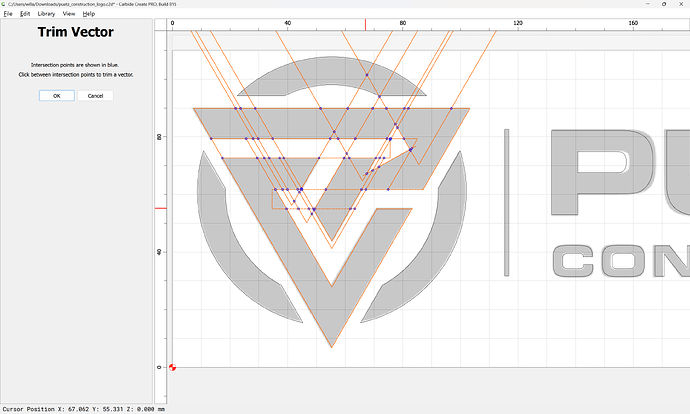

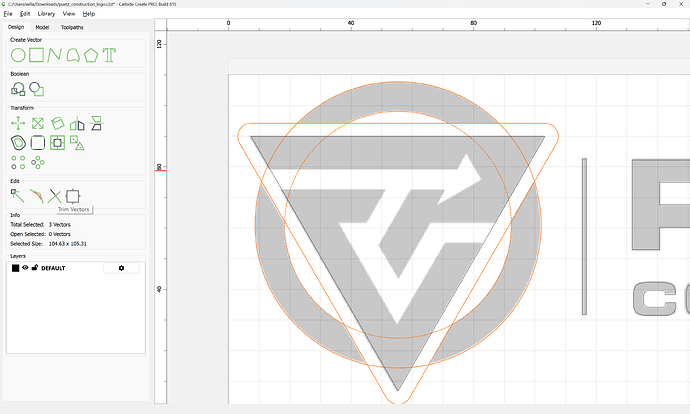

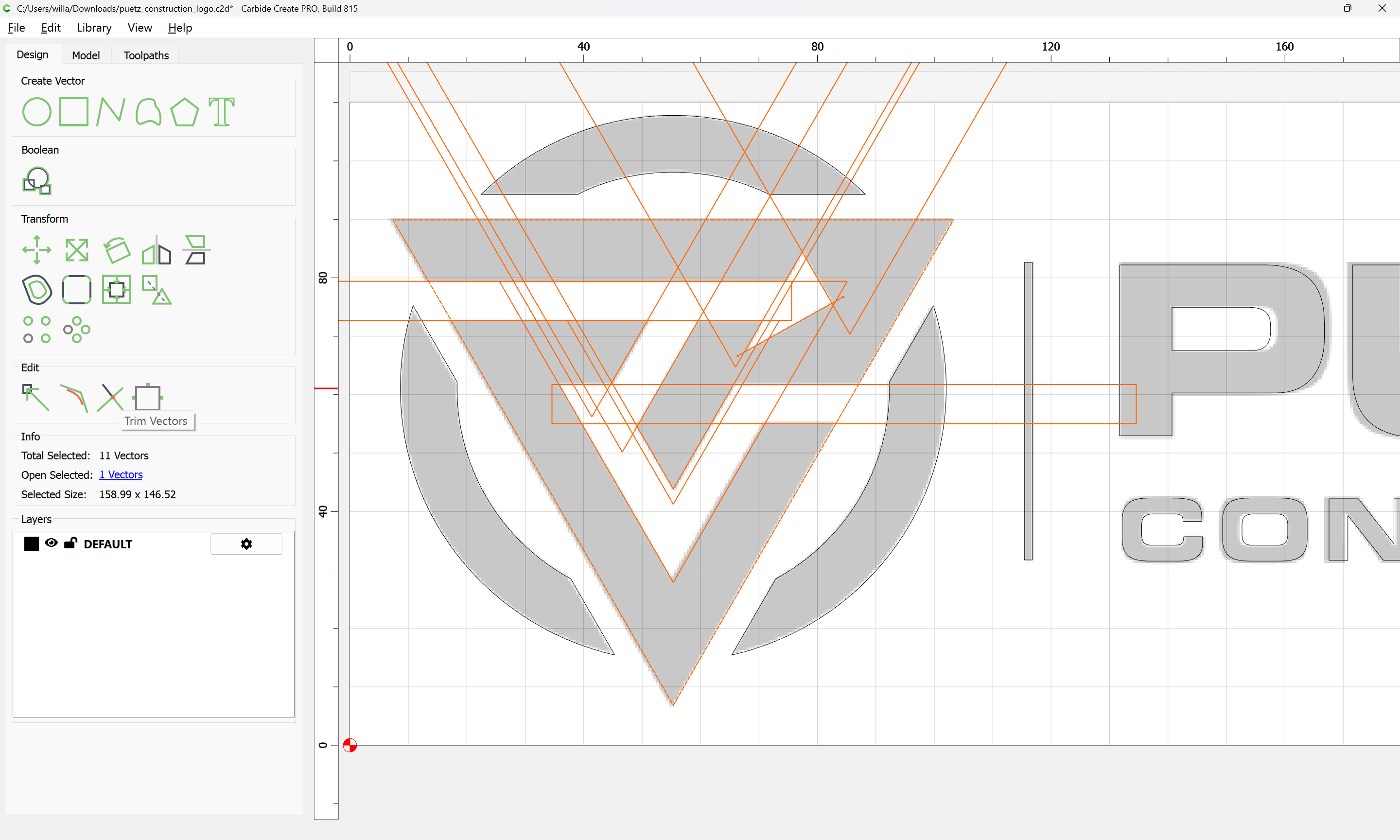

and use Trim Vectors

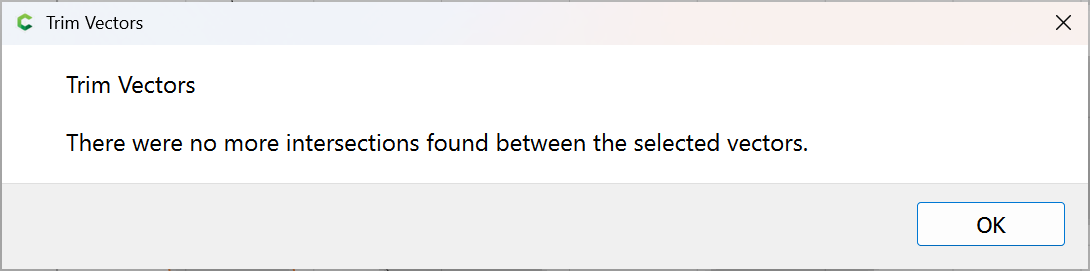

to remove what is not wanted:

until one arrives at:

OK

OK

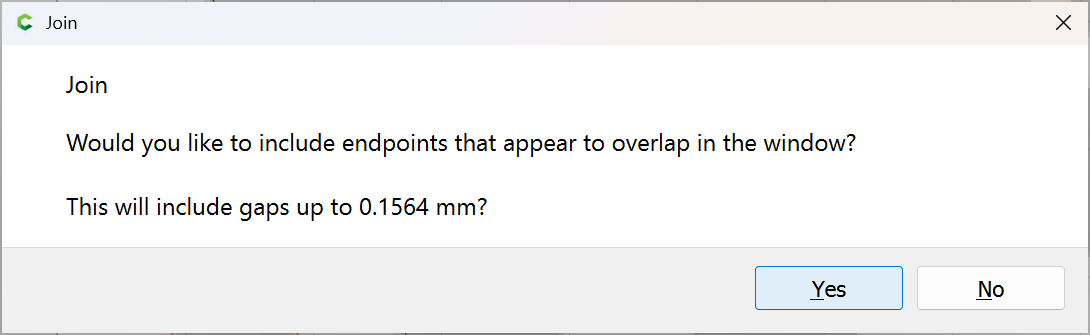

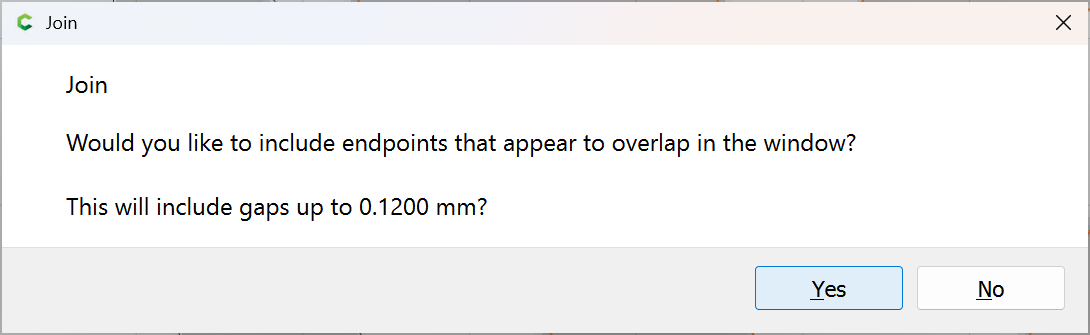

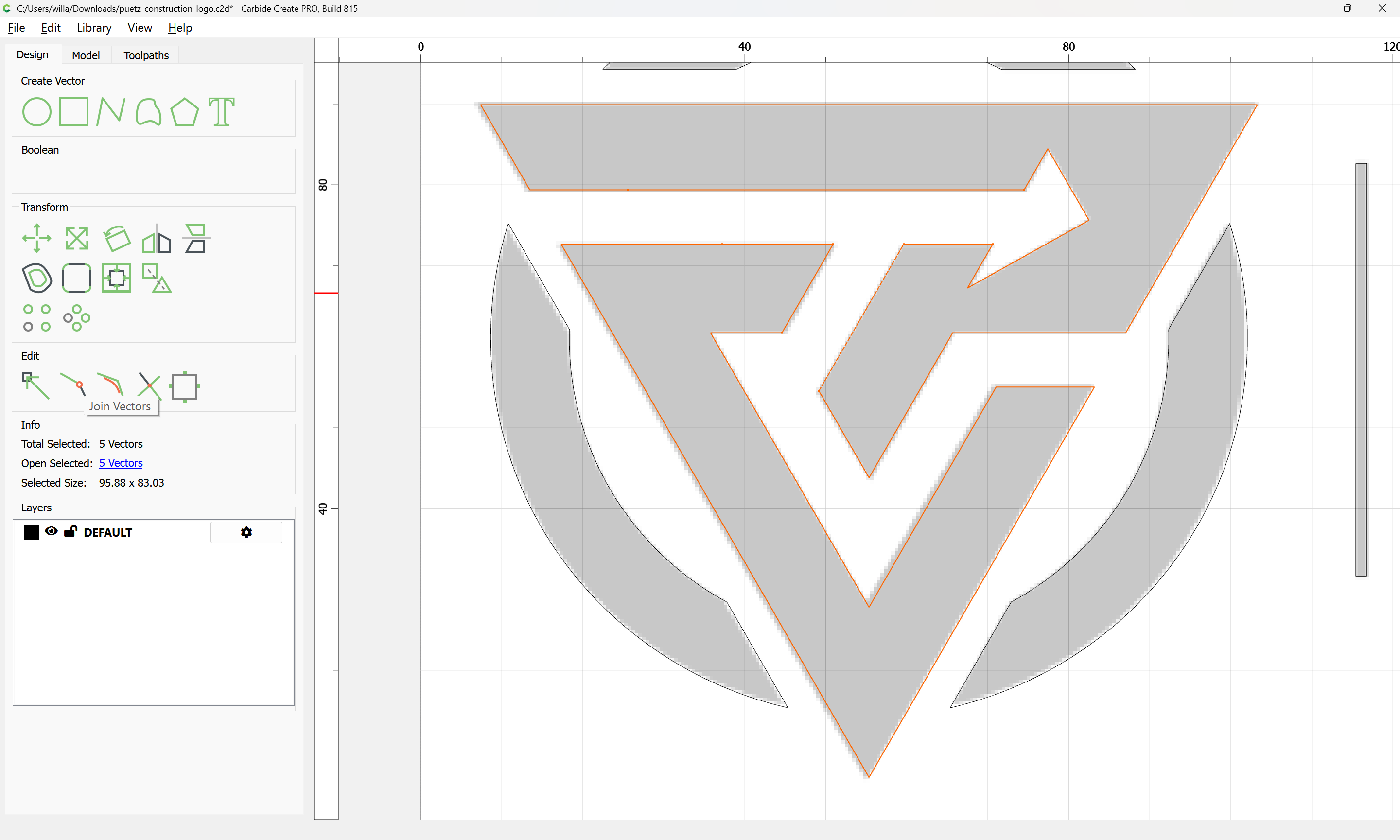

then use Join Vectors to close:

Yes

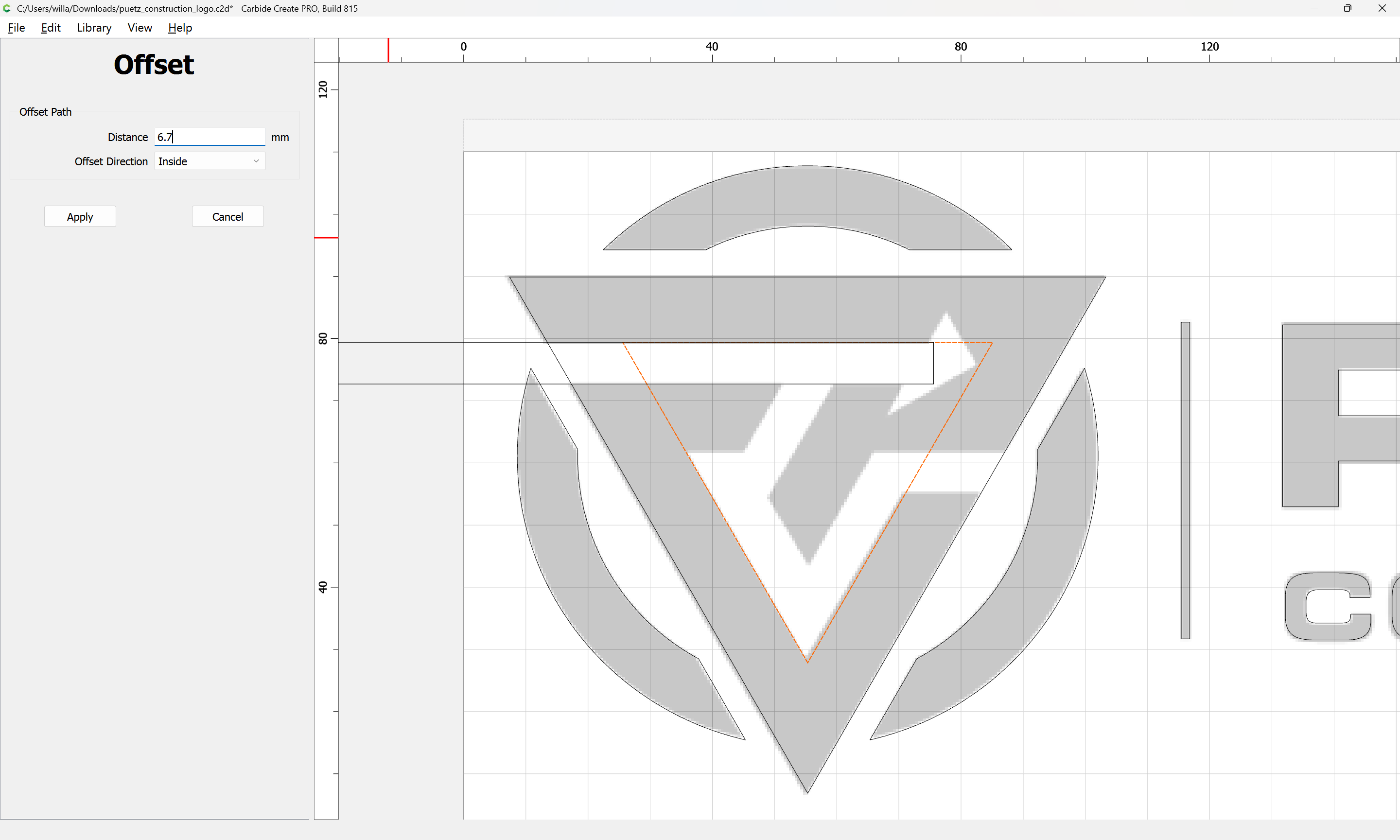

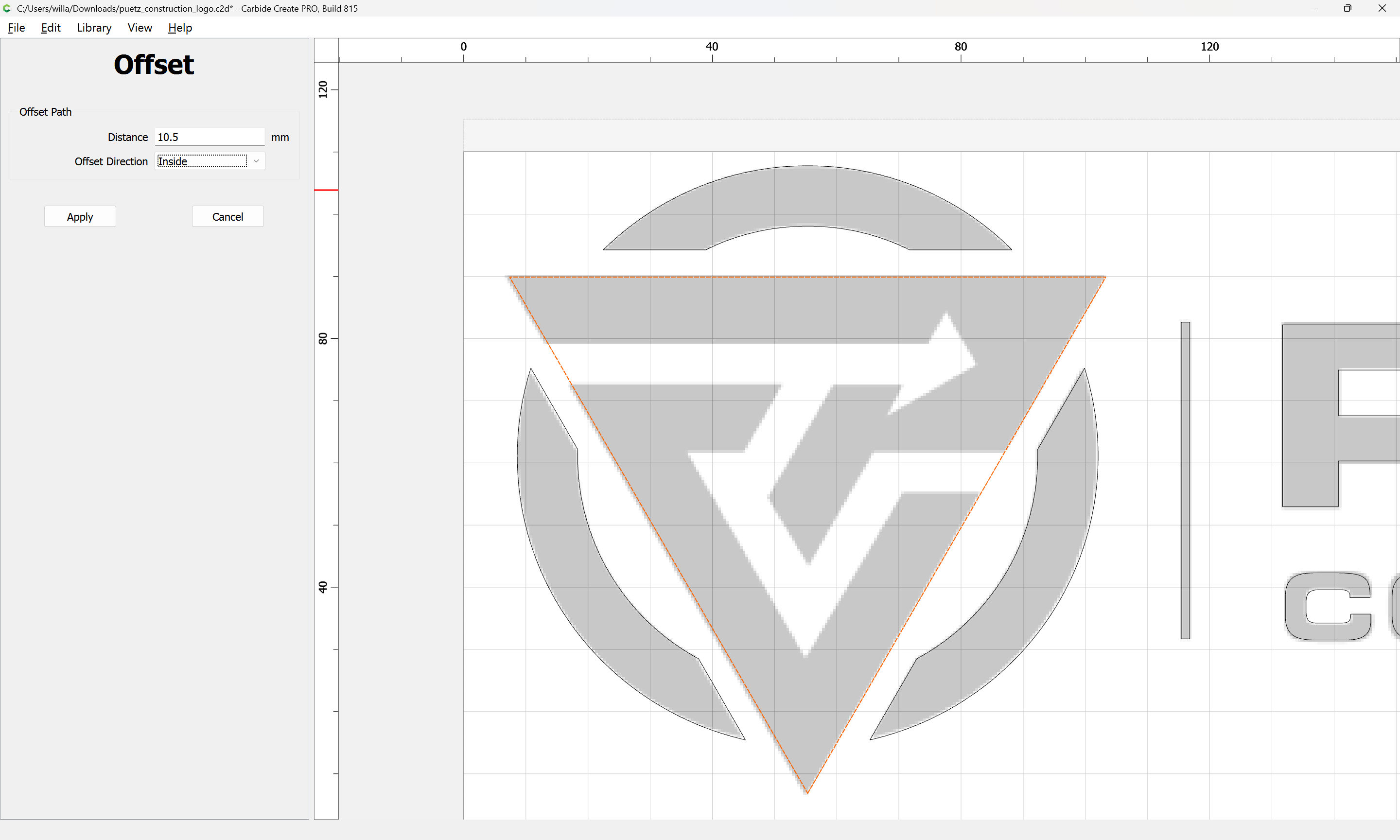

Measure again to get the inset:

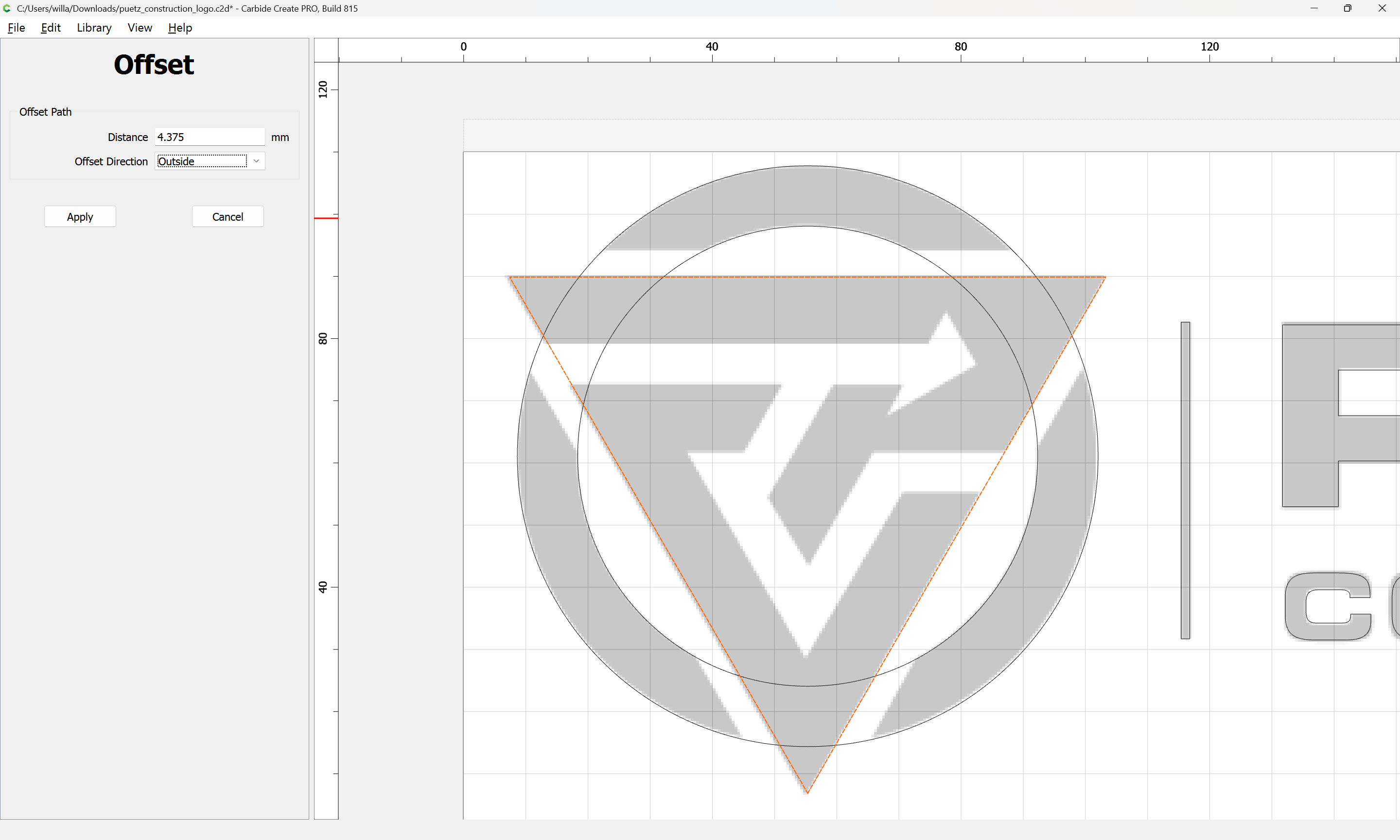

Apply

and measure again to get the last inset:

repositioning for later use:

Apply

Duplicate the original to get sufficienly long lines to use for the insides:

and draw in rectangles, or duplicate triangles until all lines at constent angles are accounted for:

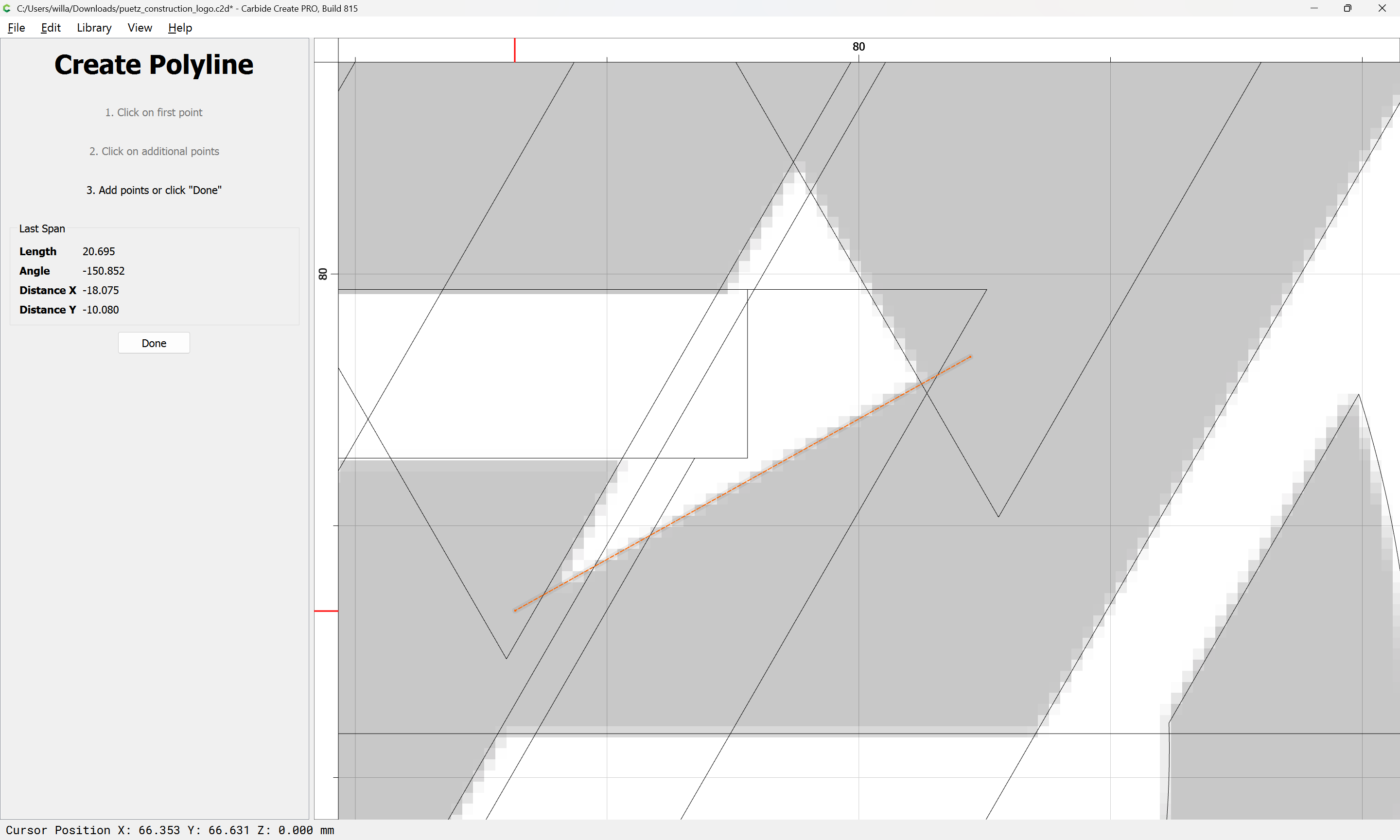

For the final line, draw it in:

Done

Select everything for the interior:

[WillAdams (William Adams (Carbide 3D))]

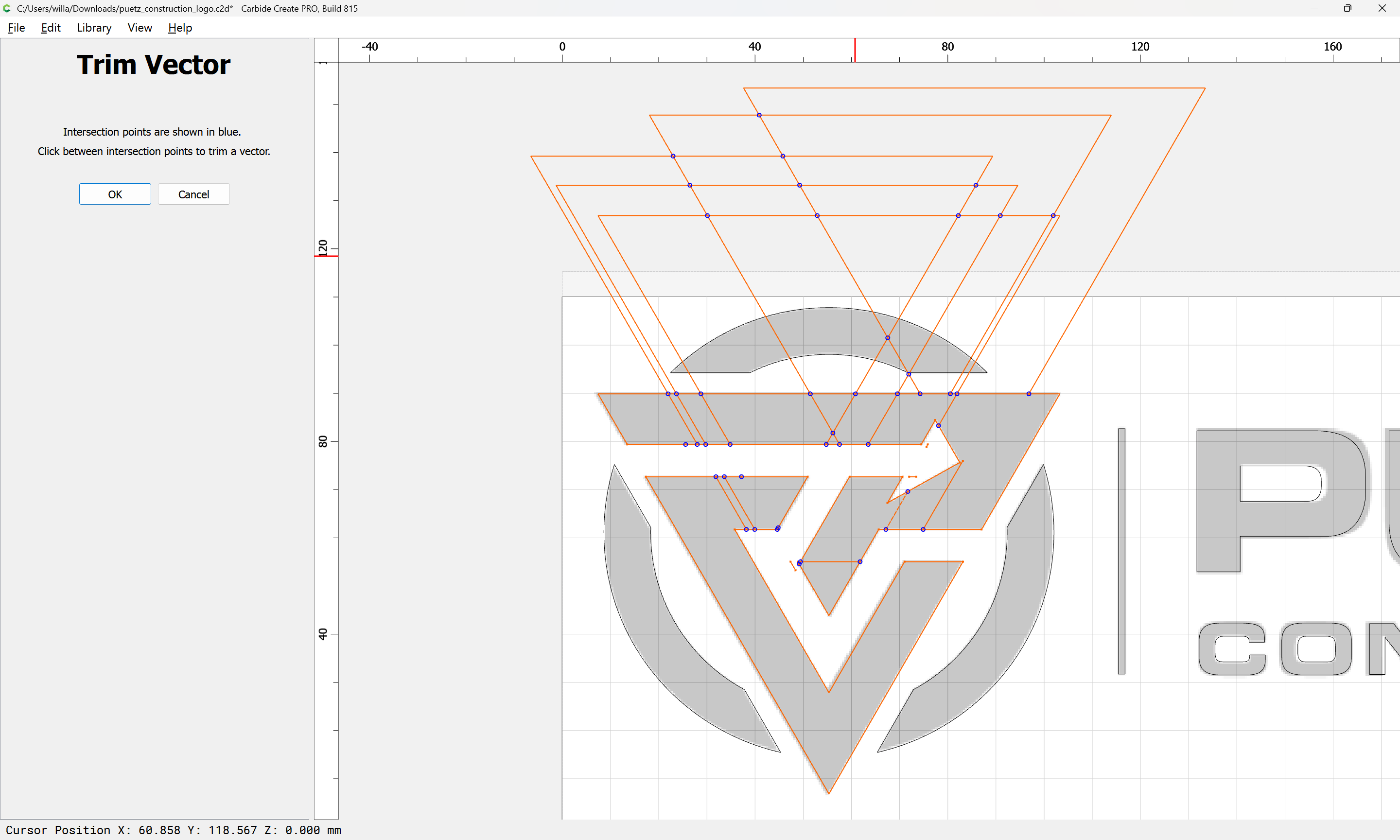

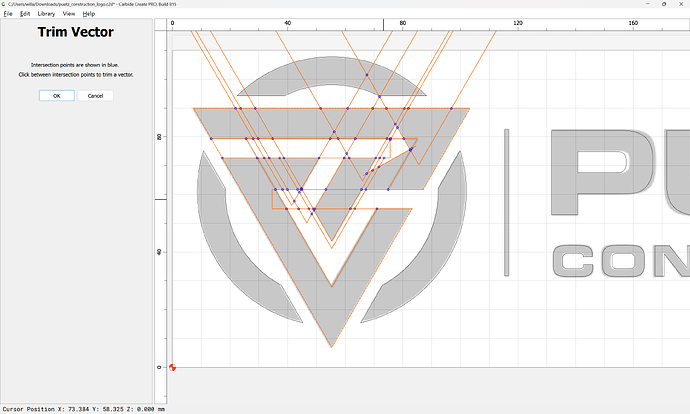

and use Trim Vectors to remove what is not wanted:

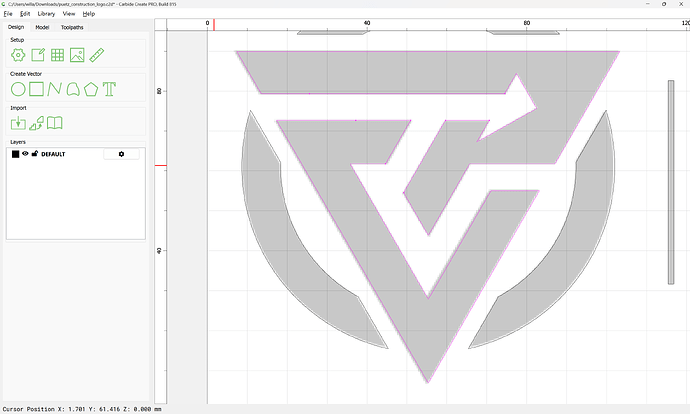

continuing until one arrives at:

OK

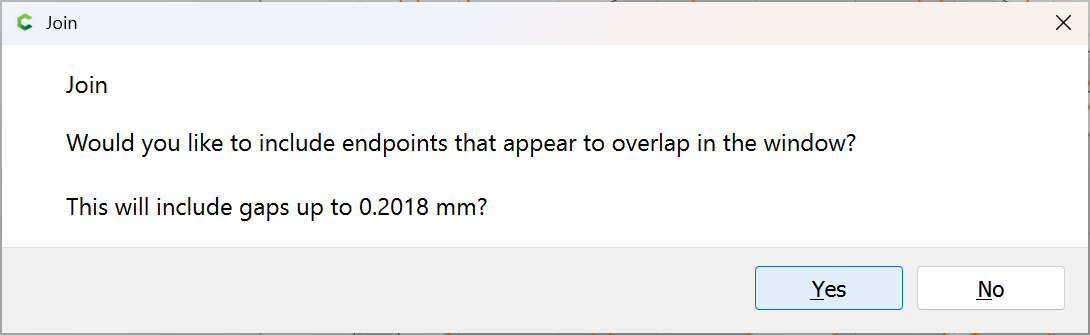

If Join Vectors is used to close things:

Yes

then one should be able to select the extraneous elements:

and delete them until one arrives at:

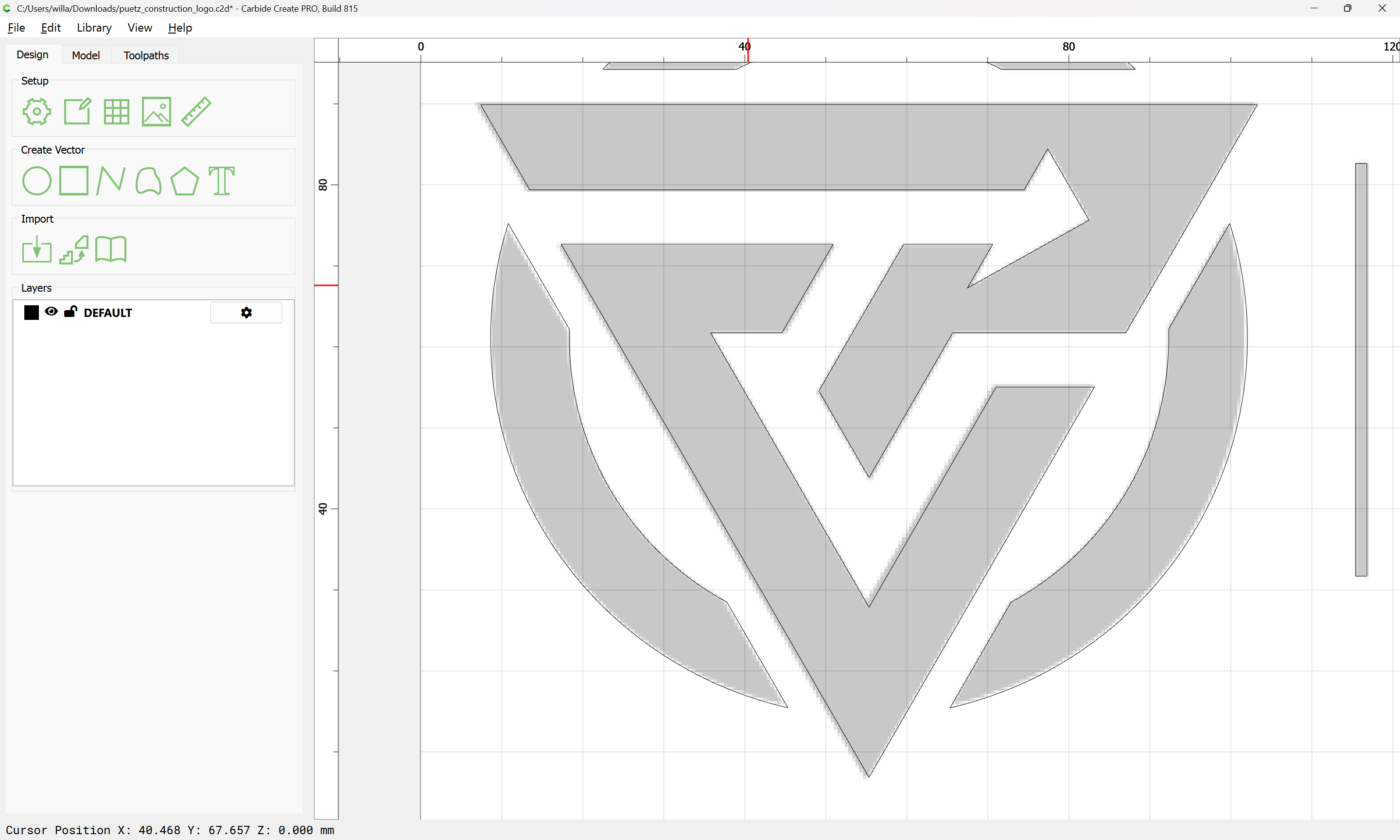

which may be selected again and finally joined/closed:

yes
