Nomad wasteboard/fixture plate dimensions?

[GambleGarage (Paul)]

Anyone know the exact hole locations for the nomad3 wasteboard? I just happen to have a 8"x8"x1/2" piece of aluminum wanted to replace the MDF one, but only have 1 piece and don’t want to screw it up

[WillAdams (William Adams (Carbide 3D))]

Please see:

Replacing the Nomad bed

table.PDF (33.0 KB) Here’s our original drawing. Note that the internal dimensions are what count, not the position relative to the edge. The position of the holes relative to the edge of the table can vary by up to 1.5mm since we don’t profile the perimeter of the table. The drawing does not reflect this since we machine right from the solid model, not the PDF. For what it’s worth, MIC-6 is not specified to be incredibly flat but we’ve never had to reject any yet. They all show up very fl…

and

Nomad 883 threaded table and clamps

Okay, today’s project is making up some clamps since they are not included with the nifty Nomad Threaded table (and I’d like some metal ones to use w/ the T-track on my XL). Since the drawing for this doesn’t seem to have been made available, and I’m not inclined to wait for Monday to pester someone competent at support, I drew one up based on some rough measurements and the published table and wasteboard file: While it would be simple enough for anyone to superimpose a 1" grid of 5mm circle…

If you use Fusion 360:

Vise and Jig in Fusion 360

For now, I’ll post a link to the step file which you can import into Fusion 360. I’m going to be locked up in a meeting for a few hours so I’ll post a Fusion 360 link/file later. https://dl.dropboxusercontent.com/u/172647/Vice_Carbide_3D.zip Update: Fusion 360 Public Link http://a360.co/2glGNqw Note: Fusion 360 parts are not constrained for component movement. I’ll get around to that someday.

Fusion

Fusion

Fusion

[GambleGarage (Paul)]

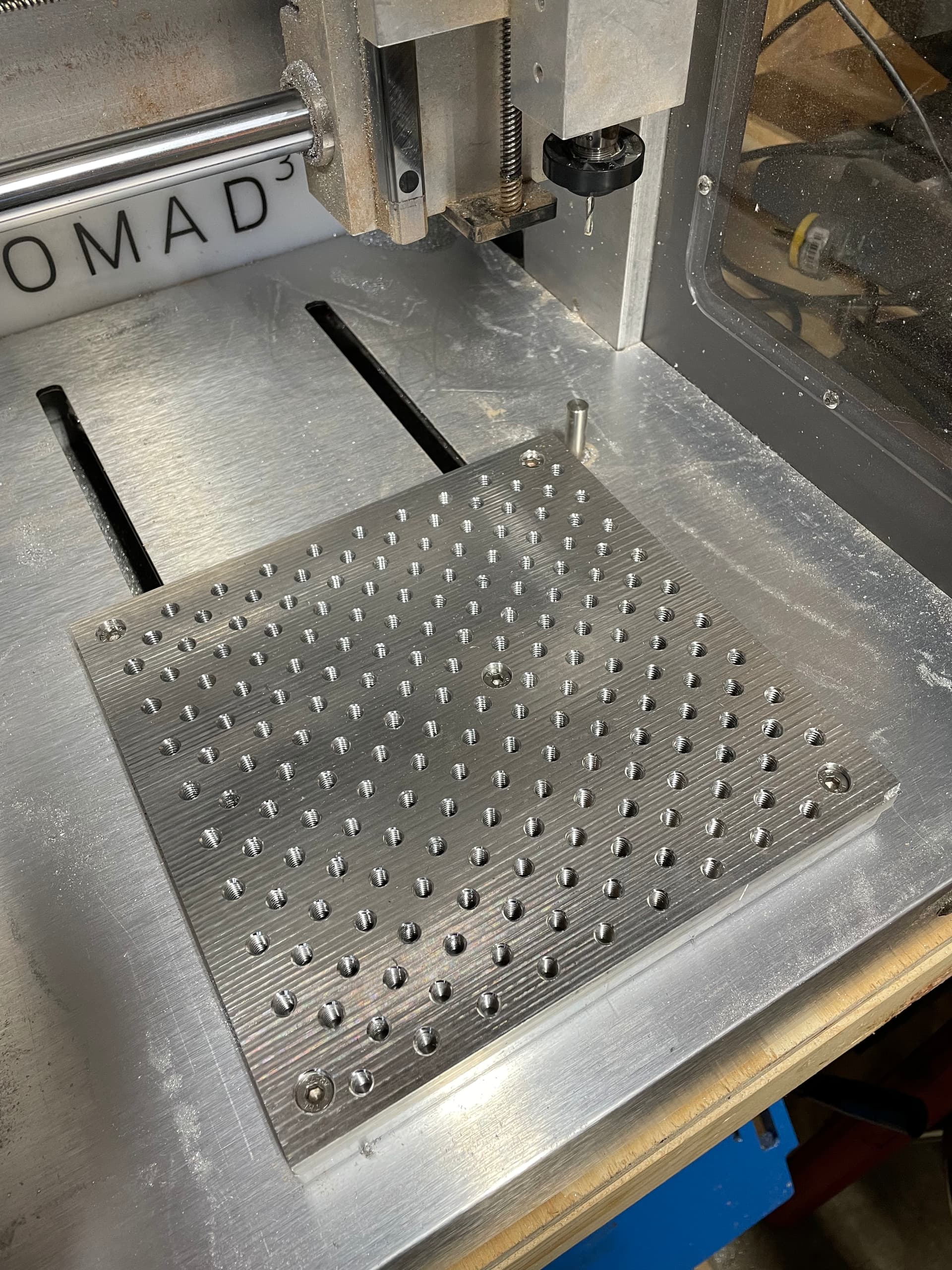

Got her done
thanks
