Here is something that has come up before the snap to grid issue
I thought I do a screen shot showing the snap to grid thing and in this shot, an if I can get it attached to this posting. I have run into this before on my simple stuff.?
Where did you grab the triangle on the right?

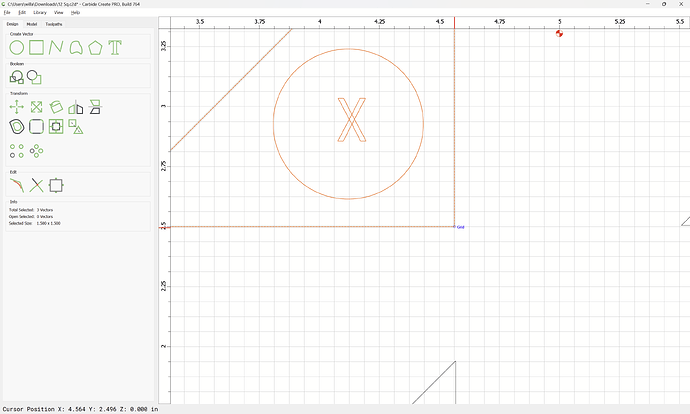

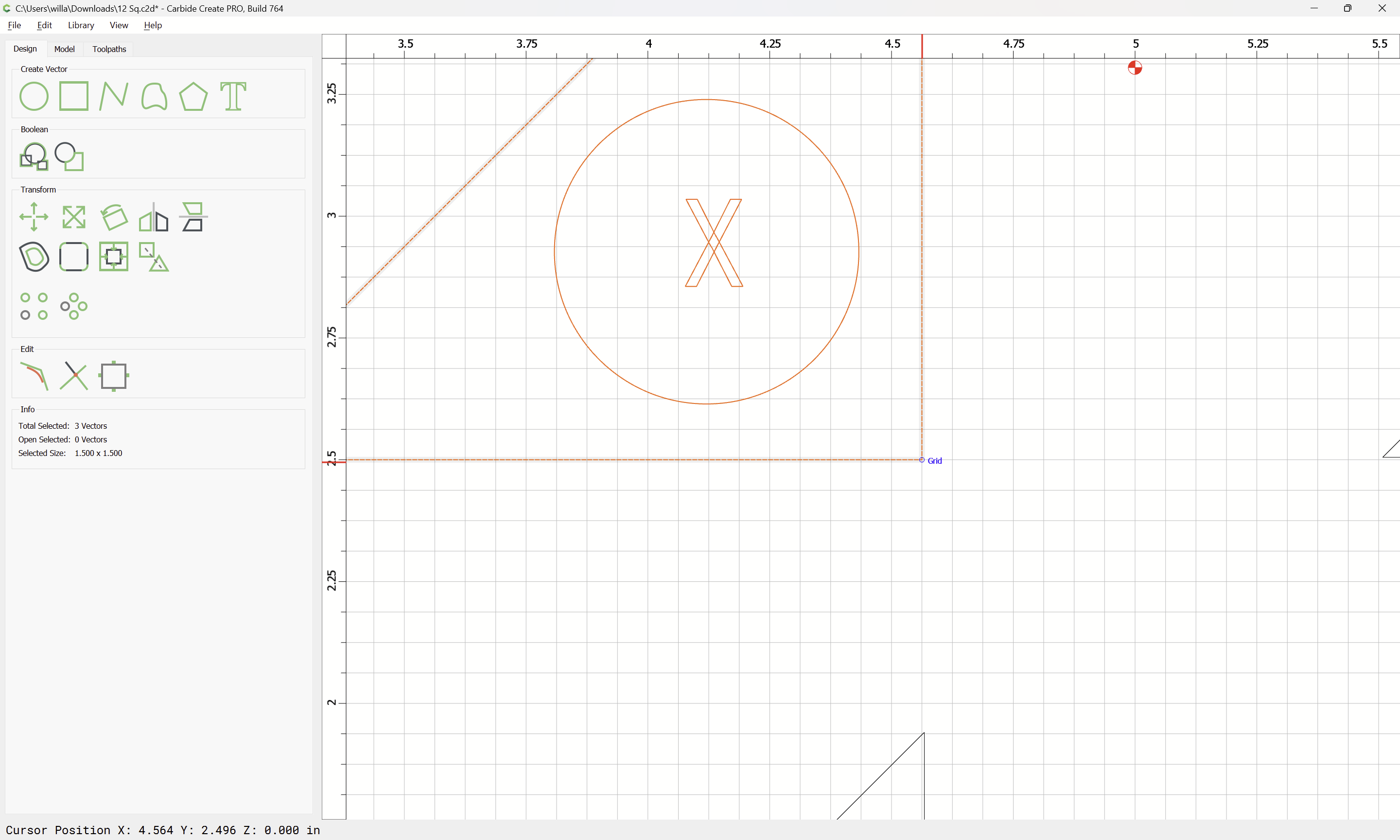

Screengrab showing that highlighting?
Upload your file?
Good-Day Will

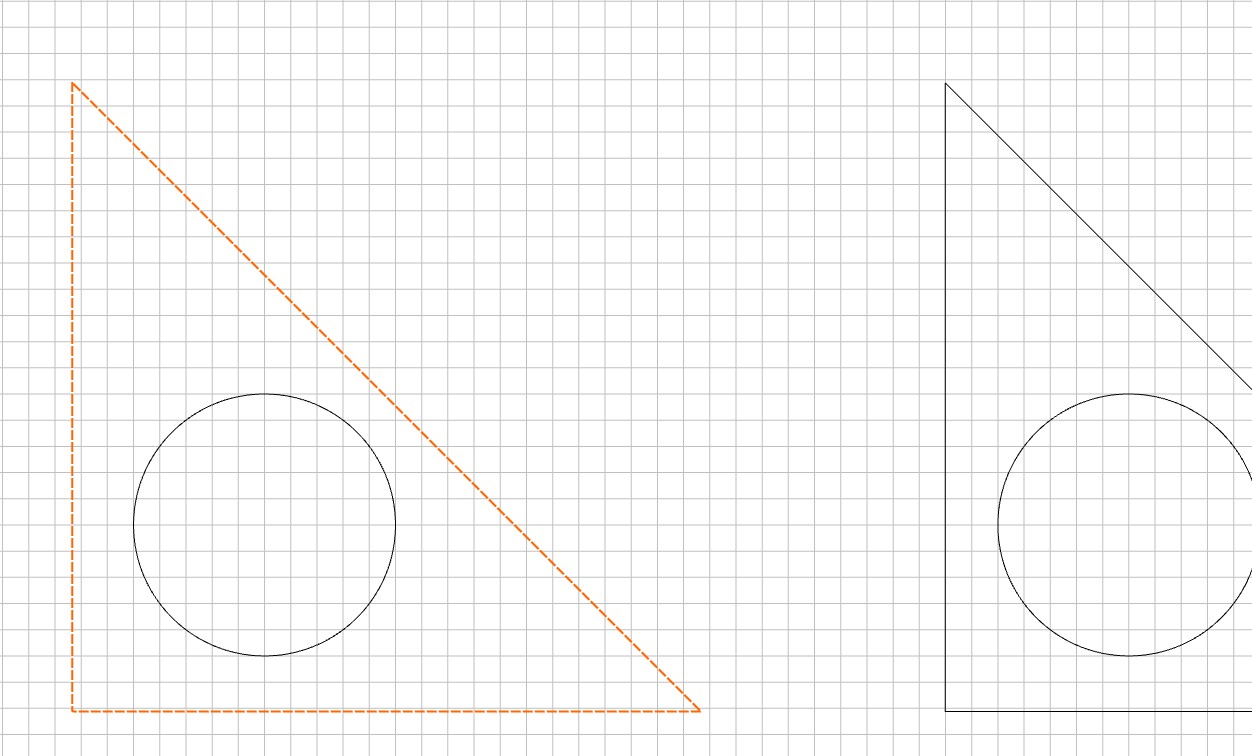

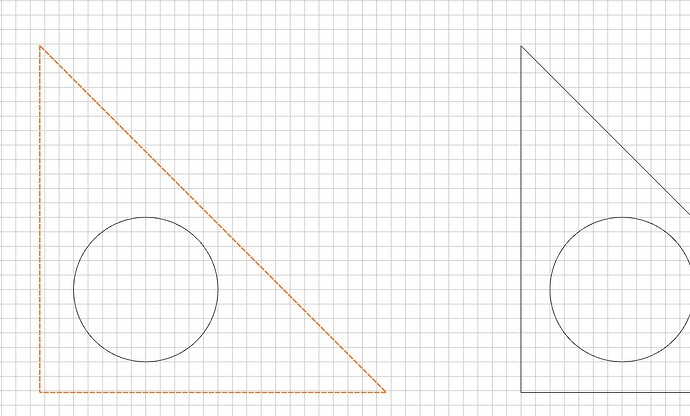

I moved on a bit from the screen shot but you can still see the misalinement still on this drawing by zooming in on it. the other place where I have seen it was on "show simultation… lines not alined per the drawing. on the screen shot I first sent you could see the missalined on the bottom line also. but zoomed in.
12 Sq.c2d (84 KB)
it is no big deal of what these parts are just a gusset for 3 pieces of acrylic I am making. sure wish you had a spelling checker on this blog I never was very good at spelling. Big snow storm here this week 5-6 in. already. Mile High City (5280 ft. high)
Ken
Sometimes I group objects so they move together. Depending on where you grab the objects it seems not to snap to grid. But if you grab a corner you will snap to the grid. Also check that you did not group the triangle and circle on the left.
Select the geometry you wish to move:
select everything you wish to move and put the cursor at a node which you want at a grid intersection, click and drag to the grid intersection:
Thanks Guys
It’s the old node trick.!
