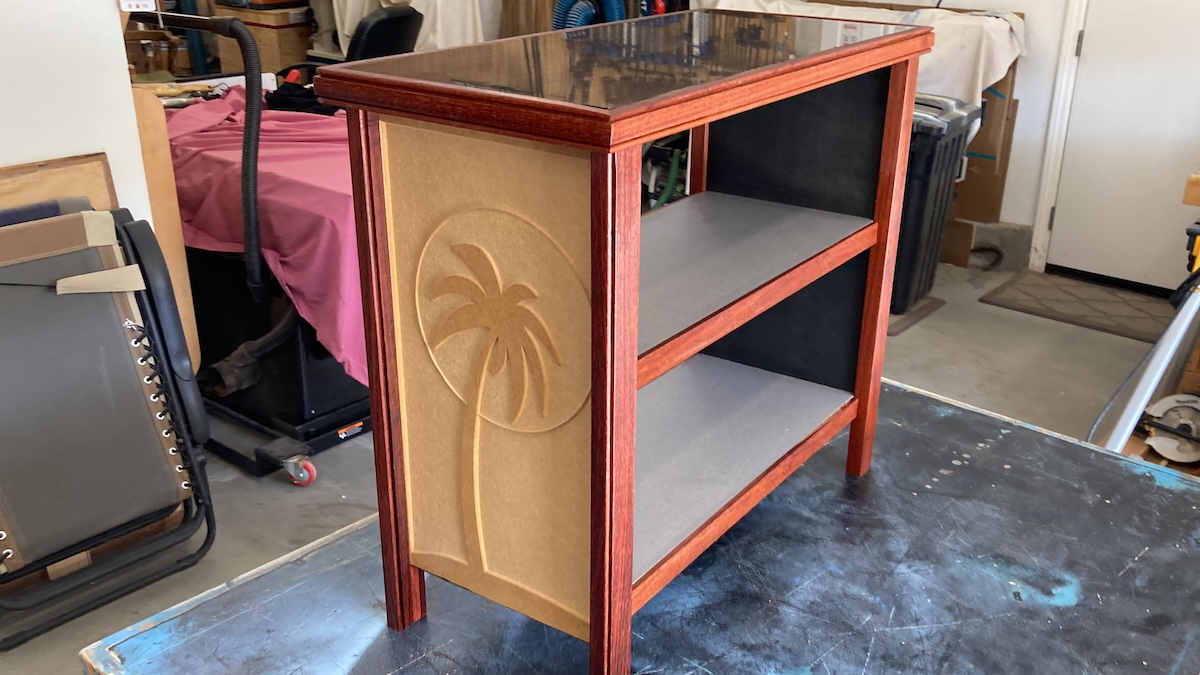

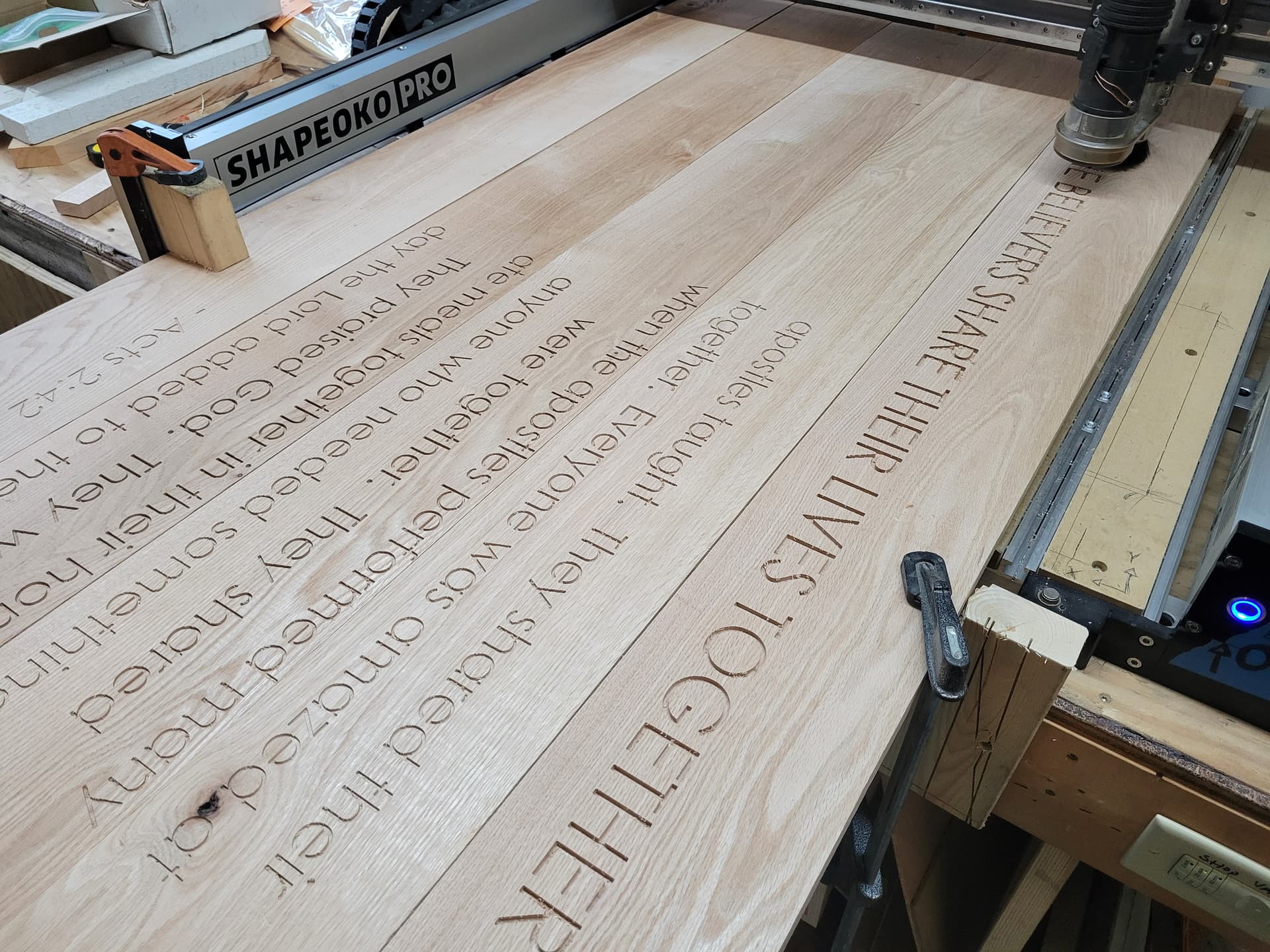

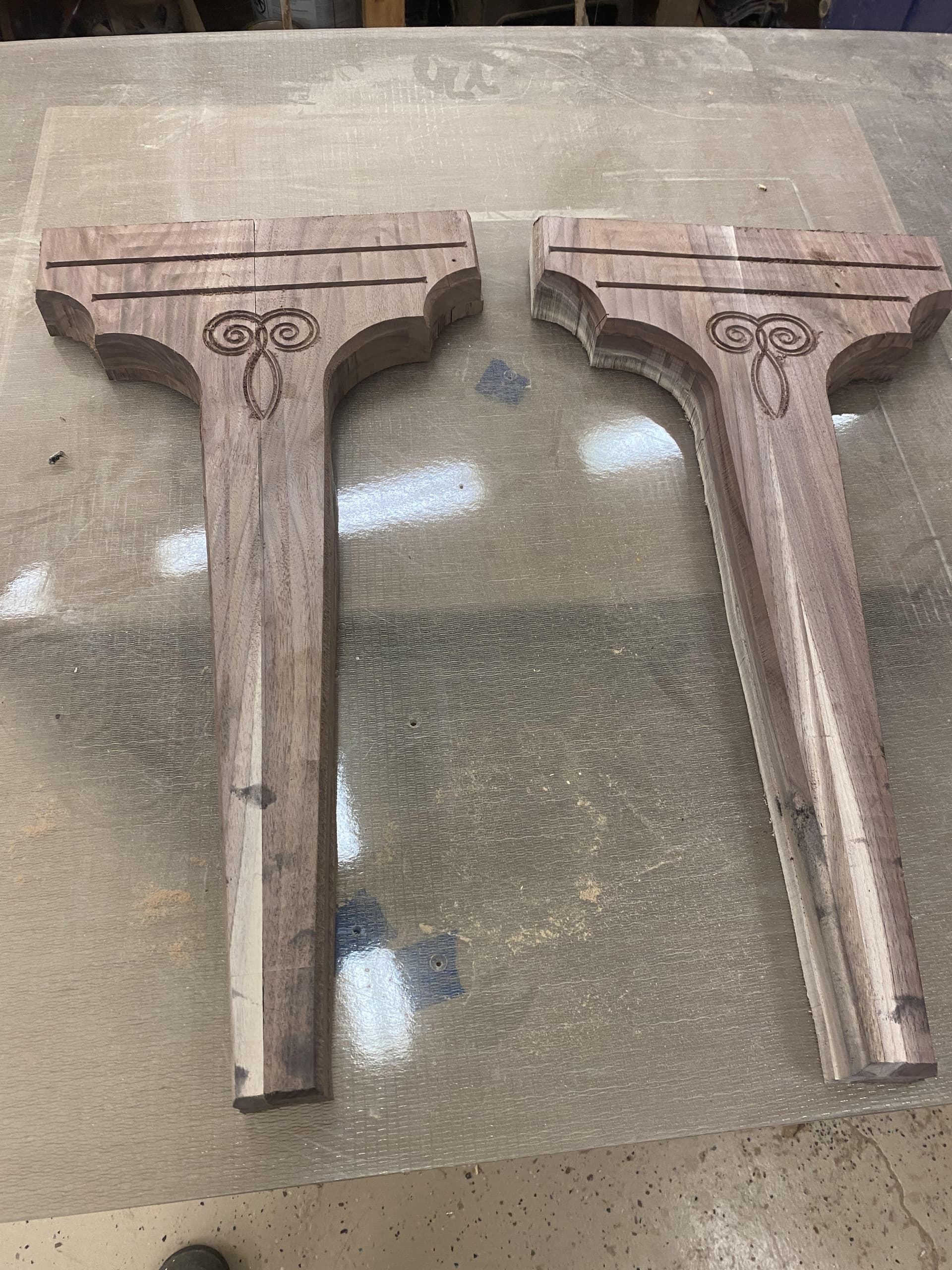

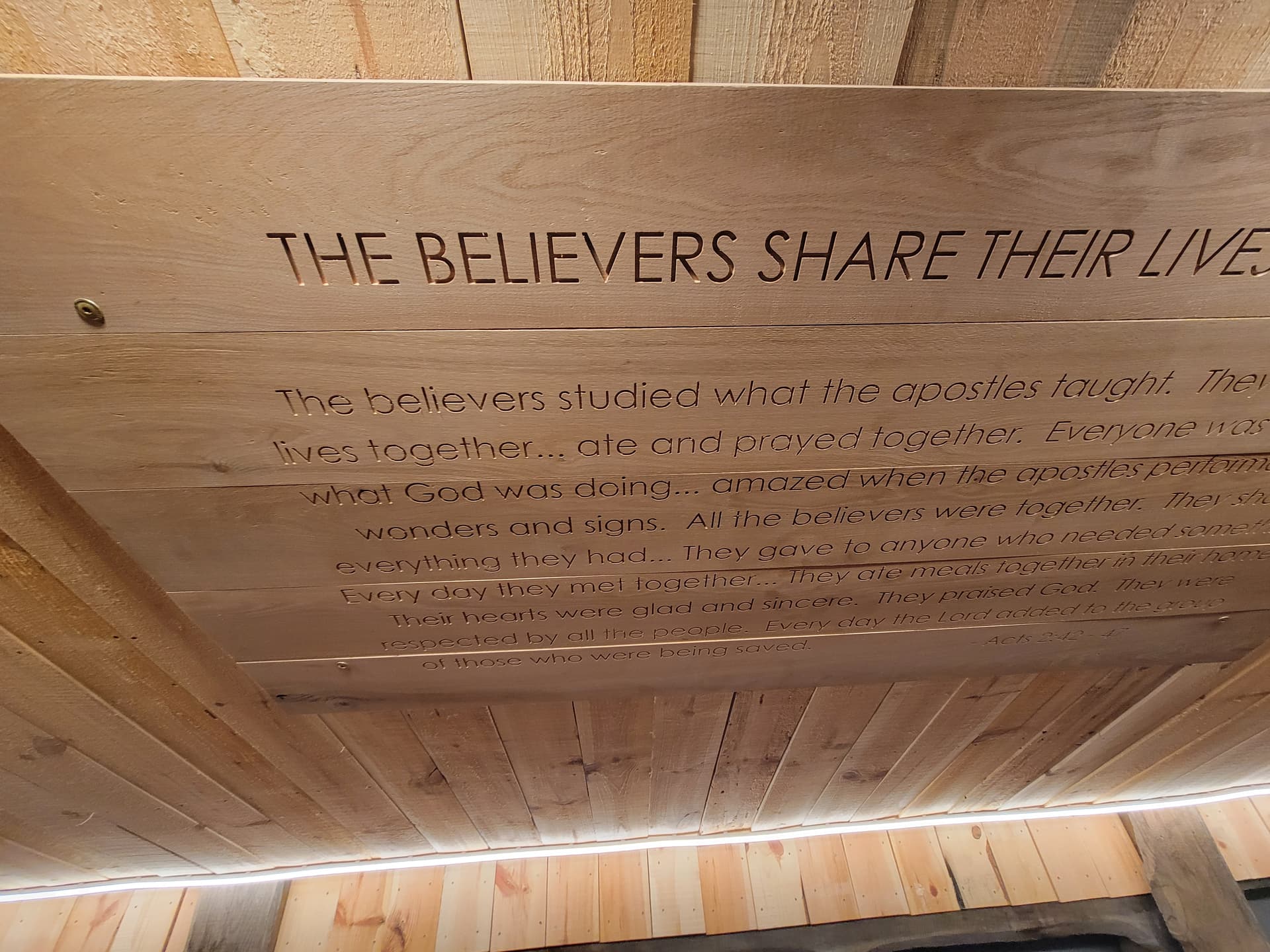

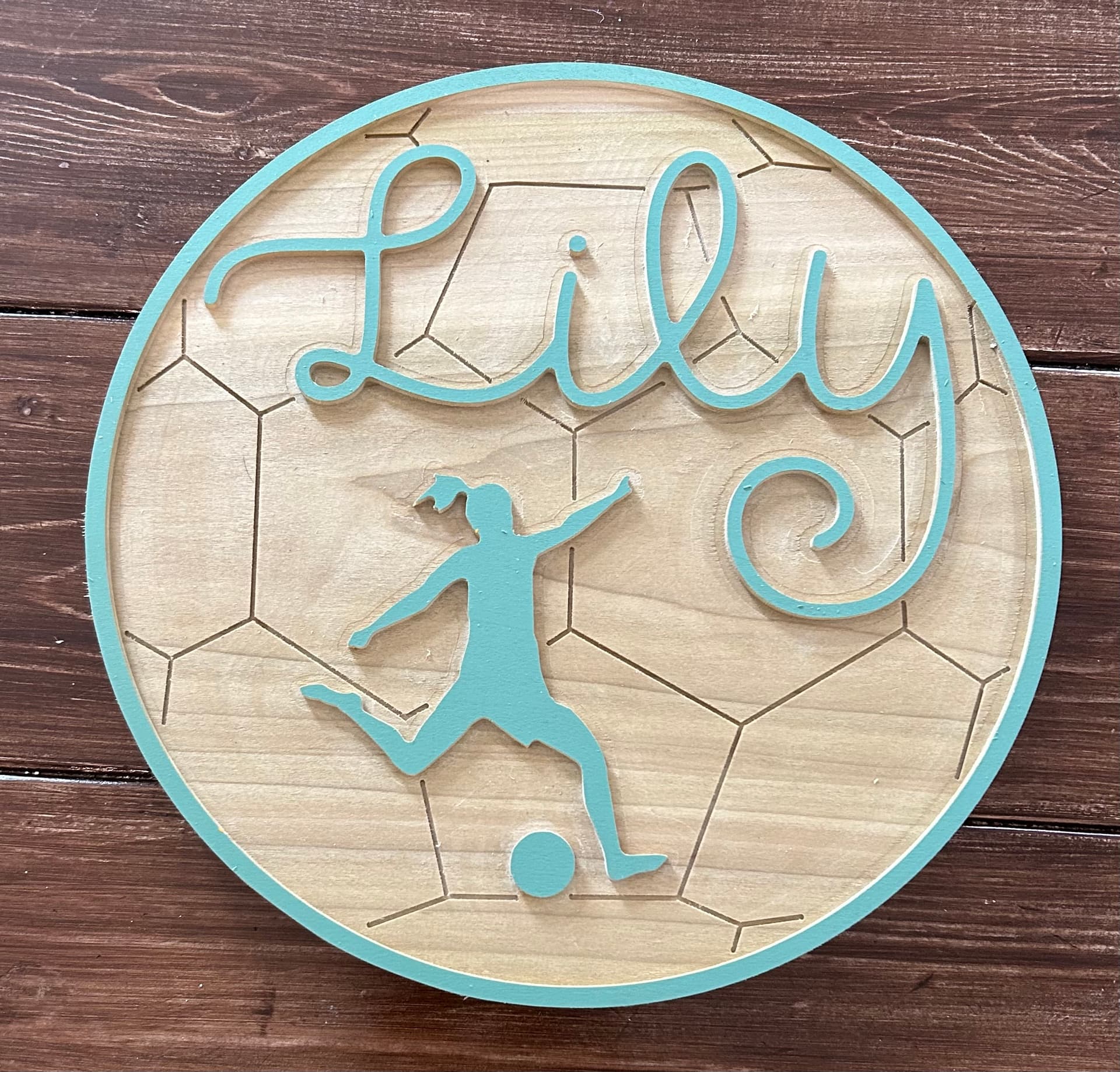

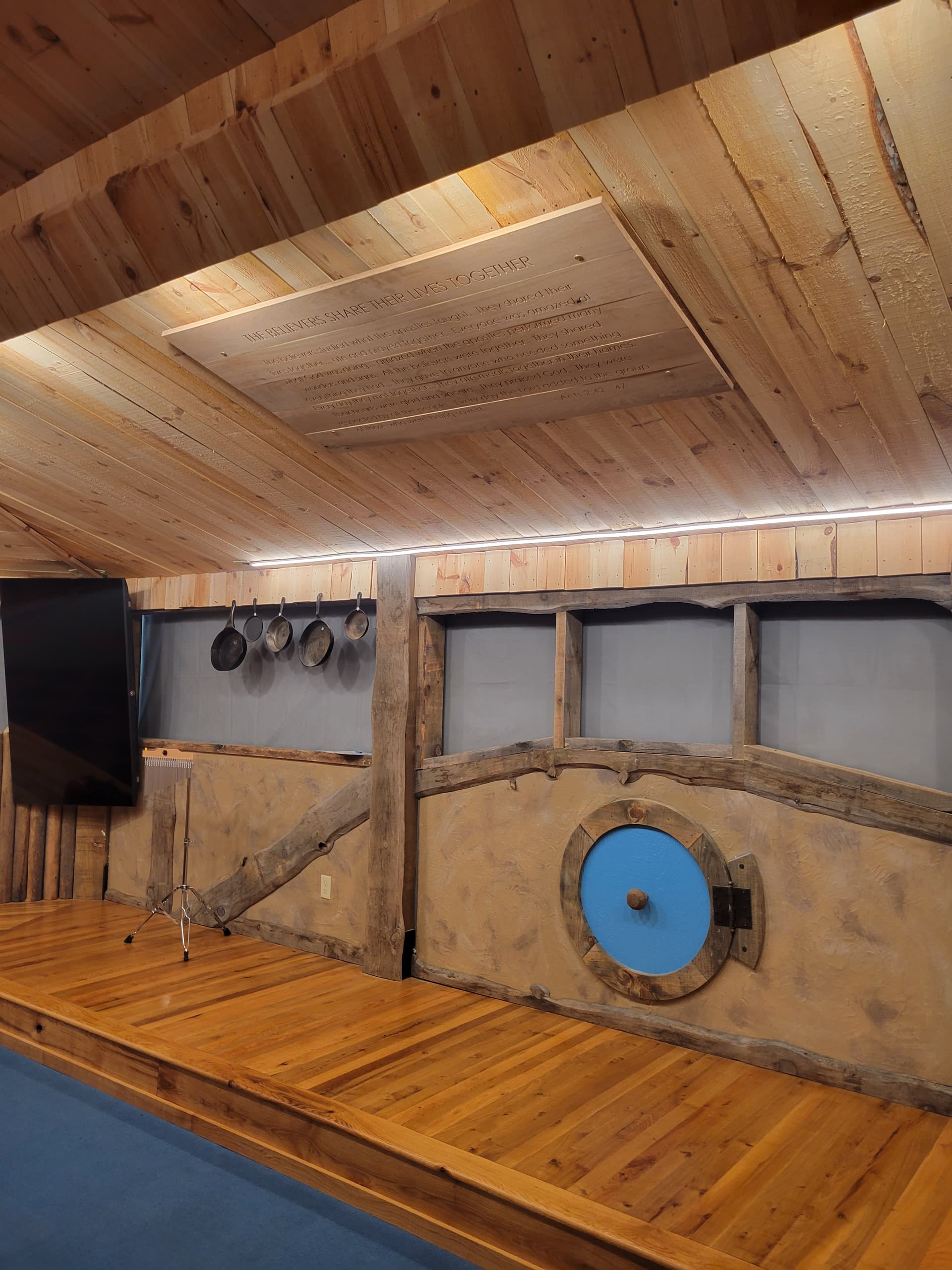

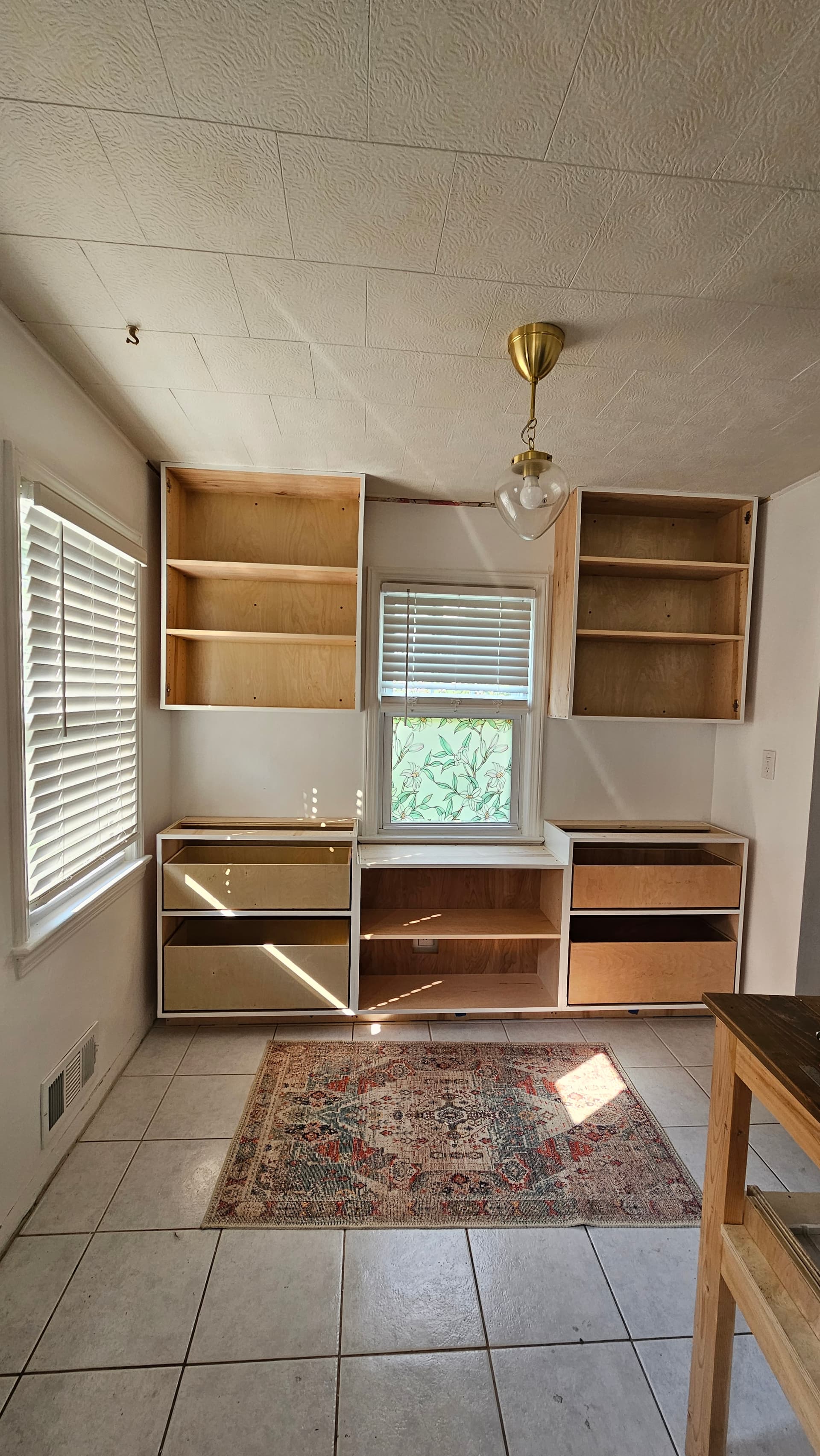

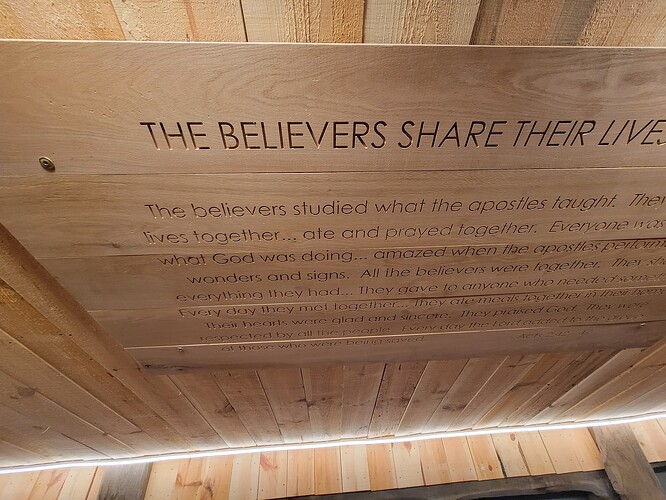

Big verse sign. We decided last second to leave it unpainted and rely on the nearby stage lights to cast shadows into the letters.
21 Likes
that came out amazing.

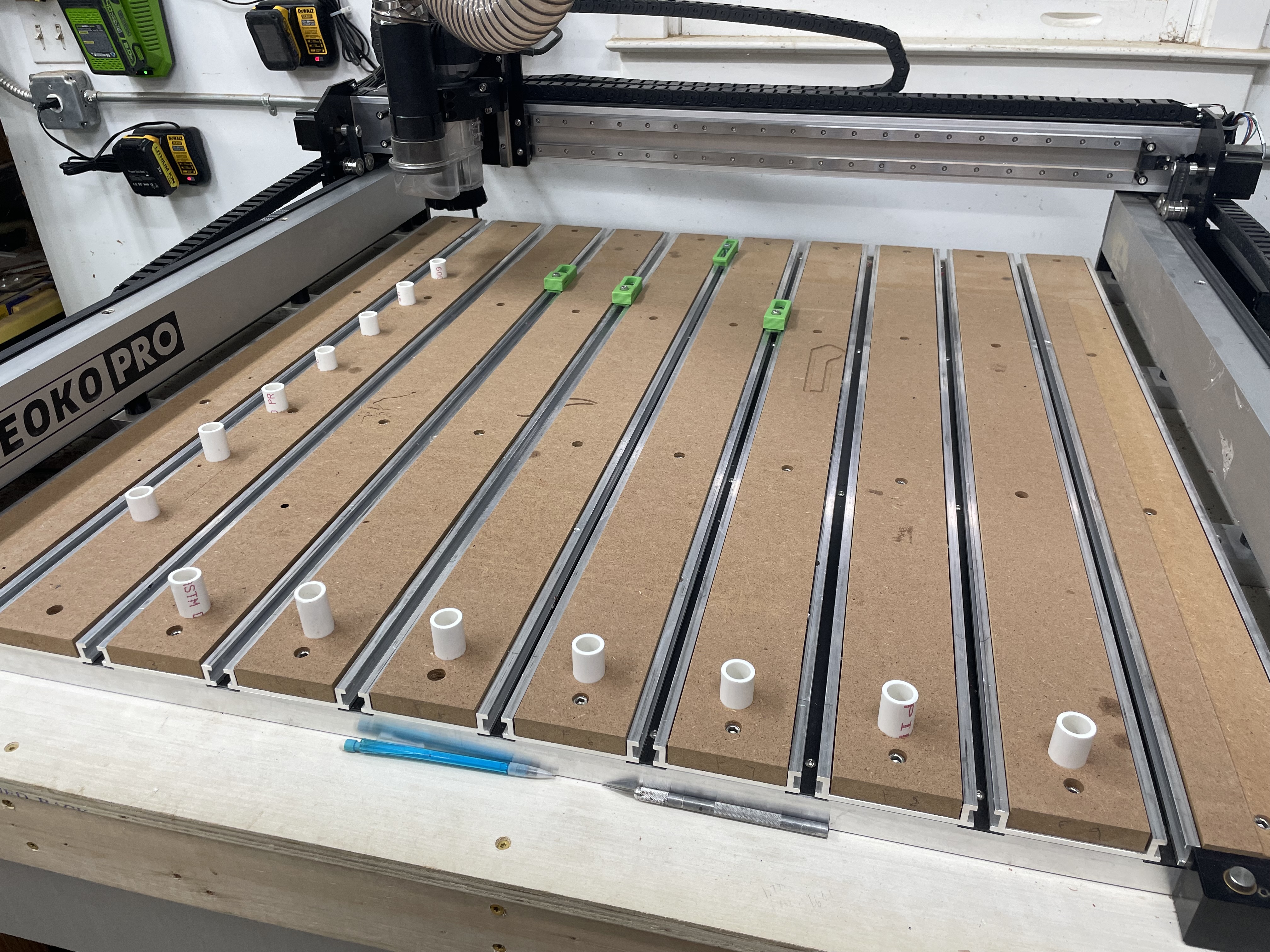

Anyway you would be willing to share the file? I have been thinking about doing this for awhile but haven’t taken the time. I know that I would need to verify the OD of the pipe used.

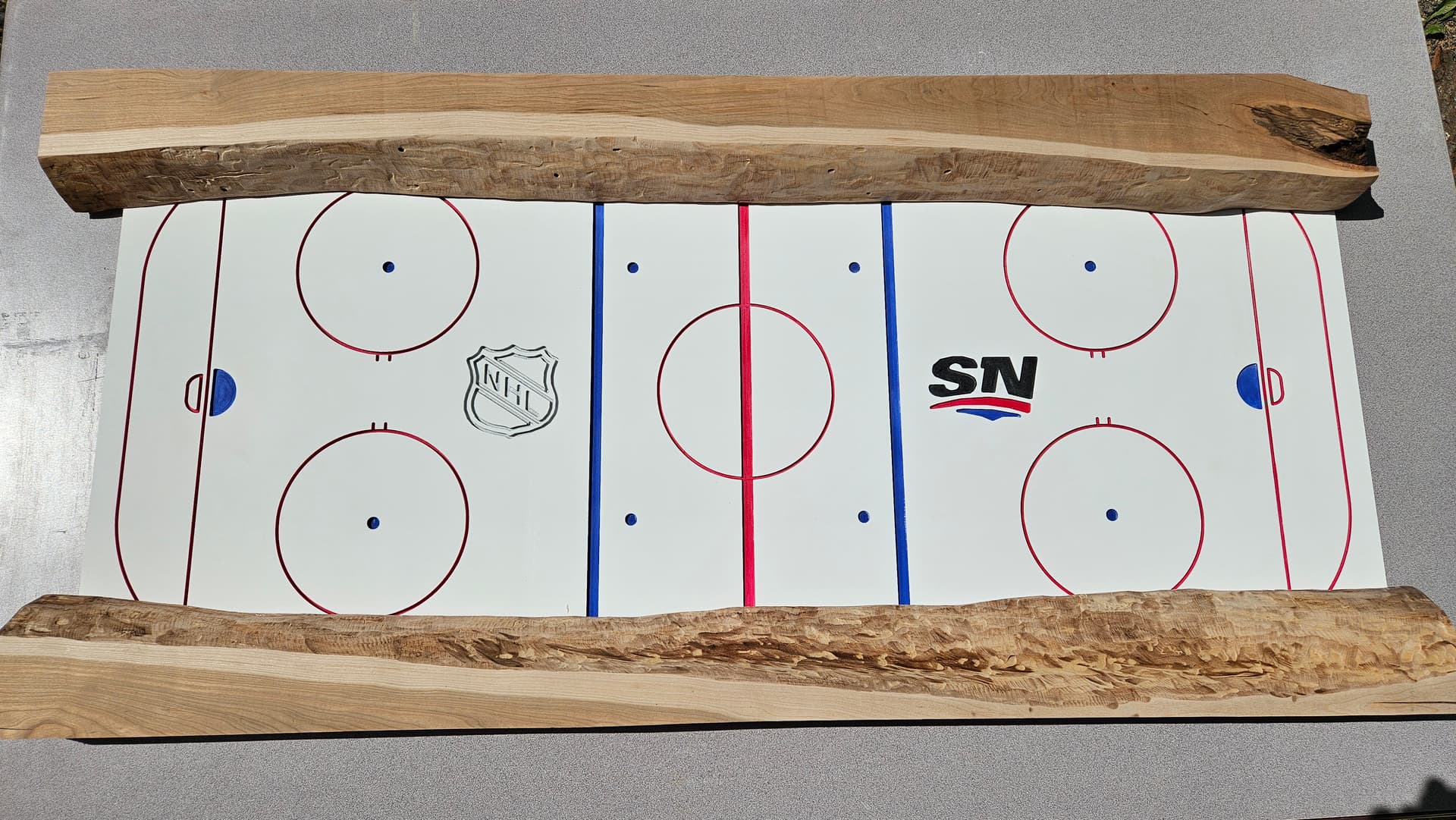

Contour and pocket, hand painted.
Live edge still needs sanding and stain.
End with a clear resin pour.
S5 made this happen! Very excited to finish soon. It needs a team puck in the center as well.
SN is the Canadian ESPN
3/8" PVC board
11 Likes
Mine is set up for the Pro XXL, not the 5
Pro. Also my file is in Vcarve but I can export the SVG and load into CC if
You want it.

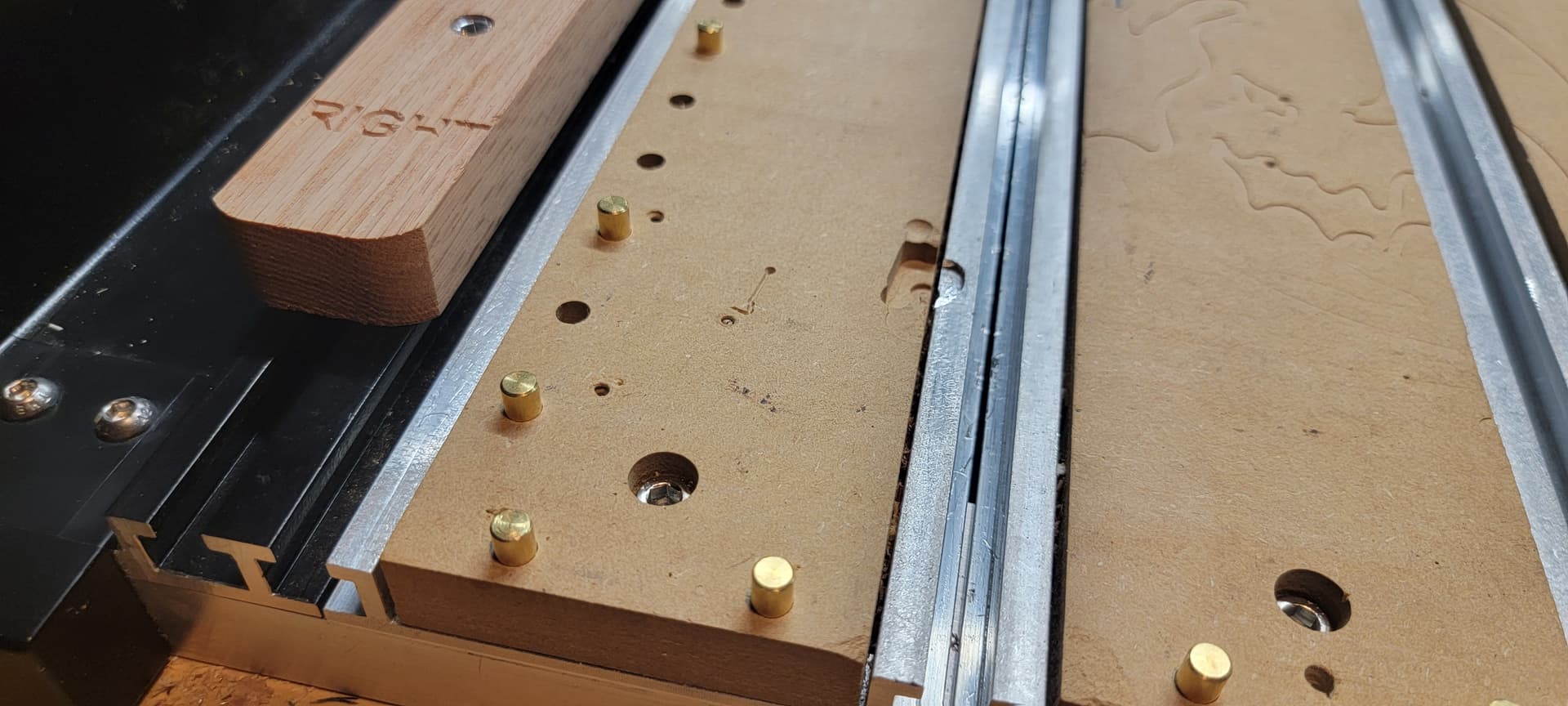

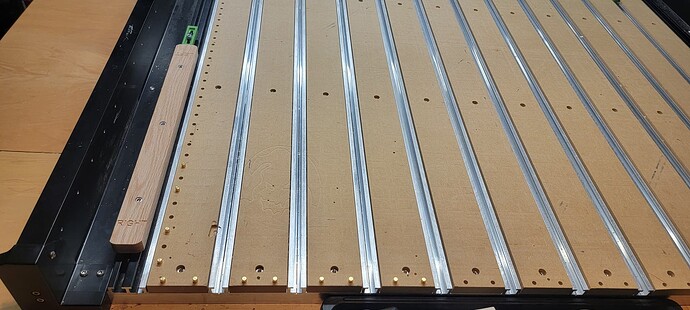

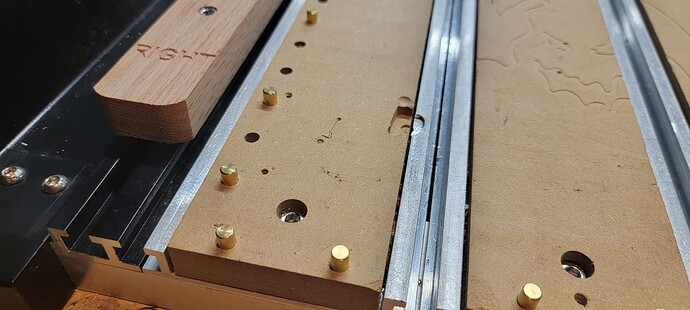

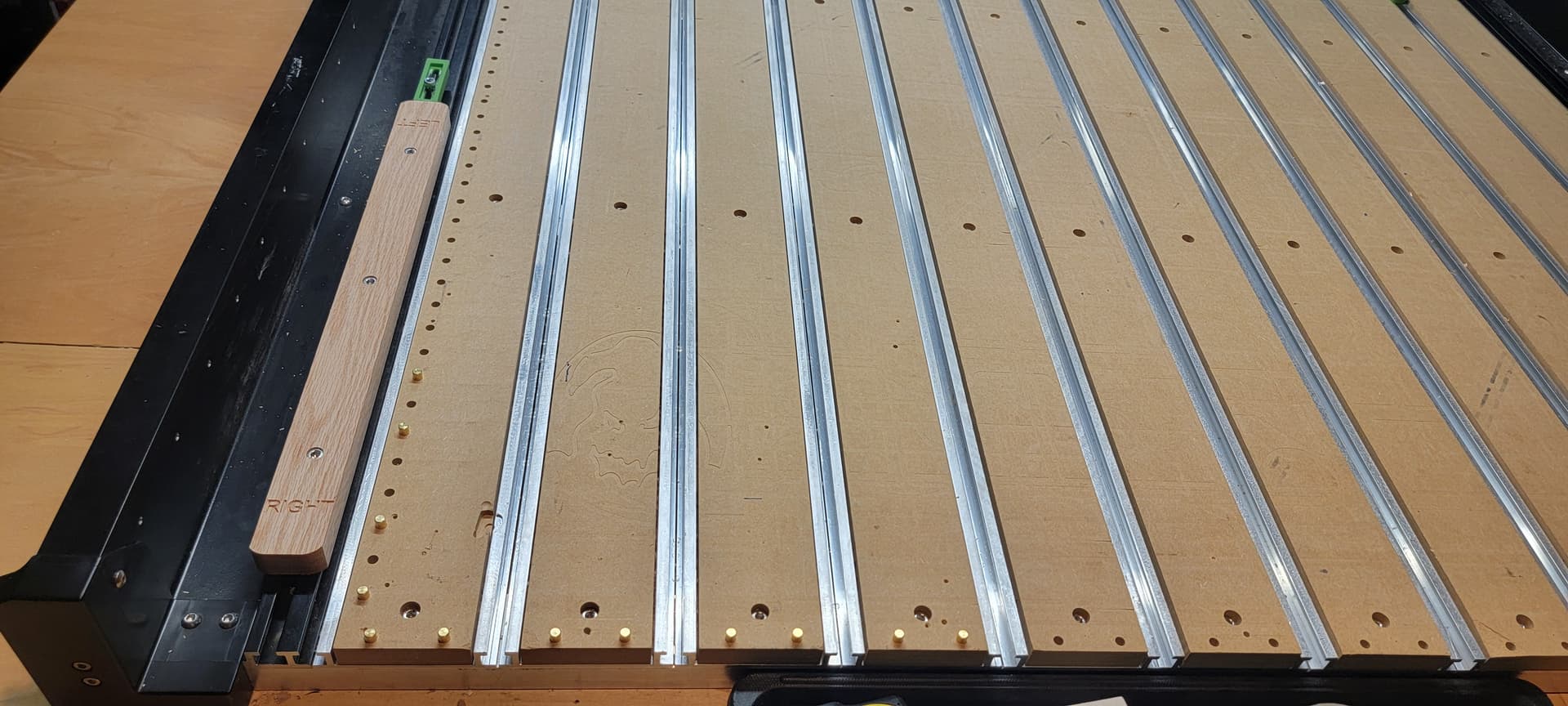

A buddy of mine used plastic dogs for his. I am not sure if that is better or not.
https://www.amazon.com/dp/B0BV6NBFJF?ref=ppx_pop_mob_ap_share
1 Like

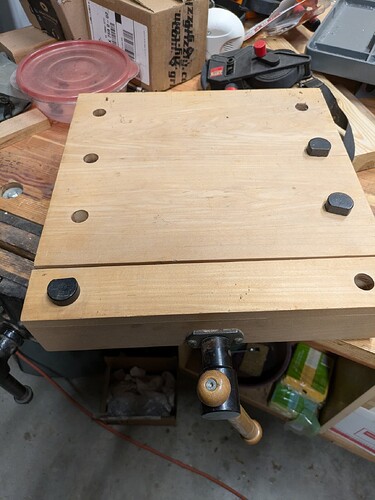

Thanks for reminding me I needed some dogs for a portable vice I bought a while back. It had 3 of the 4 dogs. Mine are not the 20MM but 19MM (.75") so that reminded me I needed some of those dogs.
I picked this up at a garage sale for $10.00. Those vises go for up to $200.00. It is funny how sometimes random things trigger you get what you need.
Thanks.
8 Likes
I have the Pro XXL also, and I use Vcarve as well. Would love the file if you don’t mind.
Sure. No problem. I am on the road right now but can send it this evening.

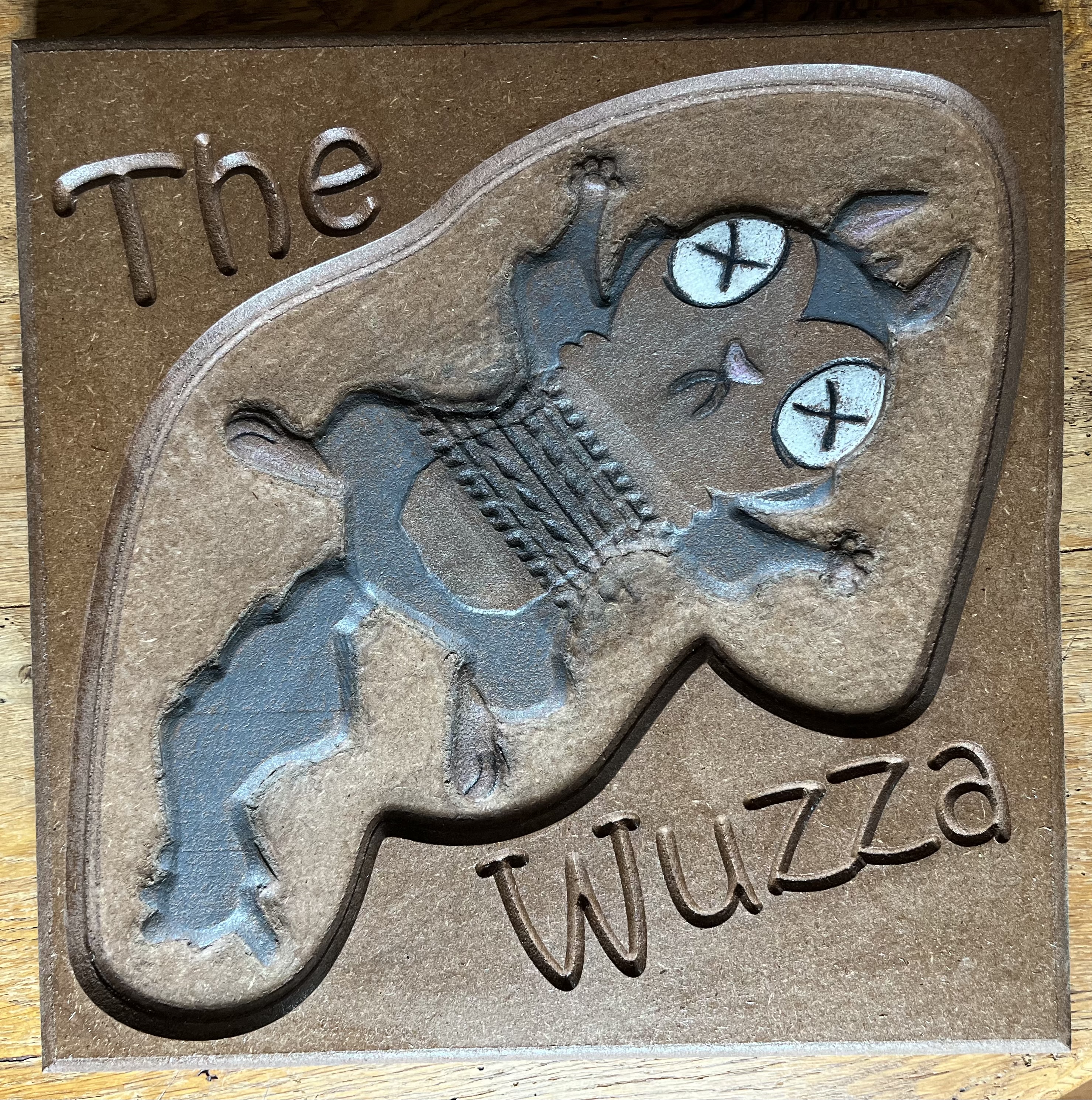

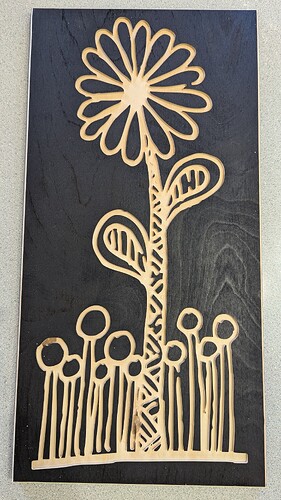

just a little project for learning stuff, 10"x20". carbide create trace of part of a drawing my daughter did. cut with 1/8" mill, and I see a few spots where I need to tweak the path some where the gap ended up to0 small if I’m going to cut again, but overall pleased with how it came out.
24 Likes
Sent you a DM with the file and some instructions.

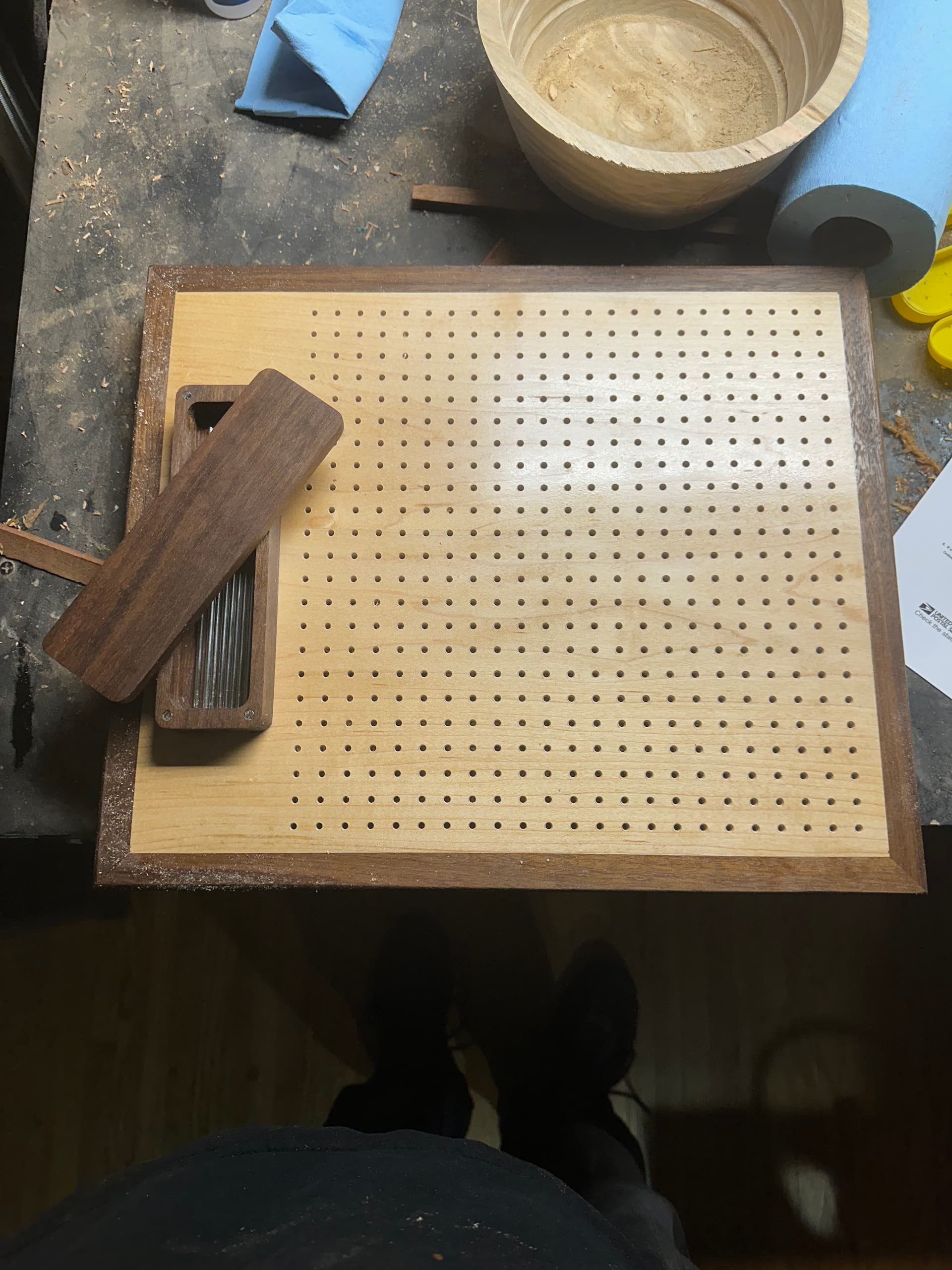

Granny square crochet blocking board. 14"x12" hard maple with American black walnut border and pin box. 23 x 23 hole array on 1/2" centers. 6" stainless steel pins (30). semi-gloss polyurethane over Tung oil.
12 Likes
So do you do the crocheting or is it a gift? It looks very nice. Did you do pockets for all the holes or a drill tool path. What tools did you use to make all the holes?
Tell us how you did it. @ksangree
@gdon_2003, I have made two of these as gifts. The project was created in in VCarve Pro and machined on a Shapeoko 5 Pro 4x4 w/ C3D VFD/spindle. I placed one 1/8" hole and then created a 23 x 23 array.
The toolpath is a drilling toolpath. I used the 1/8" Extreme Performance CNC drill bit from IDC Woodcraft: 17,000 RPM, 60 ips plunge speed, no pecking. I followed up the drilling operation with a chamfer. The chamfer toolpath is drilling, with a 0.125 depth with a 60-degree V-bit.
6 Likes

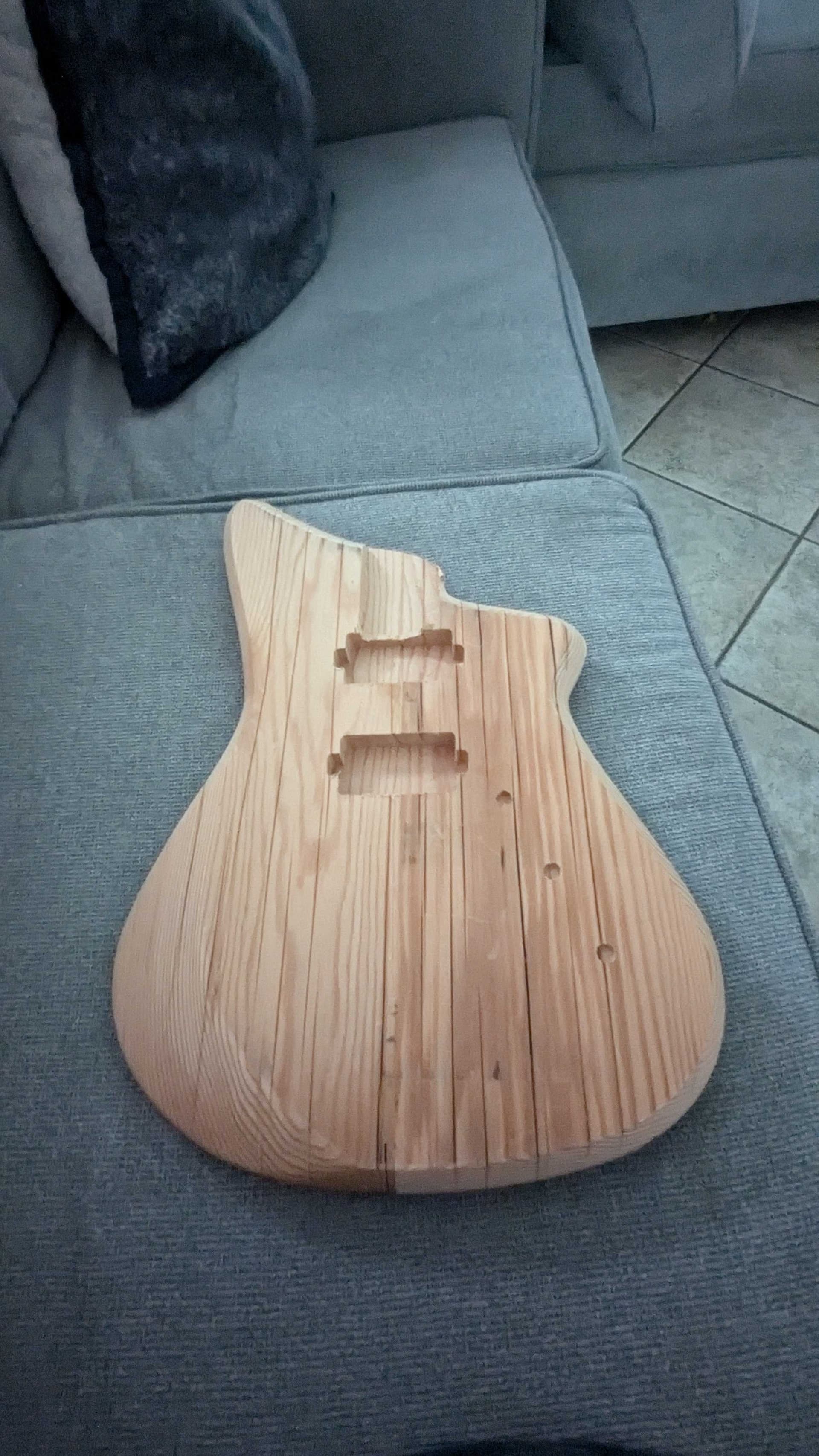

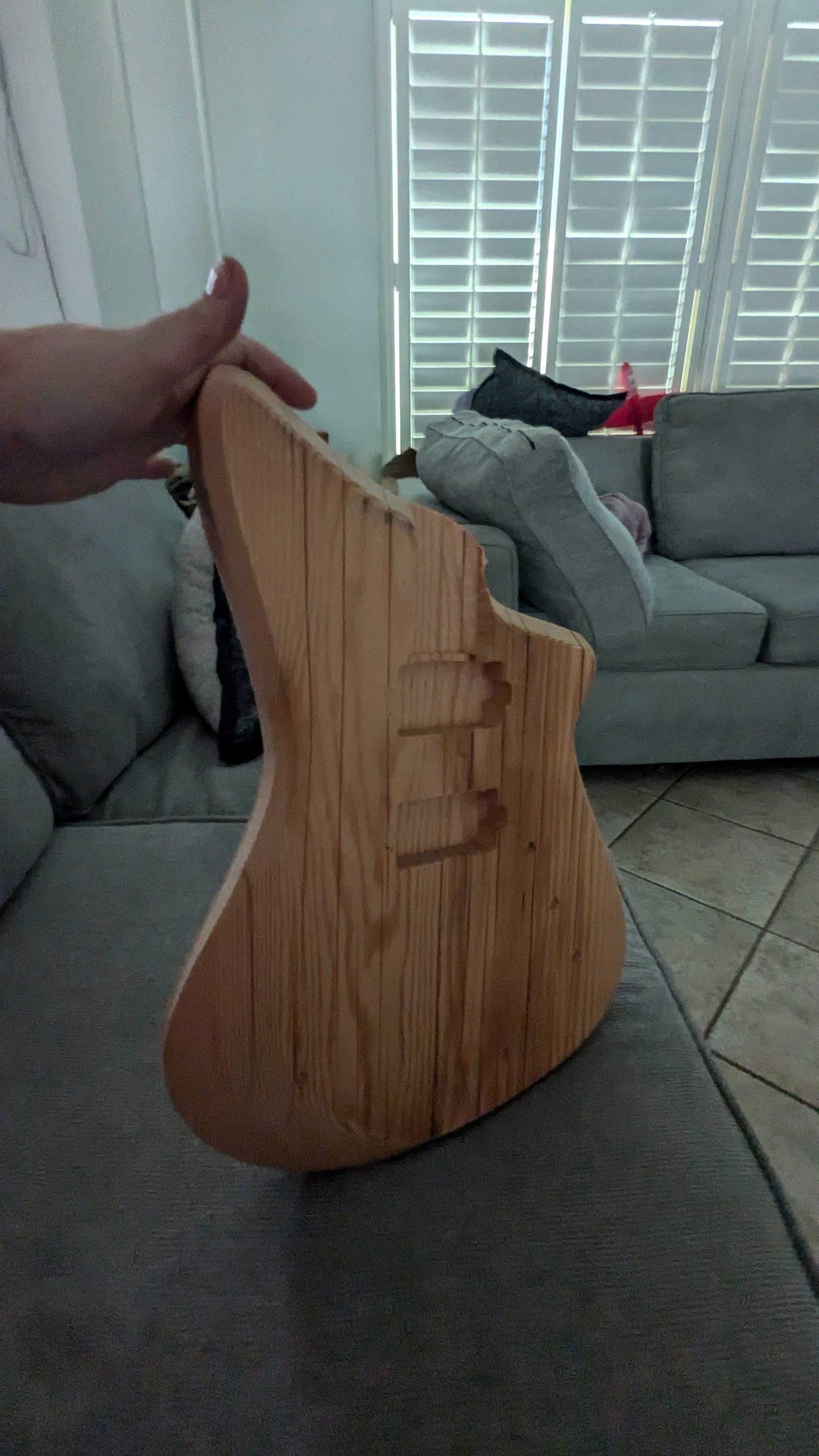

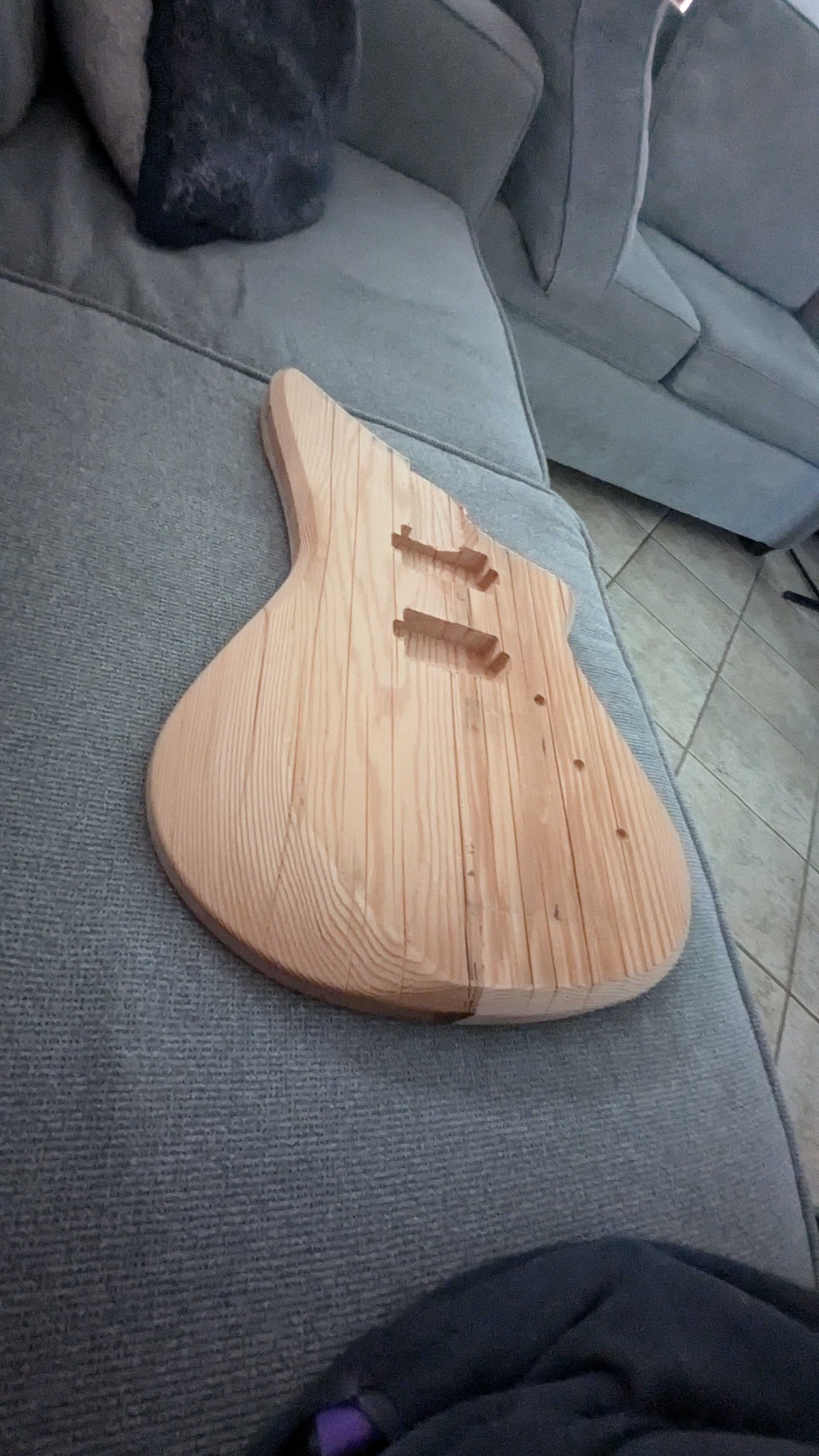

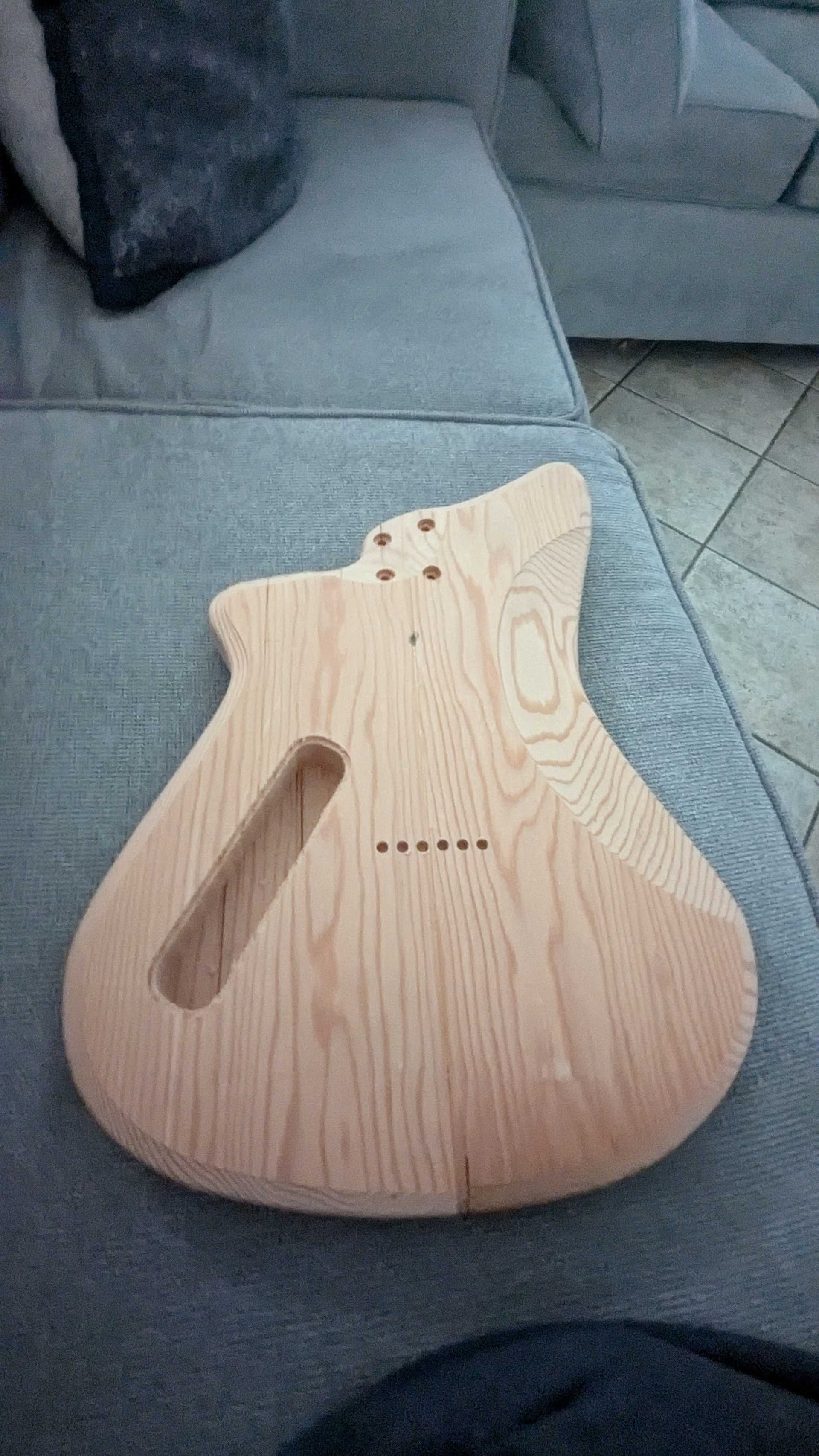

First guitar body to come off the machine. First start-to-finish 3d carving project using Fusion360 + Gsender instead of CC/CM. It has a few rough edges, CAM needs some tweaks It’s just a scrap body blank, but I’m making good progress! I had a few botched attempts with foam and other scrap blanks, but this one is serviceable.
I don’t like the idea of blue tape + CA glue, so my workholding was the crush-it stops and clamps with a centerline drawn on my wasteboard for alignment. I use a lot of multi-piece body blanks, so zeroing off of centerline and visually aligning my stock so I can cut my piece out of most attractive section is important to me. I’m really happy with the alignment on the flip-milling, and I will probably create a fixture in the future so I can zero off the corner with my Bitzero and machine based on some engraved alignment markers.
It’s progress! Now to figure out cam for necks and fretboards!
30 Likes
Nice! Love the shape of that body. Is than an original design?
Re: CAM for fretboards and necks, Austin Shaner on Youtube has some great videos that helped me a lot: https://www.youtube.com/watch?v=phY2aoCqX9k
2 Likes
Yep, it’s original. I got ideas for body shapes by mashing guitars together in Midjourney, and when I stumbled upon one I liked, I modeled it up in Fusion.
Thanks for the link! I’m a member of Austin’s discord and his videos are what have gotten me this far
2 Likes
This is gorgeous - how did you make the texture, was it in Carbide Create or something like Fusion 360?
It was a purchased pattern that came as an STL. I used a very small section of the pattern (it was a 28" square pattern and I used a 4" strip that was 28" long) to avoid any repeats. I also played with the depth of cut until I got the look of a “gouged surface” that I was looking for. It called for the use of a specialized bowl bit as well Amana 42954 .
Thanks for the reply - makes sense. Thanks for the link. I have been trying to figure out how to do a gouged surface look, and I thought yours looked great.
