Help needed for 2.5d carving

[Emmess (Matthias Solga)]

this project, done in 2d
queen.c2d (60 KB)

is the first attempt to re-do this set:

Need some tutoring how to make a semi 3d project. I think I saw it somewhere, but cannot find it.

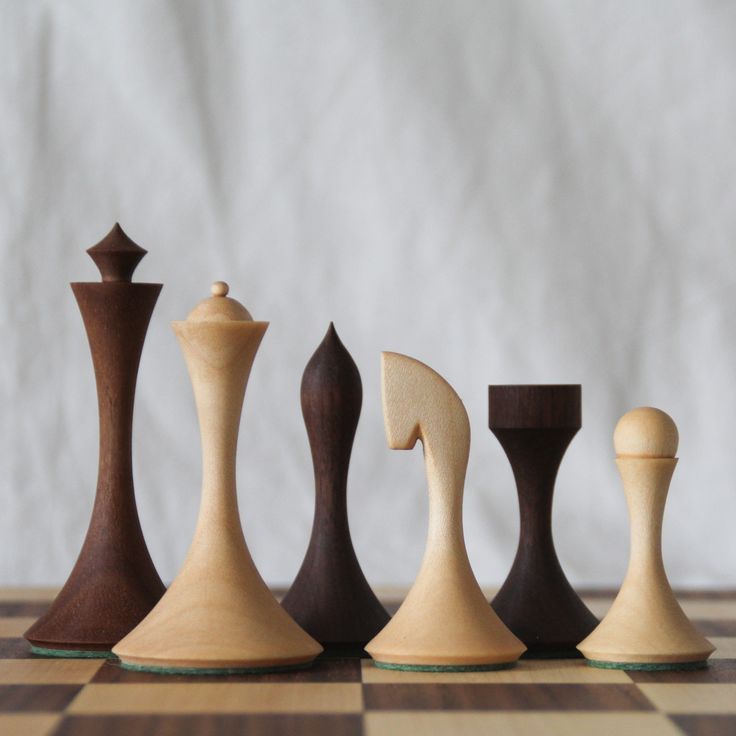

(I talked to the artist who designed these pieces, and he gave me allowance to do so, if I succeed I will present him my result, and maybe he agrees to sell the items. Would make me proud, so far it is the nicest set of chess pieces, nicest design, I ever saw. It is Paul Joshua Schneider btw, chess — Paul Joshua)

[WillAdams (William Adams (Carbide 3D))]

These would pretty much want to be made by 3D modeling/cutting on a lathe/4th axis.

Import the SVG into Alibre Atom3D and Revolve it?

That said, you’ll pretty much want a 4th axis/lathe…

[WillAdams (William Adams (Carbide 3D))]

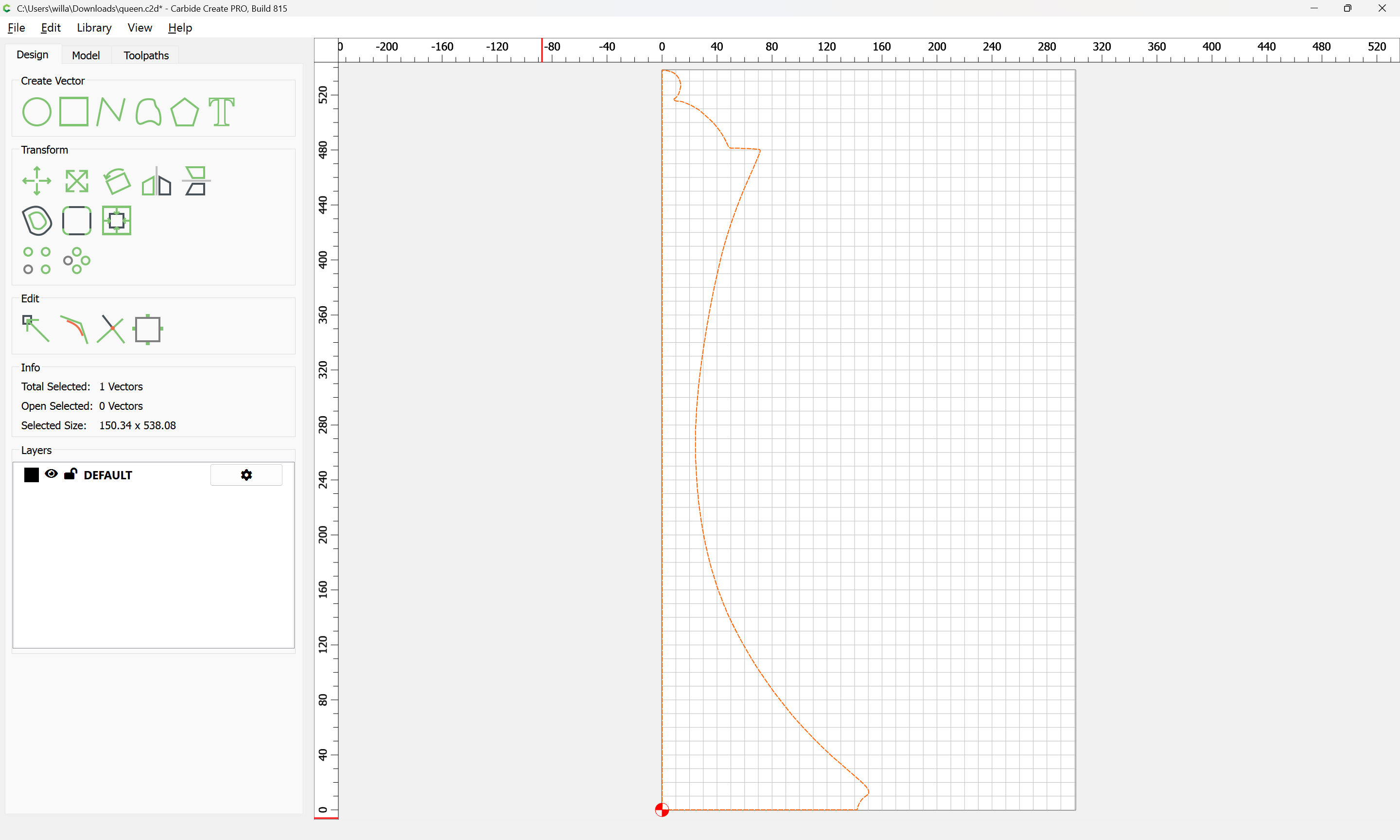

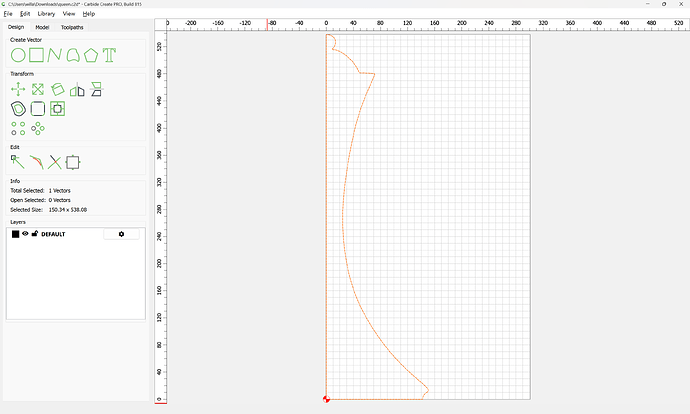

If you reduce the outline to half:

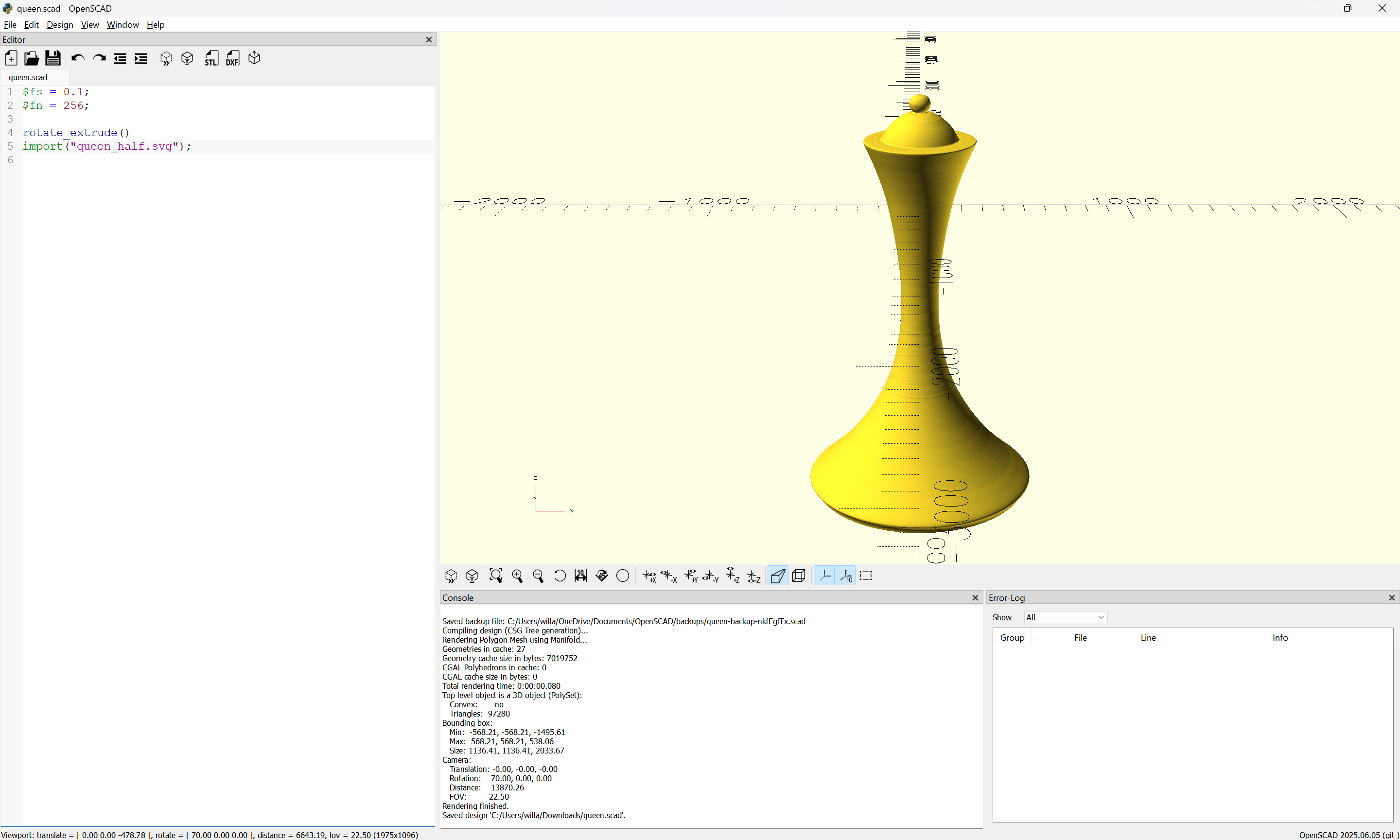

then save as an SVG, the SVG can be imported and rotate_extruded in OpenSCAD:

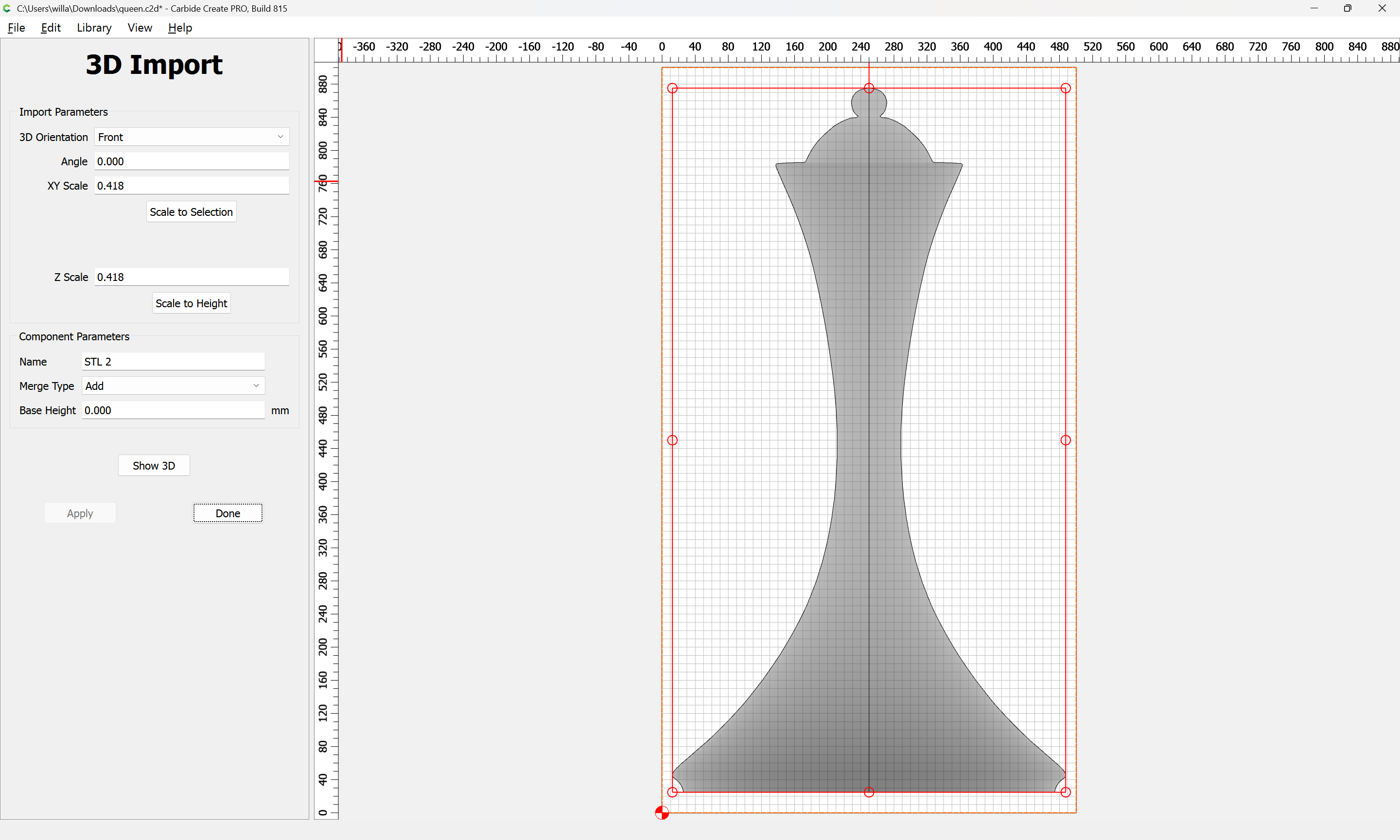

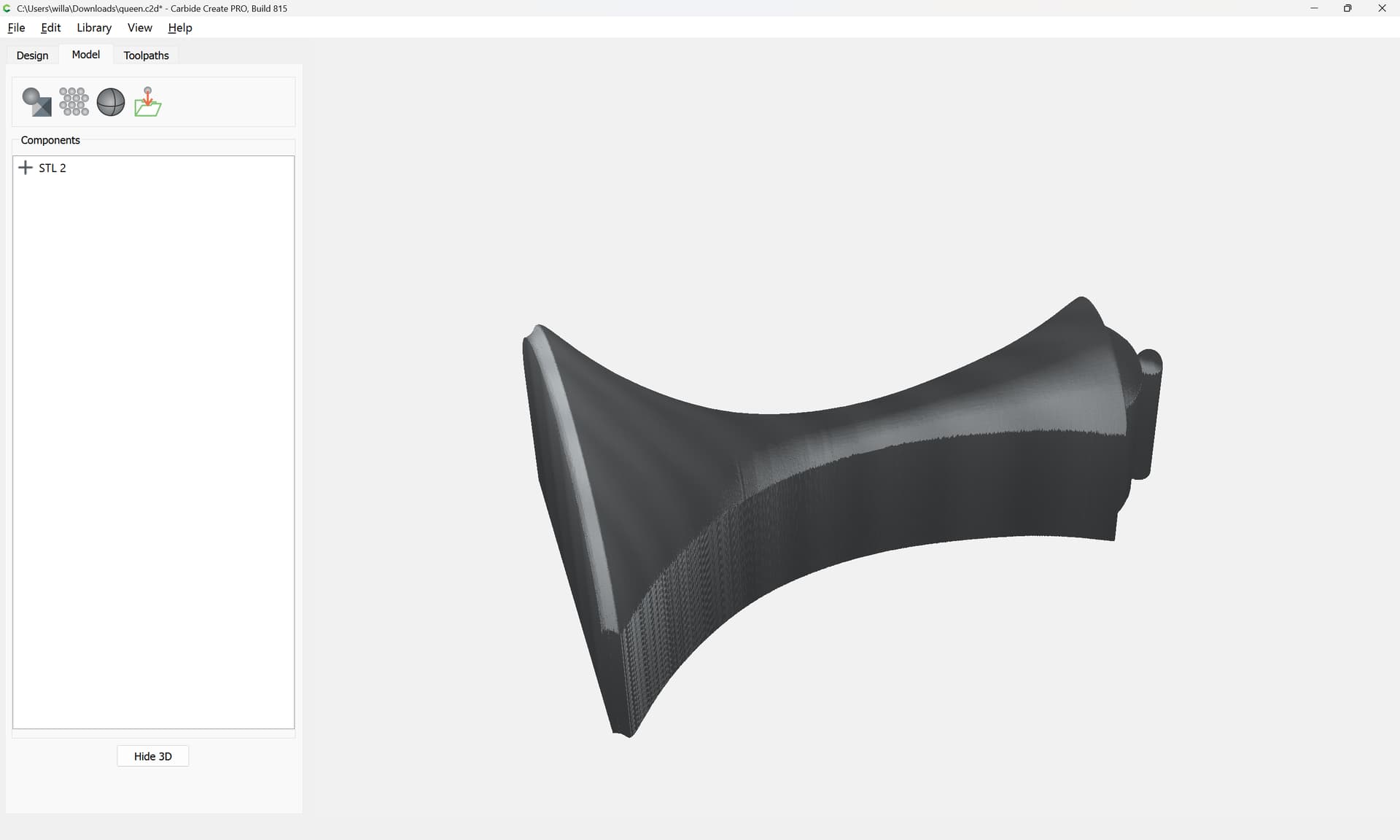

which can then be exported as an STL and then imported into Carbide Create Pro:

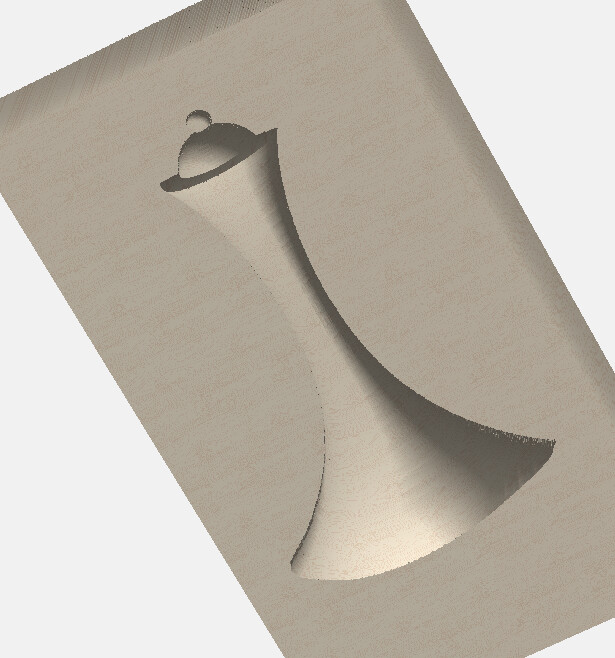

and cut as a 2-sided flip job using 3D toolpaths.

[WillAdams (William Adams (Carbide 3D))]

The Knight of course will require some 3D modeling/editing — perhaps use Blender on the STL?

Or model it completely using Alibre?

[WillAdams (William Adams (Carbide 3D))]

Or, go full-bore and draw it up in profile and do something along the lines of:

Making a base for a model

Given a prototype base: [image] How to make it in Carbide Create? First, we have a pixel image with some dimensions: [F-86 base scan with measurements] We import that into Carbide Create: [image] using “Set Background”: [image] and adjust for size: [image] [image] It’s then a matter of drawing and toolpaths and so forth (we will try to do it w/o Create Pro, but will also show that). For reference, there is an overhead view as well: [DSC00036]

or

Spoon Possible without CC Pro?

I’d like to make a wooden spoon and was wondering if that’s possible to do with the standard CC? Can it be done with a bowl bit? I don’t have one but can pick one up. Thanks!

[Tod1d (Tod (with 1 'd'))]

You can get pretty darn close just using CC…

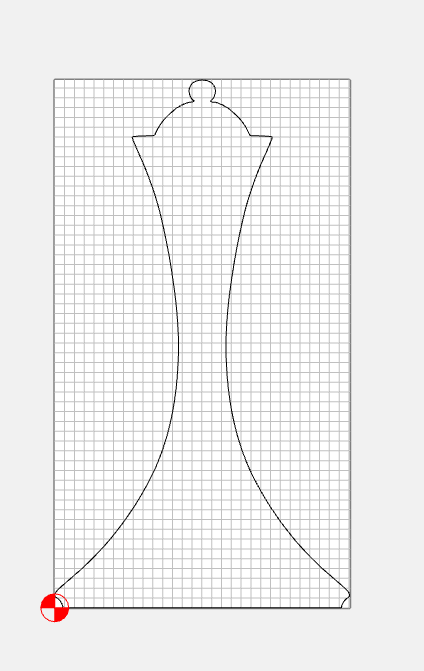

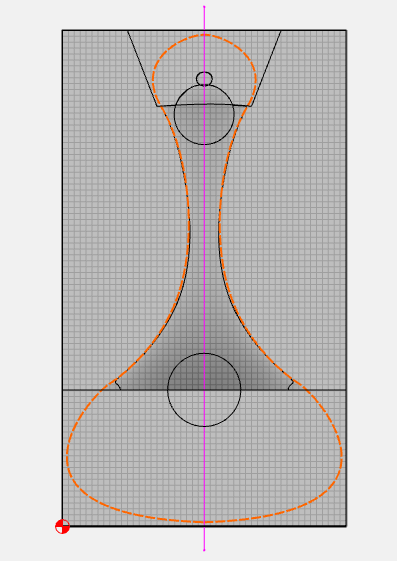

Notice the outline for the main body shape has to be extended to get a good round profile across the body. Then the ends are subtraced away, and the spheres at the top added using MAX merge type. The circle at the bottom/base I used to create a 150mm gage to insure the base was the right height.

[Emmess (Matthias Solga)]

Thanks! I’m having a bit of trouble to dive into 3d-construction and 3d CAD, it is another level than 2d CAD. Thanks for the workaround with the CC what I already use (would not dare to say I know it…)

Will keep you informed about my progress, but don’t expect it too soon.

[Emmess (Matthias Solga)]

William: yes, the lathe is what the designer uses. I never used one, and probably will need some years to achieve only half the perfection the lathe artists show. Will try to use the CNC machine w/o 4th axis. I am encoraged by projects like this https://www.etsy.com/listing/1165744843/scacchi-scacchi-cnc-scacchi-3d-file-di?ref=yr_purchases
and all the wonderful 3d projects with baby butt smooth surfaces on that site here, not the least is Kevin’s alligator door
