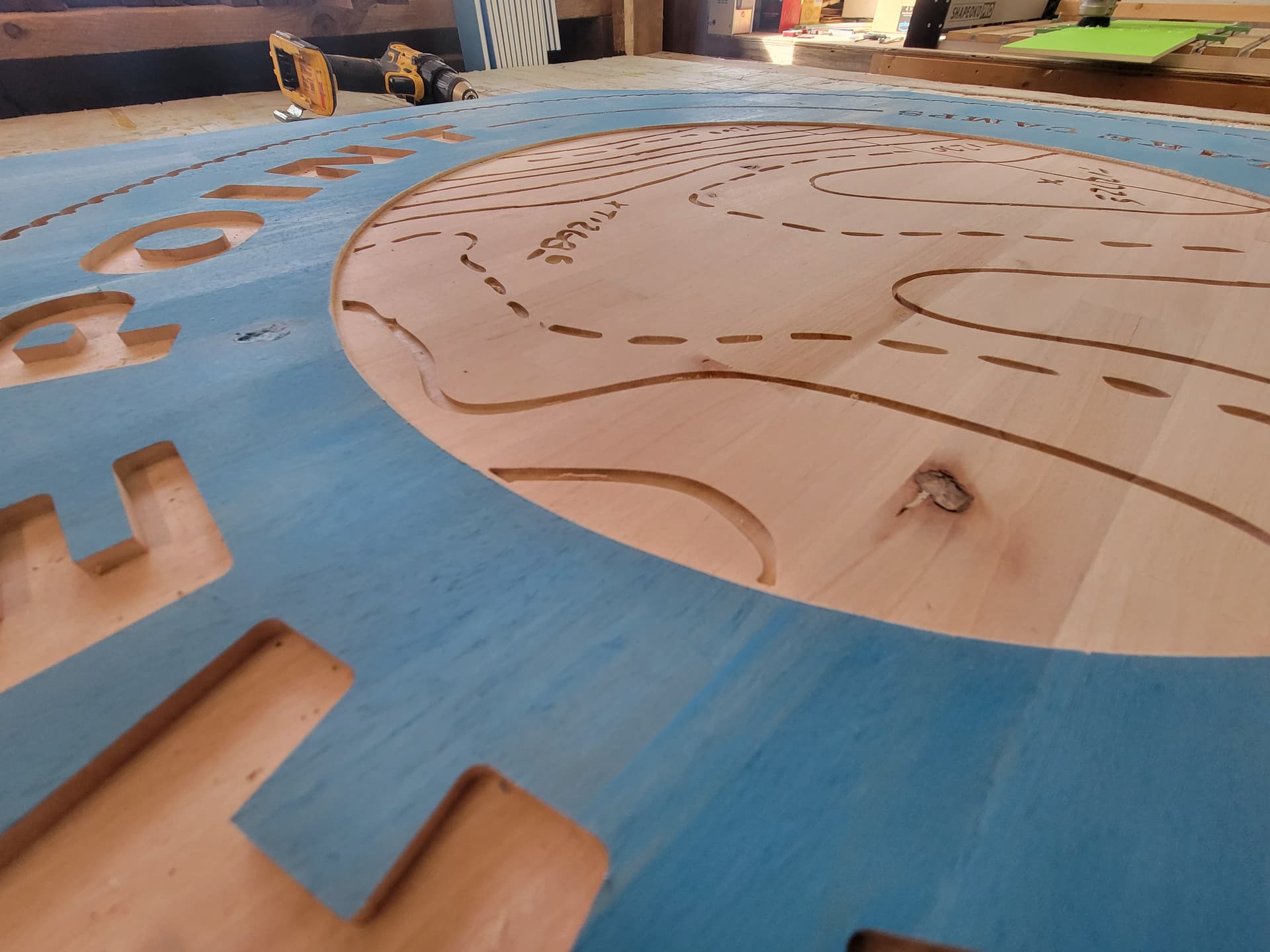

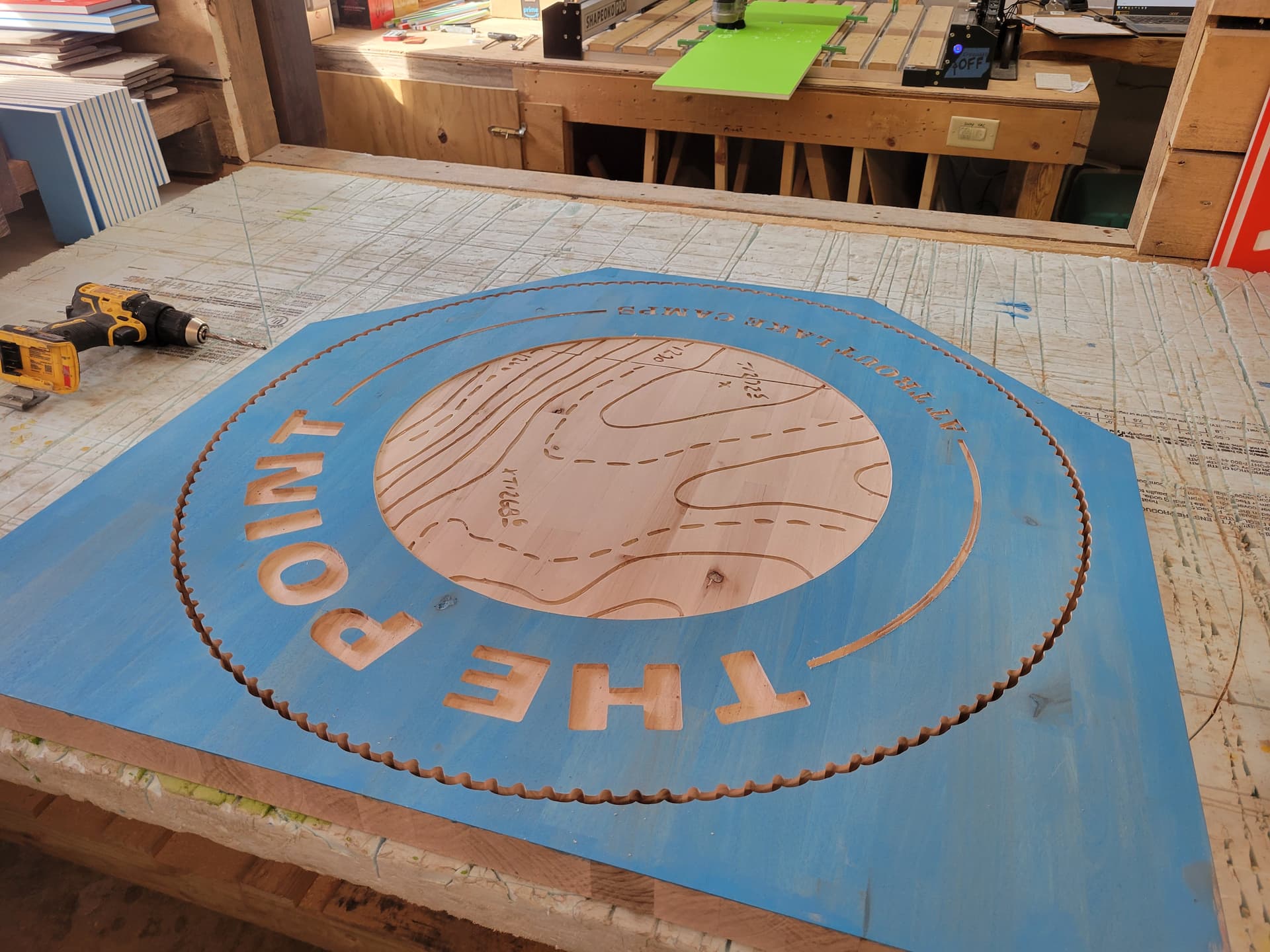

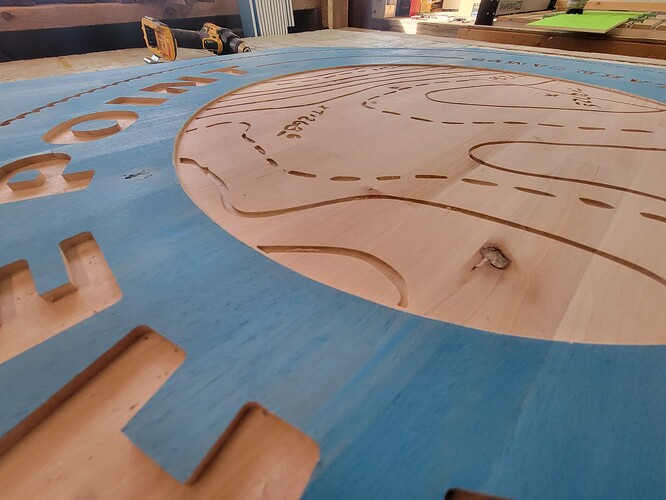

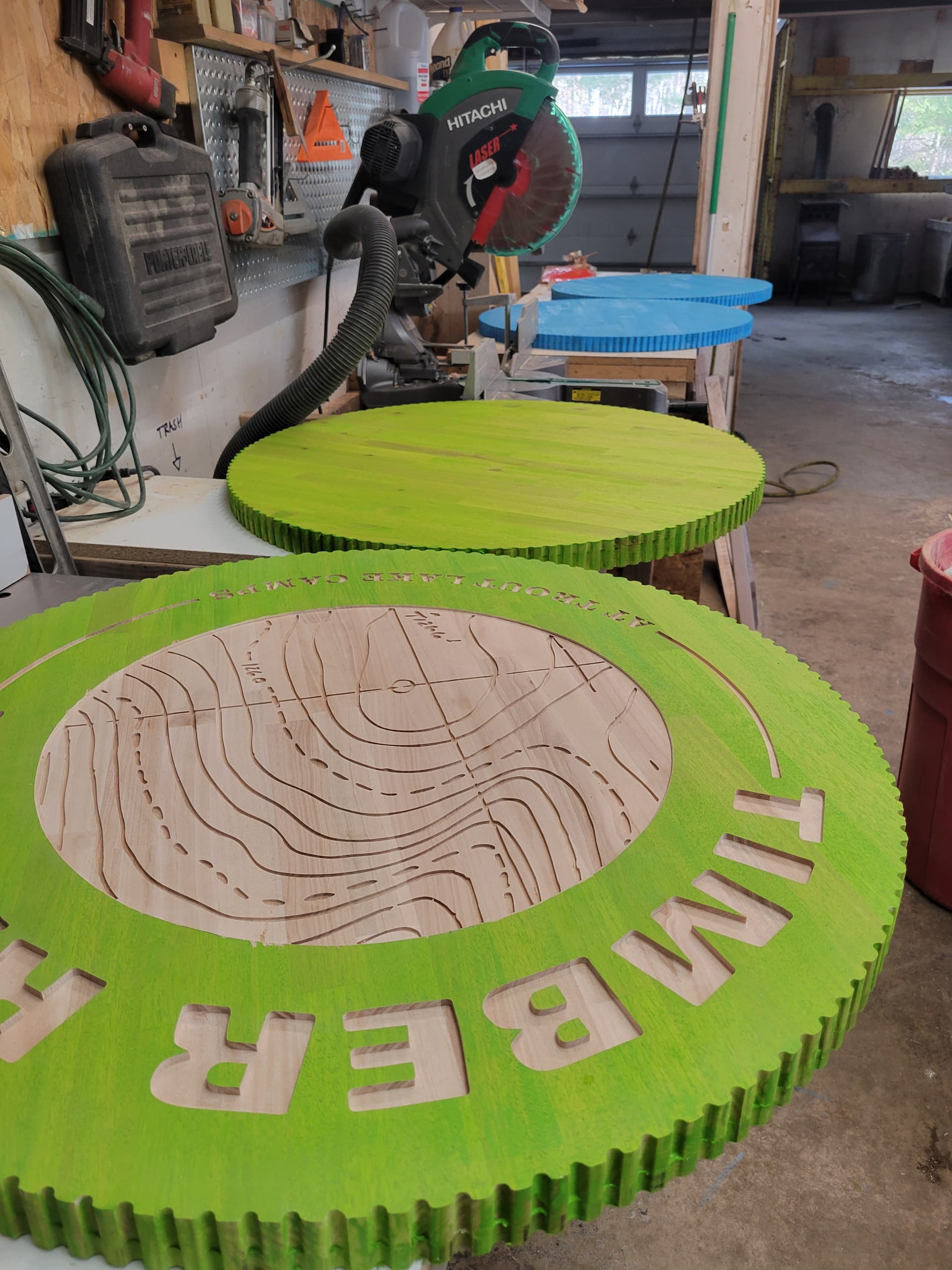

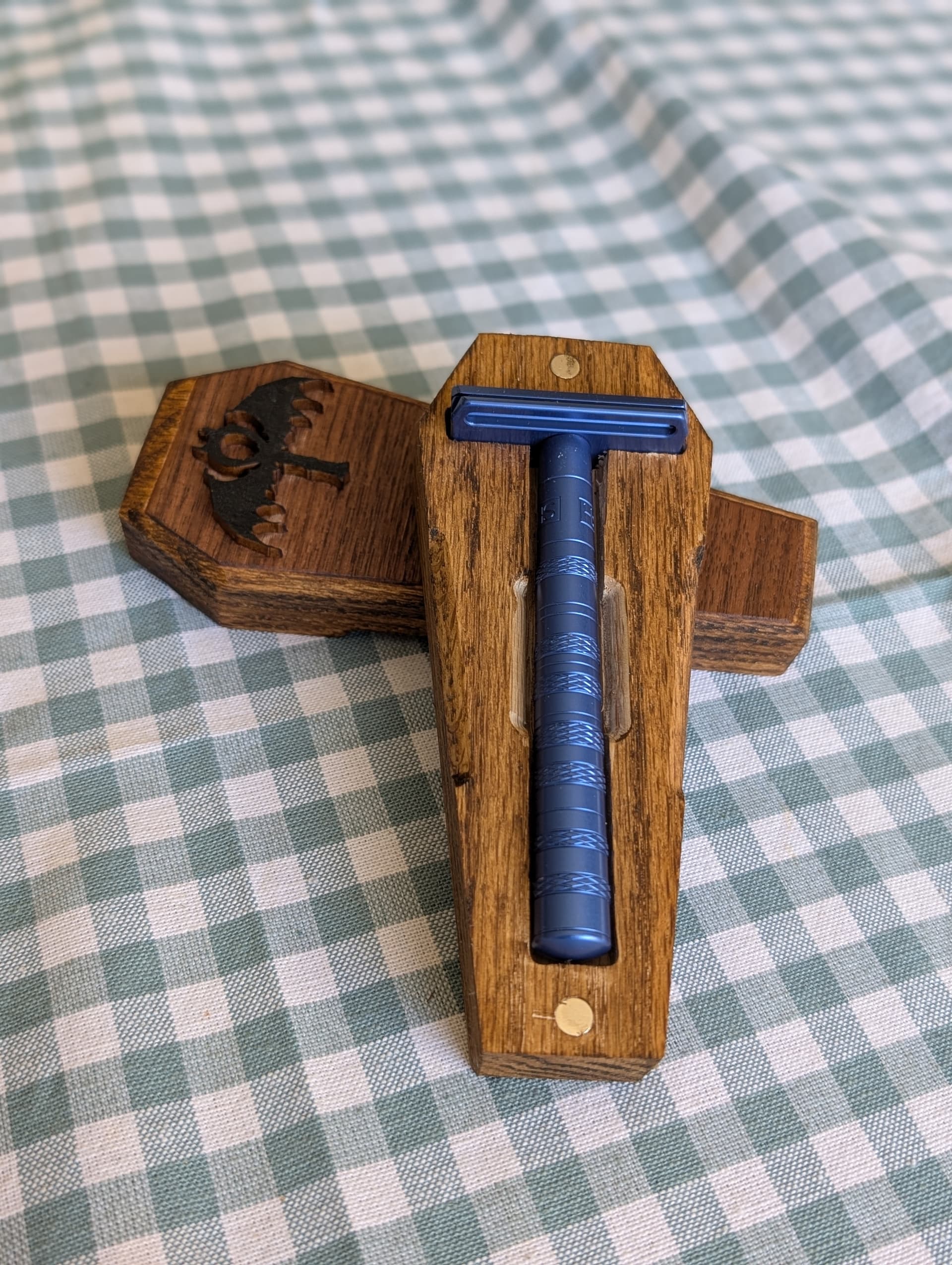

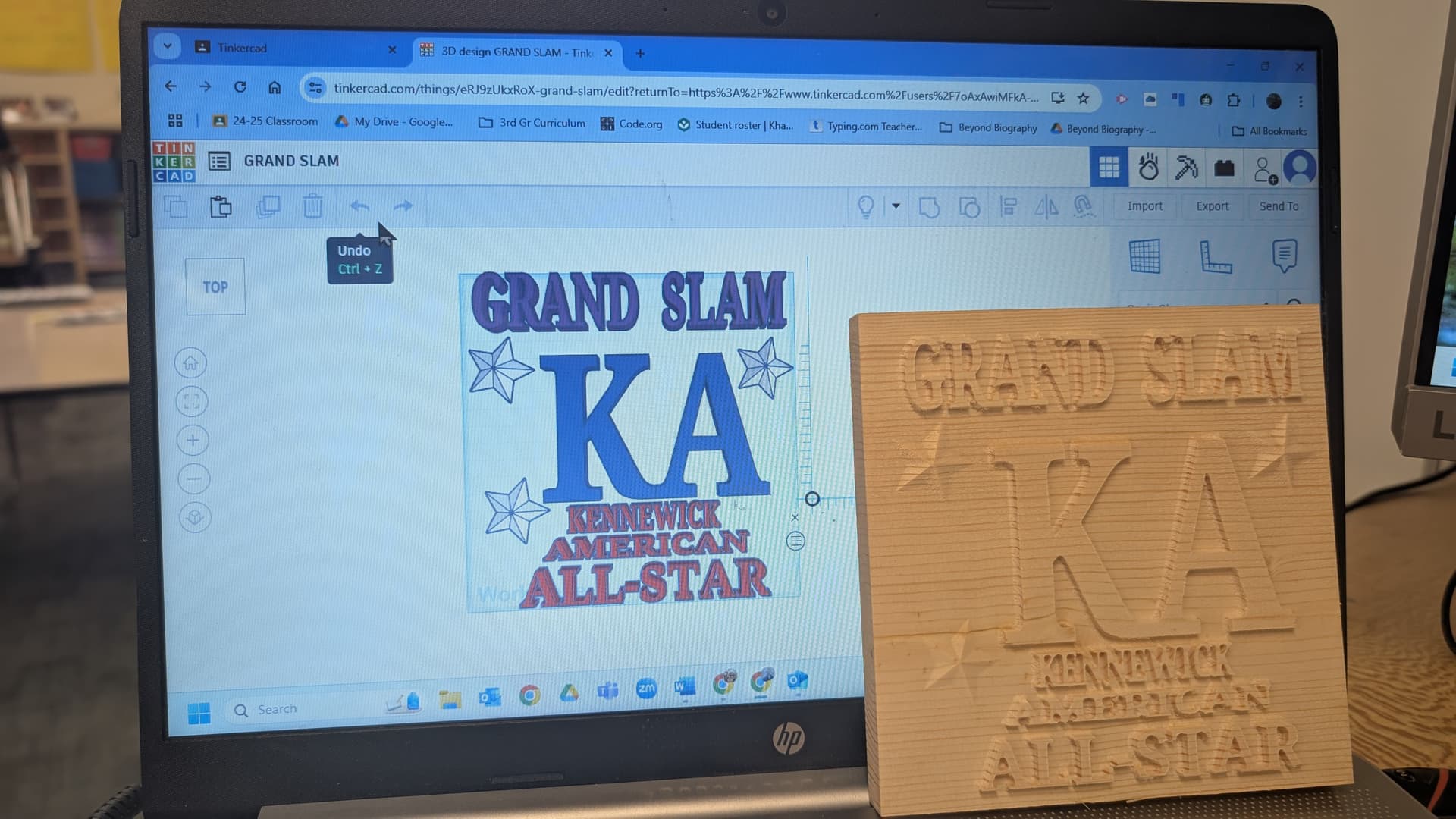

The method varies and gets more involved as I get feedback from trial runs. I’ll post separately on this later.
1 Like
looks like a pretty clean cut. What specific bit did you use? What DOC? any insights on how you took a coaster and got it to a CC file?

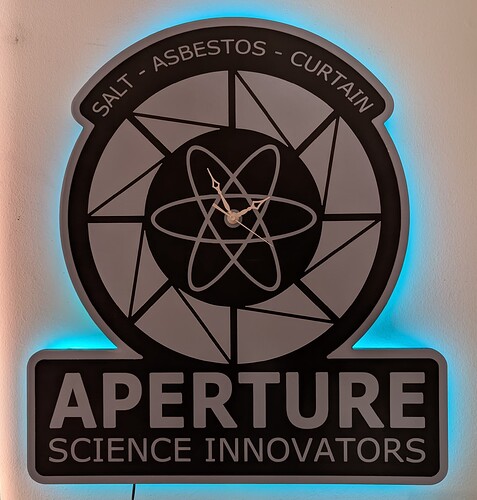

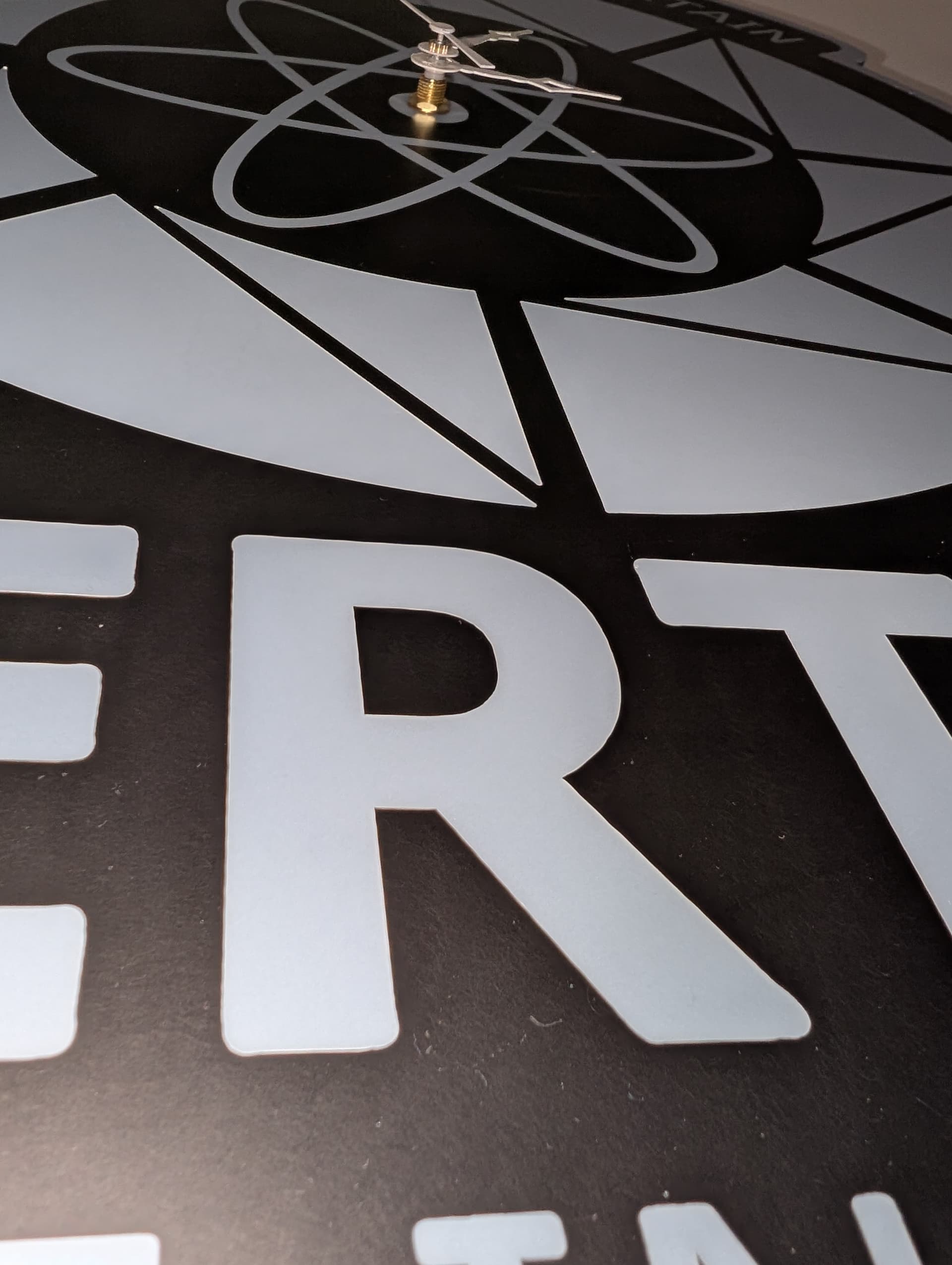

Nice project, can you elaborate on the “epoxy on mdf backer”? looks like white epoxy I pour on the mdf but its hard to see in the lower light. The led backlight is really nice.
1 Like
I used MDF and cut an offset of the full shape, then filled it with the black epoxy. After that cured, I cut the pockets for the grey fill, out of the black.
5 Likes
Hey Logan, It’s a contour cut with a 30° V bit, 1.5mm DOC. I scanned the coaster on my everyday printer/scanner then traced the file in CC. I had to do some node editing and deleting due to the fine details of the design where vectors when cut would cut over each other and the design would get distorted, but that worked out pretty good.

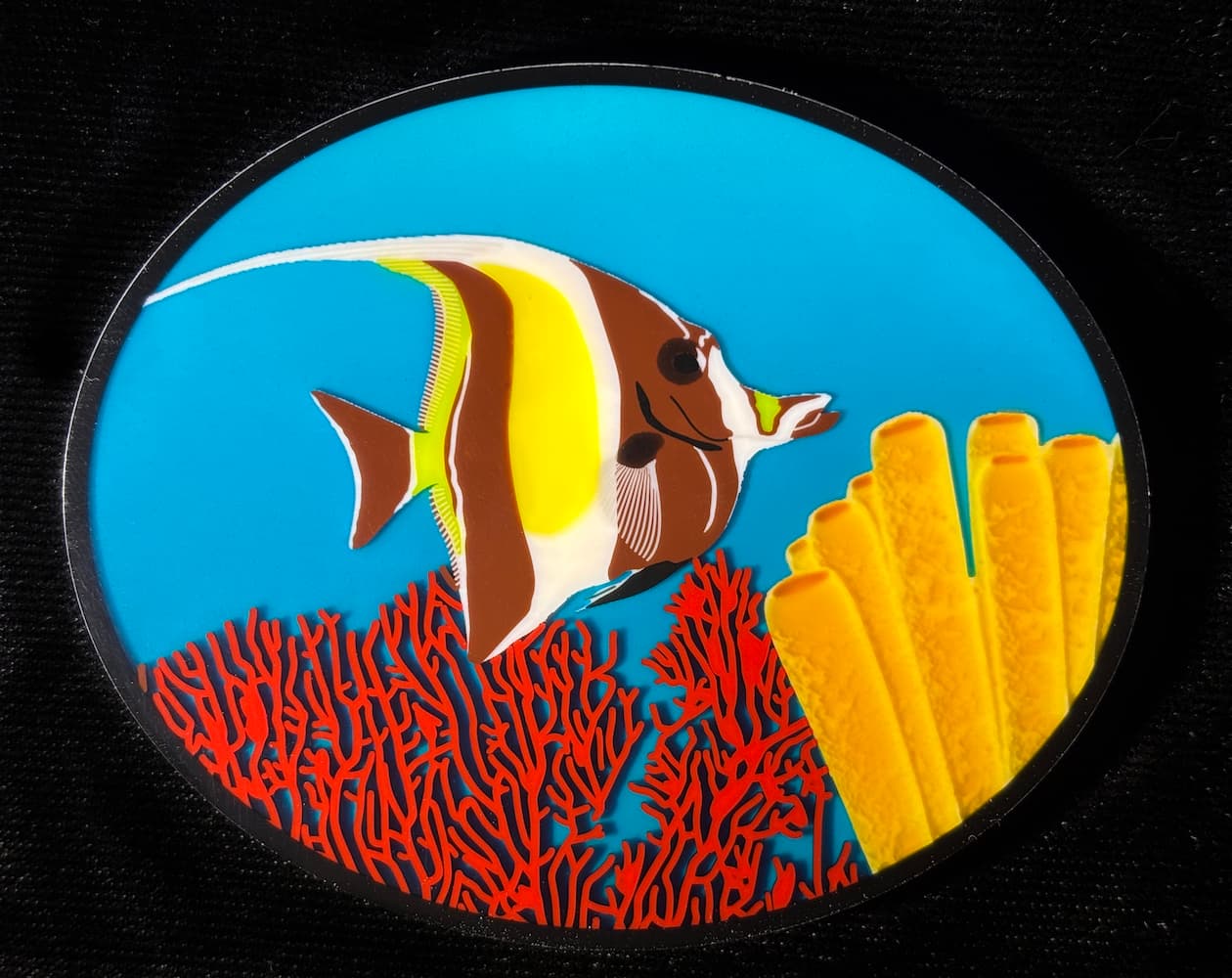

A Moorish Idol from a photo I took in Palau:
Same process as described for the ClownFish earlier. The gradation in the water is due to a ramped carving ranging from 2 mm deep at the bottom to about 1 mm deep at the top.

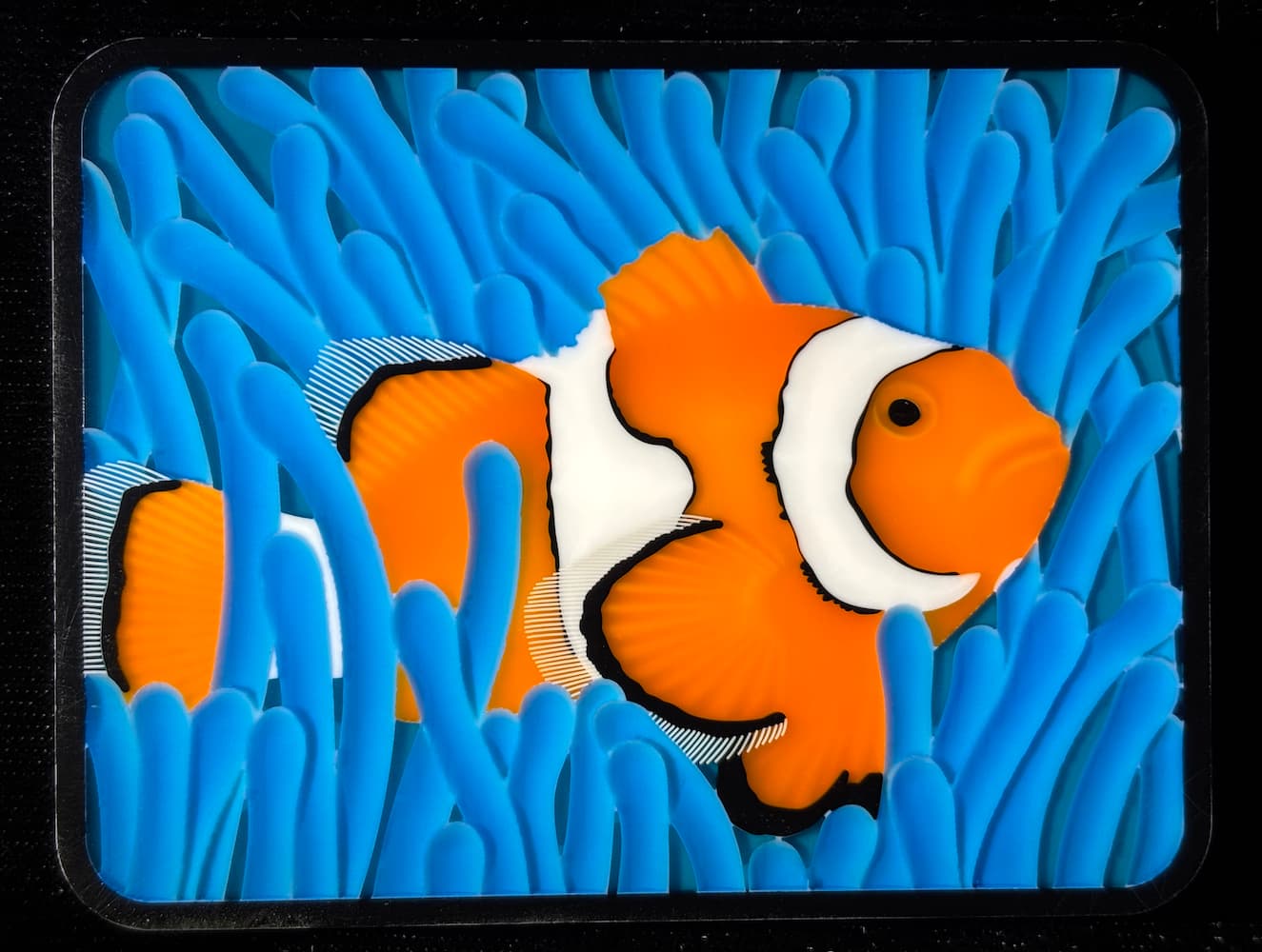

The ClownFish again with a single light to the side. The anemone, as well as the sponge in the MoorishIdol, “move around” when the light source changes.
11 Likes

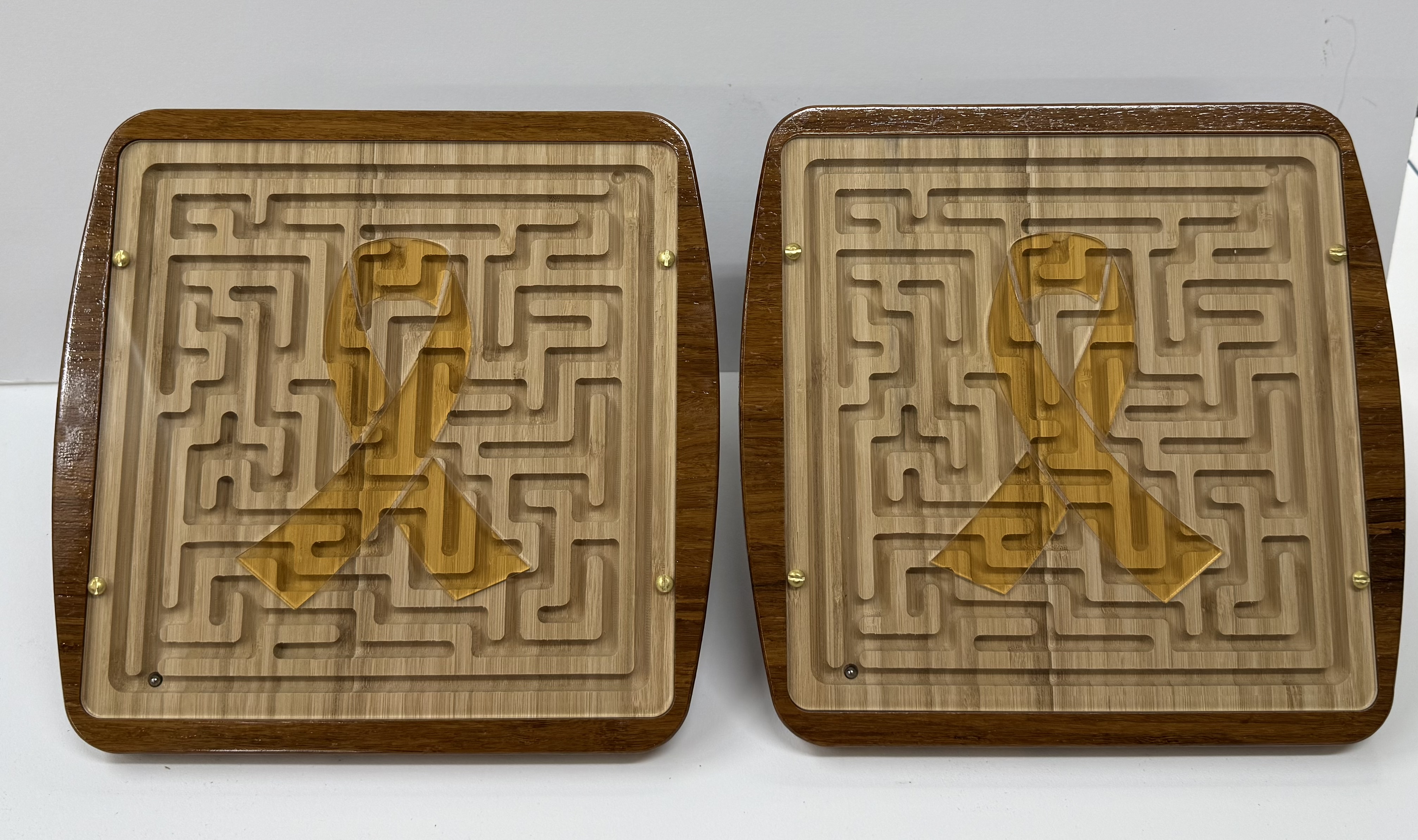

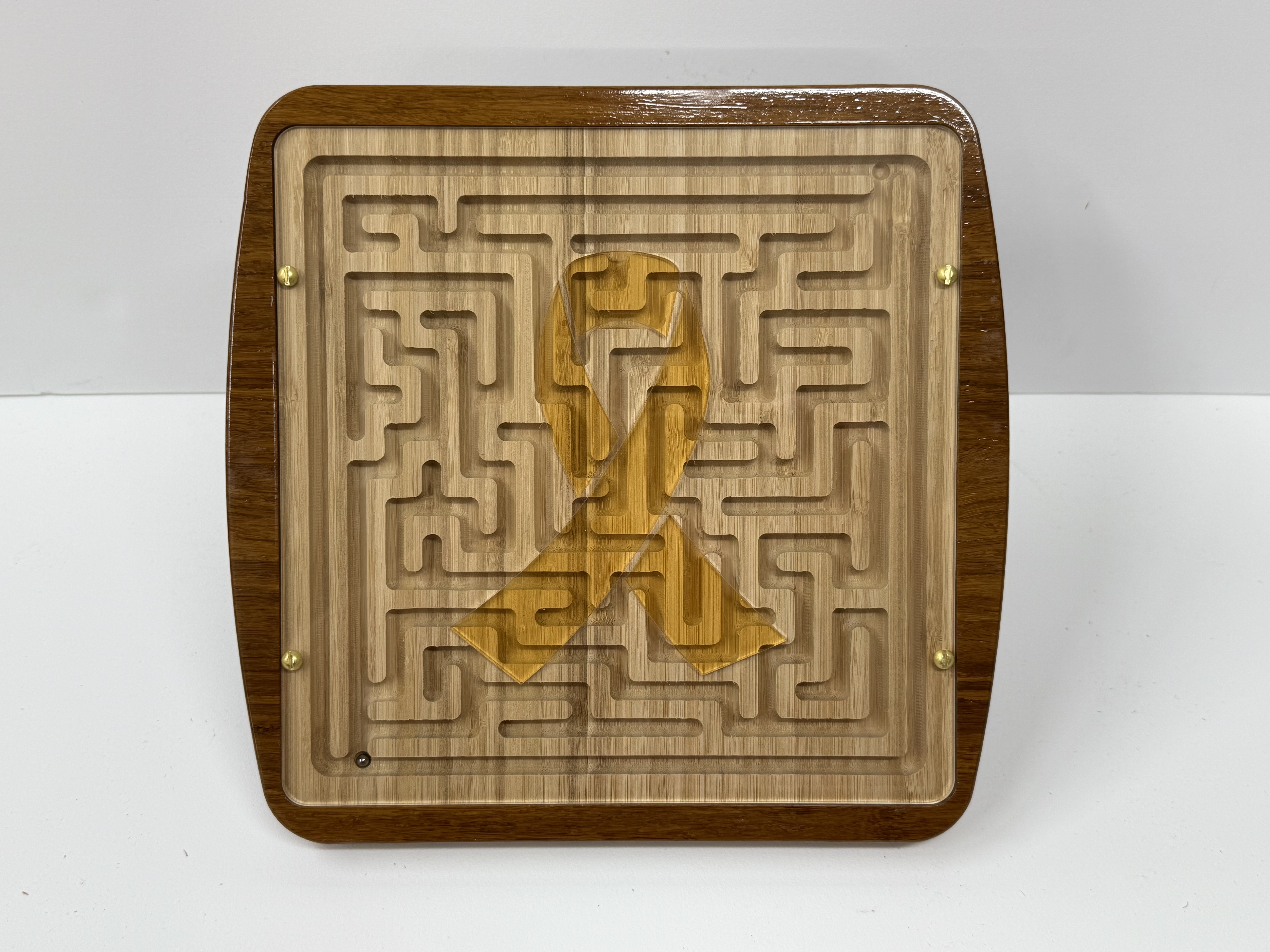

I created a couple of marble mazes from IDC Woodcraft on my CNC but used my XTool P2S laser for the acrylic cover and inlay. These are being donated to a school event for a silent auction to benefit Cure for childhood cancer. The Cure ribbon color for that is gold so I ordered translucent gold acrylic. The effect is a little more subtle than I had planned but it still works.
I cut the ribbon without any kerf offset specified. When doing the clear piece I selected the same vectors and used a -.18mm kerf offset. It’s a very snug fit. No glue.
17 Likes
Beautiful work! Thanks for the reply.
1 Like
I had no idea what an Xtool P2S is … Nice toy … I mean tool !
It’s a little of both. I have been making mugs, plaques and most recently baseballs trying to have it pay for itself.
Doesn’t have the same footprint capabilities as a JTech attachment on the CNC, but it has a lot of other nice features. One of which is being able to map a curved surface and then laser to the curve. It would be cool if you could export that mapped surface but that is not available yet.
I just read a review on the Xtool which seemed balanced. Hmmmm …
Do you have some of the accessories ? It sounds like you have the rotary one.
I’ll DM you so as not to flood this thread.
1 Like

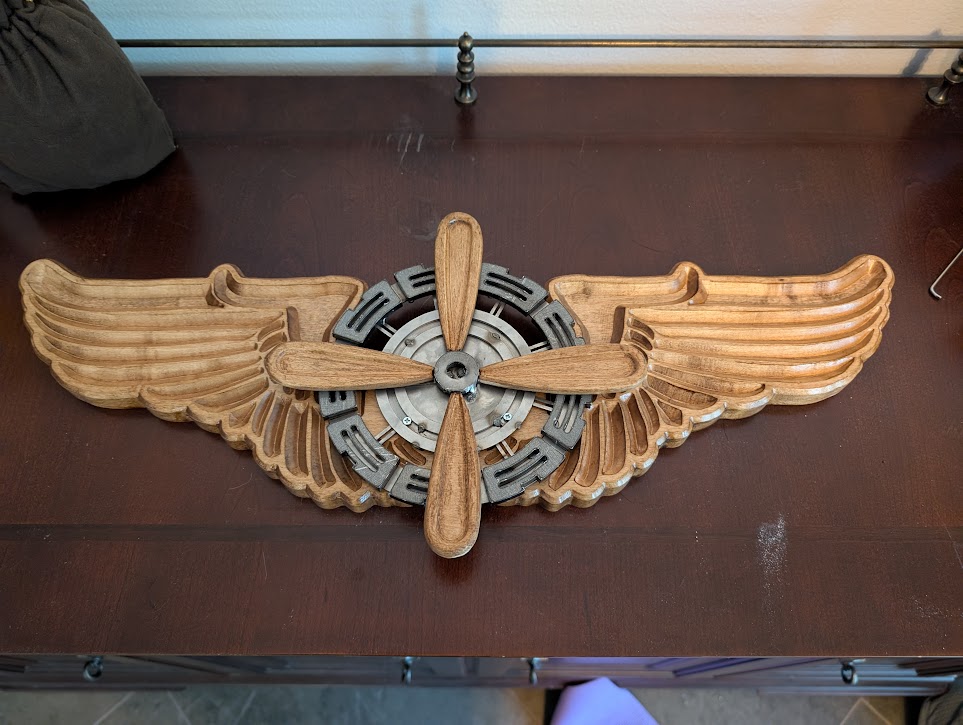

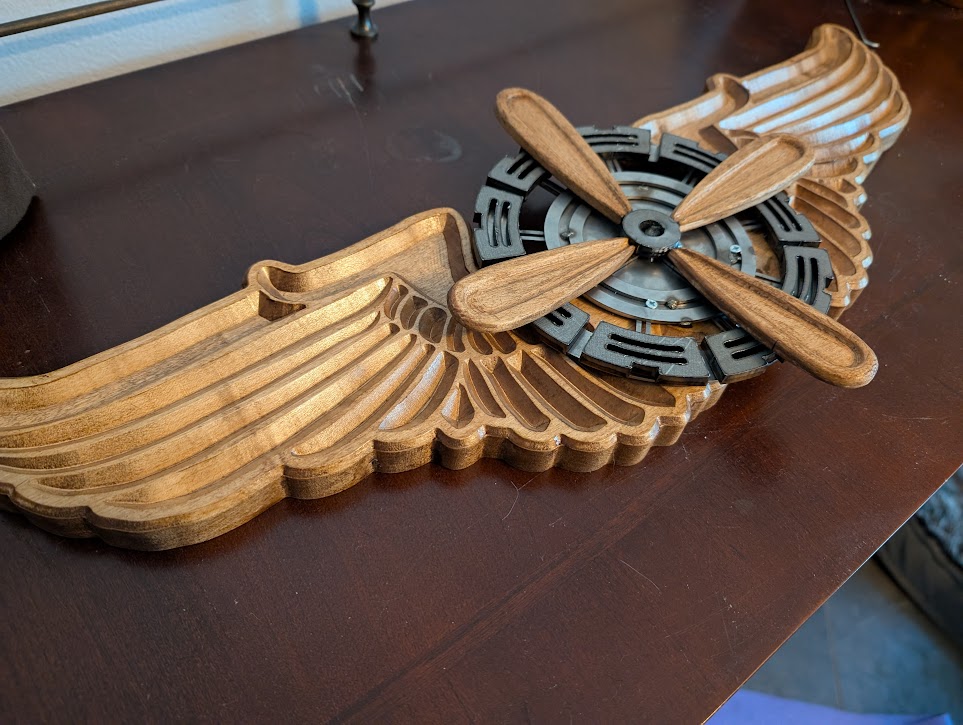

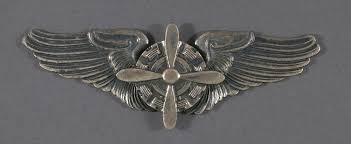

Flight engineer wings that I designed based on a ~2 inch cast uniform clip on. Had to take some artistic liberties to make it look good scaled up. 24 inches total width, maple board, vee cutter on Shapeoko 5.
Steel was laser cut with sendcutsend because the price was good enough to make me focus on the wood.
37 Likes
Very nice. When I saw the picture I instantly recognized the wings. You did a good job and will make someone very proud. It is so nice when a plan comes together. Keep them Flying
1 Like

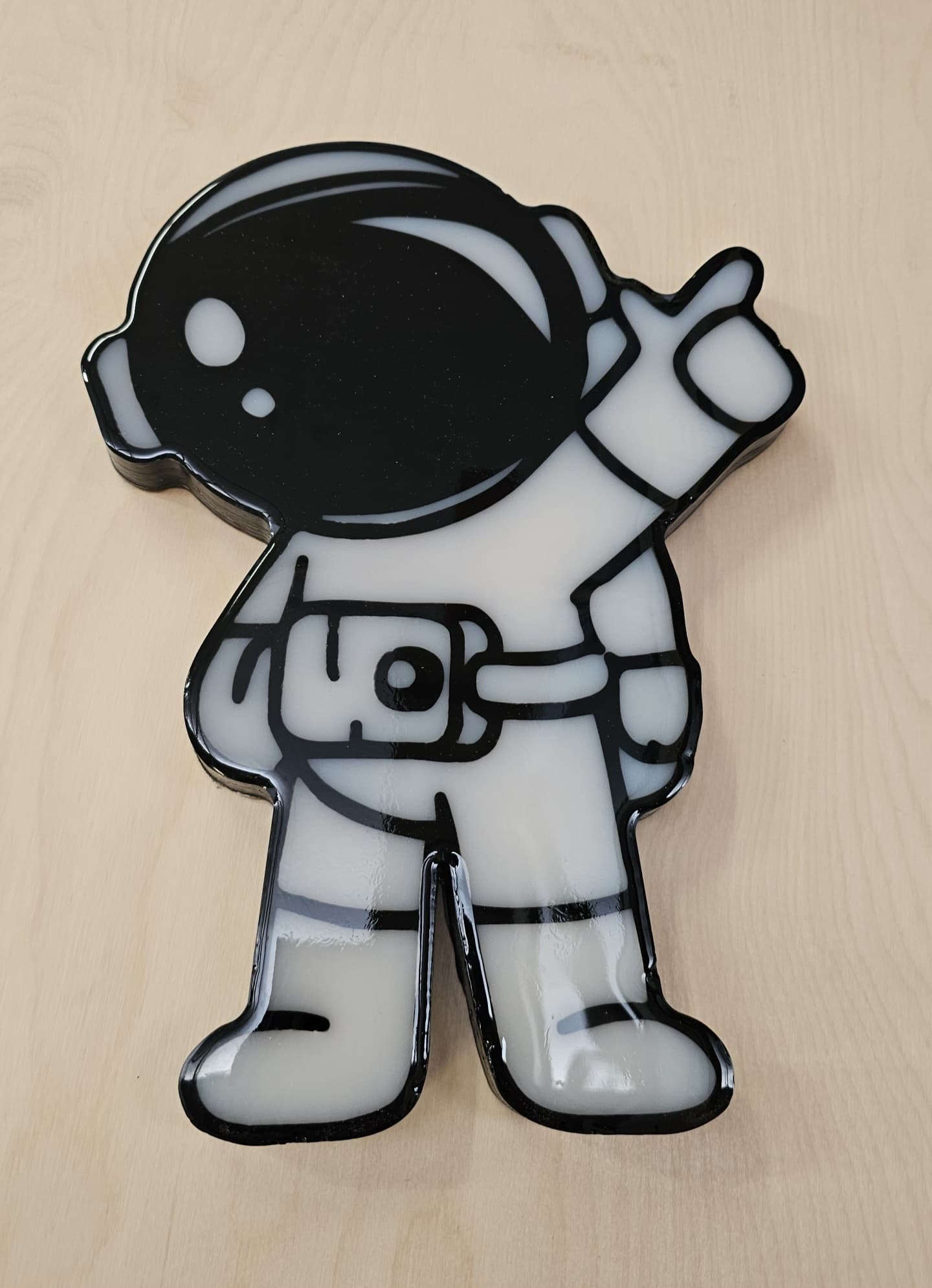

Space is a hot topic right now. With the ISS crew back on terra firma space travel is all over the news. Nice looking project. What is the size of your astronaut?
The astronaut is ~12" x 9"
